System Sensor PSP1 User manual

D770-15-00 1 I56-0984-005R
PSP1 Plug-in Special Purpose
Supervisory Switch
U. S. Patent Number: 6,037,867
INSTALLATION AND MAINTENANCE INSTRUCTIONS
Specifications
Dimensions: 4.73″ L x 2.94″ W x 2.21″ D (12 cm L x 7.5 cm W x 5.6 cm D)
With bracket – 8.5″ L (21.5 cm L)
Weight: 1.7 lbs. (.774kg)
Enclosure Rating: Cast-aluminum rain-tight outlet box, Indoor/Outdoor NEMA 3
Tamper Protection: Cover tamper switch and tamper-proof cover screws
Operating Voltage: 6/12/24 volts AC/DC
Maximum Operating Current: 250 mA
Operating Temperature: –4˚ F to 149˚ F (–20˚ C to 65˚ C)
Important
Please Read Carefully and Save
This instruction manual contains important information
about the installation and operation of this supervisory
switch. This manual should be left with the owner/user of
this equipment.
General Information
The unit is intended for supervision of non-rising stem
gate valves and other valves that cannot be monitored
by conventional supervisory switches. Turning the valve
wheel will pull the plug out of the jack and close a set of
normally open contacts. A lockout will prevent reinsertion
and require removal of the cover. Tamperproof screws are
provided for the cover. Removal of cover, or cutting of cord
or ground faults will cause an open circuit. The device
should be wired to the trouble circuit of a fire alarm con-
trol panel.
Installation
1. Choose a location near the valve (safe from flooding)
and mount the bracket to the wall.
2. Rotate the box on the bracket until the plug faces the
valve. The plug must also point downward. Tighten the
locknut on the pivot.
3. Turn the valve to the full-open position. Insert the plug
into the jack. Tightly loop the 8-ft. waterproof cable
through the valve wheel and back into the box through
the cable clamp. Close valve to check that plug pulls out
and then turn valve back to full-open position. Cut the
cord to the minimum length required to make the con-
nections within the box.
4. For all exterior applications, use 1/2″ NPT, listed liquid-
tight conduit connectors.
5. Wire the device as per the circuit diagrams shown (see
Figures 2-5). Trim the unused black wire flush with the
cable casing and cap the red wire of the cover tamper
switch.
6. If a longer cable is required, use SJOW A 18-2, two con-
ductor 18-gauge stranded rubber-jacketed cable.
7. Using the adhesive pad and wire tie provided, dress the
wires away from the lock-out mechanism.
8. When installing the cover, make sure the O-rings are in
place on the cover screws beneath the cover.

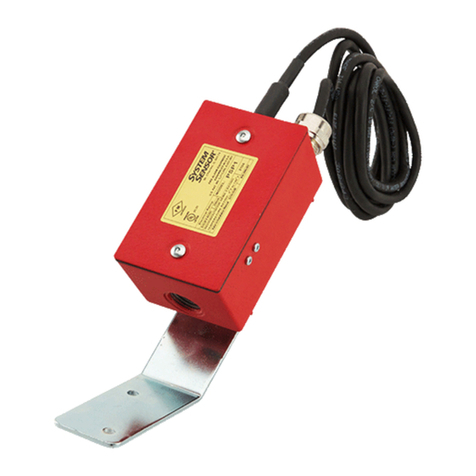

Figure 1. PSP1:
3825 Ohio Avenue, St. Charles, Illinois 60174
1-800-SENSOR2, FAX: [phone]
www.systemsensor.com

As stipulated by Factory Mutual and Underwriter’s
Laboratories, this unit is not intended or designed for
ordinary usage. It is a special application device to be used
for unusual conditions where no other approved or listed
method of protection is available or practical, such as non-
rising stem gate valves.
As this unit does not meet NFPA codes and standards
(requiring restoration of the signal when the valve is posi-
tioned to normal), special attention should be given by
the responsible parties to assure that the proper operation
of this device is maintained. This device should only be
restored to normal when the valve is in normal condition.
D770-15-00 2 I56-0984-005R
Figure 2. Single device Class B:
Figure 3. Multiple devices Class B:
WARNING
















































































W0163-00
W0164-00

D770-15 -00 3 I56-0984-005R
Figure 4. Single device Class A:
Figure 5. Multiple devices Class A:






























































































W0165-00
W0166-00

D770-15-00 4 I56-0984-005R
©2004 System Sensor
System Sensor warrants its enclosed supervisory switch to be free from
defects in materials and workmanship under normal use and service for a
period of three years from date of manufacture. System Sensor makes no
other express warranty for this supervisory switch. No agent, representa-
tive, dealer, or employee of the Company has the authority to increase
or alter the obligations or limitations of this Warranty. The Company’s
obligation of this Warranty shall be limited to the repair or replacement
of any part of the supervisory switch which is found to be defective in
materials or workmanship under normal use and service during the three
year period commencing with the date of manufacture. After phoning
System Sensor’s toll free number 800-SENSOR2 (736-7672) for a Return
Authorization number, send defective units postage prepaid to: System
Sensor, Return Department, RA #__________, 3825 Ohio Avenue, St.
Please refer to insert for the Limitations of Fire Alarm Systems
1. Alarms generated by the actuation of the activation cord
may not be received by a central station if telephone or
other communication lines to the device are out of ser-
vice, disabled, or open.
2. Supervisory switch alarm devices have a normal service
life of 10-15 years.
WARNING
The Limitations of Supervisory Switch Alarm Devices
3. Supervisory switches are not a substitute for insurance.
Building owners should always insure property and lives
being protected.
Charles, IL 60174. Please include a note describing the malfunction and
suspected cause of failure. The Company shall not be obligated to repair
or replace units which are found to be defective because of damage,
unreasonable use, modifications, or alterations occurring after the date
of manufacture. In no case shall the Company be liable for any conse-
quential or incidental damages for breach of this or any other Warranty,
expressed or implied whatsoever, even if the loss or damage is caused by
the Company’s negligence or fault. Some states do not allow the exclu-
sion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. This Warranty gives you
specific legal rights, and you may also have other rights which vary from
state to state.
Three-Year Limited Warranty
