Assembly Instructions
Gazebo GZ584

of 182
www.stcny.com
Introduction
Thank you for purchasing the Gazebo GZ584.
When properly assembled and maintained, this gazebo will provide many years of enjoyment!
These instructions include helpful hints and important information needed to safely assemble and properly
maintain the gazebo. Please read these instructions completely before you begin.
Our patented gazebo has been designed for easy assembly. All steps can be completed by a team of
two people. The assembly should take about two hours.
Before Starting Assembly:
CAREFULLY READ ALL THE INSTRUCTIONS BEFORE YOU BEGIN AND FOLLOW THE
STEPS IN THE ORDER THEY ARE PRESENTED.
1.Make sure you have all the necessary parts:
Compare the contents of the two cartons to the List of Parts. If any parts are missing or damaged, or
you have any questions, please contact Customer service: (877)782 4482 before beginning assembly.
2.Lay the parts out in separate staging areas:
The List of Parts has the corresponding step number referenced to each part. We recommend that
while you go through the list, make staging areas for each step and place the parts necessary for
each step in these areas. This will save you time and effort during assembly.
3.Select a Location:
When selecting a location for your gazebo, a flat level area is essential and if possible with proper
water drainage and easy access to power and water, if neccessary.
Choose a sunny, level position away from overhanging trees and power lines and protected from the
wind as much as possible. Locate underground pipes or cables before preparing the site or anchoring
the gazebo.
Note: You may assemble the gazebo on a hard level surface and move it to its final location when
finished. Make sure that there are no obstacles between the assembly area and the final position.
4. Prepare a Foundation:
After choosing a location, proper preparation of the site is recommended. The site must be level.
If the site is not level, create a base slightly larger than the outside dimensions of the gazebo using a
perimeter of two by fours filled with either soil, sod or gravel.
Make sure the base is square by measuring the diagonals from both directions and making sure
they are equal. The gazebo is secured with pegs into holes cast with concrete.
If you decide to have a concrete base, it is best to contact a reliable contractor to make sure it is flat
and level. Make sure you have checked with your local authorities regarding any required building
permits.
5. Make sure you have the proper tools:
• Tape Measure • 2 Small Step Ladders
• Work Gloves • Wooden Mallet
• Safety goggles • Scissors
• Phillips Screwdriver • Liquid soap or WD40 Lubricant
• Spirit Level • Hex Key (included)
NOTE: A cordless drill with Phillips head bit is highly recommended but not essential.

of 183
www.stcny.com
Safety Advice
•
The gazebo must be positioned and fixed
on a flat level surface.
•
Dispose of all plastic bags safely. Keep
them out of the reach of children.
•
Keep children and pets away from the
assembly area until the work is completed.
•
Always wear shoes, gloves and safety
goggles when working.
•
Take special care not to touch overhead
power lines with the aluminium profiles.
•
Do not attempt to assemble the gazebo in
windy or wet conditions.
•
Do not position your gazebo in an area
exposed to excessive wind.
•
If using power tools or a ladder, always fol-
low the manufacturers safety instructions.
•
Hot items such as recently used grills,
blowtorches etc. must not be stored in the
gazebo.
•
Make sure the gazebo complies with local
building codes.
General Order of Assembly
Step 1 Assembling the Corner Profile
Step 2 Assembling the Roof Profiles
Step 3 Attaching the Roof Profiles to Corner Profile
Step 4 Attaching the Roof Connectors
Step 5 Attaching the Corner Roof Gables
Step 6 Attaching the Center Roof Gables
Step 7 Securing the Gazebo to the Ground
Step 8 Placing the Canopy
1
1
7
7
8
56
1
7
2
3
4
Table of Contents
Introduction.............................................. 2
Table of Contents...................................... 3
List of Parts............................................... 4
Step 1 Assembling the Corner Profiles......... 6
Step 2 Assembling the Roof Profiles............. 7
Step 3
Attaching the Roof Profiles to Corner Profiles
.. 8
Step 4 Attaching the Roof Connectors............ 9
Step 5 Attaching the Corner Roof Gables....... 10
Step 6 Attaching the Center Roof Gables........ 14
Step 7 Securing the Gazebo to the Ground.... 15
Step 8
Placing the Canopy...............
.......... 15
Optional Securing the Gazebo to a
Concrete Floor or Wood Deck........................ 17

of 184
www.stcny.com
List of Parts
The gazebo is shipped in two cartons. These cartons are heavy. Be careful when lifting them.
Wear proper safety gear including work shoes, gloves and goggles.
The parts are identified by removable stickers.
Place all the parts for each step in staging areas, checking that you have all parts as you go.
If any parts are missing or damaged, contact STC customer service before beginning assembly:
Customer service: (877)782 4482
2100mm
1800mm
1600mm
No. Profile Qty
Step
14
1
22
2
32
2
42
2
52
2
64
5
72
6
82
6
No. Profile Qty
Step
91
5
11 1
5
12 3
5
13 1
5
14 4
1
15 4
1
16 8
4
17 4
5,6
2200mm
1350mm

of 185
www.stcny.com
We included some extra screws and bolts for your convenience.
Fabric canopy top
Fabric canopy
No. Profile Qty
Step
24 12
7
25 12
26 1
27 1
28 1
No. Profile Qty
Step
18 1
8
19 1
8
20 8
21 28
22 32
23 8

of 186
www.stcny.com
x 4
x 4
Corner prole (1)
x 4 Corner prole
cover (15)
x 4
Support plate (14)
x 4
Screw (21)
x 12
1
1 1 1 1
1
1
14
14 14 14 14
14
15
21
21
21
1.A
1.B 1.C
Assembling the Corner Profiles
Place all the parts on a level surface
.
Make sure the pieces are in the correct positions before assembling.
Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.
Place corner profiles (1) parallel to each other
on the ground. Slide support plates (14) into
corner profiles from the end with a single
screw hole, as shown.
Fasten each plate to profile using
three screws (21).
Insert corner profile covers (15)
into top ends of corner profiles (1)
as shown.
STEP 1
Components
x 4

of 187
www.stcny.com
Roof prole (4)
x 2
Roof prole (5)
x 2

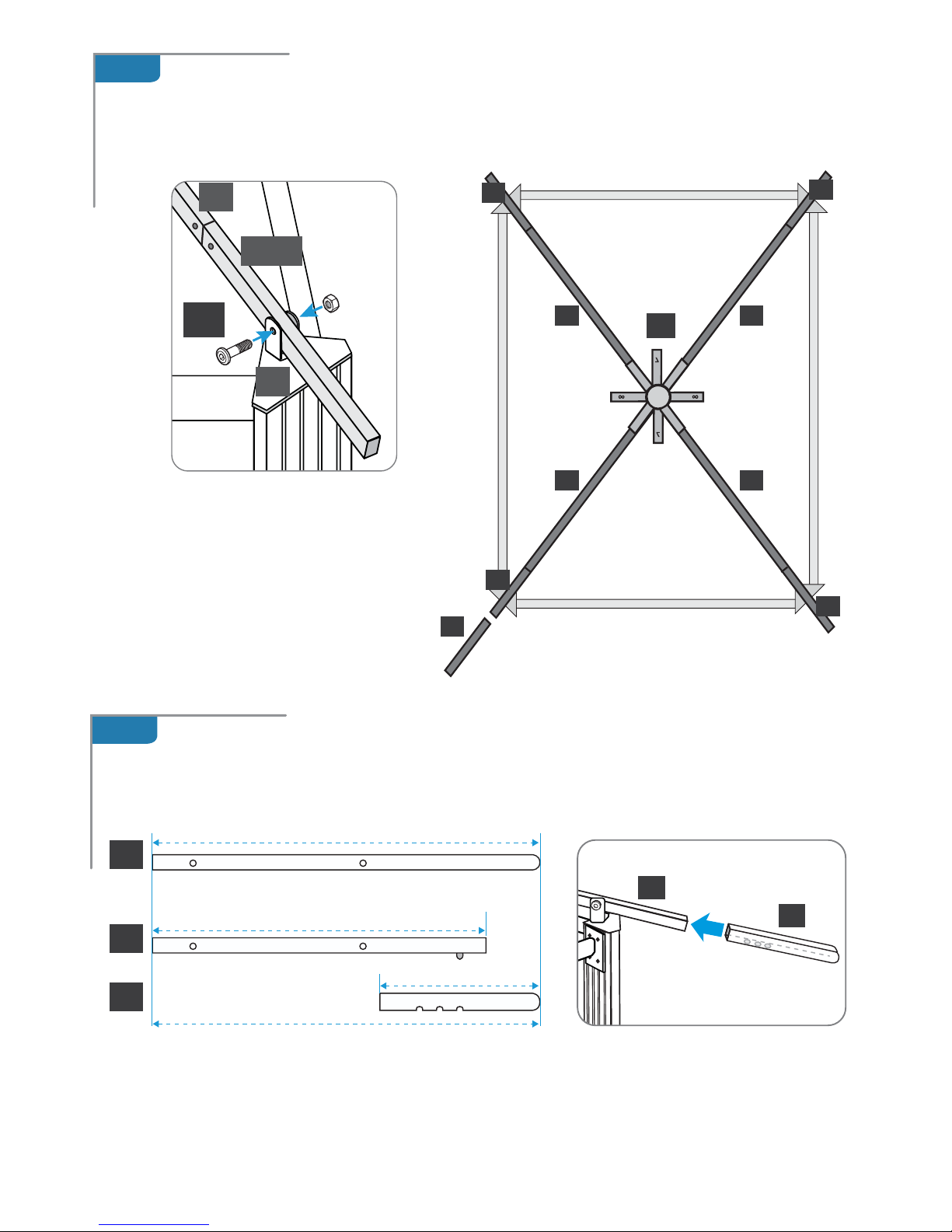

2.A
2.B
Assembling the Roof Profiles
Place all the parts on a level surface. Make sure the pieces are in the correct positions
before assembling. Carefully follow the order of assembly to ensure an easy installation.
Wear proper safety gear including work shoes, gloves and goggles.
Insert end of long roof profile (2)
into long roof profile (3) as shown.
Fasten with screws (20).
Repeat to make two sets.
Insert end of short roof profile (4) into short roof profile (5) as shown. Fasten with screws (20).
Repeat to make two sets.
STEP 2
Components
Roof prole (2)
x 2
Roof prole (3)
x 2 Screw (20)
x 8
2
3
5
3
3
20
20
2
4
45
2
x 2
x 2

of 188
www.stcny.com
Screw (22)
x 32
Components
3
3
2
2

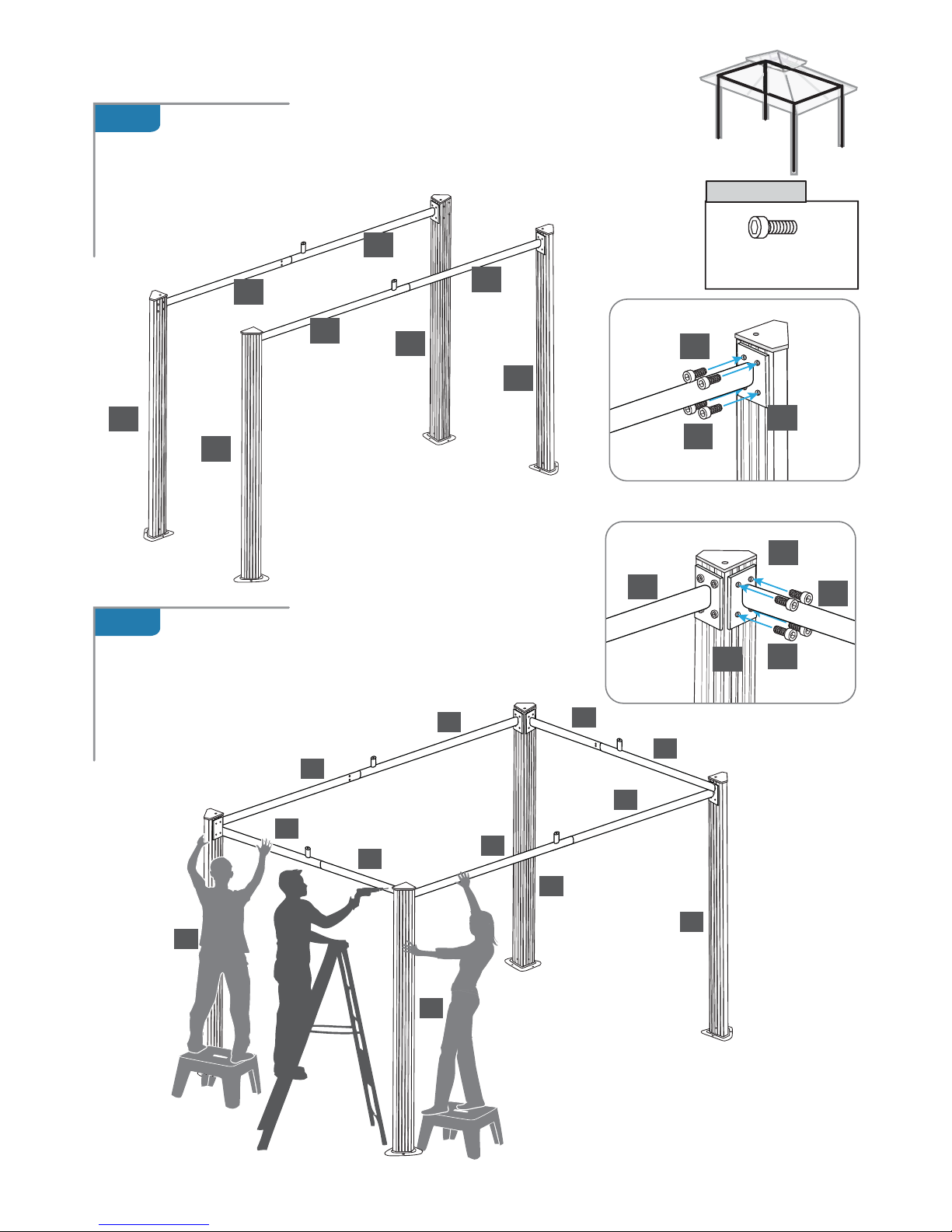

3.A
3.B
Attach long roof profile sets (2,3) to corner profiles (1) as shown.
Fasten with bolts (22).
Repeat to make two sets.
Attach short roof profile sets (4,5) to corner profiles (1)
as shown.
Fasten with bolts (22).
22
22
22
22
1
1
1
1
1
1
1
1
1
1
4
4
5
5
5
2
3
3
2
2
STEP 3
Attaching Roof Profiles to Corner Profiles

of 189
www.stcny.com
Components
Bolt (21)
x 8
Roof Connector (16)
x 8
2
2
2
5
5
1
15
4.A
Attaching the Roof Connectors
to Roof and Corner Profiles
Attach roof connectors (16) to corner profile covers (15)
and roof profiles (2) and (4) as shown.
Fasten with bolts (21).
STEP 4
21
21
21
21
21
21
21
21
21
16
21
16
16
16 16
16
16
16
16
IMPORTANT: After this step you should place the gazebo frame in its desired location.
Make sure all corners are squared at 90 degrees.
IMPORTANT: After this step you should place the gazebo frame in its desired location.
Make sure all corners are squared at 90 degrees.

of 1810
www.stcny.com
Bolt (21)
x 8
11
12
Top gable
connector
(13)
x 1
Roof gable connector (17)
x 4
Roof gable prole (6)
x 4
Roof gable extension (12)
x 3
Roof gable extension (11)
x 1
Roof gable extension (9)
x 1
6
6
12 11
11
11
12
12
17
21
x 4
6
6
6
6
12
12
6
17
Bolt (23)
x 4
Attaching the Corner Roof Gables
STEP 5
Insert roof gable connectors (17) into long end of roof
gable profiles (6) and into three roof gable extensions
(12) and one roof gable extension (11), align drill holes
and fasten with bolts (21). Prepare four sets.
5.A
Components
IMPORTANT:
The roof gable profiles (6) have small protrusions (spring buttons) on
their underside. The end with the protrusions is connected to the top gable
connector (13). The roof gable extension (11) has a small protrusion underneath which
will snap into one of the holes in roof gable extension (9) while stretching the canopy.

of 1811
www.stcny.com
6
1212
613
13 66
6
6
12
1
6
12
12
13
23
23
23
Connect two roof gable profiles assemblies (6,12) to top gable connector
(13) until the small protrusion on their undersides snap into the holes on
the underside of top gable connector (13).
5.B
ATTENTION:
The tunnels of top gable
connector (13) are marked, in order to
avoid mistakes when inserting the roof
gable profiles.
Using at least two people, connect roof gable profile assembly
(13,6,12) to roof connectors (16) on opposite corner profiles (1).
Fasten with bolts (23) as shown.
5.C

of 1812
www.stcny.com
23
13
6
6
6
ATTENTION:
The tunnels
of top gable connector (13)
are marked, in order to avoid
mistakes when inserting the
roof gable profiles.
Using at least two people, slide the other two roof gable assemblies (6,12 - 6,11) into tunnels of
top gable connector (13) until the small protrusion on their undersides snap into the holes on the
underside of top gable connector (13).
5.D
13
6
6
6
11
12
12

of 1813
www.stcny.com
13
6
11
9
12
12
12
6
6
6
16
23
6
11/12
5.E
Connect the two roof gable profiles (6,12) and (6,11) to roof connectors (16) on opposite
corner profiles (1).
Fasten with bolts (23) as shown.
123
5.F
30.7”
30.7”
27.1”
11.4”
12
9
Slide roof gable extension (9) over roof gable extension (11) until the small protrusion on it’s
underside snaps into the third hole on the underside of roof gable extension (9).
11
9
11
NOTE: You will need to extend profile (9) outwards to stretch the roof canopy into its final position.

of 1814
www.stcny.com
13
7 8
13
8
8
7
7
6
Components
IMPORTANT: The roof gable profiles (7,8) have small protrusions (spring buttons)
underneath. The end with the protrusions is connected to the top gable connector (13).
Roof gable
prole (7)
x 2
Roof gable
prole (8)
x 2
Bolt (23)
x 4
13
8
7
8
7
23
23
23
Attaching the Center Roof Gables
STEP 6
Insert ends with push buttons of roof gable profiles
(7) on short side of the gazebo into marked tunnels of
top roof connector (13) as shown, until they snap into
place.
Repeat with roof gable profiles (8) on long side of the
gazebo.

of 1815
www.stcny.com
8
7
6
18
18
6
66
Placing the Canopy
STEP 8
8.A
WARNING!!: When inserting the roof profiles into the fabric pockets of the
canopy, you MUST use both hands holding the large piece of roof fabric in
order to stretch it. Don’t try to stretch it and pull it just by pulling the pockets!
It will tear the pockets as Sunbrella fabric is not elastic by nature.
Place the upper fabric canopy (18) carefully over the higher part of roof gable
profiles (6), stretch and slide profiles into fabric pockets.
Use TWO hands to pull the fabric backward until the roof profile slides
firmly into the pocket.
Components
Fabric Canopy (18)
x 1
Fabric Canopy (19)
x 1
VIEW FROM BELOW
Securing the Gazebo to the Ground
STEP 7
Components
24
24
24
1
14
ATTENTION:
For special instructions how to
secure
the gazebo to a concrete floor or wood
deck, please turn to page 17.
Fasten the gazebo frame to the ground, using three spikes (24) for each
support plate.
Ground spike (24)
x 12

of 1816
www.stcny.com
Using at least two people, place the large canopy (19) carefully over the small canopy
(18) and three roof gable profiles (6+12) as shown.
Stretch the canopy and slide profiles into fabric pockets in large canopy rim (19).
Use TWO hands to pull the fabric backward
until the roof profiles slide firmly
into the pockets.
19
1
8.B
To finish stretching the canopy, press the push button in
extension profile (11) and extend extension profile (9)
as far as possible to the outside until the push
button snaps into place.
Do
NOT
try to stretch and pull the roof fabric by
pulling the pocket only.
This will tear the pocket, as Sunbrella fabric is not
elastic by nature.
VIEWS FROM BELOW
9
9
11
11
8
8
8
19 19
19
19
18

of 1817
www.stcny.com
Securing the Gazebo to a
Concrete Floor or Wood Deck
Components
Concrete bolts, washers and nuts
(25)
x 12
Wood Bolts, washers x 12
NOT SUPPLIED
to be purchased by user
Optional
Concrete Floor:
1. Using an electric concrete drill, drill holes into the concrete floor,
corresponding to the holes in the support plates.
2.
Insert concrete bolts (25) into the holes and hammer into place, using a mallet.
3. Fasten concrete bolts with washers and nuts.
Wood Deck:
1. Using an electric wood drill, drill holes into the wood floor,
corresponding to the holes in the support plates.
2.
Insert wood screws with washers (not supplied) into the holes and fasten,
using an electric screw driver.
Enjoy your completed Gazebo!
1. 2. 3.

of 1818
www.stcny.com
Systems Trading Corporation
450 7th Avenue Suite 2809, New York, NY 10123
EasyGrow
8’x 12’ Greenhouse
Gazebo GZ584
Assembly Instructions
Visit: http://www.stcny.com
for more Lawn and Garden products
Table of contents
Popular Tent manuals by other brands

ShelterLogic
ShelterLogic 58432 Assembly & instruction manual

Tarasola
Tarasola Elegancy Use and maintenance manual

Skandika
Skandika Pitea Van Setup instructions

Coleman
Coleman Instant shelter Super Light Setup instructions

Jack Wolfskin
Jack Wolfskin grand illusion ii/ grand illusion iv manual

Palram
Palram CANOPIA SOPHIA 3x5 / 1x1.6 How to assemble

Sierra Designs
Sierra Designs Clip Flashlight 2 Pitching instructions

Vango
Vango Theta 300 Pitching instructions

Eureka
Eureka Lone Tree 3 Setup Instruction

Reynolds Building Systems
Reynolds Building Systems Best Barns USA Glenwood Assembly Book

BERGER
BERGER Sigma II Assembly instructions

Outdoor Connection
Outdoor Connection Easy Up 2 instructions
