T.I.P. SWEEP-N-CLEAN SW48-M Specifications

SW48-M
1
=T.I.P. Inc.=
SW48-M Sweep-N-Clean
Congratulations on your purchase of the T.I.P. SW48-M Sweep-N-Clean! You
can rest assured that you have one of the highest quality multi-purpose sweepers
on the market today. With proper care and maintenance, your Sweep-N-Clean
will provide you with years of reliable service. If you have any questions about
the Sweep-N-Clean, or any of our other turf care products, feel free to call us or
drop us a line. We would be delighted to serve you in the future. Thank you for
your patronage.
CONTENTS
Section Page
Table of Contents 1-2
Limited Warranty 3
General Information 4
Definitions 4
Application 5
Features 6
Switch Box 7
Safety 8
Safety Labels 8
Detailed Cautions 8-11
Set-Up 12
Connection to Tow Vehicle 12
Electrical Connection 12
Brush Height Adjustment 12-13
Engine/Drive Train 14
Operation 15
Check Before Use 15
Starting the Machine 15
Brush Operation 15
Hopper Operation 16
Transport 17
End of Day 17

SW48-M
2
Section Page
Maintenance 18
Lubrication/Maintenance Schedule 18
Cleaning 19
Repairs 19
Environment 20
Troubleshooting 21
Specifications 22
Wiring Diagram #1 23
Wiring Diagram #2 24
TP4001A Kit 25
Decal Placement 26
Parts:
Figure 1 27
Figure 2 28
Figure 3 29
Safety Decals 30
Warranty Registration Card 31

SW48-M
3
=T.I.P. Inc.=
Limited Warranty
T.I.P. Inc. warrants that the equipment it manufactures will be free from defects in
materials and workmanship for a period of one year from delivery date. This warranty is
extended to the Original Purchaser only, and is non-transferrable.
Should a defect in materials or workmanship be experienced within the warranty period,
T.I.P. Inc. shall, at its discretion, furnish F.O.B Custer, WI, new or remanufactured parts to
replace the non-conforming parts. T.I.P. Inc. shall not cover any labor costs incurred by the
purchaser to replace said parts.
This warranty is limited to new equipment, parts or accessories that are manufactured by
T.I.P. Inc., provided that the equipment is used and maintained according to the instructions in
the manual, and the Original Purchaser has completed, signed and returned the enclosed
Warranty Registration form to T.I.P. Inc. within 30 days after the delivery of said equipment.
This warranty does not apply to damage or deterioration to the equipment resulting from, but not
limited to; natural wear and tear, abuse of goods, presence of abrasives, chemical action,
improper installation, misuse, vandalism, or acts of God. This warranty does not apply to goods
manufactured by others, beyond the warranties stated by the manufacturers for those goods.
The limited warranty expressed hereunder, is exclusive, and T.I.P. Inc. makes no other
representations, warranties, or guarantees, neither expressed nor implied, as to merchantability or
the fitness of said equipment for any particular use or purpose, or that the equipment or
installation of equipment when placed into operation will comply with applicable national, state,
and local health and safety laws. T.I.P. Inc. shall not be liable for any consequential or indirect
damages including, but not limited to, loss of anticipated profits or production, increase of cost
of operation, loss due to spoilage of material, damage caused directly or indirectly to other
property or goods, or penalties or fines arising from non-compliance.

SW48-M
4
GENERAL INFORMATION
SW48-M SWEEP-N-CLEAN
Congratulations on your purchase of the T.I.P. SW48-M Sweep-N-Clean! You can rest assured
that you have one of the highest quality multi-purpose sweepers on the market today. With
proper care and maintenance, your Sweep-N-Clean will provide you with years of reliable
service.
This Operator's Manual should be available to all who will use or maintain the Sweep-N-Clean,
and should be kept wherever the machine is being utilized. All personnel working with or
performing service on the equipment shall read the manual and rigorously follow its instructions.
T.I.P. Inc. continuously strives to provide the best equipment and service available. As such,
T.I.P. Inc. reserves the right to make changes to products and to specifications and information
given in this Operator's Manual without any prior notification.
DEFINITIONS
Following are the definitions of some of the terms used in this manual.
Tow Vehicle: The Tractor, Cushman, Garden Tractor, A.T.V., or other
vehicle used to pull the Sweep-N-Clean.
Machine: The Sweep-N-Clean.
Machine Rear: The end of the machine where the Hopper is located.
Machine Front: The end of the machine where the Draw Bar for the tow vehicle is
located.
Operator: The person that will operate the equipment. The Operator will be
able to start and stop the machine, as well as check and supervise
its operation. It is the company's responsibility to ensure the
Operator is sufficiently trained.
Dangerous Areas: Areas in and around the Sweep-N-Clean where physical injuries
can be caused.

SW48-M
5
Maintenance Mechanic: The person who knows the entire Sweep-N-Clean, its function and
safety standards, who can adjust safety controls and provide the
machine's maintenance. It is the company's responsibility to ensure
the Maintenance Mechanic is sufficiently trained.
Safety Symbols: The Sweep-N-Clean has standardized safety
pictogram stickers in several places.
The upper part of the stickers warns against
a general or specific danger.
The lower part shows the kind of danger
the warning is referring to or
indicates what you should do.
APPLICATION
The Sweep-N-Clean is designed to pick up leaves, grass clippings, branches, and other debris
from all turf-type surfaces. The Sweep-N-Clean collects all picked up debris into an
incorporated hopper, which can be emptied from the seat of the tow vehicle via the electric 12
volt dump.
The Sweep-N-Clean is developed to work on land free from obstacles, such as stones, tree
stumps, heavy roots, or other hard objects. It is NOT appropriate to use the Sweep-N-Clean in
areas containing dangerous and/or chemical substances, explosive substances, or in areas where
dangerous and/or chemical substances have been mixed.
The Sweep-N-Clean shall be used for its developed purpose ONLY. Use in any way other than
described above will render the warranty and product liability void.
The Sweep-N-Clean may only be connected to a tow vehicle with sufficient power to operate it,
using the appropriate connecting pin with safety pin.

SW48-M
6
FEATURES
SW48-M SWEEP-N-CLEAN
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
1…Hopper 9…Electric Clutch 17…Transport Lever
2…Rear Wheel (x2) 10…Brush Frame 18… Belt Tension Spring
3…Hopper Linkage (x2) 11… Height Adjust. Screw (x2) 19… Rubber Apron
4…Hinge Point, Hopper 12…V-belt 20… Bogey Wheel (x2)
5…Actuator 13…Brush Adjustment Arm 21… Front Wheel
6…Main Frame 14…Belt Tension Arm 22…Drawbar
7…Hinge Point, Actuator Lever 15…Fuel Tank 23…Drawbar, Clevis
8… Actuator Lever, Hopper 16… Engine, Brush Drive
The SWEEP-N-CLEAN is provided with a gasoline engine (16) for driving the brush frame (10)
via the V-Belt (12).
By adjusting the tow speed, the brush speed, and the brush height, sweeping results can be
maximized.
The SWEEP-N-CLEAN has been developed to be pulled by a tow vehicle, connected at the
drawbar. (22)
The brush frame (10) can be switched on/off, and the hopper (1) can be opened/closed via a
switchbox that is placed near the driver's seat on the tow vehicle.
The rotation of the brush frame (10) is opposite the direction of travel of the machine, so the
swept debris are picked up and deposited into the hopper (1).
The topside of the hopper is perforated to allow the air stream to escape that is created by the
brush.
Figure 1

SW48-M
7
The height adjustment of the brush (more or less aggressive sweeping) is accomplished by the
Height Adjustment Screws (11).
The height of the Sweep-N-Clean can be moved to the transport position with the use of the lever
(17) and the transport locking pin.
The SW48-M is provided with a pair of Bogey Wheels (20) to prevent gouging of the ground
over rolling terrain.

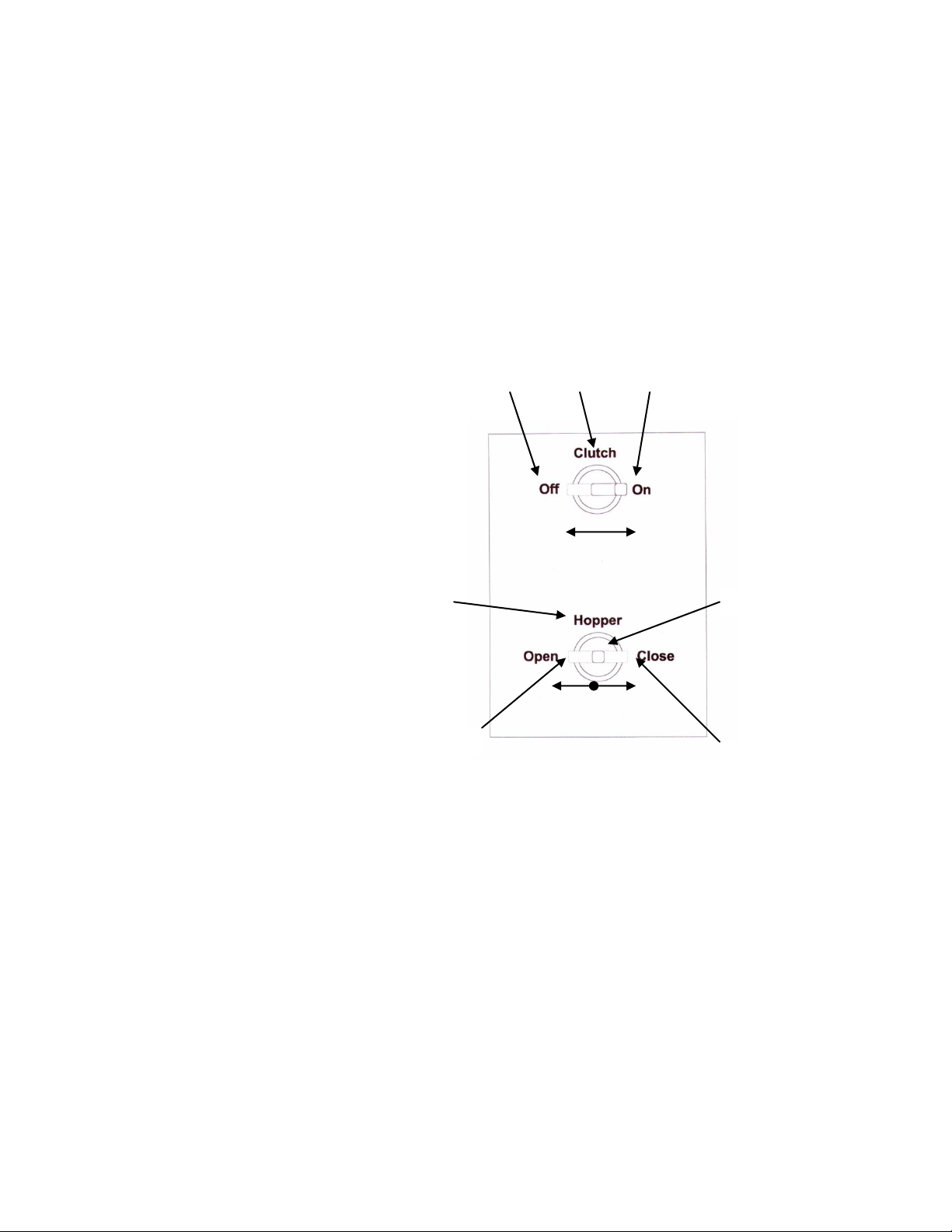

SWITCH BOX
Figure 2
CLUTCH
1…Off
2…Clutch
3…On
HOPPER
4…Hopper
5…Open
6…Stop
7…Close
1
2
3
4
5
6
7

SW48-M
8

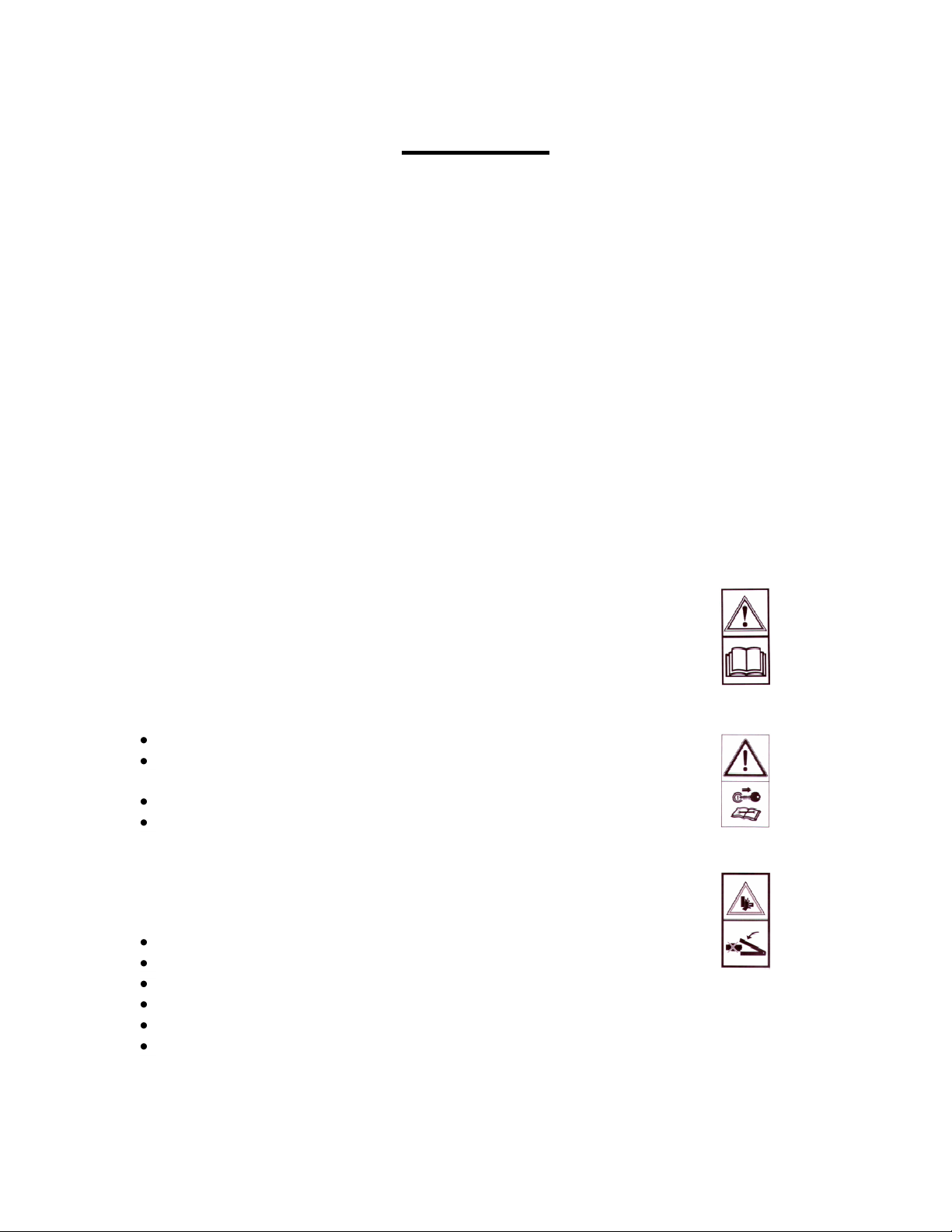

SAFETY
SW48-M SWEEP-N-CLEAN
UNDERSTAND AND FOLLOW SAFETY INFORMATION
ALL OPERATORS should read and understand all safety information and operating instructions
for the Sweep-N-Clean, and learn how to use the controls properly. DO NOT let anyone operate
without proper instruction. NEVER use the Sweep-N-Clean for any purpose other than what it is
designed for.

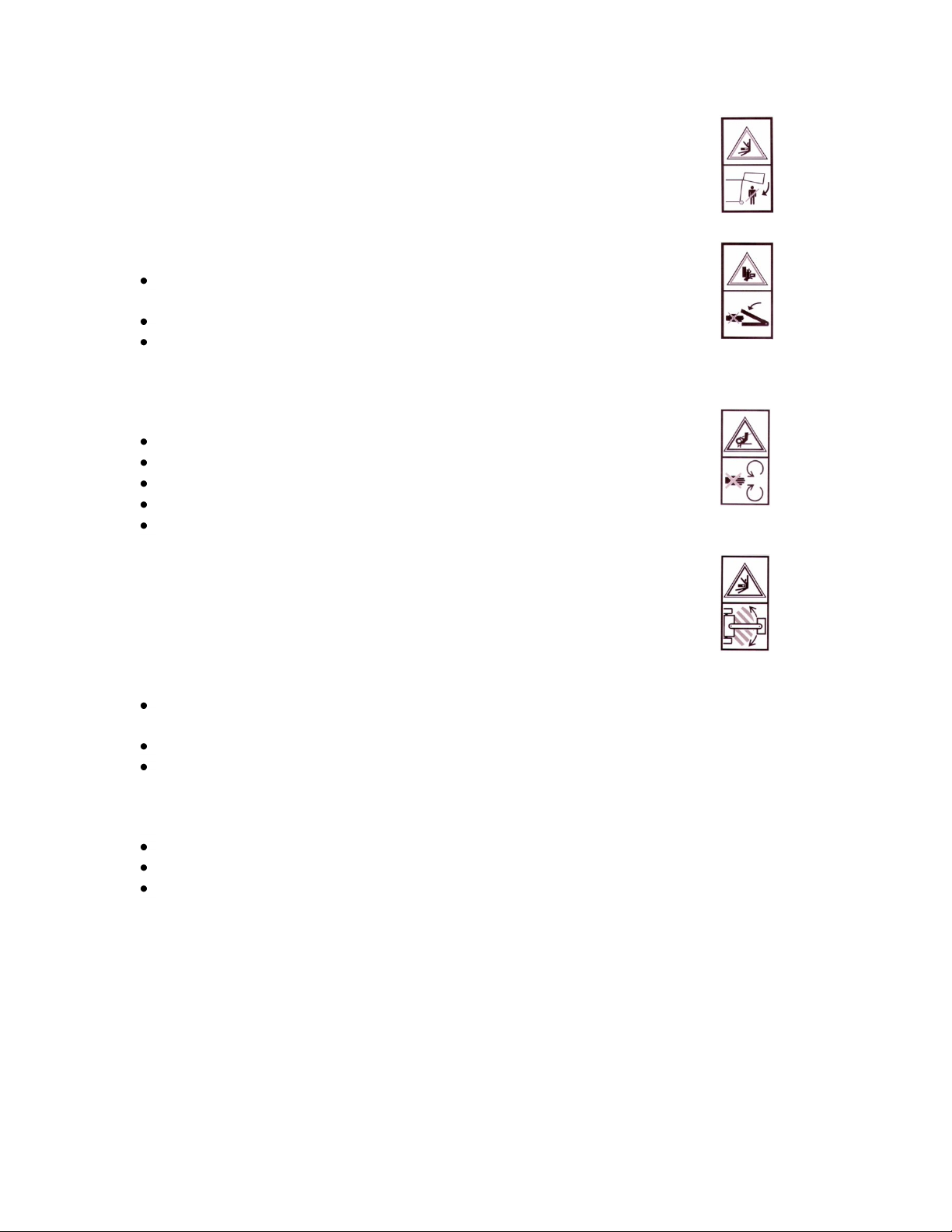

SAFETY LABELS
Make sure that ALL OPERATORS can recognize and understand all safety-warning labels on
the machine. Keep all safety labels in good condition, and replace those that are missing or
damaged. Replacement safety labels are available from your dealer.
Your equipment shows the following pictograms.
LEARN ABOUT THESE PICTOGRAMS AND WHAT THEY STAND FOR.
1.
CAUTION! Read the Sweep-N-Clean operator's manual thoroughly, so you know
precisely what all the settings and switches are used for before you start using the
machine.
2.
CAUTION! Before performing maintenance:
Read the operator's manual.
Make sure both Sweep-N-Clean's engine and tow vehicle are both turned off with
keys removed.
Be sure electric clutch switch is turned off.
Place a sign, "Maintenance-Out Of Order" on the switch box.
Prevent dangerous situations that may arise if one of the machine's parts starts working suddenly.
3.
CAUTION! Danger of serious injury through pinching between the rotating brush
and the machine frame.
Never attempt to clean the brush while it is rotating.
Never enter near the running brush.
All personnel should remain at least 15 feet away from working machine at all times.
Consult Operator's Manual.
Always support the machine properly before working underneath.
Turn off tow vehicle and remove the starter key.

SW48-M
9
4.
CAUTION! Danger of serious injury through pinching between the main frame and
the closing hopper.
Be sure that all personnel are at least 15 feet away before operating the hopper.
5.
CAUTION! Danger of injury through pinching around the Front Transport Height
Adjustment and near the hitch pivot point.
Keep hands away from these areas when connecting or disconnecting tow vehicle
to or from machine.
Only connect or disconnect machine on a level surface.
Always block wheels before connecting or disconnecting.
6.
CAUTION! Danger of serious injury around the V-Belt drive and V-belt
pulleys. Before maintenance:
Read the instruction manual.
Lift the machine to its transport position and lock into place with the locking pin.
Shut off the engines on the brush and the tow vehicle.
Remove the safety shield.
Always put safety shield in position before starting engine.
7.
CAUTION! Danger of serious injury through collision with Sweep-N-Clean.
Make sure that only fully trained personnel operate the Sweep-N-Clean.
Only operate machine with all other personnel at least 15 feet away.
8.
CAUTION! Danger of serious injury between the main frame and the wheels.
In case of blockage, STOP THE TOW VEHICLE. Wait until the machine is completely stopped
before cleaning the wheels.
Keep clear of running wheels.
Maintain a distance of at least 15 feet when machine is in operation.
9.
WARNING! Be aware, running on sloping hills is limited.
Drive slowly (lowest gear).
Drive forward only when going down ramps or hills.
Never drive laterally across ramps or hills. Tip over can occur.
10.
WARNING! Danger of serious injury under the machine during cleaning or maintenance.
Always properly support the Sweep-N-Clean before performing maintenance.
11.
CAUTION! Danger of serious injury.
Never carry passengers on the Sweep-N-Clean.

SW48-M
10
12.
CAUTION! Danger of serious injury.
The engine on the Sweep-N-Clean produces more than 80dbA of noise.
Always use proper hearing protection.
13.
CAUTION! Danger from fire.
Keep all cigarettes, lighters, matches or other open flames away from fuel tank.
Fill the fuel tank only in areas with proper ventilation.
Keep the engine free of dust and other flammable materials.
14.
CAUTION! Danger from Carbon Monoxide (CO) suffocation.
Exhaust gases in a confined space can cause serious injury, even death.
15.
CAUTION! Danger of serious injury.
Only use the Sweep-N-Clean for the purpose described in the "Applications" section, pg. 5.
If in doubt, consult your dealer.
16.
WARNING!
The tow vehicle used to pull the Sweep-N-Clean must have sufficient capacity.
17.
WARNING! Be aware for serious injury.
Always inspect the connection pin and safety pins for damage or wear before use.
Replace if necessary.
Be sure to keep the Sweep-N-Clean and its surrounding area clean and free of debris that may
cause interference in operation or adjustment.
18.
This machine is designed for off-road transport only.
If the machine must be moved over the road, do so only on a trailer that meets all local laws, particularly
minimum speed, length/width, lighting, rotating lights, reflector plates, etc.
19.
CAUTION! Danger of injury.
Ensure that all warning stickers remain perfectly legible.
Immediately replace them if they become damaged.
Replacement stickers are available through your dealer.
20.
CAUTION! Be aware for injury.
Repair and maintenance of the Sweep-N-Clean must be performed by T.I.P. INC. authorized
people.
Spare parts used for the Sweep-N-Clean must be original T.I.P. INC. or CE-certified.

SW48-M
11
21.
CAUTION! Danger of serious injury.
Keep all unauthorized people and especially children away from the operating Sweep-N-Clean.
22.
CAUTION! There is a danger of serious injury if the Sweep-N-Clean is operated by:
Persons younger than 16 years of age.
Persons who are not qualified to drive the tow vehicle.
Persons without sufficient knowledge concerning the dangers in and around the Sweep-N-Clean.
23.
CAUTION! Danger of injury.
The Sweep-N-Clean may only be used by experienced drivers who have a complete knowledge of
the contents of this manual.
Ensure that all new operators receive all security regulations and operating instructions.
24.
WARNING! Be aware for serious injury.
Take care that you have every condition/situation under complete control with the Sweep-N-Clean.
Operate the tow vehicle at a ground speed slow enough to ensure complete control at all times.
25.
The operator determines the limits for "Working Safely" with the Sweep-N-Clean.
Do not take any risks.
Be careful, especially when blockages or any other disturbances occur.
Always stop the Sweep-N-Clean and the tow vehicle first.
Secure equipment against accidental start-up.

SW48-M
12
SET-UP
SW48-M SWEEP-N-CLEAN
CONNECTION TO TOW VEHICLE
If your Sweep-N-Clean came delivered on a pallet, first remove machine from pallet.
Connect the pin-type hitch to your tow vehicle using a pin that is the appropriate diameter, and
secure with a safety clip to ensure pin does not come out during operation.
CAUTION!
Be sure that the tow vehicle has sufficient power and braking capacity to safely pull the Sweep-
N-Clean before use.
ELECTRICAL CONNECTION
The Sweep-N-Clean utilizes the 12v electrical supply from the tow vehicle to operate the electric
clutch and to open and close the clamshell hopper cover.
Connect the alligator clips from the machine to the battery of the tow vehicle, being sure to
connect the red clip to the positive side of the battery, and the black to the negative. Be sure that
clips and wires are properly secured so they will not vibrate off during operation.
CAUTION!
Avoid direct contact with the battery terminals and the un-insulated portion of the alligator clips.
Electrical shock could result.
Unroll cord and switch pendant. Locate switch pendant near operator on tow vehicle, and secure
in place.
BRUSH HEIGHT ADJUSTMENT
Properly adjusted brush height will provide you with the best sweeping action and the longest
bristle life. It is necessary to do this adjustment before using the Sweep-N-Clean for the first
time, and periodically as routine maintenance.

SW48-M
13
With machine sitting on a flat, level surface similar to the type to be swept, hold on to the Brush
Up-Down Lever, remove the Brush Adjustment Transport Pin, and then ease the Brush Up-
Down lever to the appropriate down (rearward) position. (Fig. 1) You may replace the transport
pin into the proper hole when machine is in the "Down" position.
Adjust the brush height by turning the Brush Height Adjusting Screws. (Fig. 1) The brushes,
when properly adjusted, should make a light sweeping pattern 2 to 3 inches wide and uniform
along the brush center line. (see Fig. 2) Too much pressure on the brushes will cause excessive
wear and reduce sweeping efficiency.

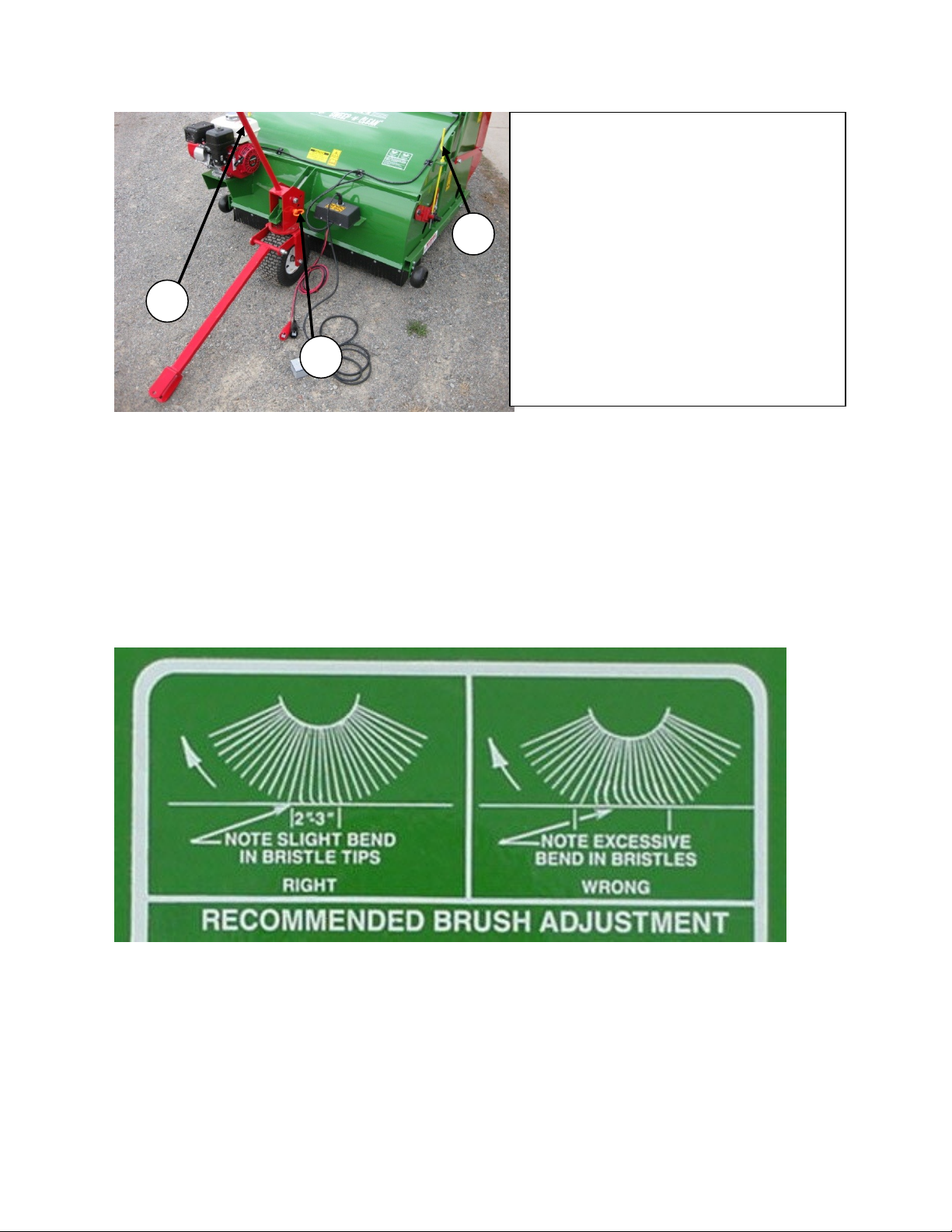

Fig.2
Fig. 1:
1. Brush Adjustment Transport Pin.
2. Brush Height Adjustment Screw
(x2).
3. Brush Up-Down Lever in "Up"
(forward) Position.
2
1
3

SW48-M
14
The Brush Height Adjustment Arm has a scale that indicates brush position on both sides (Fig.
3). Make sure this setting is the same on both sides.
Fig. 3
When sweeping operation is complete, be sure to store brushes in the "Up" position, and not in
contact with the ground.
ENGINE/DRIVE TRAIN
The engine should be checked for proper lubrication levels before first use according to the
engine manufacturer's Owner's Manual.
Fill fuel tank with regular unleaded gasoline.
CAUTION!
Do not expose gasoline to sparks or open flames. Do not smoke when filing gasoline tank on
engine. Explosion or fire may result.
Remove the side shield and check v-belt for proper tension. When pressed in the center of the
belt, there should be ½ to 1" of travel. If the belt needs to be tightened, turn the adjusting nut on
the tensioning spring to add more tension. Repeat the procedure if necessary. After the tension
is adjusted correctly, reinstall the safety shield, making sure that the electrical wires are
positioned in a way as to not get damaged by the shield.

SW48-M
15
OPERATION
SW48-M SWEEP-N-CLEAN
Review and follow all safety information before operating the
Sweep-N-Clean. Only properly trained personnel should operate
the Sweep-N-Clean. Be sure all Set-Up procedures have been
completed.
CHECK BEFORE USE
The operator must check the following points on the Sweep-N-Clean before every use of the
machine:
Check for any bent, dented, cracked, or otherwise broken parts
Check the brushes for damage or wear.
Check the tires for proper air pressure.
Check the hopper, actuator, and connecting linkage for smooth operation.
Check the electric clutch for proper operation.
Visually inspect the transport height adjustment, front axle, hopper linkage, etc. for
loose bolts.
Visually inspect the rubber skirt in front of the brush for wear.
If any defects or malfunctions are discovered, DO NOT start to operate the Sweep-N-Clean, but
contact the responsible maintenance mechanic for repairs.
STARTING THE MACHINE
Verify that electrical connections are made with the tow vehicle and that the hitch pin is secured
in place. Before starting engine, be sure electric clutch switch on the switch pendant is in the
“OFF” (disengaged) position, and the Brush Up-Down lever is in the “Up” position.
Start engine according to the engine operator’s manual.
BRUSH OPERATION
After you reach the location where the sweeping is to be done, bring the tow vehicle to a stop,
and lower the brushes by pulling the Brush Adjustment Transport Pin and lowering the Brush
Up-Down lever.

SW48-M
16
CAUTION!
Be sure to have a good hold on the Brush Up-Down lever before pulling the Transport Pin.
When brushes are down, replace the Transport Pin back in the proper Pin hole.
Start the engine, if you haven’t already.
Start the brushes rotating by turning on the electric clutch toggle switch. The clutch may be
engaged at any engine RPM. Turn toggle switch to the Off position to disengage power to the
brushes. The brushes will coast to a stop.
WARNING!
Keep hands and feet clear of rotating brush. Serious injury could result from pinching
between brush and frame.
CAUTION!
To avoid possible damage to golf course greens, do not engage or disengage brushes while on
greens. Whenever possible, drive across greens in a straight line only.
How well the Sweep-N-Clean picks up debris is dependent on drive speed. Adjust the speed of
the tow vehicle to effectively pick up all the desired debris.
The machine's effectiveness is also dependent on brush rotation speed. This can be adjusted by
using the throttle on the brush drive engine.
Drive speed and brush rotation speed may have to be re-adjusted for every different type of
surface to be swept. Experimentation will result in finding the right combination for maximum
effectiveness in each situation.
After sweeping is complete, disengage the brush by turning off the electric clutch switch on the
switch pendant.
HOPPER OPERATION
When collection hopper is full, disengage electric clutch before emptying.
Position Sweep-N-Clean into the area that you want to unload sweepings.
Clamshell hopper lid is raised and lowered by the Open-Close switch on the control pendant.
Holding the switch in the open or close position will cause the hopper cover to move. Releasing
the switch at any point will cause hopper cover to stop. After opening the cover, it may be
necessary to pull the machine ahead slightly to completely empty hopper contents. When the
hopper is empty, close the cover.

SW48-M
17
CAUTION!
Make sure to NOT hold the switch in either the Open or Close position beyond the mechanical
limit of the actuator. Prolonged operation at the mechanical limits will cause actuator failure.
WARNING!
Keep all personnel away from the clamshell hopper cover and all it’s components during
operation. Serious injury could result if personnel is not clear.
TRANSPORT
Any time the machine is being transported from one location to another, the brushes must be
raised off of the ground. With the tow vehicle stopped and secured from rolling, move the Brush
Up-Down lever to the “Up” (forward) position and lock in place with the Brush Height Transport
Pin. Failure to do so may cause damage to brushes.
END OF DAY
When you are finished using the Sweep-N-Clean, be sure to clean the entire machine, both inside
and out. Wash away any dirt or mud buildup, especially from the brush frame and from the
inside of the hopper.
CAUTION!
Do Not spray water on the brush drive engine while it is still hot! Rapid or uneven cooling if the
engine may cause damage. Give the engine sufficient time to cool before cleaning.
If the Sweep-N-Clean is to be left attached to the tow vehicle, make sure electric clutch is
disengaged after tow vehicle engine has been turned off. Electric clutch will not automatically
disengage with engine shut-off. An engaged electric clutch will draw moderate amounts of
power, and will drain a battery in short order if tow vehicle engine is not running.
If the Sweep-N-Clean is to be disconnected from the tow vehicle, disconnect the electrical
supply cables and make sure that the switch pendant is free from the tow vehicle. Before
disconnecting, make sure that the Sweep-N-Clean's wheels are blocked to prevent rolling before
pulling the hitch pin.
Inspect the Sweep-N-Clean for any signs of damage or wear. Report any damage to the
appropriate maintenance mechanic.

SW48-M
18
MAINTENANCE
SW48-M SWEEP-N-CLEAN
CAUTION! Be sure to read and understand the SAFETY section of
this manual before performing any maintenance on the machine. Be
sure motor is off and all power is disconnected before performing
maintenance.
All maintenance on the Sweep-N-Clean should only be performed by a qualified, properly
trained Maintenance Mechanic.
LUBRICATION/MAINTENANCE SCHEDULE
The following maintenance and lubrication recommendations assume normal use. Maintenance
and lubrication should be carried out more frequently under heavy use or extreme conditions.
g = grease o = oil
d = daily w = weekly m = monthly
g/o d/w/m
1 Clean and check brushes for wear or damage. - d
2 Check rubber apron for wear or damage. - d
3 Lubricate all grease points on the machine:
a. Brush Axle g w
b. Front and Back Wheels (lift and block machine safely) g w
c. Front Pivot Axle g w
d. Actuator/Hopper Pivot Tube g m
4 Lubricate all pivot points on the machine:
a. Drawbar Pivot o w
b. Actuator Mounting Points o w
c. Hopper Linkage o w
d. Hopper Pivot Point o w
5 Check brush for proper height adjustment, adjust with
Height Adjustment Screws if necessary. o w
6 Check V-Belt for wear or damage; Check and adjust
V-Belt tension. - w

SW48-M
19
g = grease o = oil
d = daily w = weekly m = monthly
g/o d/w/m
7 Check actuator for proper operation. Inspect particularly
for unusual noise or for binding. - w
8 Check electric clutch for proper engagement. - w
9 Inspect all wiring for pinching, wear or cuts. - w
10 Inspect entire machine for wear spots in the paint. Re-
paint worn spots or coat with grease or oil to prevent rust. - m
11 Maintain and lubricate the Brush Engine according to the
engine operator's manual maintenance schedule. as recommended
Be sure to clean off all excess grease and oil from the machine after performing the scheduled
maintenance. All hazardous waste should be disposed of properly.
CLEANING
The Sweep-N-Clean should be cleaned regularly to ensure optimal sweeping results, and to help
identify early signs of wear or damage.
If you clean the Sweep-N-Clean with a high pressure washer, be sure to use the minimum
amount of pressure necessary to remove all the dirt. Be sure to avoid bearings and electrical
components with the high pressure washer whenever possible to prevent damage.
REPAIRS
Sweep-N-Clean repairs must be performed by an authorized dealer's service technician.
It is recommended that your Sweep-N-Clean undergo a regular check-up with your dealer
annually.
