TaiShan TQ1003B User manual

Shandong Taishan Sports Equipment Co.,Ltd
Web:www.taishansports.cn
Installation Of Competition Uneven Bars
TQ1003B

Shandong Taishan Sports Equipment Co.,Ltd
Web:www.taishansports.cn
Precautions for Use
1. For gymnastic only, It should be used under the guidance and
supervision of professionals；
2. Children under 10 years old are not allowed to use
3. It shall not be used by more than one person at the same time, maximum
load 800Kg;
4. For indoor use only；
5. Please install and use special protective mat；
6. Before using, check all parts of the equipment in good condition, lock
firmly.
7. Bar rails is high-risk part,carefully checked before using.If
damaged,not allowed to use.
8. In case of abnormal sound and loose parts, stop using immediately
9. No adjustment during use；
10. The bar rail cannot be excessive polished；
11. Gymnasts could spray water and magnesium onto the rails,with
moderate amount.
12. Warm up before using the equipment, Stop using if you dont
feel well.
13. Do not use heavy objects to hit the surface of the equipment, and do
not use sharp objects to scratch the equipment;

Shandong Taishan Sports Equipment Co.,Ltd
Web:www.taishansports.cn
14. Do not use liquids other than neutral detergent and water to wipe the
surface of the equipment.
Product Introduction:
This product can be applied to uneven bars competition and training.Easy
installation of inner adjustment tube.The gear adjustment unit is easy and
fast to adjust. The width adjusting parts can easily meet the requirement
of uneven bar width adjustment. The bar rail is solid, with good quality
and sufficient toughness; This product can meet the professional needs of
competition and training.

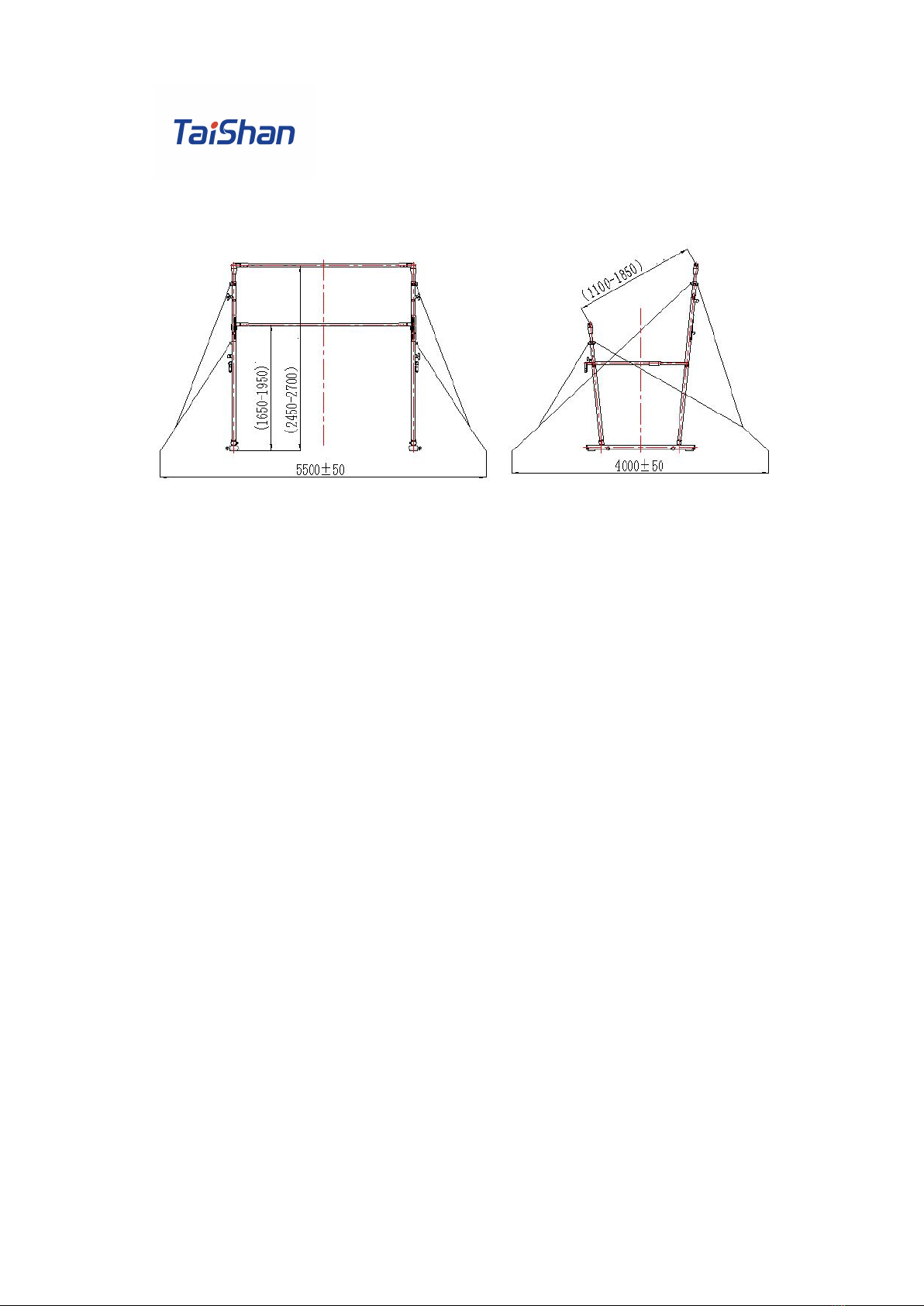

Description:
1. Low bar height adjustable from 165cm-195cm,high bar height adjustable
from 245cm-270cm,distance between two bar 110cm-185cm, stepless
adjustable.
2. Bar rails dimension:length 240cm,φ4cm.
3. Distance of ground anchor : 550cm×400cm.

Shandong Taishan Sports Equipment Co.,Ltd
Web:www.taishansports.cn
A -cable 1 B- upright 1 C- bar rails D- upright 2 E -cable 2

Shandong Taishan Sports Equipment Co.,Ltd
Web:www.taishansports.cn
Installation instructions:

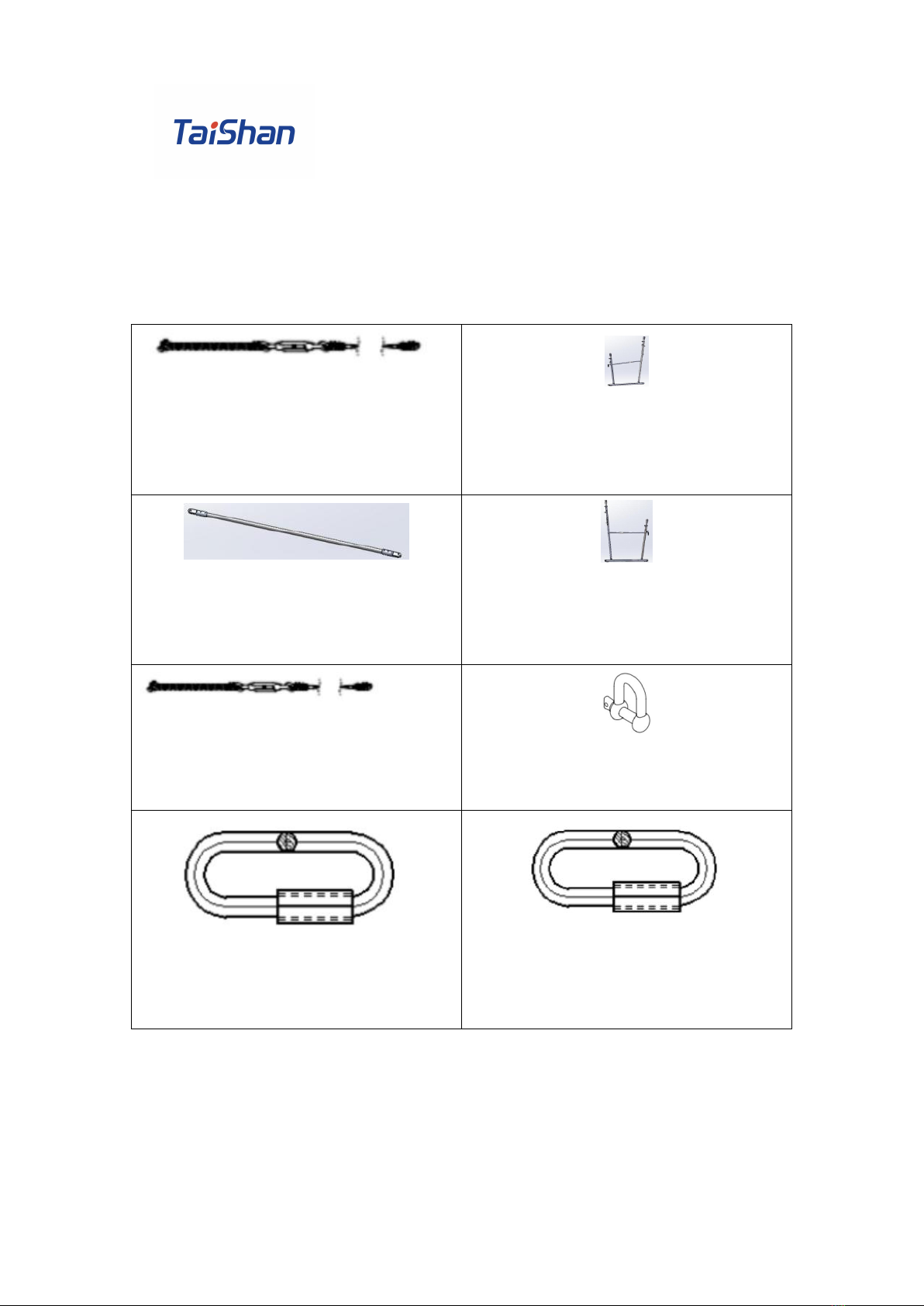

Packing list
A- cable 1 2pcs
B- upright 1 1pc
C- bar rails 2pcs
D- upright 2 1pc
E -cable 2 2pcs
D shape shackle 1pc(spare part)
Special O-shackle M10 (Spare parts)
Special O-type shackle M12

Shandong Taishan Sports Equipment Co.,Ltd
Web:www.taishansports.cn
Installation steps:
Step 1 - Ground anchor detection
Before the equipment is installed, the ground anchor shall be tested for
tension. The single ground anchor shall bear the tension of not less than
8000N; The support point of the column shall bear a static load of 10000N
without deformation. If used on a platform, under the above conditions, the
counterweight and ground anchor connection should be greater than 8000N.

Shandong Taishan Sports Equipment Co.,Ltd
Web:www.taishansports.cn

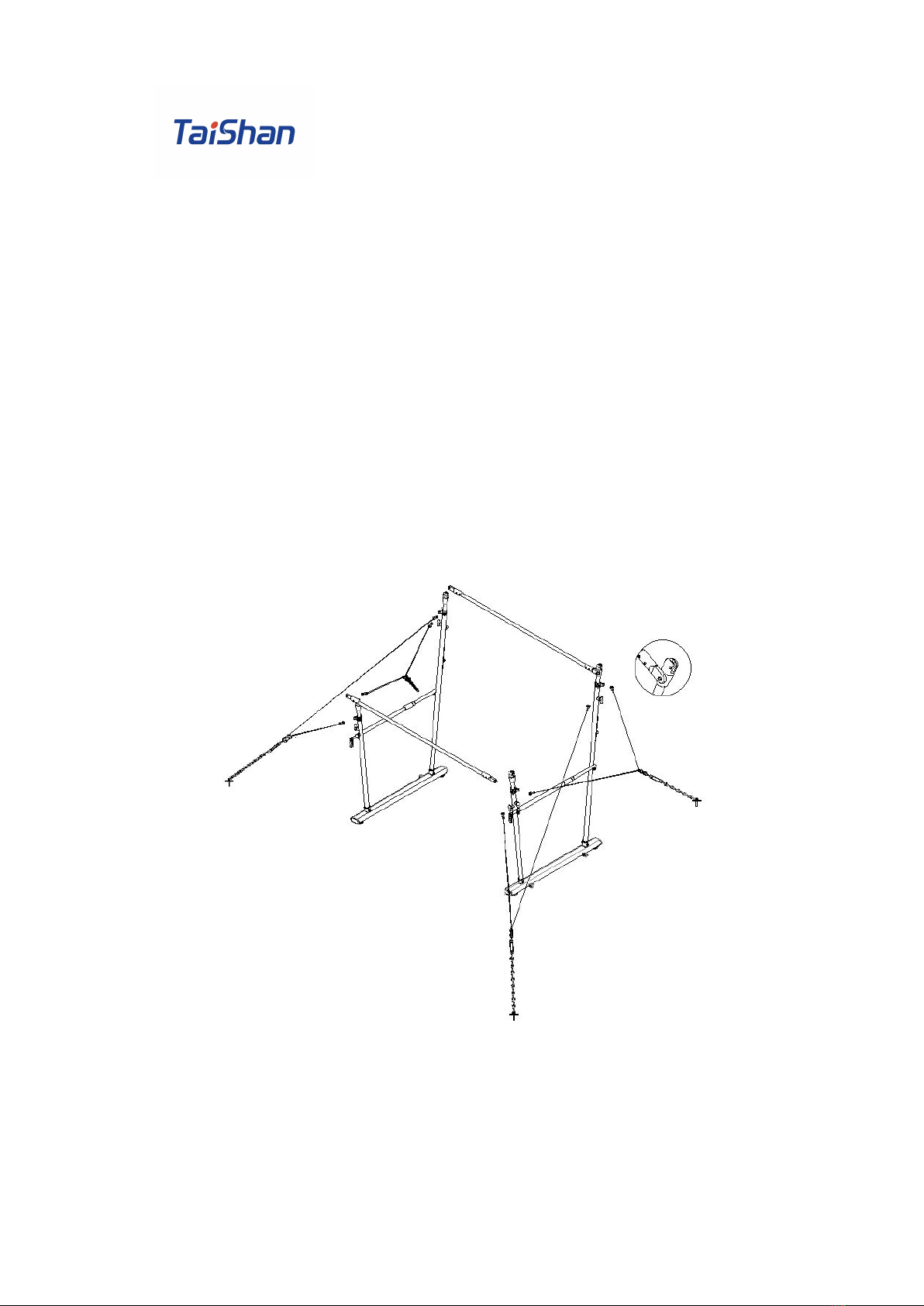

Step 2 Bar rails installation
The head of the upright is towards the casters, and the two ends of the bars
are mounted in the two columns respectively.

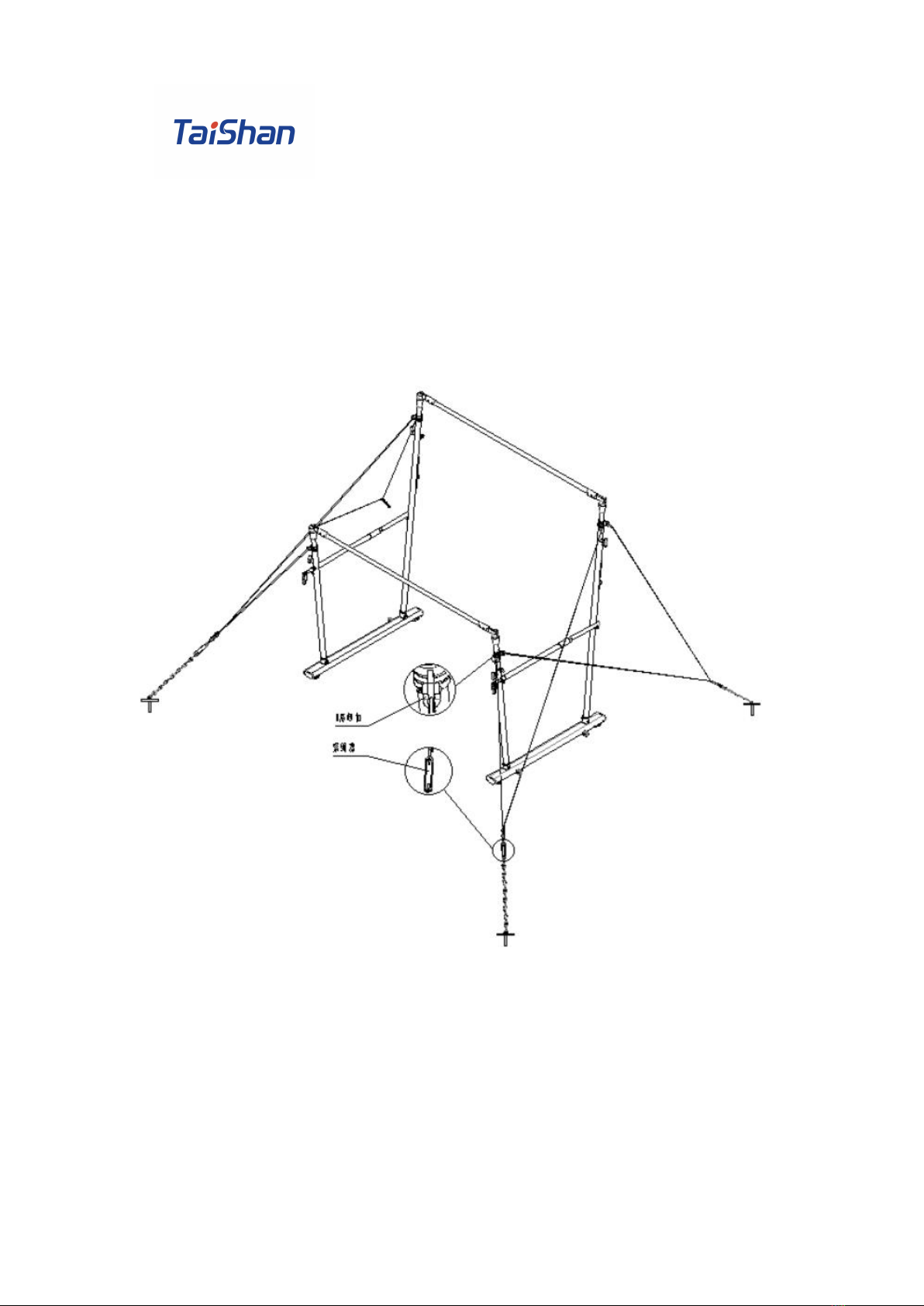

Step 3 - Cable installation
Then the end of the wire rope of the drawstring component is hooked on the
earhole of the column respectively with shackles, and the chain of the other
end of the drawstring is connected with the ground anchor respectively with
shackles, so that the drawstring component is close to the straight line as far
as possible.
Note: When the bar rail is not in the highest state, there should be a margin
in the chain length.

Shandong Taishan Sports Equipment Co.,Ltd
Web:www.taishansports.cn
Tension adjustment of the rope: turn the screw buckle to adjust the tension,
and then pull the rope tightly upward until the tension is appropriate.
Tighten the rope tightly after feeling the tension is appropriate.
Directions for use
This product is specially used for uneven bars competition and training.
Adjustment instructions:

Shandong Taishan Sports Equipment Co.,Ltd
Web:www.taishansports.cn
1. As shown in the figure below, turn the 1-width adjusting handle to
quickly adjust the distance between the two bar rails (110cm-185cm), and
stop adjust when the width is appropriate . At the same time, appropriately
adjust the rope parts.
2. The low bar adjustment is shown in the figure. First, rotate and loosen
the 3-locking part, pull the 2-gear adjusting part outward at the same time,
then lift and drop the 5-inside adjusting part to achieve the height
adjustment.
3. High bar adjustment is shown in the figure. Firstly, rotate and loosen the
3-locking part, pull the 2-gear adjusting part outward at the same time, then
lift the 4-adjustment part to achieve the height adjustment. After making
sure that the lock is not loose, it can be used.

Shandong Taishan Sports Equipment Co.,Ltd
Web:www.taishansports.cn
Maintenance:
1) During the use of the uneven bars, check whether all the connecting
parts of the product are loose or falling off regularly, and fasten or replace
them in time to ensure safety.
2) When the surface of the equipment is stained, use a clean wet towel to
gently wipe the surface.
3) After 1 year of use, the equipment should be checked and maintained
by professionals before use.
Warranty:
1) The warranty period from the date of delivery of the equipment is
shown in the table below.
2) The damage to the equipment caused by improper use and not to do
maintenance as required shall be borne by the user.
No
Name
Period
Remark
1
Upright
3 years
Not includes adjust part 1
2
Cable
3 years
3
Rails
1year or more than
100 thousands use

Shandong Taishan Sports Equipment Co.,Ltd
Web:www.taishansports.cn
3) Damage to the equipment surface coating caused by scratches or
bumps is not covered by the warranty.
4) For equipment that exceeds the warranty period, free lifetime technical
support and paid maintenance services are provided.
Spare parts
No
Name
Specification
Qty
Remark
1
D shape shackle
1
2
Special O-type shackle
M10
1
3
Special O-type shackle
M12
1
