TAIYO YUDEN CO., LTD. 3/9

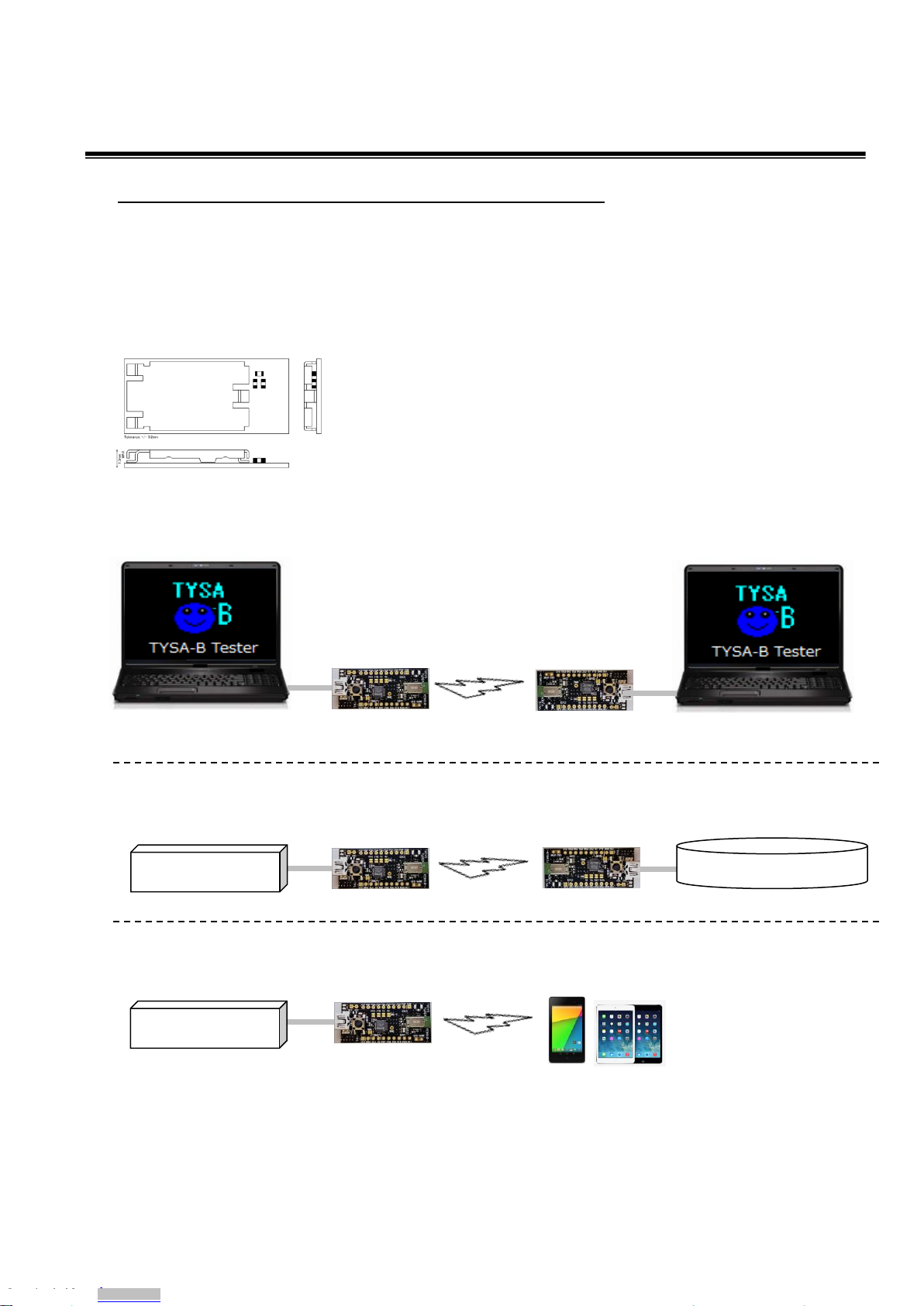

EBSGJN, EKSGJN
EBAGJN, EKAGJN
Evaluation board circuit schematic

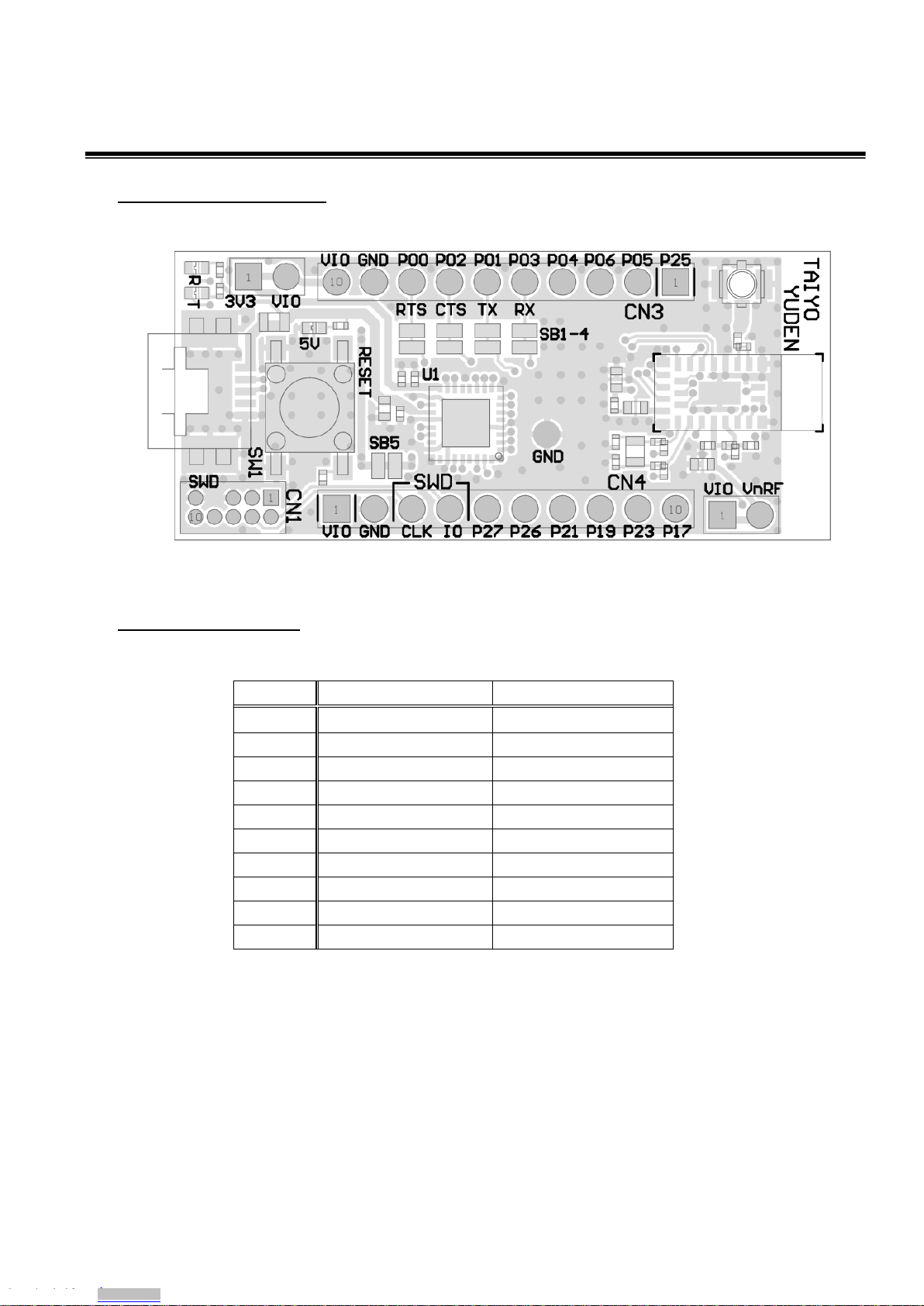

Evaluation board layout

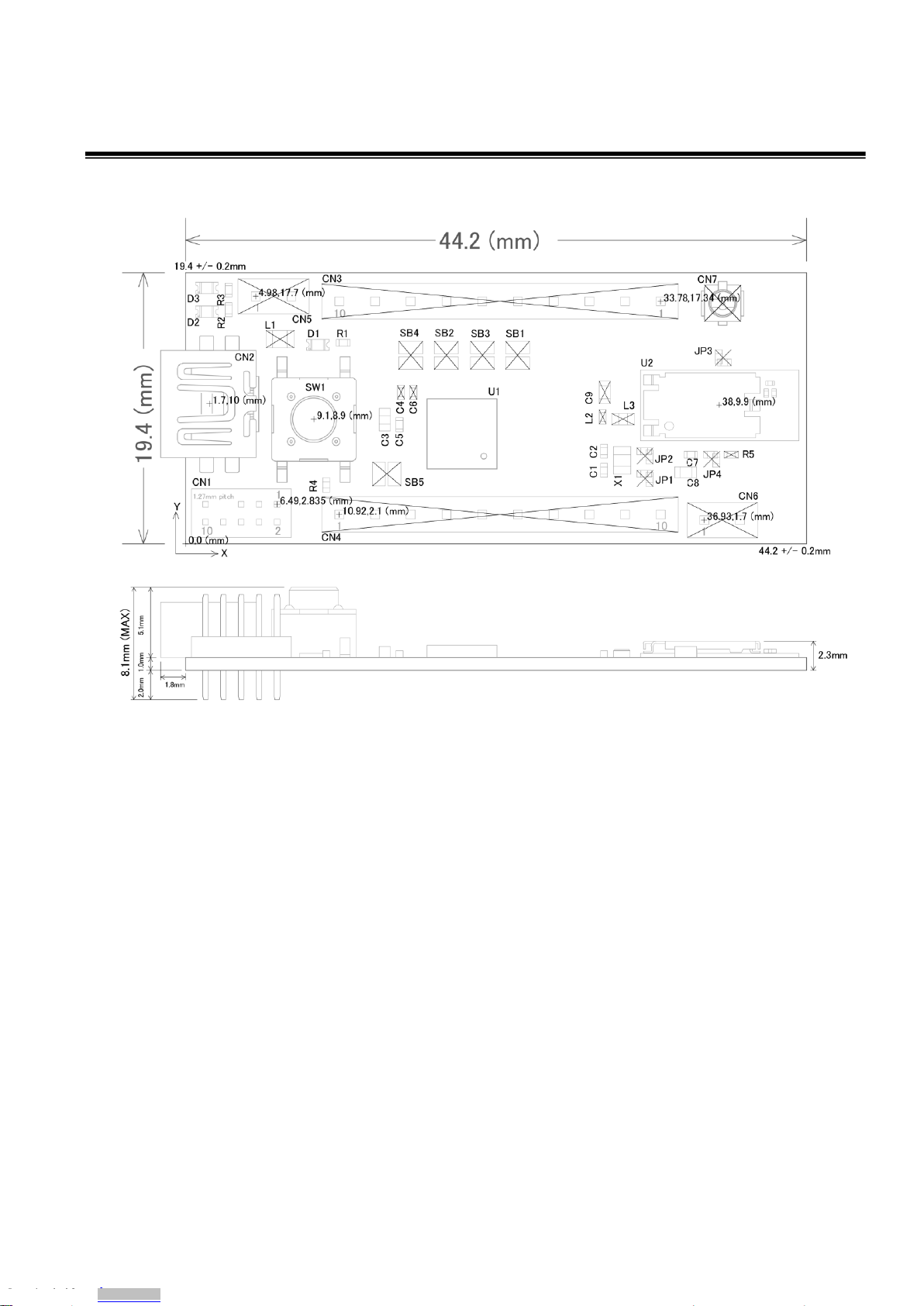

1) All pin headers are 2.54mm pitch. And distance between CN3 and CN4 is 15.24mm.
2) CN3-CN6, C1-C2, C4, C6, C9, L1-L3, JP1-JP4, SB1-5, R5 are not mounted (N.M.).
3) D1 (LED): USB VBUS 5V LED Indicator
4) D2 (LED): UART TX Indicator
5) D3 (LED): UART RX Indicator
6) SW1 (Push button): Module Reset (active low)
U2: BLE Module
EYSGJN Series or
EYAGJN Series
CN6: Power consumption
monitor
Default: Short

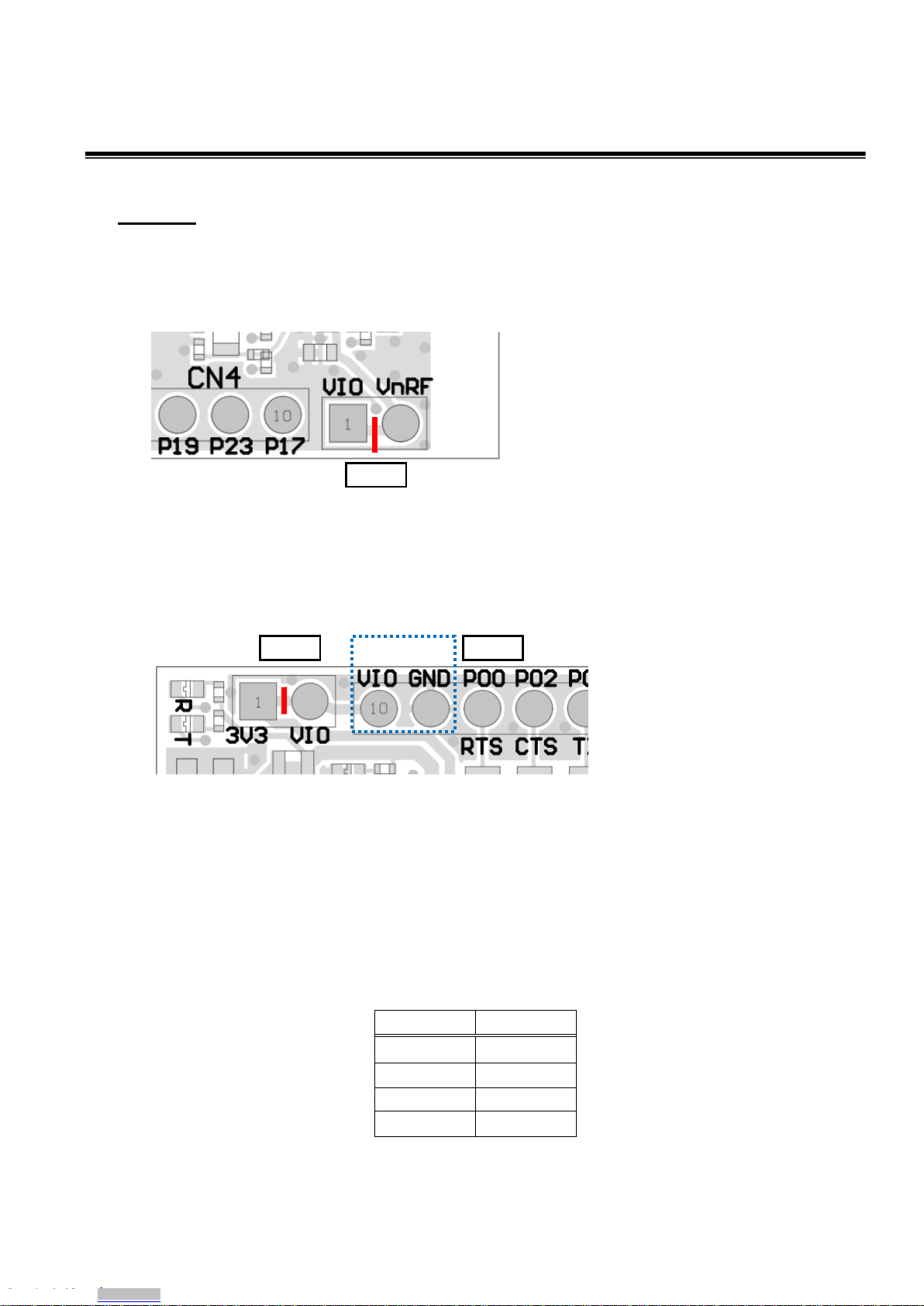

CN5: Jumper of internal 3V3
Default: Short
CN2: miniUSB - UART
+5V DC power supply
CN1: SWD (for J-link
lite)
CN3: GPIOs and external DC power
supply
CN4: GPIOs, SWD and DC power
supply
JP3: Antenna selector
Default: Internal
Antenna
CN7: RF Connector
U.FL-R-SMT (HIROSE)
JP1,2: 32.768KHz source
select JPW
Default: External X'tal
