TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
3
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
4
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
NOTICES
COPYRIGHT NOTICE
This manual is copyrighted, all rights are reserved. It may not, in whole or in part, be copied, photocopied, reproduced, translated, or reduced to any
electronic medium or machine readable form without prior consent in writing from Tabata USA, Inc. and Tabata Corp. Ltd. / 2002 Design.
Talis Owner's Manual, Doc. No. 12-5355
©2002 Design, 2014
San Leandro, CA USA 94577
Cover artwork for this manual is copyright Tabata USA Inc. 2014
TRADEMARK NOTICE
TUSA, the TUSA logo, Talis, and the Talis logo, are all registered and unregistered trademarks of Tabata USA and Tabata Corp. Ltd. All rights are re-
served.
PATENT NOTICE
U.S. Patents have been issued, or applied for, to protect the following design features:
Data Sensing and Processing Device (U.S. Patent no. 4,882,678), Ascent Rate Indicator (U.S. Patent no. 5,156,055), Dive Computer with Free Dive Mode
(U.S. Patent no. 8,600,701).
CE
The CE mark is used to mark conformity with the European Union EMC directive 89/336/EEC. TUSA dive instruments fulfill the required EU directives.
EN 13319 "Diving accessories - Depth gauges and combined depth and time measuring devices - Functional and safety requirements, test methods" is a
European diving depth gauge standard. The Talis is designed to comply with this standard.
DECOMPRESSION MODEL
The program within the Talis simulates the absorption of nitrogen into the body by using a mathematical model. This model is merely a way to apply a
limited set of data to a large range of experiences. The Talis dive computer model is based upon the latest research and experiments in decompression
theory. Still, using the Talis, just as using the Navy (or other) No Decompression Tables, is no guarantee of avoiding decompres-
sion sickness, i.e. “the bends.” Every diver’s physiology is different, and can even vary from day to day. No machine can predict how your body
will react to a particular dive profile.
LIMITED TWO-YEAR WARRANTY
For details, refer to the Product Warranty Registration Card provided.
Talis Watch/Dive Computers are placed in a Deep Sleep mode prior to being shipped from the factory. The intent is to extend storage life of
the Battery for up to 7 years, before the unit is initially placed in service.
In this mode, Date and Time are updated as they normally would be. However, they are not displayed. Upon waking the Talis up, the correct
Date and Pacic Time will be displayed and it will be ready to operate with full functions.
To wake the Talis up from Deep Sleep mode, simultaneously depress the upper/right (S) and lower/left (A) buttons for 2 to 3 seconds until the
display comes full ON displaying the Watch Default Time screen, then release them.
5
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
FEATURES
&
DISPLAYS
6
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
Welcome to TUSA.
Thank you for choosing the Talis !
-------------------------------------------------------------------------------------------------------------------------------
It is extremely important that you read this Owner's Manual in sequence and understand it completely
before attempting to use the Talis as a dive computer.
Remember that technology is no substitute for common sense, and a dive computer only provides the per-
son using it with data, not the knowledge to use it.
-------------------------------------------------------------------------------------------------------------------------------
CONTROL BUTTONS
The Talis features 4 Control Buttons that allow you to select mode options and access specific information. They are also used to
enter Settings, activate the Backlight, and acknowledge the Audible Alarm.
Throughout this manual they will be referred to as the M, S, L, and A buttons (Fig. 1).
• Upper/Left - Mode (M) button
• Upper/Right - Select (S) button
• Lower/Right - Light (L) button
• Lower/Left - Advance (A) button
OPERATING MODE STRUCTURE
Unless it is operating in Dive Computer mode, the Talis will be On in the Watch Default Time (home time) mode (Fig. 1), like a
standard watch, until the mode is changed.
The M button is used to access other selections that include Alternate data, Countdown Timer, Chronograph, and Daily Alarm. It
is also used to revert back to the Watch Default Time display and access Dive Computer Modes.
The screens of the Main Modes and Sub Modes will remain on display until a button is pressed to access another screen or
Mode, activate a sequence, or for 2 minutes if no button is pressed. The Chronograph remains on display as long as it is running
unless another Mode is accessed.
When Wet Activation is set On, the Talis will enter the selected Dive Mode upon descent to 5 FT (feet)/1.5 M (meters) for 5
seconds, regardless of what operating mode it is in.
WARNING: When Wet Activation is set OFF, the Talis must be in Dive Computer Surface Mode (NORM,
GAUG, or FREE) prior to the first dive of a new series. Commencing a dive while in Watch modes will
not activate Dive Mode unless Wet Activation is set ON.
OPERATION AS A DIVE COMPUTER
The Talis features 3 Dive Computer (DC) Operating Modes,
>> NORM (Fig. 2) is used for Air and Nitrox dives.
>> GAUG (Fig. 3) is used for dives in which Nitrogen-Oxygen calculations are not performed.
>> FREE (Fig. 4) is used for breath hold activities that do not use SCUBA.
NORM and GAUG SURF Modes allow access to Settings, Fly, Desat, Log, and History Modes.
NORM SURF also allows access to Plan Mode.
FREE SURF Mode allows access to a separate group of settings.
Fig. 1 - WATCH DEFAULT
TIME (Main, at home)
M
A
S
L
Fig. 4 - FREE MODE
SURFACE MAIN
Fig. 2 - NORM MODE
SURFACE MAIN
Fig. 3 - GAUG MODE
SURFACE MAIN
7
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
AUDIBLE ALARM
Most warning situations that activate the Audible Alarm while operating in NORM or GAUG Mode will sound 1 beep per second
for 10 seconds, or until the situation is corrected, or it is acknowledged by pressing and releasing the S button (less than 2
seconds). After being acknowledged and the situation corrected, the Alarm will sound again upon reentry into the warning situa-
tion, or entry into another type of warning situation.
FREE Dive Mode has its own set of Alarms which emit 3 short beeps either 1 or 3 times that cannot be acknowledged or set Off.
The Audible will not be active if it is Set OFF (a group A setting).
Situations that will activate the NORM/GAUG 10 second Alarm include -
• Descent deeper than the Max Depth Set Point selected.
• Dive Time Remaining at the Set Point selected.
• Elapsed Dive Time at the Set Point selected.
• High PO2 of 1.60 ATA or the Set Point selected for the Gas in use.
• High O2 of 300 OTU (single or daily exposure).
• Nitrogen Bar Graph at the segment Set Point selected.
• NORM/GAUG Ascent Rate exceeds 60 FPM (18 MPM) when deeper than 60 FT (18 M), or 30 FPM (9 MPM) at 60 FT (18
M) and shallower.
• Entry into Decompression Mode (Deco).
• Conditional Violation (above a required Deco Stop Depth for less than 5 minutes).
• Delayed Violation (above a required Deco Stop Depth for more than 5 minutes).
• Delayed Violation (a Deco Stop Depth greater than 60 FT/18 M is required).
• Delayed Violation (Maximum Operating Depth of 330 FT/100 M is exceeded).
• A Gas Switch to another tank would expose the diver to PO2 greater than 1.60 ATA.
• Watch Daily Alarm reaches time set (disabled during Dive Modes).
• Watch Mode Countdown Timer reaches 0:00.
A single short beep (which cannot be disabled) is emitted for the following -
• Upon completion of a Hot Swap battery change.
• Change from Delayed to Full Violation 5 minutes after the dive.
3 short beeps (which cannot be disabled) are emitted for the following -
• NORM/GAUG Ascent Rate is 51 to 60 FPM (15.1 to 18 MPM) when deeper than 60 FT (18 M), or 26 to 30 FPM (7.5 to 9
MPM) at 60 FT (18 M) and shallower.
• FREE Dive Elapsed Dive Time Alarm (3 beeps every 30 seconds if set On).
• FREE Dive Depth Alarms 1/2/3 (set sequentially deeper) - each 3 beeps 3 times.
• FREE Dive NIBG Alarm (Caution zone, 4 segments) - 3 beeps 3 times.
• Entry into Deco during a FREE Dive (Permanent Violation) - 3 beeps 3 times.
• Free Dive Mode Countdown Timer reaches 0:00 - each 3 beeps 3 times.
During the following NORM Dive situations, the 10 second continuous tone will be followed by a 5 second steady beep that will
not turn off when acknowledged -
• Ascending above a required Decompression Ceiling Stop Depth for more than 5 minutes (referred to as a Delayed
Violation).
• Decompression requires a Ceiling Stop Depth of 70 FT/21 M or deeper.
• Being on the Surface for 5 minutes after a Conditional Violation.
BACKLIGHT
To activate the Backlight - press the L (lower/right) button.
• The Backlight will activate and illuminate the display for button depression time* plus the user set Duration time of 0, 5, or
10 seconds, for a maximum of 20 seconds.
(*The Backlight turns Off if the button is held depressed for more than 10 seconds.)
• Press the button again to activate as desired.
NOTE: Extensive use of the Backlight reduces Battery life. Also, the Backlight does not operate during
a Low Battery condition or when the Talis is connected to a PC or Mac.
POWER SUPPLY
The Talis uses (1) 3 volt CR2430 Lithium Battery. Used as a Dive Computer, the battery should operate normally for 1 year or
300 dive hours if 2 dives are conducted during each dive period. Voltage is checked every 2 minutes on the surface.
• If voltage of the Talis decreases to the Warning level (2.75 volts), the Battery icon will appear on Surface display screens
(Fig. 5a) as an indication that the Battery should be changed prior to commencing a series of dives.
• If the Talis's voltage decreases to the Alarm level (2.50 volts), the Battery icon will flash and the graphics CHG > BAt will
alternate (Fig. 6a) for 5 seconds, then operation will automatically revert to the Watch Default Time screen. The Talis would
then only operate in Watch modes until the Battery becomes completely depleted.
• Low Battery conditions are not displayed during dives.
• If a Low Battery Condition was not displayed prior to starting a Dive, and a Low Battery Condition occurs during the dive,
there will be sufficient Battery power remaining to maintain operation for the remainder of that dive. Fig. 6 - LOW BATTERY
ALARM
Fig. 5 - LOW BATTERY
WARNING
a
a
8
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
WATCH
MODE
9
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
WATCH TIMES
Main Time is the current Time at your home location and is normally selected as the Watch Default Time (Fig. 7A).
Alternate Time, which is set by Hour Differential, is the Time at a remote location (away). Upon arrival at the location, Alternate
Time, identified by the AWAY icon (Fig. 7B a), can be selected to be the Watch Default Time.
Dual Time, identified by the AWAY icon (Fig. 7C a), is an additional time which is usually Alternate Time but can be Main Time
depending on which one is not selected to be the Watch Default.
• When an Alternate Time is set, and Show Dual Time is set for YES, both Times will be displayed on the Watch Default Time
screen (Fig. 7C).
• When an Alternate Time is set, and Show Dual Time is set for NO, Dual Time will be displayed on the Watch ALT screen
(Fig. 8) accessed by pressing the M button.
Watch Mode selections, which can be accessed by pressing the M button while viewing the Default Time screen, include:
Watch ALT (additional data) >> Countdown Timer >> Chronograph >> Daily Alarm.
• M (< 2 sec) - to step forward through the selections.
• A (2 sec) - to step back through the selections.
WATCH DEFAULT TIME, information includes (Fig. 7A - 7D):
> Graphic MON (or TUE, WED, THU, FRI, SAT, SUN); or Dual Time (hr:min) with icon, if an Alternate Time has been set and
Show Dual is set for YES.
> Daily Alarm icon (clock) if it is set On (Fig. 7a).
> Time of Day (hr:min:sec) with AM (or PM) icon if 12 Hour Format, no icon if 24 Hour; and AWAY icon (Fig. 7B a) if
Alternate Time is selected to be the Default Time.
> Nitrogen Bar Graph, if any after NORM or FREE dives.
> Battery icon, if a Low Battery condition exists.
• M (< 2 sec) - to access the Watch ALT screen, then step forward through Watch mode selections.
• M (2 sec) - to access Dive Computer Surface Modes (NORM, GAUG, or FREE).
• A (< 2 sec) - to access NORM/GAUG Log and History.
• A (2 sec) - to access the Show Dual Time selection, then step back through other Watch Set selections*.
• S (< 2 sec) - to silence and acknowledge the Daily Alarm.
• A + S buttons (2 sec) - to access Set Date Format then allow stepping forward through Watch Set selections*.
• L (press) - to activate the Backlight.
WATCH ALT DATA, information includes (Fig. 8A, 8B):
> Dual (away) Time (hr:min) with icon if an Alternate Time has been set and Show Dual is set for NO; or graphic MON (or
TUE, WED, THU, FRI, SAT, SUN) if Show Dual is set for YES (displayed on the Default Time screen).
> Temperature with °F (or °C).
> Date (Month.Day or Day.Month).
> Altitude graphic (EL2 to EL7), if above 3000 feet (915 meters), blank if below.
• M (< 2 sec) - to step forward to CDT Status.
• A (< 2 sec) - to step back to Watch Default Time.
• Revert to Watch Default Time after 5 seconds if M or A is not pressed.
• L (press) - to activate the Backlight.
WATCH CDT (COUNTDOWN TIMER) STATUS
Upon accessing a dive computer mode, Watch CDT operation will be terminated and the time reset to the previous setting.
The CDT will run in the background until it counts down to 0:00, or it is set OFF, or Dive Computer Mode is accessed or a Dive is
started in which case the countdown will terminate and revert to OFF with the hr:min time previously set.
When a set CDT reaches 0:00, the Audible will sound during which time the graphic CDT will flash on the Watch Main.

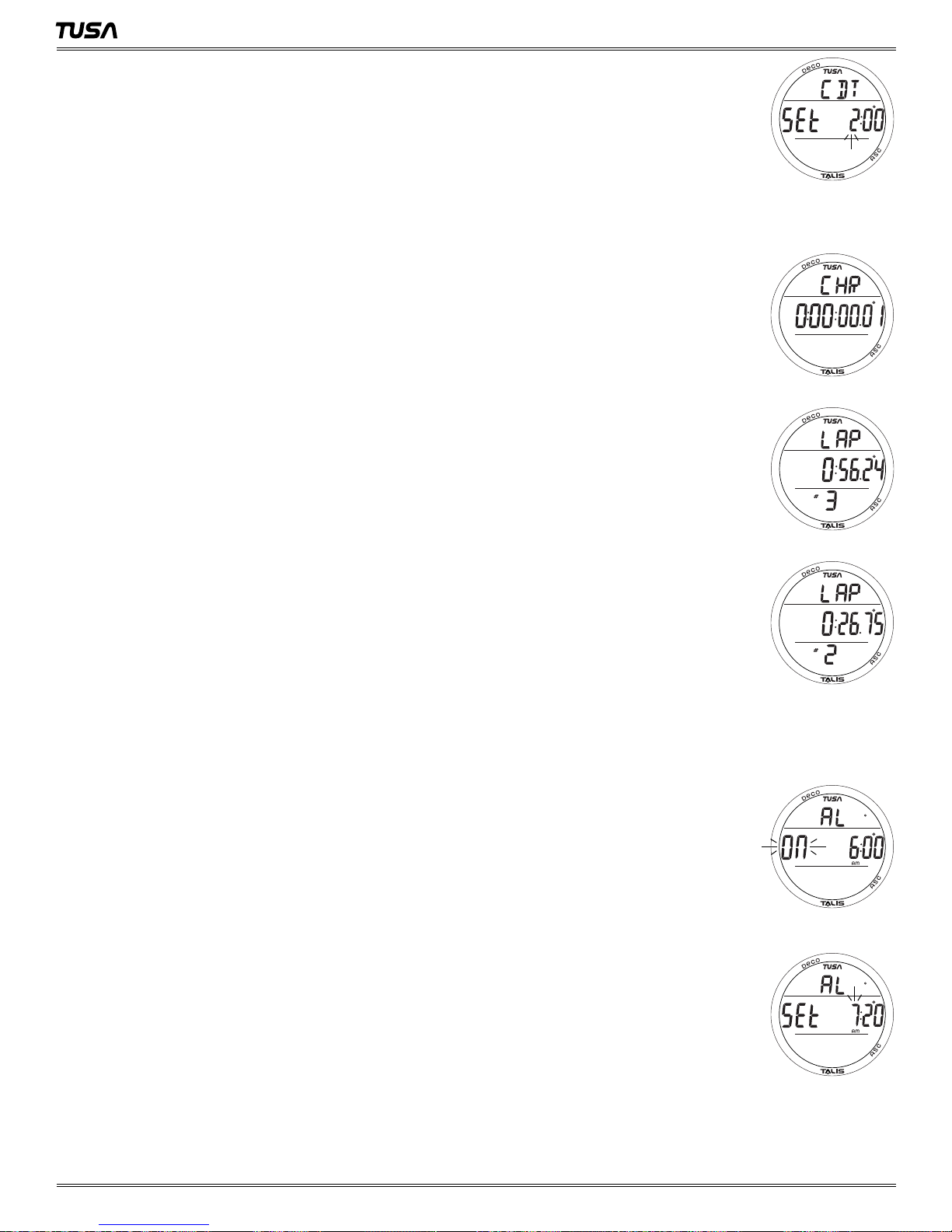

CDT Status, information includes (Fig. 9A):
> Graphic CDT.
> Graphic OFF (or ON) flashing. If OFF, 0:00 or the hr:min previously set. If ON, the hr:min countdown remaining.
• S (< 2 sec) - to toggle between OFF and ON. A toggle to ON will start the countdown if set and OFF.
• A + S (2 sec) - to access Set CDT.
• A (2 sec) - to step back to the Watch ALT screen.
• M (2 sec) - to revert to the Watch Default Time screen.
• Revert to Watch Default Time after 2 minutes if no button is pressed.
• L (press) - to activate the Backlight.
Fig. 7A - DEFAULT TIME
(Main selected, at home)
a
Fig. 7B - DEFAULT TIME
(away, Alternate selected)
Fig. 8A - WATCH ALT
(Show Dual set for NO)
Fig. 8B - WATCH ALT
(Show Dual set for YES)
Fig. 7C - DEFAULT TIME
(Main with Dual)
Fig. 7D - DEFAULT TIME
(away, Alternate with Dual)
a
a
Fig. 9A - WATCH CDT
STATUS
10
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
Set CDT, information includes (Fig. 9B):
> Graphics CDT and SEt.
> Timer setting (hr:min), with Hour digits flashing.
• S (hold) - to scroll upward through Hour values (8/sec) from 0: to 23: in increments of 1: (hr).
• A (< 2 sec) - to step upward through Hour values one at a time.
• M (< 2 sec) - to step back (down) through Hour values one at a time.
• A (< 2 sec) - to save the Hour setting and flash the Minute digits.
• S (hold) - to scroll upward through Minute values (8/sec) from :00 to :59 in increments of :01 (min).
• S (< 2 sec) - to step upward through Minute values one at a time.
• M (< 2 sec) - to step back (down) through Minute values one at a time.
• A (< 2 sec) - to save the hr:min setting and revert to the CDT Status screen with the graphic OFF flashing.
• M (2 sec) - to revert to the Watch Default Time screen.
• Revert to Watch Default Time after 2 minutes if no button is pressed.
• L (press) - to activate the Backlight.
CHRONOGRAPH (Stop Watch/Lap Timer), information includes (Fig. 10A - 10C):
> Graphic CHR.
> Elapsed run time counting up to 9:59:59.99 (min:sec_ .01 sec) if previously started with clock icon; 0:00:00.00 flashing if
not yet started or after reset.
After the first 4.99 seconds, the .01 digits display 2 dashes ( . - - ).
> Graphic LAP #1 (up to #9) when running, blank if not started.
• S (< 2 sec) - to start the Timer which begins counting up in increments of .01 sec.
• S (< 2 sec) - to save that Lap's time and display the next Lap (up to #9, then restart with #1) with the Timer continuing to
count up until stopped.
• A (< 2 sec) - to stop the Timer, save the Lap in progress (the final Lap) and total elapsed run time*, then recall LAP #1 (up to
#9) with it's time (Fig. 10C).
Repeat to recall other Lap times.
• A (2 sec), after the timer is stopped - to revert to Chrono Status with run time reset to 0:00:00.00 flashing.
• A (2 sec) - to step back from the Chrono Status sceen to the CDT Status screen.
• M (< 2 sec) - to access Daily Alarm Status.
• M (2 sec) - to revert to Watch Default Time.
• L (press) - to activate the Backlight.
While the Chrono is running, it will remain on the screen until a button operation is performed. If another screen is accessed, it
will then continue to run in the background.
Upon descending on a dive, Chrono operation will be terminated and reset to 0:00:00.00.
DAILY ALARM STATUS, information includes (Fig. 11A):
When set ON, the Daily Alarm will sound the Audible Alarm at the Time set every day.
> Graphic AL and clock icon
> Graphic ON (or OFF), flashing.
> Alarm Time previously set (hr:min) with AM (or PM) icon.
• S (< 2 sec) - to toggle between ON and OFF.
• A + S (2 sec) - to access Set Daily Alarm.
• A (2 sec) - to step back to Chrono Status.
• M (< 2 sec) - to step forward to Watch Default Time.
• M (2 sec) - to revert to the Watch Default Time screen.
• Revert to Watch Default Time after 2 minutes if no button is pressed.
• L (press) - to activate the Backlight.
Set Daily Alarm, information includes (Fig. 11B):
> Graphics AL and SEt with clock (alarm) icon.
> Alarm Time previously set (hr:min) with the Hour digits flashing.
• S (hold) - to scroll upward through the Hour values 8/sec in increments of 1: (hour).
• S (< 2 sec) - to step upward through the Hour values one at a time.
• M (< 2 sec) - to step back (down) through the Hour values one at a time.
• A (< 2 sec) - to save the Hour setting and flash the Minute digits.
• S (hold) - to scroll upward through the Minute values 8/sec in increments of :01 (minute).
• S (< 2 sec) - to step upward through the Minute values one at a time.
• M (< 2 sec) - to step back (down) through the Minute values one at a time.
• A (< 2 sec) - to save the Minute setting and revert to the Status screen with OFF flashing.
• M (2 sec) - to revert to the Watch Default Time screen.
• Revert to Watch Default Time after 2 minutes if no button is pressed.
• L (press) - to activate the Backlight.
Fig. 9B - SET WATCH CDT
Fig. 10C - LAP RECALL
Fig. 10A - CHRONO STATUS
Fig. 11A - DAILY ALARM
STATUS
Fig. 11B - SET DAILY ALARM
Fig. 10B - CHRONO
RUNNING
11
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
WATCH MODE SETTINGS
Sequence of selections - - Date Format >> Hour Format >> Time >> Date >> Alt Time >> Default Time >> Show Dual.
• A (< 2 sec), repeatedly - to step forward through the selections.
• A (2 sec), repeatedly - to step back through the selections. This action will not save changes to settings.
• M (2 sec), at any time - to revert to the Watch Default Time screen. This action will save a flashing set point.
• Revert to Watch Default Time after 2 minutes if no button is pressed. This action will save a flashing set point.
• L (press) - to activate the Backlight.
> Time of Day and Date settings will serve as the basis for Watch Main, Alternate, and Dual Time values.
> Day of the Week is set automatically when the Date is set.
Set Date Format, information includes (Fig. 12):
This setting determines whether Day is shown on the right or left of Month when Date is displayed.
> Graphic M - D (or D - M) flashing.
> Graphic dAtE.
• S or M (< 2 sec) - to toggle between M - D and D - M.
• A (< 2 sec) - to save the setting and access Set Hour Format.
• A (2 sec) - to step back to the Watch Default Time screen, without changing the setting.
Set Hour Format, information includes (Fig. 13):
This setting determines whether Time of Day is displayed as 1 through 12 hours Am and Pm, or 1 through 24 hours.
> Graphic HR.
> Graphic 12 (or 24) flashing.
• S or M (< 2 sec) - to toggle between 12 and 24.
• A (< 2 sec) - to save the setting and access Set Time of Day.
• A (2 sec) - to step back to Date Format, without changing the setting.
Set Time of Day, information includes (Fig. 14):
This setting will serve as the basis for Watch Main Time, Alternate Time, and Dual Time hr:min values.
> Graphic SET.
> Time with Hour digits flashing, clock icon, AM (or PM) icon if 12 Hour Format.
• S (press/hold) - to scroll upward through the Hour set points 8/sec in increments of 1: (1 hour).
• S (< 2 sec) - to step upward through the Hour set points one at a time.
• M (< 2 sec) - to step back (down) through the Hour set points one at a time.
• A (< 2 sec) - to save the Hour setting and flash the Minute digits.
• A (2 sec) - to step back to Set Hour Format, without changing the setting.
• S (press/hold) - to scroll upward through the Minute set points 8/sec in increments of :01 (1 minute).
• S (< 2 sec) - to step upward through the Minute set points one at a time.
• M (< 2 sec) - to step back (down) through the Minute set points one at a time.
• A (< 2 sec) - to save the Time setting and access Set Date.
• A (2 sec) - to step back to the Hour digits flashing, without changing the setting.
Set Date, information includes (Fig. 15):
Year is always set first, then Month, then Day, regardless of their positions on the screen.
> Graphic YMD meaning Date is arranged as Year Month.Day, or YDM meaning Date is arranged as Year Day.Month.
> Year, Month.Day (or Year, Day.Month) with the Year digits flashing.
• S (press/hold) - to scroll upward through the Year set points 8/sec from 2013 to 2056 in increments of 1 year.
• S (< 2 sec) - to step upward through the Year set points one at a time.
• M (< 2 sec) - to step back (down) through the Year set points one at a time.
• A (< 2 sec) - to save the Year setting and flash the Month digits.
• A (2 sec) - to step back to Set Time of Day, without changing the setting.
• S (press/hold) - to scroll upward through the Month set points 8/sec from 1 to 12 in increments of 1 month.
• S (< 2 sec) - to step upward through the Month set points one at a time.
• M (< 2 sec) - to step back (down) through the Month set points one at a time.
• A (< 2 sec) - to save the Month setting and flash the Day digits.
• A (2 sec) - to step back to the Year digits flashing, without changing the setting.
• S (press/hold) - to scroll upward through the Day set points 8/sec from 1 to 31 in increments of 1 day.
• S (< 2 sec) - to step upward through the Day set points one at a time.
• M (< 2 sec) - to step back (down) through the Day set points one at a time.
• A (< 2 sec) - to save the Date setting and access Set Alternate Time.
• A (2 sec) - to step back to the Month digits flashing, without changing the setting.
Fig. 12 - SET DATE FORMAT
Fig. 13 - SET HOUR FORMAT
Fig. 14 - SET TIME of DAY
Fig. 15 - SET DATE
12
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
Set Alternate Time (Differential), information includes (Fig. 16):
This feature allows you to set an Hour based numeric time Differential ranging from - 23 through OFF to + 23 (hours). It provides
a second (Alternate) Time equal to Watch Default Time +/- the Hour Differential selected.
> Graphic OFF, or the Hour Differential (+ or - sign with numeric digits), flashing.
> Graphics SEt ALt.
• S (press/hold) - to scroll upward through the set points 8/sec from OFF to + 01 through + 23 then - 23 through - 01 in
increments of 1 hour.
• S (< 2 sec) - to step upward through the set points one at a time.
• M (< 2 sec) - to step back through the set points one at a time.
• A (< 2 sec) - to save the setting and access Select Default Time.
• A (2 sec) - to step back to Set Date, without changing the setting.
Select Default Time, information includes (Fig. 17):
This selection allows you to choose which time is to be displayed as the primary time of day, and which by diffferential.
> Graphic MAI (Main, home) or ALT (Alternate, away), flashing.
> Graphics SEL dFLt.
• S or M (< 2 sec) - to toggle between MAI and ALT.
• A (< 2 sec) - to save the setting and access Show Dual Time.
• A (2 sec) - to step back to Set Alternate Time, without changing the setting.
Show Dual Time, information includes (Fig. 18):
This selection determines whether the differential time set will be displayed on the main Watch screen with Default Time.
> Graphic YES or NO, flashing.
> Graphics SHO dUAL.
• S or M (< 2 sec) - to toggle between YES and NO.
• A (< 2 sec) - to save the setting and revert to the Watch Default Time screen.
• S (2 sec) - to step back to Select Default Time, without changing the setting.
Fig. 16 - SET ALTERNATE
TIME
Fig. 17 - SELECT WATCH
DEFAULT TIME
Fig. 18 - SET SHOW DUAL
TIME
13
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
DIVE COMPUTER
FEATURES
14
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
BAR GRAPHS
The Talis features 2 Bar Graphs, the NiBG and ASC.
NiBG (Nitrogen Loading Bar Graph)
The NiBG (Fig. 19a) represents tissue loading of nitrogen, showing your relative no decompression or decompression status. As
your depth and elapsed dive time increase, segments will add to the NiBG, and as you ascend to shallower depths, the segments
will recede, indicating that additional no decompression time is allowed for multilevel diving.
The Nitrogen Loading Bar Graph monitors 12 different nitrogen compartments simultaneously and displays the one that is in
control of your dive. It is divided into a No Decompression (normal) zone, a Caution zone (also No Decompression), and a
Decompression (danger) zone.
While you cannot provide a guarantee against the occurrence of decompression sickness, you may choose your own personal
zone of caution based upon age, physique, excessive weight, etc., to reduce the statistical risk.
ASC (Ascent Rate Indicator)
The ASC (Fig. 19b) provides a visual representation of ascent speed (i.e., an ascent speedometer).
The segments of the ASC represent two sets of speeds which change at a reference Depth of 60 FT (18 M). Refer to the chart for
segment values.
WARNING: At depths greater than 60 FT (18 M), ascent rates should not exceed 60 FPM (18 MPM).
At depths of 60 FT (18 M) and shallower, ascent rates should not exceed 30 FPM (9 MPM).
ALPHA/NUMERIC DISPLAYS
Depth
During dives, Current Depth (Fig. 20a) and Maximum Depth (Fig. 21a) which is on an Alternate Display indicate Depths from 0
to 330 FT (100 M) in increments of 1 FT (0.1 M).
During a No Deco Safety Stop, the set Stop Depth is displayed and during Decompression, required Stop Depth is displayed.
Time
Most Time displays like Time of Day (Fig. 21b) are shown in hour:minute format (i.e., 10:26 represents 10 hours and 26 minutes.
The colon that separates hr:min (min:sec) blinks once per second when the display is indicating real time (e.g., Time of Day,
Elapsed Dive Time).
When Times are calculated projections such as Dive Time Remaining and Elapsed Dive Time (Fig. 20b/c), the colon is solid (non
blinking).
FREE Dive Mode displays Times in minute:second format.
Temperature, Elevation
Ambient Temperature and Altitude can be viewed by accessing the Watch or Dive Computer Surface Alternate screens (Fig. 22).
When above the sea level range, which extends up to 3,000 feet (915 meters), Altitude is displayed as EL (Elevation Level) from
2 up to 7.
EL2 = 3,001 to 5,000 feet (916 to 1,525 meters)
EL3 = 5,001 to 7,000 feet (1,526 to 2,135 meters)
EL4 = 7,001 to 9,000 feet (2,136 to 2,745 meters)
EL5 = 9,001 to 11,000 feet (2,746 to 3,355 meters)
EL6 = 11,001 to 13,000 feet (3,356 to 3,965 meters)
EL7 = 13,001 to 14,000 feet (3,966 to 4,270 meters)
Fig. 19 - BAR GRAPHS
a
Deeper than 60 FT (18 M)
Segments Ascent Rate =
Displayed FPM MPM
0 0 - 20 0 - 6
1 21-50 6.5-15
2 51-60 15.5-18
3 >60 >18
60 FT (18 M) & Shallower
Segments Ascent Rate =
Displayed FPM MPM
0 0 - 10 0 - 3
1 11-25 3.5-7.5
2 26-30 8-9
3 >30 >9
b
Fig. 21 - MAX DEPTH &
TIMES
Fig. 20 - CURRENT DEPTH
a
ab
Fig. 22 - TEMPERATURE,
ELEVATION
b
c
15
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
DIVE COMPUTER
SURFACE
MODES
16
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
DIVE COMPUTER (DC) OPERATING MODES
The Talis features 3 DC Operating Modes -
• NORM >> for Normal Air or Nitrox dives using scuba.
• GAUG >> for scuba dives with no nitrogen/oxygen calculations.
• FREE >> for breath hold dives with no SCUBA.
SURFACE MODE
M (2 sec), while the Watch Default Time screen is displayed - to access the DC Surface Main screen.
If no other dive has been conducted within the past 24 hours, the NORM Surface Main will appear as the default display indicat-
ed by the graphic Nor (Fig. 23). If a GAUG or FREE dive has been conducted within the past 24 hours, the Surface Main screen
for that Operating Modewill be displayed.
• The GAUG and FREE Surface Main screens can be accessed by depressing M (2 sec) . Their graphics will flash indicating
that they can be selected as the Operating Dive Mode.
• To select a Mode for diving, press/release M (< 2 sec) while that graphic is flashing. When the graphic becomes solid, that
Mode is selected for the type of dives to be conducted.
• The Operating Mode selected (NORM, GAUG, or FREE) will remain on display for 2 hours until a dive is made or another
Operating Mode is selected.
At any time while operating in Surface Modes, the Talis will enter Dive Mode upon descent to 5 FT (1.5 M).
• During the 2 hour pre dive surface period, if other screens in the Watch Mode sequence are accessed, Surface Mode must
again be accessed prior to the first dive of a series (if Wet Activation is set OFF).
• When Wet Activation is set ON, the Wet Contacts will activate the selected Dive Mode regardless of what Mode the Talis is
operating in at the time of the descent.
The Talis will enter Post Dive Surface Mode following a dive upon ascent to 2 FT (0.6 M). The Surface Interval Time colon will
flash during the first 10 minutes after a NORM or GAUG dive (Fig. 24), or 1 minute after a FREE dive.
During the first 10 minutes after a dive, the Surface Main screen for the operating mode remains on display. Watch Default Time
can be viewed for 5 seconds during that period by pressing M (< 2 sec).
When the 10 minute Surface Time has elapsed, the Watch Default Time screen will replace the DC Surface Main screen which
can then be accessed by M (2 sec).
--------------------------------------------------------------------------------------------------------
NORM SURF MAIN, information provided includes (Fig. 25):
> Surface Interval Time (hr:min) with clock/wave icon.
> Graphic Nor.
> Tank 1 icon (default on surface); or 2 (the Gas in use during 10 minutes after a dive).
> Number of that dive with # icon, 0 if no dive has been made yet.
> Battery icon if a Low Battery condition exists.
> NiBG, if any after a NORM or FREE dive.
• A (2 sec) - to access NORM SURF ALT.
• A (< 2 sec) - to access Log Mode and History.
• A & S (2 sec) - to access Set Modes.
• M (2 sec) - to access GAUG and FREE Surface Mains.
• M (< 2 sec) - to access to Watch Default Time.
• S (< 2 sec) - to access Plan, Fly, and Dsat.
• L (press) - to activate the Backlight.
NORM SURF ALT, information includes (Fig. 26):
> % O2 saturation remaining after Nitrox dives with icons.
> Temperature with °F (or °C).
> Time of Day (hr:min) with Time (clock ) icon, and AWAY icon if Alternate is selected as the Watch Default Time.
> Altitude graphic (EL2 to EL7), if above 3000 feet (915 meters), blank if below.
• A (< 2 sec) - to revert to NORM Surface Main.
• Revert to NORM Surface Main after 5 seconds if A is not pressed..
• L (press) - to activate the Backlight.
--------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------------------------------
Fig. 23 - NORM SURF MAIN
Fig. 24 - GAUG SURF MAIN
(< 10 min after a dive)
Fig. 25 - NORM SURF MAIN
Fig. 26 - NORM SURF ALT
17
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
NORM/GAUG SET MODES
SURF MAIN > SET GAS > SET A > SET U > Serial Number.
A & S (2 sec) - to access then step through of the sequence.
Alarms (Set A) and Utilities (Set U) set points can also be set/changed using the PC/Mac settings upload program.
Set Gas (FO2 & PO2 Alarm) entries must be made using only the push buttons.
Settings remain at the values set until they are changed, and saved, as described by the following sections.
--------------------------------------------------------------------------------------------------------
SETTING GAS FOR NITROX DIVES
For each value of FO2, the MOD (Max Operating Depth) that can be achieved for the PO2 Alarm value set, will be displayed.
When the FO2 50% Default is set On and FO2 for Gas 1 is set for a numerical value, 10 minutes on the surface after that dive,
the FO2 for Gas 1 will be displayed as 50 and further dives will be calculated based on 50% O2 for oxygen calculations and
21% O2 for Nitrogen calculations (79% Nitrogen) unless the FO2 for Gas 1 is set before the dive.
FO2 for each Gas continues to reset to the FO2 50% Default after subsequent repetitive dives until 24 hours elapse after the last
dive, or the FO2 50% Default is turned Off.
When the FO2 50% Default is set Off, the FO2 for each Gas will remain at the last settings for the remainder of that series of
repetitive dives.
The default FO2 for Gas 1 and 2 each new dive Period is AIR.
When FO2 is set for AIR, the calculations are the same as when it is set to an FO2 of 21%. When FO2 is set to AIR, it remains
set for AIR until it is set for a numerical FO2 value (21 to 100%).
When FO2 is set only to AIR, the O2 and PO2 values and/or warnings will not be displayed during the dive.
MODs affected by the PO2 value set will not be displayed when FO2 for Gas 1 is set to AIR.
Internally, the Talis keeps track of the O2 so that if FO2 for a Gas is subsequently set for a numerical value, the O2 accumulated
during previous dives will be accounted for in the next Nitrox dive (during that dive period and series of repetitive dives).
Once FO2 is set for a numerical value (21 to 100%) and a dive is made, the AIR option is disabled until 24 hours elapse after
the last dive. The AIR option will not be displayed in Set Gas until a full 24 hour Surface Interval has elapsed.
If the FO2 50% Default is set Off, FO2 for each Gas will remain at the values previously set until they are changed. If the FO2
50% Default is set On, FO2 will Default to 50% after the dive.
--------------------------------------------------------------------------------------------------------
SET GAS (FO2 & PO2 ALARMS)
Group selections >> Gas 1 >> Gas 2 >> FO2 50% Default.
• A & S (2 sec), while viewing NORM Surface Main - to access the SET GAS lead-in screen (Fig. 27).
• A (< 2 sec) - to access Set Gas 1.
SET GAS 1, information includes (Fig. 28):
> Graphic GAS (when Air), or PO2 (when Nitrox).
> Max Depth allowed for the PO2 Alarm value displayed with MAX and FT (or M) icons (when Nitrox), blank when Air.
> Tank 1 icon, representing Gas (mix) 1.
> Graphic Air, or the Nitrox value of 21 to 100%, flashing.
• S (press/hold) - to scroll upward through FO2 set points 8/sec from AIR to 21 through 100% in incrementsof 1 %.
The scroll will stop when S is released, or momentarily at 32%, then 50%, then 80%, 50%, then stop at Air (or 21%).
• S (< 2 sec) - to step upward through the FO2 set points one at a time.
• M (< 2 sec) - to step back (down) through the FO2 set points one at a time.
• A (< 2 sec) - to save the FO2 setting and flash the PO2 Alarm digits if Nitrox, or access Set Gas 2 if Air.
• S (< 2 sec) - to step upward through the PO2 Alarm set points from 1.00 to 1.60 ATA in increments of .05 ATA.
• M (< 2 sec) - to step back (down) through the PO2 Alarm set points one at a time.
• A (< 2 sec) - to save the PO2 Alarm setting and access Set Gas 2.
• A (2 sec) - to step back to the previous screen (SET GAS), without changing the setting.
• A & S (2 sec) - to revert to the SET GAS screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
Fig. 27 - SET GAS LEAD-IN
Fig. 28 - SET GAS 1
(FO2, then PO2 Alarm)
18
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
SET GAS 2 is similar to Set Gas 1.
SET FO2 50% DEFAULT, information includes (Fig. 29):
> Graphics FO2, dFLt, and 50.
> Graphic OFF (or ON), flashing.
• S or M (< 2 sec) - to toggle between OFF and ON.
• A (< 2 sec) - to save the setting and revert to the Set Gas screen.
• A (2 sec) - to step back to the Set Gas 2 screen, without changing the setting.
• A & S (2 sec) - to revert to the SET GAS screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
--------------------------------------------------------------------------------------------------------
SET A (ALARMS)
Group selections >> Audible >> Depth >> EDT >> NIBG >> DTR.
> A & S (2 sec), while viewing the Set Gas screen - to access the SET A lead-in screen (Fig. 30).
> A (< 2 sec) will then access Set Audible Alarm.
SET AUDIBLE ALARM, information includes (Fig. 31):
Due to their importance, some cautionary situations will force the Audible to sound even if this feature is set to Off.
> Graphic AUD.
> Graphic ON (or OFF), flashing.
• S or M (< 2 sec) - to toggle between ON and OFF.
• A (< 2 sec) - to save the setting and access Set Depth Alarm.
• A (2 sec) - to step back to the SET A screen, without changing the setting.
• A & S (2 sec) - to revert to the SET A screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
SET DEPTH ALARM information includes (Fig. 32):
> Graphic DEP.
> Depth digits, flashing, with MAX and FT (or M) icons.
• S (press/hold) - to scroll upward through set points 8/sec from 30 to 330 FT (10 to 100 M) in increments of 10 FT (1 M).
• S (< 2 sec) - to step upward through the set points one at a time.
• M (< 2 sec) - to step back (down) through the set points one at a time.
• A (< 2 sec) - to save the setting and access Set EDT Alarm.
• A (2 sec) - to step back to the Set Audible Alarm screen, without changing the setting.
• A & S (2 sec) - to revert to the SET A screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
SET EDT ALARM, information includes (Fig. 33):
> Graphic EDT (Elapsed Dive Time).
> Time digits (hr:min), flashing, with wave/clock icon.
• S (press/hold) - to scroll upward through the set points 8/sec from 0:10 to 3:00 (hr:min) in increments of 5 minutes (:05).
• S (< 2 sec) - to step upward through the set points one at a time.
• M (< 2 sec) - to step back (down) through the set points one at a time.
• A (< 2 sec) - to save the setting and access Set NiBG Alarm.
• A (2 sec) - to step back to the Set Depth Alarm screen, without changing the setting.
• A & S (2 sec) - to revert to the SET A screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
SET NiBG ALARM, information includes (Fig. 34):
> Graphic NBG (Nitrogen Bar Graph).
> NIBG segments, flashing.
• S (< 2 sec) - to step upward through the set points from 1 to 5 segments one at a time.
• M (< 2 sec) - to step back (down) through the set points one at a time.
• A (< 2 sec) - to save the setting and access Set DTR Alarm.
• A (2 sec) - to step back to the Set EDT Alarm screen, without changing the setting.
• A & S (2 sec) - to revert to the SET A screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
Fig. 29 - SET FO2 50%
DEFAULT
Fig. 30 - SET ALARMS
LEAD-IN
Fig. 31 - SET AUDIBLE
ALARM
Fig. 32 - SET DEPTH ALARM
Fig. 33 - SET EDT ALARM
Fig. 34 - SET NiBG ALARM
19
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
SET DTR ALARM, information includes (Fig. 35):
> Time digits (hr:min), flashing, with wave/clock/profile and AIR icons.
• S (press/hold) - to scroll upward through the set points 8/sec from 0:00 to 0:20 (min) in increments of 1 minute (0:01).
• S (< 2 sec) - to step upward through the set points one at a time.
• M (< 2 sec) - to step back (down) through the set points one at a time.
• A (< 2 sec) - to save the setting and access Set Turn Alarm.
• A (2 sec) - to step back to the Set NiBG Alarm screen, without changing the setting.
• A & S (2 sec) - to revert to the SET A screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
--------------------------------------------------------------------------------------------------------
SET U (UTILITIES)
Group selections >> Wet Activation >> Units >> Deep Stop >> Safety Stop >> Conservative Factor >> Backlight Duration >>
Sampling Rate.
> A & S (2 sec), while viewing the SET A screen - to access the SET U lead-in screen (Fig. 36).
> A (< 2 sec) will then access Set Wet Activation.
SET WET ACTIVATION, information includes (Fig. 37):
> Graphics WET and ACt.
> Graphic OFF (or ON) flashing.
• S or M (< 2 sec) - to toggle between ON and OFF.
• A (< 2 sec) - to save the setting and access Set Units .
• A (2 sec) - to step back to the SET U screen, without changing the setting.
• A & S (2 sec) - to revert to the SET U screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
SET UNITS, information includes (Fig. 38):
> Icons/graphics PSI, F, and FT (or BAR, C, and M), flashing.
• S or M (< 2 sec) - to toggle between Imperial and Metric.
• A (< 2 sec) - to save the setting and access Set Deep Stop .
• A (2 sec) - to step back to the Set Wet screen, without changing the setting.
• A & S (2 sec) - to revert to the SET U screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
SET NORM DEEP STOP, information includes (Fig. 39):
> Graphic DS (Deep Stop).
> Graphic OFF (or ON), flashing, with STOP icon.
• S or M (< 2 sec) - to toggle between OFF and ON.
• A (< 2 sec) - to save the setting and access Set Safety Stop.
• A (2 sec) - to step back to the Set Units screen, without changing the setting.
• A & S (2 sec) - to revert to the SET U screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
The DS is factory set for 1/2 Max Depth for 2 minutes.
SET NORM SAFETY STOP, information includes (Fig. 40):
> Graphic SAF (Safety Stop).
> Graphic OFF (or ON), flashing, with STOP icon.
• S or M (< 2 sec) - to toggle between OFF and ON.
• A (< 2 sec) - to save the setting and access Set Conservative Factor.
• A (2 sec) - to step back to the Set Deep Stop screen, without changing the setting.
• A & S (2 sec) - to revert to the SET U screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
The SS is factory set for 15 FT (5 M) for 3 minutes.
Fig. 35 - SET DTR ALARM
Fig. 38 - SET UNITS
Fig. 39 - SET DEEP STOP
Fig. 40 - SET SAFETY STOP
Fig. 36 - SET U (UTILITIES)
Fig. 37 - SET WET
ACTIVATION
20
TALIS OWNER'S MANUAL
©2002 Design, 2014 Doc. No. 12-5355-r01 (1/20/14)
SET CONSERVATIVE FACTOR, information includes (Fig. 41):
> Graphic CF (Conservative Factor) with wave/clock/profile icon.
> Graphic OFF (or ON), flashing.
• S or M (< 2 sec) - to toggle between OFF and ON.
• A (< 2 sec) - to save the setting and access Set Backlight Duration.
• A (2 sec) - to step back to the Set Safety Stop screen, without changing the setting.
• A & S (2 sec) - to revert to the SET U screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
When the Conservative Factor is set ON, the No Deco Limits are reduced to those that would be available at the next higher
3000 foot (915 meter) Altitude.
SET BACKLIGHT DURATION, information includes (Fig. 42):
> Graphics BL (Backlight), dur (duration), and SEC (seconds).
> Time digits (seconds), flashing, with clock icon.
• S (< 2 sec) - to step forward (up) through the set points of 0, 5, and 10 (sec) one at a time.
• M (< 2 sec) - to step back (down) through the set points one at a time.
• A (< 2 sec) - to save the setting and access Set Sampling Rate.
• A (2 sec) - to step back to the Set Conservative Factor screen, without changing the setting.
• A & S (2 sec) - to revert to the SET U screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
This is the time interval that the Backlight will remain On after the L button that activates it is released.
SET SAMPLING RATE, information includes (Fig. 43):
> Graphics SR (Sampling Rate) and SEC (seconds).
> Time digits (seconds), flashing, with clock icon.
• S (< 2 sec) - to step forward (up) through the set points of 2, 15, 30, and 60 (sec) one at a time.
• M (< 2 sec) - to step back (down) through the set points one at a time.
• A (< 2 sec) - to save the setting and revert to the SET U screen.
• A (2 sec) - to step back to the Set Backlight Duration screen, without changing the setting.
• A & S (2 sec) - to revert to the SET U screen.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
This is the frequency at which samples of data are recorded for download to the PC/Mac programs.
--------------------------------------------------------------------------------------------------------
SERIAL NUMBER (SN), information includes (Fig. 44):
• A & S (2 sec), while viewing the SET U screen - to access the SN screen.
> Graphic SN (Serial Number).
> Factory programmed Serial Number (up to 6 digits).
> Firmware (operating software) revision (e.g., graphic r1A).
• A & S (2 sec) - to access the Surface Main.
• M (2 sec) - to revert to the Surface Main.
• Revert to the Surface Main after 2 minutes, if no button is pressed.
The Serial Number and Firmware Revision will be requested in the event that you contact TUSA regarding the Talis. Enter them
in the records section provided in the back of this manual.
--------------------------------------------------------------------------------------------------------
Fig. 41 - SET CONSERVA-
TIVE FACTOR
Fig. 44 - SERIAL NUMBER
Fig. 42 - SET BACKLIGHT
DURATION
Fig. 43 - SET SAMPLING
RATE
Table of contents
Languages:
