Tallysman TW5310 User manual

TW5310
GPS Receiver/Antenna
User Manual
Visit us on the web:
www.tallysman.com
Document # 61-0009-0

TW5310 User Manual
2
©2011 Tallysman Wireless, Inc. Confidential
Document Amendment Record
Revision
Date
Comments
Rev 1_0
28 Feb 2011
Preliminary release for review ( based on TW5300
build)
Rev1_1
9 June 2011
Based on new TW5310 &TW5210 builds
Rev 1_2
12 July 2011
Based on product release
Rev 1_3
3 Aug 2011
Added single end termination to 1PPS
Copyright
Copyright 2011 Tallysman Wireless Inc. All Rights Reserved.
This document and the subject matter herein are proprietary items to which
Tallysman Wireless Inc. retains an exclusive right to reproduction, manufacture and
sale. This document is submitted in confidence, for the use of the recipient alone, or
in conjunction with Tallysman Wireless Inc. and its licensees, and for no other
purpose whatsoever unless permission for further disclosure is expressly granted in
writing. Information in this document is subject to change without notice.
Tallysman Wireless Inc.
106 Schneider Road, Unit 3
Ottawa ON K2K 1Y2 Canada
Tel: [phone]
Fax: [phone]

TW5310 User Manual
3
©2011 Tallysman Wireless, Inc. Confidential
Table of Contents
1Introduction ................................................................................................................ 4
2TW5X10 Evaluation..................................................................................................... 6
2.1 Open Source GPS Software Utility ....................................................................... 6
2.2 Configurator ......................................................................................................... 6
3TW5310 Interface ...................................................................................................... 7
3.1 Test cable ............................................................................................................. 8
4TW5310 Connections.................................................................................................. 9
4.1 Power ................................................................................................................... 9
4.2 NMEA output........................................................................................................ 9
4.3 1PPS.................................................................................................................... 10
4.3.1 1PPS Single ended termination................................................................... 11
4.4 Cable Delays: ...................................................................................................... 11
4.5 1PPS Qualification .............................................................................................. 12
4.6 Baud Rate ........................................................................................................... 12
4.7 Satellite Based Augmentation System (SBAS).................................................... 13
5TW5310 Installation.................................................................................................. 13
6NMEA Message Reference........................................................................................ 15
6.1 NMEA Field Types............................................................................................... 15
6.1.1 RMC............................................................................................................. 16
6.1.2 GGA ............................................................................................................. 17
6.1.3 GSA.............................................................................................................. 18
6.1.4 GSV.............................................................................................................. 18
6.1.5 VTG.............................................................................................................. 19
7TW5XXX Configurator ............................................................................................... 20
7.1 Parameter Fields ................................................................................................ 21
7.2 Read/Write......................................................................................................... 23

TW5310 User Manual
4
©2011 Tallysman Wireless, Inc. Confidential
1Introduction
The TW5310 is an integrated GPS receiver/antennas designed for use in professional
grade applications such as vehicle tracking and timing applications.
It features the STMicroelectronics STA8058 Teseo™ WAAS, EGNOS and MSAS enabled
GPS receiver IC, a high performance low noise amplifier stage, a tight out-of-band SAW
filter to reject interference, and a perfectly tuned antenna element for maximum GPS
signal reception, even in dense urban-canyon environments where multipath
interference is prevalent.
Available with brick-wall filter option to eliminate possible interference from
Lightsquared transmissions.
Figure 1 TW5310
The TW5310 is a through-hole mount GPS receiver/antenna housed in an industrial
grade weatherproof IP67 enclosure. It provides NMEA 0183 standard output at
RS232 levels.
Differential 1 pulse-per-second (1PPS) outputs are provided at RS422 levels. The
1PPS is synchronized to UTC.
A GPS position fix is obtained in less than 39 seconds from a cold start, and recovery
from temporary blockage of GPS signal is typically less than 1 second.
The last known position is periodically written to non-volatile memory to maintain
position information across power cycles.

TW5310 User Manual
5
©2011 Tallysman Wireless, Inc. Confidential
The TW5330 variant is the perfect solution for precision timing and network
synchronization.
Figure 2 TW5330
Features
Standalone Integrated GPS Receiver/Antenna.
16 channel simultaneous operation
High performance tracking (-159dBm)
Fast time to first fix
SBAS Capable
Low noise LNA and SAW band-pass filter
GPS output: NMEA 0183 output
Differential 1PPS output
1PPS Qualification
Configuration information saved across power cycles
Waterproof enclosure (IP67)
TW5310 Configuration application
RoHS compliant
Optional Brickwall pre-filter

TW5310 User Manual
6
©2011 Tallysman Wireless, Inc. Confidential
2TW5X10 Evaluation
The TW5310 performance is easy to evaluate with the following software applications.
2.1 Open Source GPS Software Utility
The TW5310 is compatible with most third party applications that are capable of
decoding standard NMEA 0183 messages.
The following open source GPS utility can be used to display the NMEA output
sentences graphically.
http://www.visualgps.net/VisualGPS/
2.2 Configurator
Tallysman provides a Windows based Configurator application (Part # 42-0004-0) to
configure the operating parameters of the TW5XXX. See section 7 for configuration
parameter details

TW5310 User Manual
7
©2011 Tallysman Wireless, Inc. Confidential
3TW5310 Interface
The TW5310 cable is terminated in a RJ45 connector. The RJ45 connector can be cut off
if a custom connector interfaces is required.

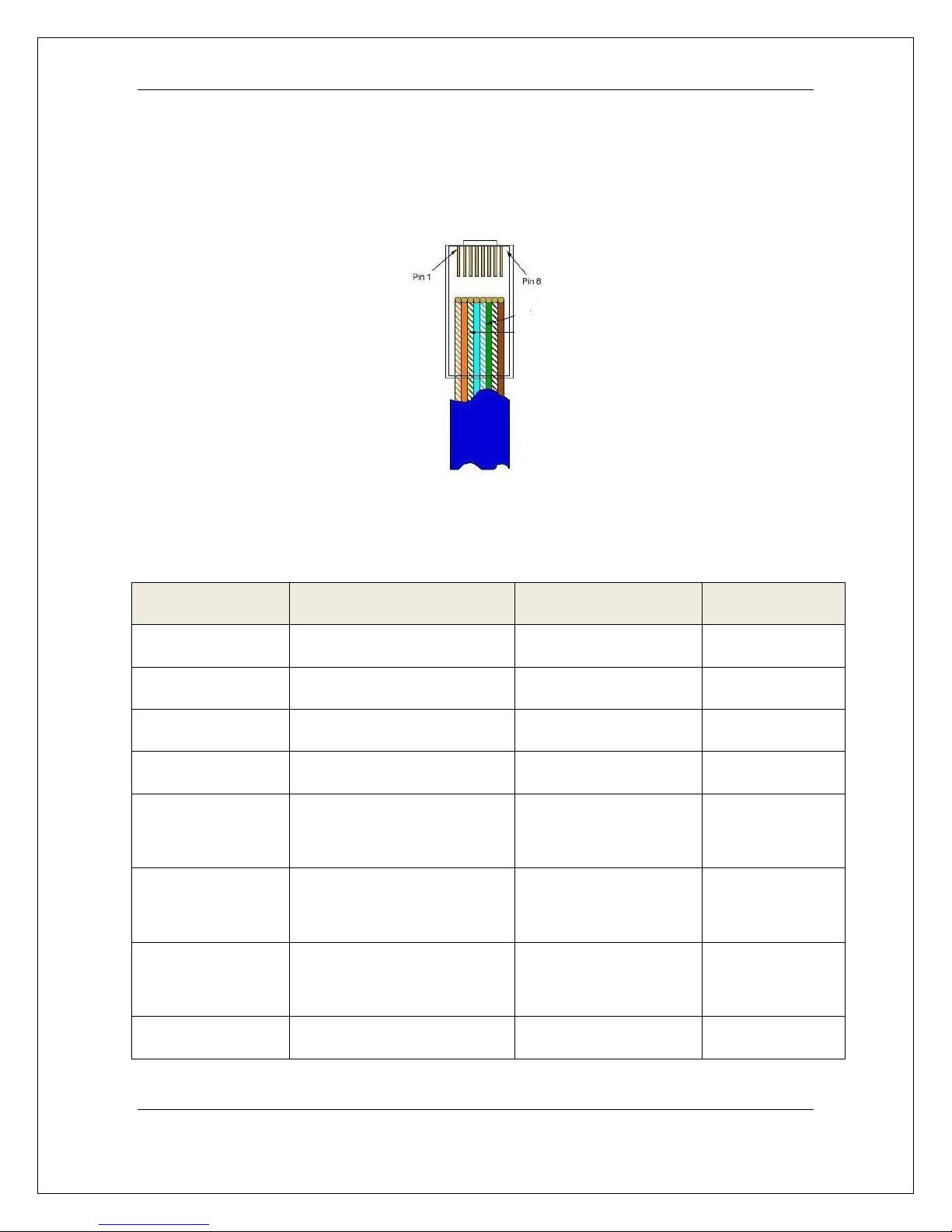

Figure 3
Wiring connections are indicated in Table 1
Wire Color
Signal
Comments
RJ45 pin #
Brown
Power
12V
8
Brown/White
Gnd
0V
7
Blue/White
RX into the TW5310
RS232 level (+/-6V)
5
Orange
TX out of the TW5310
RS232 level (+/-6V)
6
Orange/White
Differential 1PPS output
1PPS_B
(0 to 3.3V levels).
3
Blue
Differential 1PPS output
1PPS_A
(0 to 3.3V levels).
4
White/Green
1PPS_A
N/A
1
Green
1PPS Qualification
(0 to 3.3V levels)
2
Table 1

TW5310 User Manual
8
©2011 Tallysman Wireless, Inc. Confidential
3.1 Test cable

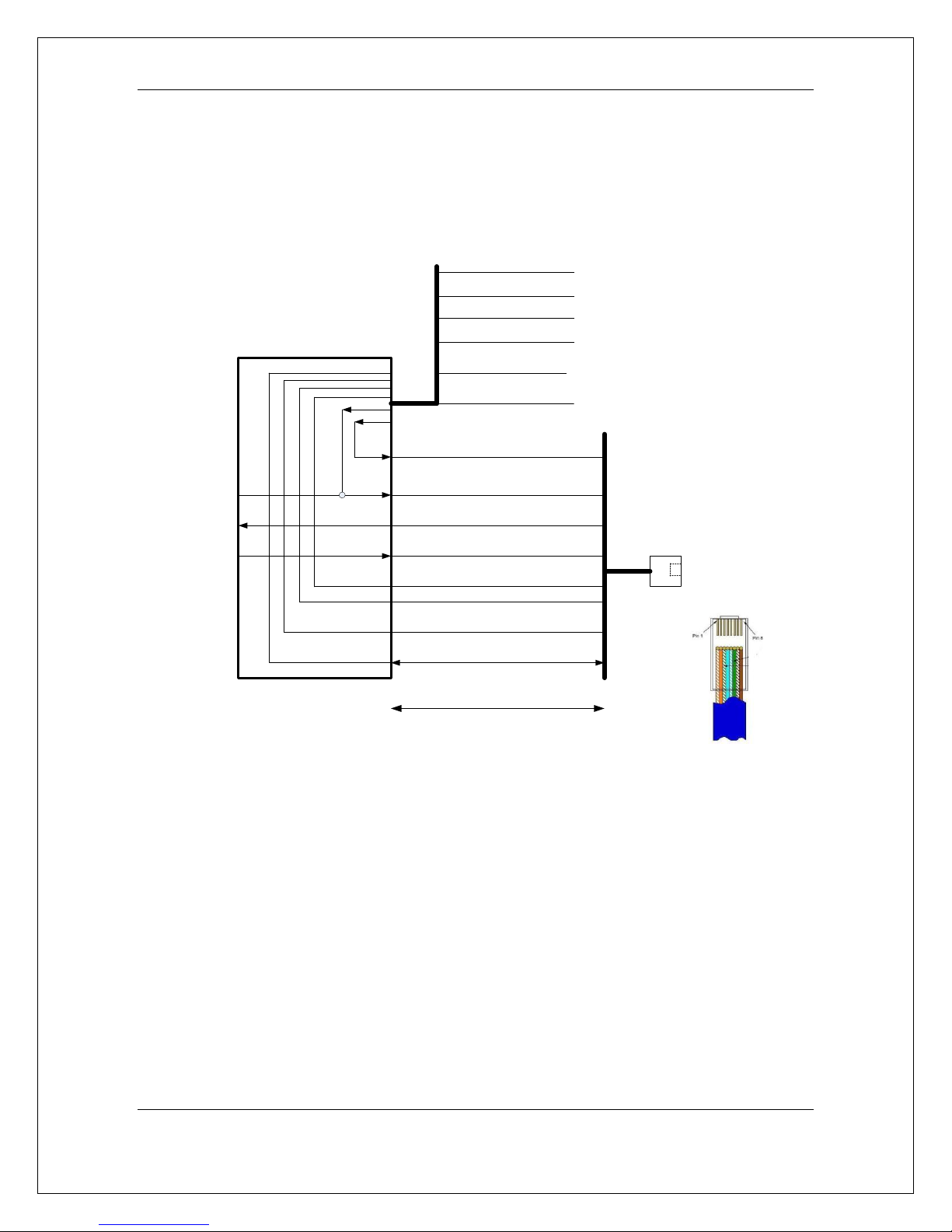

Figure 4 shows the pin outs for an optional test cable (Part # 27-00045-0) terminated in
a DB9.
8P8C
Power (Red)
Gnd (Black)
Power
Power
GND
GND
DB9F
Shell
RX (into PC)
(2)
TX (out of PC)
(3)
TW53XX
Debug cable (27-0045-0) Rev 1_0
RX
TX
1PPS Valid ( GPIO_A)
1 ft
Flying Leads
22AWG
GPIO_B
(5)GND
1
8
2
3
4
5
6
1PPS_A
1PPS_B
Pinouts shown for a
CROSS OVER
Connector
1PPS_A
1PPS_B
1PPS Valid (GPIO_A)
GPIO_B
7
Figure 5
Note: The RJ45 pin connections on the test cable assume a “CROSS over” Block to
connect to the TW5310.

TW5310 User Manual
9
©2011 Tallysman Wireless, Inc. Confidential
4TW5310 Connections
The TW5310 supports the following connections:
4.1 Power
The TW5310 operates at 12 volts. Overvoltage and transient protection make it suitable
for installation in the harshest of vehicle installations.
Connect the BROWN wire to Positive supply (12V or 5V depending on variant)
Connect the BROWN/WHITE wire to 0V
Note: Tallysman offers variants of the TW5310 which operate with 3.3v, 5V and Vbus (
USB version power.
4.2 NMEA output
See section 3 for wiring details
GPS position and timing information is output once per second in NMEA format. The
NMEA RX and TX outputs are at RS232 levels.
The default output from the TW5310 is 3 digit GGA and RMC messages at 4800 baud,
but can be configured to output 4 or 5 digit resolution.
The TW5310 can be configured to output the following NMEA sentences using the
Tallysman TW5XXX Configurator:
RMC - The RMC message is the recommended minimum data for GPS
GGA - The GGA message provides GPS Fix Information
VTG - The VTG message provides vector track and speed over ground
GSA - The GSA message provides overall satellite data
GSV - The GSV message provides detailed satellite data.
Note 1: When configuring additional output messages the baud rate must be increased
to ensure that there is enough time to output all messages sentences e.g. set to 57,600
baud

TW5310 User Manual
10
©2011 Tallysman Wireless, Inc. Confidential
Note 2: If you are using the Visual GPS software utility to display TW5310 outputs, the
GSV message should be enabled to view satellite signal strengths.

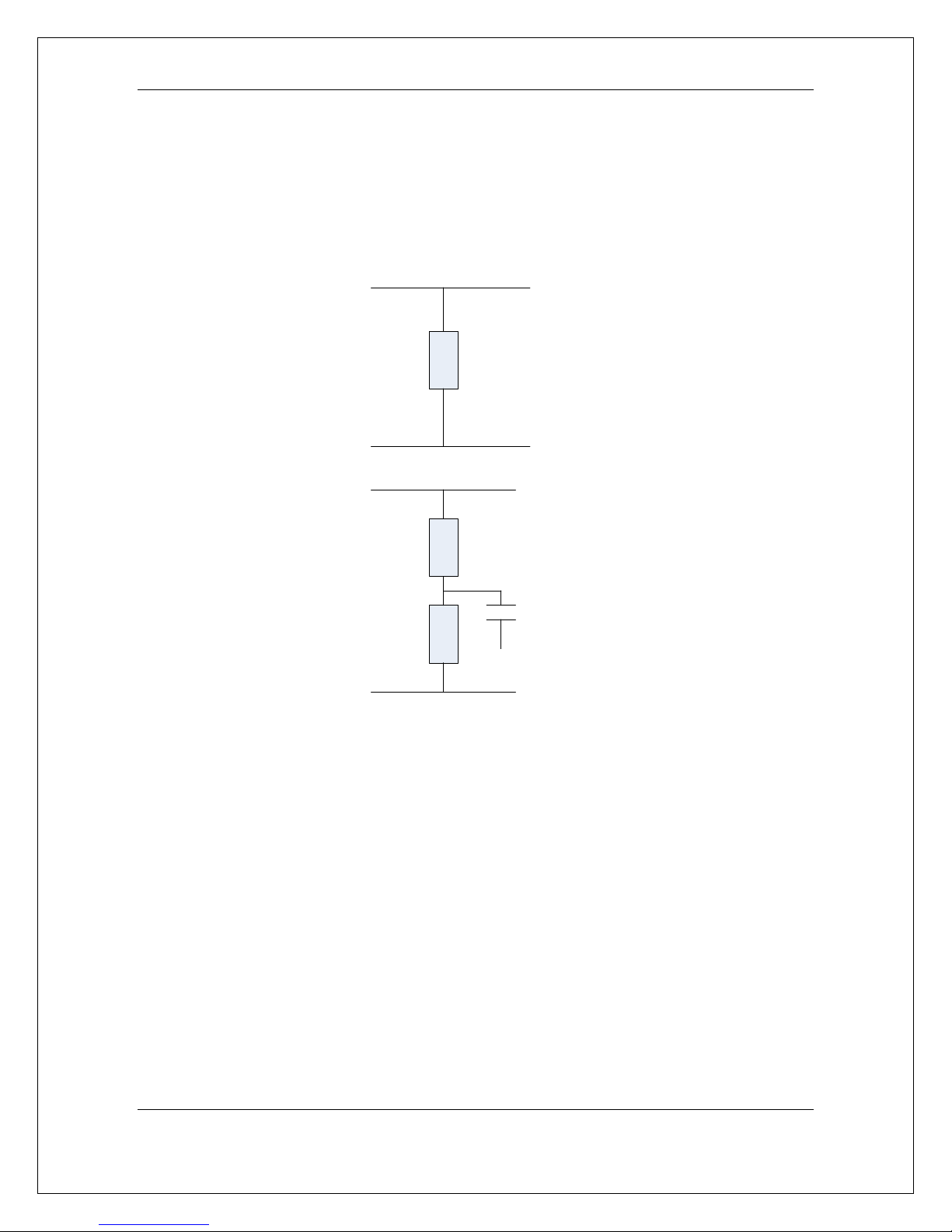

4.3 1PPS
Differential 1PSS outputs at RS422 levels are provided. The 1PPS signal is synchronized
to UTC to within 100 nanoseconds. The rising edge of the 1PPS signal is synchronized to
the start of UTC time.
See section 3 for wiring details
250 ms 750ms
1PPS_A
1PPS_B
0V
3V
0V
3V

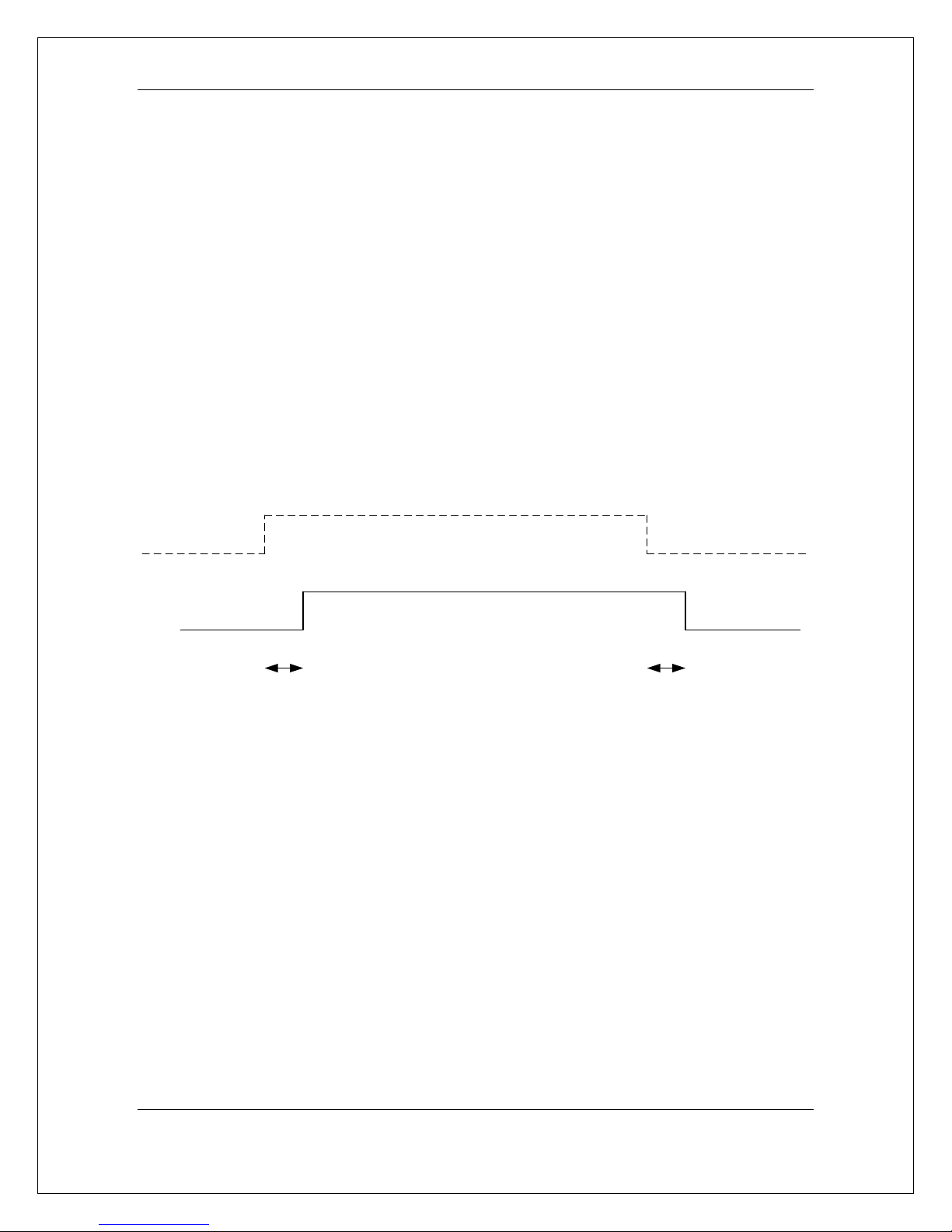

Figure 6
The default pulse width is 250 ms, but is configurable from 100 ms to 500 ms.
After having obtained a GPS fix, the 1PPS output will be accurately maintained even
when tracking only one satellite. Once synchronized the 1PPS maintains synchronization
accuracy with no GPS reception by fly-wheeling for a period, see “1PPS Finish delay” in
section 4.5.
Signal levels are differential, 0.V to 3.3V.
