TanGO X3s User manual

TanGO X3s
MULTIFUNCTIONAL VACUUM
CLEANER
USER MANUAL
MODEL NO.: TanGO X3s

1
Thank you for purchasing our new robotic vacuum cleaner.
Please read this manual carefully before using the product.

2
Table of Contents
Safety Tips................................................................................ 4
Components of the cleaner ..................................................... 5
Function Introduction ............................................................. 5
Applicability............................................................................. 5
Main body ................................................................................ 6
Control Panel of the main body..................................................................................................................................... 6
Usage of Control Panel ................................................................................................................................................. 7
Assembly & Disassembly and Cleaning of Dustbin ..................................................................................................... 8
Assembly & Disassembly and Cleaning of Brush ........................................................................................................ 9
Assembly & Disassembly and Cleaning of Wheel ..................................................................................................... 10
Cleaning of Sensor and Infrared Transparent Window............................................................................................... 11
Replacement of Battery............................................................................................................................................... 11
Remote Control...................................................................... 12
Using Method & Functional Status of Control Panel ................................................................................................. 12
Auto Charging Docking Station........................................... 14
The Docking Station Display and Control Panel ........................................................................................................ 14
Using Method & Functional Status of the Docking station ........................................................................................ 14
Installation of Auto Charging Docking Station and Charging for the cleaner............................................................ 15
Virtual Wall ........................................................................... 17
Using Method & Functional Status of Virtual Wall ................................................................................................... 17
Installation method of Virtual Wall ............................................................................................................................ 18
Storage .................................................................................... 19
Trouble shooting.................................................................... 19
Error Codes ................................................................................................................................................................. 19
Technical Specifications........................................................ 21

3
Technical Specifications of Remote Control .............................................................................................................. 21
Technical Specifications of Docking Station .............................................................................................................. 21
Technical Specifications of Virtual Wall .................................................................................................................... 22

4
Safety Tips
Warnings
No one else can disassemble, maintain or
transform the product except the
maintenance technicians designated by the
company, or it may cause fire, electric shock
or personal injury.
Don’t use other charger but the equipped
one of the Robot, or it may cause product
damage, electric shock or fire due to high
voltage.
Don’t touch high-voltage power cord of the
electric appliance with your wet hand, or it
may cause electric shock.
Don’t bend the power cord overly or place
weight on it, or it may cause power cord
damage, fire or electric shock.
Don’t twist your clothes or any part of your
body (head, finger, etc.) into the brush or
wheel of the Robot, or it may cause personal
injury.
Don’t approach cigarette, lighter, match and
other heat objects or combustible materials
such as the gasoline cleaner.
Attentions
Don’t forget to turn off the power while
transporting or storing the Robot for long, or the
battery may be damaged.
Insert the power cord of the charger well or it
may cause electric shock, short circuit, smoking
or fire.
Check whether the charger and socket is
connected well, or it may cause charging failure
or even fire.
Remove all easily damaged objects (including
luminous objects, fabrics, glass bottles, etc.)
before using, or it may cause damage to these
objects or affect the using of the Robot.
Please use the Cleaner cautiously in the presence
of the children to avoid frightening or harming
them.
Don’t stand or sit on the Cleaner, or it may cause
damage to the Robot or personal injury.
Don’t make the Cleaner take in water and other
liquors for fear of the product damage.
Don’t use the Cleaner on small tables and chairs
or other small space, otherwise the Cleaner may
be damaged.
Don’t use the Cleaner outdoors, or it may cause
the product damage.
Don’t use the Cleaner in commercial places, or
the Cleaner may be damaged by excessive use.
Don’t leave movable thread, wire and other objects with the length of more than 150mm on the ground or the
brush may be entangled.
The Cleaner is not for use of the disabled (people with physical or mental handicap), children and those who
use the Cleaner before reading the User Manual carefully.

5

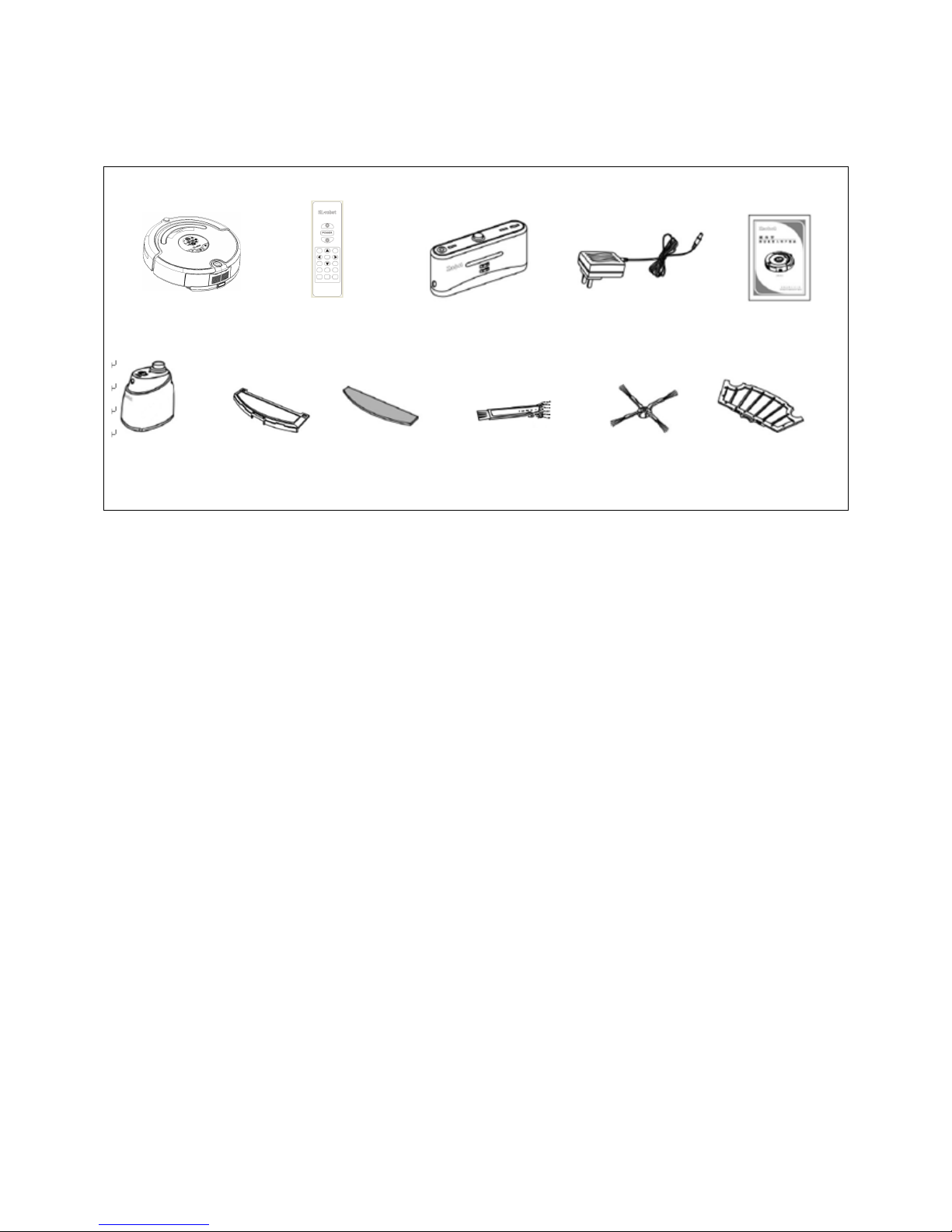

Components of the cleaner
Cleaner Remote control Auto charging docking station Adaptor User Manual
Virtual Wall Mopping part Mop Dust brush Side bruch Filter
Function Introduction
It is the Robotic vacuum cleaner with rechargeable battery, controlled by microcomputer intelligent and integrated with
automatic cleaning, dust absorption, mopping, sterilizing, timing, reservation cleaning, remote control, speed selection,
various identification protection functions, various automatic cleaning modes and automatic charging.
Applicability
The product, mainly applicable to residence houses, hotel rooms and small offices, is good for cleaning to various
short-haired carpet, wood flooring, hard flooring, ceramic tile, etc.

6

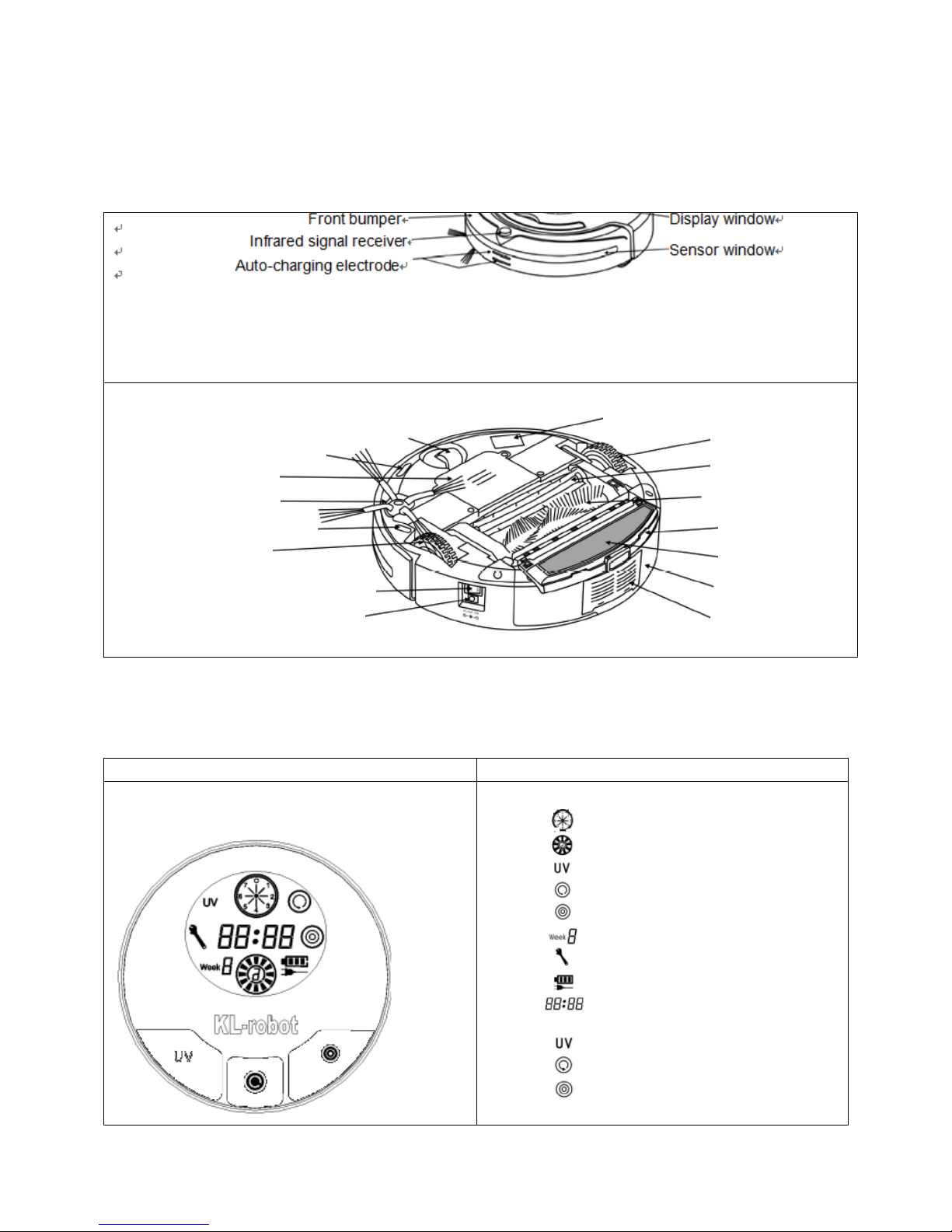

Main body
Top of main body
Bottom of main body
Control Panel of the main body
Display Interface
LCD directive sign
Menu Display:
1. Date/week set display
2. Wheel rotation/speed display
3. UV lamp display
4. Automatic cleaning display
5. Timing cleaning display
6. Current week display
7. Breakdown maintenance display
8. Charging/power display
9. Time/error code display
Touch keys:
1. UV lamp key
2. Automatic cleaning key
3. Timing cleaning key
Front wheel
Ground detection sensor
Battery cover
Side cleaning brush
Ground detection sensor
Right wheel
Power switch
DC socket
UV sterilizing lamp
Left wheel
Rubber brush
Main brush
Mopping part
Mop
Dustbin
Air outlet window

7
Usage of Control Panel
1. Check the batteries are installed correctly with enough power, and then turn on the power switch, the buzzer will ring once and icons
will show as follows:
2. Indicates the current date per week.
3. Indicates malfunction, “88:88” displays the failure code from E001 to 034.
4. Indicates the battery, three grids mean full power, or decreased power with less grids.
5. Indicates the charging state. It keeps flickering while the battery is charging, and stops flickering while the battery is
full.
6. Indicates the timing time, current time and failure code.
7. Indicates the wheel speed. It moves fast while the Robot is working on speed 1, or slowly on speed 2.
8. Indicates the UV lamp.It is on while the Robot is working, and is off while the Robot is not working.
9. Indicates the timing mode.
10. Indicates the automatic mode.
Followings are selected and set only by the remote controler
1. means selecting reservation of any day or some days of one week.
2. displays the reservation set.
3. means adjusting the speed of the wheel.
4. displays the current date per week.
Operating Function of
Touch Keys
Function Description
1. Auto Cleaning Key
a Clear up gadgets or obstacles in the room before cleaning, and then press Automatic Cleaning
Key , it will clean by spiral, linear, zigzag, follow the wall modes automatically.
b The Robot may choose fast or slow running while cleaning.
c The Robot will stop running in case of low battery, then it will ring ten times and search the recharger
for charging automatically.
d The Robot will stop cleaning if you press any keys during its cleaning.
2. Spot Cleaning Key
a Press Spot Cleaning Key , it will enter the area about 1m2and clean by the spiral mode.
b Choose the fast cleaning time of about 2 minutes and low cleaning time of about 4 minutes, and it will
stop automatically after the cleaning.
c The Robot will stop running in case of low battery, then it will ring ten times and search the recharger
for charging automatically.
d The Robot will stop cleaning if you press any keys during its cleaning.
3. UV Lamp Key
a Turn on the power of the main body, the display will light.
b Press the Key then, will be on, UV lamp will be on if the Robot is working, or off if the
robot stops working.
c If the UV lamp is unused, press the key to turn off, then the icon will be off.
d The on/off mode of UV lamp will be memorized automatically.
:The keys of main body are of electronic touch type, you only need to touch them lightly with your finger while using it. Besides,
you should clean the keys and the space between them to remove water or oil stains, or may cause the touch failure.

8
Assembly & Disassembly and Cleaning of Dustbin
Assembly & Disassembly of Dustbin:
1. Extract the dustbin by pressing the
key on it. (Refer to Figure 1 and
Figure
2. Press the red button on it, and then
the blower will pop up
automatically. (Refer to Figure 3)
3. Reverse the blower, release 2
fasteners and open the cover.
(Refer to Figure 4 and Figure 5)
Figure 4 Figure 5)
4. Open the bracket and the filter will
appear. (Refer to Figure 6)
5. Change a new filter, press the semicircle bracket by one
hand to release the fastener from the filter screen, and
remove the filter grid by the other hand and then change a
new one. (Refer to Figure 7)
6. Reverse the dustbin, tear out the mop, release the trailing
bar and then unplug the right and left fasteners on the
bottom of the dustbin (Refer to Figure 8 and Figure 9). All
parts should be assembled as before disassembly.
Figure 8 Figure 9
:Don’t use the mop and mopping part in the figure above on the carpet or uneven ground.
Figure 3
Figure 6
Figure 7

9

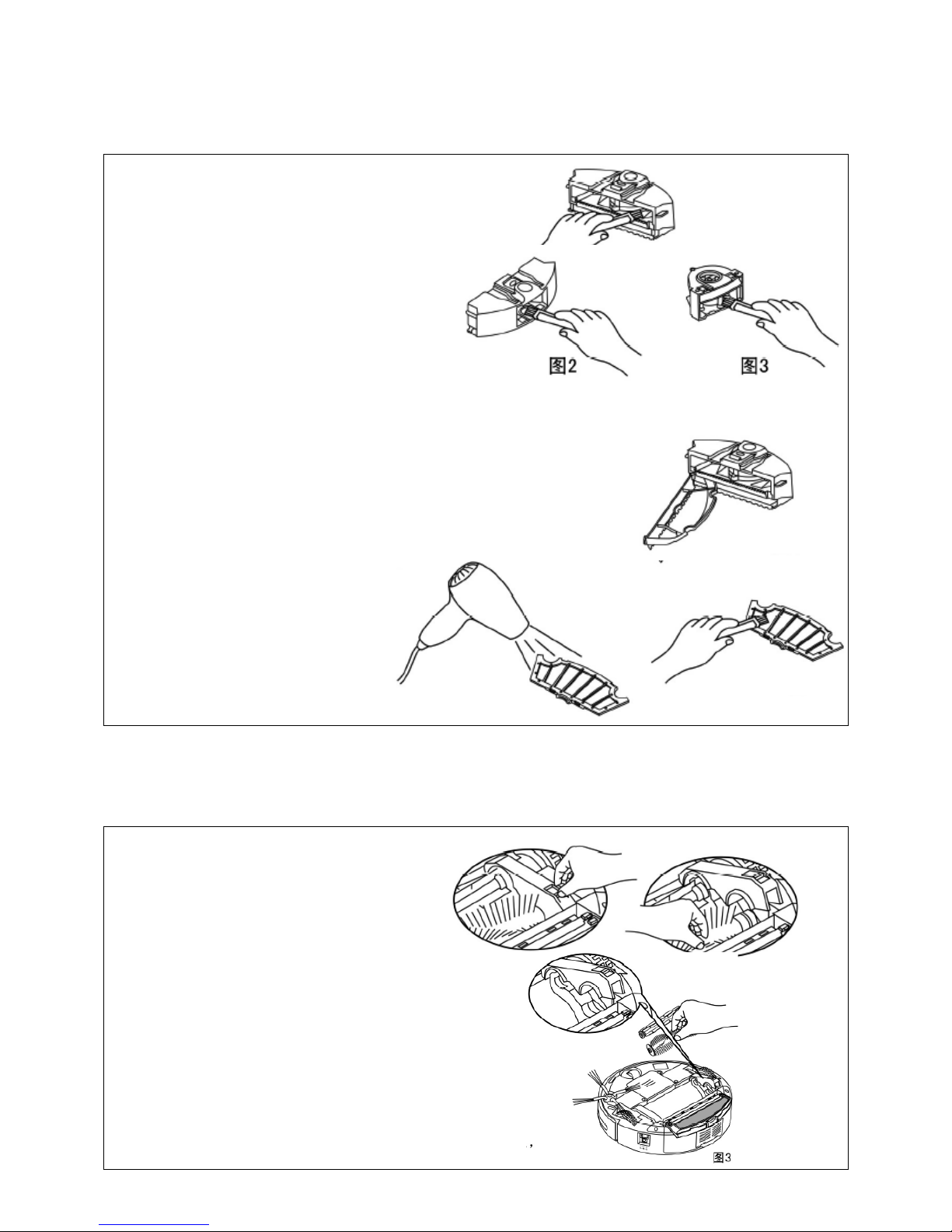

Cleaning of Dustbin and Blower:
1. First dump the dust, and then clean it with
Dust Brush. (Refer to Figure 1)
2. Pop up the blower, and then clean the air
inlet/outlet with brush cleaner. (Refer to
Figure 2 and Figure 3)
3. Don’t clean the blower in water!
4. Pop up the blower, take out the filter, and
then clean the dustbin in water. (Refer to
Figure 4)
5. Clean the filter by hairdryer or Dust
brush. (Refer to Figure 5 and Figure
6)
6. After cleaning, you can assemble it
firmly as before the disassembly.
Assembly & Disassembly and Cleaning of Brush
Assembly & Disassembly of Mid Cleaning Brush and Floor Brush:
1. Force the locking bar forward and raise
the cover by right thumb, and then raise
rod of the mid cleaning brush by your
left hand. (Refer to Figure 1 and Figure
2)
Figure 1 Figure 2
2. Take out the main brush and floor
brush. (Refer to Figure 3)
3. Insert the main brush and floor brush
into the holes before closing the cover
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6
Figure 3
