TapFlo CTV 40-13.5 User manual

Instruction manual
vertical centrifugal pumps
Instructions for installation, start up, operation,
maintenance and repair
Spare parts
Read this instruction manual carefully, before
you install and operate the pump
Edition 1/2008 hi\\arbetsler\instruktioner\tapo\pumpar\ctv vertical centrifugal pumps\ctv pumps instruction manual english rev 1 2008.indd
CTV series
Models
PP & PVDF:
CTV 25-9
CTV 25-10
CTV 25-11
CTV 25-11.5
CTV 32-8.5
CTV 32-10
CTV 32-12.5
stainless steel:
CTV 25-9
CTV 25-9.8
CTV 40-12.5
CTV 40-13.5
STOP
English

Instruction manual CTV vertical pumps 2
CONTENTS
Chapter Content Page
CONTENTS 2
CE CERTIFICATE 3
0. GENERAL 4
0.1 Introduction 4
0.2 The warning symbols 4
0.3 Qualication and training of personnel 4
0.4 Description of the pump 5
0.5 General limits 5
0.6 Health & safety 6
1. INSTALLATION 7
1.1 Receiving inspection 7
1.2 Storage 7
1.3 Installation 7
1.4 Piping 7
1.5 Installation example 8
1.6 Instruments 9
1.7 Motor Connection 9
2. OPERATION 10
2.1.1 Starting the pump 10
2.1.2 Re-starting after power shutoff 10
2.2 Stopping the Pump 10
3. MAINTENANCE 11
3.1 Maintenance schedule 11
3.2 Trouble shooting 11
3.3 Assembly and disassembly 12
3.3.1 Assembly drawings 12
3.3.2 Dismantling PP & PVDF pumps 13
3.3.3 Dismantling stainless steel pumps 13
3.3.4 Parts inspection 13
3.3.5 Assembly of the pump - PP, PVDF and stainless steel pumps 13
4. SPARE PARTS 14
4.1 Spare parts CTV pumps in PP & PVDF 14
4.2 Spare parts CTV pumps in stainless steel 15
4.3 Stocking recommendation 16
4.4 Pump code 16
5. DATA 17
5.1 Performance curves 17
5.1.1 Performance curves PP & PVDF pumps 17
5.1.2 Performance curves stainless steel pumps 17
5.2 Technical data 18
5.2.1 Data PP & PVDF pumps 18
5.2.2 Data stainless steel pumps 19
6. WARRANTY & REPAIR 20
6.1 Returning parts 20
6.2 Warranty 20
6.3 Warranty form 22

Instruction manual CTV vertical pumps 3
Declaration of conformity
Machinery directive 89/392/EEC, Annex 2A
Tapo AB declares that:
Product name: Vertical centrifugal pumps
Models: CTV…
Is in conformity with the essential health and safety requirements and technical con-
struction le requirements of the EC Machinery directive 89/393/EEC with amendments
91/368/EEC, 93/94 EEC and 93/68 EEC.
Manufacturer:  TapoAB
Address: Filaregatan 4
S-442 34 Kungälv
Sweden
TapoAB,january 1st 2008
Håkan Ekstrand
Managing director
CE CERTIFICATE

Instruction manual CTV vertical pumps 4
0. GENERAL
0.1 Introduction
CTV is a vertical, seal less centrifugal pump made from PP, PVDF or stainless steel AISI 316L.
With proper attention to maintenance, CTV pumps will give efcient and trouble free operation. This
instruction manual will familiarise operators with detailed information about installing, operating
and maintaining the pump.
0.2 The warning symbols
The following warning symbols are present in this instruction manual. This is what they say.
This symbol stands next to all safety instructions in this instruction manual where
danger to life and limb may occur. Observe these instructions and proceed with ut-
most caution in these situations. Inform also other users of all safety instructions. In
addition to the instructions in this instruction manual, the general safety and accident
prevention regulations must be observed.
This symbol signals possible danger caused by the presence of electric elds or live
wires.
This signal stands at points in this instruction manual of particular importance for com-
pliance with regulations and directives, for correct work ow and for the prevention of
damage to and destruction of the complete pump or its subassemblies.
0.3 Qualification and training of personnel
The personnel in charge of installation, the operation cycle and maintenance of the pumps we
produce must be qualied to carry out the operations described in this manual. Tapo shall not be
held responsible for the training level of personnel and for the fact that they are not fully aware of
the contents of this manual.
STOP
!
STOP

Instruction manual CTV vertical pumps 5
0.4 Description of the pump
The CTV pumps are centrifugal, vertical, single-stage pumps with the pump casing directly submer-
ged in the liquid. It is driven by a non-synchronus electric motor. The inlet is axial, facing downwards
and has a BSP threaded connection. The discharge pipe is vertical, comming up through the base
plate and has a BSP threaded connection (other connection types available upon request).
0. GENERAL
E
A
B D
G
H
Outlet
Base plate
Pump casing
Electric motor
Inlet
0.5 General limits
CTV pumps are made from polypropylene (PP), polyvinylidene uoride (PVDF) or stainless steel
AISI 316L.
Temperature
General limits based on water. With other chemicals the limits may be reduced, please consult
us.
PP pumps: 70°C
PVDF pumps: 100°C
Stainless steel pumps: 100°C
Corrosion resistance
To determine the corrosion resistance of the different material options, the following information
about the liquid is required:
- Chemical and concentration
- Temperature
Check our chemical resistance guide or consult us for selection of suitable material.
Solids
The CTV pumps are generally insensitive to solids, max size of solids is 6 mm.
Dry running
CTV pumps can run dry without damage.

Instruction manual CTV vertical pumps 6
0. GENERAL
0.6 Health & safety
Electric safety
Do not carry out any maintenance operation on the pump while it is running or before it has been
disconnected from the power supply. Avoid any danger caused by electric power (for details see
current regulations in force). Check that electrical specications on the data plate are equivalent
to the power supply to which it will be connected.
Chemical hazards
Avoid pumping liquids, even in different moments that may cause chemical reactions without
having cleaned the pump.
Temperature hazards
The cold or hot parts of the machine must be protected to avoid accidental contacts.
Rotating parts
Do not tamper with the protection of the rotating parts, do not touch or approach rotating parts in
movement.
Noise level
CTV pumps, including the motor, in normal operating conditions produce a sound level below
80 dB(A). The major sources of noise are: liquid turbulence in the plant, cavitation or any other
abnormal operation that do not depend from the pump construction nor the pump manufacturer.
The user must provide suitable protective means if the sources of noise could produce a harmful
noise level for operators and for the environment (in compliance with current regulations).
Modifications and Spare parts
Any changes concerning the service of the pump as originally purchased, can be executed only
after written approval from Tapo.
It is recommended to use only genuine Tapo spare parts and approved accessories. The use
of non-original spare parts or non approved accessories will void warranty and removes any re-
sponsibility on our behalf for any damage caused to people or things.
STOP
!
STOP
STOP
STOP

Instruction manual CTV vertical pumps 7
1.1 Receiving inspection
Although precaution is taken by us when packing and shipping, we urge you to carefully check
the shipment on receipt. Make sure that all parts and accessories listed on the packing list are
accounted for. Immediately report any damage or shortage to the transport company and to us.
1.2 Storage
- If the equipment is to be stored prior to installation, place it in a clean location.
- Do not remove the protective covers from the suction and discharge, which have been fastened
to keep pump internals free of debris.
- Store the pump on the motor fan cover in an upright position, or hang the pump from the cover
plate.
- Make sure to clean the pump thoroughly before installation.
1.3 Installation
- CTV pumps must be installed vertically and can be used in sumps, tanks and similar contai-
ners.
- For a safe "outside tank" installation always consult us for arrangement of neccessary modi-
cations.
- Install the pump on a rigid support and fastened by the cover plate.
1.4 Piping
A pump is generally part of a piping system that can include a number of components such as
valves, ttings, lters, expansion joints, instruments, etc. The way the piping is arranged and the
positioning of the components has a great inuence on operation and the operating life of the
pump. The pump cannot be used as a support for the components connected to it.
The ow of liquid from the pump must be as even as possible. It is advisable to avoid any tight
bends or drastic reductions of diameters that may cause ow resistance in the plant. In case of
diameter reduction, it is advisable to use appropriate conical reductions.
Discharge pipe
If the discharge height is more than 2 meters, a check valve shoiuld be installed in the discharge
line (see installation example, chapter 1.5)
Suction extension
Use of extension pipe is possible on CTV pumps to allow emptying from a lower level. The liquid
level can drop under the impeller (pump casing) during operation. However during startup the level
must always be over the impeller (pump casing). See installation example, chapter 1.5.
Return flow
To avoid return ow, a check valve is recommended on the discharge side as near to the pumps
as possible. It is of greatest importance in installations with high discharge height. See installation
example, chapter 1.5.
1. INSTALLATION
!
!
!
!

Instruction manual CTV vertical pumps 8
1.5 Installation example
Flooded installation Installation with suction extension
Allinstallations
1) Valve for ow control (diaphragm valve or similar)
2) Non-return valve (check valve) on discharge side as near the pump as possible
3) Connection point for pressure gauge or pressure switch
4) Divert discharge with 45° bend to enable better space when lifting the pump
5) Quick connection between pump and pipe system for easy disconnection
6) Arrange for drainage of liquide from the base plate
Floodedinstallations
7) Foot strainer 3-5 mm mesh if solids are present or in open tank/sump installations
Installationswithsuctionextension
8) Vertical suction extension allowed. Size of pipe shall correspond with connection size. No
complex piping system on suction side. In particular applications, use of bottom valve (ball
type) may be used, consult us.
Importantlevelsanddimensions
1. INSTALLATION
!
!
1
2
3
4
5
6
7
8
PP & PVDF pumps stainless steel pumps Comment
H min (mm / inch) 50 / 2.0 80 / 3.1 Minimum distance at max level
MIN start (mm / inch) 170 / 6.7 170 / 6.7 Min level during startup
MIN (mm / inch) 80 / 3.1 80 / 3.1 Min level during operation
S min (mm / inch) 50 / 2.0 50 / 2.0 Min distance to bottom of tank/sump
E max @ 25°C (mm / inch) 1000 / 39 1000 / 39 Max length suction extension
E max @ 40°C (mm / inch) 500 / 19 500 / 19
E max @ 60°C (mm / inch) - - Impeller must always be submerged
H min
S min
S min
E max
MIN start
MIN start
MIN
MIN
H min

Instruction manual CTV vertical pumps 9
1.6 Instruments
In order to ensure a reasonable control of the performance and the conditions of the pump instal-
led, we recommend using the following instruments:
- a pressure-vacuum gauge on the delivery piping.
The output can be read on the pressure, transformed into meters and then compared with the
typical curves.
Electric power
The electric power absorbed by the motor can be measured with wattmeters.
Optional instruments
The optional instruments can advise of abnormal operating conditions of pumps, such as: valves
closed accidentally, missing liquid, overloads, etc.
Thermometer
If the temperature of the pumped liquid can be a critical element, provide a thermometer.
1.7 Motor Connection
An expert electrician must always carry out the electrical connection. Compare the power supply
with the data plate specications and then choose a suitable connection. The type of connection
is stated on the motor data plate that can be Y (star) or D (Delta), according to the power supply
of the motor (see gure).
Star connection YDelta connection D
Follow the prescriptions of the local electricity board for the connection. In no case connect the elec-
trical motors directly to mains but also t in between a suitable electric switchboard equipped with a
knife switch and suitable safety devices. Safety devices against overloads must protect the motors.
Make sure that the motor has suitable grounding and that it has been connected properly.
1. INSTALLATION
!
!

Instruction manual CTV vertical pumps 10
2. OPERATION
2.1 Start-up
- The motor shall be connected by qualied personnel only.
- Check manually that the motor is free to turn, moving the motor cooling fan.
- Make sure that the piping is not clogged and is free from residues or foreign objects.
- Bump start the motor to determine the direction of rotation (indicated with an arrow on the
motor). If change is necessary, follow instruction in chapter 1.7.
- The shutoff/regulation valve on the discharge side must be almost completely closed at start-
up.
- Any auxiliary connections must all be connected.
2.1.1 Starting the pump
- When ever starting the pump, the pump casing must be lled with liquid, see MIN start level in
chapter 1.5.
- Start the electric motor and open the discharge adjustment/shutoff valve gradually until the
desired output has been reached. The pump must not turn more than two or three minutes with
discharge closed. A longer operation in these conditions can damage the pump.
- If the pressure shown on the pressure gauge on the discharge piping does not increase, turn
off the pump immediately and release pressure carefully. Repeat the connection procedure.
- If there are changes of ow-rate, head, density, temperature or viscosity of the liquid, stop the
pump and get in touch with our technical service.
- During operation, make sure the liquid level is within the limits, see levels H min and MIN in
chapter 1.5.
2.1.2 Re-starting after power shutoff
In case of accidental stopping, make sure that the non-return valve has prevented backow and
check that the motor cooling fan has stopped. Start the pump again following the instructions of
chapter 2.1.1 ”Starting the pump”.
2.2 Stopping the Pump
It is advisable to close the discharge adjustment/shutoff valve gradually and stop the motor imme-
diately after. The reverse sequence is not recommendable, especially with larger pumps or longer
delivery piping. That is to avoid any problems due to water hammering.
!
!
!
!
!
!

Instruction manual CTV vertical pumps 11
3. MAINTENANCE
Maintenance work on electrical installations must be performed by qualified
personnel and only when the power supply has been shutoff. Follow the local
and national safety regulations.
3.1 Maintenance schedule
The CTV range pumps generally do not require any maintenance. However depending on the
application, it may be necessary to once in a while clean the internals of the pump to optimize the
performance.
3.2 Trouble shooting
Problem Possiblefault Measuretotake
Failuretodeliver Liquid level too low
Motor speed too low
Impeller clogged
Wrong direction of rotation
NPSHa too low
See MIN start level chapter 1.5
Check the motor and motor connection
Clean the pump
See chapter 1.7 for change of direction
Consult us
Insufcientcapacity Head higher than expected
Impeller or discharge clogged
Impeller damaged
Wrong direction of rotation
Check piping system
Clean the pump internally
Change impeller
See chapter 1.7 for change of direction
Insufcienthead Air in the casing or discharge
Motor speed too low
Impeller damaged
Impeller diameter too small
Check system for air pockets
Check the motor and motor connection
Change impeller
Consult us for eventual change
Irregularow Liquid level too low
Suction or strainer clogged
See MIN liquid level chapter 1.5
Check and clean
Electric current too high
(motorprotectionshut)
Specic gravity higher than expected
Viscosity higher than expected
Head lower than expected
Motor bearings worn
Increase the head with ow control valve
Consult us
Increase the head with ow control valve
Change bearings, check vapour seal
Pumpvibrates Pump insufciently fastened
Impeller damaged or clogged
Motor bearings worn
Liquid level too low
Check the pump mounting bolts
Check and clean or replace impeller
Change bearings, check vapour seal
See MIN liquid level chapter 1.5

Instruction manual CTV vertical pumps 12
3. MAINTENANCE
3.3 Assembly and disassembly
The assembly and disassembly should only be performed by qualied personnel. While working
on the pump protective clothing such as eye glasses and gloves should be worn.
Each operation carried out on the machine must always be carried out once all the electrical con-
tacts have been disconnected. The pump-motor unit must be placed in a position where it cannot
be started unintentionally.
Before servicing in any way the parts in contact with the pumped liquid, make sure that the pump
has been fully emptied and washed. When draining the liquid, make sure that there is no danger
for people or the environment.
3.3.1 Assembly drawings
PP & PVDF pumps Stainless steel pumps
!
STOP
161
122
151
15
20
121
11
12
18
9...
162
194
193
131
132
Electric
motor
161
122
121
143
142
141
11
15
13
12
17*
18
9...
162
192
191
Electric
motor
* = On CTV 40, pos 17 is welded on pos 13

Instruction manual CTV vertical pumps 13
3. MAINTENANCE
3.3.2 Dismantling PP & PVDF pumps
- After removal of eventual suction extension or strainer, place the pump horizontally on a
bench.
- Unscrew counterclockwise the lock ring (132) by inserting suitable tool in the holes.
- Remove the pump cover (131), if necessary screw a plastic nipple into the pump cover and
then pull.
- Remove the motor fan cover from the electric motor and then remove the motor fan.
- Secure the free end of the motor shaft by means of a universal pliers or similar.
- Insert two screw drivers cross wise into the impeller opening (9...) and unscrew the impeller
(9...) counterclockwise.
- Remove the impeller o-ring (193) from the impeller.
- Unscrew the motor mounting screws and washers (121 and 122) and carefully pull the pump
casing unit (13) from the motor/shaft assembly.
- Pull the shaft sleeve (162) from the motor shaft and then pull off the lip seal (161).
- Carefully hammer out the shaft bushing (15) from its seat by means of a soft driver (plastic).
Remove the o-ring (151) from the shaft bushing.
- Loosen the hose clip (20) and remove the stabilizer from the discharge pipe.
3.3.3 Dismantling stainless steel pumps
- After removal of eventual suction extension or strainer, place the pump horizontally on a
bench.
- Unscrew the casing mounting screws with washers (141 and 142) and lift carefully off the pump
cover together with elbow and discharge pipe (13, 17 and 12).
- Secure the impeller by putting a screwdriver through the open impeller blades, unscrew the
impeller nut and washer (191 and 192), lift off the impeller (9...).
- Unscrew the shaft bushing (15) from the pump casing unit (11).
- Unscrew the motor mounting screws and washers (121 and 122) and carefully pull the pump
casing unit (13) from the motor/shaft assembly.
- Remove the motor fan cover from the electric motor and then remove the motor fan.
- Secure the free end of the motor shaft by means of a universal pliers or similar. Unscrew the
shaft sleeve (162) from the motor shaft and then pull off the lip seal (161).
3.3.4 Parts inspection
After the dismantling, check all parts for wear or damage and replace if necessary. O-rings are
always recommended to replace after dismantling.
3.3.5 Assembly of the pump - PP, PVDF and stainless steel pumps
Assemble the pump in reverse order to dismantling. When mounting the pump casing unit (11) to
the motor, make sure the shaft rotates concentrically in the casing unit.
Install and startup the pump according to instructions in chapter 2.

Instruction manual CTV vertical pumps 14
4. SPARE PARTS
4.1 Spare parts CTV pumps in PP & PVDF
161
122
151
15
20
121
11
12
18
9...
162
194
193
131
132
Electric
motor
Pos Description Qty/
pump
Material
11 Pump casing unit 1 PP or PVDF
12 Discharge pipe 1 PP or PVDF
121 Motor mounting screw 4 Stainless steel
122 Motor mounting was-
her
4 Stainless steel
131 Pump cover 1 PP or PVDF
132 Lock ring 1 PP or PVDF
15 Shaft bushing 1 Ceramic
151 Shaft bushing o-ring 1 NBR
161 Lip seal 1NBR or FKM
162 Shaft sleeve 1 PP or PVDF
17 Elbow 1 PP or PVDF
18 Casing o-ring 1 EPDM, FKM or FEP
193 Impeller o-ring 1 EPDM, FKM or FEP
194 Impeller screw 1 Stainless steel
20 Hose clip 1 PP + stainless steel
9085 Impeller CTV 32-8.5 1 PP or PVDF
9090 Impeller CTV 25-9 1 PP or PVDF
9100 Impeller CTV 25-10
and CTV 32-10
1 PP or PVDF
9111 Impeller CTV 25-11 1 PP or PVDF
9115 Impeller CTV 25-11.5 1 PP or PVDF
9125 Impeller CTV 32-12.5 1 PP or PVDF

Instruction manual CTV vertical pumps 15
161
122
121
143
142
141
11
15
13
12
17*
18
9...
162
192
191
Electric
motor
4. SPARE PARTS
Pos Description Qty/
pump
Material
11 Pump casing unit 1 AISI 316L
12 Discharge pipe 1 AISI 316L
121 Motor mounting screw 4 Stainless steel
122 Motor mounting washer 4 Stainless steel
13 Pump cover 1 AISI 316L
141 Casing mounting screw 4 Stainless steel
142 Casing mounting washer 4 Stainless steel
143 Casing mounting nut 4 Stainless steel
15 Shaft bushing 1 Ceramic
161 Lip seal 1NBR or FKM
162 Shaft sleeve 1 AISI 316L
17* Elbow 1AISI 316L
18 Casing o-ring 1 EPDM, FKM or FEP
191 Impeller mounting screw 1AISI 316L
192 Impeller mounting washer 1AISI 316L
9090 Impeller CTV 20-9 1 AISI 316L
9098 Impeller CTV 25-9.8 1AISI 316L
9125 Impeller CTV 40-12.5 1AISI 316L
9135 Impeller CTV 40-13.5 1AISI 316L
4.2 Spare parts CTV pumps in stainless steel
* = On CTV 40, pos 17 is welded on pos 13

Instruction manual CTV vertical pumps 16
4. SPARE PARTS
4.3 Stocking recommendation
Depending on the nature of the liquid and temperature etc, some parts of the pump are subject to
wear and have to replaced. We recommend having the following parts in stock:
CTV vertical
centrifugal pump
Material pump housing
P = PP (polypropylene)
K = PVDF (polyvinylideneuoride)
S = Stainless steel AISI 316L
Pump size (Outlet mm - impeller mm)
PP & PVDF pumps:
CTV 25-9
CTV 25-10
CTV 25-11
CTV 25-11.5
CTV 32-8.5
CTV 32-10
CTV 32-12.5
Motor power
05 = 0.55 kW (CTV 25-9, 20-9)
07 = 0.75 kW (CTV 25-10, 25-9.8)
11 = 1.1 kW (CTV 25-11, 32-8.5, 25-9.8)
15 = 1.5 kW (CTV 25-11.5, 32-10, 40-12.5)
22 = 2.2 kW (CTV 32-12.5, 40-13.5)
* = Standard execution
Changes reserved without notice
PP & PVDF pumps
Pos Description Qty
161 Lip seal 1
193 Impeller o-ring 1
18 Casing o-ring 1
132 Lock ring 1
4.4 Pump code
The model number on the pump tells the pump size and material of the pump
Stainless steel pumps
Pos Description Qty
161 Lip seal 1
15 Shaft bushing 1
18 Casing o-ring 1
Special options
2 = Casingo-ring
blank* = EPDM
V = FKM
F = FEP/silicone
3 = Lipseal(vapoursealatmotor)
blank* = NBR
V = FKM
4 = Suctionextensionpipe(samematerialaspump)
E05 = Suction extension 0.5 m
E10 = Suction extension 1.0 m
5 = Optionalconnectiondischarge
blank* = BSP thread
A = ANSI ange
D = DIN ange
CTV 25-10 P 2V - 07
stainless steel pumps:
CTV 25-9
CTV 25-9.8
CTV 40-12.5
CTV 40-13.5

Instruction manual CTV vertical pumps 17
5. DATA
5.1 Performance curves
The performance curves are based on water at 20°C. Speed 2900 rpm.
Contact us for detailed curves.
5.1.1 Performance curves PP & PVDF pumps
Changes reserved without notice
5.1.2 Performance curves stainless steel pumps

Instruction manual CTV vertical pumps 18
5. DATA
Changes reserved without notice

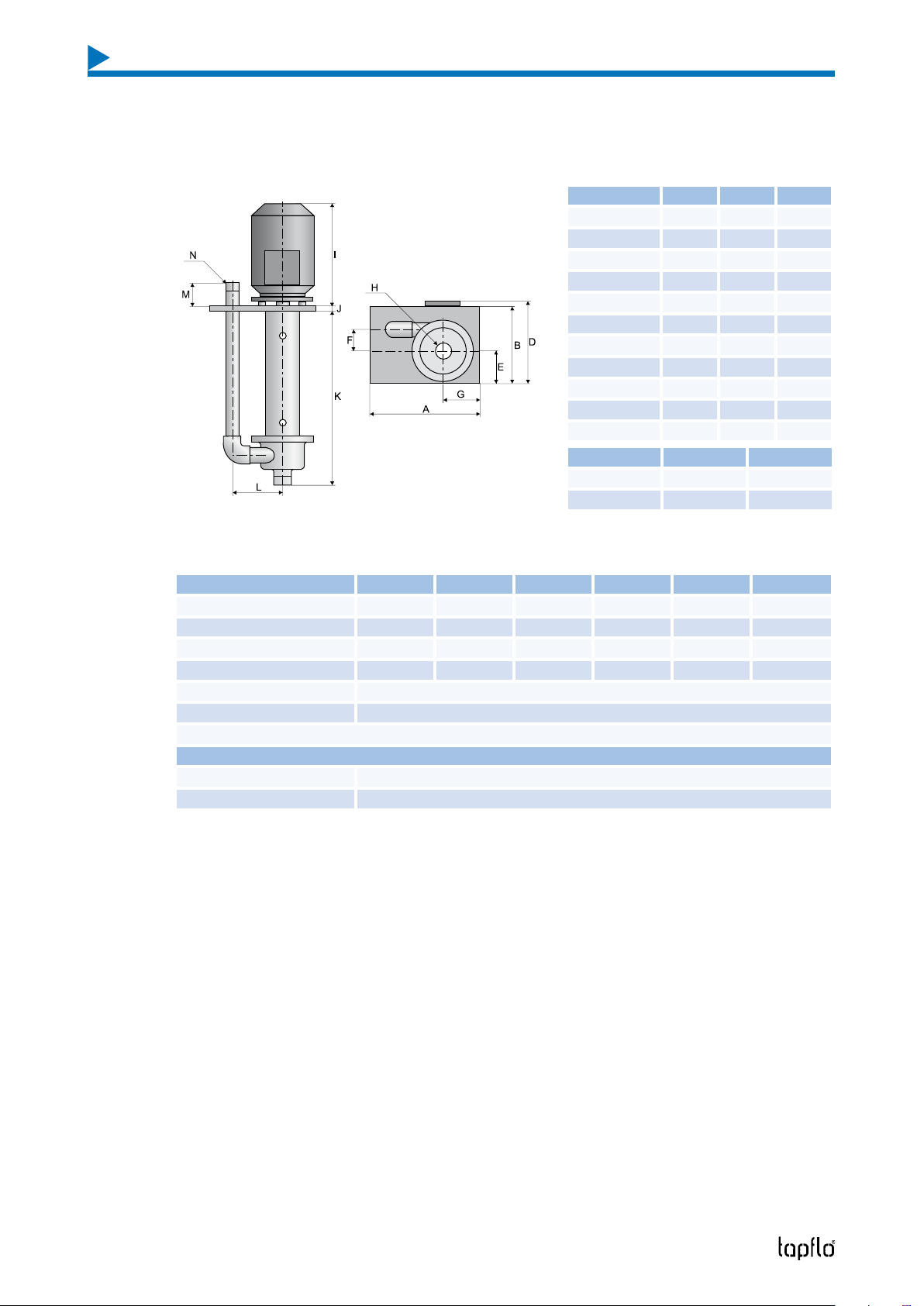

5.2 Technical data
5.2.1 Data PP & PVDF pumps
Dimensions in mm, where other is not indicated
General characteristics 25-9 25-10 25-11 25-11.5 32-8.5 32-10 32-12.5
Max capacity (m3/h) 10.2 13.2 15.6 18.0 19.8 24.0 27.0
Max head (m) 10 14 16 19 10 17 23
Motor power (kW) 0.55 0.75 1.1 1.5 1.1 1.5 2.2
Outlet dimension (male BSP) 1” 1” 1” 1” 1 1/4” 1 1/4” 1 1/4”
Motor data 3-phase, 2-pole (~2900 rpm), 380-420 VAC, 50 Hz, IP 55
Max temperature Pump in PP: 70°C, pump in PVDF: 100°C
Materials
Pump casing and impeller PP or PVDF
Casing o-ring EPDM, FKM or FEP
Dimension CTV 25 CTV 32
A285 285
B200 200
E 85 85
F56 56
G95 95
H 1” 1 1/4”
J 25 25
K419 419
L123 126
M 60 60
N 1” 1 1/4”
Motorpower D I
0.55 kW 196 213
0.75-2.2 kW 214 267

Instruction manual CTV vertical pumps 19
5. DATA
Changes reserved without notice
5.2.2 Data stainless steel pumps
Dimensions in mm, where other is not indicated
General characteristics 20-9 25-9.8 25-9.8 40-12.5 40-12.5 40-13.5
Max capacity (m3/h) 12.0 17.0 17.0 19 34 20
Max head (m) 10 11 11 22 22 31
Motor power (kW) 0.55 0.75 1.1 1.5 2.2 2.2
Outlet dimension (male BSP) 3/4” 1” 1” 1 1/2” 1 1/2” 1 1/2”
Motor data 3-phase, 2-pole (~2900 rpm), 380-420 VAC, 50 Hz, IP 55
Max temperature 100°C
Materials
Pumpcasing and impeller Stainless steel AISI 316L
Casing o-ring EPDM, FKM or FEP
Dimension CTV 20 CTV 25 CTV 40
A 267 267 267
B207 207 207
E102.6 102.6 102.6
F36 50 66
G 93.5 93.5 93.5
H 1” 1 1/2” 1 1/2”
J 8 8 8
K 420.5 420.5 425
L 113.5 127 139
M 60 60 60
N 3/4” 1” 1 1/2”
Motorpower D I
0.55 kW 214 211
0.75-2.2 kW 253 265

Instruction manual CTV vertical pumps 20
6. WARRANTY & REPAIR
6.1 Returning parts
When returning parts to Tapo AB please follow this procedure:
- Consult Tapo AB for shipping instructions.
- Cleanse or neutralize and rinse the part/pump. Make sure the part/pump is completely empty
from liquid.
- Pack the return articles carefully to prevent any damage under transport.
Goods will not be accepted unless the above procedure has been complied with.
6.2 Warranty
Tapo warrants products under conditions as below for a period of not more than 12 months from
installation and not more than 24 months from date of manufacture.
1. The following terms and condition apply to the sale of machinery, components and related
services and products, of Tapo (hereinafter “the products”)
2. Tapo (the manufacturer) warrants that:
a.) its products as being free of defects in material, design and workmanship at the time of original
purchase;
b.) its products will function in accordance with Tapo operative manuals; Tapo does not guaran-
tee that the product will meet the precise needs of the Customer, except for those purposes
set out in any invitation to render documents or other documents specically made available
to Tapo before entering into this agreement;
c.) high quality materials are used in the construction of the pumps and that machining and as-
sembly are carried out to the highest standards.
Except as expressly stated above, Tapo makes no warranties, express or implied, concerning
the products, including all warranties of tness for a particular purpose.
3. This warranty shall not be applicable in circumstances other than defects in material, design,
and workmanship. In particular warranty shall not cover the following:
a.) Periodic checks, maintenance, repair and replacement of parts due to normal wear and tear
(seals, O-rings, rubber items, bushings, etc..);
b.) Damage to the product resulting from:
b.1.) Tampering with, abuse or misuse, including but not limited to failure to use the product for its
normal purposes as stated at the time of purchase or in accordance withTapo instructions
for use and maintenance of the product, or the installation or improper ventilation or use of
the product in a manner inconsistent with the technical or safety standard in force;
b.2.) Repairs performed by non skilled personell or use of non original Tapo parts
b.3.) Accidents or any cause beyond the control of Tapo, including but not limited to lightning,
water, re, earthquake, and public disturbances, etc.;
4 The warrantee shall cover the replacement or repairing of any parts, which is documentedly
faulty due to construction or assembling, with new or repaired parts free of charges delive-
red by Tapo. Parts subjected to normal tear and wear shall not be covered by the warranty.
Tapo shall decide as to whether the defective or faulty part shall be replaced or repaired.
5 The warrantee of the products shall be valid for a period in accordance to the current law
from the date of delivery, under the condition that notice of the alleged defect to the products
or parts thereof be given to Tapo in written within the mandatory term of 8 days from the
discovery.
