Tascam US-16X08 User manual

D01236400A
US-16x08
USB2.0 Audio Interface/Mic Preamp
ENGLISH
FRANÇAIS
ESPAÑOL
DEUTSCH
ITALIANO
日本語
OWNER'S MANUAL
MODE D’EMPLOI
MANUAL DEL USUARIO
BEDIENUNGSANLEITUNG
MANUALE DI ISTRUZIONI
取扱説明書

2 TASCAM US-16x08
http://tascam.jp/
〒206-8530 東京都多摩市落合1-47
TEAC AMERICA, INC.
http://tascam.com/
Phone: [phone]
1834 Gage Road, Montebello, California 90640 USA
TEAC MEXICO, S.A. de C.V.
http://teacmexico.net/
Phone: [phone]
Río Churubusco 364, Colonia Del Carmen, Delegación
Coyoacán, CP 04100, México DF, México
TEAC UK LIMITED
http://tascam.eu/
Phone: [phone]
Meridien House, Ground Floor,69 - 71, Clarendon Road,
Watford, Hertfordshire, WD17 1DS, UK
TEAC EUROPE GmbH
http://tascam.eu/
Phone: [phone]
Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany
TEAC SALES & TRADING(SHENZHEN) CO., LTD
http://tascam.cn/
Phone: [phone]~2
Room 817, Block A, Hailrun Complex, 6021 Shennan Blvd.,
Futian District, Shenzhen 518040, China
• TASCAM is a trademark of TEAC CORPORATION,
registered in the U.S. and other countries.
• Microsoft, Windows, Windows 7, Windows 8 and
Windows Media are either registered trademarks or
trademarks of Microsoft Corporation in the United
States and/or other countries.
• Apple, Macintosh, Mac OS, Mac OS X, iPad, and
Lightning are trademarks of Apple Inc.
• IOS is a trademark or registered trademark of Cisco in
the U.S. and other countries and is used under license.
• ASIO is a trademark and software of Steinberg Media
Technologies GmbH.
• Blackfin® and the Blackfin logo are registered
trademarks of Analog Devices, Inc.
• Other company names, product names and logos
in this document are the trademarks or registered
trademarks of their respective owners.

TASCAM US-16x08 3
Owner’s Manual
IMPORTANT SAFETY PRECAUTIONS
INFORMATION TO THE USER
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures.
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and
receiver.
c) Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
d) Consult the dealer or an experienced radio/TV technician
for help.
CAUTION
Changes or modifications to this equipment not expressly
approved by TEAC CORPORATION for compliance could void
the user’s authority to operate this equipment.
For U.S.A.
For Canada
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN
ICES-003.
CET APPAREIL NUMERIQUE DE LA CLASSE B EST CONFORME A
LA NORME NMB-003 DU CANADA.
DECLARATION OF CONFORMITY
We, TEAC EUROPE GmbH. Bahnstrasse 12, 65205
Wiesbaden-Erbenheim, Germany declare in own
responsibility, the TEAC product described in this
manual is in compliance with the corresponding
technical standards.
Declaration of Conformity
Responsible party: TEAC AMERICA, INC.
Address: 1834 Gage Road, Montebello,
California, U.S.A.
Telephone number: 1-323-726-0303
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may
not cause harmful interference, and (2) this device must accept
any interference received, including interference that may
cause undesired operation.
IMPORTANT SAFETY INSTRUCTIONS
1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8 Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9 Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
11 Only use attachments/accessories specified by the
manufacturer.
12 Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or when
unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
• The apparatus draws nominal non-operating power from
the AC outlet with its POWER or STANDBY/ON switch not in
the ON position.
• The mains plug is used as the disconnect device, the
disconnect device shall remain readily operable.
• Caution should be taken when using earphones or
headphones with the product because excessive sound
pressure (volume) from earphones or headphones can
cause hearing loss.
• If you are experiencing problems with this product, contact
TEAC for a service referral. Do not use the product until it
has been repaired.
CAUTION
• Do not expose this apparatus to drips or splashes.
• Do not place any objects filled with liquids, such as vases,
on the apparatus.
• Do not install this apparatus in a confined space such as a
book case or similar unit.
• The apparatus should be located close enough to the AC
outlet so that you can easily grasp the power cord plug at
any time.
• If the product uses batteries (including a battery pack
or installed batteries), they should not be exposed to
sunshine, fire or excessive heat.
• CAUTION for products that use replaceable lithium
batteries: there is danger of explosion if a battery is
replaced with an incorrect type of battery. Replace only
with the same or equivalent type.

4 TASCAM US-16x08
8For European Customers
Disposal of electrical and electronic equipment
(a) All electrical and electronic equipment should be
disposed of separately from the municipal waste stream
via designated collection facilities appointed by the
government or the local authorities.
(b)By disposing of the electrical and electronic equipment
correctly, you will help save valuable resources and prevent
any potential negative effects on human health and the
environment.
(c) Improper disposal of waste equipment can have serious
effects on the environment and human health as a result
of the presence of hazardous substances in electrical and
electronic equipment.
(d)The crossed out wheeled dust bin symbol indicates
that electrical and electronic equipment must be
collected and disposed of separately from
household waste.
(e) The return and collection systems are available to the end
users. For more detailed information about disposal of old
electrical and electronic equipment, please contact your
city office, waste disposal service or the shop where you
purchased the equipment.
Introduction
Thank you for your purchase of the TASCAM US-16x08 USB
Audio/MIDI Interface.
Before connecting and using this unit, please take time to
read this manual thoroughly to ensure you understand how to
properly set it up and connect it, as well as how to use its many
useful and convenient functions. After you have finished reading
this manual, please keep it in a safe place for future reference.
Should the contents of the memory of a connected device
(including hard disks and optical discs) in the same system as
this unit be lost, our company will bear no responsibility for
repair, including for compensation.
Before connecting this unit to a computer, you
must download and install a dedicated driver.
This product has a Blackfin® 16/32-bit embedded
processor made by Analog Devices, Inc. This
processor controls digital signal processing.
Included items
This product includes the following items.
Keep the packing materials for transportation in the future.
Please contact TASCAM Customer Support (see page 2) if any
of these items are missing or have been damaged during
transportation.
• Main unit ......................................................................................× 1
• AC adapter (GPE248-120200-Z)
(with output plug A/B for replacement) ...........................× 1
• USB cable .....................................................................................× 1
• Hex key..........................................................................................× 1
• Rack mount angles ...................................................................× 2
• Rack mount angle attachment screws..............................× 4
• Owner’s Manual (this document) including warranty ..× 1
CAUTION
Always use the included AC adapter (GPE248-120200-Z)
with the US-16x08. Never use the included AC adapter with
any other device. Doing so could cause damage, fire or
electric shock.
Note about the Reference Manual
This Owner's Manual explains the main functions of this unit.
Please see the Reference Manual for information about all the
unit's functions.
You can also download this Owner's Manual and the Reference
Manual from the TEAC Global Site (http://teac-global.com/).
Precautions for placement and use
• The operating temperature range of this unit is 5–35 °C.
• Do not install this unit in the following types of locations.
Doing so could make the sound quality worse or cause
malfunction.
Locations with frequent vibrations
Contents
IMPORTANT SAFETY PRECAUTIONS.............................3
IMPORTANT SAFETY INSTRUCTIONS ...........................3
Introduction..........................................................................4
Included items .....................................................................4
Note about the Reference Manual ...............................4
Precautions for placement and use..............................4
Using the TEAC Global Site..............................................5
Beware of condensation...................................................5
Cleaning the unit.................................................................5
User registration..................................................................5
Front panel............................................................................5
Rear panel.............................................................................. 6
Installing the dedicated software.................................7
Installing the driver and Settings Panel for
Windows..........................................................................7
Installing the Settings Panel for Mac OS X..........8
Attaching Rack Mount Angles........................................ 9
Connecting the power......................................................9
Making settings on the Settings Panel screen.......10

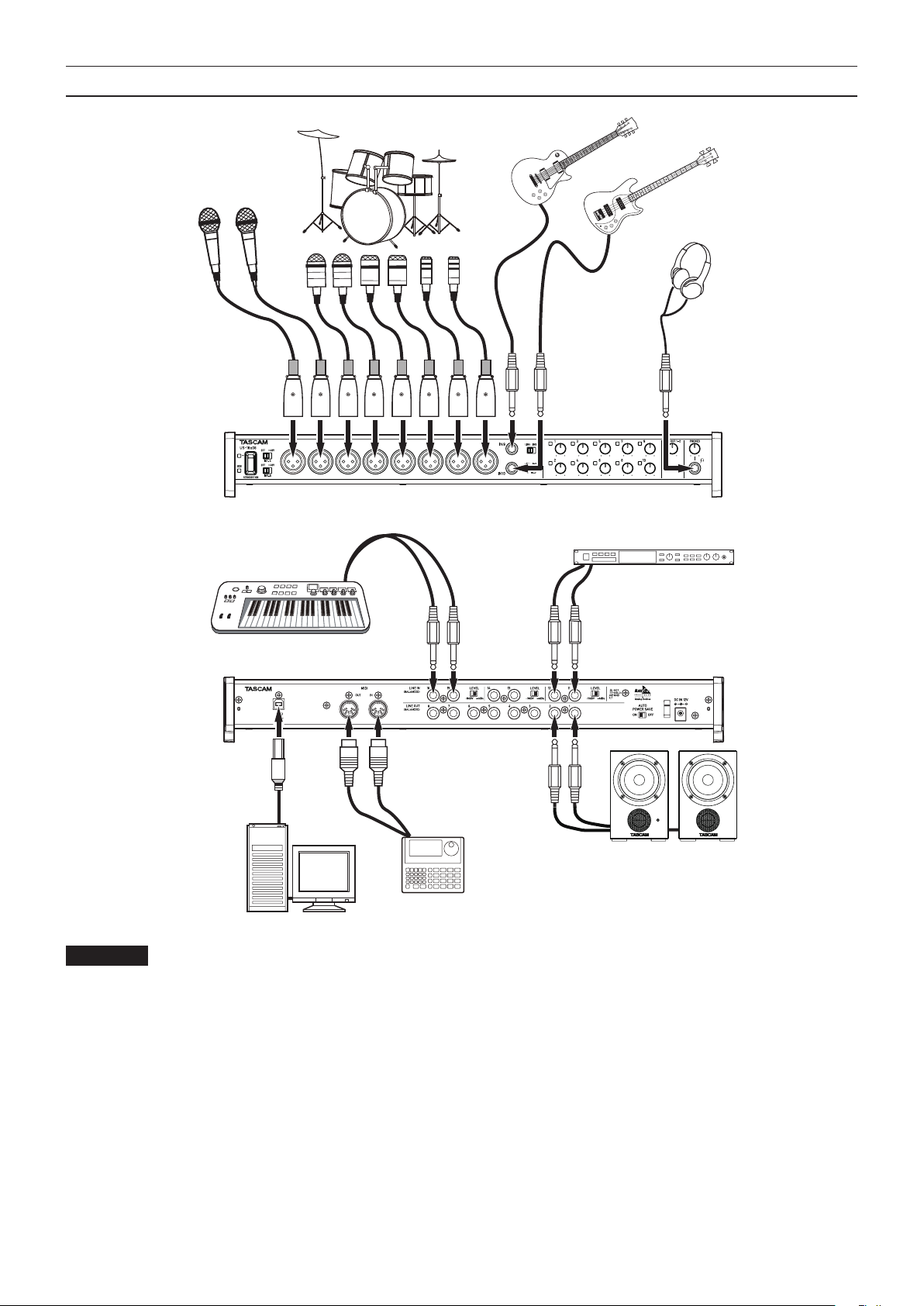

Example of connecting to other equipment..........12
Connecting with iOS devices........................................13
Adjusting the input sound.............................................13
Mic Preamp mode ............................................................13
Troubleshooting................................................................13
Specifications .....................................................................14
Ratings ...........................................................................14
Analog inputs..............................................................14
Analog outputs...........................................................15
Control input/output ratings.................................15
Audio performance...................................................15
Computer system requirements .................................15
Windows........................................................................15
Mac OS X........................................................................16
iOS devices ...................................................................16
Supported audio drivers .........................................16
General .................................................................................16
Dimensional drawings ....................................................16

TASCAM US-16x08 5
Front panel
1STANDBY/ON switch, indicator
Use this switch to toggle between power ON and standby
modes. When on, the STANDBY/ON indicator lights green.
2Phantom power switches
Use these switches to provide +48V phantom power to the
IN1-4 and IN5-8 jacks.
Switching is possible in groups of four channels. Phantom
power is supplied when the switch is set to +48.
CAUTION
• Before switching between +48/OFF, lower the device's
output volume with the PHONES and LINE OUT1-2 knobs.
Failure to do so could cause a loud noise that might damage
other devices or cause injury.
• Do not connect or disconnect mics when this switch is set to
+48.
• Do not supply phantom power to an unbalanced dynamic
mic.
• Supplying phantom power to some types of ribbon mics
could damage them. Do not supply phantom power to a
ribbon mic if you are in doubt.
3IN1-8 (BALANCED) jacks
These analog inputs are XLR jacks. Use the gain knobs to set
the input gains.
(1: GND, 2: HOT, 3: COLD)
4IN9-10 (BALANCED/UNBALANCED) jacks, LINE/INST
switch
IN9-10 jacks are standard TRS analog input jacks.
With the LINE/INST switches, both line input (audio
equipment, keyboard, etc.) and high impedance input
(direct input of guitar and other instruments) can be
supported.
Use the gain knobs to set the input gains.
(Tip: HOT, Ring: COLD, Sleeve: GND)
5Gain knobs, overload indicators
Use the gain knobs 1-10 to adjust each of the IN1-10 gains
separately.
The overload indicator above and to the left of each gain
knob 1-10 lights just before the input would distort (when
−1 dBFS is exceeded).
6LINE OUT1-2 knob
Use to adjust the output level of the LINE OUT1-2 jacks on
the rear panel.
7PHONES jack/knob
Use this standard stereo jack to connect stereo headphones.
This jack outputs the same signal as the LINE OUT1-2 jacks.
Use the PHONES knob to adjust the headphone output
level.
Near windows or other places exposed to direct sunlight
Near heating equipment or in other locations that
become very hot
Extremely cold places
Very humid or poorly ventilated locations
Very dusty locations
• To enable good heat dissipation, do not place anything on
top of the unit.
• Do not place this unit on top of a power amplifier or other
device that generates heat.
Using the TEAC Global Site
You can download the Owner’s Manual necessary for this unit
from the TEAC Global Site (http://teac-global.com/).
1. Open the TEAC Global Site (http://teac-global.com/).
2. In the TASCAM Downloads section, click the desired
language to open the Downloads website page for that
language.
NOTE
If the desired language does not appear, click Other
Languages.
3. Click the product name in the “Search by Model Name”
section to open the Downloads page for that product.
4. Select and download the Owner’s Manual that are needed.
Beware of condensation
Condensation could occur if the unit is moved from a cold place
to a warm place, it is used immediately after a cold room has
been heated or it is otherwise exposed to a sudden temperature
change.
To prevent this, or if this occurs, let the unit sit for one or two
hours at the new room temperature before using it.
Cleaning the unit
To clean the unit, wipe it gently with a soft dry cloth. Do not
wipe with chemical cleaning cloths, benzene, thinner, alcohol or
other chemical agents. Doing so could damage the surface or
cause discoloration.
User registration
Customers in the USA, please visit the TASCAM website (http://
tascam.com/) to register as a user online.

6 TASCAM US-16x08
8USB indicator
This lights orange when the USB connection is working.
CAUTION
Before connecting headphones, minimize the volume with
the PHONES knob. Failure to do so might cause sudden loud
noises, which could harm your hearing or result in other
trouble.
Rear panel
9USB port
Use the included USB cable to connect the unit to a
computer or an iOS device. (Supports USB 2.0.)
0MIDI OUT connector
This 5-pin DIN is a standard MIDI output connector.
This outputs MIDI signals.
qMIDI IN connector
This 5-pin DIN is a standard MIDI input connector.
Use this to input MIDI signals.
wLINE IN11-16 (BALANCED) jacks/LEVEL switches
LINE IN11-16 jacks are standard TRS line input jacks. Use the
LEVEL switches to set the nominal levels to −10 dBV or
+4 dBu.
(Tip: HOT, Ring: COLD, Sleeve: GND)
NOTE
The input gain cannot be adjusted.
eCord holder
Use to hook the included AC adapter cord to prevent the
plug from falling out.
rLINE OUT1-8 (BALANCED) jacks
These standard TRS jacks are analog line inputs. The rated
output level is +4 dBu.
(Tip: HOT, Ring: COLD, Sleeve: GND)
tAUTO POWER SAVE switch
During Mic Preamp mode, use this switch to set whether to
automatically turn the unit off (put it in standby) when the
signal level continues to be −60 dBFS or less for 30 minutes.
CAUTION
If you want to turn the unit on again after it has turned itself
off automatically using this function, set the STANDBY/ON
switch to off once, wait at least 8 seconds, and then set the
STANDBY/ON to on again.
yDC IN 12V connector
Connect the included DC12V AC adapter (GPE248-120200-Z)
here.

TASCAM US-16x08 7
Installing the dedicated software
To use this unit with a Windows computer, you must install a
driver and Settings Panel software. With a Mac, you do not have
to install a driver, but you do need to install the Settings Panel
software to use the DSP mixer function.
Download the latest dedicated software for the operating
system you are using from the TEAC Global Site (http://
teac-global.com/).
iWith a Windows computer, when you install the driver, the
Settings Panel software will also be installed at the same
time.
iWith a Mac, just install the Settings Panel software. The
standard OS driver will be used, so there is no need to install
a dedicated driver.
iWith an iOS device, there is no need to install dedicated
software.
CAUTION
Restarting the computer might be necessary after
installation or uninstallation completes. Save your data and
conduct other necessary steps in other applications before
quitting them.
Installing the driver and Settings Panel for
Windows
CAUTION
• Complete the installation of the driver on the computer
before connecting the unit to it with the USB cable.
• If you already connected the unit to the computer using
the USB cable, and the “Found New Hardware Wizard” is
already running on the computer, close the Wizard and
disconnect the USB cable.
1. Download the latest driver for the operating system you are
using from the TEAC Global Site (http://teac-global.com/)
and save it on the computer to be used with the unit.
2. Uncompress the saved driver (zip file) on the computer
desktop or another location.
3. Double-click the “US-16x08_Installer.exe”file in the folder
that appears after uncompression to automatically launch
the installation software.
4. When a“Security Warning”or“User Account Control” screens
appear, click the“Run” or “Yes”button.
5. Next, select the language and click the “OK” button.
6. When the“Setup Wizard”screen appears, click the“Next”
button.
7. Read the contents of the License Agreement, and select
“Iaccept the agreement”if you agree to the terms. Then,
click the“Next” button.
8. Next, click the “Install”button.
9. When the“Installation Wizard”screen appears, click the
“Next”button.
10. Next, click the “Install”button to start installation.

8 TASCAM US-16x08
11. Click the“Finish”button when the screen below appears.
12. When the screen below appears, the installation is complete.
Click the“Finish”button.
The installer will quit and the computer will restart.
CAUTION
• When installing the driver, a warning might appear with a
message such as, “The software you are installing for the
hardware has not passed Windows Logo testing to verify its
compatibility with Windows.” If this message appears, click
“Continue Anyway” to proceed with the installation.
Installing the Settings Panel for Mac OS X
NOTE
• Install the Settings Panel on the computer before
connecting the unit to it with the USB cable.
• Depending on the Gatekeeper setting, a warning message
might appear during installation. For information about
Gatekeeper, see “Note about Gatekeeper” of the Reference
Manual.
1. Download the latest Settings Panel for the operating system
you are using from the TEAC Global Site (http://teac-global.
com/) and save it on the computer to be used with the unit.
2. Double-click “US-16x08_X.XX.dmg” (where X.XX is the driver
software version), which is the saved disk image file for the
Settings Panel, and double-click“US-16x08.pkg”inside the
folder that opens.
NOTE
Depending on the computer’s settings, the downloaded
zip file might not have been uncompressed automatically.
In this case, open the zip file first and then double-click the
disk image file.
3. When the installer starts, click the “Continue”button.
4. Next, select the desired language and click the “Continue”
button.
5. Click the“Read License”button and check the contents
of the Software License Agreement. If you agree to the
contents of the license, click “Agree”.
Then, click the“Continue”button.
6. Next, click the “Install”button to start installation.
7. The following screen appears when installation has
completed. Click the“Close”button.
The installer will close.

TASCAM US-16x08 9
Attaching Rack Mount Angles
To rack mount the unit, you must replace the side frames with
the included rack mount angles. Follow the procedure below to
replace them.
(Have a Phillips screwdriver ready.)
1. Using the hex key included with the product, remove the
four screws from each side of the unit, as indicated in the
following figure.
2. Remove the frame from each side of the unit.
3. Attach the included rack mount angles to the unit using
the included rack mount angle attachment screws and the
Phillips screwdriver.
4. To reattach the original frames, reverse the above procedure.
Connecting the power
Use the included AC adapter to connect a power supply to the
unit as shown below.
• The AC adapter includes two types of outlet plugs. Attach
the type of plug that matches the power outlet that you are
using.
GPE248-120200-Z (included)
Power outlet
DC plug
In order to prevent the cord from becoming disconnected
during use, wrap the cord around the cord holder.
CAUTION
Always use the dedicated AC adapter (GPE248-120200-Z,
DC12V) that was shipped with the unit. Using a different AC
adapter could cause malfunction, overheating, fire or other
problems.
Changing the outlet plug
$%
2
1
5
3
4
1. Move the latch on the AC adapter in the direction of the
arrow.
2. Pull off the outlet plug.
3. Replace it with the other outlet plug (A or B).
4. Move the latch on the AC adapter in the direction of the
arrow again.
5. Attach the outlet plug to the AC adapter.
This completes changing the outlet plug.
After changing the outlet plug, confirm that it is not loose
or crooked and that everything is normal before plugging it
into an outlet.
CAUTION
Do not use the adapter if there is anything abnormal about
the plug after changing it. Use when the plug is abnormal
could cause fire or electric shock. Contact the retailer where
you purchased the unit or a TEAC service center (on the back
cover) to request repair.

10 TASCAM US-16x08
Making settings on the Settings Panel screen
Windows
From “All Apps” (All Programs), select “US-16x08 Settings Panel”under TASCAM.
1
4
9
6
8
0
q
w
2
3
5
7
Windows Settings Panel screen
Mac OS X
Select “US-16x08_SettingsPanel”from“Applications”and launch it to open the Settings Panel on the computer display.
1
4
9
6
8
0
q
w
2
3
5
7
Mac Settings Panel screen

TASCAM US-16x08 11
1EQUALIZER screen
The equalizer settings of the channel selected with the 3
“Analog X” button are displayed.
2COMPRESSOR screen
The compressor settings of the channel selected with the 3
“Analog X” button are displayed.
3Analog X buttons
Turn on an “Analog X”(where X is a channel number) button
to display the equalizer and compressor of that channel in
1and 2. You can change their settings if desired.
4PHASE buttons
Turn on a “PHASE” button to invert the phase of that
channel.
5EQ buttons
Turn on an “EQ” button to enable the equalizer settings of
that channel.
6COMP buttons
Turn on a “COMP”button to enable the compressor settings
of that channel.
7SOLO buttons
Turn on a “SOLO” button to solo that channel.
The Solo mode of this unit is a solo-in-place monitor, so all
other tracks are muted.
8MUTE buttons
Turn on a “MUTE” button to mute that channel.
9Pan sliders
Use to adjust the position of the signal input to each
channel.
0Faders, level meters
Use the channel fader of each channel to adjust the level of
that channel. Use the master fader to adjust the master level.
The input signal level of each channel is displayed in the
corresponding channel level meter. The mixed output signal
level is displayed in the master level meter.
The channel level meters and the master level meter are
displayed using green bars for the range of −12 dB or less,
yellow bars for the range of −12 dB to −6 dB, and red bars for
the range of −6 dB or higher.
qLINK buttons
Turning on a “LINK” button combines the odd-numbered
channel (L) and even-numbered channel (R) to a single
stereo channel.
wTrack memos
Enter up to six alphanumeric characters. For details about
other settings, see“Settings Panel settings - Settings Panel
screen”of the Reference Manual.

12 TASCAM US-16x08
Example of connecting to other equipment
Drums Guitar
Bass Guitar
Headphones
Vocal mic
Keyboard
Tone generator module
USB
Computer
Powered speakers, or
amplifier and speakers
Drum machine
CAUTION
• Before making connections, turn this unit and all equipment to be connected off (standby).
• The phantom power switches are used in groups of four channels. Do not set the phantom power to +48 when connecting a mic that
does not require phantom power.
• Do not connect or disconnect mics while phantom power is set to +48. Doing so could cause a loud noise and might damage this unit
and connected equipment.
• Set the LINE OUT and PHONES knobs to their minimum values before switching the phantom power +48/OFF switch. Failure to do
so could cause a sudden loud noise to be generated from the monitoring equipment, and this could damage the equipment or harm
hearing.
• Supplying phantom power to some ribbon mics will break them. If you are unsure, do not supply phantom power to a ribbon mic.

TASCAM US-16x08 13
Connecting with iOS devices
You will need a Lightning to USB Adapter.*
* You must obtain a genuine Apple Lightning to USB Adapter
separately.
Adjusting the input sound
Analog audio signals input into this unit from mics, guitars,
keyboards and other audio equipment can be converted into
digital signals and transmitted to the computer via USB.
In addition, by connecting powered monitor speakers or
headphones to this unit, you can monitor audio signals.
Use the various controls as necessary.
Use the gain knobs (4) to adjust the analog input levels
from the IN1-8 (1) or IN9-10 (2) jacks to keep the overload
indicators (3) from lighting.
To listen to the monitoring signal using headphones, connect
headphones to the PHONES jack (5) and adjust the PHONES
knob (6).
NOTE
If you cannot hear the input sound, make the following
adjustments.
• Use the PHONES knob on the front of the unit to adjust the
output level of the PHONES jack.
• Use the LINE OUT1-2 knob on the front of the unit to adjust
the output level of the LINE OUT1-2 jack.
Mic Preamp mode
This unit will operate in a mode called Mic Preamp mode when
it is not connected to a computer through a USB cable.
In this mode, you can use the unit as a standalone mic preamp
without using a computer or the like.
Input and output channels in Mic Preamp mode
In Mic Preamp mode, the mapping of the input channels to the
output channels is fixed as follows.
Input Output
IN1 LINE OUT1
IN2 LINE OUT2
IN3 LINE OUT3
IN4 LINE OUT4
IN5 LINE OUT5
IN6 LINE OUT6
IN7 LINE OUT7
IN8 LINE OUT8
You can adjust the output level of each channel using the gain
knob of the corresponding channel.
Troubleshooting
Please read this chapter if you are unable to use the unit
properly even after setting it up following the procedures in this
manual.
If you are still unable to resolve your problems please contact
the store where you bought the unit or TEAC customer
support with the following information about the operating
environment and details about the trouble.
Operating environment
• Computer manufacturer
• Model
• CPU
• Memory (RAM)
• Operating system
• Applications used
• Antivirus software
• Wireless LAN use
See the end of this document for contact information.
Installation fails.
Installation completes, but the computer does not recognize
the unit.
If some trouble is causing installation to fail, or if the computer
does not recognize the unit even though installation completes,
check the following.
1. Change the USB port
Since the unit might not properly function with some
USB ports, try connecting to a different USB port on the
computer, and reinstall the driver.
NOTE
• Try again after disconnecting other USB devices. (Keyboards
and mice can be left connected.)
• Do not use a USB hub. Always connect the unit directly to a
USB port on the computer. (built-in)
2. Stop software that is running in the background
Since antivirus software and other software running in the
background can interfere with installation, stop them before
beginning installation.
See “Installing the dedicated software” on page 7 for how
to install and uninstall the dedicated software.
There is no sound even when audio is playing back.
The audio output must be set on the computer.
Please confirm the following while the unit is connected to the
computer. Moreover, if you make the following settings, sound
will be output through this unit, but no sound will be output by
the computer’s speakers or headphone jack.
Windows 8/Windows 7
iSee the “Windows 8”or“Windows 7”instructions in the
“Windows Media Player” section of“Application guide”in the
Reference Manual, and make settings as necessary for the OS.
iConduct procedures 1–4 for Windows 8 or procedures 1–3 for
Windows 7 to set the default device for playback.

14 TASCAM US-16x08
Mac OS X
Quit all applications and open“System Preferences…” from
the Apple menu.
Open“Sound”.
On the“Output” tab, select “US-16x08”.
After completing the setting, restart the computer and check
the playback sound.
Depending on the application that you are using, you might
need to make additional device settings.
In particular, DAW software operates using audio engines
with settings that are different from the OS settings, so
confirm the DAW settings first after installing the dedicated
software for this unit.
Please see the manuals for the applications that you are
using for detailed setting procedures.
Sound breaks up or there is noise.
The processing load on the computer causes sound to break up
and noise to occur.
Here are some methods to reduce the load on the computer.
1. Memory-resident programs, such as wireless LAN and
antivirus software, regularly place processing load on the
computer, which can cause sound to break up and other
noise. Stop wireless LAN transmission, antivirus software and
other software running in the background when using this
unit.
2. Set the buffer size (latency) in the audio application that you
are using or in this unit's Settings Panel to a larger value.
(Windows only)
NOTE
Consult the maker of the audio application that you are
using for methods to reduce its load on your computer.
3. Change the settings of your computer so that they are
optimal for audio processing.
Windows 8
1 In Windows 8, right-click the ordinary start screen (Metro
user interface screen) and then click “All apps”.
2 Right-click “Computer” and select “Properties”.
3 Click “Advanced system settings”.
4 Click“Settings”in the“Performance” section of the
“Advanced” tab of the “System Properties”window.
5 In the “Visual Effects”tab of the“Performance Options”
window, select “Adjust for best performance”.
Windows 7
a) Turn Aero off.
1 Right-click the desktop and select “Personalize”.
2 Select a “Basic” or “High Contrast”theme.
b) Performance settings
1 Right-click “Computer” and select “Properties”.
2 Click“Advanced system settings” .
3 Click “Settings” in the “Performance” section of the
“Advanced” tab of the “System Properties” window.
4 In the “Visual Effects” tab of the “Performance Options”
window, select “Adjust for best performance” .
Mac OS X
1 Open “System Preferences…” from the Apple menu, and
select “Energy Saver”.
2 Set “Computer sleep”to“Never”.
3 Set “Display sleep” to “Never”.
NOTE
Depending on the Mac OS X version and Macintosh
computer model, this setting might not be available.
Specifications
Ratings
Sampling frequencies
44.1, 48, 88.2, 96 kHz
Quantization bit depth
16/24-bit
Analog inputs
Mic inputs (balanced) IN1-8
Connectors: XLR-3-31 equivalent
(1: GND, 2: HOT, 3: COLD)
Input impedance: 2.4 kΩ
Rated input level: −68 dBu (0.0003 Vrms)
(Gain knob at MAX)
Rated input level: −12 dBu (0.195 Vrms)
(Gain knob at MIN)
Maximum input level: +8 dBu (1.947 Vrms)
Gain range: 56 dB
Instrument inputs (unbalanced) IN9-10
(LINE/INST switch set to“INST”)
Connectors: 6.3 mm (1/4") standard TS stereo
jacks
(Tip: HOT, Sleeve: GND)
Input impedance: 1 MΩ or more
Rated input level: −57 dBV (0.0014 Vrms)
(Gain knob at MAX)
Rated input level: −12 dBV (0.251 Vrms)
(Gain knob at MIN)
Maximum input level: +8 dBV (2.512 Vrms)
Gain range: 45 dB
Line inputs (balanced) IN9-10
(LINE/INST switch set to“LINE”)
Connectors: 6.3 mm (1/4") standard TRS stereo
jacks
(Tip: HOT, Ring: COLD, Sleeve: GND)
Input impedance: 10 kΩ
Rated input level: −41 dBu (0.0069 Vrms)
(Gain knob at MAX)
Rated input level: +4 dBu (1.228 Vrms)
(Gain knob at MIN)
Maximum input level: +24 dBu (12.282 Vrms)
Gain range: 45 dB

TASCAM US-16x08 15
Line inputs (unbalanced) LINE IN11-16
(LEVEL switch set to“−10 dBV”)
Connectors: 6.3 mm (1/4") standard TS stereo
jacks
(Tip: HOT, Sleeve: GND)
Input impedance: 10 kΩ
Rated input level: −10 dBV (0.3162 Vrms)
Maximum input level: +10 dBV (3.162 Vrms)
Line inputs (balanced) LINE IN11-16
(LEVEL switch set to“+4 dBu”)
Connectors: 6.3 mm (1/4") standard TRS stereo
jacks
(Tip: HOT, Ring: COLD, Sleeve: GND)
Input impedance: 10 kΩ
Rated input level: +4 dBu (1.228 Vrms)
Maximum input level: +24 dBu (12.282 Vrms)
Analog outputs
Line outputs (balanced) LINE OUT1-8
Connectors: 6.3 mm (1/4") standard TS stereo
jacks (Tip: HOT, Sleeve: GND)
Output impedance: 100 Ω
Rated output level: +4 dBu (1.228 Vrms)
Maximum output level: +24 dBu (12.277 Vrms)
Headphones output (PHONES)
Connector: 6.3 mm (1/4") standard stereo jack
Maximum output: 70 mW + 70 mW
(THD+N 0.1 % or less, into 32 Ω load)
Frequency response
Input to PHONES
44.1kHz, 48kHz
20Hz to 20kHz: ±1.0 dB(JEITA) Hi-Res compatible
88.2kHz, 96kHz
20Hz to 40kHz: ±2.0 dB(JEITA) Hi-Res compatible
Control input/output ratings
MIDI IN connector
Connector: 5-pin DIN
Format: standard MIDI
MIDI OUT connector
Connector: 5-pin DIN
Format: standard MIDI
USB
Connector: 4-pin USB B-type
Transfer rate: USB 2.0 High Speed (480 Mbps)
Audio performance
Mic preamp EIN (equivalent input noise)
−125 dBu or less
Frequency response
Inputs to LINE OUT (BALANCED)
44.1 kHz, 48 kHz
20 Hz to 20 kHz: ±0.5 dB (JEITA)
88.2 kHz, 96 kHz
20 Hz to 40 kHz: ±0.5 dB (JEITA)
S/N ratio
100 dB or more
(MIC/LINE IN to LINE OUT, gain knob at MIN, JEITA)
Distortion
0.006 % or less
(MIC/LINE IN to LINE OUT, 1 kHz sine wave, rated maximum
input level, maximum output level)
Crosstalk
100 dB or higher
(MIC/LINE IN to LINE OUT, 1 kHz)
Computer system requirements
Check the TEAC Global Site (http://teac-global.com/) for the
latest information about supported operating systems.
Windows
Supported operating systems
Windows 8 (including 8.1) 32-bit
Windows 8 (including 8.1) 64-bit
Windows 7 32-bit SP1 or later
Windows 7 64-bit SP1 or later
(Windows Vista and Windows XP are not supported)
Computer hardware requirements
Windows computer with a USB 2.0 port
CPU/processor speed
2 GHz or faster dual core processor (x86)
Memory
2 GB or more
CAUTION
Operation of this unit was confirmed using standard
computers that meet the above requirements. This does
not guarantee operation with all computers that meet the
above requirements. Even computers that meet the same
system requirements might have processing capabilities
that differ according to their settings and other operating
conditions.

16 TASCAM US-16x08
Mac OS X
Supported operating systems
OS X Mavericks (10.9.1 or later)
OS X Mountain Lion (10.8.4 or later)
Computer hardware requirements
Apple Macintosh computer with a USB 2.0 port
CPU/processor speed
2 GHz or faster dual core processor
Memory
2 GB or more
iOS devices
iPad 4 and later
Supported audio drivers
ASIO 2.0, WDM (MME)
Core Audio
Core MIDI
General
Power
Dedicated AC adapter (GPE248-120200-Z), DC 12 V
Power consumption
12 W
External dimensions
445 × 59 × 219 mm (width × height × depth)
Weight
2.8 kg
Operating temperature range
5 °C - 35 °C (32 °F - 104 °F)
Dimensional drawings
PPPP PP PP
PP
With rack mount adapters attached
PP
PP PPPP
PP
PP
PP
PP
• Illustrations in this manual might differ in part from the
actual product.
• External appearance might be changed without notification
to improve the product.

TASCAM US-16x08 17
Mode d'emploi
PRÉCAUTIONS DE SÉCURITÉ
IMPORTANTES
Pour le Canada
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN
ICES-003.
CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À
LA NORME NMB-003 DU CANADA.
DÉCLARATION DE CONFORMITÉ
Nous, TEAC EUROPE GmbH. Bahnstrasse 12, 65205
Wiesbaden-Erbenheim, Allemagne, déclarons sous
notre propre responsabilité que le produit TEAC
décrit dans ce mode d'emploi est conforme aux
normes techniques lui correspondant.
INSTRUCTIONS DE SÉCURITÉ
IMPORTANTES
1 Lisez ces instructions.
2 Conservez ces instructions.
3 Tenez compte de tous les avertissements.
4 Suivez toutes les instructions.
5 N'utilisez pas cet appareil avec de l'eau à proximité.
6 Ne nettoyez l'appareil qu'avec un chiffon sec.
7 Ne bloquez aucune ouverture de ventilation. Installez-le
conformément aux instructions du fabricant.
8 Ne l'installez pas près de sources de chaleur telles que des
radiateurs, bouches de chauffage, poêles ou autres appareils
(y compris des amplificateurs) dégageant de la chaleur.
9 Ne neutralisez pas la fonction de sécurité de la fiche polarisée
ou de terre. Une fiche polarisée a deux broches, l'une plus large
que l'autre. Une fiche de terre a deux broches identiques et
une troisième broche pour la mise à la terre. La broche plus
large ou la troisième broche servent à votre sécurité. Si la fiche
fournie n'entre pas dans votre prise, consultez un électricien
pour le remplacement de la prise obsolète.
10 Évitez de marcher sur le cordon d'alimentation et de le
pincer, en particulier au niveau des fiches, des prises secteur,
et du point de sortie de l'appareil.
11 N'utilisez que des fixations/accessoires spécifiés par le
fabricant.
12 Utilisez-le uniquement avec des chariots,
