Task Force 26153 User manual

TM
READ YOUR OPERATOR’S MANUAL COMPLETELY AND CAREFULLY BEFORE
ATTEMPTING TO SET UP OR OPERATE YOUR NEW REEL MOWER. ALL OPERATORS OF THIS
EQUIPMENT SHOULD READ AND UNDERSTAND ALL SAFETY RULES PRINTED ON THE MACHINE
AND IN THIS OPERATOR’S MANUAL BEFORE USE.
CAUTION - FOR YOUR SAFETY
NOTICE: On the nameplate of your machine you will find the serial number and MFG date code of your unit.
Please record these numbers on this manual cover for future service reference.
MFG. DATE ________ PURCHASE DATE: _________
PRINTED IN CHINA
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at 1-866-456-8934, 8:30 a.m.-5:00 p.m., EST, Monday-Friday.
20 in. (50.8cm) REEL MOWER
ITEM / ARTICULO # 289835
MODEL / MODELO # 26153

TABLE OF CONTENTS
PRODUCT SPECIFICATIONS
PRODUCT SPECIFICATIONS
SAFETY INFORMATION
CARE AND MAINTENANCE
ASSEMBLY INSTRUCTIONS
OPERATION 8
CHECKING THE ADJUSTMENTS 9
LIMITED TWO-YEAR WARRANTY 10
PARTS DIAGRAM 11/12
20 IN. (50.8cm) REEL MOWER
Item No 289835
Cutting Path
Height Adjustments
Wheel Qty
Weight
20 in. (50.8cm)
1-5/8 - 2-5/8 in. (4.3-6.8cm)
4
34lbs. (15.4Kg)
2
2
3
3
4

3
Never place hands, fingers or feet inside the reel. Although a motor does not power this mower, when the wheels turn
the reel spins and can cut.
Never mow when grass is wet as it can be slippery.
Do not use the reel mower while barefoot or while wearing sandals.
Walk behind, never run, while using reel mower. Always make sure of your footing when using this reel mower.
Never intentionally strike or hit trees, fences, etc. This can cause injuries or severely damage the reel mower
mechanisms.
Make sure your reel mower is in a safe operating condition. Do not attempt to operate this reel mower if damaged.
Contact customer service or have the reel mower repaired by a qualified repair service provider before using.
SAFETY INFORMATION
CARE AND MAINTENANCE
1. Minimum care is required to ensure smooth operation of your mower.
2. To avoid damage to mower or cutting blades, keep area to be mowed free from debris.
3. For best results, regularly apply lubricant to mower’s cutting surfaces, cutting reel axle shaft and wheels.
WARNING:Clean any grinding compound or debris from the cutter bar
blade, reel blade, pinions and pawls.
NOTE: Clean any grinding compound or debris from the cutter bar blade, reel blade, pinions, and pawls.
NOTE: Use industrial or valve lapping compound between 100 and 240 grit. Lubricate the axle and pinion with a light film
of wheel bearing grease.
Cleaning and Storage:
1. Clean the exterior of the machine thoroughly using a soft brush and cloth before storing. Do not use water, solvents
or polishes.
2. Turn the mower on its side to clean the blade area.
WARNING: Do not place hands in the mower near blades. If grass cuttings are compacted in the blade area,
remove using a wood or plastic cleaning tool appropriate for the cleaning of the blades.
3. Store the mower in a dry place. Do not place other objects on top of the mower during storage.
Caution: Do not overtighten the adjusting screws, as this could damage the cutter bar. Tighten both screws
during final adjustment.
3. Turn the reel blades until the front edge of the cutter bar blade is polished.
Sharpening the cutting blades:
1. Spread a thin layer of lapping compound on the front edge of the reel blades.
2. Adjust the cutter bar so that the blade has light but firm contact across the full width of the cutter bar.

4
ASSEMBLY INSTRUCTIONS
1. Top handle
2. Center handle pieces
3. Left lower handle
4. Right lower handle
5. Foam grip
6.
7. Flat washer
8. Locknuts
Tools Required
Fig. 1
Before attempting to assemble, empty carton and compare parts with parts list below.
PACKING LIST
1-Top handle,
2-Center handle pieces,
2-Lower handle pieces,
8-Locknuts,
8-Carriage Bolts,
8-Washers,
1-Reel mower body
Note:
• Carefully remove the parts from the box.
• Inspect the parts to make sure no breakage or damage occurred during shipping.
• Do not discard the packing material until all parts are examined.
• If any parts are damaged or missing, please call 1-866-456-8934 for assistance.
•
Carriage Bolts,
10mm Wrench (Not included)
Be sure to tight the lock nuts when assembled to prevent the handle from rocking.

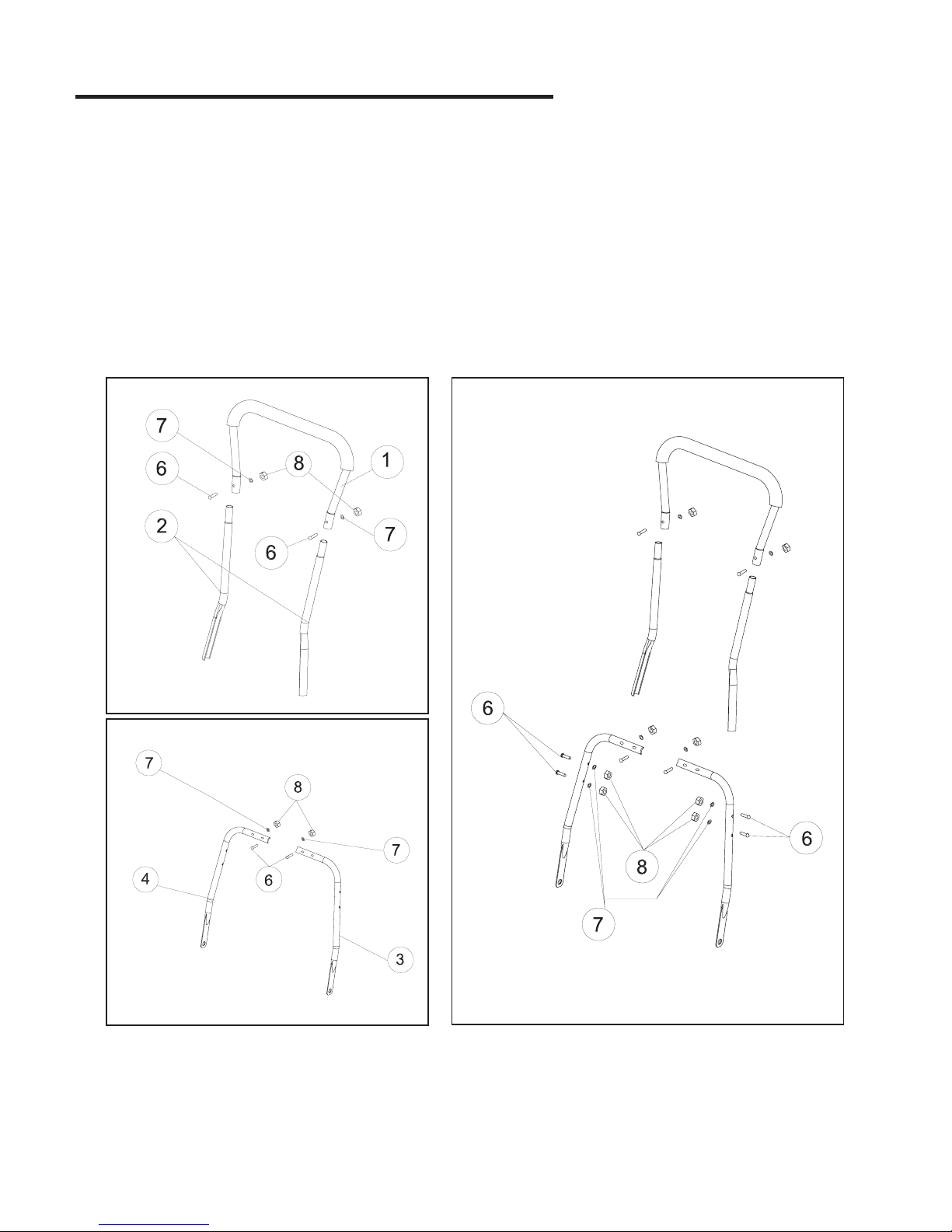

ASSEMBLING THE HANDLE:
NOTE: Do not completely tighten bolts until assembly is complete.
1. Insert the two center handle pieces (2) into the left and right side of the top handle (1) and secure with two
(6) , flat washer (7) and Locknuts ( 8) provided. (Fig.2)
2. Connect the right lower handle (4) with the left lower handle (3) and secure with two Carriage Bolts(6), flat
washer (7) and Locknuts (8) provided. (Fig.3)
3. Attach the top handle subassembly previously assembled, to the lower handle subassembly using four
(6),flat washer (7) and Locknuts (8) provided. (Fig.4)
4. Tighten all the locknuts on the joints of the handle assembly.
Carriage Bolts
Carriage Bolts
ASSEMBLY INSTRUCTIONS
5

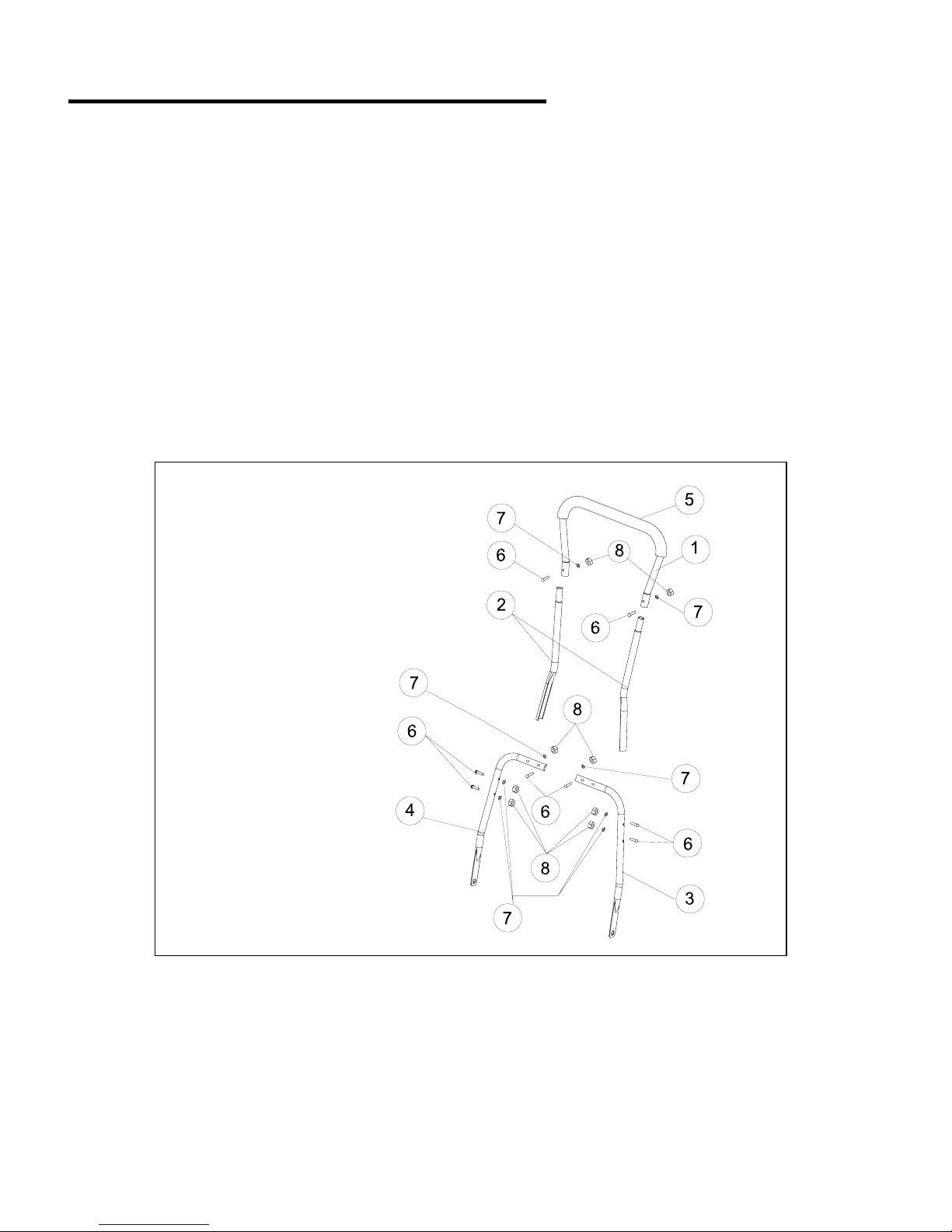

Fig.2
Fig.3
Fig.4
Assemble the handle less than 15 minutes.

ATTACHING THE HANDLE TO THE MOWER BASE:(Fig:5)
6
1. Align holes (1) at the lower end of each handle arm with posts (2) extending from
the
mower base side plates. Slide lower ends of handle arms onto posts.
ASSEMBLY INSTRUCTIONS
Fig.5
1 2

1
ASSEMBLY INSTRUCTIONS
7
Fig. 6 Fig. 7
Fig. 8
Fig. 9
Attaching the grass collection bag: (Fig.6,7,8,9)
1. Remove bag and all components from the packaging (Fig.6)
2. Open the hinged grass bag brackets on both the left and right side of the bag and push the center mount washer
forward to lock open the brackets. (Fig. 7,8)
3. Place the left and right hooks of the grass bag on to the rear wheel axle and ensure that it presses firmly into place.
4. Place center bar locking strap (1) from the bag to the center bar of the middle push handle of the reel mower.
Adjust strap tension for proper height so the bag does not rub against the ground while in use or transporting. (Fig. 9)

Cutting height adjustments: (Fig.10 )
The cutting height of the mower adjusts from 1-5/8 - 2-5/8 in. (4.3-6.8cm) with 9 positions for adjustment height by
adjustment levers to the required position.
To achieve the lowest cutting position, one at a time, move the the adjustment levers on both sides, located next to the
smaller wheels, up to the highest position.
To achieve the highest cutting position, move the adjustment levers on both sides to their lowest position.
Other cutting heights are achieved by moving the adjustment levers to any stop between the highest and lowest positions.
NOTE: The two adjustment levers MUST be set to the same position (height).
Height adjustment
OPERATION
Fig.10
8
moving the height
NOTE: Do not use wheels as a reference point for grass cut line.
ALIGN CUTTING PATH INDICATION ARROW WITH PREVIOUSLY CUT PATH (Fig. 11)
Fig. 11

Mower blade adjustments: (Fig. 12)
WARNING: BLADES ARE EXTREMELY SHARP. TO AVOID INJURY, DO NOT TOUCH BLADES WHEN
MAKING
Note: Blades are factory adjusted.
Misalignment can occur, often caused by blades being too loose or too tight. This can cause an uneven cut
Each end of the cutting bar is adjusted separately.
To move the cutting bar closer to the blades turn the adjustment clockwise. To move the cutting bar away from the
blades turn the adjustment counterclockwise.
In order to perform this adjustment you must first loosen the upper lock nut located between the front and
rear radial wheels.
OPERATION
Fig.12
ADJUSTMENTS.
9
or difficulty pushing the mower.
Adjustment screw
1. Turn mower upside down.
2. Insert a piece of paper between cutter bar and reel blades, and slowly turn wheel by hand.
3. All blades should slice the paper evenly, along the entire length of the cutter bar while the reel turns smoothly.
4. If mower has an intermittent cut, adjustment should be made to the appropriate side of blades to attain proper
cutting action.
WARNING:Do not overtighten as this could damage
cutter bar. Both screws must be tight on final adjustment.
CHECKING THE ADJUSTMENT
adjustment screws,
CAUTION:Αdjusting the screws for blade adjustments is a very sensitive procedure. A turn of 1/16 is considered a
adjustment. Βefore tightening one adjusting screw, make sure to loosen the opposite screw an equal amount.major

TWO-YEAR LIMITED WARRANTY
The manufacturer warranties that this product is free from defects in material and workmanship for
two (2) years from the date of the original purchase by the original purchaser only.
THIS WARRANTY IS NOT TRANSFERABLE AND DOES NOT COVER:
Products sold damaged or incomplete, sold “as is”, sold reconditioned or used as rental
equipment.
Delivery, installation or normal adjustments explained in the owner’s manual.
Damage or liability caused by shipping, improper handling, improper installation, incorrect
voltage or improper wiring, improper maintenance, improper modification, or the use of
accessories and/or attachments not specifically recommended.
Repairs necessary because of operator abuse or negligence, or the failure to install, operate,
maintain and store the product according to the instructions in the owner’s manual.
Damage caused by cold, heat, rain, excessive humidity, corrosive environments and materials,
or other contaminants.
Expendable items that become worn during normal use.
Cosmetic defects that do not interfere with tool functionality.
Freight costs from customer to vendor.
Repair and transportation costs of products or parts determined not to be defective.
ANY INCIDENTAL, INDIRECT OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT
MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF THE PRODUCT.
Some states do not allow the exclusion or limitations on how long an implied warranty lasts, so
the above limitations may not apply to you. This warranty gives you specific legal rights, and
you may have other rights that vary from state to state.
WARRANTY REPLACEMENT PARTS are available by calling the toll free number, 1-866-456-8934
8:30 a.m.-5:00 p.m., EST, Monday-Friday.
10

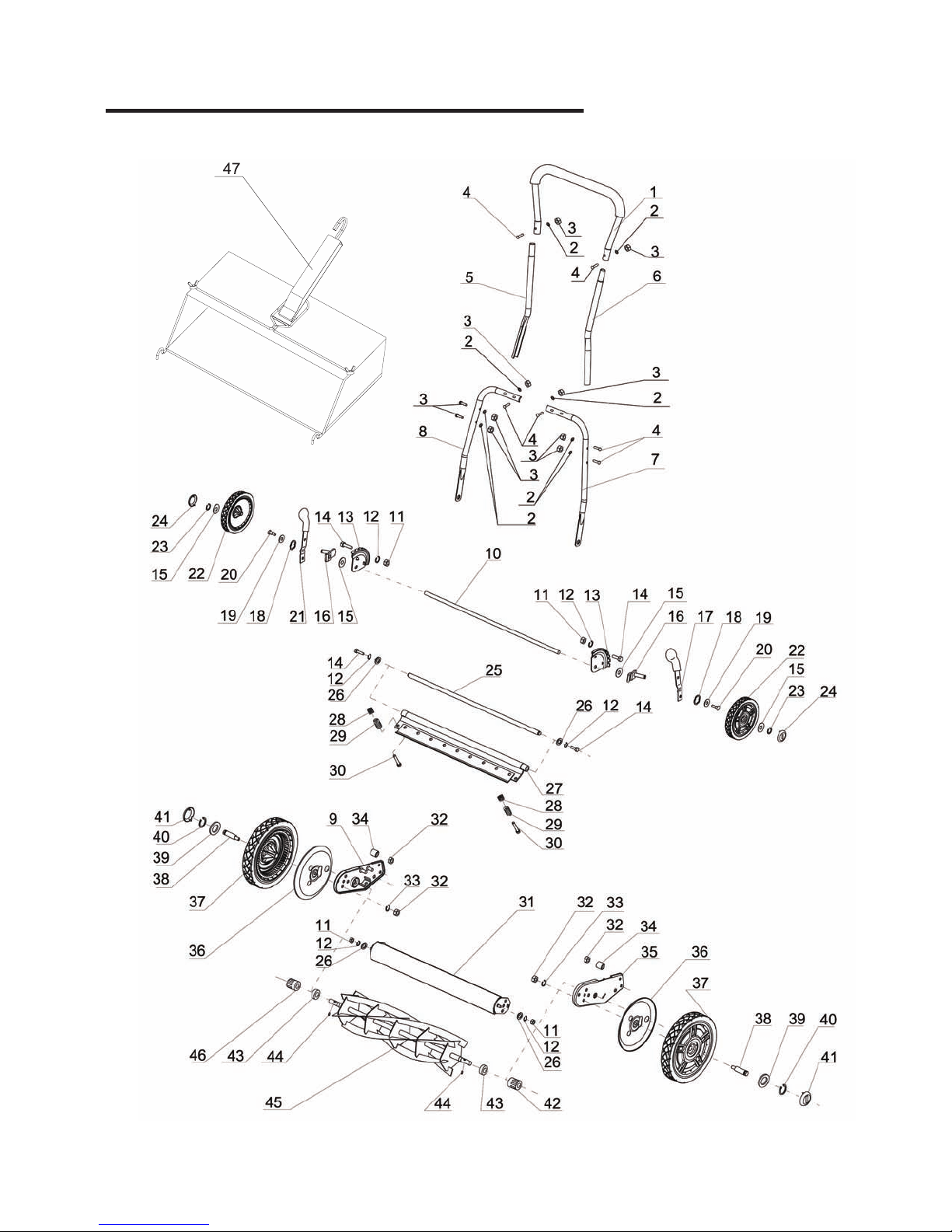

PARTS DIAGRAM
11

PARTS DIAGRAM LIST
12
Item Description Qty
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
Top handle
Washer Ø 6
Locknuts 1/4 X 20
Carriage Bolts 1/4 X 1-3/8’’
Middle handle(R)
Middle handle(L)
Bottom handle(L)
Bottom handle(R)
Support(R)
rear wheel shaft
Nut M8
Spring washer Ø8
Cutting height adjustment plate
Hex.bolt M8X16
Washer
Rear wheel bracket
Adjustment lever(L)
Wave washer
washer Ø12X Ø20X1.5
Bolt
Adjustment lever(R)
Rear wheel
C-clip for shaft Ø12
Rear wheel cover
Cutting bar pivot rod
Washer Ø8
Cutting bar assembly
Blade adjustment nut M8
Blade adjustment spring
Blade adjustment bolt
Housing
Nut M8
Spring washer Ø8
Rubber bumper
Support(L)
Wheel Support board
Front wheel
Front wheel shaft
Washer Ø16
C-clip Ø16
Front wheel cover
Gear(L)
Ball bearing 6002RS
Pin
Reel cylinder
Gear(R)
1
8
8
8
1
1
l
1
1
1
4
6
2
4
4
2
1
2
2
2
1
2
2
2
2
4
1
2
2
2
1
2
2
2
1
2
2
2
2
2
2
1
2
2
1
1
47 Grass bag 1
