Jonsered LT2223A2 Guide

SERVICE
Spare parts
Ersatzteile
Pièces détachées
Reserve onderdelen
Repuestos
Reservdelar
I0700110
IPL, LT2223 A2, 2007-07, 502 52 52-05
LT2223A2
502 52 52-05
96041004000

532 40 86-43 Rev. 2
ILLUSTRATED PARTS LIST
MODEL NO. 96041004000
CUSTOMER CATALOG NO. LT2223A2
PRODUCT NO. 960 41 00-40

2
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40

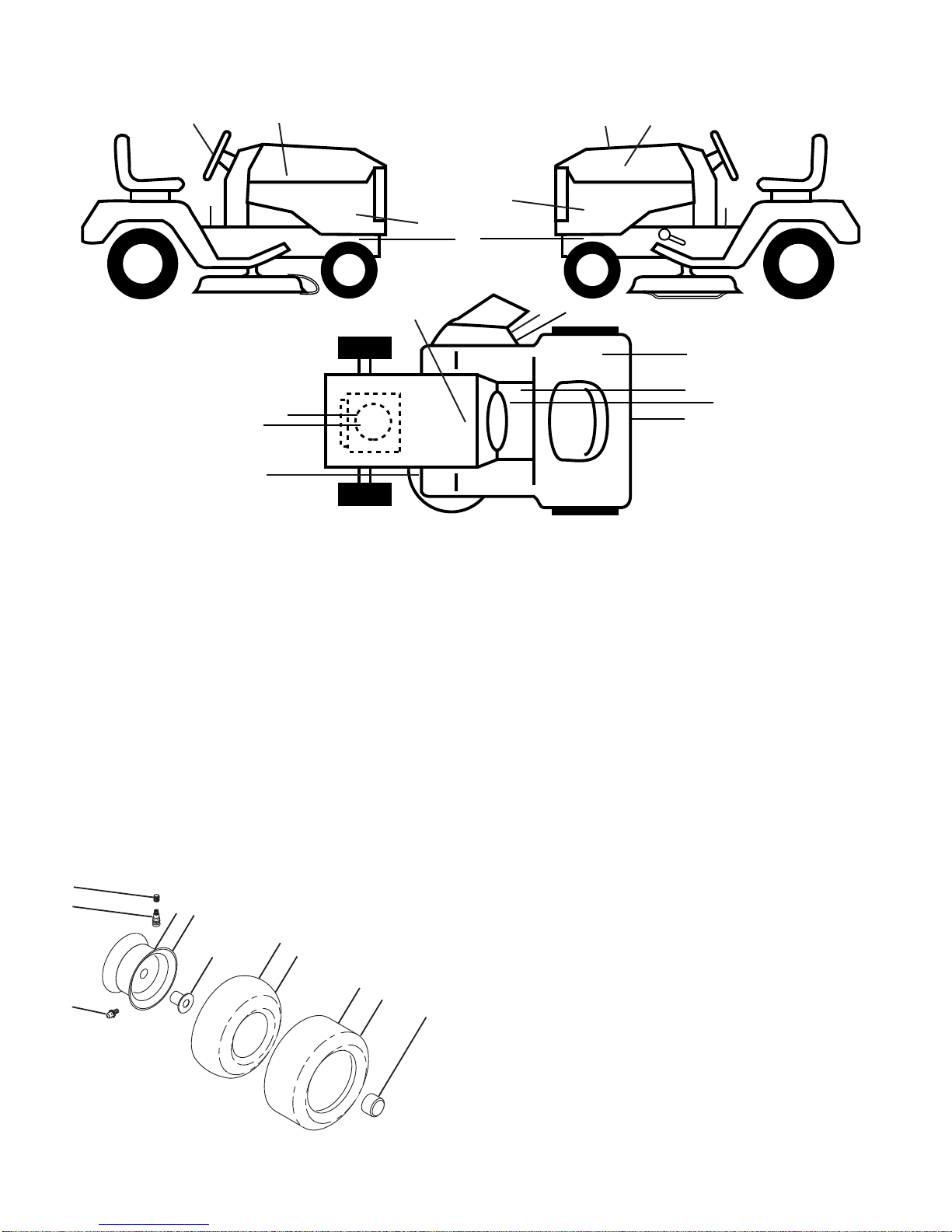

DECALS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
410
598
7
wheel_art_1-vgt
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION KEY PART
NO. NO. DESCRIPTION
17
16 16
1 532 05 91-92 Cap, Valve, Tire
2 532 06 51-39 Stem, Valve
3 532 14 45-09 Rim Assembly, Front
4 532 05 99-04 Tube, Front (Service Item Only)
5 532 10 62-30 Tire, Front
6 532 12 49-57 Fitting, Grease (Front Wheel Only)
7 532 12 49-59 Bearing, Flange (Front Wheel Only)
8 532 17 50-39 Cap, Axle (Front Wheel Only)
9 532 18 47-08 Tire, Rear
10 532 12 49-26 Tube, Rear (Service Item Only)
11 532 40 17-82 Rim Assembly, Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
14
5
1 532 40 03-89 Decal, Warning Sym.
3 532 19 68-41 Decal, Warning Engine
5 532 19 87-85 Decal, Schematic
6 532 40 91-43 Decal, Engine
7 532 18 39-30 Decal, Cover/Belt Guard
8 532 18 21-66 Decal, Cutfinger
9 532 14 50-05 Decal, Battery, Dan/Poi
10 532 18 04-33 Decal, Fender DB/CE
11 532 15 97-36 Decal, Hot Muffler
12 532 15 97-37 Decal, Brake/Clutch Sym.
13 532 18 57-73 Decal, Steering Whl
14 532 40 93-74 Decal, Panel Side
15 532 19 63-57 Decal, Deflector
1
16 532 18 95-53 Decal, Hood Logo
17 532 41 17-83 Decal, Replacement
18 532 17 83-02 Decal, Cruise Control
19 532 14 08-37 Decal, Parking Brake
- - 532 16 69-60 Decal, Bypass
- - 532 16 25-98 Decal, Load Limit
- - 532 41 19-03 Pad, Footrest, LH
- - 532 41 22-79 Pad, Footrest, RH
- - 532 40 86-37 Manual, Oper (Euro)
- - 532 40 86-38 Manual, Oper (Scan)
- - 532 40 86-40 Manual, Oper (E-Bloc)
- - 532 40 86-41 Manual, Oper (Baltic)
14
13
98
12
11
3
18
7
6
15
19
10

3
M
FUSE
STARTER
SOLENOID
BATTERY
ELECTRIC CLUTCH
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
REGULATOR
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
LIGHT
SWITCH
HEADLIGHTS
STATOR
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
PTO SWITCH
(DISENGAGED)
SM
B
GL
2
3
1
6
A2A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
28 VOLTS AC @ 3600 RPM (REGULATOR DISCONNECTED)
CHARGING SYSTEM OUTPUT
16 AMP DC @ 36 RPM
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE REPLACED TO
PROPERLY SECURE YOUR
WIRING.
02929-194276_Regulated-Tex
IGNITION SWITCH
CIRCUITPOSITION
OFF B+A1
RUN/OVERRIDE
B + S + A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
02929
BLACK
BLACK /WHITE
ORANGE
RED
BROWN
BLUE
BLUE
BLACK
BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
BLACK
RED
RED RED
RED
WHITE
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(IF SO EQUIPPED)
12V
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40

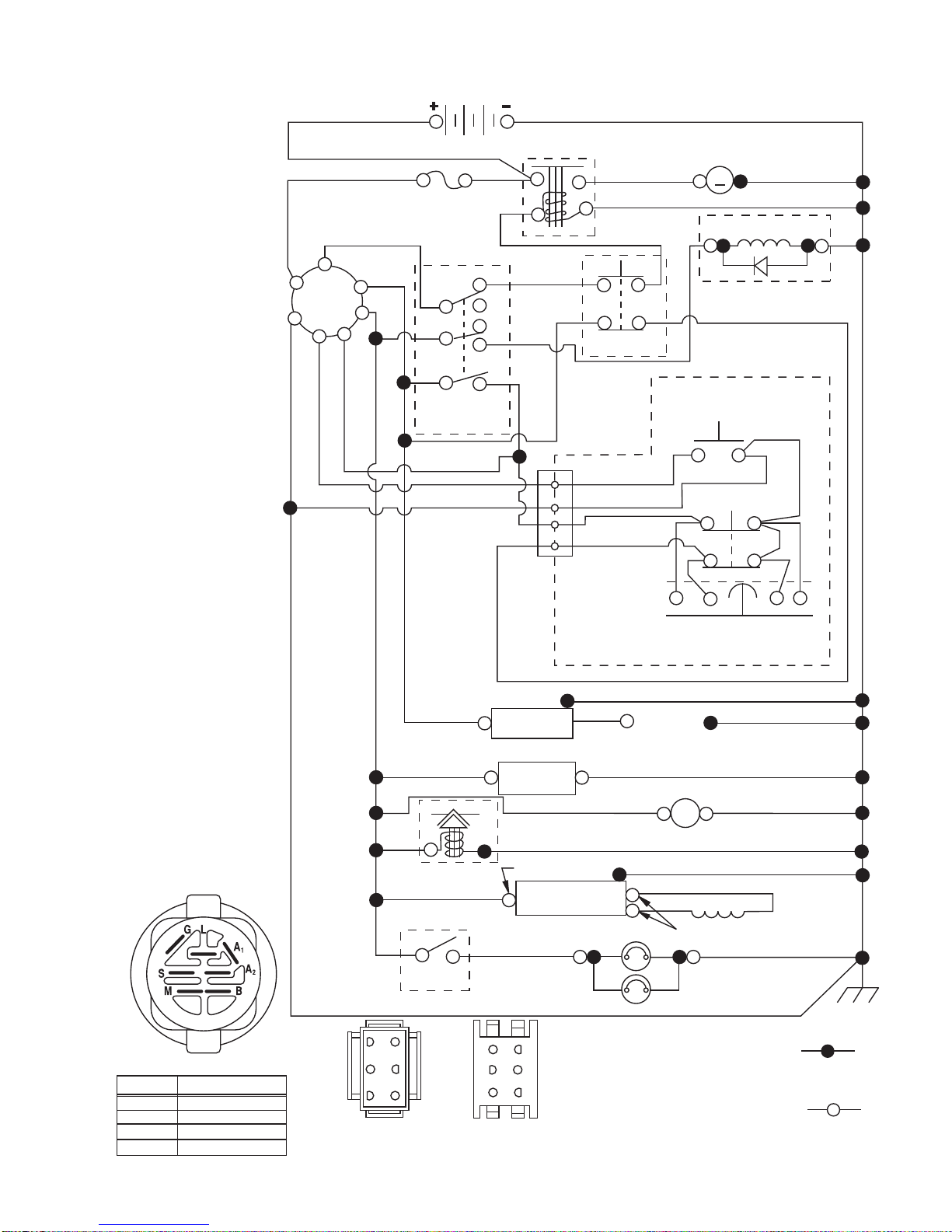

SCHEMATIC

4
30
33
24
42
40
26
28
71
194276D
29
34
43
25
27
41
50
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40
ELECTRICAL
Battery _28
8
1
99
100
91
227
22
79 21
16
55
45
0
60
AMPS
60
90
102
101
46

5
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40
ELECTRICAL
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-27 Battery
2 874 76 04-12 Bolt Hex Hd 1/4-20 unc x 3/4
8 532 18 64-91 Battery Box
16 532 17 61-38 Switch Interlock
21 532 17 56-88 Harness Socket Light
22 532 00 41-52 Bulb, Light # 1156
24 532 40 02-53 Cable Battery
25 532 19 88-93 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 14 54-91 Cable Ground 21" Blk 6 Ga.
29 532 40 15-45 Switch Seat
30 532 19 33-50 Switch Ign
33 532 14 04-01 Key Ign Molded Generic
34 532 11 07-12 Switch Light/Reset
40 532 40 21-67 Harness Ignition Dash
41 817 72 04-08 Screw Thd Cut 1/4-20 x 1/2
42 532 13 15-63 Cover Terminal Red
43 532 19 25-07 Solenoid
45 532 17 75-00 Ammeter
46 532 17 75-01 Gauge Hourmeter
50 532 17 46-51 Switch PTO
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4
71 532 19 42-76 Harness Chassis
79 532 17 52-42 Socket Asm Bulb
90 532 40 07-24 Cover Terminal Battery
91 532 19 02-70 Strap Battery
99 817 67 04-12 Screw Hexwsh Thdrol 1/4-20 x 3/4
100 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
101 532 19 83-17 Pigtail Harness Clutch
102 532 40 44-54 Harness Pigtail
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

6
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40
CHASSIS
chassis-tex_Stealth_II_SRS_6
99
180
68
183
200
200
235
34
165
228
228
194
14
153
148
130
130
122
37
181
181
58
182
176
176
175
195
194
36
189
189
150
18
5
161
177
196
162
176
176
198
199
222
222
162 68
189
152
68
278
139
139

7
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40
CHASSIS
KEY PART
NO. NO. DESCRIPTION
5 532 41 18-76 Dash
14 532 18 13-51 Hood
18 532 18 13-52 Grille
34 532 19 61-25 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 41 18-77 Fender
58 532 19 43-14 Bracket Support Fender
68 817 49 05-08 Screw 5/16-18 x 1/2
99 532 40 59-17 Rod Asm Bypass
122 532 19 25-12 Screw 10-32 x 5/8
130 532 19 16-11 Screw 10 x 3/4 Single Lead-Hex
139 532 17 18-73 Bolt Shoulder 5/16-18
148 532 16 46-55 Bumper Extrusion
150 532 17 53-51 Air Duct
152 532 19 95-35 Shield Browning
153 532 16 18-40 Lens Bar
161 532 41 18-79 Window Fuel
162 532 14 24-32 Screw
165 532 19 68-26 Support Tank Rear
175 532 19 32-36 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-27 Bushing Steering
180 532 40 15-59 Chassis
181 532 40 47-96 Bushing Mtg. Fender Crgo
182 532 19 25-51 Dash Lower
183 874 78 05-20 Bolt Fin Hex 5/16-18 unc x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
195 532 40 41-37 Plug Hole Dash Lower
196 532 41 18-80 Console Asm. Deck Lift
198 532 41 18-81 Indicator Deck Lift
199 532 19 63-77 Plate Deck Lift
200 873 93 05-00 Nut Lock 5/16-18 unc
222 532 13 77-29 Screw 1/4-20 x 5/8
228 532 19 51-61 Stud Fastner
235 532 40 61-29 Spacer Fender
278 532 19 63-94 Bracket Hood
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

8
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40
DRIVE
56 213
171
197 196
206
26
207
209
186
189 49
187
50
51
52
51
190
51
52
208 210
170
211
166
211
64
185 188
17
161
35
184
167
160
160
42
163
214
125
215
92
125
153
222
74
224
125
226
125
125
80 125
29
159
15 159
116
153
216
143
225
125
116
162
162
2
2
169
169
1
116
drive-tex_50-Husq TuffTorq
33
205
7
230
183
7
9
33
230
183
205

9
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40
DRIVE
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
1 532 41 40-06 Transaxle, TUFFTORQ K46
2 532 18 62-11 Key
7 532 19 98-44 Hub Asm Wheel
9 532 14 00-80 Bolt Hub Wheel Rear
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 41 36-78 Spring, Brake
26 532 19 96-79 Spring Return Cruise
29 532 40 38-06 Rod, Brake
33 812 00 00-01 Ring E
35 532 19 72-75 Rod, Brake, Park
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove 910" Offset
56 532 13 09-69 V-Belt, Drive
64 532 19 78-65 Shaft Asm. Pedal Brake Control
74 532 14 24-32 Screw 1/4 x 1/2
80 532 40 44-83 Bracket Strap Torque
92 874 76 05-20 Bolt Fin Hex 5/16-18 unc x 1.25
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
125 817 00 05-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw 5/16-18 x 1/2
153 532 12 47-88 Retainer Spring
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 19 54-03 Spring, Return, Clutch
162 532 19 57-85 Spacer Transaxle
163 532 40 10-34 Rod Pedal Control
166 532 19 72-90 Nut Push .625
167 532 40 52-57 Latch Brake Parking
169 874 49 05-60 Bolt Hex Flghd 5/16-18 x 3.75
170 532 19 43-22 Keeper Belt Centerspan
171 872 11 06-16 Bolt RDHD SQNK 3/8-16 unc x 2
183 532 40 04-24 Spacer Split
184 532 41 17-16 Handle Parking Brake
185 872 11 06-20 Bolt Rdhd Sqnk 3/8-16 x 2-1/2
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
196 817 00 06-16 Screw 3/8-16 x 1
197 532 19 97-69 Link Clutch Anti-Rotation
205 532 12 17-48 Washer
206 532 19 78-67 Bracket Mount Latch Cruise
207 532 19 78-68 Latch Control Cruise
208 532 19 78-69 Gear Sector Control Cruise
209 532 19 94-66 Rod Control Cruise
210 532 19 78-60 Rocker Asm. Pedal Control
211 532 12 01-83 Bearing Nylon
213 532 41 23-24 Knob Control Cruise
214 532 40 17-22 Pedal Forward
215 532 40 17-23 Pedal Reverse
216 532 19 61-31 Bracket Pulley Idler
222 879 21 20-10 Washer 21/32 x 1-1/4 x 10 Ga.
224 532 41 22-98 Console Toolbox
225 532 40 33-19 Keeper Belt Trans.
226 532 40 08-31 Bracket Mount Torque
230 532 18 89-67 Washer Hardened
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm

10
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40
MOWER DECK
47
7
54
46
32
33
31
30
133
52
48
43 50
97
33
49
39
185
46
46
6
21
122
114
98
31
32
25 26
24
27
194
113
17
21
49
187
190
188
190
187
120
117
116
189
21
18
13
14
15
22
20
11
8
29
48_deck_tex_24_r3
12 16
19
208

11
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40
MOWER DECK
KEY PART
NO. NO. DESCRIPTION KEY PART NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 19 72-16 Deck Weldment Mower
6 532 19 72-48 Cover Mandrel LH
7 532 19 91-02 Cover Mandrel RH
8 532 17 43-65 Bolt 7/16 Asm. Blade
11 532 18 00-54 Blade High Lift
12 532 40 48-51 Rod Anti Sway
13 532 18 72-91 Shaft Asm. w/Lower Bearing
14 532 18 72-81 Housing, Mandrel
15 532 11 04-85 Bearing, Ball, Mandrel
16 819 13 13-12 Washer 13/32 x 13/16 x 12 Ga.
17 872 11 05-05 Bolt 5/16-18 x 5/8
18 872 14 05-05 Bolt RdHd 5/16-18 unc x 5/8
19 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
20 532 17 43-78 Baffle Vortex
21 873 68 05-00 Nut, Crownlock 5/16-18 unc
22 532 17 44-93 Stripper Mandrel
24 532 10 53-04 Cap Sleeve
25 532 17 81-02 Spring, Torsion
26 532 11 04-52 Nut, Push
27 532 18 17-07 Deflector Shield
29 532 13 14-91 Rod, Hinge
30 532 17 39-84 Screw, Thdrol Washer Head
31 532 18 76-90 Washer, Spacer Mower Vented
32 532 15 35-32 Pulley, Mandrel
33 532 40 02-34 Nut, Flg. Top Lock
39 532 19 73-80 Pulley, Idler
43 532 19 60-65 Arm, Idler
46 532 13 77-29 Screw, Thdrol 1/4-20 x 5/8
47 532 19 72-42 Belt Deck Drive
48 532 19 31-97 Pulley Idler
49 873 90 06-00 Nut, Lock Flg. 3/8-16 unc
50 817 49 06-36 Screw TT 3/8-16 x 2-1/4
52 532 19 73-79 Pulley Idler
54 872 11 06-12 Bolt Carr. Sh 3/8-16 x 1-1/2 Gr. 5
97 532 17 85-15 Washer Hardened
98 532 19 61-05 Spring Drive
113 872 11 05-08 Bolt Rdhd Sqnk 5/16-18 x 3/4
114 532 19 74-51 Rod Tension Relief
116 532 19 34-06 Bolt, Shoulder
117 532 17 48-73 Gauge Wheel
120 819 13 20-12 Washer 13/32 x 1-1/4 x 12 Ga.
122 532 18 75-57 Bushing Tension Relief
185 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
187 532 19 51-61 Stud Fastener w/"D" Anti-Rotation
188 873 90 05-00 Nut Lock Hex Flange
189 532 19 51-85 Arm Susp. Mower Rear
190 532 19 65-39 Bolt Shoulder
194 872 14 07-16 Bolt Carr Sqnk 7/16-24 x 2
208 817 67 06-08 Screw 3/8-16 x 1/2
- - 532 18 72-92 Mandrel Asm. Service (Includes
Key Nos. 13-15 and 33)
- - 532 19 98-59 Replacement Mower, Complete

12

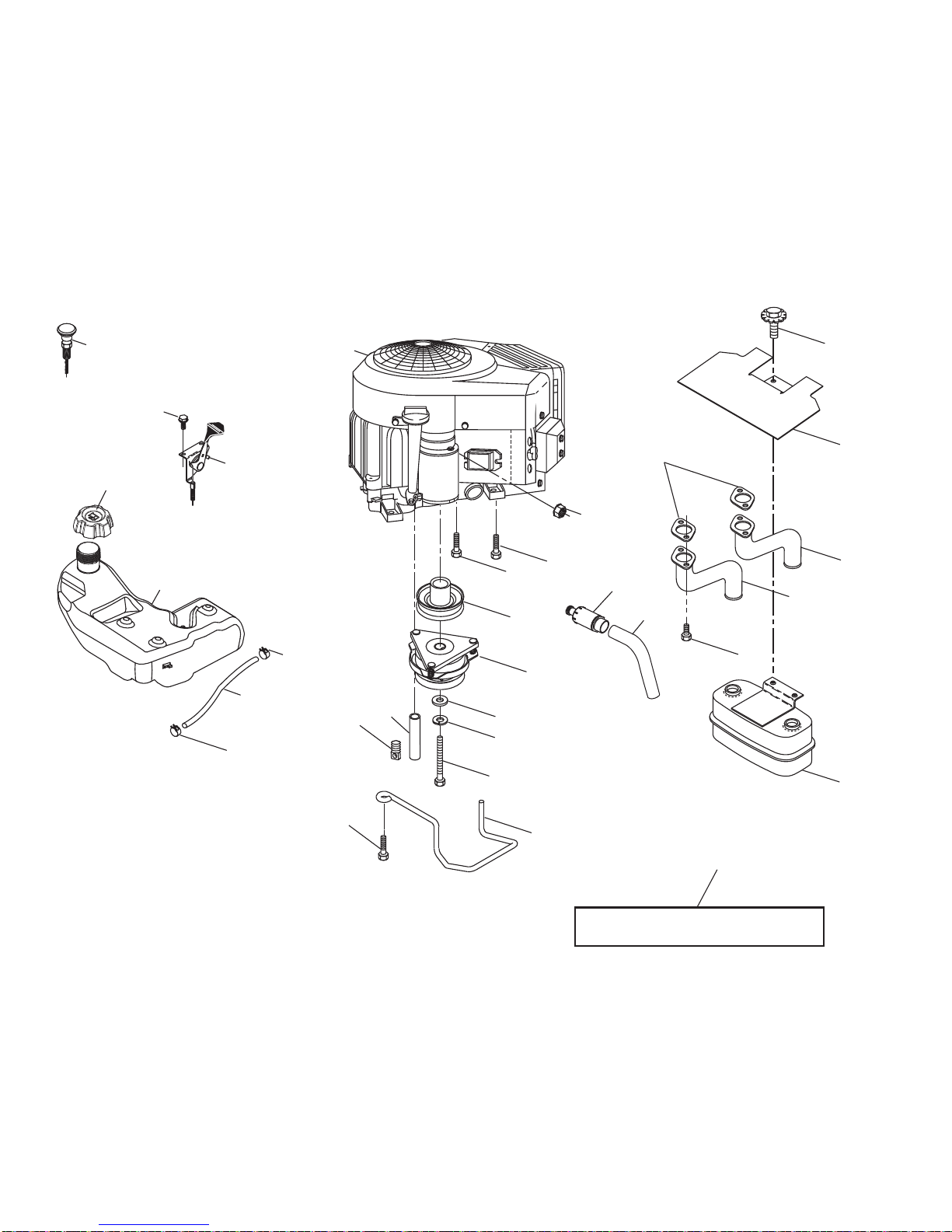

TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40
ENGINE
91
1
84
12
11
41
42
85
29
SPARK ARRESTER KIT
84
45
18
15
37
28
37
22
21
20
62
71
70
79
69
87
2
engine-tex_24-vgt
81
82
9
90
31

13
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40
ENGINE
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 - - - - - - Engine Briggs Model No. 445577
2 532 14 97-23 Muffler
9 532 19 43-20 Keeper Belt Engine
11 532 17 93-35 Clutch Electric
12 532 19 43-43 Pulley Engine
15 532 19 34-99 Tank Fuel
18 532 19 59-51 Cap Asm
20 532 17 83-85 Control Throttle
21 532 19 16-11 Screw 10 x 3/4 Single Lead Hex
22 532 19 15-96 Control Choke
28 532 14 21-58 Fuel Line
29 532 13 71-80 Spark Arrester Kit
31 532 14 50-06 Clip Push-In
37 532 12 34-87 Clamp Hose
41 532 12 61-97 Washer 1-1/2 OD x 15/32 ID x .250
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
62 532 14 66-29 Shield Heat Muffler
69 532 16 53-91 Gasket
70 532 15 99-55 Tube Exhaust LH
71 532 16 05-89 Tube Exhaust RH
79 532 18 39-06 Screw Socket Head 5/16-18 x 1
81 532 14 84-56 Tube Drain Oil Easy
82 532 18 16-54 Plug Drain Oil Easy
84 817 06 06-20 Screw 3/8-16 x 1-1/4
85 532 17 99-53 Bolt Hex 7/16-20 x 3.75 Gr. 5
87 532 19 82-39 Bolt 5/16-18 unc x 1 w/Sems
90 817 00 06-16 Screw 3/8-16 x 1
91 532 18 74-95 Bushing
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive Engi-
neers) code J11940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained and
corrected in accordance with SAE J1995 (Revision 2002-5). Actual gross engine power will be lower and is affected by,
among other things, ambient operating conditions and engine-to-engine variability. Given both the wide array of prod-
ucts on which engines are placed and the variety of environmental issues applicable to operating the equipment, the
gas engine will not develop the rated gross power when used in a given piece of power equipment (actual “on-site” or
net horsepower). This difference is due to a variety of factors including, but not limited to, accessories (air cleaner, ex-
haust, charging, cooling, carburetor, fuel pump, etc.), application limitations, ambient operating conditions (temperature,
humidity, altitude), and engine-to-engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton
may substitute an engine of higher rated power for this Series engine.

14
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40
STEERING ASSEMBLY
6
5
13
13
53 8
9
9
8
8
7
7
62
4
35
19
63
63
60
59
58
70
68
69
67
67 66
15
15
14
14
61
2
6
57
steering-tex_11-husq
57
16
28
13 22
64
21
51
26
1
20
45
KEY PART
NO. NO. DESCRIPTION
1 532 19 46-37 Wheel, Steering
2 532 19 59-68 Axle Asm., Front
4 532 40 30-89 Spindle Asm., LH
5 532 40 30-90 Spindle Asm., RH
6 532 12 49-31 Bearing, Race Thrust Hardened
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 40 82-19 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 41 14-25 Boot Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 19 48-45 Bushing, Strg. Blk
26 532 19 46-03 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4 NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
35 532 19 47-32 Gear, Sector Plate
45 819 18 38-12 Washer 9/16 x 2-3/8 x 12 Ga.
51 873 94 08-00 Nut Hex Jam Toplock 1/2-20 unf
53 532 18 89-67 W
asher Hardened .793 x 1.637 x .060
57 532 19 72-46 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 19 61-97 Bracket Deck Susp. Front

15
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40

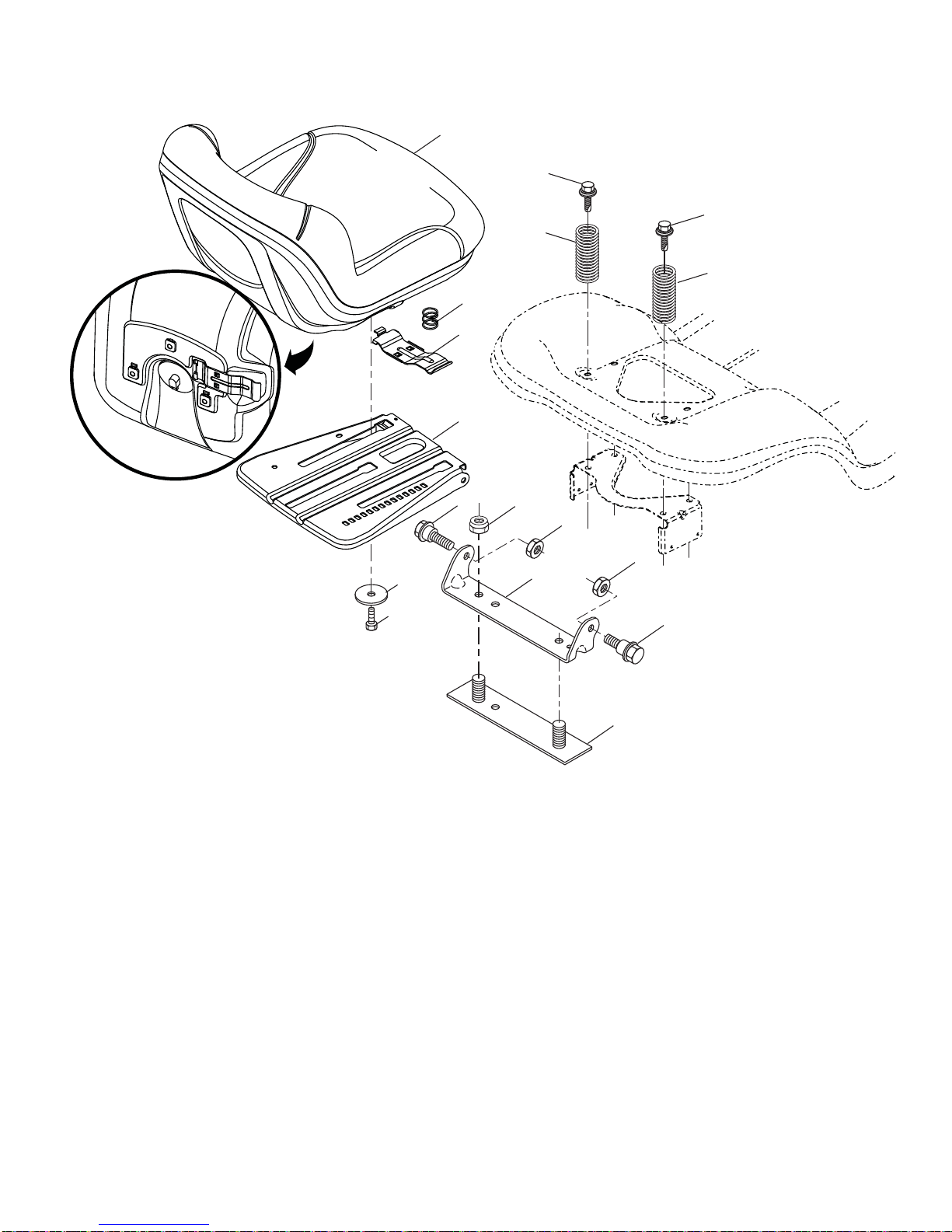

SEAT ASSEMBLY
1 532 40 66-25 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock W/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt 3/8-16 x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
seat-tex_7-vgt
44
43

16
TRACTOR - MODEL NO. LT2223A2 (96041004000), PRODUCT NO. 960 41 00-40

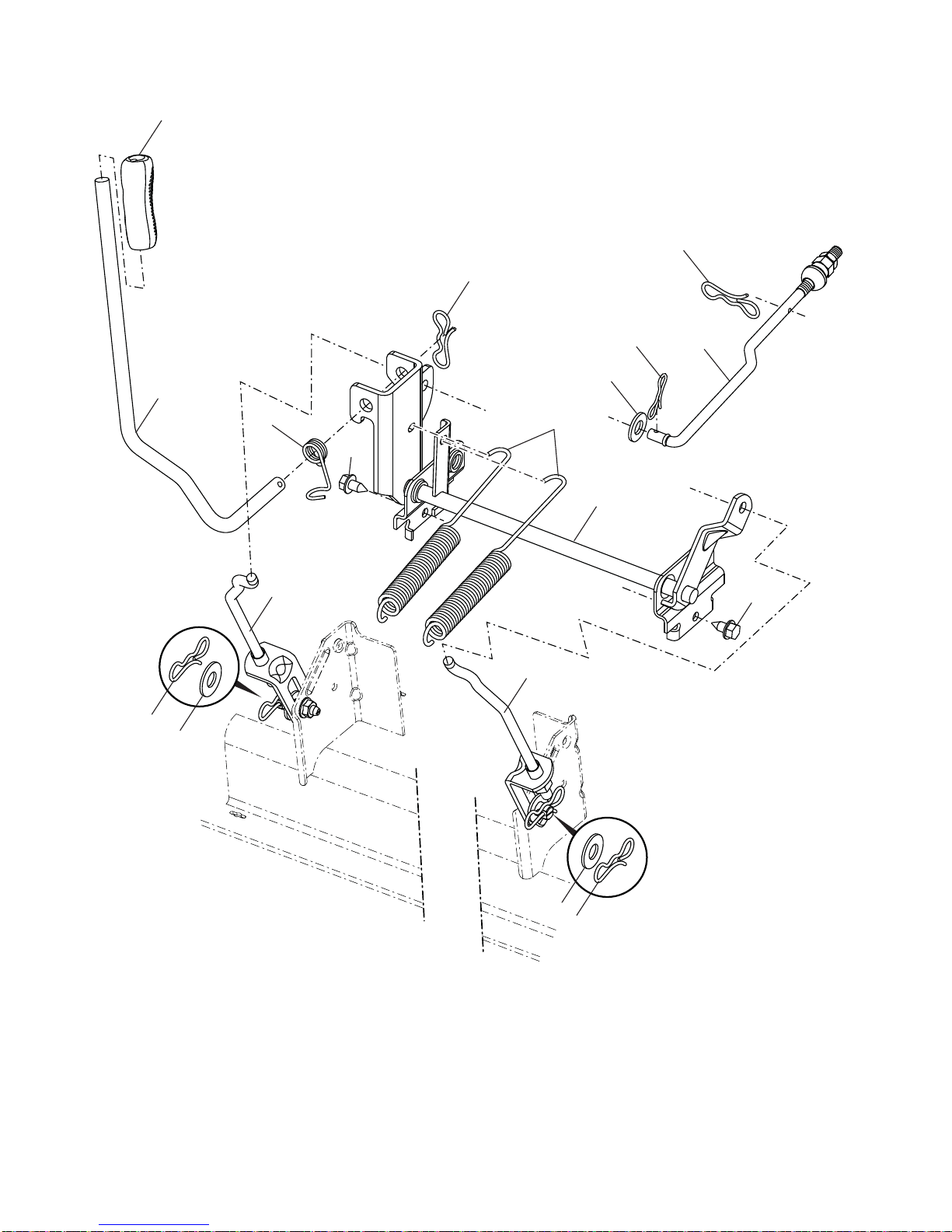

MOWER LIFT
7
3
87
10 88
2
89
90
87
98
97
97
91
lift-tex_3
91
89
87
89
87
2 532 19 52-23 Shaft Asm., Lift
3 532 19 52-30 Lever Asm., Lift
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 19 53-04 Spring Lift Assist
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
91 532 19 79-84 Link Lift Susp Mower Rear
97 817 06 06-12 Screw 3/8-16 x .75 Smgml Tap/R.Z
98 532 19 52-64 Link Lift Susp. Front Mower

17
03.16.10 JA Printed in the U.S.A.
