Tattile GigE TAG-2 User manual

TAG-2 CAMERA
quadri-linear
Reference Manual
© 2005 by TATTILE S.r.l.
ENG

Version__03.00.00 (November 2005)
© 2005 by TATTILE S.r.l.
The Gige® logo is registered mark of the Automated Imaging Association.
All Tattile's systems were created to be alive, smart and open products. Therefore, we give you the chance to
update features and capabilities during the whole life cycle of the products.The Download area of our web site has
been created to allow our Partners to download new releases of Firmware and Software: http://www.tattile.com.
All material in this publication is subject to change without notice and is copyright Tattile S.r.l.

Index
Mechanical Dimensions.....................................................................................................................4
Connectors and Indicators.................................................................................................................5
General Characteristics.....................................................................................................................6
CCD General Characteristics.............................................................................................................7
Interface Connection..........................................................................................................................9
Example of Connection....................................................................................................................12
Instructions for a right installation of TATTILE control equipment...................................................14
Warning!..........................................................................................................................................15
Revisions.........................................................................................................................................16
3

TAG-2 CAMERA
Mechanical Dimensions
Note: To fix use only M4 screws, appling 1,55 Nm force.
4

TAG-2 CAMERA
Connectors and Indicators
Rear View
5

TAG-2 CAMERA
General Characteristics
6
+24V
9 W
Processor:
Flash
SDRAM Micro
IP42
TAG-2 Camera
0V
0°C +50°C
-10°C +65°C
Characteristics
Electric Characteristics
Power Supply
Power Consumption
Sensor Linear CCD sensor
Digital Inputs 2 optoisolated inputs 24Vdc 20mA
Digital Outputs 2 PNP optoisolated outputs 24Vdc 500mA
Ethernet Network GigaEthernet 10 bit
Microprocessor Altera NIOS FPGA Technology
8 Mb Flash Memory
32 Mb
Mechanical Characteristics:
Mechanical Dimensions 113 x 90 x70 mm (LxHxW)
Weight 900 gr (without lens)
Package Body Anodized Aluminium
Protection Degree
Conformity Conform to CE Standards
Standard Supply
Reference Manual
Work Tensions
Supply voltage +24 V. Provide a stable supply +/- 10%.
Ground
Operating Condition
Operating Temperature
Storage Temperature

TAG-2 CAMERA
CCD General Characteristics
CCD Specifications
7
Parameters Value
Total Number of Pixels 3x4134 chroma
1x8292 luma
Number of Effective Pixels 3x4128 chroma
1x8276 luma
Number of Active Pixels 3x4080 chroma
1x8160 luma
Pixel Size 10 µm (H) x 10 µm (V)
chroma 5 µm (H) x 5 µm (V) luma
Pixel Pitch 10 µm chroma
5 µm luma
Inter-Array Spacing G to R R to B 90 µm (9 lines effective)
B to L 122.5 µm (12.25 lines effective)
Chip Size 50.5 mm (H) x 1.1 mm (V)
Saturation Signal 132000 electrons chroma
100000 electrons luma
Quantum Efficiency (B) 62%(B)
Quantum Efficiency (G) 62%(G)
Quantum Efficiency (R) 80%(R)
Quantum Efficiency (L) 85%(L)
Output Sensitivity Chroma -14 µV/electron
Luma -11 µV/electron
Responsivity (B) 17(B) V/µJ/cm2
Responsivity (G) 20(G) V/µJ/cm2
Responsivity (R) 32(R) V/µJ/cm2
Responsivity (L) 27(L) V/µJ/cm2
Total Read Noise 120 electrons
Dark Current Chroma 0.007 pA/pixel
Luma 0.0008 pA/pixel
Dark Current Doubling Temperature 9ºC
Dynamic Range @ 30 MHz Data Rate 60 dB (chroma)
60 dB (luma)
Photoresponse Non-uniformity 5% Peak-Peak
Charge Transfer Efficiency 0.99999/Transfer
Maximum Data Rate 30 Mhz/Channel
Exposure Control
Gain 0:1023
Offset 0:255
Power Supply 24 V
Consumption 5W
>31µs

TAG-2 CAMERA

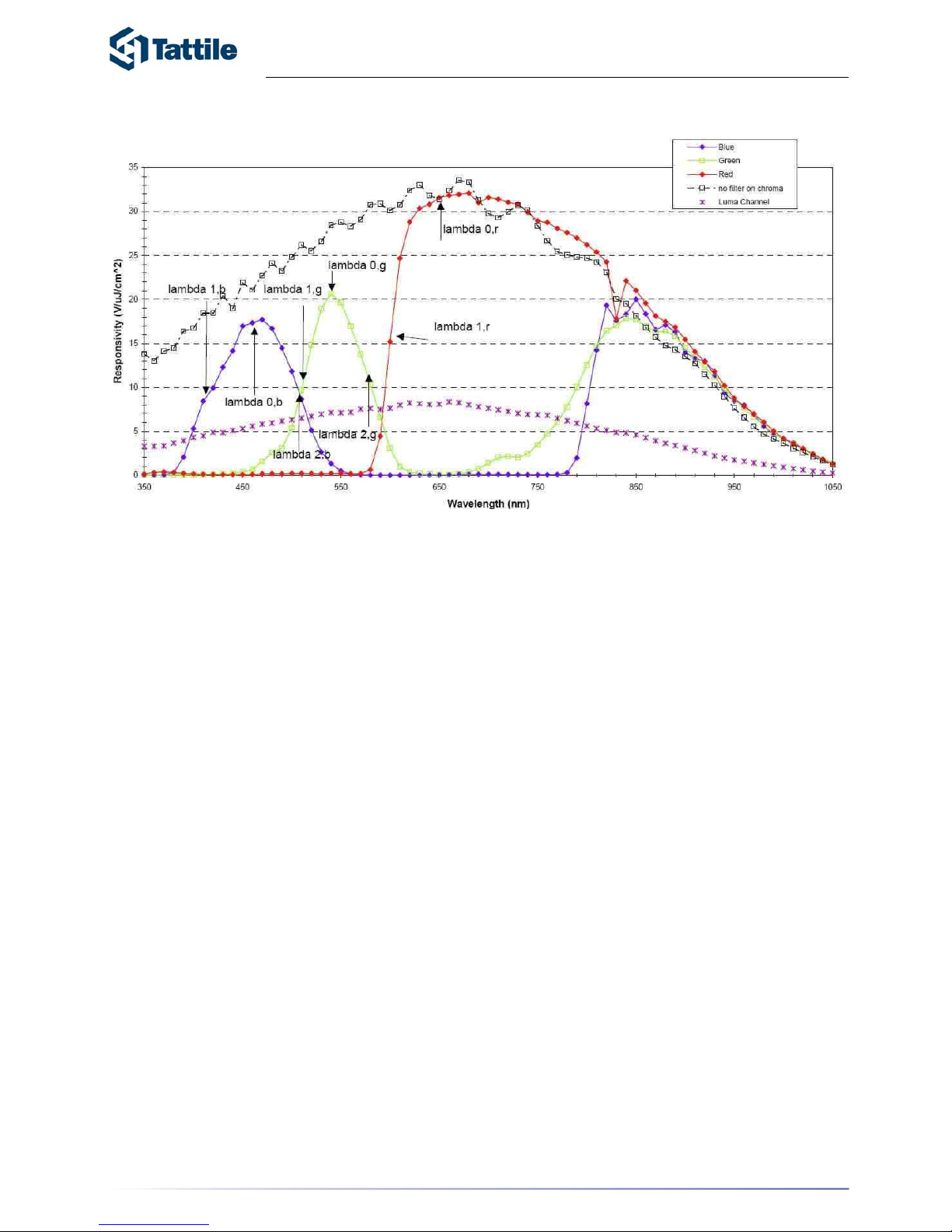

Picture 1 - Sensor Typical Responsivity
8

TAG-2 CAMERA
Interface Connection
Power Interace connector
9

TAG-2 CAMERA
Ethernet Connector
10

TAG-2 CAMERA
Ethernet Connection Cables
11

TAG-2 CAMERA
Example of Connection
Standalone Connection
The TAG-2 CAMERA can be connected directly to a PC using an Ethernet cross-over cable.
The operator uses the PC to configure applications and monitor runtime operation. In this
configuration, the camera is isolated from the factory network.
Note: For connection between TAG-2 CAMERA M0 and PC use a cross-over cable.
Connection using Switches/Routers

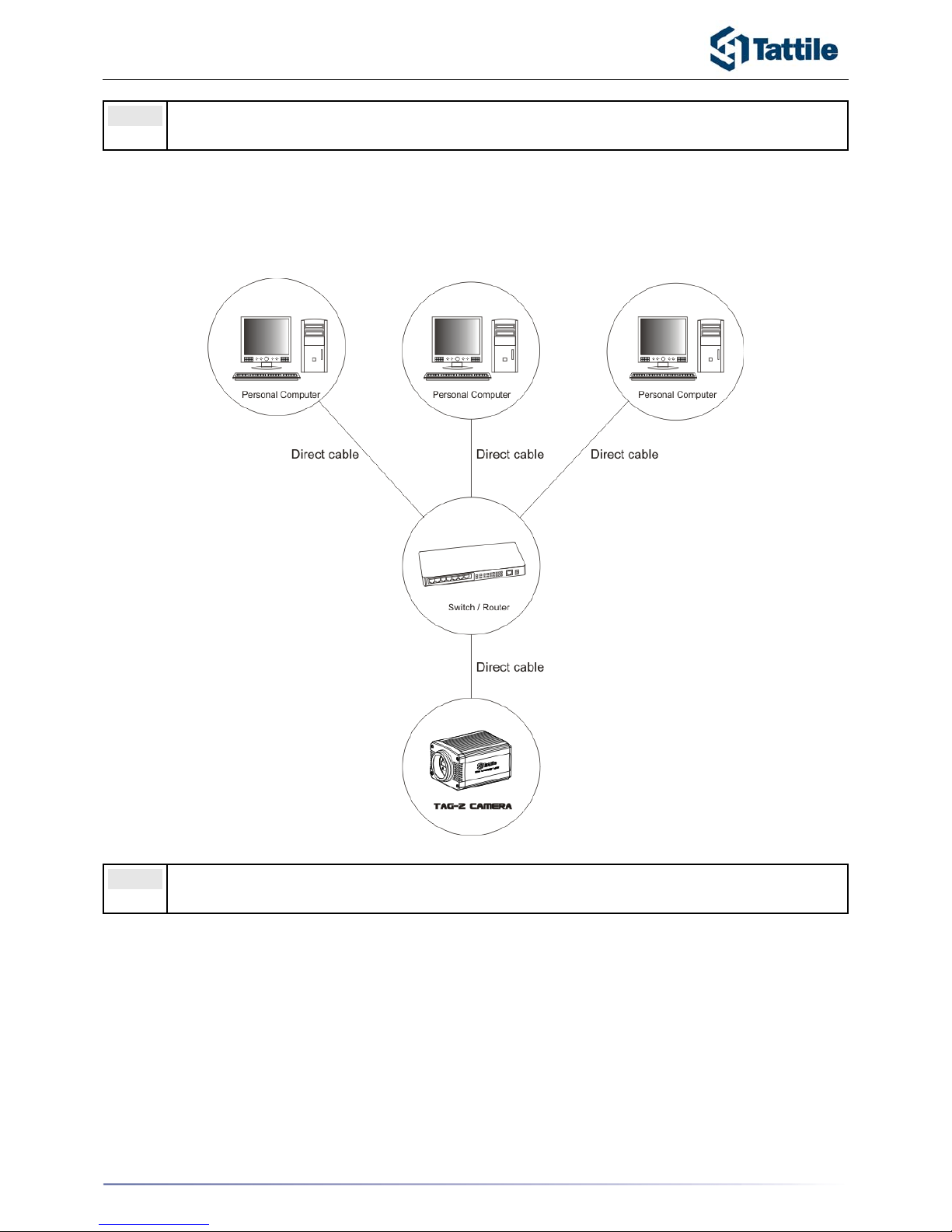

A maximum of 4 TAG-2 CAMERA can be connected to a personal computer, by using a
network router or an ethernet switch.
12

TAG-2 CAMERA
Note: For connection between PC and switch/router and between switch/router and TAG-2
CAMERA use ethernet direct cables.
The TAG-2 CAMERA can be connected to a network factory, by using a network router or an
ethernet switch.
Note: For connection between PC and switch/router and between switch/router and Smart
Reader M0 use ethernet direct cables.
13

TAG-2 CAMERA
Instructions for a right installation of TATTILE control equipment
Good equipment operation is guaranteed only by respecting the instructions cited in this refer-
ence manual.
TATTILE declines all responsibility for anomalous equipment operation, installed with criteria
not respecting these instructions.
•TAG-2 CAMERA cable courses must be kept separate from power cables.
•Pay attention to the various connections, especially in respect to the correct
polarity of the power-supply cables.
•Supply the TAG-2 CAMERA with a dedicated power-supply.
•The power supply for inputs and outputs must never be taken from the same
power source of TAG-2 CAMERA. The mass hasn't to be linked.
•The power supply cable must be screened and not longer than necessary.
14

TAG-2 CAMERA
Warning!
The warranty covering TATTILE equipment is invalidated when :
1. The equipment has been opened or tampered with.
2. Faults due to incorrect connection of power or input/output circuits.
3. Faults due to overload or non-compliance with equipment's rated specifications.
4. Application act in conditions that do not comply with those specified for a correct
installation.
Note: These conditions concern all equipment supplied with the system.
15

TAG-2 CAMERA
Revisions
The Revision Index is reported below. The various revisions can contain additional
information or corrections of printing errors.
Rev. Date Page Description Prepared Checked Approved
03.00.00 December
2005 All First release Nicola G. G.Gualeni Nicola F.
16
