Tatung TAW-A70FD User manual

Service Manual
Auto Washer
Model : TAW-A70FD
TATUNG CO. Update date : Aug, 2002
TATUNG
✔ Caution
: In this Manual, some parts can be changed for improving, their
performance without notice in the parts list. So, if you need the
latest parts information,please refer to PPL(Parts Price List) in
Service Information Center (http://svc.dwe.co.kr).

AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO
WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO
WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO
WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO
WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER AUTO WASHER
WASHING MACHINE
Contents
1. SPECIFICATIONS................................................................................................................... 2
2. STRUCTURE OF THE WASHING MACHINE........................................................................ 3
3. FUNCTIONS OF THE CONTROL PANEL............................................................................. 4
4. DIRECTIONS FOR INSTALLATION AND USE
LOCATION OF WASHER................................................................................................................ 5
DRAIN SYSTEM.............................................................................................................................. 5
HOW TO CONNECT THE INLET HOSE........................................................................................ 6
HOW TO CLEAN THE FILTER....................................................................................................... 7
5. FEATURE AND TECHNICAL EXPLANATION
FEATURE OF THE WASHING MACHINE...................................................................................... 8
WATER CURRENT TO ADJUST THE UNBALANCED LOAD....................................................... 8
AUTOMATIC WATER SUPPLY SYSTEM ...................................................................................... 8
AUTOMATIC DRAINING TIME ADJUSTMENT.............................................................................. 9
SOFTENER DISPENSER............................................................................................................. 10
AUTOMATIC UNBALANCE ADJUSTMENT................................................................................. 11
CIRCULATING-WATER................................................................................................................. 11
LINT FILTER.................................................................................................................................. 12
RESIDUAL TIME DISPLAY...........................................................................................................12
DRAIN MOTOR............................................................................................................................. 12
GEAR MECHANISM ASS’Y ......................................................................................................... 13
PRINCIPLE OF BUBBLE GENERATOR...................................................................................... 13
FUNCTIONAL PRINCIPLE OF BUBBLE WASHING MACHINE................................................. 14
6. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
GEAR MECHANISM ASS’Y REPLACEMENT............................................................................. 16
MOTOR SYNCHRONOUS AND VALVE REPLACEMENT.......................................................... 17
BRAKE ADJUSTMENT................................................................................................................. 17
7. THE REPAIR METHOD OF GEAR MECHANISM FOR CLUTCH SPRING PROBLEM
THE STRUCTURE OF GEAR MECHANISM............................................................................... 18
HOW TO CHECK THE CLUTCH SPRING PROBLEM................................................................ 19
THE PROCESS OF DISASSEMBLE............................................................................................ 20
THE PROCESS OF ASSEMBLE.................................................................................................. 22
8. TROUBLE SHOOTING GUIDE
CONCERNING WATER SUPPLY..................................................................................................24
CONCERNING WASHING ........................................................................................................... 25
CONCERNING DRAINING........................................................................................................... 26
CONCERNING SPINNING........................................................................................................... 27
CONCERNING OPERATION........................................................................................................ 28
9. PRESENTATION OF THE P.C.B ASS’Y .............................................................................. 29
APPENDIX
WIRING DIAGRAM....................................................................................................................... 31
PARTS DIAGRAM & PARTS LIST................................................................................................ 32
CIRCUIT DIAGRAM...................................................................................................................... 39

1. SPECIFICATIONS
2
SPECIFICATIONS
NO. ITEM
1POWER SOURCE 110V, 60Hz
2
POWER 340W
CONSUMPTION
220W
3
MACHINE 28.5kg
WEIGHT 32kg
4DIMENSION (WXHXD) 525X948X535
5 MATERIAL OF INTERNAL TUB
STAINLESS STEEL
6
WATER LEVEL SELECTOR HIGH(55l), MID(45l), LOW(31l)
7
OPERATING WATER PRESSURE 0.3kgf/cm2~8kgf/cm2 (2.94 N/cm2~78.4N/cm2)
8
MAXIMUM MASS OF TEXTILE 7.0kg
REVOLUTION 130~150 r.p.m
9760~785 r.p.m
PER MINUTE 60 r.p.m
10
WATER CONSUMPTION APPROX. 130l/CYCLE
11
WATER LEVEL CONTROL ELECTRONICAL SENSOR
12 ANTI NOISE PLATE O
13
GEAR MECHANISM ASS’Y SPUR GEAR
14 LINT FILTER O
15 SOFTENER INLET O
16 ALARM SIGNAL O
17 AUTO. WATER SUPPLY O
18
FUNCTION FOR BUBBLE O
19
AUTO RE-FEED WATER O
20 AUTO POWER OFF O
TAW-A70FD
WASH
SPIN
NET
GROSS
WASH
SPIN
SUIT

2. STRUCTURE OF THE WASHING MACHINE
3
STRUCTURE
•GROUND WIRE
In case of 3-wire
power cord, ground
wire will not be
provided
•POWER CORD
•DRAIN HOSE
•LINT FILTER
•COLD WATER TAP
After using the washer,
close the water tap
•DETERGENT CASE
•ADJUSTABLE LEG
•SOFTENER INLET
•BLEACH INLET
•CONTROL PANEL
•POWER SWITCH
•PULSATOR
Accessories
The parts and features of your washer are illustrated on this page.
Become familiar with all parts and features before using your washer.
NOTE
• The drawing in this book may vary from your washer model. They are designed to show the different fea-
tures of all models covered by this book, Your model may not include all features.
• Page references are included next to same features.
Refer to those pages for more information about the features.
UNDER COVER(OPTION) DRAIN HOSE INLET HOSE(OPTION)
UP
NON PUMP MODEL

3. FUNCTIONS OF THE CONTROL PANEL
4
CONTROL PANEL
• Press this switch to turn the power on or off.
• It can be used to adjust amount of water according to the size of the load to be washed.
• As the button is pressed, water level is selected by MID →HIGH →LOW
• It can be used to pre-engage time for wash.
• It is the button for the partial process or the combination of each process (wash, rinse,
spin)
• If you want to change wash time, rinse times, spin time, you must press this button after
selecting each process by the process button. Also, this button can be used to spin only.
• It can be used to select the full-automatic program.
• As the button is pressed, program will be selected by following order :
FUZZY →FUZZY+SOAK →HEAVY →HEAVY+SOAK →SPEEDY →SUIT(WOOL)
• Operation and temporary stop is repeated as it is pressed.
• When you want to change program in operating;
press the “START/HOLD” button →Select the program that you want to change →press
the “START/HOLD” button again.
Control panel has micom sensor.
As the buttons are pressed, the lamps indicating the selection of your desired washing program will light up.
RES.
CONTROL
PROGRAM

4. DIRECTIONS FOR INSTALLATION AND USE
5
DIRECTIONS
The opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.
""
Location Of Washer
Check location where washer will be installed. Make sure you have everything necessary for correct installation.
Proper installation is your responsibility.
• Do not place or store your washer below 0˚C(32˚F) to avoid any damage from freezing.
• Install the washer on the horizontal sold foor.
NOTES
If the washer is installed on an unsuitable floor, it could make considerable
noise, vibrate and cause a malfunction.
If washer is not level, adjust the front leg(A) up or down for horizontal set-
ting.
• Earthed electrical outlet(B) is required with 20cm of bottom back of
washer cabinet.
• Hot and cold water faucets (C) must be within 1M of the upper back of
the washer cabinet and provide water pressure 0.3kgf/cm2-
8kgf/cm2(2.94N/cm2-78.4N/cm2).
""
Drain System
Never forget to install drain hose before operating your washer.
The packing box is opened, there are a drain hose.
• Conect the drain hose to the drain outlet at the back side of the washer.
1In case that it goes over a door sill.
Don’t let the height of the drain
hose exceed 20cm from the bottom
of washer.
2In case of extending the drain hose.
Don’t let the total length exceed 3m. 3Be careful that the end of the drain hose is not immersed in water.
Non-Pump Model
C
UP DOWN
B
A
Drain hose
20Cm
3m

6
CONNECTION
FOR ORDINARY TAP
6Connect the inlet hose adapter
of the hose to the water inlet of
the washer by turning it clock-
wise to be fixed tightly.
• Please check the rubber packing
inside the inlet hose adapter of
the hose.
1Pull down the collar
of the inlet hose to
separate it from the
water tap adapter. 2Loosen the four
screws at the water
tap adapter, but don’t
loosen the screws until
they are separated from
the water tap adapter.
4Remove the tape,
and screw connector
B into connect A tightly. 5Connect the inlet
hose to the water tap
adapter by pulling down
the collar of the hose end.
3Connect the water tap
adapter to the water tap and
tighten the four screws evenly
while pushing up the adapter
so that the rubber packing
can stick to the water tap
tightly.
""
How to Connect the Inlet Hose
Be careful not to mistake in supplying between the hot(maximum : 50˚C) and cold water.
In using only one water tap or in case of attached one water inlet valve, connect the inlet hose to the cold water inlet
valve.
Do not over tighten : this could cause damage to couplings.
FOR SCREW-SHAPED TAP 3Insert the inlet hose adapter
into the water inlet of washer
and turn it to be fixed.
• Assert the packing in the inlet
1Connect the inlet
hose to the water tap
by screwing the con-
nector D tightly.
Inlet Hose
Connector D Rubber
Packing
Connector C
TAPE
Connector B
Connector A
"collar
2Connect the connec-
tor-inlet supplied if
necessary.
Connector
Inlet
Rubber
Packing
Connector D
Connector C
Hose

7
CONVENIENCE
""
How To Clean The Filter
4
Remove the dirt
from the inlet filter
with a brush.
1
Pull the
power plug
out before
cleaning it.
2
Turn off the
water supply
to the washer
and separate
the inlet hose.
3
Pull the
inlet filter out.
CLEANING THE LINT FILTER
CLEANING THE WATER INLET FILTER
• Clean the filter when water leaks from the water inlet.
3Return the filter as it was, and
insert the filter frame into the
slot.
1Pull the Filter frame
upward. 2Turn the lint filter inside out, wash the
lint off with water.
Filter Frame
Lint Filter

5. FEATURE AND TECHNICAL EXPLANATION
8
EXPLANATION
WASH DRAIN SPIN FILL RINSE 1 DRAIN SPIN FILL RINSE 2 DRAIN •••
MOTOR C.W
SINGAL C.C.W
TIME(SEC.) 0.4 0.4 0.4 0.4 0.4 0.4 •••••••
40 SEC. (About 25 Times)
* When the water level is “HIGH”
Feature of the Washing Machine
1The first air bubble washing system in the world.
2Quiet washing through the innovational low-noise design.
3The wash effectiveness is much more enhanced because of the air bubble washing system.
4The laundry detergent dissolves well in water because of the air bubble washing system.
5The adoption of the water currents to adjust the unbalanced load.
6One-touch operation system.
Water Current to Adjust the Unbalanced Load
It is a function to prevent eccentricity of the clothes after wash by rotating pulsator C.W and C.C.W for 35
seconds.(But, the SUIT course have no operation of the water currents to adjust the unbalnced load.)
EFFECT
It reduces vibration and noise effectively while spinning.
WATER FLOW
Automatic Water Supply System
The water level would be lowered because the clothes absorbs water at the beginning of washing. Therefore, after 60
seconds, the operation is interrupted to check the water level, and then the water is supplied again until the selected
water level is reached.

9
EXPLANATION
FUNCTIONAL PRINCIPLE
1 The micom can remember the time from the begining of drain to reset point when the pressure switch reaches to
“OFF” point
2 In case of continuous draining, residual drain time is determined by micom.
Draining time as a whole = D + 40 Residual drain time.
The time remembered by micom.
Draining Good draining The washer begins spin process after drainage.
condition Bad draining Draininig time is prolonged.
No draining Program is stopped and gives the alarm.
Drain Time Movement of the Program
Less than Continue draining
10 minutes
More than Program stops and gives the alarm with blinked on display lamp.
10 minutes
Automatic Drainning time Adjustment
This system adjusts the draining time automatically according to the draining condition.

10
EXPLANATION
This is the device to dispense the softener automatically by centrifugal force.
This is installed inside the auto-balancer.
FUNCTIONAL PRINCIPLE
1Softener stays in room (A) when poured into softener inlet.
2Softener moves from (A) to (B) by centrifugal force during intermittent spin process.
3Softener flows from (B) to (C) during rinse process next to intermittent spin.
4Softener moves from (C) to (D) by centrigfugal force during second intermittent spin.
After spin process is finished, the softener is added into the tub through softener outlet.
FLOW OF THE SOFTENER
FLOW OF THE SOFTENER INSIDE OF THE BALANCER
HOW TO CHECK MOVEMENT
Pour a reasonable amount of “MILK” into softener dis-
penser and operate the washer with no load. In final
rinse cycle, make sure that the milk is added into the
tub through softener outlet.
A
BC
D
Wash Intermittent Hold Intermittent Rinse Spin
Spin Spin
Normal Centrifugal Flow in Centrifugal Flow in
force force
Program (A) (B) (C) (D)
ABC D
Room inside
the balancer
Centrifugal force
Flowing by weight
Balancer Softener
outlet
Softener inlet
Softener Dispenser
Softener moves into the next room when r.p.m of the tub is more than 100 r.p.m.
NOTES

11
EXPLANATION
Automatic Unbalance Adjustment
Circulating-Water
The alarm finished when you close the lid after opening it. Check the unbalance of the wash load and the
installation condition.
NOTES
Filter Tub
Outer tub
Water
channel
Pulsator
This system is to prevent abnormal vibration during intermittent spin and spin process.
FUNCTIONAL PRINCIPLE
1When the lid is closed, the safety switch contact is “ON” position.
2In case that wash loads get uneven during spin, the outer tub hits the safety switch due to the serious vibration,
and the spin process is interrupted.
3In case that P.C.B. ASS’Y gets “OFF” signal from the safety switch, spin process are stopped and rinse process is
started automatically by P.C.B. ASS’Y.
4If the safety switch is operated due to the unbalance of the tub, the program is stopped and the alarm is given.

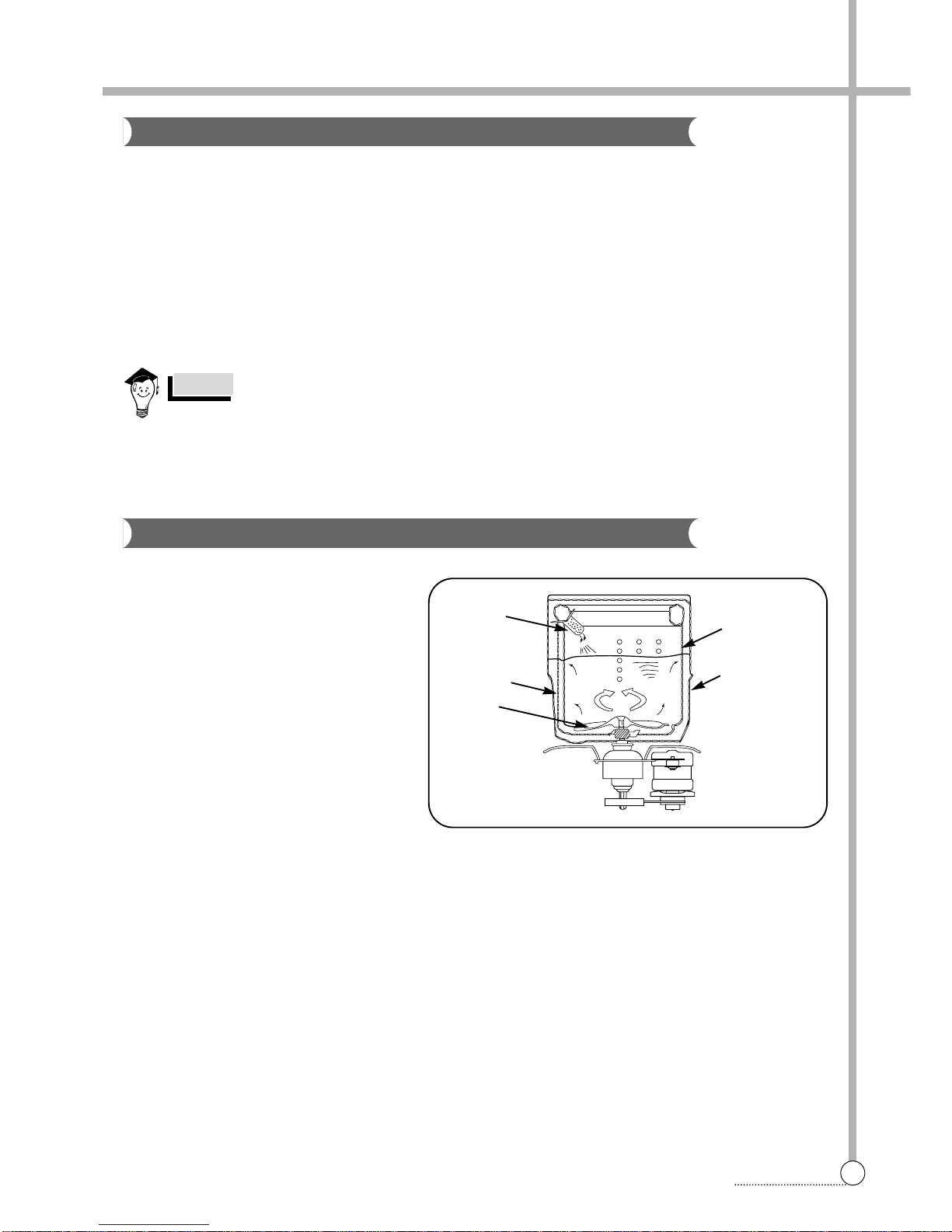

CIRCULATING-WATER
The washing and rinsing effects have been
improved by adopting the water system in
which water in the tub is circulated in a
designed pattern.
When the pulsator rotates during the washing
or rinsing process, the water below the pul-
sator vanes creates a water currents as shown
in figure.
The water is then discharged from the upper
part of the tub through the water channel.
About 40 L/min. water is circulated at the ‘high’
water level, standard wash load and standard
water currents.

12
EXPLANATION
Much lint may be obtained according to the kind of
clothes to be washed and some of the lint may also
sticks to the clothes.
To minimize this possibility a lint filter is provided on
the upper part of the tub to filter the wash water as it
is discharged from the water channel. It is good to
use the lint filter during washing.
HOW TO REPLACE LINT FILTER
1Pull the filter frame upward.
2Turn the lint filter inside out, and wash the lint off with water.
3Return the filter as it was, and fix the filter frame to the slot.
When the START/HOLD button is pressed, the residual time (min.) is displayed on the time indicator, and it will be
counted down according to process.
When operation is finished, the TIME INDICATOR will light up .
STRUCTURE
FUNCTIONAL PRINCIPLE
1When the DRAIN MOTOR connected to the power source, the DRAIN MOTOR rotates with 900 r.p.m and
revolves the pulley by gear assembly for reducing.
2When the pulley is rotated, the pulley winds the wire to open the drain valve.
3Therefore, rotation of pulley changed to the linear moving of wire.
4The wire pulls the brake lever of Gear Mechanism Ass’y within 5 seconds.
5After the wire pulled, gear assembly is separated from motor and condition of pulling is held by operation of the
lever.
6When the power is turned off, the drain valve is closed because the wire returns to original position.
Bleach Inlet
Filter
Pulsator
Pull
Loosen
Pulley
Lever
Inductive ring
Magnet
Coil of motor
Magnet of motor
Lint Filter
Residual Time Display
Drain Motor
Bleach
Inlet
Filter
Pulsator

13
EXPLANATION
The proper water currents is made by the rotation of pulsator at a low speed to prevent the damage to the small sized
clothes.
STRUCTURE
Pulsator shaft
One way clutch
bearing
Brake lever
Spin shaft
Gear unit as
Clutch spring
Clutch boss
Gear pulley
Planetary gear Sun gear
Internal gear
Pulsator
1 revolution
5 revolutions
Gear pulley
V-belt
Gear unit as
Motor
Motor
1490 r.p.m
(50Hz)
Gear Unit as
Directly Tub
720 r.p.m
Pulsator
138 r.p.m
Gear Pulley
720 r.p.m
Bobbin & coil
Magnet Armature Bellows
Air out hole
Protector A
Protector B
Air in hole
Air
Air
Trans core
Gear Mechanism Ass’y
Principle of Bubble Generator

14
EXPLANATION
PRINCIPLE OF INTAKE & OUTLET OF THE AIR
INTAKE : ARMATURE moves up, and BELLOWS inhales the air. At the same time, protector B is open and A is
close.
OUTLET : ARMATURE moves down, and BELLOWS exhausts the air. At the same time, protector B is close and A is
opend.
FUNCTIONAL PRINCIPLE OF TRANS & MAGNET
#The phase of A.C electric power changes to 60 cycle/second.
#The magnetic pole of trans core is changed by the change of the phase of A.C electric power.
#The core repeats push and pull (3600 times/min.) of the armature magnet.
ACROSS SECTION
FUNCTIONAL PRINCIPLE
Bubble generator supplies the air from the bottom of outer tub to the inner space of pulsator, the air is dispersed by
the rotation of pulsator. Air-bubble is created by the centrifugal force, and rises up.

N
S
S
N
NS NS
MAGNET
TRANS CORE
LEAF SPRING
A.C A.C
Air bubble
Tub
Outer tub
Pulsator
Functional Principle of Bubble Washing Machine

6. DIRECTIONS FOR DISASSEMBLY AND ADJUSTMENT
15
DIRECTIONS
#Raise the top plate on the outer cabinet.
#Remove outer tub cover from the tub ass’y.
#Remove the spinner shaft flange nut by using ‘T’
type box wrench.
#Loosen the pulsator mounting screw and remove
the pulsator.
#Remove the tub ass’y.
Gear Mechanism Ass’y Replacement
BEFORE ATTEMPTING TO SERVICE OR ADJUST ANY PART OF THE WASHING MACHINE, DISCON-
NECT THE POWER CORD FROM THE ELECTRIC OUTLET.
Warning
To assemble the gear mechanism ass’y, reverse
the disassembly procedure.
NOTES

16
DIRECTIONS
#Lay the front of the washer on the floor.
# Remove four bolts mounting the plate-gear protect by
using a box wrench and remove plate-gear protect.
#Remove the V-belt.
#Remove four bolts mounting the gear mechanism
ass’y by using a box wrench.
#Pull out the gear mechanism assy.

17
DIRECTIONS
#Loosen the adjustment bolt and turn the adjust-
ment bolt until the end of the bolt touches to the
brake lever.
#Tighten the lock nut and apply a small amount of
paint-lock.
Adjustment bolt
Clutch lever
Gear mechanism ass'y
Brake lever
NOTES:
1. The brake adjustment has been made at the
factory, so that it is not re-adjust.
However, in case of insufficient brake operation,
problem the upper procedure.
2. Overtightening of the adjustment bolt will cause
poor brake performance.
3. Undertightening of the adjustment bolt will
cause continuous braking and thereby.
cause the problems of the motor during the
spingcycle.
Brake Adjustment
#Lay the front of the floor.
#Loosen two special screw and motor synchronous. #Take out the wire of motor synchonous from the bracket.
#Separate the motor sycnchronous from the base.
Motor Synchronous And Valve Replacement(Non Pump Model)
#Turn the valve by using screw driver as shown in
picture. #Remove the valve lid from the valve drain assy.

7. THE REPAIR METHOD OF GEAR MECHANISM FOR CLUTCH SPRING PROBLEM
18
THE REPAIR
#TOOL FOR REPLACING THE CLUTCH BOSS ASSEMBLE#
Tool name Specification Q’ty
Fixing jig 1
Ratchet handle 1
Socket and extension bar socket : 10mm, 17mm per each
Some cotton yarn some
The Structure Of Gear Mechanism
Bearing
Clutch Boss
Clutch spring
Spring Washer
Pulley Shaft Fastening Nut
Pulley
Coupling
Clutch Tip
Clutch Lever
Drum plate
Coupling
Pulley Shaft
Clutch Boss Ass’y
Pulley
Spring Washer
Fastening Nut

19
THE REPAIR
NO. PARTS NAME SPECIFICATION CODE Q’TY
1SPRING CLUTCH SWP-A 1.5X1.2 4505E37073 1
2CLUTCH BOSS PP 3619301300 1
3CLLITCH GREASE
HIMONAX WS 443 2291131420 3g
PACKING PACKING THE CLUTCH BOSS ASS’Y 1
METHOD BY USING VINYL PACK
1) THE LAUNDARY IS IN THE SPIN TUB UNEVENLY WHEN JUST STARTING SPIN PROCESS.
2) THEREFORE, IT CAUSE THE SERIOUS NOISE AND VIBRATION WHEN WASHING AND SPINNING
PROCESS OR SUPPLING WATER IRREGULARY WHEN SPINNING PROCESS
AND CAUSE SHORT OF SPIN PERFORMANCE.
IN THIS CASE, YOU MUST EMPTY THE SPIN TUB FIRST.
1) TO CHECK THE REVOLUTION OF SPIN TUB. IF THE SPIN TUB DOES NOT REVOLVE AND ONLY
THE PULSATOR IS TURNING, THAT IS CLUTCH SPRING DEFECT.
2) TO CHECK THE SPIN SPEED(RPM) BETWEEN SPIN TUB AND PULSATOR.
IF YOU FIND THE DIFFERENT SPIN SPEED BETWEEN SPIN TUB AND PUSATOR, THIS IS ALSO
CLUTCH SPRING DEFECT.
IN THIS CASE, WE ARE GOING TO SUPPLY THE CLUTCH BOSS ASSEMBLY INSTEAD OF GEAR
MECHANISM ASSEMBLEY. PLEASE REFER TO FOLLOWING FIG.
PROBLEM
CHECKING METHOD
THE CLUTCH BOSS ASSEMBLY
CLUTCH BOSS ASS’Y PART CORD : 3610028000
How To Check The Clutch Spring Problem
