TAWI ViperHoist Series User manual

User manual for TAWI ViperHoist

Assurance MD 2006/42/EC Annex IIA
EC Declaration of Conformity
As defined in Machinery Directive 2006/42/EC Annex IIA
Manufacturer: TAWI AB
Box 10205, 434 23 Kungsbacka, Sweden
Authorized Representative: Name;……………………………………………………………………………………
Company;………………………………………………………………………………
Address;…………………………………………………………………………………
Machine Description:
Product Group; ViperHoist
Product Type; ………………………………………………………………………………………………
Serial Number; ………………………………………………………………………………………………
It is hereby confirmed that the machine mentioned is in compliance with the Machinery Directive
2006/42/EC and also corresponding to:
•Directive 2006/95/ECLow Voltage Directive
•Directive 2004/108/ECEMC Directive
•Directive ____ /___ /__ Additional directives, ATEX , Pressure Vessels
The following harmonizing standards also apply;
2006/42/EC
2006/95/EC
2004/108/EC
SS-EN ISO 12100:2010
SS-EN 60204-32
Place; KUNGSBACKA, SWEDEN Date; ……………………………………………………………
Signature; Signature;
Thomas Bräutigam, CEO TAWI Holding Jonas Lindholm,Responsible for the technical dossier

Contents
1 General description 4
2 Installation 7
3 User’s guide 8
4 Safety Instructions 9
5 Service record 10
6 Change wire 11
7 Dimensions, general overview 12
8 ViperHoist60/120 13
9 Exploded view and parts list, top unit ViperHoist60/120 14
10 Exploded view and parts list, operating handle 17
11 Electric schedule 18
12 ViperHoist handling analysis 19
13 Check list 21
14 ViperHoist Special project, specikation 22

4
• GENERAL DESCRIPTION
1 General description
1. General description
Congratulations on your choice of TAWI lifting equipment! The following pages introduces you to
your new TAWI ViperHoist. Read this manual carefully before operating.
Guarantee
Time of guarantee is 1 year from date of delivery. This guarantee covers the replacement or repair
of defect parts of the hoist. The warranty is valid only if original spare parts have been used and
all instructions of this manual have been followed.

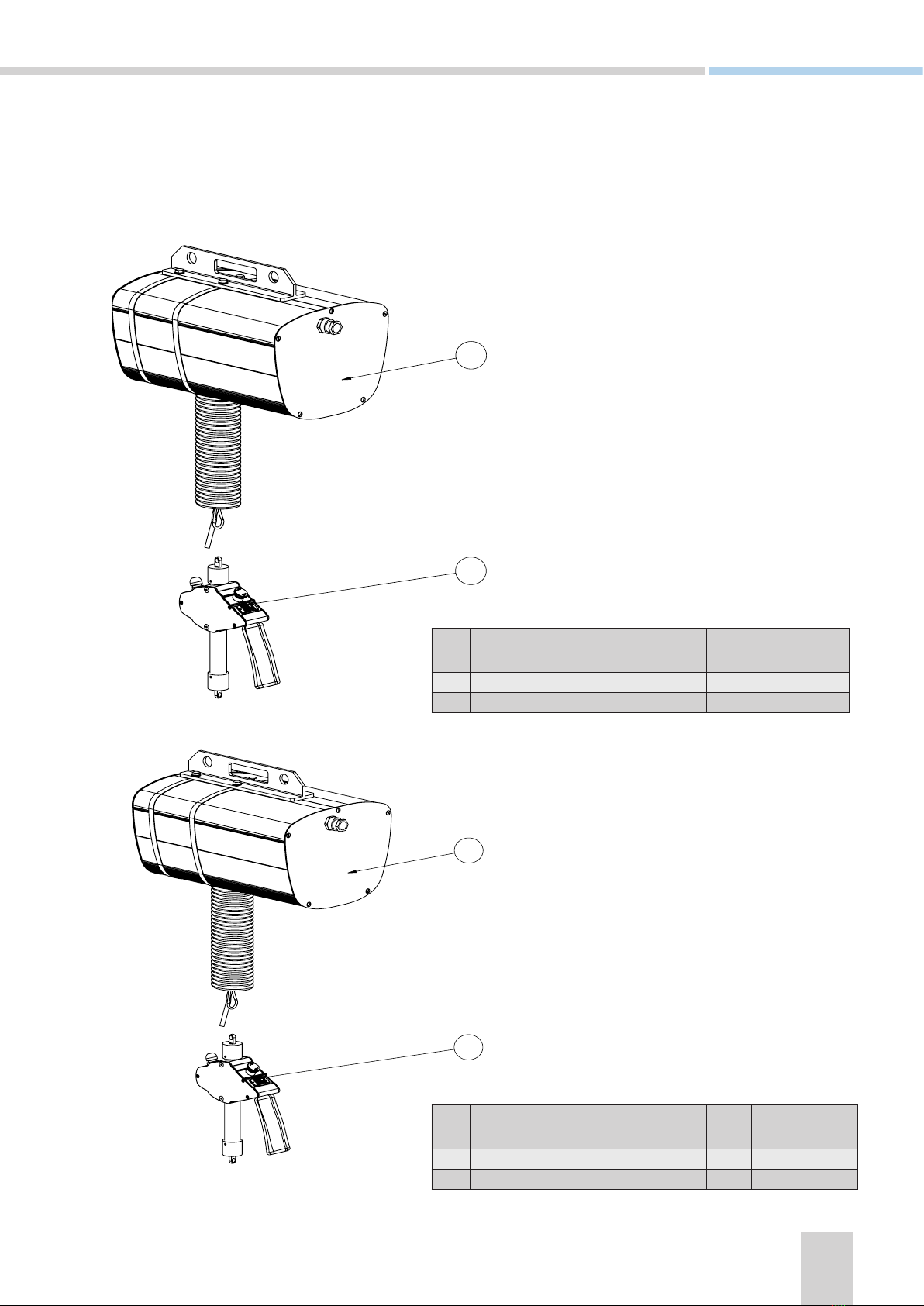

1
2
3
4
6
7
8
9
10
5

GENERAL DESCRIPTION •
5
1. Suspension. The hoist is designed to be suspended in two track trolleys. Use for ergonomic
handling when lifting the hoist.
2. Top unit.
3. Power supply 230V 50Hz/60Hz. The hoist can be connected to all electric supply networks
with current as listed above. The power supply must have a 10A fuse.
4. Maneuver cable. The maneuver cable is a screened multi conductor cable and may not be
replaced with anything but original parts.
5. Lifting wire. May only be replaced with original spare parts.
6. Wire attachment. Swiveling attachment. Blocking the swivel will cause serious damage to the
wire.
7. Emergency stop. Locked by pushing, released by turning the knob.
8. Operation thumb wheel. Controls lifting speed and direction. Move left to go down. Move right
to go up.
9. Handle
10. Hook attachment. Swiveling attachment for unlimited rotation of hook.
Specication:
Lifting capacity 60 kg 120 kg
Power supply 230V +/- 10% 230V +/- 10%
Frequency 47-63 Hz 47-63 Hz
Lifting height 2000 mm 2000 mm
Lifting speed 0.75 m/s 0.35 m/s
Dead weight 25 kg 25 kg
Speed control Variable Variable

6
• GENERAL DESCRIPTION
WARNING! Read the instructions manual carefully before
using the hoist.
Operating handle. The maximum lifting capacity of the
two hoists. Please view which maximum lifting capacity
applies to your hoist.
The controls for lifting up and down consist of one ip
button that can be turned sideways. Turn right to lift up
and turn left to lower the load.
View product type and serial number on your hoist.
Emergency button.
Warnings and labels

INSTALLATION•
7
2 Installation
1. Check that the delivery corresponds with the delivery note. The hoist is delivered fully
assembled.
2. Make sure that the suspension device is approved for minimum 1,5 x maximum lifting capacity
of the hoist. The suspension chosen must be approved for lifting purposes and designed for
a maximum lifting capacity of AT LEAST the weight of the load AND the dead weight of the
hoist.
3. The hoist is designed to be suspended in two track trolleys.
4. Connect the power supply cable to electric supply network (10A fuse).
NOTE! Step 4 must be performed by authorised electrician.
THE HOIST IS NOW READY TO USE AFTER THE PRELIMINARY CHECK HAS BEEN
PERFORMED.

8
• USER’S GUIDE
3 User’s guide
Operating instructions:
Operating the hoist is accomplished by moving the thumb wheel left (down) or right (up). The
lifting speed is adjusted by means of increasing/decreasing the angle the thumb wheel is moved.
Preliminary check:
Check the function of the upper limit switch by running the hoist upwards until the switch stops
the hoist. This switch is to be considered as an emergency stop switch and it should not be used in
the daily operation. When running downwards the wire will stop feeding out automatically when
the load/hook reaches the oor or if the lower switch is activated.
The hoist is equipped with an electrically operated break that automatically breaks the movement
when the thumb wheel is moved to neutral position. The break function produces a slight clicking
sound, which is normal for this type of break equipment.
NOTE! Never use the hoist if damage has been found. Contact your dealer for repair.

SAFETY INSTRUCTIONS•
9
To ensure maximum personal safety it is essential to avoid all incorrect use:
• Do not allow untrained sta to operate the hoist.
• Do not exceed the hoists maximum lifting capacity.
• Never use the hoist for lifting person/persons.
• Never leave load hanging in the hoist.
• Never move or stand below hanging load.
• Never use the lifting wire as earth lead when welding.
• Never use the hoist to tow goods on the oor.
• Repairs and/or adjustments may only be performed by authorised personnel.
• Always read the manual carefully before using the hoist.
• Make sure that the load is well balanced before lifting.
Caution!
• Neglect in following the safety instructions may cause serious bodily harm.
• The operator must be fully trained in handling the hoist.
• All instructions in this manual must be followed at all times.
• The crane system/suspension unit must be installed by authorised personnel and all safety
regulations must be followed. DO NOT EXCEED maximum lifting capacity. (Dead weight of
hoist+weight of load).
• Maintenance instructions must be followed and only original spare parts may be used.
• The suspension must be thoroughly checked on a regular basis.
• Electrical installations/alterations may only be carried out by authorised electricians.
4 Safety Instructions

10
• SERVICE RECORD
SERVICE RECORD TAWI ViperHoist
Periodical inspection: Frequency*
Daily
intervals
Monthly
intervals
Thoroughly check the lifting wire, fasteners and hook for damage and
wear.
X
Check the function of the emergency stop switch before using the
hoist.
X
Check all suspensions for sign of wear. X
Check the lifting wire for wear and damage. X
Check the maneuver cable for wear and damage. X
Check that the speed control is working properly during the whole
stroke.
X
Check the function of the emergency switch. X
Check the function of the upper and lower limit switch. X
*These intervals should be considered as a binding recommendation and are applicable at normal
operating conditions, as specied by the warranty at 8 h operation/day. Special conditions may
require other intervals.
For instance a dusty environment may require shorter intervals. Longer intervals invalidates the
warranty.
5 Service record

CHANGE WIRE•
11

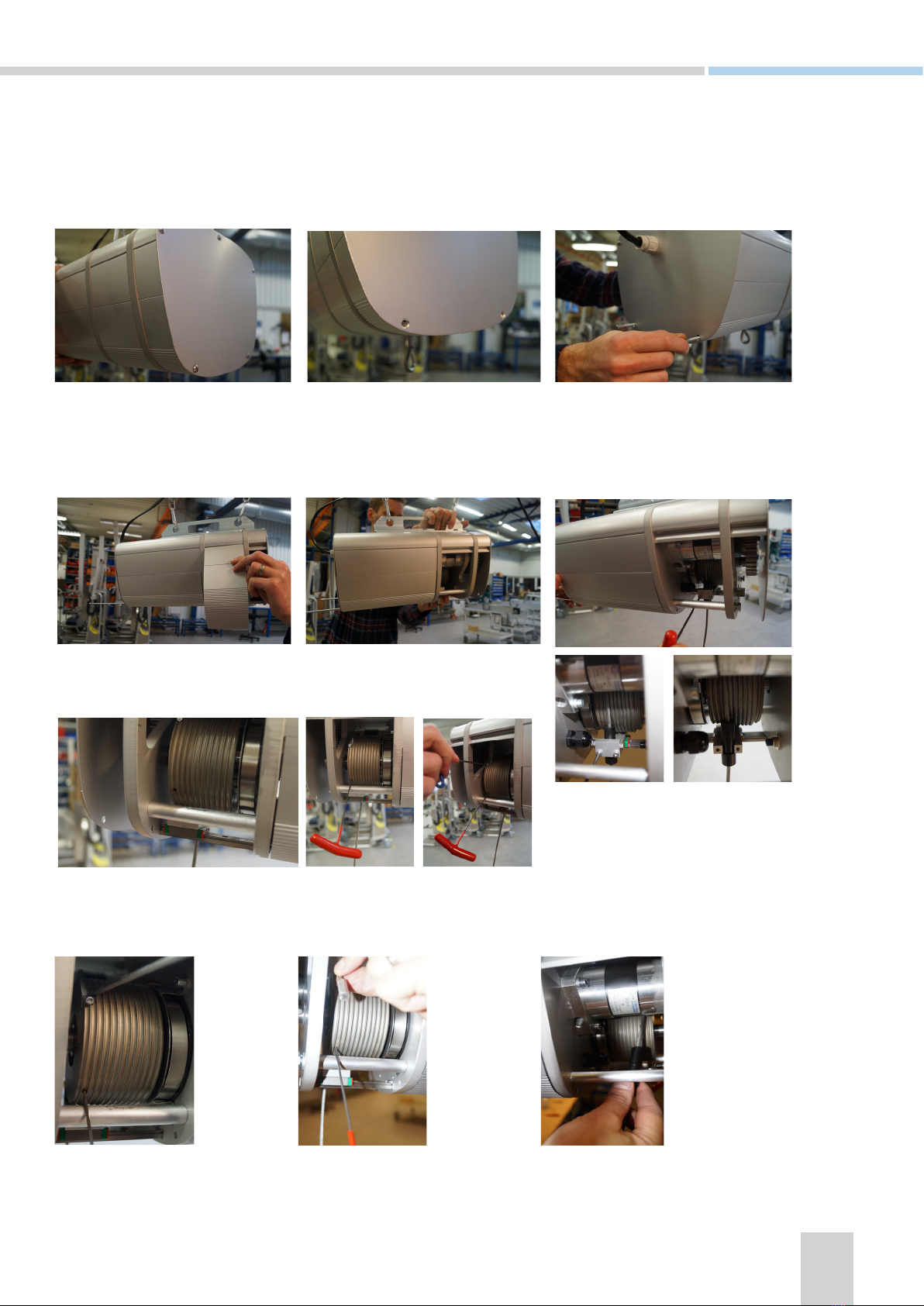

1. Unscrew the two lower nuts
for the cover on the side clo-
sest to the wire.
2. Same as picture no 1, detai-
led picture.
3. Pull out the two threaded
bars on the opposite side, ap-
proximately 150mm, until the
rst and second cover proles
are loose.
4. Remove the rst cover pro-
les.
5. Remove the second cover
proles
6. Use a 3 mm Allen key and
remove the bracket for the
wire guide holder.
6 Change wire
7. Run the hoist to its lowest position. In the wire reel there is
a small hole, place a 2mm Allen key in the hole to prevent the
return spring from winding up the wire.
8. Remove
the wire
sideways
from the
wire reel.
Use a at
screw dri-
ver.
9. Remove
the wire
and the
wire guide.
10. Assemble a
new wire and
wire guide.
Repeat above
steps in oppo-
site order.

12

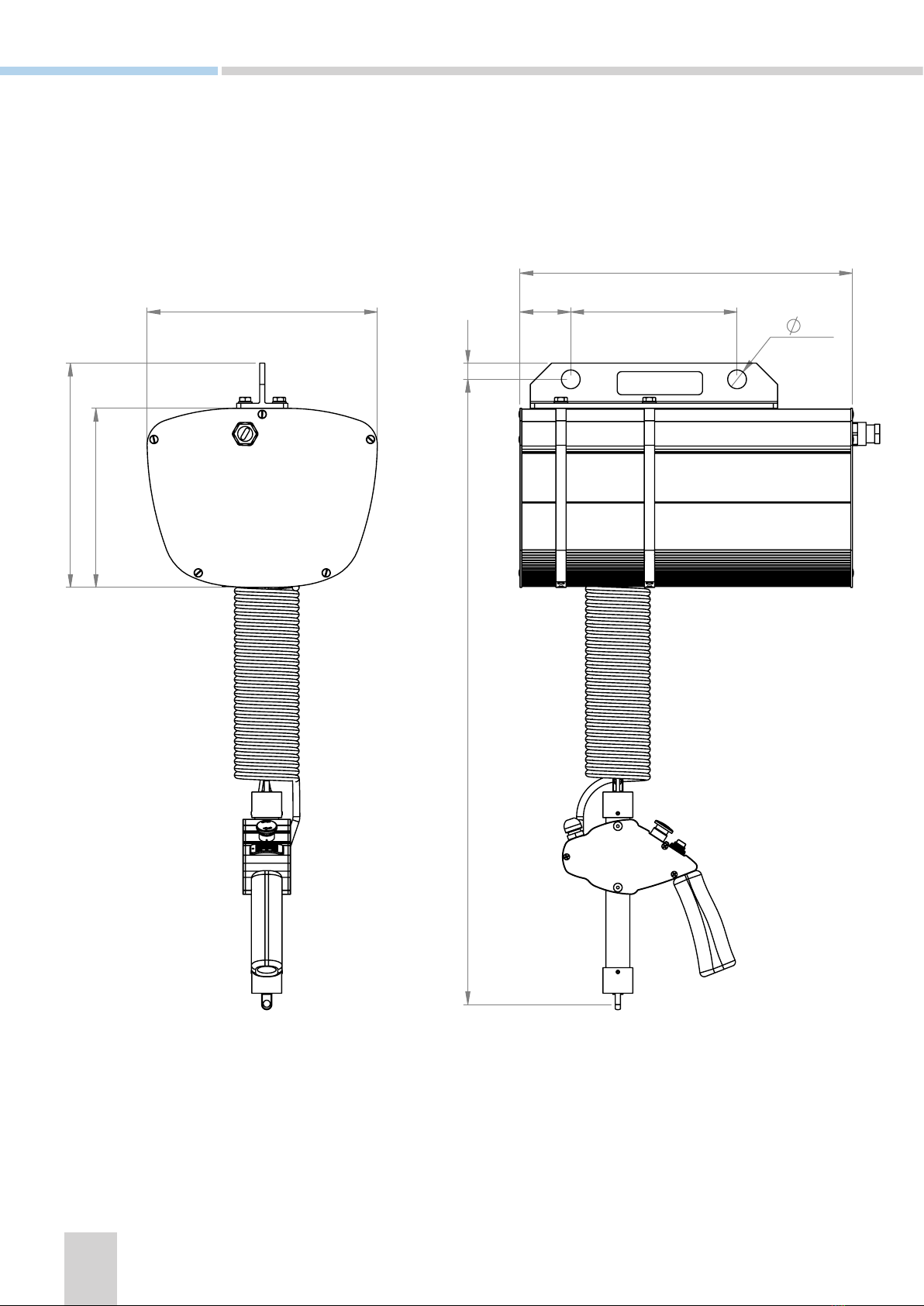

• DIMENSIONS, GENERAL OVERVIEW
195
22
733 - 2833
390
60
19
270
263
210
7 Dimensions, general overview

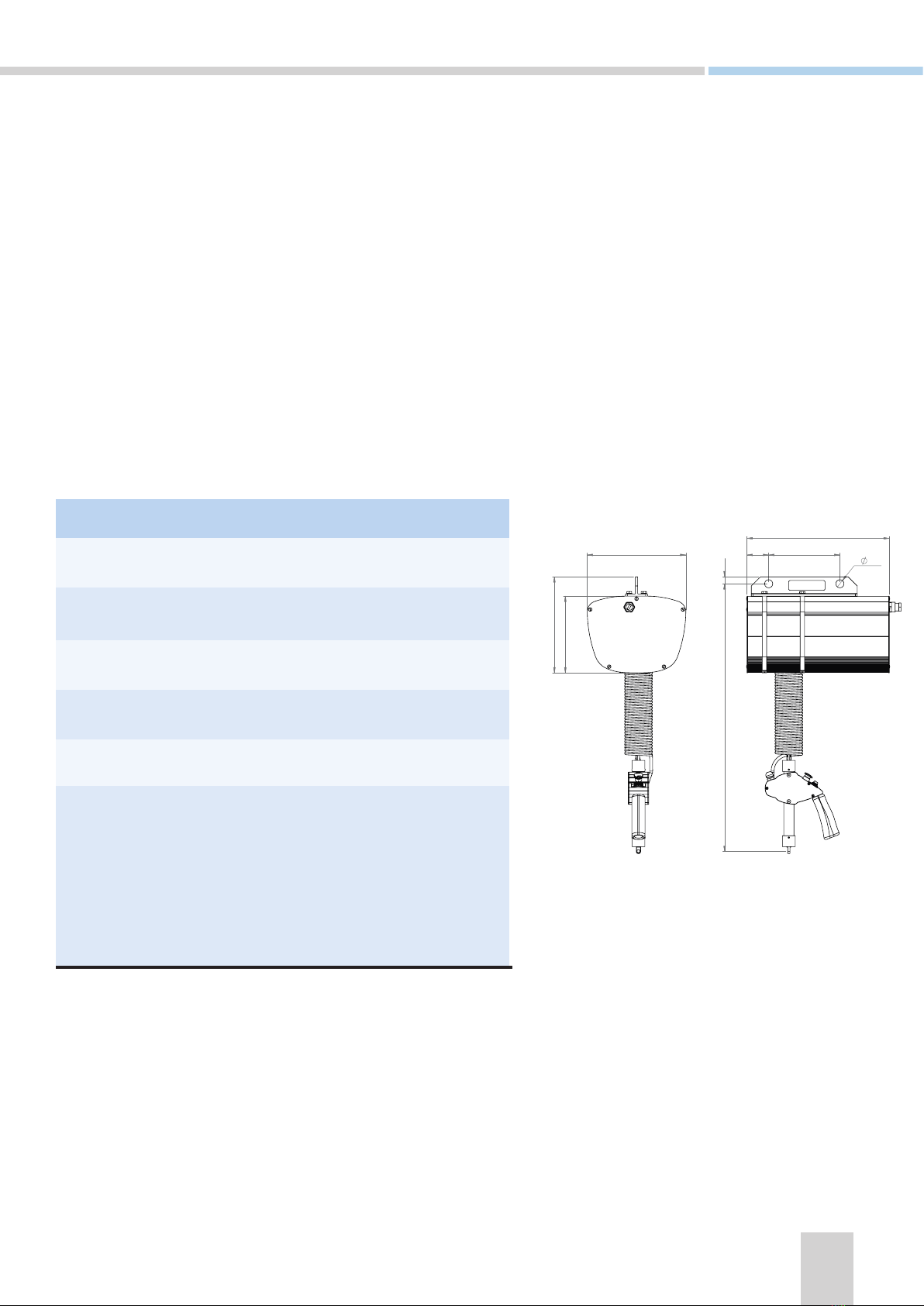

VIPERHOIST60/120•
13
1
2
2 1 Handle, complete 256000
1 1
Top unit 254000
No Qty Description Dimension Material Part No
Nr Description (available in
english only)
Pcs
Art nr
1Top unit, ViperHoist60 1254000
2 Handle, complete 1 256000
1
2
2 1 Handle, complete 256000
1 1
Top unit 254000
No Qty Description Dimension Material Part No
Nr Description (available in
english only)
Pcs/
Art nr
2Top unit, ViperHoist120 1255000
1 Handle complete 1 256000
ViperHoist60
ViperHoist120
8 ViperHoist60/120

14

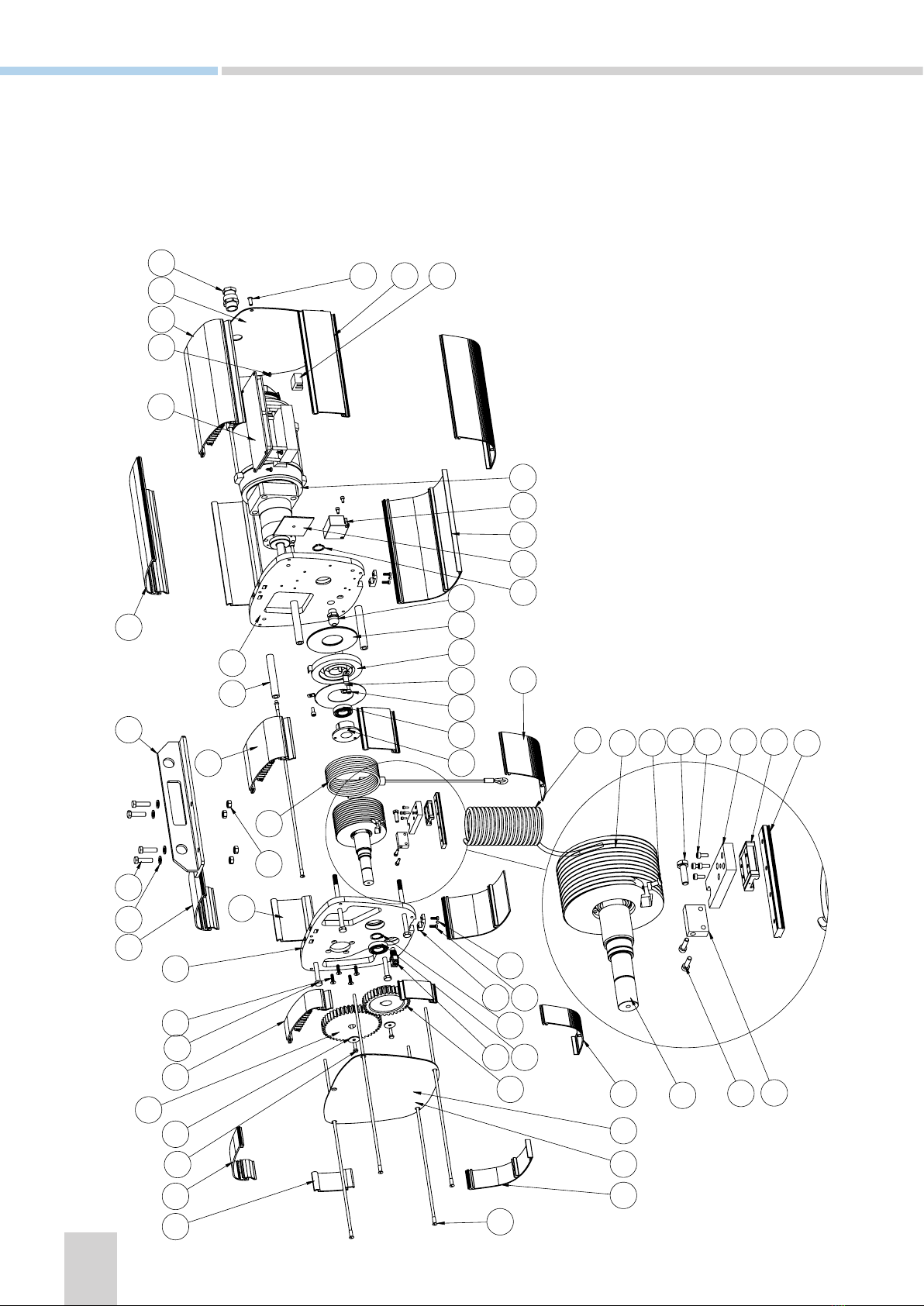

• EXPLODED VIEW AND PARTS LIST, TOP UNIT VIPERHOIST60/120
36
33 32
36 20 26
50 49
6
27
7
40
21
9
43 5
14
25
37
30 46 53 16
28
4
35
11 9 42 2 3 12 58
1
45
14 38 2423 13
34
29
31
39
22 47
54
54 61
55
48
59
60
62
8
44
15
17
18 52
57
19
51
10
9 Exploded view and parts list, top unit
ViperHoist60/120

GENERAL DESCRIPTION •
15
Nr Description (available in
english only)
Pcs Art nr
1Motor plate 1255060
2Spring holder 1255110
3Coil 1255120
4Distance 4255130
5Gear plate 1255050
6 Motor wheel 1 255235
7Drum wheel 1255245
8 Shaft 1 255080
9Ball bearing 2255140
10 Wire drum, complete 1 255075
11 Spring attachment 1255160
12 Slide plate 1255170
13 Motor, cmpl 1 255193
14 Retaining ring 2 SGA 20
15 Rail 1255250
16 Suspension 1255210
17 Trolley 1255255
18 Wire guide 1255099
19 Stop for wire guide 1 255100
20 Threaded bar, M5 5255270
21 Micro switch 2 255260
22 Control board 1255195
23 Brake resistor 1255192
24 Rectier 1255191
25 Wire, complete with guide 1 255096
26 End cover 1255220
27 Top prole, left 1 255010
28 Top prole, left 1 255011
29 Top prole, left 1 255012
30 Top prole, right 1 255021
31 Top prole, right 1 255022
32 Top prole, right 1 255020
Nr Description (available in
english only)
Pcs Art nr
33 Side prole 2255030
34 Side prole 2255032
35 Side prole 2255031
36 Bottom prole 2 255040
37 Bottom prole 2 255041
38 Bottom prole 2 255042
39 End cover 1255225
40 Screw 4 M6S M8×120 8.8
41 Screw 1 MC6S M5×25 8.8
42 Screw 3 MC6S M5×12 8.8
43 Screw 4 MF6S M5×18 8.8
44 Screw 2 MC6S M4×16 8.8
45 Nut 4 M6M M8
46 Washer 4BRB 8.4×16×1.6
47 Screw 4RTS 4.2×9.5
48 Set screw 2 SK6SS M4×5
49 Washer 2BRB 5.5×22×1.4
50 Screw 2M6S M5×16
51 Screw 1 M6S M6×20 8.8
52 Screw 4 MC6S M3×8 8.8
53 Screw 4 M6S M8×30 8.8
54 Sleeve nut 10 KFHM M5×15 A2
55 Screw 4 MC6LS M4×12
8.8
56 Screw 2 MC6S M4×8 8.8
57 Screw 1 K6S M4×8 8.8
58 Conduit entry 18eka357
59 Spiral cable 1251052
60 Conduit entry 1251035
61 Bracket 2255055
62 Terminal w/ fuse 1 251097
63 Cable kit ViperHoist 1 255280
64 Bracket 2255055
TAWI ViperHoist60

16
• GENERAL DESCRIPTION
TAWI V i p e r H o i s t 1 2 0
Nr Description (available in
english only)
Pcs Art nr
33 Side prole 2255030
34 Side prole 2255032
35 Side prole 2255031
36 Bottom prole 2 255040
37 Bottom prole 2 255041
38 Bottom prole 2 255042
39 End cover 1255225
40 Screw 4 M6S M8×120 8.8
41 Screw 1 MC6S M5×25 8.8
42 Screw 3 MC6S M5×12 8.8
43 Screw 4 MF6S M5×18 8.8
44 Screw 2 MC6S M4×16 8.8
45 Nut 4 M6M M8
46 Washer 4BRB 8.4×16×1.6
47 Screw 4RTS 4.2×9.5
48 Set screw 2 SK6SS M4×5
49 Washer 2BRB 5.5×22×1.4
50 Screw 2M6S M5×16
51 Screw 1 M6S M6×20 8.8
52 Screw 4 MC6S M3×8 8.8
53 Screw 4 M6S M8×30 8.8
54 Sleeve nut 10 KFHM M5×15 A2
55 Screw 4 MC6LS M4×12
8.8
56 Screw 2 MC6S M4×8 8.8
57 Screw 1 K6S M4×8 8.8
58 Conduit entry 18eka357
59 Spiral cable 1251052
60 Conduit entry 1251035
61 Bracket 2255055
62 Terminal w/ fuse 1 251097
63 Cable kit ViperHoist 1 255280
64 Bracket 2255055
Nr Description (available in
english only)
Pcs Art nr
1Motor plate 1255060
2Spring holder 1255110
3Coil 1255120
4Distance 4255130
5Gear plate 1255050
6 Motor wheel 1 255230
7Drum wheel 1255240
8 Shaft 1 255080
9Ball bearing 2255140
10 Wire drum, complete 1 255075
11 Spring attachment 1255160
12 Slide plate 1255170
13 Motor, cmpl 1 255193
14 Retaining ring 2 SGA 20
15 Rail 1255250
16 Suspension 1255210
17 Trolley 1255255
18 Wire guide 1255099
19 Stop for wire guide 1 255100
20 Threaded bar, M5 5255270
21 Micro switch 2 255260
22 Control board 1255195
23 Brake resistor 1255192
24 Rectier 1255191
25 Wire, complete with guide 1 255096
26 End cover 1255220
27 Top prole, left 1 255010
28 Top prole, left 1 255011
29 Top prole, left 1 255012
30 Top prole, right 1 255021
31 Top prole, right 1 255022
32 Top prole, right 1 255020

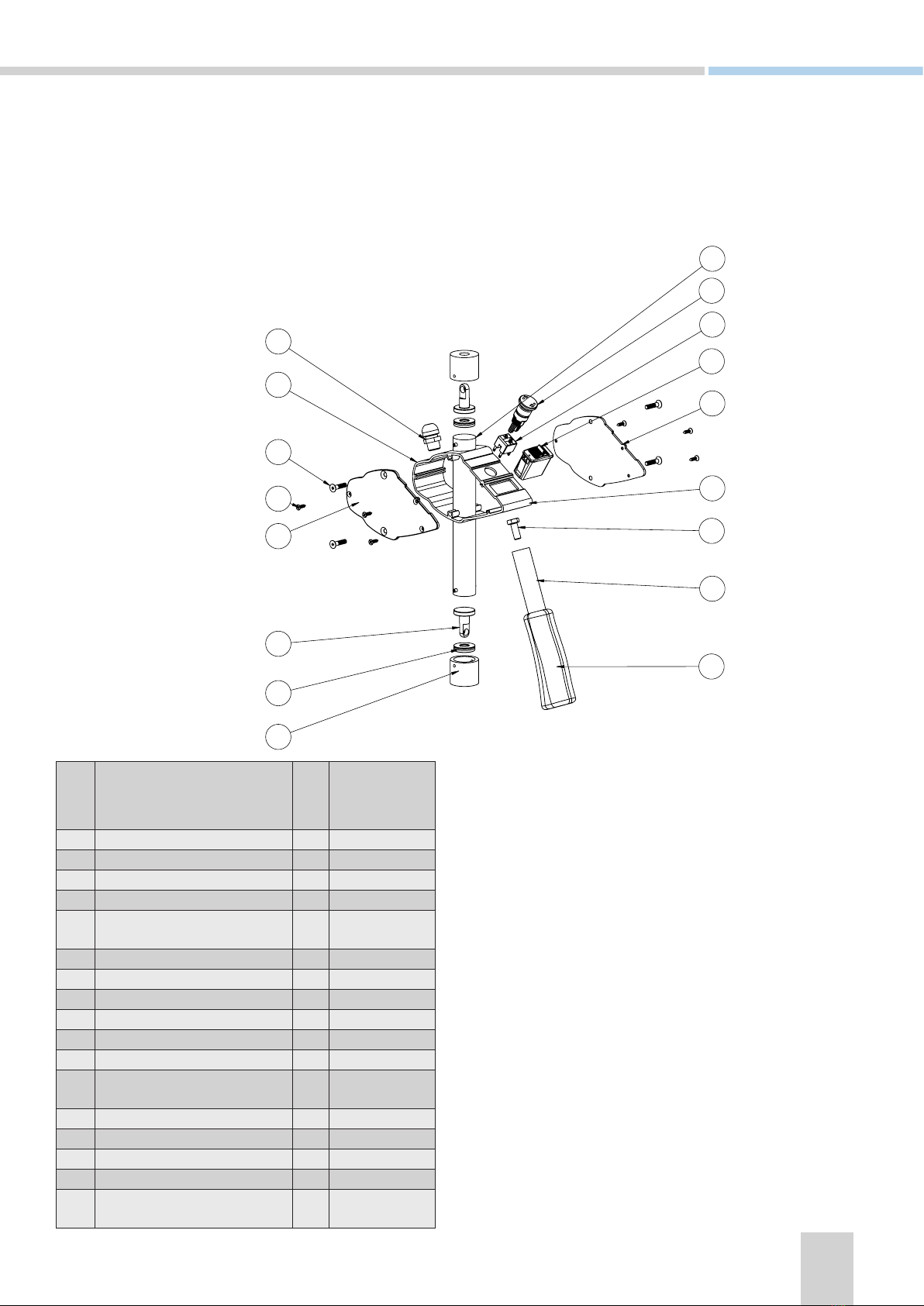

EXPLODED VIEW AND PARTS LIST, OPERATING HANDLE•
17
7
5
6
9
8
16
14
11
12
13
10
13
2
4
3
1
15
Rev. Modification Date Creator
Approved
17 4 Set screw SK6SS M4x5 SK6SS M4x5-
16 1 Bolt M6S M8x20 8.8 M6S M8x20
15 1 End cover, right t=3 EN AW 6063 256050
14 1
End cover, left t=3 EN AW 6063 256040
13 1
Handle profile EN AW 6063 256010
12 4
Screw MF6S M5x22 MF6S M5x22 A4
11 6 Screw FXS 3,5x13
10 1 Conduit entry PG9 ABS 8eka357-
9 1 Handle 671202
8 1
Handle tube ø22, l=110 EN 1.0038 256060
7 2
Bottom svivel bracket EN 1.0038 256030
6 2
Hook bracket EN 1.4301 252015-A
5 2 Needle roller thrust bearing 252003-
4 1 Emergency block 256085
3 1
Emergency button 256080
2 1
Thumb wheel 256070
1 1
Tube ø28 ø28x3, L=150 EN 1.0038 256020
No Qty Description Dimension Material Drawing
10 Exploded view and parts list,
operating handle
Nr Description (available in
english only)
Pcs
Art nr
1Tube ø28 1256020
2Thumb wheel 1256070
3Emergency button 1256080
4Emergency block 1256085
5 Needle roller thrust
bearing
2252003
6 Hook bracket 2 252015
7 Bottom svivel bracket 2 256030
8Handle tube 1256060
9Handle 1671202
10 Conduit entry 18eka357
11 Screw 6FXS 3,5×13
12 Screw 4MF6S
M5×22 A4
13 Handle prole 1 256010
14 End cover, left 1 256040
15 End cover, right 1256050
16 Bolt 1M6S M8×20
17 Set screw 4 SK6SS
M4×5

18
• ELECTRIC SCHEDULE
11 Electric schedule

VIPERHOIST HANDLING ANALYSIS•
19
12 ViperHoist handling analysis
issue: B
195
22
733 - 2833
390
60
19
270
263
210
TAWI AB
Box 10205 434 23 KUNGSBACKA SWEDEN
Tel [phone]
[e-mail] www.TAWI.com ©TAWI AB SWeden 2011 All rIghTS reServed
W W W . T A W I . C O M
V
Iper
H
OIsT
H
AndlIng
A
nAlysIs
COMpAny:......................................nAMe:.....................................................
referenCe:.....................................dATe:......................................................
Issue: B
Goods to be handled:
Type of material (wood, metal, plastic etc):
Size of goods (L x W x H/ Ø):
Max and min weight: Max: Min:
Describe surface of the goods:
Frequency of handling (per day):
Other important info:

20
• VIPERHOIST HANDLING ANALYSIS
Suggested suitable type of lift and tool:
Type of lift:
Type of tool:
Type of accessories:
Other important info:
Sketch required below:
