Tayama BDZ-160-L User manual

Note:
Gas tank is not included.
Instructions for use
Standard Ignition
ANSI Z21.72-2016/CSA 11.2-2016
Models:
BDZ-160-L
BUTANE GAS
PORTABLE STOVE
Drip Pan
Pan Support Burner Head Cartridge Cover
Ignition Knob
Cartridge Lever
Ignition Plug
EXPLOSION - FIRE HAZARD
• Propane is heavier than air and can accumulate
in low places. If you smell gas, leave the area
immediately.
• Always attach or detach propane source outdoors;
never while stove is lighted, near flame, pilot lights,
other ignition sources or while stove is hot to touch.
• This stove is very hot during use and can ignite
flammables too close to the burners. Keep
flammables at least 12 inches from the sides and
48 inches from the top of the stove. Keep gasoline
and other flammable liquids and vapors well away
from stove.
• The stove must not be exposed to flammable
vapors or liquids during lighting.
DANGER
CALIFORNIA PROPOSITION 65:
WARNING: This fuel, and by products of
combustion of this fuel, contain chemicals
known to the state of California to cause
cancer, birth defects, or other reproductive
harm.
• Failure to comply with the precautions and
instructions provided with these stoves can
result in death, serious bodily injury and
property loss or damage from hazards of fire,
explosion, burn, asphyxiation, and/or carbon
monoxide poisoning.
• Only persons who can understand and follow
the instructions should use or service these
stoves.
• If you need assistance or information such as
an instruction manual or labels, contact the
store where you bought the stove.
• Never store propane near high heat, open
flames, pilot lights, direct sunlight, other
ignition sources or where temperatures
exceed 120 ºF (49 °C).
• Never install or remove propane tank while
outdoor stove is lighted, near flame, pilot
lights, other ignition sources or while outdoor
stove is hot to touch.
• During lighting and operation, this product can
be a source of ignition. Never use the stove in
spaces that contain or may contain volatile or
airborne combustibles, or products such as
gasoline, solvents, paint thinner, dust particles
or unknown chemicals.
• Provide adequate clearances around air
openings into the combustion chamber.
SPECIFICATIONS
Portable stove
Description
Dimension
Model No.
Weight
Gas consumption
Heat input
Ignition type
Fuel type
Injector size
0.5 mm
BDZ-160-L
1.8 Kg
W335xD290xH88(mm)
160g/hr
2.3Kw
Piezo ignition
Butane gas
Tayama Appliance USA Inc.
www.tayama-usa.com
WARNING
CARBON MONOXIDE HAZARD
This appliance can produce carbon monoxide
which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed space
such as a camper, tent, car or home.
Read and comply with all instructions and warnings in this manual
before using this Product. Keep these instructions for future use.

accompanied by the safety alert symbol
“ DANGER”, “ WARNING”,
“ CAUTION”.
Keep this manual for future reference and
to educate new users of this product. This
manual should be read in conjunction with
the labeling on the product.
Safety precautions are essential
when any mechanical or propane fueled
equipment is involved. These precautions
are necessary when using, storing, and
servicing. Using this equipment with the
respect and caution demanded will reduce
the possibilities of personal injury or
property damage.
The following symbols shown
below are used extensively throughout
these instructions. Always heed these
precautions, as they are essential when
using any mechanical or propane
fueled equipment.
Do not store or use gasoline or
other liquids with flammable
vapors in the vicinity of this or
any other appliance.
FOR YOUR SAFETY
HAZARD
• This appliance can
produce carbon
monoxide which has
no odor.
•U sing it in an
enclosed space can
kill you.
•N ever use this
appliance in an
enclosed space
such as a camper,
tent, car or home.
DANGER indicates an imminently
hazardous situation which, if not
avoided, will result in death or
serious injury.
DANGER
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
WARNING
CAUTION indicates a potentially
hazardous situation which, if
not avoided, may result in minor
or moderate personal injury, or
property damage.
CAUTION
CARBON MONOXIDE
DANGER
This manual contains important
information about the assembly, operation
and maintenance of this outdoor propane
appliance. General safety information is
presented on this page and is also located
throughout these instructions. Particular
attention should be paid to information
- 2 -
WARNING
FIRE OR EXPLOSION HAZARD
If you smell gas:
1. Do not attempt to light appliance.
2. Extinguish any open ame.
3. Disconnect from fuel supply.
4. Evacuate immediately.
5. Allow gas to dissipate 5 minutes before
relighting the appliance.
Failure to follow these instructions could result
in re or explosion, which could cause
property damage, personal injury, or death.
- 7 -

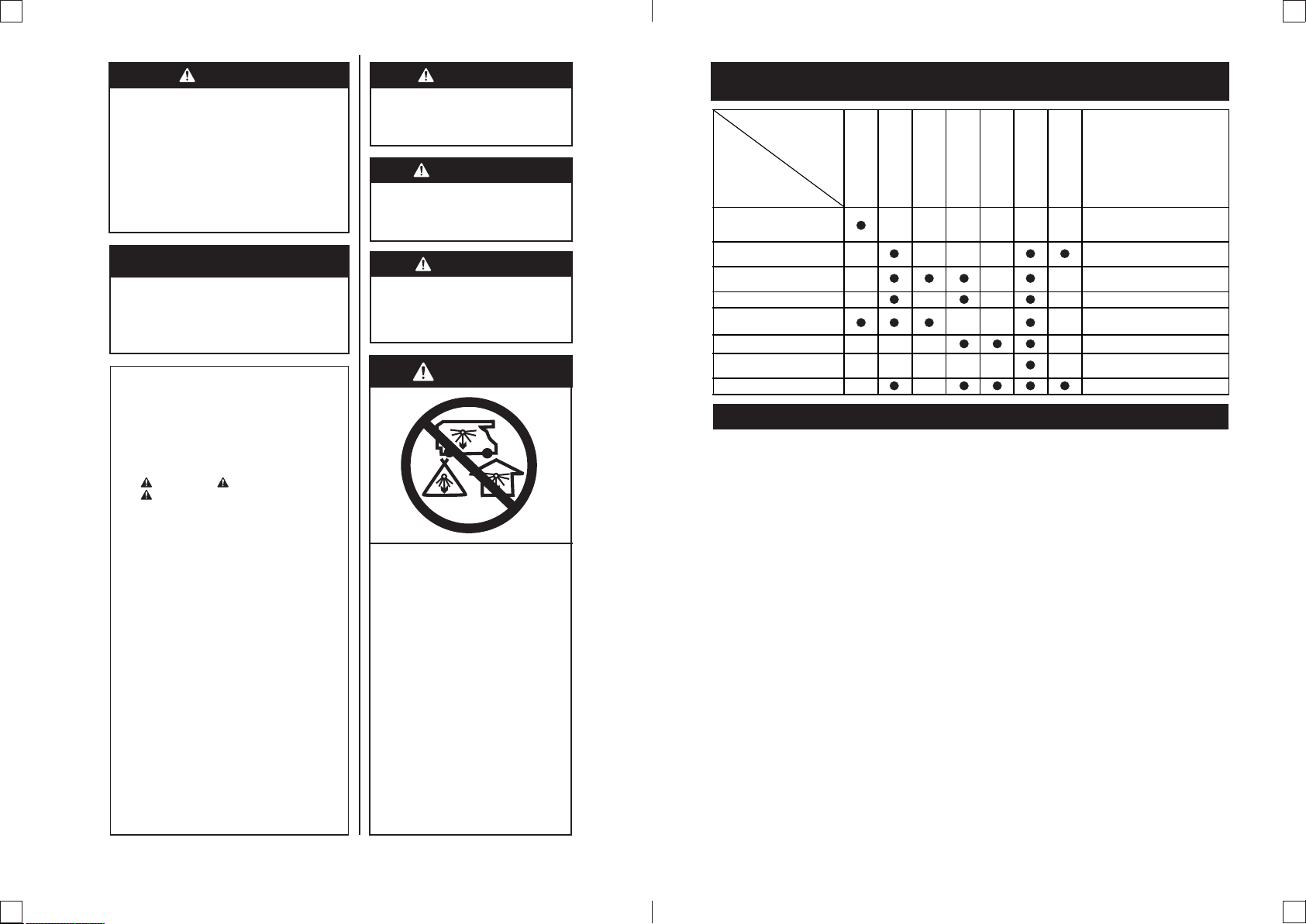

TROUBLE SHOOTING
Troubles
Causes
Safety device
activated
Ignition knob
malfunction
Clogged nozzle
Cartridge incorrectly
installed
Clogged burner holes
Bent or rusty
electrode
No gas
Trouble shooting
Turn ignition knob
completely to “O” position
and reset cartridge.
Refer to explanation for
safety device.
Contact local agent to repair.
Contact local agent to repair.
Fit cartridge guide into
cartridge slot.
Use a metal brush to clean it.
Clean electrode.
Replace fuel cartridge.
Extinction in operation
Cartridge would not install
Low flame Uneven flame No ignition Faulty ignition
Smell gas at
"O" position
No gas supplied at
"ON" position
Ignition knob is not
turned to "O" position
This product is warranted against manufacturing and workmanship defects for a period of one (1) year from the
original date of purchase. This warranty will be annulled if the appliance has been modied or if used not in
accordance with this user's guide in regards to operation and safety guidelines. Tayama Appliance USA Inc. will not
be responsible for damages to material, bodily harm or any accident or injury resulting from negligence or operation
not in accordance with user's guide in regards to operation and safety guidelines.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable.
Keep the original sales receipt. Proof of purchase is required to obtain warranty performance.
What This Warranty Does Not Cover? This warranty does not cover normal wear of parts, parts that are not
genuine parts from the supplier, or damage resulting from any of the following: negligent use or misuse of the
product; commercial use of the product; use contrary to the operating instructions; disassembly, repair or alteration
by anyone other than the supplier or an authorized service center. Further, the warranty does not cover re, ood,
hurricanes and tornadoes. Warranty void if damage to the product results from the use of a part other than a
genuine part from the supplier.
THE SUPPLIER SHALL NOT BE LIABLE FOR DEFECTS THAT ARE CAUSED BY THE USE OF
UNAUTHORIZED PARTS OR SERVICE. THE SUPPLIER SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR
CONSEQUENTIAL DAMAGES CAUSED BY THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY OR
CONDITIONS. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED IN DURATION TO THE
DURATION OF THE ABOVE WARRANTY OR CONDITIONS. SOME STATES, PROVINCES, OR JURISDICTIONS
DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR
LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATIONS OR
EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU
MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.
How to Obtain Warranty Service? The contacts of the warranty service are displayed in the ofcial website
http://www.tayama-usa.com. If your product is defective and is within your warranty period, please contact the
warranty service team in order to obtain service.
Do not mail products with fuel in tanks, or with disposable propane cylinders.
Limited One Year Warranty

Not for home or
recreational vehicle use.
We cannot foresee every use which may be
made of our products. Check with your local
fire safety authority if you have questions
about use. Other standards govern the use of
fuel gases and heat producing products for
specific uses. Your local authorities can
advise you about these.
• Never refill disposable cylinders.
• Use the preset regulator that came with the
stove. Do not attempt to adjust.
•
WARNING
Use only accessories or parts approved by
the supplier. During stove set-up, check all
fittings for leaks using soapy water. Never
use a flame.
CARBON MONOXIDE HAZARD
• This stove is a combustion appliance. All
combustion appliances produce carbon
monoxide (CO) during the combustion
process. This product is designed to
produce extremely minute, non-hazardous
amounts of CO if used and maintained in
accordance with all warnings and
instructions. Do not block air flow into or
out of the stove.
• Carbon Monoxide (CO) poisoning produces
flu-like symptoms, watery eyes, headaches,
dizziness, fatigue and possibly death. You
can’t see it and you can’t smell it. It’s an
invisible killer. If these symptoms are
present during operation of this product get
fresh air immediately!
• For outdoor use only.
• Never use inside house, camper, tent,
vehicle or other unventilated or enclosed
areas. This stove consumes air (oxygen)
and produces carbon monoxide (CO).
Do not use in unventilated or enclosed
areas to avoid endangering your life.
• This product is fueled by propane
gas. Propane gas is invisible,
odorless, and flammable. An odorant
is normally added to help detect
leaks and can be described as a
“rotten egg” smell. The odorant can
fade over time so leaking gas is not
always detectable by smell alone.
• Propane gas is heavier than air and
leaking propane will sink to the
lowest level possible. It can ignite by
ignition sources including matches,
lighters, sparks or open flames of
any kind many feet away from the
original leak. Use only propane gas
set up for vapor withdrawal.
• Propane gas should be stored
or used in compliance with local
ordinances and codes or with ANSI/
NFPA 58. Turn off propane when not
in use.
WARNING
SERVICE SAFETY
• Keep all connections and fittings
clean. Inspect propane cylinder
and stove propane connections for
damage before attaching.
• During set up, check all connections
and fittings for leaks using soapy
water. Never use a flame. Bubbles
indicate a leak. Check that the
connection is not cross-threaded
and that it is tight. Perform another
leak check. If there is still a leak,
remove the cylinder and contact
the store for service or repairs.
• Use as a cooking appliance only.
Never alter in any way or use with
any device or part not expressly
approved by the supplier.
• Clean stove frequently to avoid
grease accumulation and possible
grease fires.

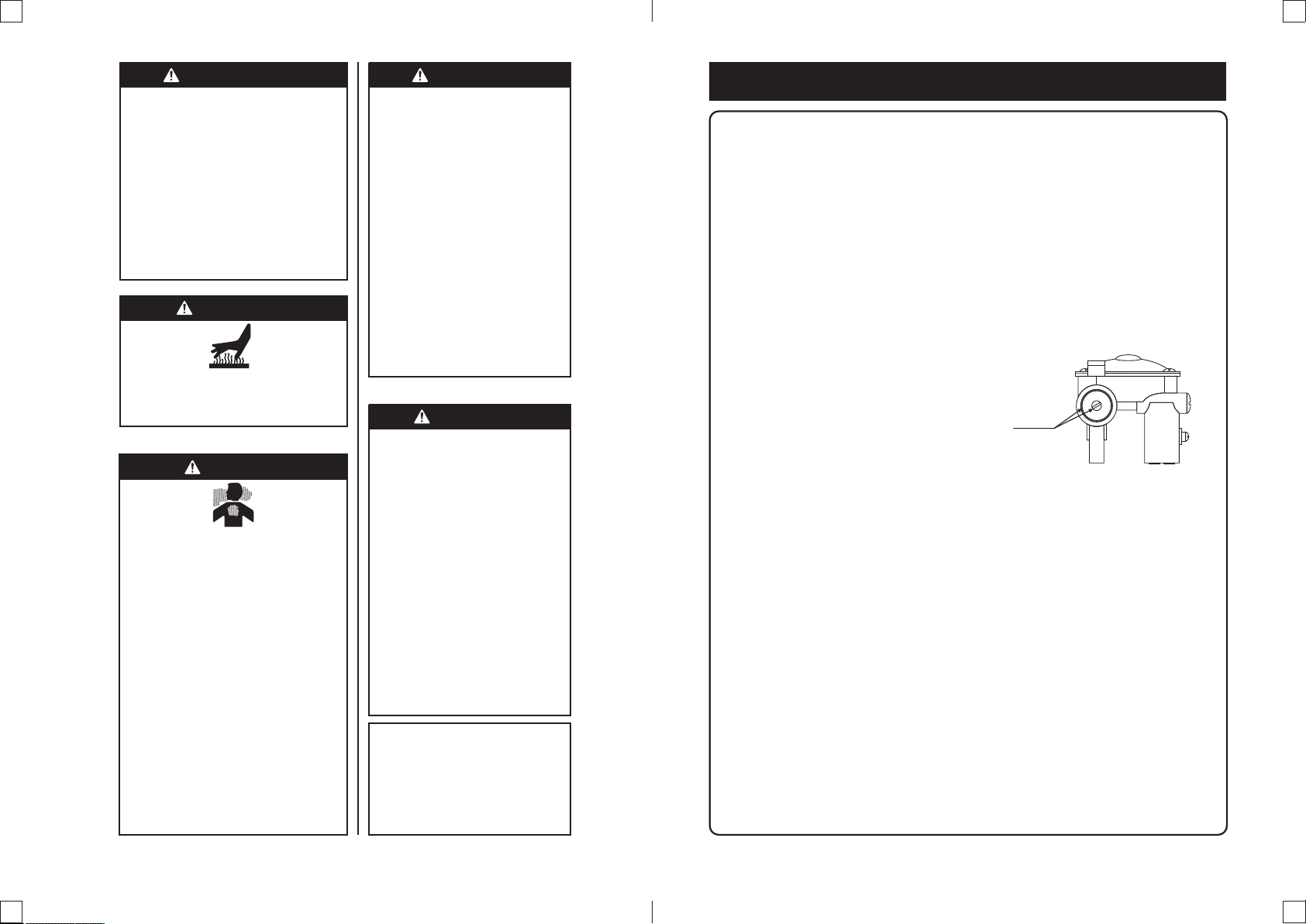

CAUTION
DANGER
BURN HAZARD
• Never leave stove unattended when hot or
in use.
• Keep out of reach of children.
WARNING
• Keep stove area clear and free from
combustible materials, gasoline and
other flammable vapors and liquids.
• Do not obstruct the flow of combustion
and ventilation air.
• A good flame should be blue with
minimal yellow tip. Some yellow tips on
flames are acceptable as long as no
carbon or soot deposits appear.
- 6 - - 3 -
WARNING - PLEASE READ CAREFULLY PRIOR TO USE
Read these Instructions for Use carefully before connecting the gas container. Keep
these Instructions for future reference.
WARNING
●It should be used in a well ventilated location in accordance with National Requirements.
●Do not use in wind, breeze or draught.
●Do not spray aerosols in the vicinity of this cooker while it is in operation.
●Avoid boil over and spillage. Do not overfill cooking vessels.
●Do not use cooking utensils greater than 200mm diameter.
●Always remove unit from all packaging materials prior to use.
●Do not use or place near other heat sources such as heaters, electrical appliances or flammable
articles.
●Do not touch the burner head, drip pan, pan support / trivet etc. immediately after use or during use.
●Do not smoke while operating the appliance.
●The unit must only be used on a flat horizontal, stable, non-slip and non-combustible surface.
●During operation the unit must not be left unattended and must be controlled by the operator at all
times.
●Do not carry or move the cooker while operating.
●Keep this appliance away from combustible materials during operation.
Keep minimum clearances of: Rear 250mm, Sides 250mm, Top 1200mm.
●Check that seals between the appliance and the gas container are in
place and in good condition before connecting the gas container.
Do not use this appliance if it has damaged or worn seals.
●If you suspect that the unit is faulty, do not use.
●Do not use this appliance if it is leaking, damaged or does not operate properly.
●Ensure gas cartridge is removed from unit for storage.
●Carbon monoxide hazard: This appliance can produce carbon monoxide which has no odour. Using
it in an enclosed space (e.g. caravan, tent, car, mobile home) may cause death.
●This appliance is to be used for cooking only. Do not use as a space heater. Do not use as a drying
apparatus to dry clothing, towels, etc. Do not use to start a wood fire.
●Do not use multiple appliances to heat a single utensil.
●Do not heat multiple utensils on this single unit.
●Do not modify this appliance.
●Do not attempt any repairs yourself. This appliance must only be serviced by an authorised person.
GAS CARTRIDGE PRECAUTIONS
o
●Do not leave or store fuel cartridge in a place where the temperature exceeds 30 C. Do not store in
direct sunlight or heat. Do not leave in the trunk/boot of a vehicle. Do not puncture or incinerate even
when empty as canister may explode.
●Gas containers shall be changed in a well-ventilated location, preferably outside, away from people
and away from any sources of ignition such as naked flames, pilot flames, electric
heaters/equipment.
●Gas containers must be stored outdoors in a well-ventilated area out of the reach of children. Any
indoor storage shall comply with Section 2 of AS/NZS1596 - Minor storage and usage of LP gas.
●Do not strike against the cartridge.
●This appliance shall only be used with butane gas cartridge BDP-220B complying with BSEN 417. It
may be hazardous to attempt to fit other types of gas containers.
●If cartridge becomes empty during operation, the flame will gradually diminish to eventually
extinguish.
●How to check if gas cartridge is empty: The cartridge should be light in weight, approximately 105gm.
If shaken gently, there should be no sign of liquid inside.
●Max. pan 200mm with water.
Forbidden to use griddle plate.●
The seal

HOW TO USE
RELEASE
LOAD
RELEASE
LOAD
RELEASE
LOAD
1.PLACE THE PAN SUPPORT ON THE STOVE
(see diagram)
2.HOW TO INSTALL CARTRIDGE
①Open the cartridge cover.
·Only use 220g butane cartridge BDP-220B
which complies with EN 417.
②Make sure ignition knob is in "OFF" position
and cartridge lever is in "RELEASE"
position.
·If the ignition knob is not completely in
"OFF" position, the cartridge cannot be
engaged into "LOAD" position.
③Place the cartridge into the compartment.
Align the cartridge properly by inserting the
cartridge guide tab of the unit into the
cartridge slot on the rim of the canister.
④Lock in place by pushing the cartridge lever
down to "LOAD" position and then close the
cartridge cover.
⑤Check that the cartridge is positioned
properly, and the cartridge lever is in the
"LOAD" position.
⑥You can now turn on the unit.
CAUTION: Incorrect positioning of the gas
cartridge will cause the burner to break
and/or leak which will produce "hissing"
sound, and a smell of gas.
3.HOW TO IGNITE
Turn the ignition knob counter-clockwise until
you hear a 'click' sound.
·If the burner does not light, repeat the
ignition procedure.
·Phenomenon of flaring may occur during
warm up period or if the appliance is
moved. The flaring will stop within one
minute or when moving stops.
4.HOW TO CONTROL FLAME
The size of the flame can be regulated by
turning the ignition knob slowly toward "OFF" .
5.HOW TO EXTINGUISH
Turn the ignition knob clockwise to "OFF"
position. The flame is automatically cut off and
no gas will be supplied.
·The flame will be extinguished before the
ignition knob is turned completely to "OFF"
position.
·Check to ensure the flame is extinguished.
6.HOW TO REMOVE BUTANE CARTRIDGE
Raise the cartridge lever up to the "RELEASE"
position. Open the cartridge cover and then
take the cartridge out. Ensure the ignition knob
is at "OFF" position.
7.HOW TO BURN OFF REMAINING FUEL
Some fuel may remain in the gas cock after
the unit has been turned off. For your safety,
with the cartridge lever in "RELEASE" position,
turn ignition knob to "ON" position to burn off
any remaining fuel.
!
CAUTIONS
MAKE SURE THE
CARTRIDGE SLOT
IS POINTING UPWARD
Cartridge Slot
Cartridge Guide
- 5 -
- 4 -
CAUTIONS FOR USE - PLEASE READ CAREFULLY PRIOR TO USE
●PROCEDURE FOR GAS LEAKAGE
Turn the cooker knob to "O" position immediately if you smell a strong gas odor and/or hear a
"hissing" sound. This indicates that there may be a gas leak from the gas cartridge or appliance.
If this is evident:
1.Turn the ignition knob to the "O" position and unlock the gas cartridge by releasing the
cartridge loading lever to the ”RELEASE” position.
2.Open all windows or move the appliance to a well-ventilated location away from any ignition source.
Do not use or turn on/off any electrical or gas appliance including telephones. Do not light flames or
use any equipment that could cause sparks or flames.
3.If there is a gas leak on the appliance and you cannot stop the gas flow or remove the gas cartridge,
relocate the appliance to a well-ventilated location away from any ignition source. Only check for
leaks outdoors using soapy water. Do not try to detect leaks using a flame. Do not inhale the gas at
any time.
4.Do not attempt to ignite the cooker any further.
5.Contact your dealer or service center.
●AUTO SAFETY DEVICE
In the case of long term or excessive heat near the fuel cartridge, pressure will build up to set off the
safety device. The gas cartridge is automatically ejected in the event of over-pressure in the gas cartridge
and the flame will be extinguished. The unit will not operate until the gas pressure of the cartridge returns
to the normal range.
●HOW TO RESET THE AUTO SAFETY DEVICE
1.Turn the control knob to the "O" position.
2.Remove the gas cartridge.
3.Turn the ignition knob to the "ON" position and wait for 5 seconds to release any excess
gas inside the unit.
4.Return the ignition knob back to the "O" position.
5.Push the cartridge lever down to the "LOAD" position and then release it back to the
"RELEASE" position.
6.Determine the cause of over-pressure, i.e. Stove used in strong direct sunlight, an oversized pot/pan
has been used, insufficient ventilation, etc.
7.Make necessary adjustments to location, pot/pan used, and if necessary, allow the gas cartridge to
cool before re-installing. Another option is to install a fresh cool gas cartridge.
8.Follow the procedures for installing the gas cartridge and ignition, then re-ignite.
●CLEANING & MAINTENANCE
1.The unit must be cleaned after each use and maintained at least once every six months. The unit
must only be serviced by a licensed plumber or gas fitter. For repairs, spare parts or service of the
appliance, please contact us or any licensed plumber or gas fitter.
2.When you notice small flame or no flame when you use a new cartridge, it may be that the injector is
too dirty or even blocked. You can clean the injector with a needle thinner than 0.47mm or you can
call the service center for advice.
●COOKER BODY
1.After using the unit, it may be hot. Please wait for at least 10 minutes before you move or store it.
2.Ensure the unit is clean at all times. Only clean the unit after the gas cartridge is removed and the unit
has cooled. Clean the cooker body using a damp cloth. Use kitchen detergent if necessary. Wipe dry.
●PAN SUPPORT AND DRIP PAN
Remove the pan support and drip pan and clean with warm water and kitchen detergent if necessary.
●BURNER HEAD AND SURROUNDINGS
Soil, dirt, oil, dust, grime etc. can clog the burner and affect the flame. Clean the burner head with a
metal brush and keep water out.
●IGNITION PLUG
Keep clean and dry. Clean with a dry cloth.
●STORING THE STOVE
1. Turn Control Knob clockwise to "O" OFF position and return lever to the up position.
2. Allow stove to cool for 10-15 minutes.
3. Take unit outdoors away from any ignition sources. Remove butane cartridge.
4. Store butane canister consistent with instructions and warnings on the cartridge.
5. Use a soft cloth and clean greasy parts of the stove with soap and water or a nonabrasive detergent.
6. Check Lever on stove to be sure it in in the "UNLOCK" position.
7. Store stove in a cool, dry and well-ventilated area, out of the reach of children.
