Roller Grill GAR 14 XL Technical manual

G03271

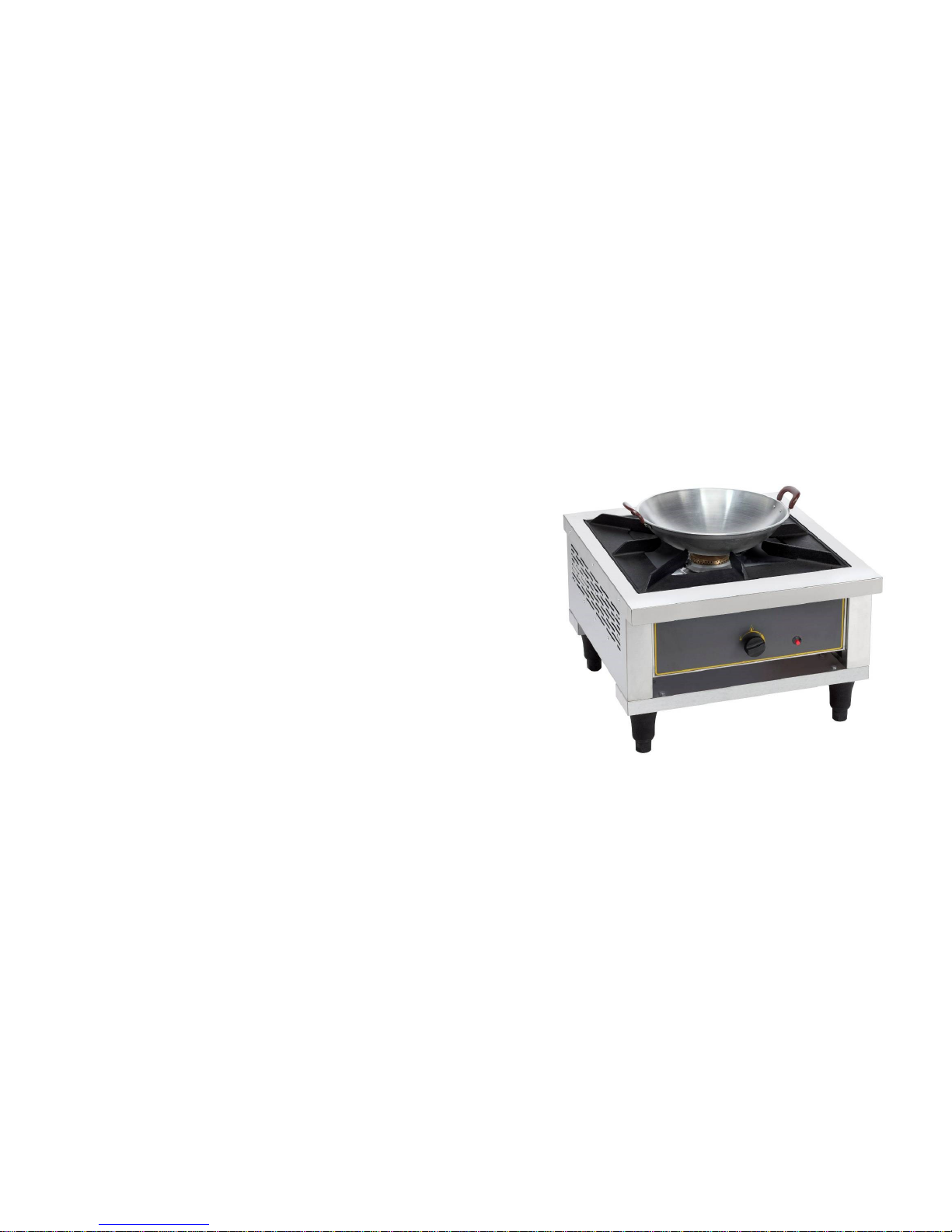

INSTRUCTIONS FOR USE AND INSTALLATION
GAS STOVE
GAR 14 XL
Made in France
June 2012

11

Nomenclature RECHAUD GAR 14 XL
Spare parts STOVE GAR 14 XL
10
Rep Code Qty Pièce Spare part
1 B02048 1 Grille fonte Cast iron grid
254100 1 Cadre Frame
354101 2 Côté Droit/gauche Right/left side
454103 2 Traverse Strut
5 A13008 4 Pied Foot
654105 1 Support brûleur Burner holder
7 E01015 1 Brûleur complet Burner asssembly
8 A14075 1 Bouton Knob
9 E02215 1 Piezo Piezo
10 E02246 1 Rampe compléte Main supply assembly
E02218 1 Robinet Tap
GAS STOVES
GAR 14 XL
Congratulations for the acquisition of this upmarket appliance made in France. You
chose an appliance which alloys the best technical qualities with a big user-
friendliness. We wish you the biggest contentment
1. SECURITY INSTRUCTIONS
Please respect these instructions scrupulously to avoid any risk of fire, scald or other
wounds and damage. During the use of this appliance, fundamental circumspection
of security must always be noticed, such as:
- Take into account the instructions to be systematically kept with the appli-
ance.
- Install the appliance always in instructions respect. A 10 cm distance mini-
mum with the partition or the wall is necessary.
- Protect the appliance from direct light of the sun, frost and humidity.
- Never leave the appliance within the reach of children or disabled persons
without surveillance.
- Never move the appliance when it is working or when the surfaces of cook-
ing are still hot.
- Do not touch the hot surfaces of the appliance. The temperature of the hot
surfaces can be very important when the appliance is working. Always use
handles and control knobs.
- Do not use the appliance for other functions than determined use.
- Do not leave the pipe or hose (purchased separately from a specialised
shop) in the contact of hot surfaces.
- Do not bend the pipe or hose
- The appliance should not be used close to combustible materials.
- During use, look after not to obstruct hearings of aeration of the appliance
- Entrust compensations only to a skilled person.
- Use only spare parts of origin.
- At the end of cooking, before cleaning the appliance, do not forget to discon-
nect the gas inlet.
2. CONTENTS OF CARDBOARD PACKAGING
Device: A gas stove
Accessories: - A set of natural gas injectors (burner + pilot light)
- The present note
3

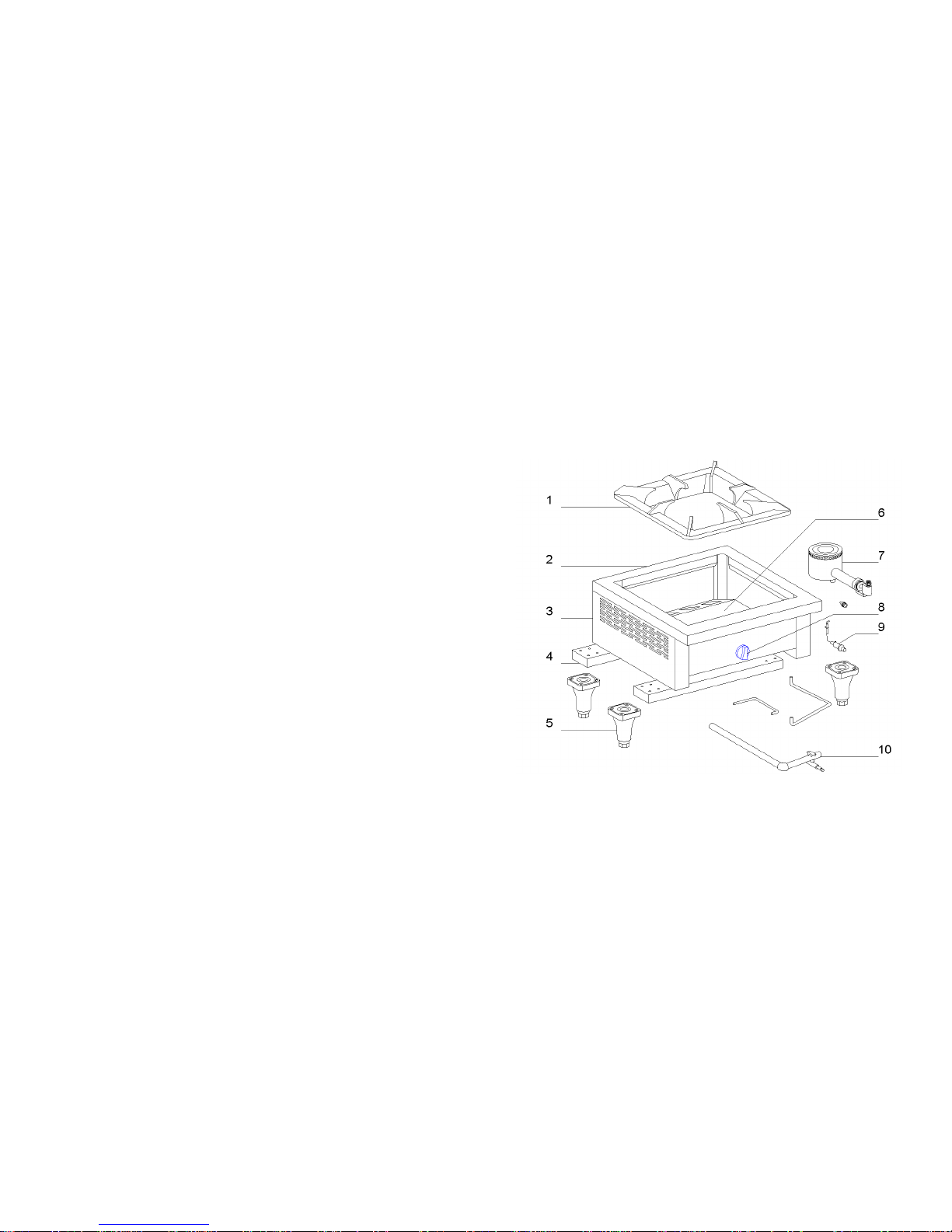

See exploded view for GAR 14 XL at the end of the document.
3. CONFORMITY OF USE
Use the device only to cook or keep warm some food.
4. WAY OF FUNCTIONING
This big and multifunction gas stove is made for classical gas cooking and for gas
wok cooking thank to its reversible cast iron grid.
The control of the cooking area is made with a system of piezo when starting and
safety thermocouple. It is fitted with several removable parts: cast iron grid, stainless
steel container burner holder (in 1 piece) and burner ring.
To turn on the gas stove, just switch on the burner by pressing on the power control
knob (n°1 on picture) opposite the star position for a few seconds and on the piezo
(n°2 on picture) several times if required.
Keep the control knob (n°1 on picture) pressed for 15 seconds. The burner then re-
mains lit.
While cooking, the temperature can be regulated using the control knob (n°1 on pic-
ture) from high flame to low flame in order to avoid over-cooking.
4

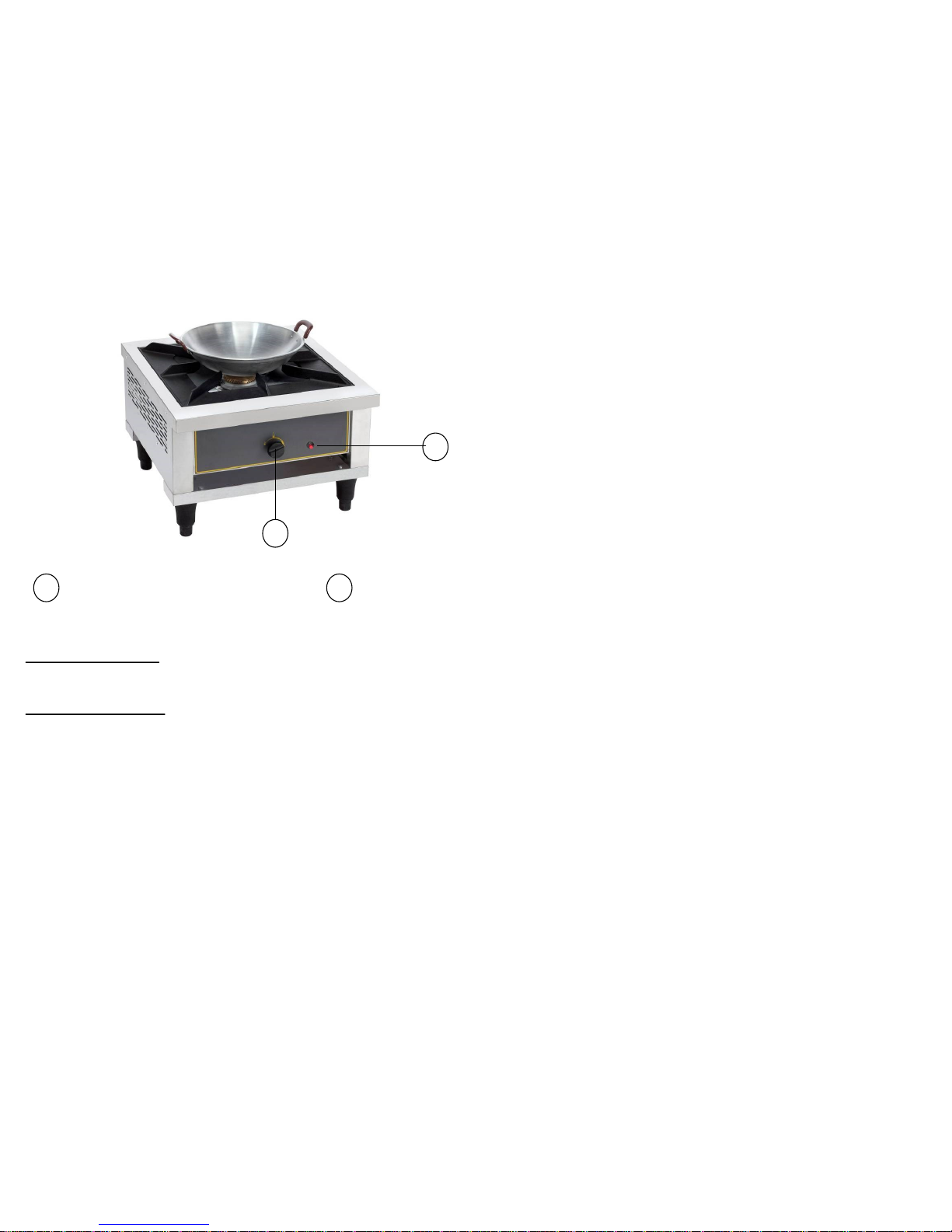

Power control knob Piezo
12
1
2
The damage due to shocks, bad weather is not flatware by the guarantee. The mate-
rial travels at the risks of the user; in case of delivery by carrier, the consignee has to
have reservations towards the carrier before any delivery of the device.
The guarantee comes to an end in case of intervention, of repair, of modification by
no qualified persons, or of use in inappropriate purposes.
9

6. CLEANING AND MAINTENANCE
Cut the gas supply.
- Let cool completely the device before any technical intervention or cleaning.
- For cleaning, only use non-abrasive products, clean regularly the external walls of
your device with warm water and wash liquid: avoid the abrasive towelling. Rinse your
device with a wet sponge.
- Never clean the device under a water jet, the infiltrations would risk to damage it in a
irreparable way.
- During a prolonged non-use, we recommend you strongly to keep the device shield-
ed from the humidity .
7. TECHNICAL SPECIFICATIONS
8. GUARANTEE
Conditions of guarantee
The guarantee applicable to any device is the commercial guarantee of the distributor
or the retailer. Please contact the store where you bought your device to know the
precise conditions.
The guarantee grants no right for damages.
The dispositions which follow are not exclusive of the profit of the legal guarantee
planned by articles 1641 and following ones of the Civil code relative to the defects
and the latent defects.
Exclusion clauses of the guarantee
Bad installation and bad maintenance, in particular if they do not respect cur-
rent regulations or instructions appearing in this user guide.
Cannot benefit from the guarantee the repairs required as a result of false operations,
of inappropriate use, of carelessness or of excess loads of the device, as well as
those resulting from defective installations.
8
Model Outside dimen-
sions
Power Nb of burners Weight
GAR 14 XL 600x630x425 mm 14 kW 1 fire 14 kW 30 Kg
A safety thermocouple cuts the gas supply if the burner is extinguished. The low flame
of the appliance is pre-adjusted in the factory, it must not be changed.
5. FUNCTIONING / HANDLING
a) Installation/Assembly:
- Unpack carefully the machine from its packaging.
- Place the device on a plane and heatproof surface in a well ventilated place.
- Never place the device near a wall or near a partition makes of combustible materials
even if it is very well isolated.
- A distance of minimum 10 cm with the partition or the wall is necessary.
- Remove the protective film from the machine.
b) First starting:
During the first use, warm your machine up outside during about 30 min to evacuate
residual smokes of manufacturing oil from the metallic parts. This may emit a slight
smell for a few moments.
First cleaning
Clean the device before the first use. (See 6 Cleaning)
Gas connection
The appliances run on the following gases: Butane G30, Propane G31, Natural gas
G20/G25. The appliances are originally delivered with a Butane/Propane injector corre-
sponding to the category II2E+3+. The connection is made thanks to a thread 3/8.
The heat release rate of the appliance is GAR 14 XL 14 kW
For a use in natural gas, change the injectors. They are delivered in a small plastic bag
in the package. Unscrew completely the nut and then the injector inside the hole.
Connect the appliance to the gas supply pipe, interposing a stop valve which enables
the appliance to be insulated from the rest of the installation.
Check the supply pressure using a manometer when all the burners are lit. It must be
equal to the indications on the rating plate.
The fresh air flow required for combustion air supply is:
- GAR 14 XL 25.9 m3/h
5

General conditions of installation
The installation and maintenance of the appliance must be carried out in compliance
with the statutory texts and good practices in force, mainly:
General specifications
For all appliances:
Article GZ Installation with combustible gases and liquefied hydrocarbons.
Then, according to use:
Article CH Heating, ventilation, refrigeration
Air conditioning and domestic hot water steam generation.
Article GC Installation of appliances to be used for catering
Specific provisions for each type of establishment to which the public is admitted
(hospitals, shops, etc…)
Important: Never change the diameter of the injectors.
Gas category table, according to the country of destination of the appliance.
Air adjustment
Injectors were conceived to avoid any air adjustments and that whatever the gas you
use.
6
Country of destina-
tion
Category Gas Pressures Diameter of
injector
FR/BE II2E+3+ G20/G25
G30/G31
20/25
28-30/37
320
195
LU/DE I2E G20 20 320
AT/CH/CY/DK/EE/FI/
HR/LT/LV/RO/SE/SI/
SK/TR
II2H3B/P G20
G30/G31
20
30
320
195
PL II2E3P G20
G31
20
37
320
195
HR/HO II2H3P G20
G31
20
37
320
195
CH/CY/CZ/ES/GB/
GR/IE/IT/PT/SI/SK/
TR
II2H3+ G20
G30/G31
20
28-30/37
320
195
NL/NO/HU I3B/P G30/G31 30 195
7
c) Use of device :
Elements of command and display
Switching-on
Press the power control knob (n°1 on picture) for a few seconds in front of star
position.
Press the piezo(n°2 on picture)
Keep the control knob (n°1 on picture) pressed for 15 seconds.
The burner then remains lit and it is now possible to increase the power by turning
the power control knob (n°1 on picture).
Temperature setting
Once the burner is lit; set the appliance to the desired power by turning the control
knob (n°1 on picture).
It is not necessary to leave the device switched on at full power. It is necessary
to adapt the temperature to products to be cooked to limit the gas consumption.
Stopping the appliance
Set control knob (n°1 on picture) to 0: the appliance is completely switched-off.
Close the butane or propane cartridge
Let the device cool.
Clean the appliance. (See 6. Cleaning)
d) Breakdown / repair:
In case of breakdown or of damaged part, please call your after-sales service and
confide any technical operation to qualified person.
When you contact the after-sales service of your distributor or your store, give him the
complete reference of your device (commercial name, type and serial number). This
information appears on the visible descriptive plate behind the device.
Command/Display Function
Power control knob
(n°1 on picture)
On/off
Set the power (low flame = low power, high flame = high pow-
er)
Piezo (n°2 on picture) Switch on the machine
