TBB power Energy Hub EH128L User manual

Preface

Energy Hub User Manual
Thank you for choosing our products. This manual is suitable for Energy Hub lithium battery system.
Please read this manual carefully. It includes installation and operation instructions, as well as its
electrical performance and protection functions. Please install and operate in strict accordance with
the requirements of the manual, and keep this manual properly.
This product should be installed, operated and maintained by professionals, and comply with the
following requirements:
➢Please ensure that the input and output of the connected product conform to the nominal rated
working voltage value of the product.
➢Please make sure that the cable between the product and the inverter is as short as possible.
➢Please ensure that the polarity connections of the DC load and inverter are correct and reliable.
➢Non-electrical professionals should not open the case.
➢The product is not designed to be used in any life-sustaining equipment.
Warning: Pay attention to fire prevention, only suitable for installation on non-flammable surfaces.
Before checking, maintaining or replacing this product, please disconnect all batteries first, and do
not operate with power.
Disclaimer: Due to the continuous update and improvement of products and technologies, the
content in this document may not completely match the actual product, please understand. For
product updates, please contact your sales or TBB Power.
MADE IN CHINA

Energy Hub User Manual
Content
1. Safety Precautions..................................................................................................................... 1
2. Product Introduction................................................................................................................... 2
3. External Interface Description.................................................................................................... 3
4. Product Installation..................................................................................................................... 5
5. Operation ................................................................................................................................. 10
6. Storage and Transportation ..................................................................................................... 14
7. Compatible Products................................................................................................................ 15
8. FAQ.......................................................................................................................................... 18
9. Specification............................................................................................................................. 20

Energy Hub User Manual
1
1. Safety Precautions
During product installation, operation, and maintenance, electrical safety regulations and related
operating procedures must be observed, otherwise it may cause personal injury or product damage.
The safety precautions mentioned in the manual are only a supplement to the safety regulations.
The manufacturer does not assume any responsibility caused by violation of general safety
operation requirements or violation of safety standards for design, production and use of
equipment.
Please ensure the following before use:
➢Lithium batteries should be kept away from water, dust and pollution sources. Please install the
lithium battery in a well-ventilated environment.
➢Ensure that the positive (+) and negative (-) polarities of the lithium battery and the charging
and discharging equipment are correctly connected.
➢Ensure that all cables have good electrical characteristics and suitable wire diameter.
➢Avoid direct sunlight.
➢Do not connect the DC output with lithium batteries in parallel.
➢Do not short-circuit the lithium battery output interface.
Especially keep these rules:
➢Do not expose the Energy Hub to water or fire for risk of electrocution or explosion.
➢Do not push any objects into the hub or crush the unit in any way.
➢Do not open the Hub without prior permission.
➢During use, when the system needs to be moved or rewired, the power must be completely cut
off and the system must be completely shut down, otherwise there will be a risk of electric
shock.
➢In order to avoid fire and electric shock, it is forbidden to use damaged or too small cables.
General actions to be taken by the user if these dangers occur:
➢When the electrolyte of the lithium battery leaks, it is necessary to prevent the electrolyte from
contacting the skin or eyes; if it has been in contact, please wash it with water in time and seek
medical attention as soon as possible.
➢When encountering a fire, please use a dry powder fire extinguisher to extinguish the fire. The
use of a liquid fire extinguisher may cause secondary hazards.
Disposal or recycle
Disposal and recycling of lithium batteries should comply with local, state, and
federal laws and regulations. Mixed treatment with other (industrial) waste is
prohibited.

Energy Hub User Manual
2
2. Product Introduction
Energy Hub is a lithium battery energy storage system with built-in in-vehicle charging, and can be
connected to an inverter, DC load, MEH display unit, WIFI/GPRS module, etc. The main features
are as follows:
➢Lightweight and Compact
Unlike traditional systems consisted of lead acid batteries and individual products, Energy Hub
features integrated design with high performance lithium battery which keeps the overall weight
below 20kg and meantime with a much smaller footprint. Designed with concept of plug and play,
the installation time of Energy Hub can be dramatically reduced.
➢Professional Lithium Battery
Energy Hub adopts lithium battery technology featuring 5 times more life expectancy compared with
lead acid battery. To assure the best performance, sophisticated BMS has been designed
integrating many unique features.
⚫High discharge current
⚫Built in precise shunt for battery SoC calculation
⚫Built in heating element for lithium battery, will automatically heat the lithium battery cell at low
temperature to assure the safe charging during winter, but only upon external charging
resources detected
⚫Built in energy management to protect the battery from deep discharge
➢Booster Charger
With powerful Euro 6 compatible booster charger built in, battery can fully charge the battery within
2 hours while driving to assure the energy.
➢Mobile and Cloud monitoring

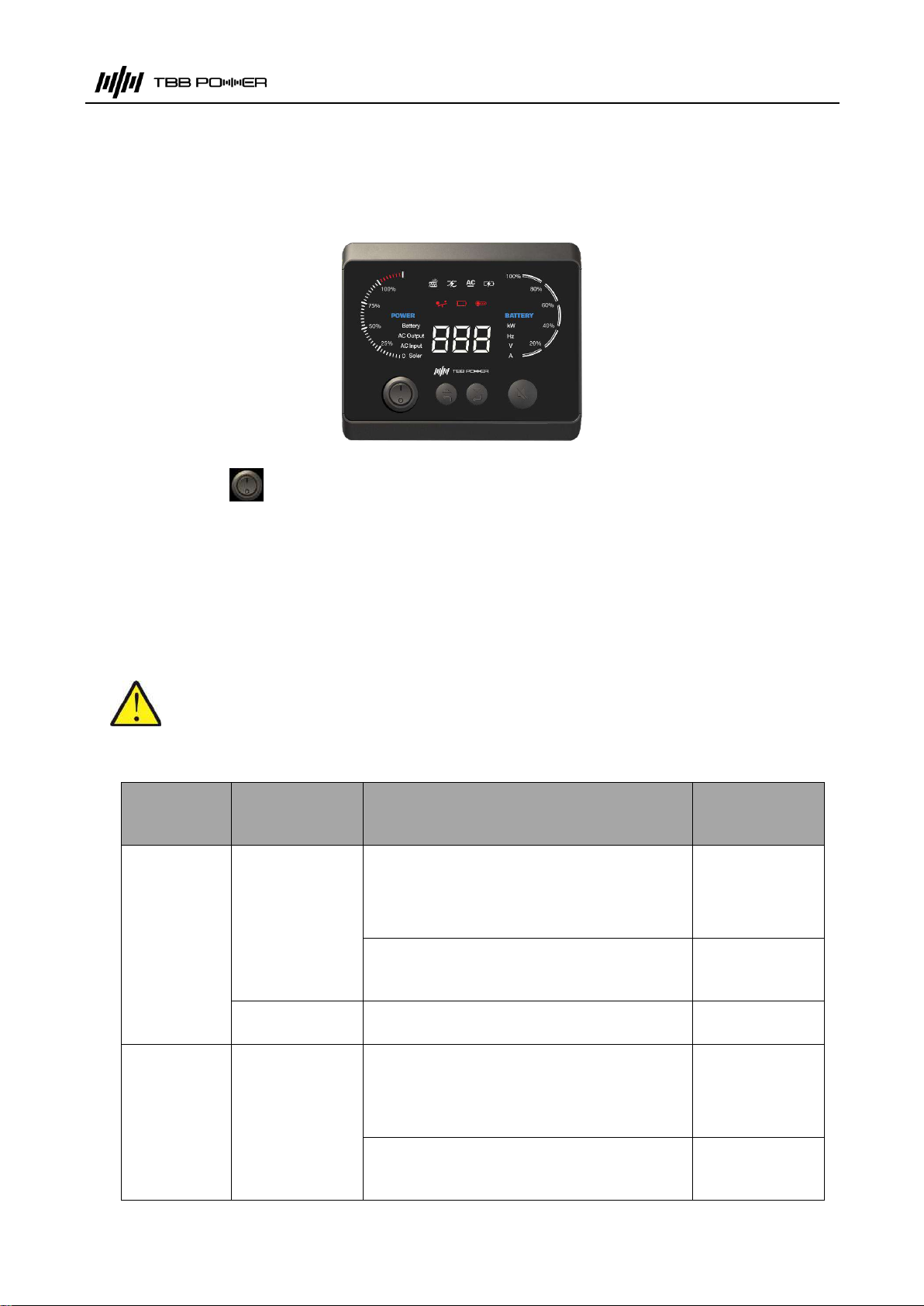

User can see multiple data via MEH panel. The built in Bluetooth of MEH panel supports app from
mobile phone as well. With additional 4G data stick, fleet management can be achieved remotely
via cloud.

Energy Hub User Manual
3

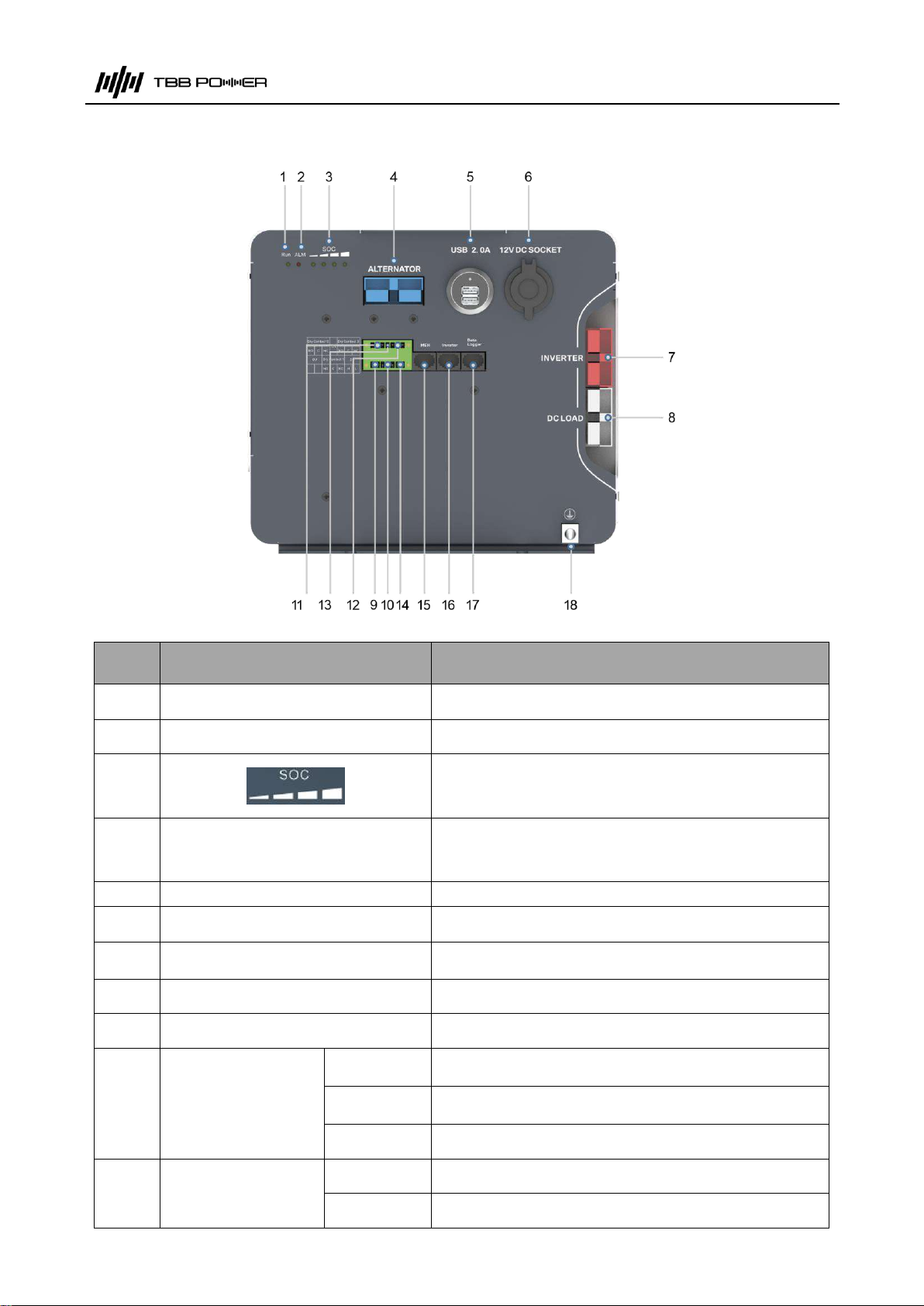

3. External Interface Description
NO.
Silk screen
Definition
1
Run
System running indicator
2
ALM
Fault indicator
3
SOC indicator
4
ALTERNATOR
Alternator input interface
5
USB 2.0A
2.0A USB port
6
12V DC SOCKET
12V DC socket
7
INVERTER
Inverter DC interface
8
DC LOAD
DC load interface
9
0V
Negative pole of system
10
Dry Contact 1
NO
Relay output normally open contact
C
Neutral point of relay output
NC
Relay output normally closed contact
11
Dry Contact 2
NO
Relay output normally open contact
C
Neutral point of relay output

Energy Hub User Manual
4
Definition of Indicator Light
Battery
Status
SOC
LED1
LED2
LED3
LED4
ALM
RUN
Shutdown
Off
Off
Off
Off
Off
Off
Start-up
resting
75%≤SOC≤100%
On
On
On
On
Flashes on
fault, does
not light up
when
normal, see
section 8 for
details
Blink 1
50%≤SOC＜75%
On
On
On
Off
Blink 1
25%≤SOC＜50%
On
On
Off
Off
Blink 1
0%＜SOC＜25%
On
Off
Off
Off
Blink 1
SOC=0
Off
Off
Off
Off
Blink 1
Battery
charging
SOC=100%
On
On
On
On
On
75%≤SOC＜100%
On
On
On
Blink 2
On
50%≤SOC＜75%
On
On
Blink 2
Off
On
25%≤SOC＜50%
On
Blink 2
Off
Off
On
0%≤SOC＜25%
Blink 2
Off
Off
Off
On
Battery
discharging
75%≤SOC≤100%
On
On
On
On
Blink 3
50%≤SOC＜75%
On
On
On
Off
Blink 3
25%≤SOC＜50%
On
On
Off
Off
Blink 3
0%＜SOC＜25%
On
Off
Off
Off
Blink 3
SOC=0
Off
Off
Off
Off
Blink 3
Note:
Blink 1: light 0.25S, off 3.75S
Blink 2: light 0.5S, off 0.5S
Blink 3: light 0.5S, off 1.5S
NC
Relay output normally closed contact
12
Dry Contact 3
NO
Relay output normally open contact
C
Neutral point of relay output
NC
Relay output normally closed contact
13
12V
Positive pole of system
14
D+
H
D+ signal interface, active high
L
D+ signal interface, active low
15
MEH
MEH interface
16
Inverter
Inverter communication interface
17
Data Logger
WIFI/GPRS data collector interface
18
Grounded

Energy Hub User Manual
5
4. Product Installation
Step 1: Wire Harness Preparation
If you have only purchased the following accessories(Standard accessory package), the harnesses
need to be prepared by yourself.
Category
Connection
port
Connector plugs
Recommended cable specifications
Polarity
Wire diameter
Length
Color
Standard
Alternator
interface
（Blue）
See the table below for details
Inverter
Interface
（Red）
See the table below for details
DC load
interface
（Gray）
See the table below for details
Connector
plugs
Connector pin*6
--
IGN signal
D+
0.3~1 .5mm2
＜9m
Dry contact 1
NO/C/NC
0.3~1.5 mm2
＜9m
Dry contact 2
NO/C/NC
0.3~1.5 mm2
＜9m
Dry contact 3
NO/C/NC
0.3~1 .5mm2
＜9m
For fixing
Energy Hub
M8 bolt*4
--
MEH
communication
interface
MEH comes standard with 5m Network cable

Energy Hub User Manual
6
Inverter
communication
interface
Coming standard with 2.3m Network cable
RJ45 Adaptor
--
Optional
Wireless
module
communication
interface
--
--
Network cable
＜5m
--

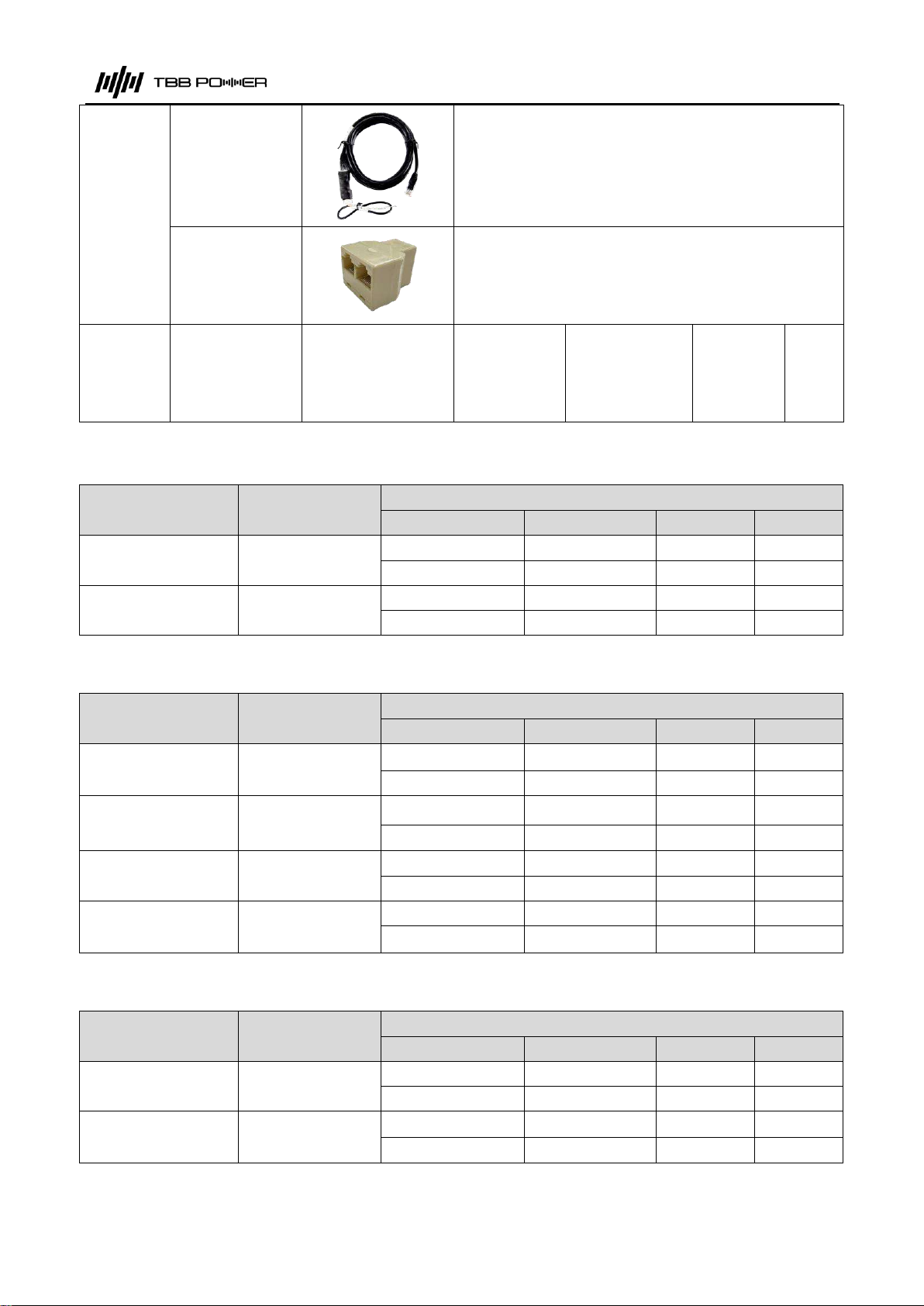

Alternator wire preparation
Inverter wire preparation
DC load wire preparation
Alternator
Max DC current
Recommended Cable Size
Polarity
Wire diameter
Length
Color
EH128L
60A
Positive pole
16~25mm2
＜3m
Red
Negative pole
16~25mm2
＜3m
Black
EH70L
30A
Positive pole
6~10mm2
＜3m
Red
Negative pole
6~10mm2
＜3m
Black
Inverter power
Max DC current
Recommended Cable Size
Polarity
Wire diameter
Length
Color
700W
70A
Positive pole
16~25mm2
＜3m
Red
Negative pole
16~25mm2
＜3m
Black
1000W
100A
Positive pole
25~35mm2
＜3m
Red
Negative pole
25~35mm2
＜3m
Black
1500W
150A
Positive pole
35~50mm2
＜3m
Red
Negative pole
35~50mm2
＜3m
Black
2000W
200A
Positive pole
35~50mm2
＜3m
Red
Negative pole
35~50mm2
＜3m
Black
DC load
Max DC current
Recommended Cable Size
Polarity
Wire diameter
Length
Color
EH128L
120A
Positive pole
25~35mm2
＜3m
Red
Negative pole
25~35mm2
＜3m
Black
EH70L
55A
Positive pole
16~25mm2
＜3m
Red
Negative pole
16~25mm2
＜3m
Black

Energy Hub User Manual
7

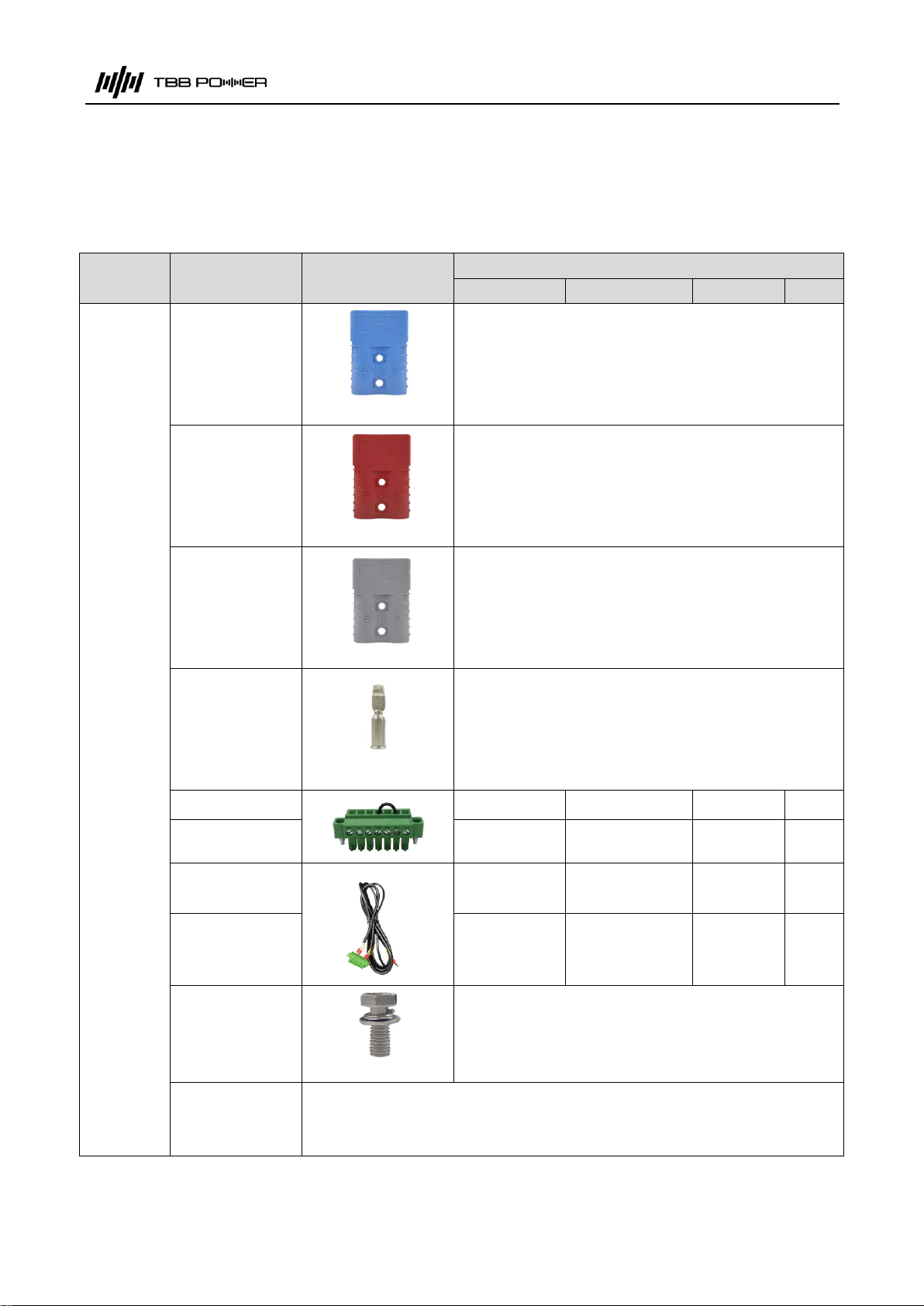

If you purchase the optional Wire Harness package, the following accessories will be supplied.
Category
Port
Connector plugs
Configuration
Standard
Alternator
interface
ANEN
ANNENG CONNECTOR
Blue
Inverter
Interface
ANEN
ANNENG CONNECTOR
Red
DC load
interface
ANEN
ANNENG CONNECTOR
Gray

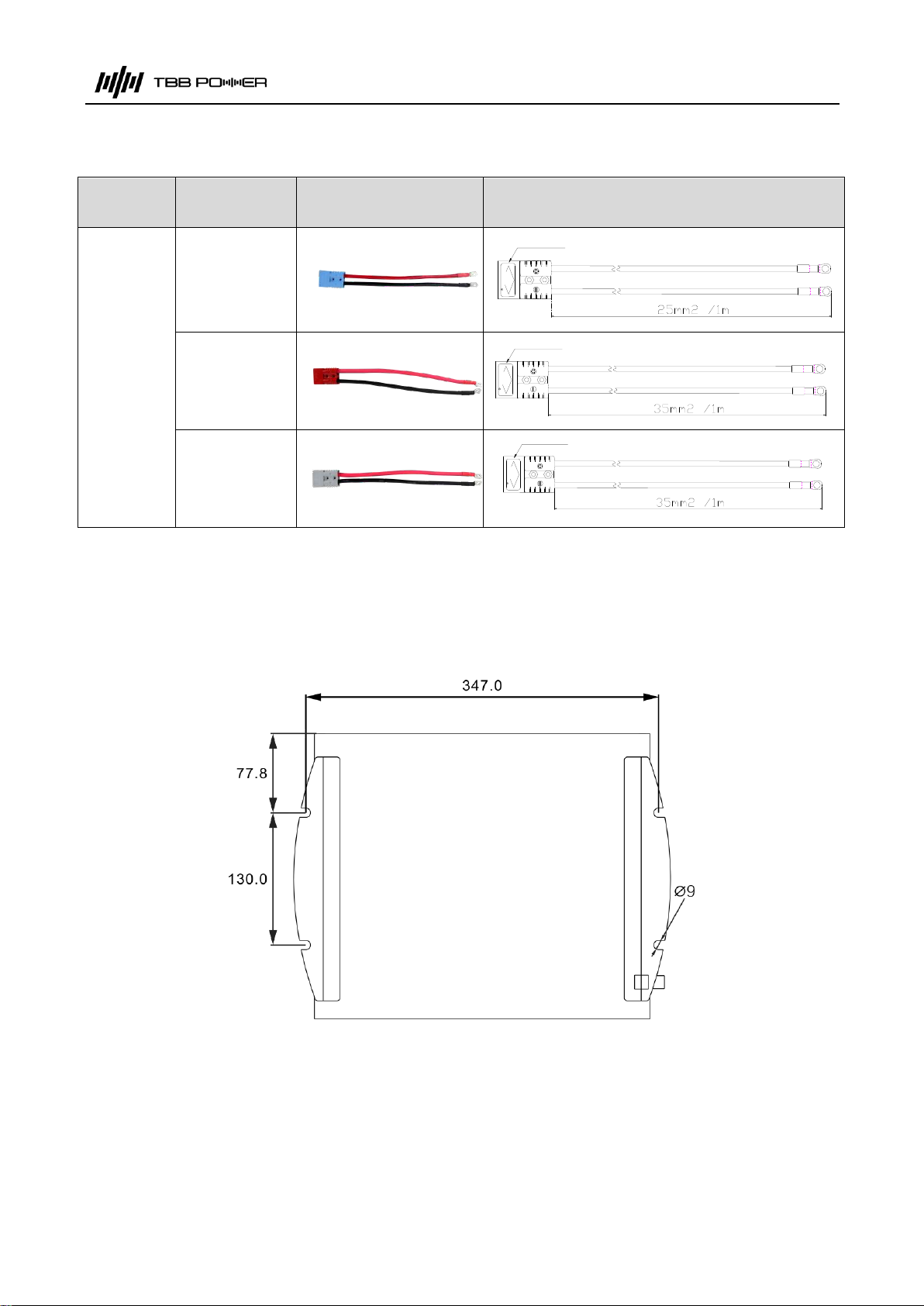

Step 2: Positioning and Perforation
Please select a plane and drill holes according to the installation positioning requirements in figure
below.
Attention：
➢The product protection grade is IP21, and it is only allowed to be installed indoors.
➢Please ensure that the mounting surface is strong enough to ensure reliable installation.
➢Do not install near flammable and explosive materials.
➢Do not install it where children can reach.

Energy Hub User Manual
8
➢Do not install on flammable building materials.

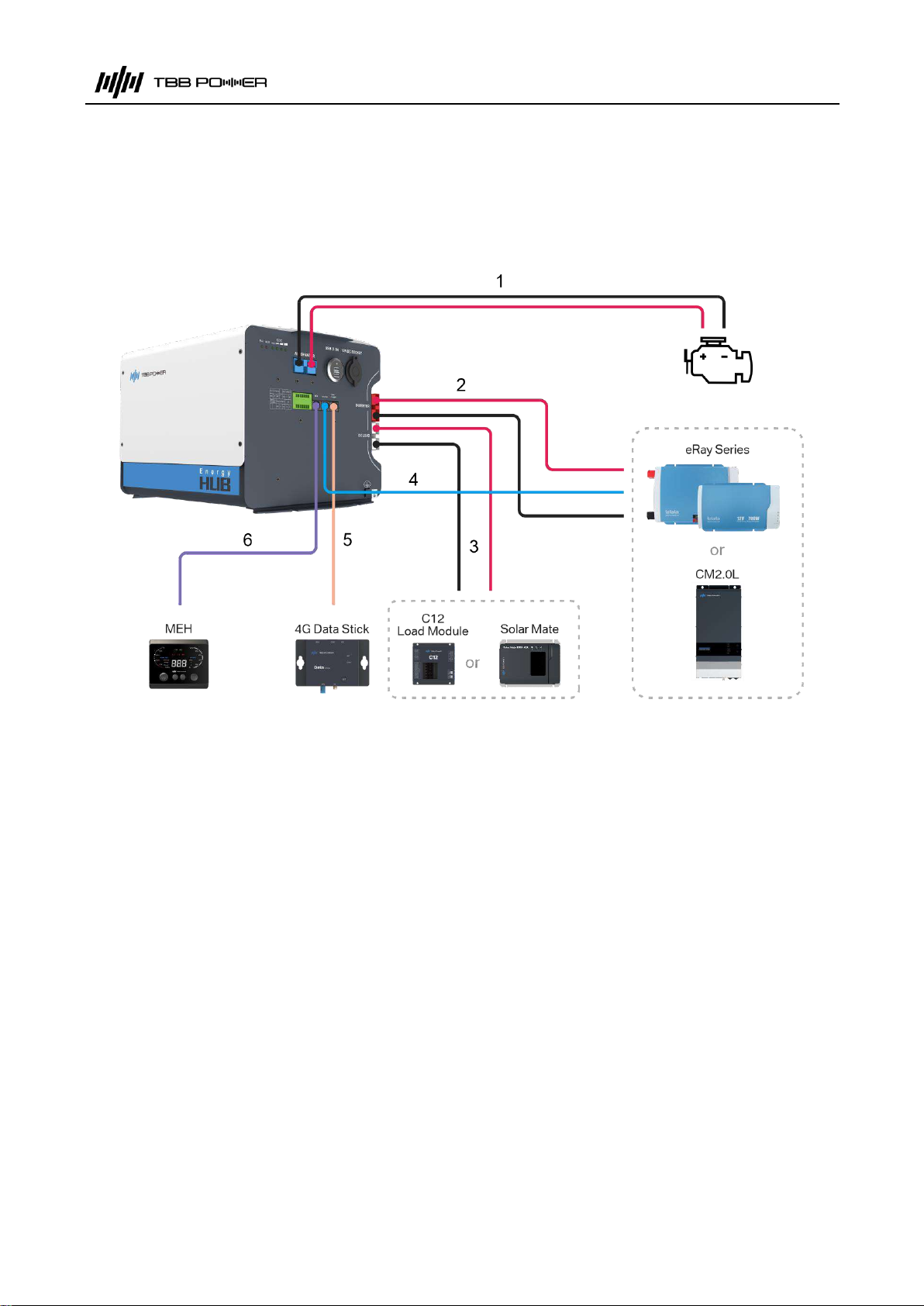

Step 3: Wiring the system
Please make sure that the positive and negative polarity connections are correct and reliable.
1. Please connect one end of the prepared wire to the generator and the other end to the
ALTERNATOR interface of the Energy Hub with an Anderson connector.
2. Please connect one end of the prepared wire to the inverter and the other end to the
INVERTER interface of the Energy Hub with an Anderson connector.
3. Please connect one end of the prepared wire to the C12 load module and the other end to the
DC LOAD interface of Energy Hub with an Anderson connector. And please connect your DC

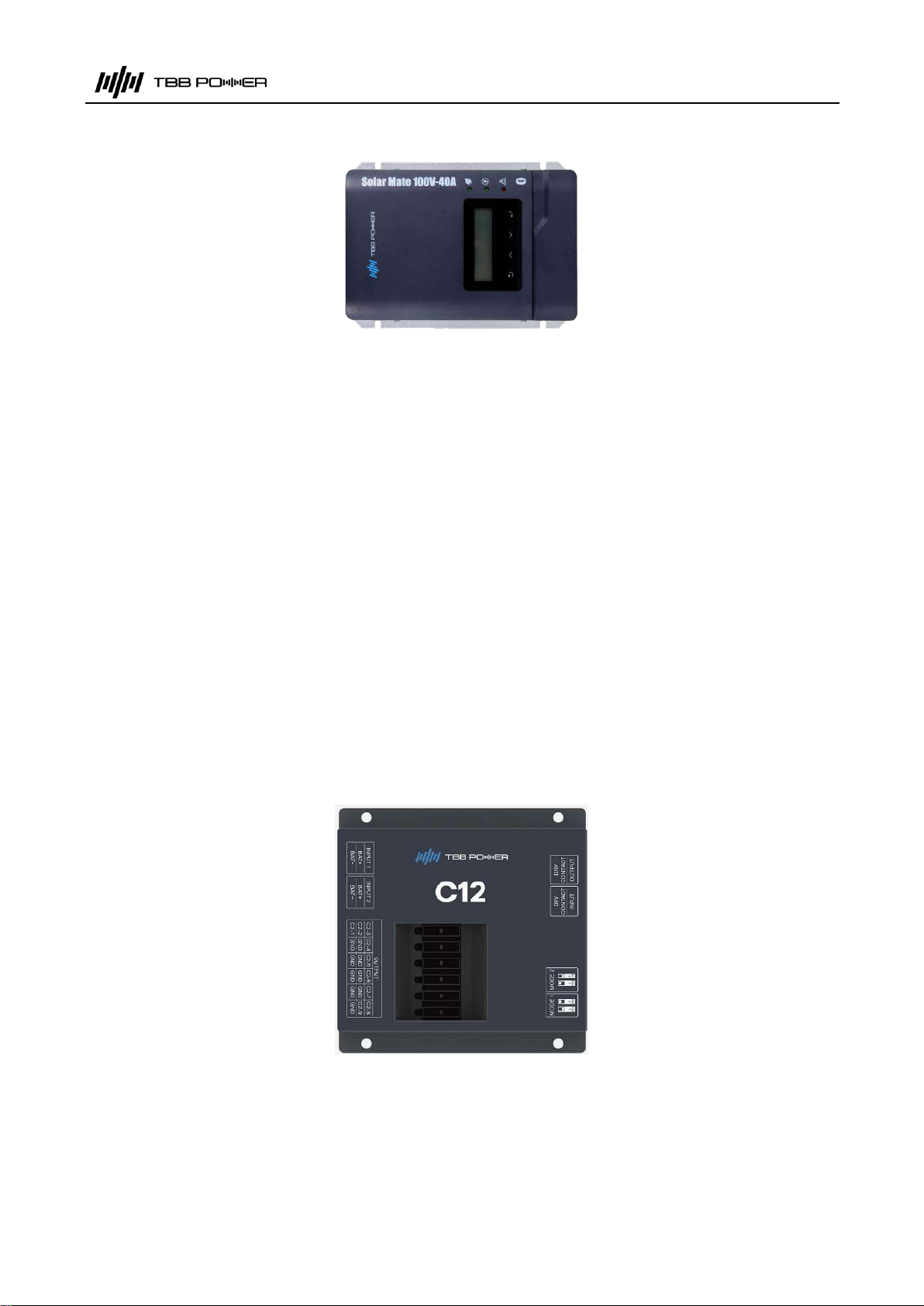

load to the C12 load module. If you have purchased our Solar Mate, please connect the BAT+
and BAT- of the Solar Mate to the DC LOAD interface of the Energy Hub.
4. Please connect one end of the prepared network cable to the RS485 interface of the inverter
and the other end to the Inverter interface of the Energy Hub. If you have purchased our Solar
Mate, please use the RJ45 adapter to connect the RS485 port of the Solar Mate and the RS485
port of the inverter to the Inverter interface of the Energy Hub at the same time. Attached is the
IH RS485 port wiring diagram:

Energy Hub User Manual
9
5. Please connect one end of the prepared network cable to the 4G data stick or A7 touch screen,
and the other end to the Data Logger interface of the Energy Hub.
6. Please connect one end of the prepared network cable to the MEH and the other end to the
MEH interface of the Energy Hub.

Energy Hub User Manual
10
5. Operation
1) Use MEH to turn on/off the system
The rocker switch on the MEH can be used to turn the system on and off.
Press Ito turn on, press Oto turn off.
Note: After the switch is turned on, the Run, ALM, and SOC lights will flash in turn. After about 8s,
the system will have DC output and MEH will start to work.
2) D+ function
When the vehicle is fitted with smart alternator, please connect the D+ to alternator
control signal or ignition signal, otherwise the charger works in traditional alternator
mode.
D+ signal control logic
Generator
Type
D+ signal
status
Starting battery voltage conditions
Working
Status
Smart
Generators
With D+ signal
Start battery voltage ≥12V (default)
(12~14.5V can be set)
Working range：12~16V(default)
Running
Start battery voltage ≤11.6V (default)
(11.6~13.5V can be set)
Stop operation
No D+ signal
Irrelevant
Stop operation
Traditional
Generators
No D+ signal
Start battery voltage ≥13.2V (default)
(12~14.5V can be set)
Working range：13.2~16V(default)
Running
Start battery voltage ≤12.8V (default)
(11.6~13.5V can be set)
Stop operation

Energy Hub User Manual
11
3) Dry contact output function
➢Dry contact 1
The default setting of SOC ≤5% (5%~50% can be set) will activate the output relay dry contact for
starting the engine.
＝100% (10%~100% can be set) will break the relay output dry contact.
Wiring instructions：
1. The output dry contact Cinterface is connected to the negative terminal of the DC load or the
negative terminal of the inverter
2. Output dry contact NO interface is connected to Engine Start controller
➢Dry contact 2

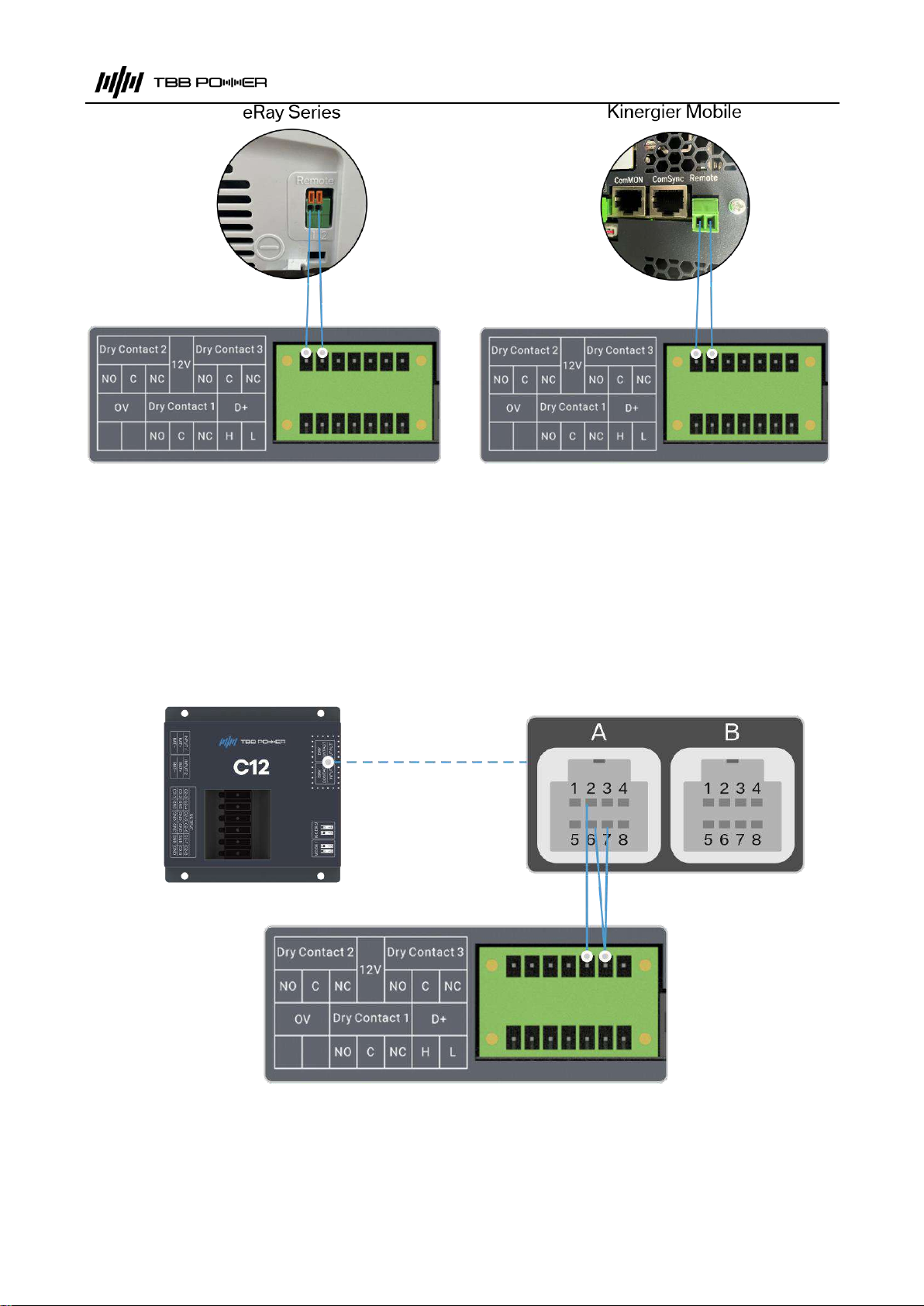

When the dry contact 2 connect to the remote of inverter, it will control the inverter power on or off. If
the system is turned off，the inverter will be closed via Dry contact2. If the system is turned on
and SOC ≥5%(5%~50% can be set)，the inverter will be turned on via Dry Contact2, SOC≤0%
(0%~45% can be set, the SOC of inverter is turned on≥the SOC of inverter is turned off +5%) , the
inverter will be turned off via Dry Contact2.

Energy Hub User Manual
12
OR
➢Dry contact 3
When the dry contact 3 connect to the DRY CONTACT of C12, it will control the output of C12. If the
system is turned off，the output of C12 will be closed via Dry contact3. If the system is turned on
and SOC ≥5% (5%~50% can be set), the output of C12 will be turned on via Dry Contact3, SOC≤
0% (0%~45% can be set, SOC of the C12 output is turned on≥SOC of the C12 output is turned off
+5%) , the output of C12 will be turned off via Dry Contact3.
4) Regular inspections
In order for the BMS to calculate the SOC of lithium battery more accurately and eliminate the
cumulative error of SOC, it is recommended to complete a full discharge (discharge to 0% SOC)
and a full charge (charge to 100% SOC) every 3 months.

Energy Hub User Manual
13
5) Charge Only function
Switch on MEH to O, when the system is turned off, the lithium battery can be charged by the
Alternator /Solar / Grid. The system only allows charging and prohibits discharging. The system
switches off the inverter and DC load via Dry Contact2 and Dry Contact3. Features as below:
➢When the Alternator input voltage meets the operating conditions of the internal booster
charger, the internal booster charger turns on the charging output, charging activates the
wake-up system and charges the Hub. When charging to SOC 100%, the system will stop
charging and turn off the lithium battery, and the system will all automatically power down.
➢When the Solar input voltage meets the Solar Mate operating conditions, the Solar Mate is
powered up to detect the status of the battery side：
a) When the system is switched off and other charging sources are not working, the Solar
Mate has to wait 5min before the output starts, the charging activation wakes up the system
and charges the Hub; if the Solar is underpowered, the first time causes the Solar Mate
output to be pulled down, the second and subsequent times the Solar Mate has to wait
another 20min before the output can be switched on again to start the system.
b) When other charging sources are charging the Hub, the SP starts outputting to charge the
Hub after 30s of power-up self-test.
➢When the Grid meets the CM operating conditions, the CM will turn on the charge output after
30s of power-up self-test, charge activation wakes up the system and charges the Hub.
6) Use the Hub in a low temperature environment
➢When the cell temperature is ≤2℃, the user cannot directly charge the Hub. In the low
temperature environment, when the internal charger is turned on, the Hub will automatically
turn on the heating function. After the built-in lithium battery is heated to 5℃, the Hub can be
charged normally.
➢When the ambient temperature is lower than -20°C, the Hub cannot be discharged and a low
temperature fault alarm will be reported. The user can via the internal charger to heat the
built-in battery before starting to discharge it.
➢At low temperatures, the battery discharge capacity decays by 10% to 30%. The lower the am
bient temperature, the more the discharging capacity decays.

Energy Hub User Manual
14
6. Storage and Transportation
Storage
Please follow the storage instructions in this manual to increase the service life of the lithium battery
during storage. If you do not follow the storage instructions in this chapter for storage, the lithium
battery may be over-discharged and damaged. If the inspection reveals that the lithium battery is
damaged, please do not try to charge or use it.
Environmental conditions for storage: Keep away from water, dust and pollution sources, with good
ventilation The self-discharge rate of lithium battery during storage is less than 3% per month.
Be sure to store it in the power OFF state!
Note:
➢Before storing the lithium battery, please charge the battery to 100% SOC.
➢Please disconnect all loads and chargers connected to the Energy Hub.
➢Please turn the rocker switch to the OFF position to turn off the system.
➢Every 3 months, please charge the battery to 100% SOC; after charging is completed, please
turn off the lithium battery.
Transportation
The product has a built-in lithium battery. Before transporting lithium batteries, please check all local,
national and international applicable laws and regulations.
In some cases, the transportation of scrapped, damaged or recalled lithium batteries may be
specifically restricted or prohibited.
Lithium battery transportation belongs to the ninth category of dangerous goods in the UN3841
standard.

Energy Hub User Manual
15
7. Compatible Products
1) MEH
MEH can be used as a display unit of the Energy Hub system, with the following functions:
➢Displays battery SOC, Voltage, Current.
➢Inverter output data: Voltage, Current, Power.
➢Solar data: PV voltage, Output current, Output power.
➢Switch on/off Energy Hub and the Inverter
➢With Bluetooth connectivity to support mobile APP
2) 4G data stick
Available with 4G version, wireless data logger is on external communication device which can
connect Energy Hub to cloud. It offers a convenient way to monitor the system performance
remotely.

Energy Hub User Manual
16
3) Inverter
EH128L
EH70L
eRay Series
IH1500L/IH2000L
IH700L/IH1000L
Kinergier Mobile
CM2.0L
/
➢eRay Series –Pure Sine Wave Inverter
IH inverter series can be used to power AC loads such as microwave and power tools.
➢Kinergier Mobile bi-directional inverter
Kinergier Mobile bi-directional inverter is the new generation of bi-directional inverter, which is
widely used in vehicle and marine systems. Features as below:
➢CM2.0L 2kW combi can be used
➢Fully recharges from grid within one hour
➢Powers any heavy duty inductive load such as air compressor, electric saw etc.
IH700L/IH1000L
IH1500L/IH2000L
000
CM2.0L

Energy Hub User Manual
17
4) Solar Mate
Solar Mate is a solar charge controller with built in Maximum Power Point Tracking (MPPT)
technology, which can optimize the PV’s output eliminate the fluctuation due to shading or
temperatures variables. It tracked the maximum power point of a PV array to deliver the maximum
charging current for battery, enabling PV array to increase the output by as much as 30% compared
with PWM design.
➢Maximum MPPT efficiency up to 99.9%.
➢Maximum efficiency up to 98.2%.
➢Excellent performance at sunrise and low solar insulation levels.
➢High reliability with electronic protections.
➢Wide MPPT operating voltage range.
➢Easy installation and commissioning.
➢Self cooling design for high reliability.
5) C12 Load Module
C12 Load Module is a power distribution module. Features as below:
➢Rated current is 80A.
➢Support 12-18 outputs, via three relays.
➢Dry contact input control to cut off loads at different voltage or SOC.
Solar Mate
C12 Load Module
