TCM FX CO2 Gun Operator's manual

User documentation The Confetti Maker FX Ⓡ
TCMFX CO2 Gun
Article : TCMFX CO2 Gun
Product Code : TCM356
Version : 1.0
Date : 18-07-2017

User documentation The Confetti Maker FX Ⓡ
Foreword
Thank you for purchasing the TCMFX CO2 Gun.
The Confetti Maker is manufacturer of biodegradable, colorfast and fireproof confetti
products and special effects.
The products we manufacture are used for various events, such as concerts, opening
ceremonies, sporting events and theater show productions. With our products your party
is guaranteed to be a great success.
“We create experiences”
This manual describes the TCMFX CO2 Gun.
All information in this manual is important for the safe and proper functioning of the
TCMFX CO2 Gun.
Please read the manual carefully if you are not familiar with this device.
The Confetti Maker wishes you lots of fun with your purchase!
© Copyright 2017 the Confetti Maker FX®. This manual and its content is copyright of
the Confetti Maker FX®. All rights Reserved.
No part of this manual may be reproduced or transmitted in any form or by any means
including photocopying and recording without the written permission of the copyright
holder.
The Confetti Maker Reserves the right to make any changes without direct knowledge of
the customer.
Please contact your supplier for additional information regarding maintenance and
repair.
This user manual has been written with care and attention to detail; however, should you
find any errors or omissions, please contact your supplier and inform them of your
findings.
Please be aware that The Confetti Maker FX® shall not be held liable by the user for any
damages, losses or third party claims arising from any uses of this product.

User documentation The Confetti Maker FX Ⓡ
General Safety
WARNING!
Read the manual carefully before using the TCMFX CO2 Gun.
The Confetti Maker ® is not liable for injury, damage and / or excessive wear
resulting from improper maintenance, improper use or modifications to the
device.
If you have any questions, issues or problems that do not get discussed in this
guide, please tell your supervisor or call/e-mail the technical support from
The Confetti Maker®.
TCMFX CO2 Gun and the manual may not be modified without permission of
The Confetti Maker®.
In case of damage or problems, always consult The Confetti Maker® as soon as
possible.
DECLARATION OF CONFORMITY
Manufacturer : The Confetti Maker
Product : TCMFX CO2 Gun
We declare that the above products meet the following European directives
and standards:
- Low Voltage Directive 2006/42/EC
- EMC Directive 2004/108/EC
- RoHS Directive 2002/95/EC
Year of Manufacturing: 2017
Name: The Confetti Maker
Place: Rotterdam
Date: 11-07-2017
Director: H. S. Maikoe

User documentation The Confetti Maker FX Ⓡ
Specifications
Input : CO2
Output : 8m CO2
Weight : 2Kg
Size : 8 x 12.5 x 10cm (L x B x H)
Ideal environmental values
Temperature : 0 – 45 ◦c
Humidity : max. 75%
Keep away from:
- Dust
- Corrosive gasses
- High concentrations of organic gasses.

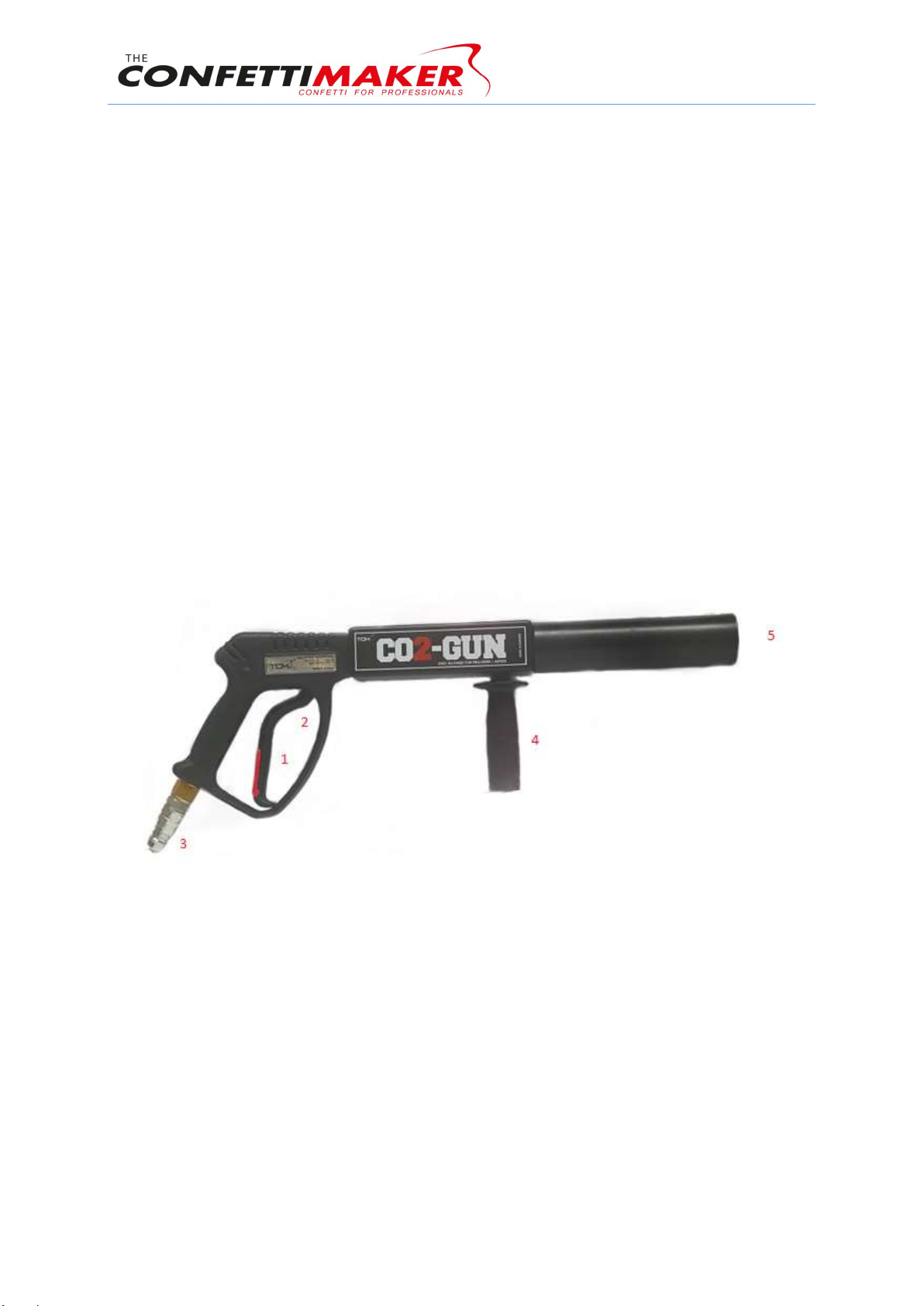

Parts
1. Safety
2. Handle
3. Input (Hose Quick Connect)
4. Handle
5. CO2 Output

User documentation The Confetti Maker FX Ⓡ
CO2
The CO2 Gun can be connected with different types of gas bottles.
With the 22,5kg bottle you can shoot up to 60seconds.
With the 37,5kg bottle you can shoot up to 90seconds.
Accessories
The CO2 Gun is provided with Co2 through a hose that is connected to a gas
cylinder.
The CO2 hoses are for sale and rent in various lengths.
- 5m
- 10m
- 15m
CO2 Hose
Quick Connector

User documentation The Confetti Maker FX Ⓡ
Installing
Connect the CO2 Hose tot the input of the Co2
Gun as shown in the pictures.
Connect the other end of the hose to the gas cylinder.

User documentation The Confetti Maker FX Ⓡ
Open the CO2 bottle by turning the knob to the open side
and make sure it is completely opened.
The CO2 Gun is now ready for use. Pull the handle
to fire.
Turn the safety catch downward to lock the
handle after use.
Disconnecting
After using the CO2 Gun close the valve and shoot the remaining CO2. Disconnect the
hose from the bottle and CO2 Gun and turn the safety catch downward.

User documentation The Confetti Maker FX Ⓡ
Warranty
The CO2 Gun has a 3 year warranty which will be void if the CO2 Gun is handled
differently than described in this manual.
The warranty is void when the CO2 Gun has been opened by anyone other than the
Confetti Maker.
The Confetti maker is not responsible for any paint or hardware damaged as a result
of rough handling.
CAUTION! Always contact your supplier in case of malfunctions.
Never try to repair the CO2 Gun yourself.
WARNING
READ THIS DOCUMENT BEFORE INSTALLING OR USING CO2 GUN
IMPROPER SELECTION, IMPROPER USE, USE BY ANYONE OTHER THAN TRAINED
USERS HAVING APPROPRIATE TECHNIAL EXPERTISE OF THE CO2 GUN CAN
CAUSE DAMAGE TO EQUIPMENT OR PROPERTY.
This document and other information from the CO2 Gun , its subsidiaries and authorized distributors
together only provide product installation guidelines and product or system usage options, each of
which are intended to operate in conjunction with further investigation by trained users having
appropriate technical expertise to facilitate the safe handling and use of the CO2 Gun.
The CO2 Gun is not intended to be used or handled by any users other tan trained users having
appropriate technical expertise. The information and documentation contained in our catalog and on
the website, www.theconfettimaker.com, is only provided for technical illustration purposes only and
may not be used or relied upon as a statement of suitability for use in any particular application. Users,
through their own analysis and testing, are solely responsible for assuring that the CO2 Gun is used in
a safe and intended manner with all performance, endurance, maintenance, safety and warning
requirements necessary for safe application being met.
