TDC USA WS-Q-03 User manual

ELECTRIC FIREPLACE WITH MANTEL
MODEL WS-Q-03
OWNERS MANUAL
Only use this heater as described in this manual. Any other use is not
recommended by the manufacturer, and may cause fire,electric shock, or
other personal injury.
WARNING! Read and understand this entire owner’s manual, including all
safety information, before plugging in or using this product. Failure to do
so could result in fire, electric shock, serious personal injury, or death.
WARNING! INDOOR use only! NEVER use this heater outdoors!
SAVE THESE INSTRUCTIONS!
CAUTION! Keep this owner’s manual for future reference. If you sell or give
this product away, make sure this manual accompanies this product.
NO VENTING REQUIRED
Power: 110 ~ 120V AC, 60 Hz
Maximum Heat: 1,500 WATTS
253158

2
IMPORTANT SAFETY INFORMATION!
WARNING
ALWAYS keep electric cords,home furnishings,drapes,clothing,papers, or
other combustibles at least 3 feet (0.9m) away from the front of this heater,
and away from the bottom, sides, and rear of this heater.
ALWAYS attach the feet before using! NEVER plug in or operate this unit if the
feet are not securely attached!
DO NOT place the heater near a bed because objects such as pillows or
blankets can fall off the bed and be ignited by the heater.
DO NOT COVER this heater or block the air vents. Doing so could cause a fire.
AVOID fire or electric shock! NEVER insert or allow any foreign objects to enter
the ventilation or exhaust openings of this heater.
Prevent Fire! Keep all flammable liquids, like gasoline or paint, away from this
heater. This heater produces arcing sparks that could ignite flammable liquids.
DO NOT cover this heater in any manner. Doing so could block the air flow and
cause the unit to overheat, or could ignite the material covering the heater.
NEVER run the power cord under carpet, rugs, runners, or any other covering.
Doing so could cause the cord or materials covering the cord to overheat.
AVOID FIRE! Regularly inspect all air vents to make sure they are free from dust,
lint, or other blockage. Unplug the unit and clean with a vacuum ONLY.DO
NOT rinse or get wet.
WARNING
For residential use only! NOT for commercial use! NEVER use this fireplace
for other than its intended purpose.
Use extreme caution if using this heater near children, or where children may
be present.
NEVER leave this heater unattended. ALWAYS unplug this heater when not in
use.
This heater is hot when in use.AVOID INJURY! DO NOT TOUCH hot
surfaces, or attempt to move this heater while it is hot.
ALWAYS turn this heater off before unplugging it from the outlet.
AVOID INJURY! Keep the cord from crossing traffic areas to avoid tripping.
NEVER modify this fireplace. Doing so could result in personal injury or
property damage. Modification of this fireplace completely voids all warranties.
Discontinue use if this fireplace malfunctions or is dropped or damaged in
any manner.

3
WARNING
lRisk of electric shock!DO NOT OPEN! No user-serviceable parts inside!
lALWAYS disconnect this unit from the power supply before performing any
assembly or cleaning, or before relocating the electric fireplace.
lALWAYS store this heater in a dry location. NEVER use the fireplace if it has
become wet.
lNEVER use this heater in bathrooms, laundry rooms, or any other location
where the heater could fall into a bathtub or pool,become damp or come in
contact with water.
lNEVER operate this heater if the power cord or plug has become damaged, or
if the grounding pin is damaged or missing.
lPlace the heater near a wall outlet so an extension cord is not needed. If an
extension cord is needed, the gauge of the cord must be at least 16AWG, and
the rating must be at least 1500 Watts.NEVER use a smaller gauge cord with
alower rating. Doing so may result in fire or electric shock.
l
l
ONLY use this heater on a 110~120 Volt 15 Amp grounded circuit.NEVER
overload the circuit. If this heater trips the circuit breaker, unplug all other
appliances on the same circuit before the next use. Avoid plugging other
appliances into the same circuit as this heater.
lNEVER plug this heater into an outlet that is old,cracked, or has any loose
wires or connections. Plugging this heater into a faulty outlet could result in
electric arcing within the outlet and cause the outlet to overheat or catch fire.
lALWAYS check your heater cord and plug connections with each use!
i) MAKE SURE the plug fits tight in the outlet! Faulty wall outlet connections or
loose plugs can cause the outlet to overheat.
ii) Heaters draw more current than small appliances. Overheating may
occur even if it has not occurred with the use of other appliances.
iii) During use check frequently to see if the plug outlet or faceplate is HOT!
iv) If the outlet or faceplate is HOT,discontinue use immediately and have a
qualified electrician inspect and/or replace the faulty outlets.
lThe cord supplied with the heater
has a plug with two blades (live
and neutral) and one round pin
(ground). If a 3-slot receptacle is
not available, an adapter MUST
be used. The adapter MUST be
properly grounded to the outlet
box (see figure at right).
ALWAYS plug this unit directly into a wall outlet. NEVER plug into a surge
protector or multi-outlet tap/adapter.

4
PREPARATION
Remove all parts and hardware from the carton and place them on a clean, soft,
and dry surface.
Make sure all parts are dry, and the power cord and plug are not damaged.
See IMPORTANT SAFETY INFORMATION on pages 2 and 3.
Compare the contents with the parts list to make sure nothing is missing.
Dispose of all packaging materials properly.
Please recycle whenever possible.
TOOLS NEEDED FOR ASSEMBLY
Phillips (“+”) screwdriver (not included)
PARTS AND HARDWARE
Item
Description
Qty
A
Mantel
1
B
Fireplace
1
C
Screws
2
D
Wall anchors
2
C
B
A
D

5
ASSEMBLY INSTRUCTIONS
ALWAYS make sure the unit is plugged before beginning assembly!
NEVER move or clean the heater, or change the bulb, while it is plugged in.

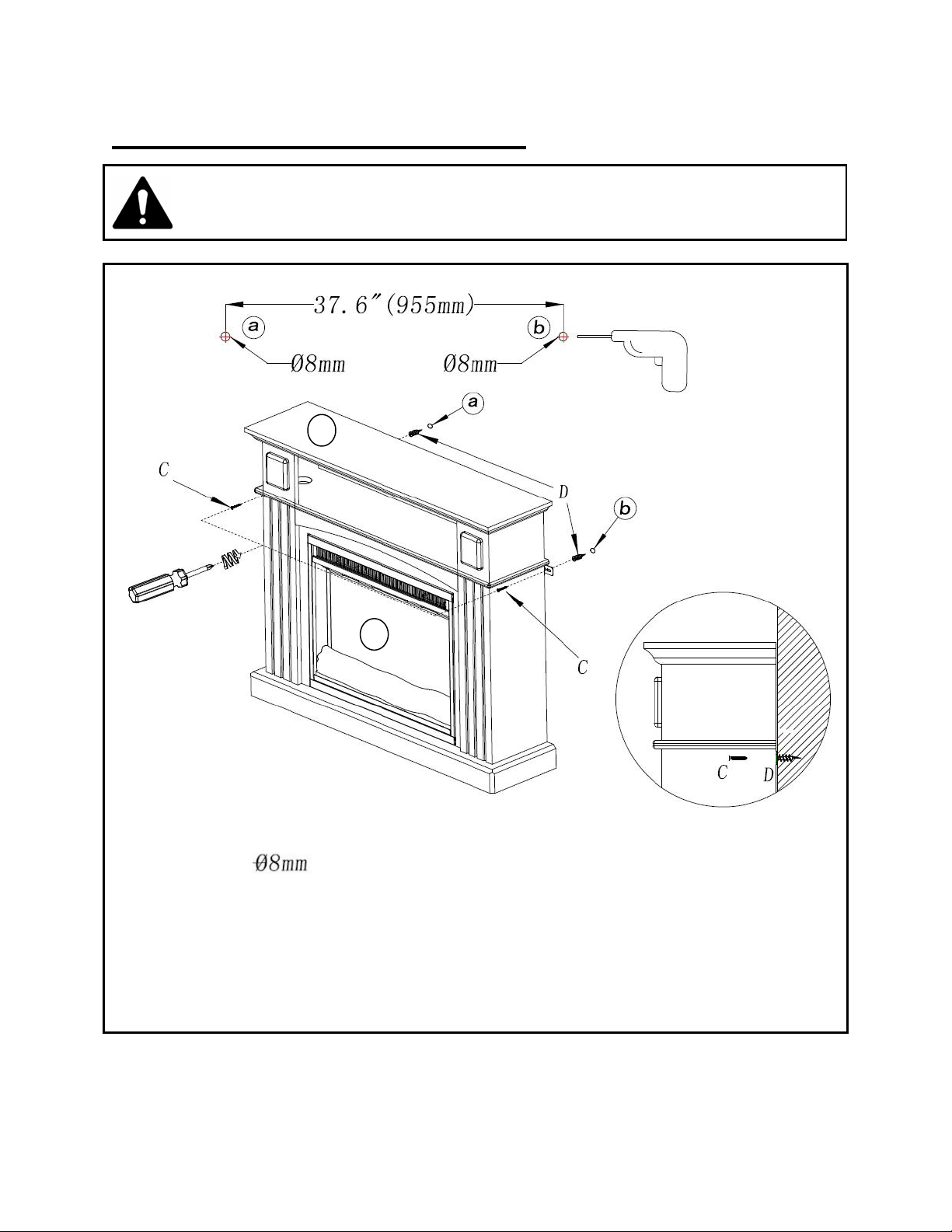

1) Using the dril bit to drill two holes ( a, b) with distance of 37.6” (955mm)
on the wall surface. Thread two wall anchors (D) throught the holes.
2) Carefully move the Mantel (A) with fireplace (B) to attached the two wall anchors
in the wall. Thread two SCREWS (C) through the holes into the wall anchors,
Partially tighten with a Phillips screwdriver. ( Each side with one wall anchor and
one screw).
3) Check the alignment and tighten 2 screws securely with the screwdriver.
B
A

6
OPERATION
NOTICE
When the heat function is used for the first time, a slight odor may be
present. This is normal and should not occur again unless the heater
is not used for an extended period of time.
BUTTON
ACTION / FUNCTION
INDICATION / RESULT
ON/OFF
1. Press to turn on flame effect and
enable heater.
Heater switches will not work unless
this switch is turned on.
2. Press again to shut off the power to
all functions.
1. Flame effect and power light on
switch turn on.
The heater is now enabled.
2. Power lights, heaters, and
flame effect turn off.
LOW
HEAT
1. With power turned on, press to turn
on low heat (750W).
Low heat must be on to use high heat.
2. Press again to turn off low heat.
1. Heater and fan turn on low
(750W).
2. Low heat and fan turn off.
Flame stays on.
HIGH
HEAT
1. With power and low heat turned on,
press to turn on high heat (1500W).
Low heat must be on to use high heat.
2. Press again to turn off high heat.
1. Heater and fan turn on high
(1500W).
2. High heat and fan turn off. Low
heat and flame stay on.
Temperature Limiting Control
This heater is equipped with a Temperature Limiting Control. Should the heater reach
an unsafe temperature, the heater will automatically turn OFF. To reset:
1. Unplug the power cord from the outlet.
2. Turn the ON/OFF switch on the CONTROL PANEL to OFF.
3. Wait 5 minutes.
4. Inspect the fireplace to make sure no vents are blocked, or clogged with dust or
lint. If they are, use a vacuum to clean the vent areas.
5. With the POWER switch in the OFF position, plug the power cord back into the
outlet.
6. If the problem continues, have your outlet and wiring inspected by a professional.
CARE AND MAINTENANCE
ALWAYS turn the heater OFF and unplug the power cord from the outlet
before cleaning, changing the light bulb, or moving this stove. Failure to do
so could result in electric shock, fire, or personal injury.
NEVER immerse in water or spray with water. Doing so could result in
electric shock, fire, or personal injury.

7
Cleaning
Metal:
Buff using a soft cloth, slightly dampened with a citrus oil-based product.
DO NOT use brass polish or household cleaners as these will damage the metal.
Glass:
Use glass cleaner and dry thoroughly with a paper towel or lint-free cloth.
NEVER use abrasive cleansers or any cleaner that could scratch the surface.
Plastic:
Wipe with a slightly damp cloth and a mild solution of dish soap and warm water.
NEVER use abrasive cleansers or any cleaner that could scratch the surface.
Vents:
Use a vacuum or duster to remove dust and dirt from the heater and vent areas.
Clean the exterior of the stove with a slightly damp cloth or duster.
Maintenance
Risk of electric shock!DO NOT OPEN the main panels! No user-
serviceable parts inside!
Electrical and Moving Parts:
The fan and motors are lubricated at the factory and will not require more oil.
All electrical parts and components are integrated into the heater and are not
serviceable by the consumer.
Storage:
Store heater in a clean dry place when not in use.

and will not turn on.
on.
Troubleshooting
WARNING
DISCONNECTED THE APPLIANCE COMPLETELY AND LET COOL PRIOR TO ANY SERVICE.
ONLY A QUALIFIED SERVICE PERSON SHOULD SERVICE AND REPAIR THIS ELECTRIC APPLIANCE.
Problem Possible Cause Solution
1. Fireplace turns off 1. Fireplace has overheated
and safety devise has caused
thermal switch to disconnect
or home circuit breaker has
opened.
2. Flame is not moving. 1. Loose wiring.
2. Flame motor defective.
3.Flame rod out of place
.
3. Flame is not visible. 1. Wiring is loose.
4.Log set and/or is not
glowing.
6. Fireplace will not
come on when
switch is flipped to
ON.
7. Heater does not
provide heat when
turned on.
1. Reset switch by turning main
power switch off and waiting 10
minutes then turning it back on
or reset circuit breaker.
1. Inspect wiring for loose con-
nections.
2. Call a qualified service techni-
cian to replace flame motor.
3."Flame Rod" out of place due to
rough transit/handling of the
product. This issue can be
corrected as simple as removing
the glass, flipping the fireplace
upside down, removing a set of
screws that are holding the
bottom frame plate and placing
the flame rod back into place.
1. Disconnect from power source
and inspect wiring for loose
connections and repair or
replace if necessary.
2.Push the flame button to high
1.Wiring is loose.
1.Disconnect from power source
and inspect wiring for loose
connections and repair or replace
if necessary.
1. Fireplace is not plugged in to
an electrical outlet.
2. Control failure.
1. Check plug.
2. Call a qualified service techni-
cian.
1.Thermal switch has been
tripped.
2. Wiring is loose.
3. Heater is defective.
1. Turn unit off and unplug unit
for 10 minutes. Plug back in and
turn unit on. If plug cannot be
reached, follow directions for
tripped circuit breaker.
2. Disconnect from power source
and inspect wiring for loose
connections and repair or
replace if necessary.
3. Replace heater.
1
!
8

。
伽
Distributed by TDC USA, Inc., Fair白eld, NJ07004
Item 32405 Electric Fireplace W ith Mantel
唰”” 

