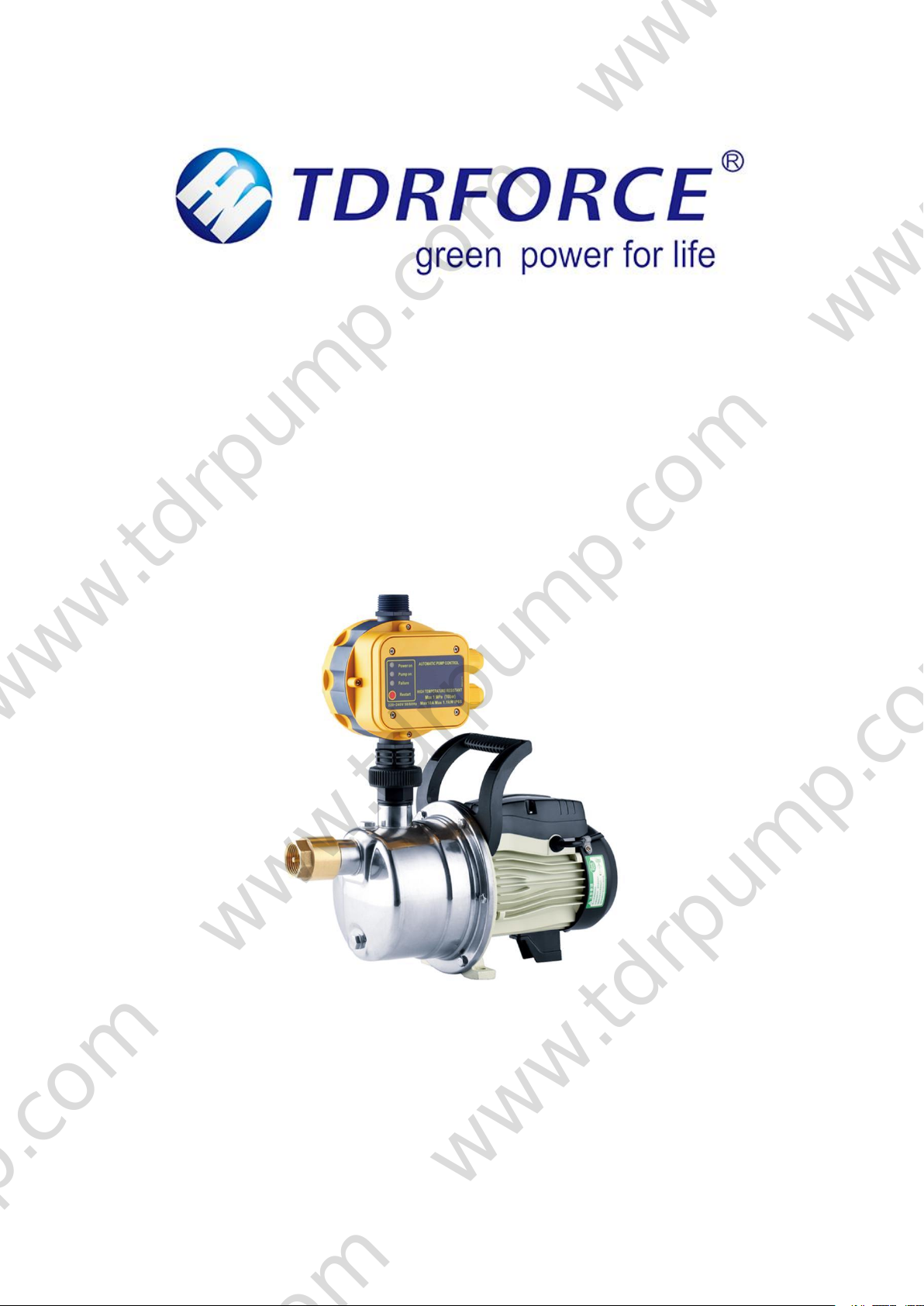

TDRFORCE JETS-60 User manual

INSTRUCTION MANUAL
with Warranty Card
BOOSTER PUMP
JETS-60
JETS-80
JT-100
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com

1
Specifics
JETS-60
Input Voltage 110-120V Power 370W (1/2Hp)
Frequency 60Hz Rated Working
Pressure 1.5 bar
Connection 1’’ Max Working
Pressure 3.3 bar
Max Working
Temperature 60 ℃ (140 ℉) Max Head 32m (104ft)
Max Flow 14.5 GPM
JETS-80
Input Voltage 110-120V Power 550W (3/4Hp)
Frequency 60Hz Rated Working
Pressure 2 bar
Connection 1’’ Max Working
Pressure 4 bar
Max Working
Temperature 60 ℃ (140 ℉) Max Head 40m (131ft)
Max Flow 17 GPM
JT-100
Input Voltage 110-120V Power 750W (1Hp)
Frequency 60Hz Rated Working
Pressure 2 bar
Connection 1’’ Max Working
Pressure 4.5 bar
Max Working
Temperature 60 ℃ (140 ℉) Max Head 45m (150ft)
Max Flow 18 GPM
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com

2
OPERATION MANUAL
1.INSPECTION
-After unpacking the pump, please check if it has been damaged during transport. If so, please
contact TDRFORCE online services at the first time.
2.INSTALLATION
-Make sure that the main voltage corresponds to the voltage specified on the motor rating plate.
-Place the pump as near as possible to the suction tank.
-Do not submit the pump body to mechanical stress.
-The pump must be sheltered from weather ( sun- rain- wind- snow- chill).
-The motor must be absolutely grounded before any other operation.
-The suction pipe diameter must always be bigger than the suction port. Always fit a foot valve
with strainer on the suction pipe. Both suction and delivery pipe must be well fastened.
3.STARTING THE PUMP
-Fill the pump body with water. Only after being filled with water will the pump be ready to start.
-Dry running could damage the pump. The lack water protection circuit will automatically shut off
the pump after 5-minute running.
-Check that the pump does not run out of the operating data.
-The pump could be only used in fresh water circulating.
4.MAINTENANCE
-Pumps do not require any particular maintenance.
-If the pump remain unused for a long period of time, we recommend emptying it to prevent
formation of deposits or increase of water volume due to frozen water, which could tear the fixing
bolts or cracking the pump body.
-When starting the pump again, refill it and check that the shaft runs free.
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com

3
POSSIBLE WORKING DEFECTS
TYPE OF DEFECT CAUSE SOLUTION
-The pump does not start -The electronic card is broken
-Voltage failure
-Pump jammed
-Electric cables inverted
(line/motor)
-Pressure of inlet water is
higher than the starting
pressure of the pump
-Replace the controller
-Use at rated voltage
-Clean the impeller
-Install according to manual
-No action should be taken
-The pump does not stop -The pump is over pressure
-The electronic card is broken
-The flow detector is blocked
in the upper position
-The reset button is blocked
-The pump does not provide
sufficient pressure
-Presence of leaks
-Adjust the pressure screw
behind the controller
counterclockwise ( - ) to
release the pressure
-Replace the controller
-Replace the controller
-Replace the controller
-Replace the controller
-Fix the leakage
-Intermittent pump working -The electronic card is broken
-The pump does not provide
sufficient pressure
-Presence of leaks
-Replace the controller
-Replace the controller
-Fix the leakage
-The pump is jammed -The electronic card is broken
-The pump provides a pressure
which is lower than the
restarting pressure
-Water failure
-Suction problem
-Replace the controller
-Replace the controller
-Install according to manual
-Clean the inlet and impeller
-The pump has no suction -The distance between pump
and water surface is beyond
the max head of the pump
-Leakage on the inlet tube, air
in
-Starting without water in the
pump body
-Shorten the distance between
pump and water
-Fix the inlet leakage
-Fill water in the pump body
before starting. Make sure the
check valve has no leakage.
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com

4
Automatic Controller for Booster Pump
Starting
-When the unit is connected to the electrical network, the green led “ Power On” lights up and the
yellow led “ On ” indicates that the pump has been started.
-The pump continues to operate for dozens of seconds enabling the system to fill in the pipes and
to reach the required pressure.
-If this lapse is insufficient, the red led “ Failure ” lights up. In this event, keep the “ Restart”
button pressed and wait, with a tap opened, until the red led is off.
Functioning
-The starting operation archived, the unit is programmed to perform all the pump control
operations automatically.
-When particular operational breakdowns occur, such as water failure, obstruction of the suction
pipe etc., the unit recognizes the breakdown and the red led “ Failure” lights up. At the same time
a stop signal is sent to the pump to prevent damages caused by its working in the absence of water.
-Rectification of the failures that have caused the blockage, allowing the system to be restarted by
pressing the “ Restart” button.
-Once released the button and closed the tap, the unit stops the pump at its maximum pressure.
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com

5
-The starting pressure has been pre-set by
manufacturer at 1.5 bar (JETS-60) or 2.0
bar(JETS-80).
-The starting pressure of the controller can be
adjusted to 2.2 bar maximum.
-Adjust the pressure screw clockwise to
increase the starting pressure.
-Adjust the pressure screw counterclockwise to
decrease the starting pressure or release the
pressure.
Warning
-Never take the electronic board out of the control box.
-The wiring diagram inside the terminal block will show you how to make correct connection.
Wrong connection will destroy the whole electronic circuit.
-Cable used for connection must be a three-wired one with compulsory grounding end. It shall
have the outer diameter at 7.5mm-8.5mm. One of the leading end of the cable must be lower than
the position of the fixing screws while the cable being connected to the power as shown in the Fig.
-The four screws on the panel board and the two nuts for fixing cable must be well fastened to
avoid water entering into the control box and damaging the electronic circuit.
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com

6
Warranty Card
Customer contact, please keep it properly.
Dear customer:
Thank you for choosing products of TDRFORCE. In order to provide you with more satisfactory
service and better protect your rights, please read this regulation carefully and keep the warranty
card properly.
Regulations:
1.For any quality issue of TDRFORCE product within 180 days after sale, we offer no-hassel
return service for our customers;
2.Please contact our Amazon online customer service or sales04@tdrshine.com before return;
3.Valid evidence of purchase will be essential such as order ID or warranty card;
4.Valid evidence showing product problems shall be provided in the contact such as videos, photos
or detailed descriptions.
5.Warranty card shall be filled out and attached with the return product.
Please notice:
The following situations are not applicable to our no-hassel return policy.
1. Product damage caused by installation or use not in accordance with the instruction manual;
2. Product beyond 180 days after sale;
3. Product return with no reason;
4. Product damage caused by self-disassembly or sabotage;
5. Product damage caused by force majeure such as earthquakes, fires, etc.
Buyer’s Name:
Tele:
E-mail:
Order ID:
Return Address:
Product Problem Description:
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
www.tdrpump.com
