TDS TDS-35750 User manual

OWNER’S MANUAL
Caution: Read all precautions and
instructions in this manual before using
this equipment. Save this manual for
future reference.
!
HD LEG PRESS
Model #: TDS-35750
OWNER’S MANUAL

Before Your Begin
Assembly Instructions
Page 2
This exercise equipment is built for optimum safety. Be sure to read the entire
manual before you assemble or operate your equipment. Please note the following
safety precautions:
1. Keep children and pets away from the equipment at all times. Do not leave
children unattended in the same room with the equipment.
2. Only one person at a time should use the equipment.
3. If the user experiences dizziness, nausea, chest pain, or any other abnormal
symptoms STOP the workout at once.
CONSULT A PHYSICIAN IMMEDIATELY.
4. Position the equipment on a clear, level surface. DO NOT use the bench
near water or outdoors.
5. Keep hands away from all moving parts.
6. Always wear appropriate workout clothing when exercising. DO NOT
wear robes or other clothing that could become caught in the equipment.
7. Use the equipment only for its intended use as described in this manual.
DO NOT use attachments not recommended by the manufacturer.
8. Before using the equipment, always do stretching exercises to properly warm up.
9. Never operate the equipment if the equipment is not functioning properly.
Tools Required
Assembly Size : Approx. L1800 x W930 x H1420 MM
Tools Required : Allen Wrentch Set / Socket Wrentch Set
Adjustable Wrentch / Crescent Wrench
Rubber Mallet / Tape Measure
ASSEMBLY REQUIRES AT LEAST TWO PERSONS
Weight Capacity
Maximum Weight of the Weight Stacks: 1000 LBS
WARNING: This Product Is Rated for Home Use Olny!
Using this product in a commercial setting will void all warranties
and can result in serious injury or death!

Assembly Instructions
Page 3
STEP 1 - Parts & Hardware List
Part# Discription Qty Remark
1 Base Front 1
2 Base Connector 1
3 Right Rail 1
4 Left Rail 1
17 50x50mm End Cap 2 Pre-assembled
18 Right Handle 1
19 Left Handle 1
20 Handle Sleeve 2 Pre-assembled
H10-12 M10x70 mm Hex Head Bolt 4
H12-13 M12x75 mm Hex Head Bolt 2
H12-18 M12x100 mm Hex Head Bolt 4
W10 M10 Washer 8
W12 M12 Washer 12
N10 M10 Nut 4
N12 M12Nut 6

Assembly Instructions
Page 4

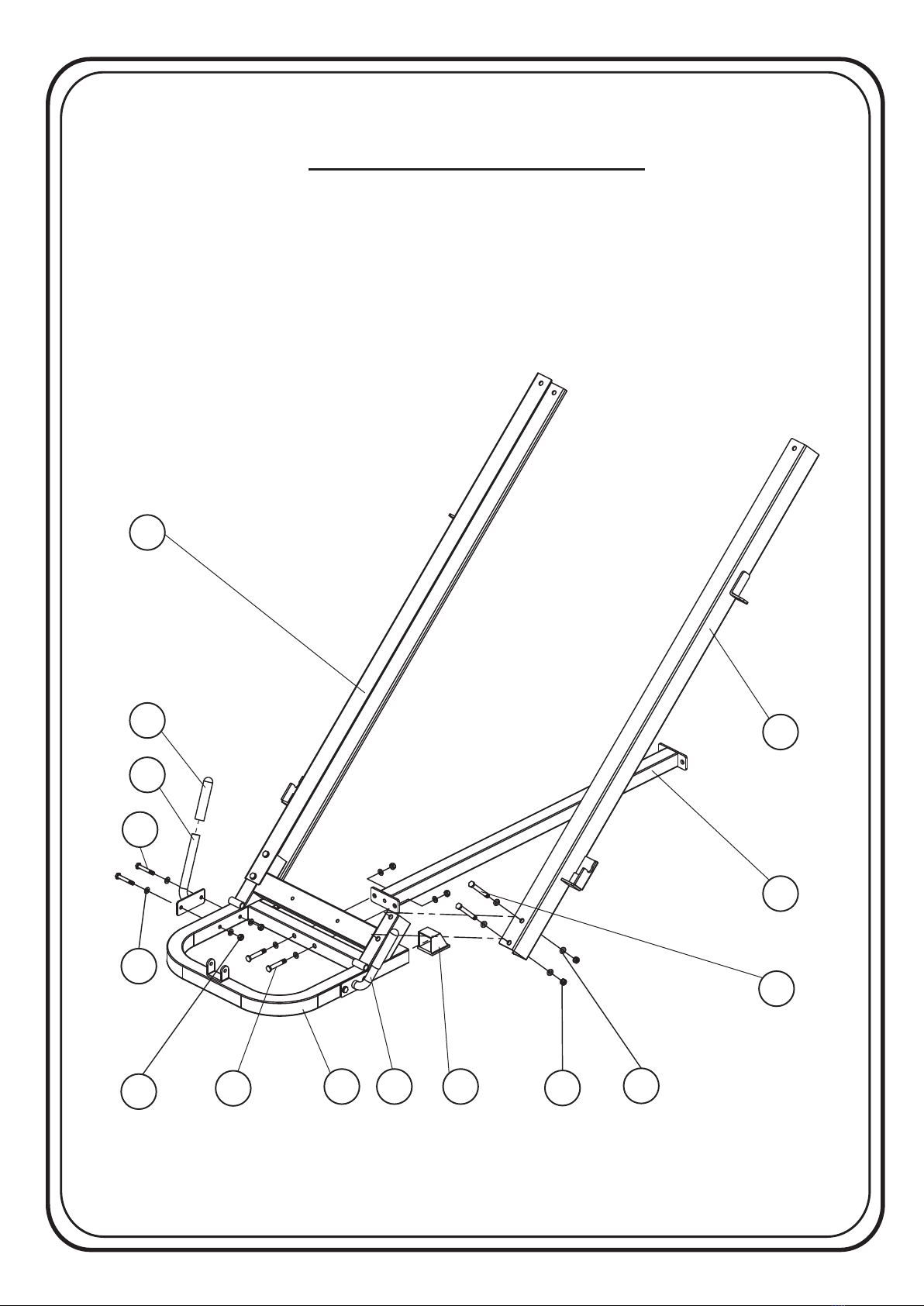

STEP 1
1
2
3
4
19
17 x2 18
20
2x
N12
x6
W12
x12
W10
8x
H12-13H12-13
x2
H12-18H12-18
x4
H10-12H10-12
4x
N10
4x

Assembly Instructions
Page 5
STEP 2 - Parts & Hardware List
Part# Discription Qty Remark
5 Foot Platform 1
21 Foot Platform Axle 1
22 Outer Foot Platform Adjuster 1
23 Pop Pin 1
24 Inner Foot Platform Adjuster 1
H10-2 M10x20 mm Hex Head Bolt 2
H10-15 M10x85 mm Hex Head Bolt 2
W10 M10 Washer 6
N10 M10 Nut 2
36 Carriage Stop Tube 1

Assembly Instructions
Page 6
STEP 2
21
22
23
24
5
N10
x2
H10-15H10-15
x2
H10-2H10-2
x2
W10
x4
W10
x2
36
36

Assembly Instructions
Page 7
STEP 3 - Parts & Hardware List
Part# Discription Qty Remark
6 Carriage 1
7 Leg Press Footrest 1
8 Shoulder Pad Mount 1
9 Weight Carrier 1
20 Handle Sleeve 4 Pre-assembled
28 Long Pop Pin 1 Pre-assembled
26 Small Wheel 4
27 Leg Press Footrest Axle 1
29 50x50 Inner Cap 4 Pre-assembled
30 Dia 48mm Inner Cap 2 Pre-assembled
31 38x38 Inner Cap 2 Pre-assembled
32 Big Wheel 4
H10-2 M10x20 mm Hex Head Bolt 5
H10-8 M10x50 mm Hex Head Bolt 4
H10-13 M10x75mm Hex Head Bolt 2
H10-17 M10x95 mm Hex Head Bolt 2
W10 M10 Washer 21
W12 M12 Washer 4
N10 M10 Nut 8
N12 M12 Nut 4
37 30x60 Inner Cap 2

Assembly Instructions
Page 8
STEP 3
29
6
32
4x
31
2x
30
2x
37
2x
20
4x
28
9
W10
8x
W10
3x
H10-8
x4
H10-2
x2
H10-13
x2
H10-17
2x
A10-2
3x
N10
4x
W10
x8
N10
x4
x4
26
27
x2
7
8
W12
4x
N12
4x
W10
x4

Assembly Instructions
Page 9
STEP 4 - Parts & Hardware List
Part# Discription Qty Remark
10 Rear Upright 1
17 50x100mm End Cap 2 Pre-assembled
30 Dia 48mm Inner Cap 2 Pre-assembled
H12-23 M12x125 mm Hex Head Bolt 2
H12-18 M12x100mm Hex Head Bolt 2
W12 M12Washer 8
N12 M12Nut 4

Assembly Instructions
Page 10

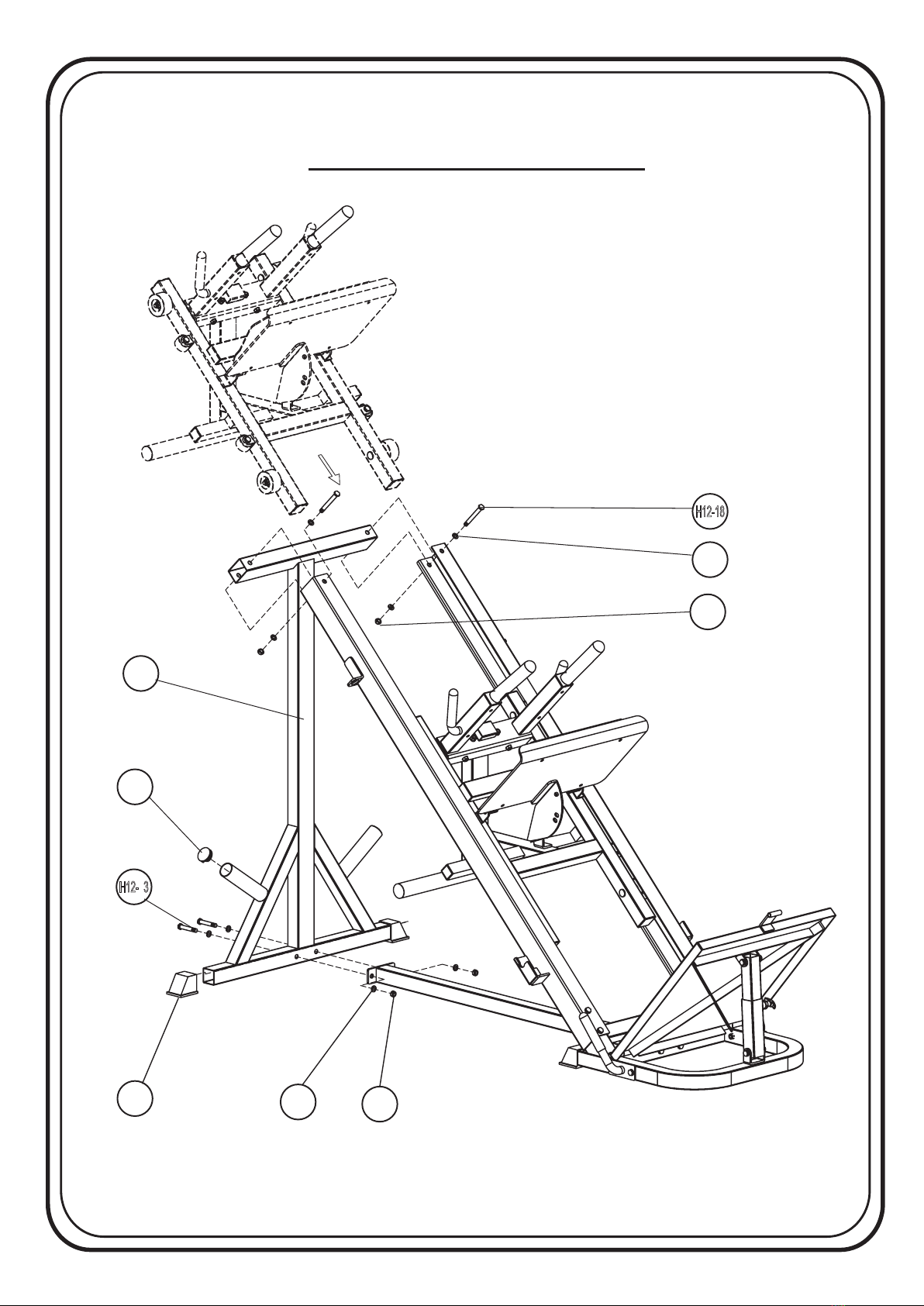

STEP 4
10
30
2x
17
2x
H12-18
x2
H12-23
2x
W12
x4
N12
x2
N12
x2
W12
x4

Assembly Instructions
Page 11
STEP 5 - Parts & Hardware List
Part# Discription Qty Remark
11 Right Safety Stopper 1
12 Left Safety Stopper 1
13 Lower Back Pad 1
20 Handle Sleeve 2 Pre-assembled
33 Dia 25mm Inner Cap 2 Pre-assembled
34 Lower Back Pad Hinge 1
35 Seat Pad 1
H8-3 M8x25 mm Hex Head Bolt 4
H8-5 M8x35 mm Hex Head Bolt 2
H10-23 M10x125 mm Hex Head Bolt 1
W8 M8 Washer 10
W10 M10 Washer 2
N8 M8 Nut 2
N10 M10Nut 1
H8-12 M8x70 mm Hex Head Bolt 2

Assembly Instructions
Page 12

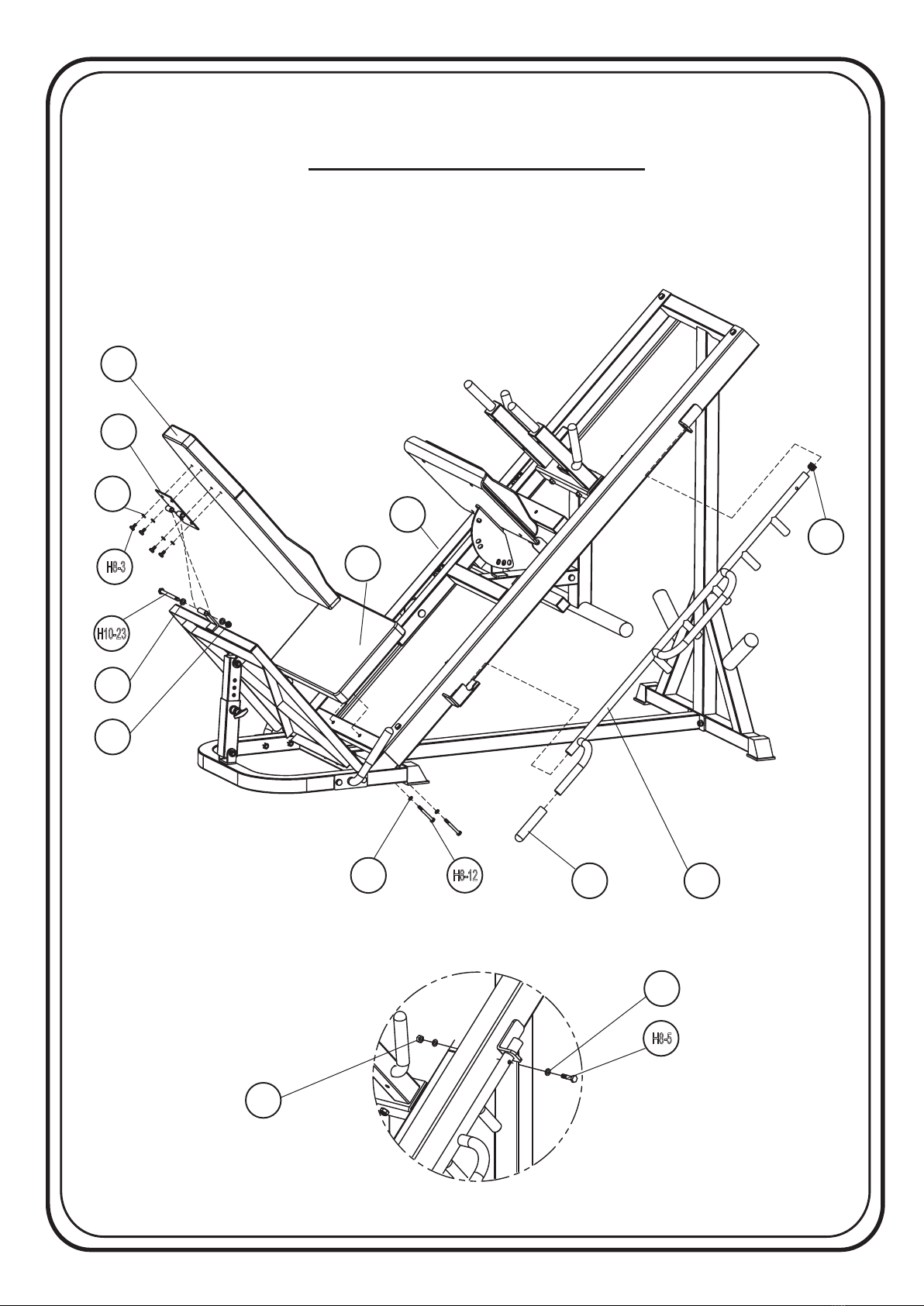

STEP 5-1
STEP 5
STEP 5-2
N8
2x
H10-23
x2
20
x2
33
11
H8-5
x2
H8-3
H8-12
x2
W8
x4
W8
4x
W10
2x
N10
W8
x2
12
13
34
35
4x

Assembly Instructions
Page 13
STEP 6 - Parts & Hardware List
Part# Discription Qty Remark
14 Upper Back Pad 1
15 Head Support Pad 1
16 Shoulder Pad 2
A8-7 M8x45 mm Hex Head Bolt 6
H8-12 M8x70 mm Hex Head Bolt 4
W8 M8 Washer 10

Assembly Instructions
Page 14
STEP 6-1
STEP 6
STEP 6-2
14
15
W8
2x
A8-7
2x
x2
16
A8-7
x4
W8
x4
H8-12
x4
W8
x4

Assembly Instructions
Page 15
Parts & Hardware List
Part# Description Qty Remark
1 Base Front 1
2 Base Connector 1
3 Right Rail 1
4 Left Rail 1
5 Foot Platform 1
6 Carriage 1
7 Leg Press Footrest 1
8 Shoulder Pad Mount 1
9 Weight Carrier 1
10 Rear Upright 1
11 Right Safety Stopper 1
12 Left Safety Stopper 1
13 Lower Back Pad 1
14 Upper Back Pad 1
15 Head Support Pad 1
16 Shoulder Pad 2
17 50x50mm End Cap 4 Pre-assembled
18 Right Handle 1
19 Left Handle 1
20 Handle Sleeve 6 Pre-assembled
21 Foot Platform Axle 1
22 Outer Foot Platform Adjuster 1
23 Pop Pin 1
28 Long Pop Pin 1
24 Inner Foot Platform Adjuster 1
26 Small Wheel 4
27 Leg Press Footrest Axle 1
29 50x50 Inner Cap 6
Pre-assembled
30 Dia 48mm Inner Cap 4 Pre-assembled
31 38x38 Inner Cap 2 Pre-assembled
32 Big Wheel 4
33 Dia 25mm Inner Cap 2 Pre-assembled
34 Lower Back Pad Hinge 1
35 Seat Pad 1
36 Carriage Stop Tube 1
37
30x60 Inner Cap 2
Pre-assembled

Assembly Instructions
Page 16
Parts & Hardware List
Part# Discription Qty Remark
H8-3 M8x25 mm Hex Head Bolt 4
H8-5 M8x35 mm Hex Head Bolt 2
A8-7 M8x45 mm Allen Bolt 6
H8-12 M8x70 mm Hex Head Bolt 6
H10-2 M10x20 mm Hex Head Bolt 7
H10-8 M10x50mm Hex Head Bolt 4
H10-12 M10x70 mm Hex Head Bolt 4
H10-13 M10x75mm Hex Head Bolt 2
H10-15 M10x85 mm Hex Head Bolt 2
H10-17 M10x95mm Hex Head Bolt 2
H10-23 M10x125 mm Hex Head Bolt 1
H12-13 M12x75 mm Hex Head Bolt 2
H12-18 M12x100 mm Hex Head Bolt 6
W8 M8 Washer 20
W10 M10 Washer 37
W12 M12 Washer 24
N8 M8 Nut 2
N10 M10 Nut 15
N12 M12Nut 14
H12-23 M12x125 mm Hex Head Bolt 2
