TDT TDT-A1-1P-EV016 User manual

TDT-A1-1P-EV016 AC EV Charger series
1/6
AC Portable EV Charger
Instruction Manual
Reminder: Product pictures of this manual are for informational purposes only, subject to physical information

TDT-A1-1P-EV016 AC EV Charger series
2/6
Foreword
Thank you for your support of this product. The company focuses on the field of new energy electric
vehicle charging, and is committed to providing customers with excellent charging equipment and
complete charging operation solutions.
The electric vehicle charging pile developed by our company has advanced functions, stable
performance, wide application range, strong practicability, mature power station construction and
operation solutions, and a good reputation in the industry.
To ensure that you can use this product correctly and safely, please read the instruction manual
carefully before use. Before you use it for the first time, if the product is found to be defective, we will
replace the product for you on the premise that the product packaging is complete and the product has
not been used; but it does not include improper use, unauthorized dis-assembly, deliberate destruction
and other human factors.
AC Single-phase Portable Charger
Portable and Convenient
Simple and portable.
Charge your EV wherever and whenever.
Plug and Play
Easy operation, plug and play.
Charging EV just like charging your mobile phone.
Adjust current
Adjust current to meet different charging needs.
8A/10A/13A/16A 4 gear current adjustment.
Friendly Interface
Intuitive HMI with LED indicators.
With LED screen display more intuitive.
Multiple Protection
Over/Under voltage protection, Current leakage protection, Lightning-proof protection, Short-circuit protection,
Over current protection, Grounding protection, Overload protection, Overheat protection, Dustproof and waterproof
IP65 level.

TDT-A1-1P-EV016 AC EV Charger series
3/6
Product Specifications:
Portable EV Charger HMI
★LED Indicator:
1. POWER LIGHT: Power indicator.
2. CONNECTOR LIGHT: Connection status indicator.
3. STATUS LIGHT: Charging status indicator.
4. FAULT LIGHT: Fault alarm indicator.
Specification Model
TDT-A1-1P-EV016
□Classic Style █Adjust Current
AC Input
Voltage 230 V 50Hz
Current 16A(MAX)
AC Output
Voltage 230V 50Hz
Current 13A
(Not
adjustable)
8/10/13/16A
(
4
gear
adjustment)
Power 3KW (MAX) 3.6KW (MAX)
Structure Design
Housing Material Aviation aluminum &ABS+PC
LED Indicator 4 indicators
Display screen / LCD display
Power Cord Plug EU plug
Charging Plug One charging plug (Type 2)
Cable Length
0.5m ( power cord)
4.5m (Plug wire)
Environmental
Operating Temperature -30 ~ +50 °C
Working Humidity 5%~95% Without condensation
Working Altitude <2000M
Index
Protection Grade IP65
Application Site Indoor / Outdoor
Cooling Method Natural cooling
MTBF 50,000 hours
Plug Connector IEC 62196
Warranty 1 year

TDT-A1-1P-EV016 AC EV Charger series
4/6
The indicate details, please refer to product you purchase.
★LCD Display:
LCD display shows current gear and voltage.
★Current Adjust Button (This operation is only for adjustable current version):
8A/10A/13A/16A 4 gear current adjustment. When other currents are needed for charging, double-
click the current button to switch, the current switching sequence is 8A→10A→13A→16A
(Adjustable only in standby mode).
PRODUCT STATUS POWER
LIGHT
CONNECTOR
LIGHT
STATUS
LIGHT
FAULT
LIGHT
Standby light went out went out went out
Connecting light flashing went out went out
Charging light light flashing went out
Connect fault light light light light
Finished charging light light light went out
Ground protection
warning
light went out went out light
Leakage warning light went out light light
over/under voltage
warning
light went out went out flashing
Over current warning light went out light flashing

TDT-A1-1P-EV016 AC EV Charger series
5/6

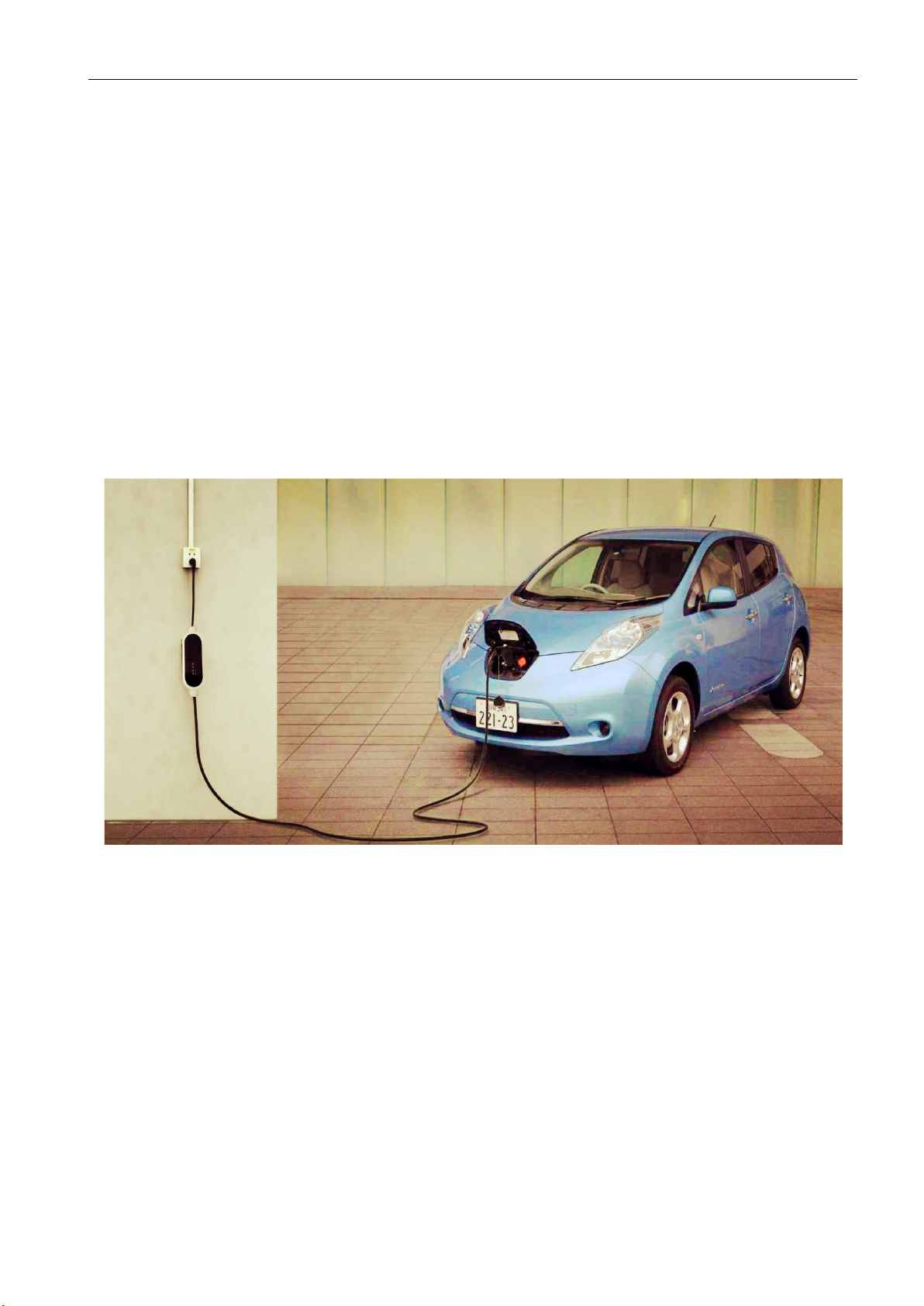

Charging Operation
Operation Guidelines for portable charger:
1. First, insert the plug of the portable charger into the power socket, and then turn on the portable
charger and perform a self-inspection.
2. This step only for adjustable current one. When other currents are needed for charging, double-
click the button to switch, the current switching sequence is 8A→10A→13A→16A (Adjustable
only can be done in standby mode).
3. Secondly, plug the charging plug into the AC inlet of the electric vehicle, and the portable EV
charger starts to charge the electric vehicle.
4. After charging is complete, unplug the charging plug and then power off the charger.
5. Finally, put the charger back into the portable bag.
Transportation and Storage
★Transportation
During transportation, the product should not be subjected to severe vibration, impact and inversion.
★Storage
If the product is not used immediately after purchase, it should be stored in a dry and well-ventilated
indoor place during short-term or long-term storage. Do not store in a humid environment or a place
exposed to sunlight.
The equipment operates under normal operating conditions and usually does not require special
maintenance during its service life. If you have any questions, please contact the manufacturer.

TDT-A1-1P-EV016 AC EV Charger series
6/6
WARNING
1. Do not use the device when the charging cable damaged.
2. When using this product, the power supply wires must be well grounded.
3. It is strictly forbidden to use external wires or adapters.
4. This equipment contains high voltage. Non-professionals should not open the cover.
5. Suggestion: Use this equipment to charge electric vehicles in a ventilated environment.
