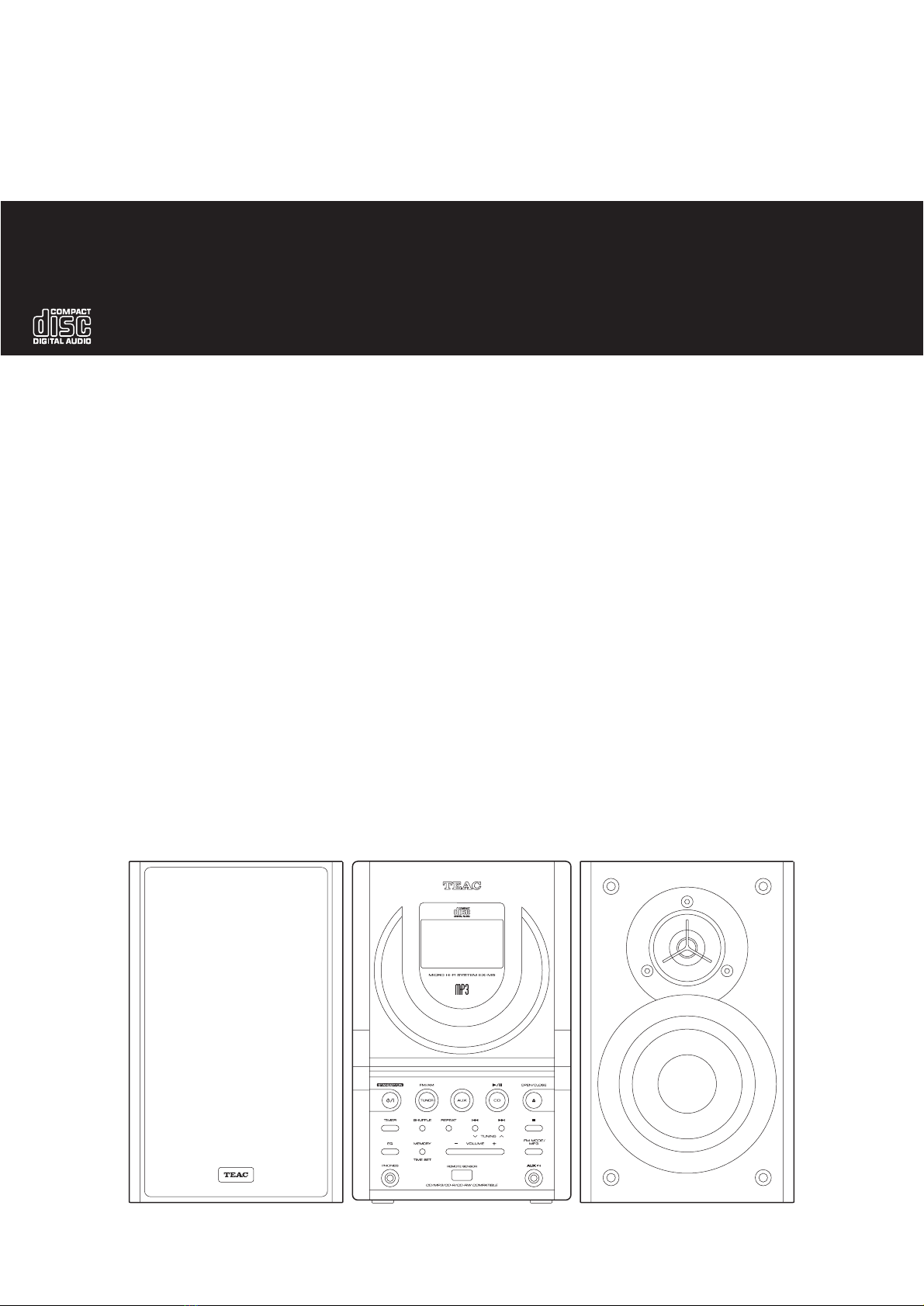

Teac EX-M5 User manual

9A10229400
Micro Hi-Fi System
OWNER’S MANUAL
Z
EX-M5

2
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO USER-
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within the
product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
• Read all of these Instructions.
• Save these Instructions for later use.
• Follow all Warnings and Instructions marked on the audio equipment.
1) Read Instructions — All the safety and operating instructions should
be read before the product is operated.
2) Retain Instructions — The safety and operating instructions should
be retained for future reference.
3) Heed Warnings — All warnings on the product and in the operating
instructions should be adhered to.
4) Follow Instructions — All operating and use instructions should be
followed.
5) Cleaning — Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6) Attachments — Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7) Water and Moisture — Do not use this product near water — for
example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a
wet basement; or near a swimming pool; and the like.
8) Accessories — Do not place this product on an unstable cart, stand,
tripod, bracket, or table. The product may fall, causing serious injury to a
child or adult, and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manufacturer, or
sold with the product. Any mounting of the product should follow the
manufacturer’s instructions, and should use a mounting
accessory recommended by the manufacturer.
9) A product and cart combination should be moved with
care. Quick stops, excessive force, and uneven surfaces
may cause the product and cart combination to overturn.
10) Ventilation — Slots and openings in the cabinet are provided for
ventilation and to ensure reliable operation of the product and to protect
it from overheating, and these openings must not be blocked or covered.
The openings should never be blocked by placing the product on a bed,
sofa, rug, or other similar surface. This product should not be placed in a
built-in installation such as a bookcase or rack unless proper ventilation is
provided or the manufacturer’s instructions have been adhered to.
11) Power Sources — This product should be operated only from the
type of power source indicated on the marking label. If you are not sure
of the type of power supply to your home, consult your product dealer or
local power company. For products intended to operate from battery
power, or other sources, refer to the operating instructions.
12) Grounding or Polarization — This product may be equipped with a
polarized alternating-current line plug (a plug having one blade wider
than the other). This plug will fit into the power outlet only one way. This
is a safety feature. If you are unable to insert the plug fully into the outlet,
try reversing the plug. If the plug should still fail to fit, contact your
electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
13) Power-Cord Protection — Power-supply cords should be routed so
that they are not likely to be walked on or pinched by items placed upon
or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from the product.
14) Outdoor Antenna Grounding — If an outside antenna or cable
system is connected to the product, be sure the antenna or cable system
is grounded so as to provide some protection against voltage surges and
built-up static charges. Article 810 of the National Electrical Code,
ANSI/NFPA 70, provides information with regard to proper grounding of
the mast and supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors, location of
antenna-discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to
Section 820-40 of the NEC which provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point
of cable entry as practical."
15) Lightning — For added protection for this product during a lightning
storm, or when it is left unattended and unused for long periods of time,
unplug it from the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product due to lightning and
power-line surges.
16) Power Lines — An outside antenna system should not be located in
the vicinity of overhead power lines or other electric light or power
circuits, or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be taken to
keep from touching such power lines or circuits as contact with them
might be fatal.
17) Overloading — Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in risk of fire or electric
shock.
18) Object and Liquid Entry — Never push objects of any kind into this
product through openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock. Never spill
liquid of any kind on the product.
19) Servicing — Do not attempt to service this product yourself as
opening or removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service personnel.
20) Damage Requiring Service — Unplug this product from the wall
outlet and refer servicing to qualified service personnel under the
following conditions:
a ) when the power-supply cord or plug is damaged.
b ) if liquid has been spilled, or objects have fallen into the product.
c ) if the product has been exposed to rain or water.
d ) if the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions as an improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the product to its normal operation.
e ) if the product has been dropped or damaged in any way.
f ) when the product exhibits a distinct change in performance _ this
indicates a need for service.
21) Replacement Parts — When replacement parts are required, be
sure the service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other
hazards.
22) Safety Check — Upon completion of any service or repairs to this
product, ask the service technician to perform safety checks to determine
that the product is in proper operating condition.
23) Wall or Ceiling Mounting — The product should be mounted to a
wall or ceiling only as recommended by the manufacturer.
24) Heat — The product should be situated away from heat sources such
as radiators, heat registers, stoves, or other products (including
amplifiers) that produce heat.

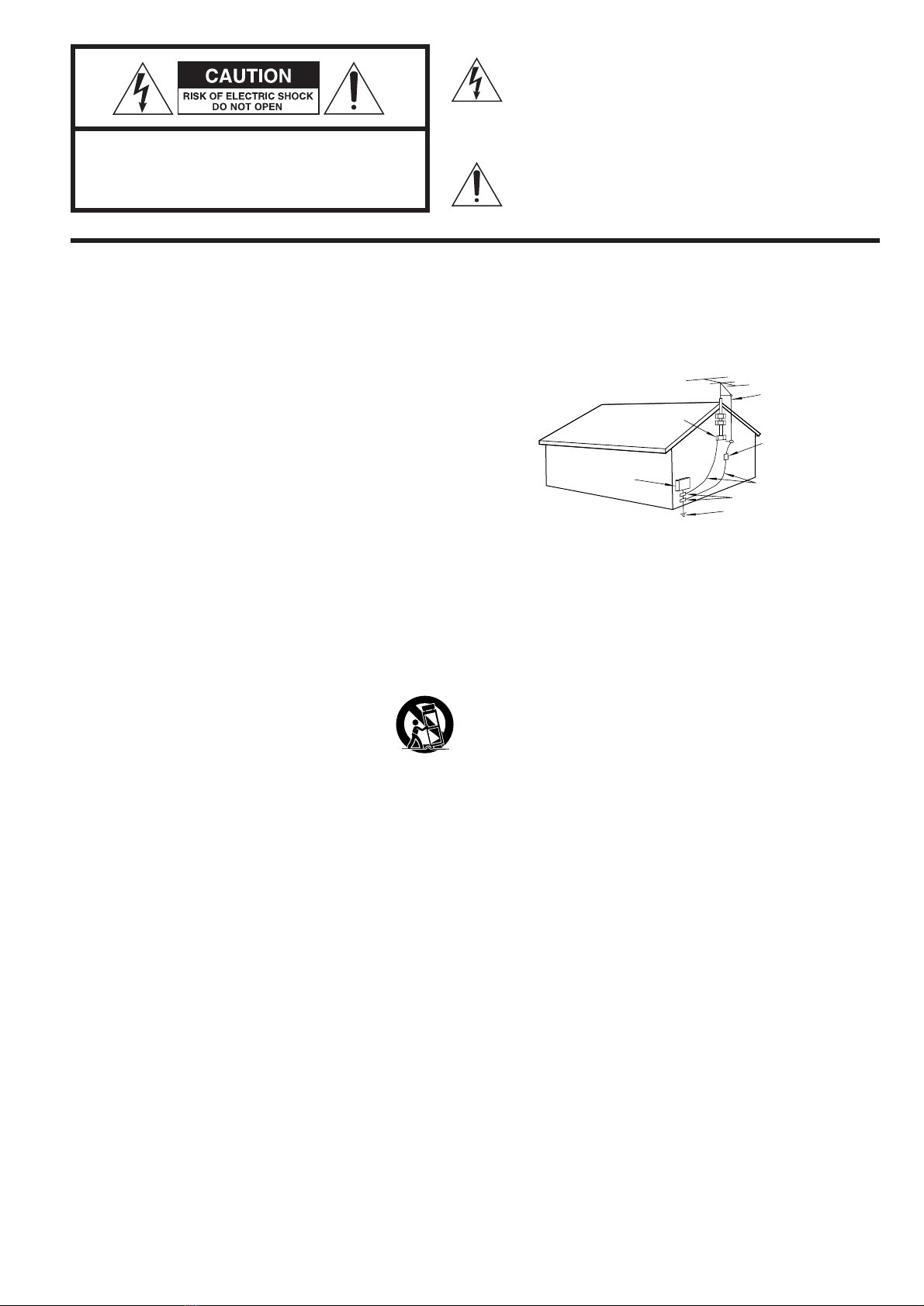

ANTENNA
LEAD IN
WIRE
ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250. PART H)
NEC - NATIONAL ELECTRICAL CODE
ELECTRIC
SERVICE
EQUIPMENT
Example of Antenna Grounding
as per National Electrical
Code, ANSI/NFPA 70
GROUND
CLAMP

3
Optical pickup :
Type : SF-P200Z
Manufacturer : SANYO Electric Co., Ltd.
Laser output : Less than 0.5 mW on the objective lens
Wavelength : 765 - 815 nm
This product has been designed and manufactured according to
FDA regulations “title 21, CFR, chapter 1, subchapter J, based on
the Radiation Control for Health and Safety Act of 1968“, and is
classified as class 1 laser product. There is not hazardous invisible
laser radiation during operation because invisible laser radiation
emitted inside of this product is completely confined in the
protective housings.
The label required in this regulation is shown ①.
For U.S.A.
①
CAUTION
<DO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO
EXPOSE THE ELECTRONICS. NO USER SERVICEABLE PARTS
ARE WITHIN!
<IF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT,
CONTACT TEAC FOR A SERVICE REFERRAL. DO NOT USE THE
PRODUCT UNTIL IT HAS BEEN REPAIRED.
<USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS APPLIANCE
TO RAIN OR MOISTURE.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the equipment and/or the receiving
antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
CAUTION
Changes or modifications to this equipments not expressly
approved by TEAC CORPORATION for compliance will void the
user’s warranty.
For U.S.A.
AC POWER CORD CONNECTION
CAUTION:
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG
TO WIDE SLOT, FULLY INSERT.
CORDE DE CONNEXION CA
ATTENTION:
POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME
LA PLUS LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
For CANADA
Pour le CANADA

4
Contents Before Using the Unit
Read this before attempting any operations
<As the unit may become warm during operation, always leave
sufficient space around the unit for ventilation.
<The voltage supplied to the unit should match the voltage as
printed on the rear panel. If you are in any doubt regarding
this matter, consult an electrician.
<Choose the installation location of your unit carefully. Avoid
placing it in direct sunlight or close to a source of heat. Also
avoid locations subject to vibrations and excessive dust, heat,
cold or moisture.
<Do not place the unit on an amplifier/receiver.
<Do not open the cabinet as this might result in damage to the
circuitry or electrical shock. If a foreign object should get into
the unit, contact your dealer or service company.
<When removing the power plug from the wall outlet, always
pull directly on the plug, never yank the cord.
<To keep the laser pickup clean, do not touch it, and always
close the disc compartment lid.
<Do not attempt to clean the unit with chemical solvents as
this might damage the finish. Use a clean, dry cloth.
<Keep this manual in a safe place for future reference.
DO NOT MOVE THE UNIT DURING PLAYBACK
During playback, the disc rotates at high speed. Do NOT lift or
move the unit during playback. Doing so may damage the
disc or the unit.
WHEN MOVING THIS UNIT
When changing the unit’s location or packing the unit for
moving, be sure to remove the disc. Moving this unit with the
disc loaded may result in damage to this unit.
Thank you for choosing TEAC. Read this manual carefully
to get the best performance from this unit.
Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Before Using the Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Unit Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Basic Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

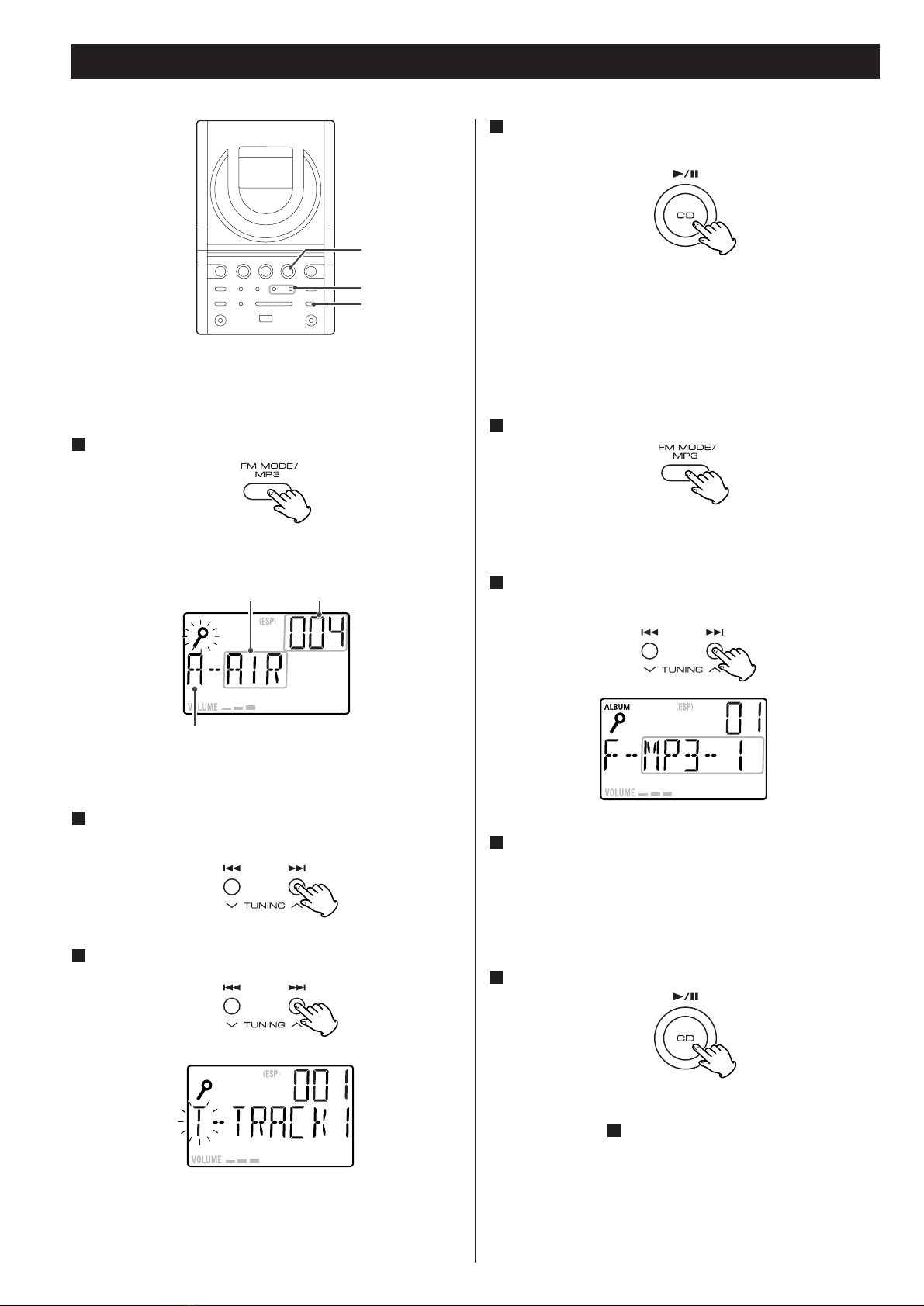

Listening to CD/MP3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Programmed Playback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Shuffle Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Intro Check. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Search Mode (MP3 only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

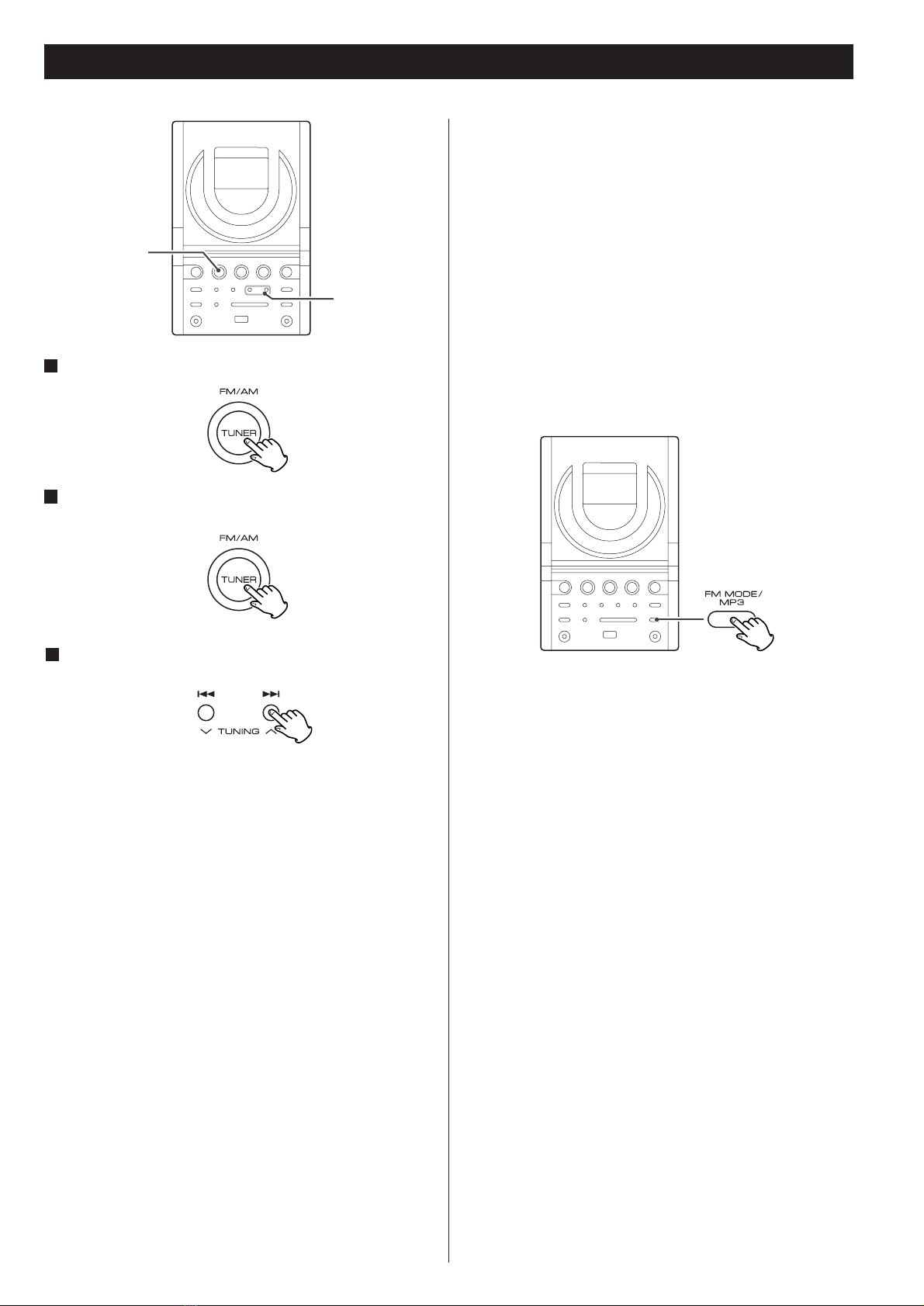

Listening to the Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

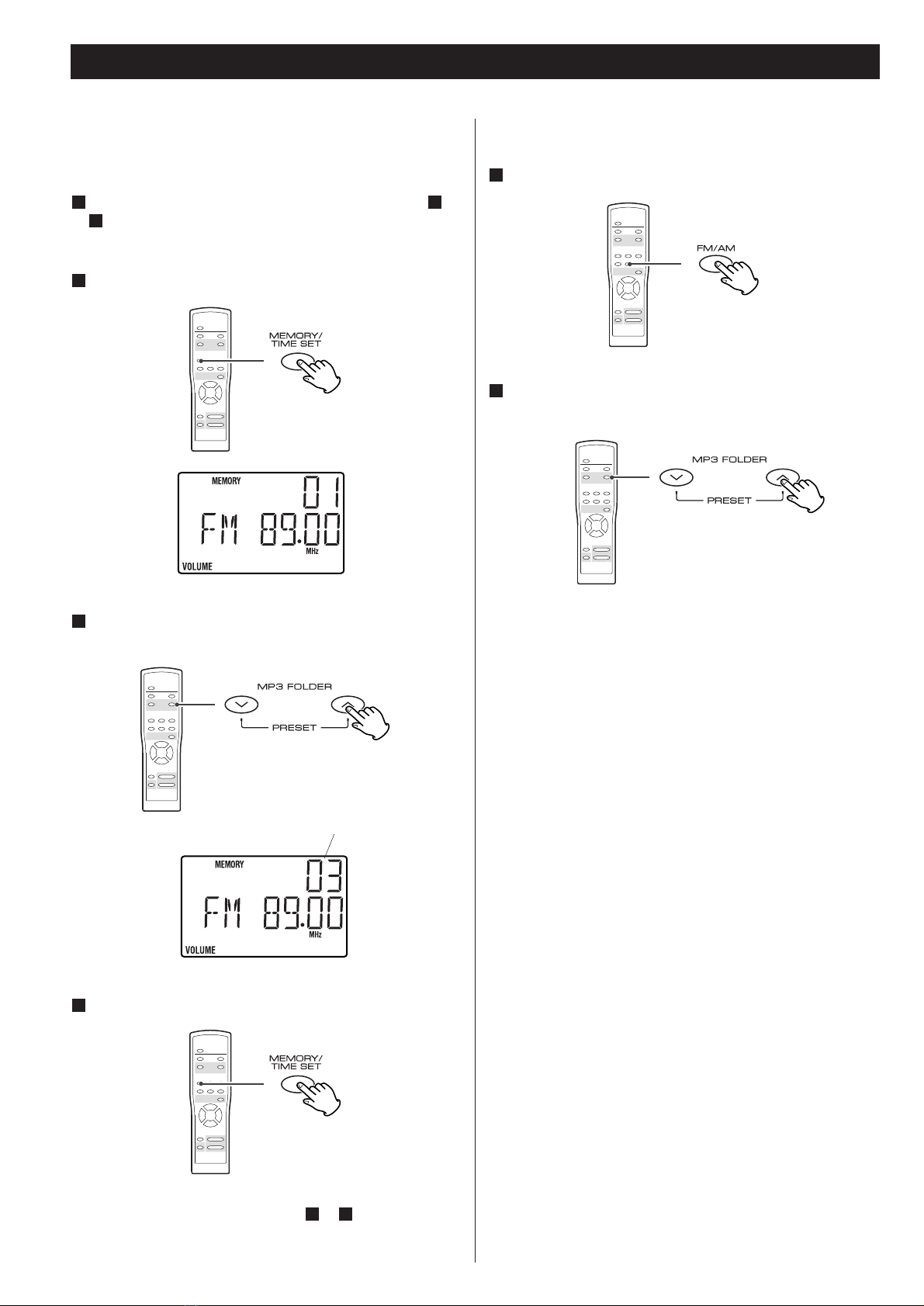

Preset Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

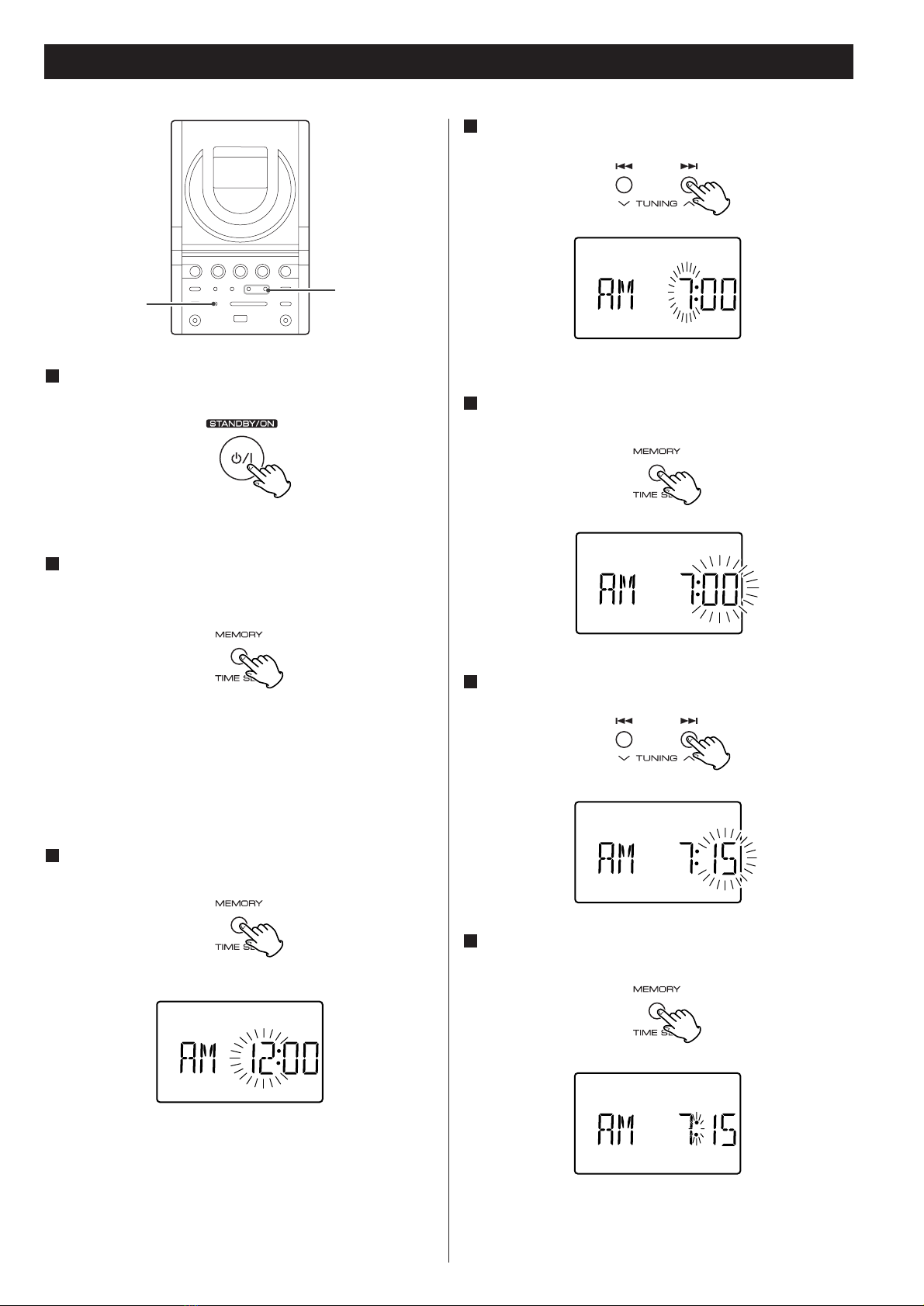

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Sleep Timer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Listening to an External Source . . . . . . . . . . . . . . . . . . . . . . . . 22
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
CAUTION
The product shall not be exposed to dripping or splashing and
that no object filled with liquids, such as vases, shall be placed
on the product.
Do not install this equipment in a confined space such as a
book case or similar unit.

5
Discs which can be played on this unit:
• Conventional audio CDs bearing the COMPACT DISC
DIGITAL AUDIO logo on the label:
• Properly finalized CD-R and CD-RW discs
Note:
<Depending on the quality of the disc and/or the condition of
the recording, some CD-R/CD-RW discs may not be playable.
<Copy-protected discs and other discs that do not conform to
the CD standard may not play back correctly in this player. If
you use such discs in this unit, TEAC Corporation and its
subsidiaries cannot be responsible for any consequences or
guarantee the quality of reproduction. If you experience
problems with such non-standard discs, you should contact
the producers of the disc.
Discs
How to remove the disc How to hold the disc
<Always place the disc on the disc tray with the label side up.
(Compact discs can be played or recorded only on one side.)
<To remove a disc from its storage case, press down on the
center of the case and lift the disc out, holding it carefully by
the edges.
<CD-R and CD-RW discs are more sensitive to the effects of
heat and ultraviolet rays than ordinary CDs. It is important
that they are not stored in a location where direct sunlight
will fall on them, and away from sources of heat such as
radiators or heat-generating electrical devices.
<Printable CD-R and CD-RW discs aren’t recommended, as the
label side might be sticky and damage the unit.
<Do not stick papers or protective sheets on the discs and do
not use any protective coating spray.
<Use a soft oil-based felt-tipped pen to write the information
on the label side. Never use a ball-point or hard-tipped pen,
as this may cause damage to the recorded side.
<Never use a stabilizer. Using commercially available CD
stabilizers with this unit will damage the mechanisms and
cause them to malfunction.
<Do not use CDs with an irregular shape (octagonal, heart
shaped, business card size, etc.). CDs of this sort can damage
the unit:
<If you are in any doubt as to the care and handling of a CDR/
CD-RW disc, read the precautions supplied with the disc, or
contact the disc manufacturer directly.
<Should the disc become dirty, wipe the surface radially (from
the center hole outward towards the outer edge) with a soft,
dry cloth:
MP3 compatibility
<File names of MP3 should be alphanumeric characters. This
unit cannot display symbols and full-size or 2 bytes-wide
characters (such as Japanese, Chinese, etc.) correctly. Also, be
sure to use the file extension “.mp3”.
<The disc must be finalized in order to play.
<The CD-ROM must be ISO 9660 compatible.
<When more than 200 files or folders are recorded on the disc,
the unit might not be able to play it correctly.
<Mono or stereo MPEG-1 Audio Layer 3 format, 44.1 or
48 kHz, fixed bit-rate.
<Audio encoded at 128 Kbps should sound close to regular
audio CD quality. Although this player will play lower bit-rate
MP3 tracks, the sound quality becomes noticeably worse at
lower bit-rates.
<Never use such chemicals as record sprays, antistatic sprays or
fluid, benzine or thinner to clean the discs. Such chemicals
will do irreparable damage to the disc’s plastic surface.
<Discs should be returned to their cases after use to avoid dust
and scratches that could cause the laser pickup to “skip.”
<Do not expose discs to direct sunlight or high humidity and
temperature for extended periods. Long exposure to high
temperatures will warp the disc.
<Do not play any disc that is warped, deformed or damaged.
Playing such discs may cause irreparable harm to the playing
mechanisms.

6

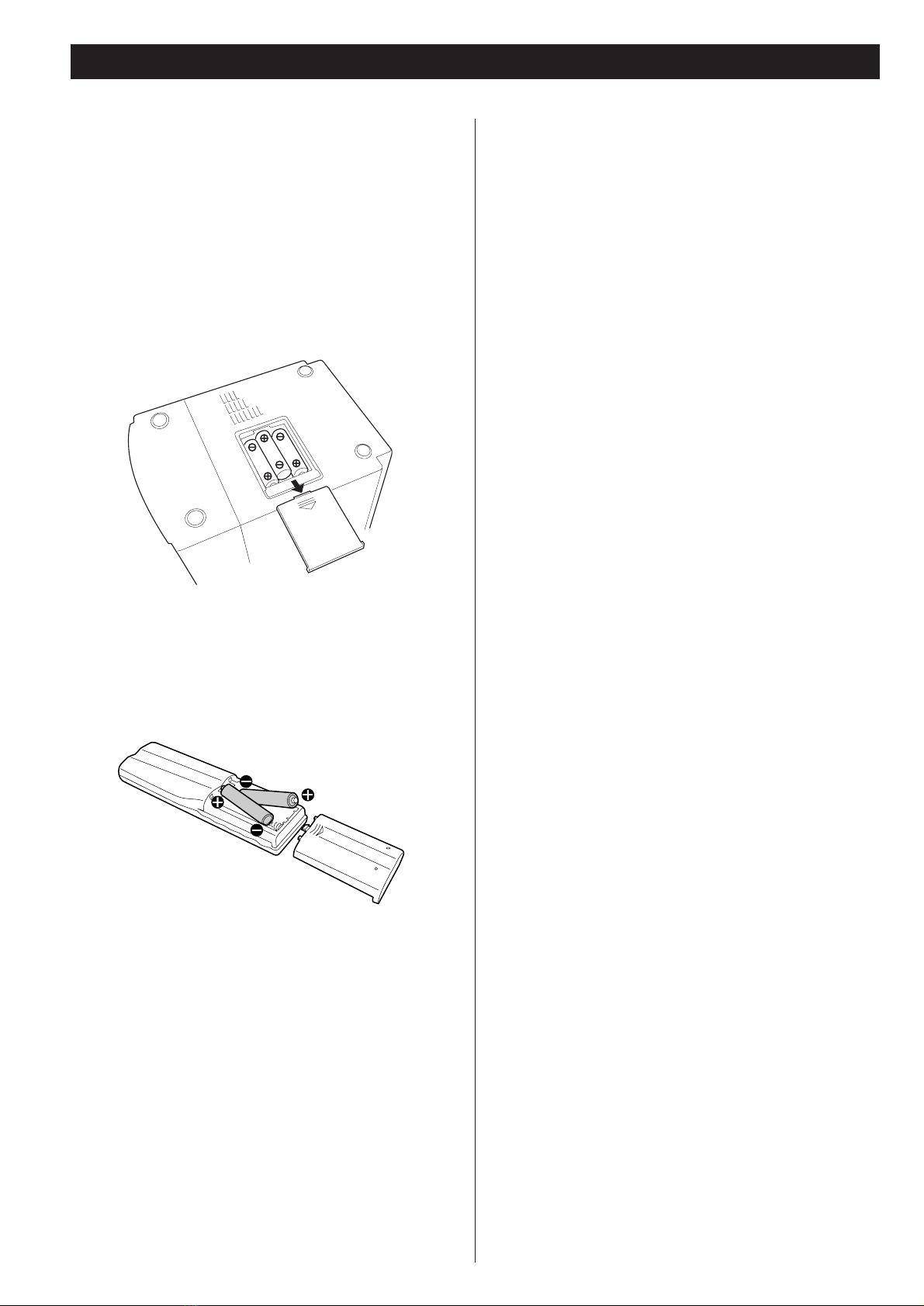

Battery Installation
1. Remove the battery compartment cover.
2. Insert “AA” (R6 or SUM-3) dry batteries. Make sure that
the batteries are inserted with their positive “+” and
negative “_” poles positioned correctly.
3. Close the cover.
Battery Replacement
If the distance required between the remote control unit and
main unit decreases, the batteries are weak. If this is the case,
replace the batteries with fresh ones.
Precautions concerning batteries
<Be sure to insert the batteries with correct positive “+” and
negative “_” polarities.
<Use batteries of the same type. Never use different types of
batteries together.
<Rechargeable or non-rechargeable batteries can be used.
Refer to the precautions on their labels.
<When the remote control unit is not to be used for a long
time (more than a month), remove the batteries from the
remote control unit to prevent them from leaking. If they
leak, wipe away the liquid inside the battery compartment
and replace the batteries with new ones.
<Do not heat or disassemble batteries and never dispose of old
batteries by throwing them in a fire.
Main Unit
(Underside of the unit)
These batteries supply a backup power to a built-in clock when
the unit is momentarily disconnected from the AC power line.
Remote Control Unit
Battery Installation

7

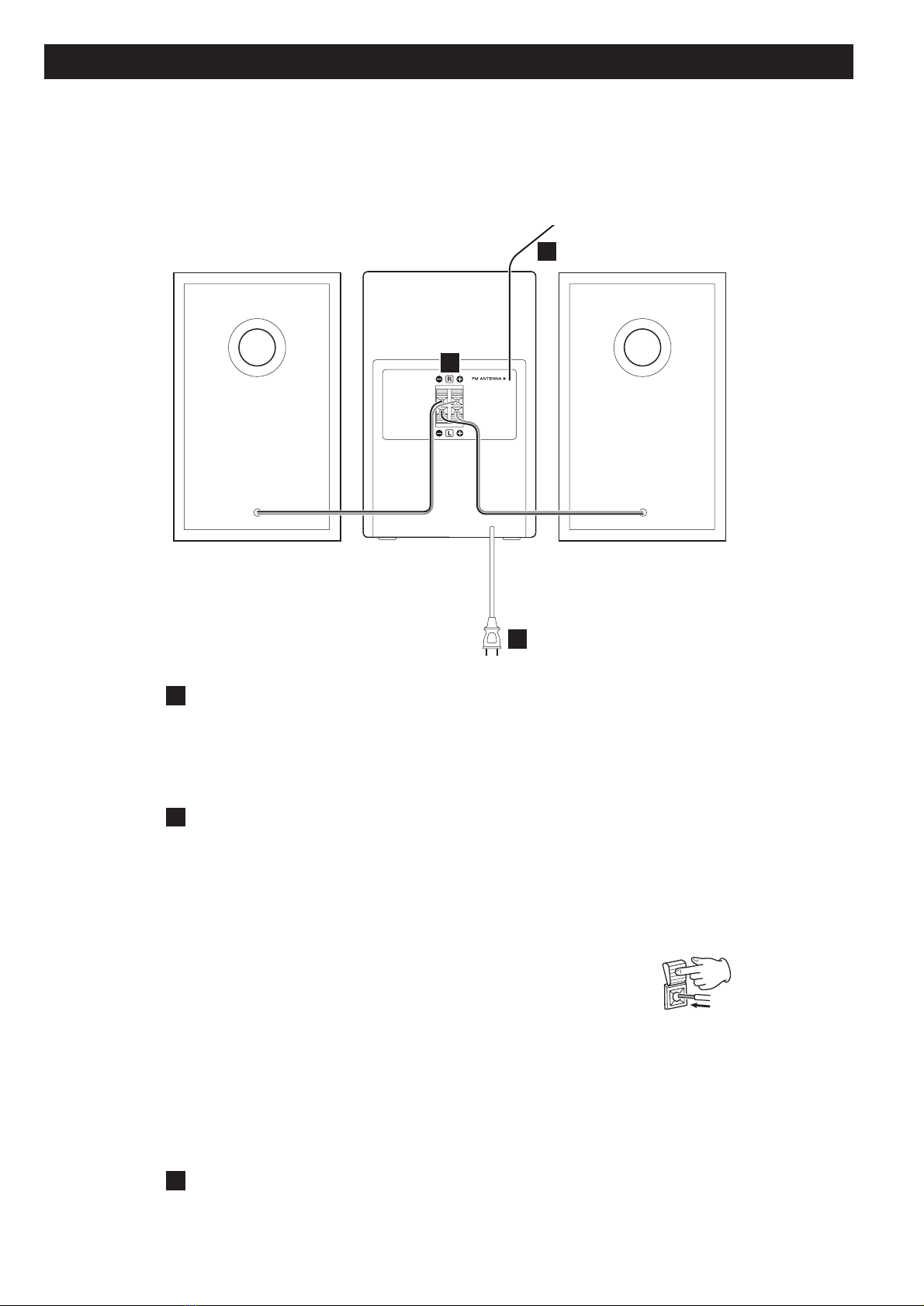

Connections
A
B
C
FM antenna
While in FM mode, tune in an FM station and extend the lead to find the best position for
the reception. This antenna may need to be repositioned if you move your unit to a new
location.
Speakers
Connect the left speaker’s cable to “L”, and the right speaker’s cable to “R”.
Be sure to connect the black side of the cable to the _(negative) terminal and the gray
broken-line-printed side to the +(positive) terminal.
How to connect
Push the tab, insert the end of the cable, then pull the tab back. Make sure
it is fastened securely by pulling the cable lightly. Make sure only the bare,
stripped wire is inserted in the jack and that no plastic insulation is
preventing contact between the speaker wire and terminal.
<To avoid damaging the speakers with a sudden high-level signal, be sure to switch the
power off before connecting the speakers.
<If not using the included speakers, make sure the speakers you use are at least 4 Ω
impedance.
AC Power Cord
Plug this AC power cord into an AC wall socket.
C
B
A
CAUTION:
<Switch off the power to all equipment before making connections.
<Read the instructions of each component you intend to use with this unit.
<Be sure to insert each plug securely. To prevent hum and noise, avoid bundling the signal
interconnection cables together with the AC power cord.

8
Unit Functions
STANDBY/ON
Use this button to turn the unit on or standby.
TUNER (FM/AM)
Use this button to select TUNER mode.
In TUNER mode, press this button to select FM or AM.
TIMER
Use this button to disable and enable a preset timer-on/-off
time.
SHUFFLE
In CD mode, use this button to play all tracks on the CD at
random.
D
C
B
The equipment draws a nominal amount of power from the
AC outlet even with its STANDBY/ON switch in the
STANDBY position.
A
A
A
C
F
O
E
M
N
CD
E
G
F
B
I
L
N
O
Q
K
J
P
M
H
H
D
P
c
f
g
a
b
d
e
R
EQ (Equalizer)
This button offers Classic, Rock, Pop, Jazz and PASS modes.
MEMORY/TIME SET
This button is used for programed playback of CD or to preset
broadcasts. Also used to change between the hours and the
minutes when setting a built-in clock or timer-on or -off
times.
PHONES
Insert the headphones plug into the PHONES jack, and adjust
the volume using the VOLUME button.
REPEAT
In CD mode, use this button for repeat playback.
H
G
F
E

9
<The provided Remote Control Unit allows the unit to be
operated from a distance.
When operating the remote control unit, point it towards
the REMOTE SENSOR on the front panel of the unit.
<Even if the remote control unit is operated within the
effective range, remote control operation may be
impossible if there are any obstacles between the unit and
the remote control.
<If the remote control unit is operated near other appliances
which generate infrared rays, or if other remote control
devices using infrared rays are used near the unit, it may
operate incorrectly. Conversely, the other appliances may
operate incorrectly.
<To simplify explanations, instructions in this manual refer to
the names of the buttons and controls on the front panel
only. Associated controls on the remote control will also
operate similarly.
Display
AUX
When a component is connected to the AUX IN jack, use this
button to listen to the external source.
CD
Use this button to select CD mode.
In CD mode, use this button to start or pause playback.
OPEN/CLOSE
In CD mode, use this button to open and close the disc
compartment lid.
SKIP (.//), TUNING
In CD mode, use these buttons to skip tracks. Holding down
either button offers “cue” or “review” functions.
In TUNER mode, use these buttons to tune in a station.
STOP
In CD mode, use this button to stop playback.
FM MODE/MP3
In FM TUNER mode, use this button to select stereo or
monaural.
During playback of a MP3 disc, use this button to search track
name.
During playback of CD, use this button to switch the ESP
function on or off.
VOLUME
Use this button to adjust the volume level.
AUX IN jack
You can connect a portable audio player to this jack.
Connect the LINE OUT or PHONES jack (audio output jack) of
the player using the supplied stereo mini plug cable.
When using the PHONES jack of your mini player, you must
adjust the volume of the mini-player or you may hear no
sound from your EX-M5.
Remote sensor
Receives signals from the remote control unit. Point the
remote control unit at this sensor when operating the remote
control unit.
R
Q
P
O
N
M
L
K
J
I
Remote Control Unit
MP3 FOLDER/PRESET
In TUNER mode, use this button to select preset stations.
During playback of a MP3 disc, use this button to select a
folder in the disc.
MUTING
Use this button to mute the sound.
SLEEP
Use this button to set sleep timer.
INTRO CHECK
In CD mode, use this button to start or stop the intro check
function.
FM/AM
In TUNER mode, press this button to select FM or AM.
FUNCTION
Use this button to select CD, AUX or TUNER.
PLAY/PAUSE
In CD mode, use this button to start or pause playback.
g
f
e
d
c
b
a

10
Insert the headphones plug into the PHONES jack, and adjust
the volume.
Basic Operation
Play the source, and adjust the volume using the
VOLUME button.
3
Press the STANDBY/ON switch to turn the unit on.
1
Press the CD, TUNER or AUX button to select a source.
2
<When using the remote control unit, press the FUNCTION
button repeatedly until the desired source appears on the
display.
<To listen to an external source connected to the AUX IN jack,
press the AUX button.
The volume is adjustable from 00 to 30 using the VOLUME
buttons. You can hold down the – or + buttons to reduce or
bring up the volume continuously.
EQ (Equalizer)
When the EQ button is pressed once, the current EQ mode is
displayed. Press the EQ button repeatedly to select any other
mode.
3
12
<While muting is engaged, the VOLUME level indicators blink.
<If you change the volume during the muting, the muting will
be canceled.
Headphones
CLASSIC: A balanced sound; suitable for classical music.
ROCK: Provides a heavy powerful sound; suitable for rock
music.
POP: Emphasizes vocal tones; suitable for popular music.
JAZZ: suitable for jazz music.
PASS: Equalizer is off.
Muting
To mute the sound temporarily, press the MUTING button.
Press the MUTING button again to restore the sound.

11
Listening to CD/MP3 (1)
Press the CD or the FUNCTION button to select “CD”.
1
Press the OPEN/CLOSE button.
2
Put a disc onto the center spindle of the player with the
label side facing you.
Press the disc onto the spindle until a slight “click” is heard
indicating the disc is mounted correctly.
3
<Never put more than one disc in the mechanism at a time.
<Ensure that the disc is correctly mounted on the spindle and
locked in place.
Press the OPEN/CLOSE button to close the CD door.
4
<It takes a few seconds for the unit to load the disc. No
buttons will work during loading. Wait until the total number
of the tracks and the total play time of the disc are displayed.
<When no disc is loaded in the CD player, “NO DISC” is
displayed.
When a CD is loaded
Press the Play/Pause button (y/J) to start playback.
5
Playback starts from the first track of the disc.
<MP3 tracks recorded out of folders are automatically put in
the “ROOT” folder,.and playback starts from the first track of
the ROOT folder.
<When the playback of all the tracks has finished, the unit
stops automatically.
When a MP3 disc is loaded
total playing timetotal tracks
total number of folderstotal tracks
CD PLAY/PAUSE
OPEN/CLOSE

12
Listening to CD/MP3 (2)
To suspend playback temporarily
(pause mode)
To stop playback
Press the Stop button (H) to stop playback.
To skip to the next or a previous track
Press the Play/Pause button (G/J) during playback. Playback
stops at the current position and the time display blinks. To
resume playback, press the Play/Pause button (G/J) again.
During playback, press the skip button (.or/)
repeatedly until the desired track is found. The selected track
will be played from the beginning.
In the stop mode, press the skip button (.or/)
repeatedly until the track you want to listen to is found. Press
the Play/Pause button (G/J) to start playback from the
selected track.
<When the .button is pressed during playback, the track
being played will be played from the beginning. To return to
the beginning of the previous track, press the .button
twice.
<During programmed playback, the next or previous track in
the program is played.
Search for a part of a track
The ESP stores the music in the buffer to prevent sound from
skipping.
During playback of a CD, press the MP3 button to turn the
ESP on or off. When you turn the ESP on, “40 SEC (40
seconds)” briefly appears, and the (ESP) indicator lights on the
display.
<The (ESP) indicator blinks while the unit is filling the buffer.
<When the unit is on the stable place and free from
mechanical shocks, you can turn this function off.
<During playback of MP3, this function is always ON.
ESP (Electronic Shock Protection)
During playback, hold down the skip button (.or/) and
release it when the part you want to listen to is found.

13
Skip to the next folder (MP3)
Press the MP3 FOLDER button to skip to next folder.
To display the MP3 information
During playback of MP3 disc, press the MP3 button for more
than 1 second. The information about the current track is
displayed as follows:
FILE (folder name)wTITLE (*)wARTIST (*)wALBUM (*)
*: track information
Press the MP3 button for more than 1 second again to cancel
the MP3 information mode.
Each time the REPEAT button is pressed, the mode is changed
as follows:
<If one of the following buttons is pressed, repeat mode will
be canceled:
STOP during playback, FUNCTION, OPEN/CLOSE, POWER
Repeat one track
Press the REPEAT button once during playback. “REPEAT”
lights.
The track being played will be played repeatedly. If you press
the Skip button (.or/) and select another track, the
track you selected will be played repeatedly.
It is also possible to select a track to be repeated in the stop
mode. Press the REPEAT button, select a track using the Skip
button (.or/), and then press the Play/Pause button
(G/J) to start playback.
Repeat all the tracks
All the tracks will be played repeatedly.
Press the REPEAT button twice. “REPEAT ALL” lights.
During programmed playback, programmed tracks will be
played repeatedly.
Repeat all the tracks in the folder (MP3)
All the tracks in the folder will be played repeatedly.
Press the REPEAT button three times. “REPEAT ALBUM”
lights.
When a CD is loaded.
When a MP3 disc is loaded.
REPEAT REPEAT ALL
(off)
REPEAT REPEAT ALL
(off)
REPEAT ALBUM
Repeat Playback

14
CD PLAY/PAUSE
MEMORY STOP
SKIP
Up to 64 tracks can be programmed in the desired order.
Shuffle and Repeat functions don’t work during programmed
playback.
Press the CD or the FUNCTION button to select “CD”.
1
Press the MEMORY button.
2
“MEMORY” lights up in the display.
<To cancel the program mode, press the Stop button (H).
Press the Skip button (.or/) repeatedly to select a
folder of a MP3 disc, then press the MEMORY button.
<MP3 tracks recorded out of folders are in the “01” (ROOT)
folder.
<Skip this step when playing a CD.
3
Press the Skip button (.or/) repeatedly to select a
track, then press the MEMORY button.
The track is programmed, and “P-02” is displayed.
<Repeat steps and to program more tracks.
<You can program up to 64 tracks.
When the selection of track numbers is completed,
press the Play/Pause button (G/J) to start programmed
playback.
5
43
4
<When the playback of all the programmed tracks has finished,
or if one of the following buttons is pressed, the MEMORY
indicator will go off and the program mode will be cancelled:
STOP, FUNCTION, POWER
The program is retained in memory until the OPEN/CLOSE
button is pressed or the power is interrupted. You can return
to the programmed playback by pressing the MEMORY
button and the Play/Pause button (G/J) in the stop mode. (If
another source was selected, select the CD mode by pressing
the CD button beforehand.)
Programmed Playback

15
To check the programmed order
In the stop mode, press the MEMORY button repeatedly. The
track number and program number will be shown on the
display.
To add a track to the end of the program
In the stop mode, press the MEMORY button repeatedly until
“00” appears on the display. Select a track number using the
Skip button (.or/) and then press the MEMORY
button. The track is added to the end of the program.
To overwrite the program
In the stop mode, press the MEMORY button repeatedly until
the program number to be changed appears on the display.
Select a new track number using the Skip button (.or/)
and then press the MEMORY button.
To clear program
To clear the programmed contents, press the MEMORY and
the STOP button (H) in the stop mode.
<If the OPEN/CLOSE button is pressed, the programmed
contents will also be cleared.
<If the unit is disconnected from the power supply, the
programmed contents will be cleared.
Shuffle Playback
The tracks can be played randomly. Press the SHUFFLE button
during playback or when in the stop mode. “SHUFFLE” will
then light up in the display.
<If you press the /button during shuffle playback, next
track will be randomly selected and played. If you press the
.button, the currently played track will be played from
the beginning. A track cannot be replayed during shuffle
playback.
<Shuffle playback doesn’t work during programmed playback.
<If one of the following buttons is pressed, shuffle mode will
be cancelled:
SHUFFLE, STOP, FUNCTION, POWER, OPEN/CLOSE
Intro Check
Press the INTRO CHECK button in the stop mode. The
beginning of all the tracks is played for 10 seconds each.
When a track you want to listen to is found, press the INTRO
CHECK button to resume normal playback.
<To skip to the next or a previous track, press the SKIP button
(.or/).
<To stop Intro Check function, press the STOP button (H).

16
Search Mode (MP3 only)
Search for a track in a folder
Press the MP3 button twice.
The name of folder is displayed.
Press the SKIP button (.or /) to find the folder
that the track you want to listen to is included.
Press and hold the SKIP button (.or /).
Then you can select the track in the folder by pressing the
SKIP button (.or /).
<MP3 tracks recorded out of folders are in the “ROOT” folder.
Press the PLAY/PAUSE button (G/J) to start playback.
Playback starts from the selected track.
<If you skip step , playback will start from the first track in
the selected folder.
3
4
3
2
1
Initial letter of track name
Track name
Search for a name of track
You can select the track by searching for its name.
Press the MP3 button once.
An alphabet (initial letter of a track name) and a track name
are displayed.
1
Press the PLAY/PAUSE button (G/J).
Playback starts from the selected track.
4
Track number
<To cancel the search mode, press the STOP button (H).
Select the initial letter of the track you want to listen to
by pressing the SKIP button (.or /).
Press and hold the SKIP button (.or /).
3
2
Then you can select the track that has same initial letter by
pressing the SKIP button (.or /).
CD PLAY/PAUSE
MP3
SKIP

17
Stereo:
FM stereo broadcasts are received in stereo and the
“STEREO” indicator lights on the display.
Mono:
To compensate for weak FM stereo reception, select this
mode. Reception will now be forced to monaural, reducing
unwanted noise.
FM MODE Button
Pressing this button alternates between Stereo mode and
Mono mode.
Press the TUNER (FM/AM) button.
1
To select the band (AM or FM), press the TUNER (FM/AM)
button again.
2
Listening to the Radio
If the reception is poor
AM broadcast
Rotate or relocate the unit to find the best position for AM
stations.
FM broadcast
Extend and rotate the FM antenna until you receive the
stations clearly. You may need to relocate the unit.
Select the station you want to listen to (auto selection).
3
Hold down the TUNING Up or Down button until the
frequency display begins to change. When a station is tuned
in, the tuning process will stop automatically.
<Press the Up or Down button to stop the auto selection.
Selecting stations which cannot be tuned automatically
(manual selection)
When the Up or Down button is pressed momentarily, the
frequency changes by a fixed step.
Press the Up or Down button repeatedly until the station you
want to listen to is found.
TUNER
FM/AM
SKIP

18
Preset Tuning
You can store FM and AM stations into preset channels 1 to 10
respectively.
Tune in a station you want to listen to (see steps to
of page 17).
Press the MEMORY button.
2
3
11
Within 5 seconds, press the MEMORY button.
4
The station is stored and the MEMORY indicator goes off.
To store more stations, repeat steps to .
41
preset channel
Within 5 seconds, select a preset channel to store the
station using the PRESET button.
3
Press the PRESET button repeatedly until the desired
preset station is found.
2
How to select preset stations
Press the FM/AM button to select a band.
1

19
Setting the Clock
TIME SET SKIP
If the unit is on, press the STANDBY/ON switch to turn
it off.
1
Press the TIME SET button once more.
The “hour” value blinks.
3
Press the SKIP button (.//) to set the current
hour.
4
Press the TIME SET button.
The “minute” value blinks.
5
Press the SKIP button (.//) to set the current
minute.
6
Press the TIME SET button.
The clock starts.
7
Press and hold down the TIME SET button.
“12 HOUR” or “24 HOUR” blinks. If you want to change the
hour mode, press the .or/button.
2
<If no button is pressed for 10 seconds, the time setting mode
will be cancelled.

20
TIMER SKIP
Timer
<The unit can be programmed to turn on and off at a specified
time.
<Adjust the clock before setting the timer.
Press and hold the TIMER button until “TIMER” and
“ON” indicators appear on the display.
1
The “hour” value starts flashing.
<When no button is pressed for 10 seconds, the timer setting
mode will be cancelled.
The “minutes” value starts
flashing.
Press the SKIP button (.//) to set the start time
(minute), and then press the TIMER button.
3
“TIMER” and “OFF” indicators
appear on the display and the
“hour” value starts flashing.
Press the SKIP button (.//) to set the start time
(hour), and then press the TIMER button.
2
Press the SKIP button (.//) to set the stop time
(minute), and then press the TIMER button.
5
The “minutes” value starts
flashing.
Press the SKIP button (.//) to set the stop time
(hour), and then press the TIMER button.
4
Press the SKIP button (.//) to select a source (CD
or TUNER), and then press the TIMER button.
6
