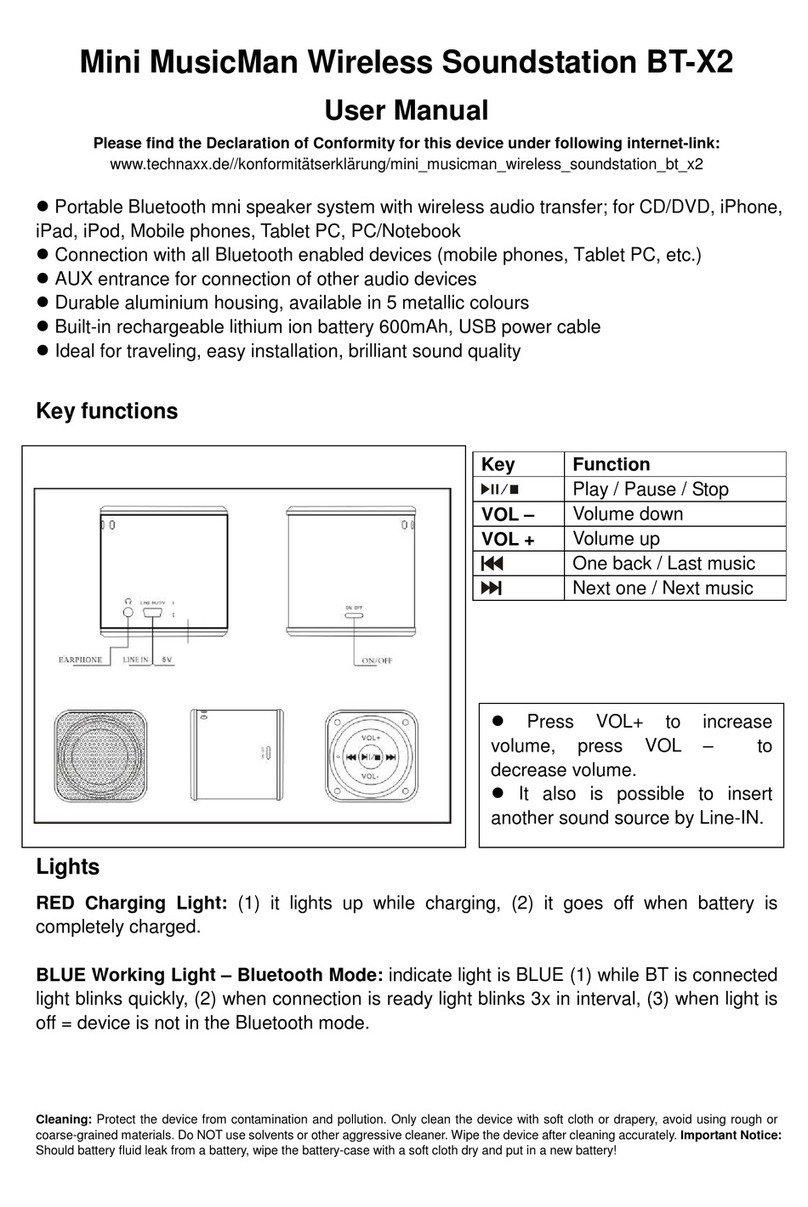

Technaxx BT-X2 User manual

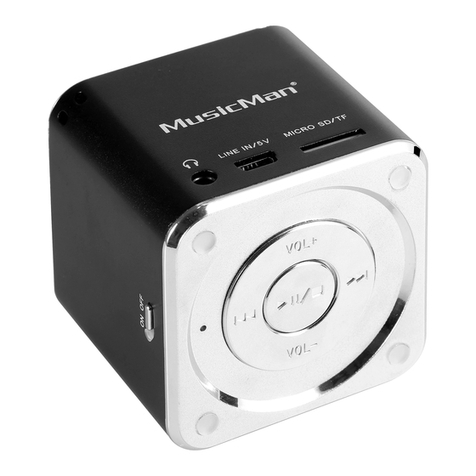

Mini MusicMan
®
Wireless Soundstation BT-X2
Mobile Mini Bluetooth Soundsystem with wireless audio transfer
User Manual
Please find the Declaration of Conformity for this device under following internet-link:
www.technaxx.de/konformitaetserklaerung/mini_musicman_wireless_soundstation_bt_x2
Features
Mobile mini Bluetooth speaker system with wireless audio transfer; for CD/DVD, iPhone,
iPad, iPod, Mobile phones, Tablet PC, PC/Notebook
Connection with all Bluetooth enabled devices (mobile phones, Tablet PC, etc.)
TF MicroSD memory card slot (up to 32GB)
AUX entrance to connect more audio devices
Aluminium for lightweight but very durable housing, available in 5 different metallic
colours
Ideal für traveling, easiest installation, brilliant sound quality
Key functions
Lights
RED Charging Light: (1) it lights up while charging, (2) it goes off when battery is
completely charged.
BLUE Working Light – Bluetooth Mode: indicate light is BLUE (1) while BT is connected
light blinks quickly, (2) when connection is ready light blinks 3x in interval, (3) when light
shines brightly, the device is in Line-IN mode, (4) when playing and charging at the same
time, the light blinks red and blue in alteration.
Key Function
Play / Pause / Stop
VOL – Volume down
VOL + Volume up
One back / Last music
Next one / Next music
Press VOL+ to increase
volume, press VOL – to
decrease volume.
It also is possible to insert
another sound source by
Line-IN.

Handling: Bluetooth connection to device
1) Make sure that the mobile phone is in Bluetooth mode.
2) Turn on the device.
3) Press to switch into Bluetooth mode. The BLUE light will blink 3x quickly. Then a
sound is heard which means "Ready for Pairing".
4) Open the mobile phone Bluetooth search. It points out whether set " Mini BT
MusicMan " as stereo device when searching it. Choose " YES " (this prompt may differ
from the mobile phone brand) or just tip on the device’s name.
5) Put in the password " 0000 " into the prompt window (this window may differ from the
mobile phone brand). The BLUE light blinks quickly and "Pairing completed" is heard. Then
press shortly to connect the mobile phone with the MusicMan. It is heard
"Connected" as a confirmation.
6) Open the mobile phone music player.
7) Select the desired track.
Handling: Headphones
While playing music in any mode, insert the headphones into the headphone slot . The
device switches to headphones automatically. After removing the headphones, the device
switches back to the previous mode.
Handling: MicroSD memory card
A MicroSD memory card can be inserted into the slot at any mode. The device will
automatically switch to the MicroSD card and plays music. After removing the memory card,
the device will switch back to the previous mode.
Handling: Line–IN
Connect the Mini-USB cable with the MusicMan and put the audio plug into the audio port
of the desired device. Then press to switch into Line-IN mode.
Package Contents: Mini MusicMan Wireless Soundstation BT-X2, USB power cable,
Audio cable, User manual

Technical specifications
Flash memory TF MicroSD card (up to 32GB)
Built-in AUX entrance to connect more audio devices
Power supply Built-in rechargeable Lithium Ion battery 600mAh (Playing time ~8–10
hours / Charging time ~4 hours), PC-USB
Charging process
(~4 hours) When power OFF, LED turns red while charging. When charging is completed, LED turns off.
When power ON, LED turns purple while charging.
When power ON but no charging process, LED turns blue colour..
Line-IN / 5V USB power supply and audio input
Loud Speaker 1x 1.77” (external Ø 45mm) magnetic resistant 4 Ohm Frequency response: 105Hz–18000Hz (±3dB)
Output: RMS3W THD=10%
Signal / Noise Ratio: ≥80dB
Earphones port Port für 3.5mm jack cable
ON / OFF
(Power switch) ON button = power ON, then music playing starts OFF button = power OFF
Package Contents: MusicMan Mini Wireless Soundstation BT-X2,
USB/Power/Audio cable, User manual
Measurements and Weight: Device Dimensions: 50 x 50 x 50mm
Device Weight: 100g
Available metallic colours: Black, Blue, Siver, Pink, Green
Security and Disposal Hints for Batteries
•Hold children off batteries. When a child swallowed a battery go to a doctors place or bring the child into a hospital promptly!
•Look for the right polarity (+) and (▬) of batteries! Always change all batteries, never use old and new batteries or batteries of different
types together. Never short batteries.
•Do NOT open, deform or load up batteries! There is a risk of injury by battery leakage fluid!
•NEVER throw batteries into fire! There is a risk of explosion!
•Take out exhausted batteries and take out batteries from the device when its not used over a longer period of time.
Hints for Environment Protection
Cleaning: Protect the device from contamination and pollution. Only clean the device with soft cloth or drapery, avoid using rough or
coarse-grained materials. Do NOT use solvents or other aggressive cleaner. Wipe the device after cleaning accurately.
Important Notice: Should battery fluid leak from a battery, wipe the battery-case with a soft cloth dry and put in a new battery!
Packages materials are raw materials and can be recycled. Separate the packages by types and put them to an
adequate recycling on behalf of the environment. Do not disposal old devices or batteries into the domestic waste.
Disposal old / defective devices professionally!
