Technics SL-PS840 User manual

cv.jV-'r* civ?-
S&fiSffe
ter
Compact Disc Player
Operating Instructions
COMPACT
DIGITAL AUDIO
Notes:
•Specifications differ according to the area code.
•The "EB" area code, for example, indicates United Kingdom
specifications.
•The “EB" indication is shown on the packing case.
.Before operating this unit, please read these instructions cbm-
RQT1801-B
FQ193L0

Thank you for purchasing this product.
For optimum performance and safety, please read
these instructions carefully.
Table of Contents
Caution for AC Mains Lead. 3
Suggestions for Safety. 4
Installation ..
Preparations..
Concerning the Remote Control. 7
Front Panel Controls and Functions.8
Basic Operating Procedure
(Sequential Play) .10
Direct Access Play. 12
Random Play . 1 3
Program Play..
Search Function ..
Skip Function ..
Special Features . 1 8
Recording from Compact Discs.22
Concerning Compact Discs.26
Maintenance.26
Technical Specifications.26
Troubleshooting Guide.27
Before Transporting the Unit .27
CAUTION:
The AC voltage is different according to the area.
Be sure to set the proper voltage In your area before use.
(For details, please refer to the page 6.)
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PER¬
FORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOUR¬
SELF. REFER SERVICING TO QUALIFIED PERSONNEL.
SUOMI
VAROITUS!
LAITTEEN KAYTTAMINEN MUULLA KUIN TASSA
kAyttOohjeessa mainitulla tavalla saattaa
ALTISTAA KAYTTAjAN TURVALLISUUSLUOKAN 1
ylittAvAlle nAkymAttOmAlle lasersAtei-
LYLLE.
DANSK
NORSK
BEM/ERK!
IDETTE APPARAT ANVENDES EN LASER.
BRUG AF BETJENINGSKNAPPER ELLER REGULE-
RINGER ELLER FREMGANGSMADER UDOVER DE I
DENNE BETJENINGSVEJLEDNING ANGIVNE, KAN MED-
F0RE FARE FOR BESTRALING. ABN IKKE KABI-
NETTET OG FORS0G IKKE AT UDF0RE REPARA-
TIONER SELV. REPARATIONER MA KUN FORETAGES
AF KVALIFICEREDE TEKNIKERE.
DANGER-lnvi*W«
lasar radiation whan
opan.
AVOID DIRECT EX¬
POSURE TO BEAM.
(Inakto or product)
AOVARSEt: USYNilG IASERSTRAuNG
VED ABNING, nAr S1KKERHEDSAF-
BRYOEREERUDE AF FUNCTION.
UN06A U0SATTS.SE FOR STRAUNG.
(fndersidan at apparatat)
VAflO! AvMUtua )a
•uojifttaa oWtottomi
m amUna nttymUta
(aamiWMta.
All katao iltwaMn.
VARNINQ! Otyrtta
iwratrlWng nir &nr
(W If Ippnad octi
apirrM If uttonpM.
B«Ortto tj ttrifa.
ADVERSEU Unmflg
lmr»trlSnc nir MmI
*pn»» oo Mkktrtwtfalla
brytM. Unngl
•UpOfNitng tor Mrlton.
(T uottan sisIHa)
(Apparatans insida)
(Produktets irnside)
ADVARSEL!
DETTE PRODUKTET ANVENDER EN LASER.
BETJENING AV KONTROLLER, JUSTERINGER ELLER
ANDRE INNGREP ENN DE SOM ER BESKREVENT I
DENNE BRUKSANVISNING, KAN FORE TIL FARLIG
bestrAung.
DEKSLER MA IKKE APNES, OG FORS0K ALDRI A
REPARERE APPARATET PA EGENHAND.
ALT SERVICE OG REPARASJONSARBEID MA UT-
F0RES AV KVALIFISERT PERSONELL.
(Back of product)

Caution for AC Mains Lead
(For United Kingdom)
(“EB” area code model only)
For your safety, please read the following text care¬
fully.
This appliance is supplied with a moulded three pin
mains plug for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure
that the replacement fuse has a rating of 5-ampere
and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark <$> or the BSI mark ^ on
the body of the fuse.
If the plug contains a removable fuse cover you must
ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used
until a replacement cover is obtained.
A replacement fuse cover can be purchased from
your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UN¬
SUITABLE FOR THE SOCKET OUTLET IN
YOUR HOME THEN THE FUSE SHOULD BE
REMOVED AND THE PLUG CUT OFF AND
DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELEC¬
TRICAL SHOCK IF THE CUT OFF PLUG IS
INSERTED INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring
code as shown below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accor¬
dance with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
appliance may not correspond with the coloured
markings identifying the terminals in your plug, pro¬
ceed as follows:
The wire which is coloured BLUE must be connected
to the terminal in the plug which is marked with the
letter N or coloured BLACK.
The wire which is coloured BROWN must be con¬
nected to the terminal in the plug which is marked with
the letter L or coloured RED.
Under no circumstances should either of these wires
be connected to the earth terminal of the three pin
plug, marked with the letter E or the Earth Symbol
Before use
Remove the connector cover as follows.
How to replace the fuse
1. Remove the fuse cover with a screwdriver.

Suggestions for Safety
■ Use a standard AC wall outlet
1. Use from an AC power source of high voltage, such as that
used for an air conditioner, is very dangerous.
A fire might be caused by such a connection.
2. A DC power source cannot be used.
Be sure to check the power source carefully, especially on a
ship or other place where DC is used.
■ Grasp the plug when disconnecting the power
supply cord
1, Wet hands are dangerous.
A dangerous electric shock may result if the plug is touched by
wet hands.
2. Never place heavy items on top of the power supply cord,
nor force It to bend sharply.
■ Place the unit where it will be well ventilated
Place this unit at least 10 cm (4") away from wall surfaces, etc.
■ Avoid places such as the following:
In direct sunlight or in other places where the temperature la
high.
In places where there is excessive vibration or humidity.
Such conditions might damage the cabinet and/or other component
parts and thereby shorten the unit's service life.
■ Be sure to place the unit on a fiat, level surface
If the surface is inclined, a malfunction may result.
■ Never attempt to repair nor reconstruct this
unit
A serious electric shock might occur if this unit is repaired, dis¬
assembled or reconstructed by unauthorized persons, or if the
internal parts are accidentally touched.
■ Take particular care if children are present
Never permit children to put anything, especially metal, inside this
unit. A serious electric shock or malfunction could occur if articles
such as coins, needles, screwdrivers, etc. are inserted through the
ventilation holes, etc. of this unit.
■ If water is spilled on the unit
Be extremely careful if water is spilled on the unit, because a fire or
serious electric shock might occur. Immediately disconnect the
power cord plug, and consult with your dealer.
■ Avoid spray-type insecticides
Insecticides might cause cracks or "cloudiness" in the cabinet and
plastic parts of this unit. The gas used in such sprays might,
moreover, be ignited suddenly.
■ Never use alcohol or paint thinner
These and similar chemicals should never be used, because they
might cause flaking or cloudiness of the cabinet finish.
■ Disconnect the power supply cord if the unit
will not be used for a long time
If the unit is left for a long time with the power ON, this not only will
shorten its useful operation life, but also may cause other trouble.
■ If trouble occurs
If, during operation, the sound is interrupted or indicators no longer
illuminate, or if an abnormal odour or smoke is detected, imme¬
diately disconnect the power cord plug, and contact with your
dealer or an Authorized Service Center.
4

Installation
Notes of placement
■ This unit is a precision instrument. Be sure to place it on a
flat surface.
■ Avoid places such as the following:
•Near any equipment or device that generates strong magnetism.
•On any heat-generating equipment or device, or in any place
where the temperature is high (35 C C or higher).
• Extremely cold place (5°C or below).
• Near a tuner or TV. (It may cause noise in the broadcast, or
disturbance of the TV picture.)
■ When carrying or storing the unit, handle it with care so it is
not subjected to any strong bumps.
Always remove the disc before storing the unit for any period of
time.
■ To avoid problems due to vibration.
• Do not place a book or similar object under this unit.
• Do not route the connection cables (of this or other units) across
the operation panel, across the top, or under the unit.
About moisture
Moisture may form on the lens in the following cases...
• Immediately after a heater has been turned on.
• In a steamy or very humid room.
•When the unit is suddenly moved from a cold environment to a
warm one.
If moisture forms inside this unit, it may not work properly. In this
case, turn on the power and wait about one hour for the moisture to
evaporate.
Preparations
Supplied accessories
Check the packing carton for these accessories.
Note:
The configuration of the AC power supply cord differs according to
area.
AC power supply cord 1
Remote control transmitter 1
(RAK-SL512W)
Power plug adaptor 1
(For areas except Europe, Australia and New
Zealand)
Stereo connection cable 1 Batteries 2
(UM-4, AAA, R03)

Preparations (continued)
Connections
6
Before making connections, be sure that the power of this unit and
ail other system components is first turned off.
See the operating instructions of the amplifier or the cassette deck
for details.
FOR UNITED KINGDOM ONLY
BE SURE TO READ THE CAUTION FOR AC
POWER SUPPLY CORD ON PAGE 3 BE¬
FORE PROCEEDING TO STEP 4.
® CT)
DIGITAL
OUT
SYNCHRO
OPTICAL
EDIT
OUT
Of
so
LUOKAN 1 LASERLAITE
KLASS1 LAS ER APPARAT
Rear panel
AC IN%
VOLT ADJ
JL
[o
3 I
l ,
tLJ
of this unit
(Tutoteen takaosassa)
(Apparatens baksida)
Note:
The configuration of the AC
outlet and AC power supply
cord differs according to area.
(red) (white)
Voltage selector
(VOLT ADJ)
Household
AC outlet
, 1 2 3
1 Connect the stereo connection cable (in¬
cluded) to the “CD” or “AUX” terminals of the
amplifier.
When using the synchro edit function, be sure to connect the
stereo connection cable to the amplifier even if the optical-fiber
cable has been connected. (See pages 22-25.)
2 Connect the synchro edit cable (included with
the cassette deck) to the “SYNCHRO EDIT”
terminal of the Technics cassette deck.
3 Connect the optical-fiber cable (not included)
to the “DIGITAL INPUT” terminal of the ampli¬
fier.
4
For areas except Europe, Australia and New Zealand
Set the voltage selector (VOLT ADJ) to the
voltage setting for the area in which the unit will
be used.
•Use a minus (-) screwdriver.
•Note that this unit will be seriously damaged If this setting is not
made correctly.
• If the power supply in your area is 117 V or 120 V, set to the
"127 V" position.
4 Connect the AC power supply cord (included)
to the “AC OUTLET” of the amplifier or the
household AC outlet.
This terminal can be used for connection with other equipment
ttiat has a digital input terminal, such as an amplifier, by using
an optical-fiber cable. A dust-protection cap is inserted in this
terminal. Remove this cap only when a connection is to be
made to this terminal.
For areas except Europe, Australia and New Zealand
If the power plug will not fit your socket, use the power plug
adaptor (included).
For areas except Australia and New Zealand
Insertion of Connector
Even when the connector is per¬
fectly inserted, depending on the
type of inlet used, the front part of
the connector may jut out as
shown in the drawing.
However there is no problem
using the unit.

Concerning the Remote Control
Battery installation
1 Open the cover.
Press gently and slide the cover out.
2 Insert the batteries included with this unit.
•When you need to replace these batteries, use two UM-4
"AAA”, IEC R03 (1.5 V) or equivalent batteries.
•Be sure to insert batteries so that their positive (+) and
negative (-) polarities match the indications in the compart¬
ment. Batteries installed incorrectly may leak and cause
damage.
•Refer to "Use of batteries” below for additional information.
3 C lose the cover.
Use of batteries
• Do not mix old and new batteries or batteries of different types
(carbon and alkaline, etc.).
•The average battery life is about one year. Although the battery
life varies depending on how often the device is used, you should
generally replace the batteries about once a year.
• Replace the batteries if commands from the remote control trans¬
mitter do not operate the unit even when the transmitter is held
close to the front panel.
• Never subject batteries to excessive heat or flame; do not attempt
to disassemble them; and be sure they are not short-circuited.
• If you will not be using the remote control for a long period of time,
remove the batteries and store in a cool, dark place.
• If a battery leaks, remove all batteries and dispose of them prop¬
erly. Thoroughly clean the battery compartment before inserting
new batteries.
• If the leaking electrolyte comes in contact with skin or clothes,
flush with water immediately.
• Keep batteries out of reach of children.
• Do not use rechargeable-type (nickel-cadmium) batteries.
•Do not attempt to recharge alkaline or carbon batteries.
•Always remove old, weak, or worn-out batteries and dispose of
them properly.
•Do not dispose of used batteries in household rubbish.
Operation notes
Aim the remote control’s transmission window toward the CD
player's sensor. Avoid any obstacles.
•Be sure the transmission window and the CD player’s sensor are
free from dust. Excessive dust might prevent reception.
•If direct sunlight or another strong light source strikes the remote
control signal sensor part of the CD player, it may impair the
remote control's operation. If there is a problem, place the CD
player away from the light source.
•If this unit is installed in a rack with glass doors, the glass doors'
thickness or color might make it necessary to use the remote-
control transmitter a shorter distance from the unit.
•Use the remote control with a 60-degree angle of the CD player.
•Maximum distance Is within 7 meters directly facing toward the CD
player.

Front Panel Controls and Functions
Control section _
Numbers with black background (for example ©} indicate functions
available on the remote control. (See page 9.)
© Power “STANDBY (!)/ON” switch
(POWER, Jt STANDBY (!) * ON)
This switch switches ON and OFF the secondary circuit power
only. The unit is in the “standby” condition when this switch is
set to the STANDBY (!) position. Regardless of the switch
setting, the primary circuit is always “live" as long as the
power cord is connected to an electrical outlet.
© Buttons for CD-Edit function
•Tape length button (TAPE LENGTH)
•Tape side select button (SIDE A/B)
•Peak search button (PEAK SEARCH)
(3) Virtual Battery Operation indicator
(VIRTUAL BATTERY OPERATION)
@ Remote control signal sensor (SENSOR)
Q Display mode button (DISPLAY MODE)
© Buttons for program function
•Program button (PROGRAM)
•Clear button (CLEAR)
•Recall button (RECALL)
® Numeric buttons (1-10, >10, 0)
© Skip buttons (SKIP )
® Headphones jack (PHONES)
© Headphones volume control
(PHONES LEVEL)
0 Repeat button (REPEAT)
© Random button (RANDOM)
0 Auto cue button (AUTO CUE)
@ Disc tray
© Search buttons ( ◄◄ SEARCH ►► )
© Disc tray open/close button (a OPEN/CLOSE)
© Stop button ( ■ )
0 Pause button and Indicator (I I)
© Play button and indicator ( ► )
8

| Display section _
® Random play Indicator (RANDOM)
@) Program indicator (PROGRAM)
@ Track number display
@ Level control indicator (LEVEL)
® Index/program sequence display
® Time display
@ Peak search indicator ( i peak i )
® A-B repeat Indicator ( [£5j )
@ Repeat indicator ( 22 )
@ Auto cue indicator (A.CUE)
® Standby Indicator (STANDBY)
© Fade in/out indicator (FADE)
© Compact disc edit indicator (EDIT)
© Tape side indicator (SIDE A, SIDE B)
@ Track number indicator (T-s)
@ “Over” mark ( ^ )
aOPfSO-OH
&
| Remote control section _
The functions 0, 0, 0, 0, 0, 0, 0,0, 0 and 0 are described
under “Control section” on page 8.
© Remote control transmission window
® Numeric buttons (t -20, 0, >20)
® Level control buttons (V LEVEL ▲ )
© Fade in/out button (FADER)
® A-B repeat button (A-B REPEAT)
® Slow search button ( ◄◄ SLOW SEARCH ►► )
® Past search button ( ◄◄ FAST SEARCH ►► )
© Time mode select button (TIME MODE)
® Index skip button (INDEX SKIP )
A

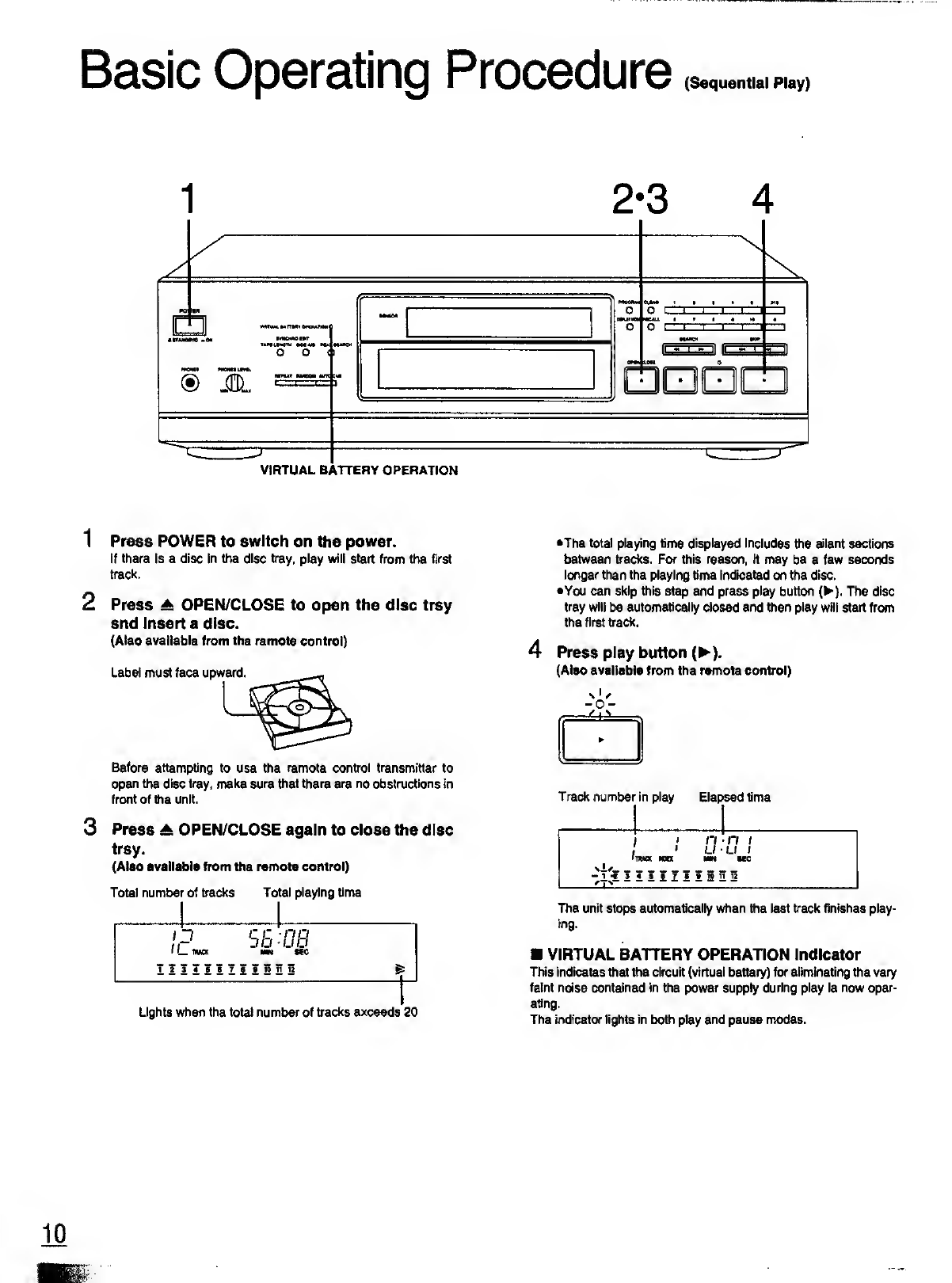

Basic Operating Procedure (Sequential Play)
1 2-3 4
N
X
PQ
a tfiMdi
MOOMt
o
CUM 1 I 1 * t
O r — i —ill—
£b
11 w*TuM.e*rra*TO*«iunot(i
H—a
tea
i
o
1
O
irn
O 0 <
® m.
O
HI •
J c. 3
-- - - ---i r '
VIRTUAL BATTERY OPERATION
1 Press POWER to switch on the power.
If there is a disc in the disc tray, play will start from the first
track.
2 Press A OPEN/CLOSE to open the disc tray
and insert a disc.
(Also available from the remote control)
Before attempting to use the remote control transmitter to
open the disc tray, make sure that there are no obstructions in
front of the unit.
3 Press A OPEN/CLOSE again to close the disc
tray.
(Also available from the remote control)
Total number of tracks
Total playing time
|
O
1 (_ TWO!
c c ’no
JIJ -LIU
MM SCC
! 11 1 1 11
i I S H n
Lights when the total number of tracks exceeds 20
•The total playing time displayed includes the silent sections
between tracks. For this reason, it may be a few seconds
longer than the playing time indicated on the disc.
•You can skip this step and press play button ( ► ). The disc
tray will be automatically closed and then play will start from
the first track.
4 Press play button ( ► ).
(Also available from the remote control)
Track number
in play Elapsed time
\A<_ _
- 1 >€ 3
-or.:.
1 n ■ n 1
' u ■ u 1
TMK KC MM SCC
iiiiitsiis
The unit stops automatically when the last track finishes play¬
ing.
■ VIRTUAL BATTERY OPERATION indicator
This indicates that the circuit (virtual battery) for eliminating the very
faint noise contained in the power supply during play is now oper¬
ating.
The indicator lights in both play and pause modes.
10
