USER GUIDE
CONCEALED UNDERMOUNT
SINGLE SPEED RANGEHOOD
TSSUR52S
TECHNIKA.COM.AU

PG 3
PG 3
CONTENTS TABLE
For Your Safety
Safety Precautions 3
Before Connecting 3
Warnings 4
Use and Care
Use and Care 6
Controls 6
Cleaning your Rangehood 7
Troubleshooting 8
Disposal 8
Installation
Electrical Connection 9
Instructions for Installation 10
Dimensions 10
Warranty 12

PG 4
FOR YOUR SAFETY
Carefully read the following important information regarding installation safety and maintenance.
Keep this information booklet accessible for future reference.
The appliance has been designed for use in a Ducted installation.
Safety Precautions
Take care when the Range Hood is operating simultaneously with an open fireplace or burner
that depend on natural ventilation as the Range Hood removes air from the room, which a
burner or fireplace may need for combustion.
Provide adequate ventilation for safe operation of the Range Hood. Follow any local laws that
apply to external air evacuation.
Before connecting to the electricity network:
Look at the data plate (located inside the appliance) to ascertain that the voltage and power
correspond to the available power supply and the power outlet is suitable. If in doubt ask a
qualified electrician.
If the appliance is used intensively for a long period of time, you may need to open a window to
improve airflow.

PG 5
• Do not check the status of the filters while the Range Hood is operating.
• Do not touch bulbs or adjacent areas, during or straight after use.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• Do not flambé under the Range Hood.
• Avoid free flame, as it is damaging to the filters and can cause fire hazard.
• Constantly check food frying, overheated oil may become a fire hazard.
• Disconnect the electrical plug prior to any maintenance.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• There shall be adequate ventilation in the room when the Range Hood is used at the same
time as appliances burning gas or other fuels.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.
• WARNING: DO NOT penetrate any screws into the range hood as this may result in
electrical hazards.
• WARNING: Failure to install the screws or fixing device in accordance with these
instructions may result in electrical hazards.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances
burning gas or other fuels.
• The minimum distance between the cooktop hob and the lowest part of the range hood
shall be at least 60cm. If the instructions for installation of the gas hob specify a greater
distance, this has to be taken into account.
• Regulation concerning the discharge of air has to be fulfilled.
• 52cm rangehoods can only be installed above hobs with 4 or less burners / elements.
• 70cm rangehoods can only be installed above hobs with 5 or less burners / elements.
• 90cm rangehoods can only be installed above hobs with 6 or less burners / elements.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGES CAUSED BY
BREACHING THE ABOVE WARNINGS.
LED Lamps
LED lamp assemblies are a spare part and are not repairable or replaceable by the customer.
If an LED lamp fails, it must be replaced by a suitably qualified technician.
Please call Glen Dimplex after sales service.
FOR YOUR SAFETY
WARNINGS!

PG 6
USE AND CARE
To ensure the Range Hood continues to operate eectively, regular maintenance and cleaning is
required. Clean the fan and other surfaces of the Range Hood regularly using a cloth moistened
with warm water or non-abrasive liquid detergent.
Controls
This rangehood has a single speed motor and is designed to be operated via the power point
or an isolation switch.
When the power is connected, the fan and light will operate at all times.
When the power is switched o, the fan and light will switch o.
Please see Electrical Connection on page 9 for further details.

PG 7
USE AND CARE
The proper function of the rangehood requires regular maintenance operations.
The anti-grease filters capture the grease particles suspended in the air, and are therefore subject
to clogging according to the frequency of the use of the appliance.
In order to prevent fire hazard, it is recommendable to clean the filter at a minimum of every 2
months by carrying out the following instructions:
- Remove the filters from the cooker hood and wash them in a solution of water and
neutral liquid detergent, leaving to soak.
- Rinse thoroughly with warm water and leave to dry.
- The filters may also be washed in the dishwasher.
The aluminum panels may alter in color after several washes. This is not cause for customer
complaint nor replacement of panels.
Clean the fan and other surfaces of the cooker hood regularly using a cloth moistened with
denatured alcohol or non abrasive liquid detergent.
Keep motor and other parts free from water as this will cause damage to the appliance.
Cleaning your rangehood

PG 8
USE AND CARE
Disposal
By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human
health, which could otherwise be caused by inappropriate waste
handling of this product.
The symbol on the product indicates that this product may not be
treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic
equipment.
Disposal must be carried out in accordance with local environmental
regulations for waste disposal.
For more detailed information about treatment, recovery and recycling
of this product, please contact your local city council oce.
Troubleshooting
Problem Possible reason Solution
Hood doesn’t work No electricity supply Check the plug is connected
Check that the main switch/
circuit breaker/safety switch is
turned on
Poor airflow Aluminum grease filters
clogged
Clean the filters and replace
when dry
Motor running but no airflow Butterfly valve jammed Contact service department
Motor turns o after a few
minutes
High temperature safety
device activated
The kitchen is not suciently
ventilated
The hood is installed near the
cooktop
The hood must be at least
600mm from the top of the
cooktop
Oil dripping onto stove Aluminum grease filter
saturated
Wash the aluminum grease
filters
Whirring sound Something in contact with fan
blade
Contact service agreement

PG 9
INSTALLATION
Assembly and electrical connections must be carried out by authorised personnel.
Electrical Connection
The Range Hood is fitted with a power cord and 3 pin plug. Install the Range Hood so that the
plug is easily accessible. Plug the 3- pin plug into a properly earthed, 10A general purpose power
outlet.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
The appliance has been manufactured as a class I, therefore earth cable is necessary.
The connection to the mains is carried out as follow:
IEC227 North America
L = Live Brown Black
N = Neutral Blue White
E = Earth Green/Yellow Green
NOTE:
When controlling the rangehood to switch on and o with an electric cooktop, the power point
may be controlled by an isolation switch in conjunction with the cooktop power.
In this case, the power point for the rangehood must still be accessible by the customer after
installation.
It is the installer’s responsibility to ensure and any relevant installation standards from the
Wiring Rules AS/NZS3000 are adhered to.
An omnipolar switch with a minimum aperture of 3mm between contacts, in line with the
electrical load and local standards, must be placed between the appliance and the network in
the case of direct connection to the electrical network.

PG 10
INSTALLATION
Instructions for Installation
Recommended Clearances
Rangehood
650-750
Cooking Surface
Install Range Hoods in accordance with the manufacturer’s
instructions. For optimum performance, we recommend that all
Range Hood clearances be a minimum of 650mm to a maximum
of 750mm between the top of the cooking surface to the
underside of the Range Hood. The distance may be reduced to
600mm to align with AS/NZS 5601.
WARNING: DO NOT penetrate any screws into the range hood
as this may result in electrical hazards.
WARNING: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical
hazards.
If a connection flue composed of two parts is used, the upper part
must be placed outside the lower part.
Exhaust air must not be discharged into a flue which is used for
exhausting fumes from appliances burning gas or other fuels.
Installation must comply with any local regulations concerning the
discharge of exhaust air.
Before proceeding with the assembly, remove the anti-grease
filter so that the unit is easier to handle. Prepare the hole in the
ceiling or wall for the evacuation of the air.

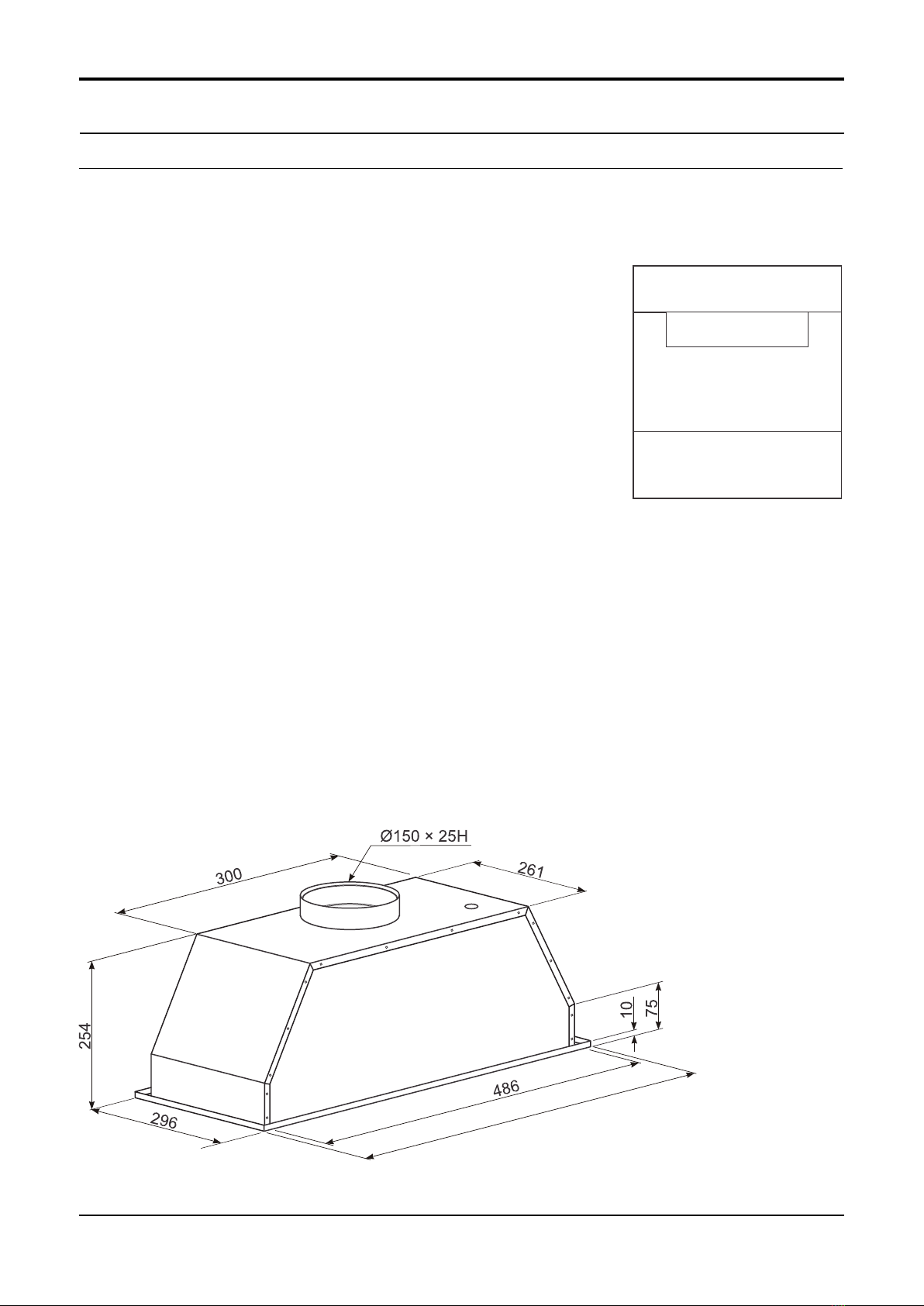

Dimensions
520

PG 11
INSTALLATION

PG 12
This warranty is provided in Australia by Glen Dimplex Australia Pty Limited ABN 69 118 275 460
(Phone number 1300 556 816) and in New Zealand by Glen Dimplex New Zealand Limited
NZBN 9429000069823 (Phone number 09 274 8265) in respect of the Technika Professional
product.
1. Technika Professional Express Warranty
Subject to the exclusions below, we warrant that the product will not have any electrical or
mechanical breakdowns within:
a) In the case of Technika Professional products used for personal, domestic or household
purposes, a period of 2 years from the date the product is purchased as a brand-new
product from a retailer located in Australia / New Zealand.
b) In the case of Technika Professional products used for purposes other than personal,
domestic or household purposes (including business or commercial use), a period of 90
days from the date the product is purchased as a brand-new product from a retailer located
in Australia / New Zealand. Technika Professional products are designed and intended for
domestic use only; and
c) All warranty repairs must be carried out by Glen Dimplex or their nominated service agent
Note: warranty periods detailed above may vary in line with agreements with select retail
and builder partners and may dier between Australia and New Zealand.
The benefits conferred by this express warranty are in addition to the Consumer Guarantees
referred to in section 3 and any other statutory rights you may have under the Australian / New
Zealand Consumer Law and/or other applicable laws.
2. Warranty exclusions
This express warranty does not apply where:
a) The product has been installed, used or operated otherwise than in accordance with the
product manual or other similar documentation provided to you with the product;
MANUFACTURER GUARANTEE

PG 13
b) The product requires repairs due to damage resulting from accident, misuse, incorrect
installation, insect or vermin infestation, improper liquid spillage, cleaning or maintenance,
unauthorised modification, use on an incorrect voltage, power surges and dips, voltage
supply problems, tampering or unauthorised repairs by any persons, use of defective or
incompatible accessories or exposure to abnormally corrosive conditions, events
independent of human control which occurred after the goods left the control of Glen
Dimplex;
c) The repair relates to the replacement of consumable parts such as fuses and bulbs or
any other parts of the product which require routine replacement;
d) You are unable to provide us with reasonable proof of purchase for the product;
e) the breakdown occurs after the expiry of the express warranty period set out in section
1 or
f) the product was not purchased in Australia / New Zealand as a brand-new product.
3. Consumer guarantees
Our goods come with guarantees that cannot be excluded under the Australian / New Zealand
Consumer Law. You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
4. How to make a claim
You may make a claim under this warranty through our website, contacting our customer care
line or via email. Contact details for Glen Dimplex Australia and New Zealand can be found at
the end of this document
To make a valid claim under this warranty, you must:
a) Lodge the claim with us as soon as possible and no later than 14 days after you first
become aware of the breakdown;
b) Provide us with the product serial number;
c) Provide us with reasonable proof of purchase for the product. This can take the form of
a store receipt, new home handover form or other payment receipt documentation; and
d) If required by us, provide us (or any person nominated by us) with access to the
premises at which the product is located at times nominated by us (so that we can
inspect the product).
MANUFACTURER GUARANTEE

PG 14
5. Warranty claims
If you make a valid claim under this warranty and none of the exclusions set out in section 2
apply, we will, at our election, either repair the product or replace the product with a product of
identical specification (or where the product is superseded or no longer in stock, with a product
of as close a specification as possible).
Goods presented for repair may be replaced by refurbished goods of the same type rather than
being repaired. Refurbished parts may be used to repair the goods.
Products are designed and supplied for normal domestic use. We will not be liable to you under
this warranty for business loss or damage of any kind whatsoever.
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
www.glendimplex.com.au www.glendimplex.co.nz
Australia New Zealand
Ph: 1300 556 816 Ph: 09 274 8265
customer[email protected] [e-mail]
MANUFACTURER GUARANTEE

PG 15
NOTES

PG 16
NOTES

PG 17
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE APPLIANCE.
The manufacturer will not be responsible for any damage to property or to persons caused by
incorrect installation or improper use of the appliance.
The manufacturer is not responsible for any inaccuracies, due to printing or transcription errors,
contained in this manual. In addition, the appearance of the figures reported is also purely
indicative.
The manufacturer reserves the right to make changes to its products when considered necessary
and useful, without aecting the essential safety and operating characteristics.
Glen Dimplex constantly seeks ways to improve the specifications and designs of their products.
Whilst every eort is made to produce up to date literature, this document should not be regarded
as an infallible guide. Actual product only should be used to derive cut out sizes.
All appliances must be installed by a qualified person/s with adherence to the relevant electrical,
plumbing and building codes, with compliance being issued as required by state or national
legislation.
Additionally, all upright cookers must have the anti-tilt device installed correctly in adherence
to the relevant standards by a licenced installer. For maximum eectiveness and eciency all
rangehoods should be installed with the use of ductwork, by a licenced installer with adherence
to the relevant state and national building codes and regulations.
All Glen Dimplex appliances are for Domestic use only, and must be installed by a licence installer
into Domestic Applications only, without exception and to the required Authorities guidelines.
Any installation outside of this will VOID warranty. Alfresco areas are not a Domestic application.
MANUFACTURER GUARANTEE
Distributed by:
Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd
For full terms and conditions, or to register your product warranty, please visit our website:
www.glendimplex.com.au www.glendimplex.co.nz
For service advice, please contact the Customer Care Centre by phone or email below.
Australia New Zealand
Ph: 1300 556 816 Ph: 09 274 8265
customer[email protected] [e-mail]
VERSION 1 REVISION 20210303
