Technisonic Industries Limited TiL-91-DE User manual

VHF/AM MOBILE TRANSCEIVER
Model TiL-91-DE
MOBILE SYSTEM P/N 910200
(TMS-150)
Installation and
Operating Instructions
TiL Document No. 94RE146
Rev. E
JULY 2012
Technisonic Industries Limited
240 Traders Boulevard, Mississauga, Ontario L4Z 1W7
Tel: [phone] Fax: [phone]
www.til.ca
Copyright by Technisonic Industries Limited. All rights reserved.

ii
REVISION HISTORY
[ 94RE146 ]
REV SECTION
- PAGE - DESCRIPTION DATE
Edited
by
n/c Original Document
A
B Global New Document Template (new file format)
Title page changed, Headers/Footers added
Added Revision page, Added Warranty page FEB 2012 FM
C The 10 channel (memories) will no longer be available
on all 91-DE based radios, ONLY 25.
3-5 Updated sect 3.3 for 10 & 25 channels MAR 2012 FM
D Title Pg Simplify System description
iii Updated FCC information including antenna and
Simplify description under “Warning”
Warranty Information changed "Base Stations" to
"Mobile System".
1-7 Revise Transmitter Characteristics for FCC and
ICAN information JUL 2012 FM
E Clarified 10/25 channel information JUL 2012 SM

iiii

iii
WARNING
Do not make physical contact with antenna when transmitter is on.
CAUTION ! STATIC SENSITIVE !
This unit contains static sensitive devices. Wear a grounded wrist strap and/or conductive gloves
when handling printed circuit boards.
FCC COMPLIANCE INFORMATION
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and (2) this device must accept any interference
received, including interference that may cause undesired operation.
WARNING: For compliance with FCC RF Exposure Requirements the mobile transmitter
antenna installation shall comply with the following two conditions:
1.The transmitter antenna gain shall not exceed 3 dBi.
2. The transmitter antenna is required to be located outside of a vehicle and kept at a separation distance of 90 cm
or more between the transmitter antenna of this device and person(s) during operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at his/her own expense.
FCC LABELING INFORMATION: When this device is permanently mounted in an enclosure where the
FCC ID label can not be seen, another label must be placed on the outside of the enclosure stating
‘contains FCC ID: IMA90-6R’.
WARRANTY INFORMATION
The Model 91-DE Mobile Transceiver is under warranty for one year from date of purchase. Failed
units caused by defective parts, or workmanship should be returned to:
Technisonic Industries Limited
240 Traders Boulevard
Mississauga, Ontario L4Z 1W7
Tel: [phone]
Fax: [phone]

iv

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
v
TABLE OF CONTENTS
SECTION TITLE PAGE
SECTION 1 GENERAL DESCRIPTION
1.1 INTRODUCTION ............................................................................................................... 1-1
1.1.1 Purpose of the System ...................................................................................................... 1-1
1.1.2 Modes Of Operation .......................................................................................................... 1-2
1.2 TECHNICAL SUMMARY .................................................................................................. 1-7
SECTION 2 PREPARATION FOR USE AND STORAGE
2.1 INTRODUCTION ............................................................................................................... 2-1
2.2 TRANSCEIVER LOCATION ............................................................................................. 2-1
2.3 VEHICLE POWER SUPPLY ............................................................................................. 2-1
2.4 POWER INPUT CABLE ASSEMBLY ............................................................................... 2-1
2.5 ANTENNA ASSEMBLY ..................................................................................................... 2-2
2.5.1 Antenna Location .............................................................................................................. 2-2
2.5.2 Antenna Installation ........................................................................................................... 2-2
2.6 MOUNTING BRACKET INSTALLATION .......................................................................... 2-2
2.7 TRANSCEIVER INSTALLATION ...................................................................................... 2-2
2.8 MICROPHONE INSTALLATION ....................................................................................... 2-2
2.9 OPTIONAL EXTERNAL LOUDSPEAKER OR HEADPHONE ......................................... 2-3
2.9.1 External Loudspeaker ....................................................................................................... 2-3
2.9.2 Headset ............................................................................................................................. 2-3
2.10 OPERATIONAL CHECK ................................................................................................... 2-3
SECTION 3 OPERATING INSTRUCTIONS
3.1 INTRODUCTION ............................................................................................................... 3-1
3.1.1 Transceiver Model TiL-91-DE P/N 901006-2 .................................................................... 3-1
3.1.2 Scan Search and Toggle Modes ....................................................................................... 3-1
3.1.3 Technical Summary .......................................................................................................... 3-1
3.2 OPERATOR'S SWITCHES, CONTROLS AND INDICATORS ......................................... 3-1
3.3 FRONT PANEL KEYPAD OPERATION (10 or 25 channel memories) ............................ 3-5
3.3.1 Keypad "Beeps" ................................................................................................................ 3-6
3.3.2 Keypad and LCD Display Lighting .................................................................................... 3-6
3.3.3 Transmitter Time-out ......................................................................................................... 3-6
3.3.4 Selecting a Frequency ...................................................................................................... 3-7
3.3.5 Storing a Frequency to a Channel .................................................................................... 3-8
3.3.6 Recalling a Stored Channel .............................................................................................. 3-8
3.3.7 Transmit Inhibit .................................................................................................................. 3-9
3.3.8 Toggling Between Two Channels ..................................................................................... 3-9
3.3.9 Search Mode ..................................................................................................................... 3-10
3.3.10 Scan Mode ........................................................................................................................ 3-10
3.4 FIXED CHANNEL FREQUENCY SET UP ........................................................................ 3-12
3.4.1 System Configuration ........................................................................................................ 3-12
3.4.2 Transceiver Disassembly/Assembly ................................................................................. 3-12
3.4.3 Operational Check ............................................................................................................ 3-12
WARRANTY ..........................................................................................................................................

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
vi
LIST OF FIGURES
FIGURE TITLE PAGE
1.1 Transceiver - General View ...................................................................................................... 1-3
1.2 Transceiver with Mounting Bracket - General View ................................................................. 1-4
1.3 Power Input Cable Assembly - General View .......................................................................... 1-4
1.4 Microphone Assembly - General View ..................................................................................... 1-5
1.5 Antenna Assembly - General View ........................................................................................... 1-6
3.1 Transceiver Front Panel Layout ............................................................................................... 3-2
3.2 Fixed Channel Jumper Locations ............................................................................................. 3-11
LIST OF TABLES
TABLE TITLE PAGE
1.1 Leading Particulars ................................................................................................................... 1-7
3.1 Operator's Switches, Controls and Indicators .......................................................................... 3-3
3.2 Channel/Function Selector Keypad .......................................................................................... 3-5

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
1-1
SECTION 1 - GENERAL DESCRIPTION
1.1 INTRODUCTION
VHF/AM Mobile Transceiver System 910200 (Item No. TMS-150), manufactured by Technisonic
Industries Limited, is VHF/AM Transceiver, complete with Mounting Bracket, Power Input Cable,
Microphone and Antenna.
1.1.1 Purpose of the System
(1) Intended Purpose and Use - The transceiver is intended for installation in airport service
vehicles, such as cars, snowplows, and grass cutters, to allow ground control over such
vehicles while they are negotiating aircraft manoeuvring areas.
(2) Brief Description of System Units - VHF/AM Mobile Transceiver System 910200 consists
of the following items:
(a) Transceiver Model 91-DE, Part Number 901006-2, Series 1, is a VHF/AM transceiver
which operates in simplex and allows quick keypad access and LCD display of the
frequency range 117.975 MHz to 138.000 MHz with 25 kHz channel spacing. The
transceiver operates from a 12 volts dc nominal vehicle power supply (negative
ground only). An optional extra cost dc to dc converter P/N 863118-1 can be installed
in the transceiver to allow operation from an input supply from 10.8 to 30.0 VDC. A

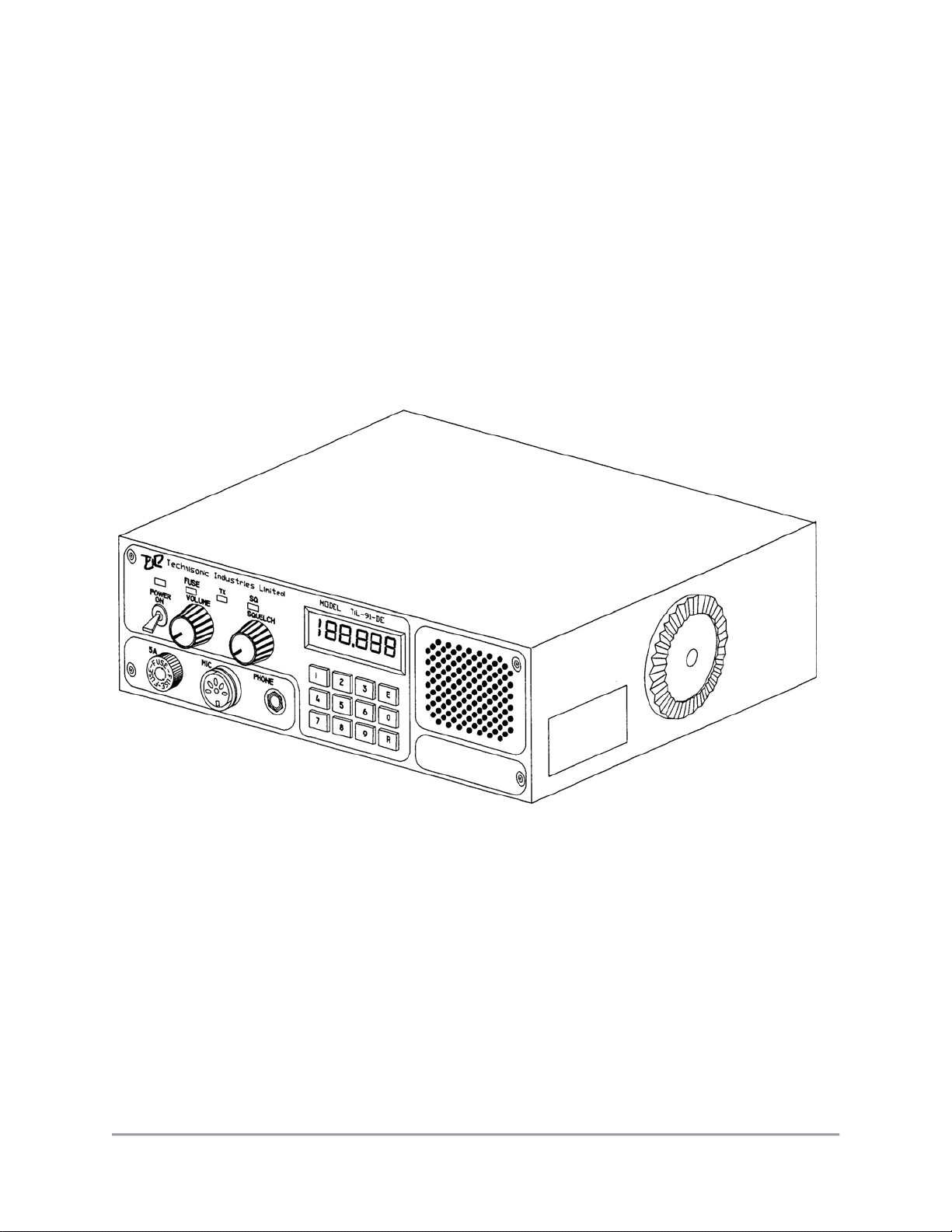

general view of the transceiver is given in Figure 1.1. The transceiver is normally
located under the dashboard of a vehicle using a mounting bracket and mounting
hardware.
(b) Mounting Bracket, Part Number 913053-1, is a U-shaped aluminium alloy bracket
which, together with items of hardware included in the Mounting Hardware Kit P/N
869024-1, is used to mount the transceiver under the dashboard of a vehicle.
A view of the transceiver with mounting bracket is given in Figure 1.2.
(c) Power Input Cable Assembly, Part Number 863701, is a three-metre length of two-
core cable terminated at one end by a two-pin, female contacts, connector, which
mates with the two-pin, male contacts, connector located at the left-rear of the
transceiver. The unterminated end of the cable is connected to the 12 VDC vehicle
power supply negative-ground during installation.
A view of the cable assembly is given in Figure 1.3.
(d) Microphone Assembly, Part Number 961070-1, consists of a Microphone and a
mounting bracket, P/N RK6MB.
A general view of the microphone assembly is given in Figure 1.4.
The microphone is a rugged hand-held microphone housed in a high impact plastic case
which includes a rear case hang-up button for storage on the mounting bracket. The
dynamic microphone is a noise cancelling type with a pre-amplifier, press-to-talk switch,
and a retractable three-cord cable terminated by a three-pin male contacts, connector
which mates with the MIC/PTT connector located on the front panel of the transceiver.
The microphone dc supply for the microphone is supplied by the transceiver. The
mounting bracket, provided with the microphone, should be mounted in a convenient
location near the transceiver. A small screwdriver which can be used for releasing the
modular plug located in the microphone head is supplied with the microphone.

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
1-2
A replacement plug-in microphone cord, P/N 963299-1 is available for this microphone.
This cord is supplied with a modular microphone plug on one end and a three pin DIN
connector on the other to mate with the Model 91-DE Transceiver.
(e) Antenna Assembly, Part Number 861910-1, is supplied complete as a kit which
includes the following items: Antenna Base, which includes a mounting pad, together
with a pad, braid nut, sleeve and clamp for termination of the antenna RF cable. The
Antenna Rod is supplied with an Allen Wrench for adjustment of its set screws. The
Antenna RF Cable is a ten metre length RG58/U coaxial cable terminated at one end
by an UHF, male contact, connector which mates with the UHF, female contact,
antenna connector located at the right-rear of the transceiver. The antenna may be
mounted on any flat surface, roof, cowl, fender or rear deck of a vehicle, however,
rooftop mounting is recommended for best performance. A general view of the
antenna assembly is given in Figure 1.5.
1.1.2 Modes of Operation
The transceiver may be operated in either of two modes; transmit or receive, as selected by the
Press-to-Talk (PTT) switch on the microphone.
(1) TRANSMIT MODE - When the PTT switch on the microphone is pressed, the transceiver
operates in the transmit mode. The PTT signal line is grounded by the microphone PTT switch via
the microphone lead and the MIC/PTT connector to the transceiver. The Tx ON amber LED will
go ON, indicating that the transmitter is activated.
Transmission will occur on the channel frequency indicated on the front panel. Refer to Section 3
for transceiver details
(2) RECEIVE MODE - When the PTT switch on the microphone is released, the transceiver
operates in the receive mode. The Tx ON amber LED will go OFF, indicating that the transmitter
is inhibited. Reception of the frequency displayed on the transceiver will occur.
The setting of the SQUELCH CONTROL determines the squelch threshold level. When the
SQUELCH CONTROL is rotated in the counter-clockwise direction, the SQUELCH INDICATOR
green LED will go ON, indicating that the squelch circuit is connecting the demodulated audio to
the VOLUME CONTROL. The setting of the VOLUME CONTROL determines the audio level
produced from the internal speaker. When the VOLUME CONTROL is adjusted in the clockwise
direction, the audio level will increase.
NOTE
When the connector of the external loudspeaker or head
phone is connected to the SPEAKER/PHONE jack, the
internal loudspeaker is disconnected and the VOLUME
CONTROL will control the audio level of the external
loudspeaker or headphone.

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
1-3
Figure 1.1 91-DE Transceiver - General View

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
1-4
Figure 1.2 91-DE Transceiver with Mounting Bracket
Figure 1.3 Power Input Cable Assembly - General View

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
1-5
Figure 1.4 Microphone Assembly - General View

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
1-6
Figure 1.5 Antenna Assembly - General View

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
1-7
1.2 TECHNICAL SUMMARY
A summary of the relevant electrical, operational, mechanical and physical characteristics of the
transceiver are given in Table 1.1, Leading Particulars.
TABLE 1.1 LEADING PARTICULARS
TRANSCEIVER MODEL 91-DE:
Power Source Requirements:
DC Voltage (Negative Ground) ………………….…………….……………….. 13.75 VDC Nominal
Input Current:
Transmit Mode …………………………………………….…………………..……….. 5.0A maximum
Receive Mode ………………………………………………………………………….. 1.5A maximum
Frequency Range ………………………….………………………… 117.975 MHz to 138.000 MHz
Channel Spacing:
Narrowband (Normal) ………………………………………………………………..…………. 25 kHz
Frequency Selection……………………………………….……………. Keypad entry, 10 memories
Duty Cycle ………………………………………….…. One Minute Transmit/Four Minutes Receive
TRANSMITTER CHARACTERISTICS:
Power Output (FCC) .....................................................…………………..……...... 10 Watts MAX
Power Output (ICAN) ......................................................……………..…………...... 8 Watts MAX
Output Power Stability After One Minute …………………………………………………….. ±1 Watt
VSWR …………………………………………………………………………………………………. 4:1
Carrier Stability (-40°C to +55°C) ………………………………………………. ±1,000Hz maximum
Incidental FM and PM Due to Modulation …………………………………………….. ±100Hz max.
Rise Time to 90% of Rated Power …………………………………………… 100milliseconds max.
Audio Input ………………………………………………………………………. 50millivolts to 2Vrms
Speech Processor Dynamic Range …………………………………………………. 35dB minimum
Modulation Capability ………………………………………………………………………. Up to 95%
Audio Distortion (with 90% modulation) …………………………………………….. 10% maximum
Audio Frequency Response …………………………………………… 300Hz to 2,500Hz, +1,-3dB
Spurious Emissions ……………………………………………………………….. 60dB below carrier
Hum and Noise Level …................................................................ 45dB below modulated carrier
RECEIVER CHARACTERISTICS:
RF Input Circuit ……………………………………….. 50-ohms unbalanced, VSWR 2:1 maximum
Sensitivity (12 dB SINAD) 1 kHz, 30% modulation ………………..………………….. 2 microvolts
Selectivity. 25kHz Channel Spacing:
Bandwidth at 6dB Points ……………………………………………………….….. More than 15 kHz
Bandwidth at 60dB Points ………………………………………………………….. Less than 40 kHz
Adjacent Channel Selectivity ………………………………………………………….. At least 80 dB
Pass Band Symmetry ……………………………………………………………….... 15% maximum
IF Band Pass Ripple Between -6dB Points ……………………………….……..….. 2dB maximum
Spurious Response Attenuation …………………………………………………….... At least 90 dB
Frequency Stability (-40°C to +55°C) …………………………………………….…... ±1000Hz max
AGC Characteristics With RF Input Signal …………………………………... 5 microvolts to 1 volt
Audio Level: ……………………………………………………………………………………….. ±3dB

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
1-8
TABLE 1.1 LEADING PARTICULARS (CONTINUED)
RECEIVER CHARACTERISTICS (Continued)
Intermodulation:
Levels of Interference Signals are shown to produce resulting SINAD of not less than 6dB:
Ultimate Sensitivity (12dB) SINAD) …………………………………………………………….. 67 dB
30microvolts, Input Signal ……………………………………………………………………….. 45 dB
300microvolts, Input Signal ……………………………………………………………………... 30 dB
Unwanted Radiation …………………………………….….. Less Than 80microvolts into 50-ohms
Hum and Noise With 1mV RF Signal, 30% modulation at 1kHz:
Ratio of Rx Audio Output to Residual Output with 0% modulation …………….….. At least 40 dB
Interference Suppression ……………………………………………….…….. SINAD 6 dB minimum
Audio Output Power and Distortion:
Loudspeaker Output ……………………………………..…………….……………... At least 3 Watts
Speaker Phone Output ……..………………………………………………... 100mW into 600-ohms
Distortion with RF Input, 1mV, 30% modulation …...……………………………….... Less than 5%
Distortion with RF Input, 1mV, 90% modulation ………………...………………….. Less than 10%
Audio Output Limiting ……………………………………... Less than 1dB, 30 to 100% modulation
Audio Frequency Response 300 Hz to 2,500 Hz …….……………………………….……….. -3 dB
Audio Acquisition Time ……………………………………………………... Within 100 milliseconds
Audio Squelch Characteristic:
Squelch Type ………………………………………………………….... Noise and Carrier Operated
Carrier Operated Squelch …………………………………….... Adjustable from 2 to 15 microvolts
ENVIRONMENTAL AND SERVICE CONDITIONS:
Operating Temperature Range:
Full Performance ………………………………………………….... -40°C(-40°F) to +55°C(+131°F)
Slightly Degraded Performance ……….……………………….….. -41°C(-41.8°F) to -55°C(-67°F)
Storage Temperature Range …………………………………..….. -55°C(-67°F) to +65°C(+149°F)
Ambient Relative Humidity ……………………………………………………………….. Up to 100%

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
2-1
SECTION 2 – INSTALLATION INFORMATION
2.1 INTRODUCTION
This section gives the basic installation information for units of VHF/AM Mobile Transceiver
System 910200 in a typical airport service vehicle. As there are many types of vehicles in use,
some may require "tailor made" installation information.
2.2 TRANSCEIVER LOCATION
The first consideration when planning an installation in a vehicle is the location of the transceiver.
The transceiver is normally located under the dashboard of a vehicle with the transceiver
supported under the mounting bracket, as shown in Figure 1.2. Where space under the
dashboard is limited, the transceiver could be supported above the mounting bracket, the reverse
of Figure 1.2.
Consideration should also be given to allowing sufficient space behind the transceiver for the
length of the antenna connector and the power supply connector when they are mated to the
transceiver connectors.
2.3 VEHICLE POWER SUPPLY
Having determined the location of the transceiver, the point of connection to the vehicle power
supply may be chosen. The transceiver will operate from a 12 volts dc nominal power supply with
negative ground, which must be taken from a fused power source with a minimum of 5 ampere
fuse in circuit. The transceiver will tolerate an input voltage over the range 11.0 to 15.0 Vdc.
2.4 POWER INPUT CABLE ASSEMBLY
Using Power Input Cable Assembly, Part Number 863701, as shown in Figure 1.3, route the
unterminated end of the cable from the transceiver location to the point of connection to the fused
vehicle power supply. The 10 ft cable may be cut to length as required. Coiling of excess cable is
NOT recommended. Strip the outer covering from the end of the cable, prepare the individual
wire ends, and fit suitable terminals. Connect the red wire to the positive supply (fused), and
connect the black wire to the negative supply ground.

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
2-2
2.5 ANTENNA ASSEMBLY
Antenna Assembly, Part Number 861910-1, is supplied as a kit which includes an installation
leaflet. The antenna is shown assembled in Figure 1.5.
2.5.1 Antenna Location
The antenna location is a very important factor in determining the performance of the system. The
antenna may be mounted on any flat surface, roof, cowl, fender or rear deck of the vehicle,
however, rooftop mounting is recommended for best performance.
2.5.2 Antenna Installation
Having determined the location of the antenna, route the unterminated end of the antenna RF
cable from the transceiver location. Using the antenna installation leaflet, follow the step by step
instructions, and install the antenna. Any excess length of antenna RF cable should be cut-off
before connection to the antenna.
2.6 MOUNTING BRACKET INSTALLATION
Mounting Bracket, Part Number 913053-1, should be installed in the transceiver location using
Qty 4 Screws, Self-Tapping, Hex Hd with slot and shoulder No. 12 x 3/4in. included in Mounting
Hardware Kit, Part Number 869024-1. Refer to Figure 1.2 for a view of the transceiver with
mounting bracket.
Using the mounting bracket as a template; on the mounting surface, mark the centre of each of
the four slotted mounting holes, and drill a pilot hole using a No. 19 drill or equivalent (actual pilot
hole size depends on the thickness of metal of mounting surface). Locate mounting bracket in
position, and secure using the screws provided.
2.7 TRANSCEIVER INSTALLATION
Locate the transceiver in its approximate position, connect the antenna connector, and power
cable connector to the appropriate connectors located at the rear of the transceiver.
Locate the transceiver into mounting bracket, and screw to bracket using two wing screws and
nylon washers included in Mounting Hardware Kit, Part Number 869024-1. Adjust angle of
transceiver as required, before tightening the two wing screws.
2.8 MICROPHONE INSTALLATION
Refer to Figure 1.4 for a general view of the microphone and retaining bracket. Determine a
suitable and convenient location for Retaining Bracket and secure it using appropriate hardware
(not provided). Connect the connector of Microphone, Part Number 961070-1 to the MIC/PTT
connector located on the front panel of the transceiver.

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
2-3
2.9 OPTIONAL EXTERNAL LOUDSPEAKER OR HEADPHONE
Provision is made for connection of either an external loudspeaker or headphone to the
SPEAKER/PHONE jack of the transceiver, as shown in Figure 3.1.
2.9.1 External Loudspeaker
When an external loudspeaker is to be installed, an 8-ohm nominal impedance loudspeaker
should be used. The loudspeaker cable should be terminated by a 1/4 in., 3 pole telephone plug
(male), with the loudspeaker connected between tip and sleeve (ground). The External
loudspeaker connector should be connected to the SPEAKER/PHONE jack located on the front
panel of the transceiver. When the external loudspeaker connector is connected to the
transceiver SPEAKER/PHONE jack, the internal loudspeaker is automatically disconnected.
2.9.2 Headset
When a headset is to be used, the headset impedance should be 150 to 600 ohms. The headset
cable must be terminated by a 1/4in., 3 pole telephone plug (male), which mates with the
SPEAKER/PHONE jack located on the front panel of the transceiver. When connected, the
internal loudspeaker is automatically disconnected. The headset may be connected as detailed in
(1) for receiver audio with no transmit sidetone audio, or (2) for receiver audio with transmit
sidetone audio.
(1) HEADSET WITH NO TRANSMIT SIDETONE AUDIO - When receiver audio only with no
transmit sidetone audio is required, the headset should be connected between the tip and
sleeve (ground) of the telephone plug.
(2) HEADSET WITH SIDETONE AUDIO - When receiver audio with transmit sidetone is
required, the headset should be connected between the tip and sleeve (ground) with a
resistor (located inside the plug) connected between the tip and ring of the telephone
plug. The function of the resistor is to reduce the transmit sidetone audio level to a
suitable listening level. The value of the resistor is determined by the headset impedance
and desired listening level. When a 600 ohm impedance headset is used, the value of the
resistor should be approximately 10 kilohms. For headsets with lower impedance, the
resistor value may be different but must not be less than 240 ohms.
2.10 OPERATIONAL CHECK
Perform an operational check of the transceiver, checking each channel in use in both the
transmit and receive modes of operation, using the Operating instructions given in Section 3 of
this document and the appropriate specified operating procedures during transmission.

TECHNISONIC INDUSTRIES LIMITED
www.til.ca
TMS-150 91-DE Installation & Operating Instructions TiL 94RE146 Rev E
2-4
This page left intentionally blank.
