TechScan TSK-6000 User manual

TSK-6000 User’s Guide

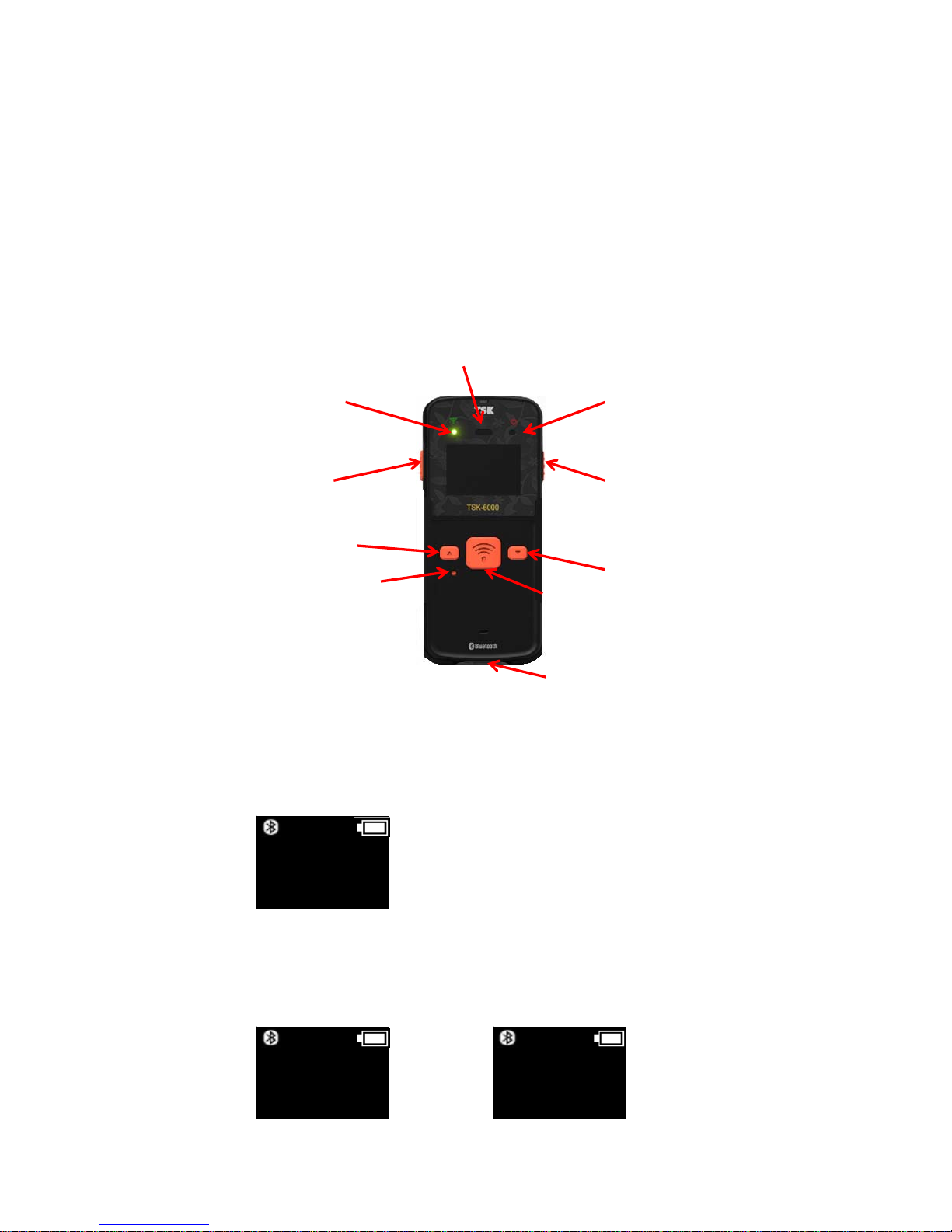

1. Layout Descript
2. Basic screen
Press the scan button while one second, then the power on screen would be displayed as below.
3. Scan the bar code
Press the scan button to scan and decode the barcode.
Scan Ready
S AM10:00
Scanning..
S AM10:00
8801234567893
S AM10:00
Power LED
RF LED
Up Button
Left Button
Down Button
Right Button
Scan LED
Reset Button
USB Port
Scan button

4. Power On/Off
Power On : Press the scan button while one second.
Power Off : Press the down button while one second.
5. Menu
On the basic screen, press the up button while one second.
Moving the cursor by the up/down button, select the each item by the scan button.
6. Scan barcode
In this state, it can scan the bar code and the decoded data can be stored or transmitted via
Bluetooth or USB.
7. View data
Show you the stored data.
Scan Ready
S AM10:00
Power off
continue?
No
S AM10:00
Yes
Scan Ready
S AM10:00
2.View data
3.Upload data
4.Erase data
5.Data space
S AM10:00
1.Scan barcode
S AM10:00
Scan Ready
S AM10:00
1.Scan barcode
3.Upload data
4.Erase data
5.Data space
S AM10:00
2.View data

8. Upload data
Transmit the stored data via Bluetooth or USB.
(Selection between Bluetooth and USB is refer to “11. Comm & Mode” next.)
When is ? then, Bluetooth is disconnected. After Bluetooth is connected with S or H.
you can transmit data.
※ Interface Icons
S: SPP, H: HID, S: VCP, H: HID
9. Erase data
Erase the stored data.
10. Data space
Show you the used and remain data.
※ Memory size
Basic : 138Kbytes, Option : 394Kbytes or 906Kbyte
11. Comm & Mode
Selection the method of data communication.
Upload data
continue?
No
S AM10:00
Yes
Delete data
continue?
Yes
? AM10:00
No
768bytes used
137KB(99%)remain
30 events
? AM10:00
BT-Realtime
USB-Batch
USB-Realtime
? AM10:00
*BT-Batch
1.Scan barcode
2.View data
4.Erase data
5.Data space
? AM10:00
3.Upload data
1.Scan barcode
2.View data
3.Upload data
5.Data space
? AM10:00
4.Erase data
1.Scan barcode
2.View data
3.Upload data
4.Erase data
? AM10:00
5.Data space
2.View data
3.Upload data
4.Erase data
5.Data space
S AM10:00
6.Comm & Mode

BT-Batch: After storing barcode data, transmit data by “5.Upload data” memu via Bluetooth.
BT-Realtime: Transmit barcode data via Bluetooth immediately.
USB-Batch: After storing barcode data, transmit data by “5.Upload data” menu via USB.
USB-Realtime: Transmit barcode data via USB immediately.
12. Bluetooth HID
Setting the pin code and pairing of Bluetooth HID.
(this function is available on only BT-HID mode.)
Pin Code
Using up/down button changing the digit and complete with scan button.
Pairing
This function makes new Bluetooth HID connection.
If the device is not found, selection this function again.
13. Power down
Setting the time out of power off in a state of standby.
※ The information in this document is subject to change without notice.
2 minutes
5 minutes
10 minutes
30 minutes
? AM10:00
*1 minute
3.Upload data
4.Erase data
5.Data space
6.Comm & Mode
? AM10:00
7. Bluetooth HID
1.PinCode
2.Pairing
? AM10:00
<Go back>
<Go back>
2.Pairing
? AM10:00
1.PinCode
BT-HID PinCode
Enter 6 numeric
27508
? AM10:00
3
<Go back>
1.PinCode
? AM10:00
2.Pairing
BT-HID pairing..
? AM10:00
4.Erase data
5.Data space
6.Comm & Mode
7.Bluetooth HID
? AM10:00
8.Power down
