TECHTOP JADE BS-44 User manual

BS-44/BS-48
User Manual
INSTALLATION INSTRUCTIONS
Model
Woofer
Tweeter
Impedance
Power
Frequency response
Sensitivity
Dimension (H×W×D)
Color
Net Weight
BS-44
4” Paper cone with foam edge
0.5” Dome 180 degrees dispersion.
4 ohms
60W MAX. 20W RMS
90Hz-18KHz
86dB
182x130x102mm
White
1.1kgs
Model
Woofer
Tweeter
Impedance
Power
Frequency response
Sensitivity
Dimension (H×W×D)
Color
Net Weight
BS-48
4” Paper cone with foam edge
0.5” Dome 180 degrees dispersion.
8 ohms
60W MAX. 20W RMS
90Hz-18KHz
86dB
182x130x102mm
White
1.1kgs

Use wire on the back of the speaker in the output tab of the amplifier(or amplifier of radio).The speaker wire is
on one side red and on the other one black. Connect to the red side of the amplifier and speaker(+)tab.
Connect one end of the black side(-) in the other tab. Connect each speaker to make sure that is not(+,-)
inverted polarity. If the polarity of the speakers is reversed, the sound will be unnatural and will play without
bass.
Connection
Read these instructions carefully before using the product
1. When the speakers are installed in walls, check that the wall structure is reliable and that the speaker is firmly
attached. The user should be responsible for this very thing.
2. Do not install the speakers in fine wood or soft wall material because the screws can get loose, causing the
crash or breakdown of the speakers and personal injury.
3. Do not use nails, adhesives or other unauthorized devices. Long-term use and vibrations may cause it to fall
easily.
4. Do not place the speakers on a turntable or movable support.
5. Do not touch or bump the woofer and tweeter. If these are damaged, the sound will be distorted.
6. Do not listen to sound at a very high level when you are changing the input source(for example, to tune FM/
CD) installation or removal of cables should make sure that the power amp/amplifier device radio is turned off.
7. Do not attempt to clean the speakers with chemical solvents as this may damage the paint surface. Clean with
a dry cloth.
Users have a responsibility to place or install safety
The speakers that are placed in the holder can be either wall or ceiling type, using screws to be placed inside of
the speakers in the back is optional.
1, Mark the mounting bracket as a template with the regional location of the hole slots.
2, Then use the appropriate hardware and tools(not supplied) are properly fixed to the bracket wall/ceiling.
3, Place the speakers to the bracket using the screws and washers according to the speaker.
Introduction
Thank you for buying wall mount speaker. Please read and have a thorough understanding of the entire manual
before installation and use Keep the manual for maintenance.

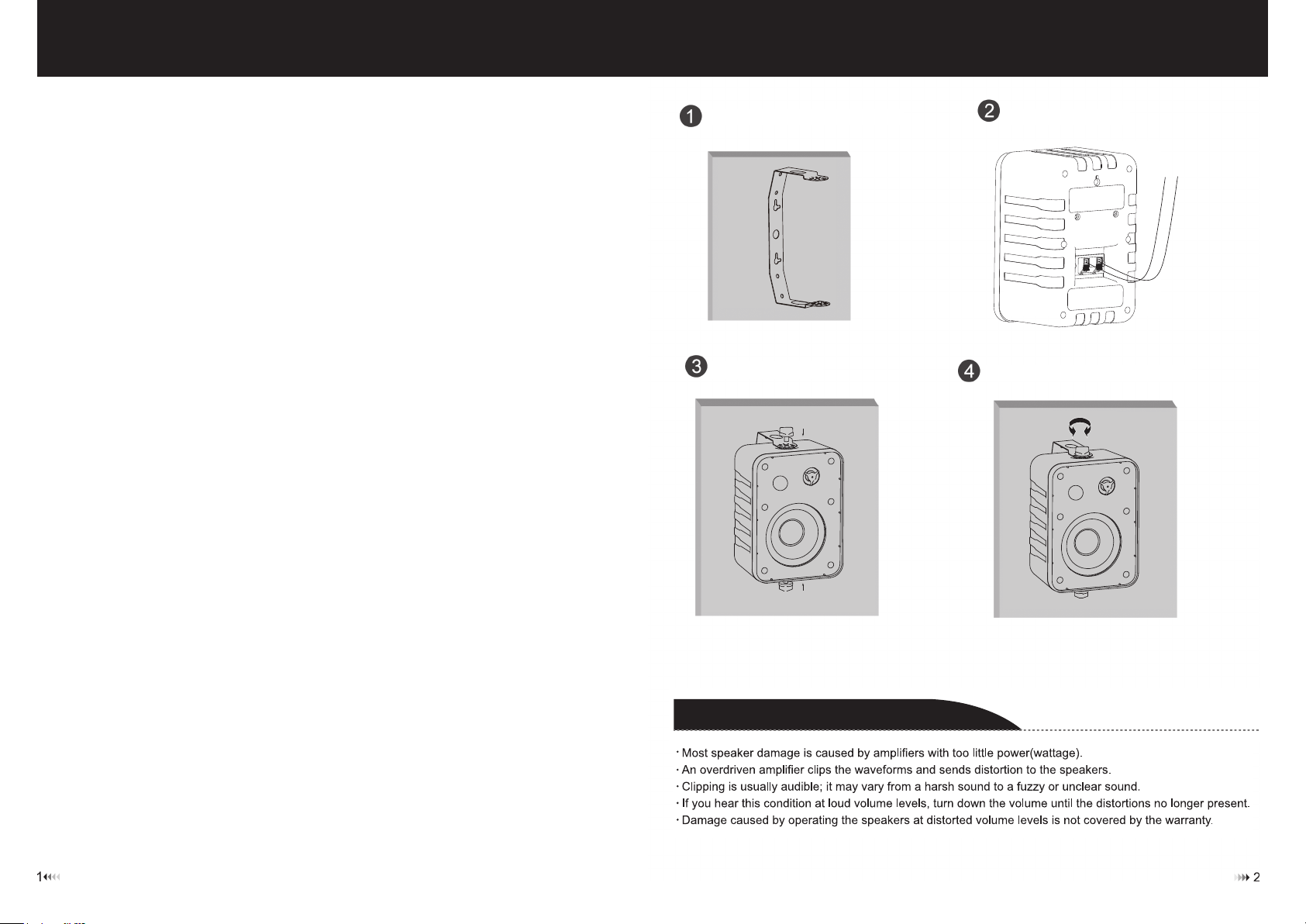

Fasten the bracket to on the wall by 2 pcs screws
Connect the speaker cable to
the terminal(“+”to“+”,“-”to“-”+)
Screw the two knobs Fasten the screws after hozrizontal ratation
UNDERPOWERING VS. OVERPOWERING
