Bogen CSD2X2 User manual

CEILING GRID
CEILING GRID
SUPPORT RAIL
CROSSBAR INCLUDED
(2 ft. X 4 ft. CEILING GRID ONLY)
CEILING TILE
(CUT IN HALF, OR NO MORE
THAN 23-3/4")
CSD2X2
CSD2X2
2 ft. X 2 ft.
TILE SPACE
2 ft. X 4 ft.
TILE SPACE
Drop-In Ceiling Speaker with Back Can
CSD2X2 & Variations
Bogen’s CSD2X2 Drop-In Ceiling Speaker is a full-range
speaker that allows for fast and easy installation, which
saves installation time, effort, and cost.
The CSD2X2 is a 2' x 2' speaker that fits perfectly into
place in 2' x 2' ceiling grids – without needing to cut
ceiling tiles or requiring the use of tile support rails. The
CSD2X2 can also be easily installed in 2' x 4' ceiling
grids – just make one cut to the ceiling tile, position the
support rail (included), and drop the speaker into place.
•Finely perforated grille over the entire front of speaker
•Fully enclosed, industrial grade steel construction
•Enclosed Back Can
•8'' main cone with secondary high-frequency cone
•70V/25V, 4-watt transformer (4, 2, 1, 0.5, 0.25 watt) taps;
selected by rotary switch
•Seismic attachment points
•Available in off-white and bright white (“U” versions)
grille finish
•''VR'' versions have a Recessed Volume Control
(front-mounted)
•Listed to UL Standard 1480 for U.S. use
•Support Rail Crossbar (included)
Plenum-Rated
and Listed to
UL-1480*
Plenum-Rated
and Listed to
UL-1480*
*Listed to UL Standard 1480 for U.S. use

Frequency Response . . . . . . . . . . 95 Hz to 20 kHz
SPL @ 1W / 1m . . . . . . . . . . . . . . . 94 dB
Power Taps . . . . . . . . . . . . . . . . . . 4, 2, 1, 0.5, 0.25 watts
Dispersion @ 2 kHz
(6 dB down) . . . . . . . . . . . . . . . . . .100°
Cone Material & Surround . . . . . . Treated paper
Cones . . . . . . . . . . . . . . . . . . . . . . .
8" main cone with secondary
high frequency cone
Magnet Weight . . . . . . . . . . . . . . . .10 oz.
Connection . . . . . . . . . . . . . . . . . . . Via wire nuts (included in electrical box)
Dimensions . . . . . . . . . . . . . . . . . .24" W x 4-7/8" H x 24" D
Product Weight . . . . . . . . . . . . . . .12 lb.
70V and 25V Compatible.
Plenum-Rated and Listed to UL Standard 1480 for U.S. use.
The speaker shall be a Bogen Model CSD2X2 or CSD2X2VR Drop-In
Ceiling Speaker, which shall be fully enclosed and constructed of
industrial grade steel. It shall be comprised of a damped high-
compliance factory-mounted 8" loudspeaker that shall consist of an
8" treated paper main cone, a secondary high frequency cone, and
a 10 ounce magnet. The unit shall have a 70V/25V transformer with
power taps of 4, 2, 1, 0.5, and 0.25 watts, selectable by rotary
switch. Output shall be 94 dB @ 1 watt / 1 meter (min.). Frequency
response shall be 95 Hz to 20 kHz (min.). The speaker shall include
4 seismic attachment points. The speaker shall have a non-reflec-
tive, off-white or bright white (''U'' versions) metal finish grille. Speaker
is listed to UL Standard 1480 for U.S. use.
For CSD2X2VR: A front-mounted volume control shall be easily accessible.
The speaker assembly will fit into 2' x 2' and 2' x 4' ceiling tiles.
For 2' x 2' installations, a support rail shall not be needed and no
cuts to the ceiling shall be necessary. For 2' x 4' installations,
a single cut to the ceiling tile and an included support rail shall be
needed. The speaker shall measure 24" W x 4-7/8" H x 24" D and
shall weigh 12 lb.
SPECIFICATIONS
Architect and Engineer Specifications
50 Spring Street, Ramsey, NJ 07446, U.S.A.
Tel: [phone] • Fax: [phone]
www.bogen.com
Specifications subject to change without notice.
© 2004 Bogen Communications, Inc.
54-9266-01E 1208

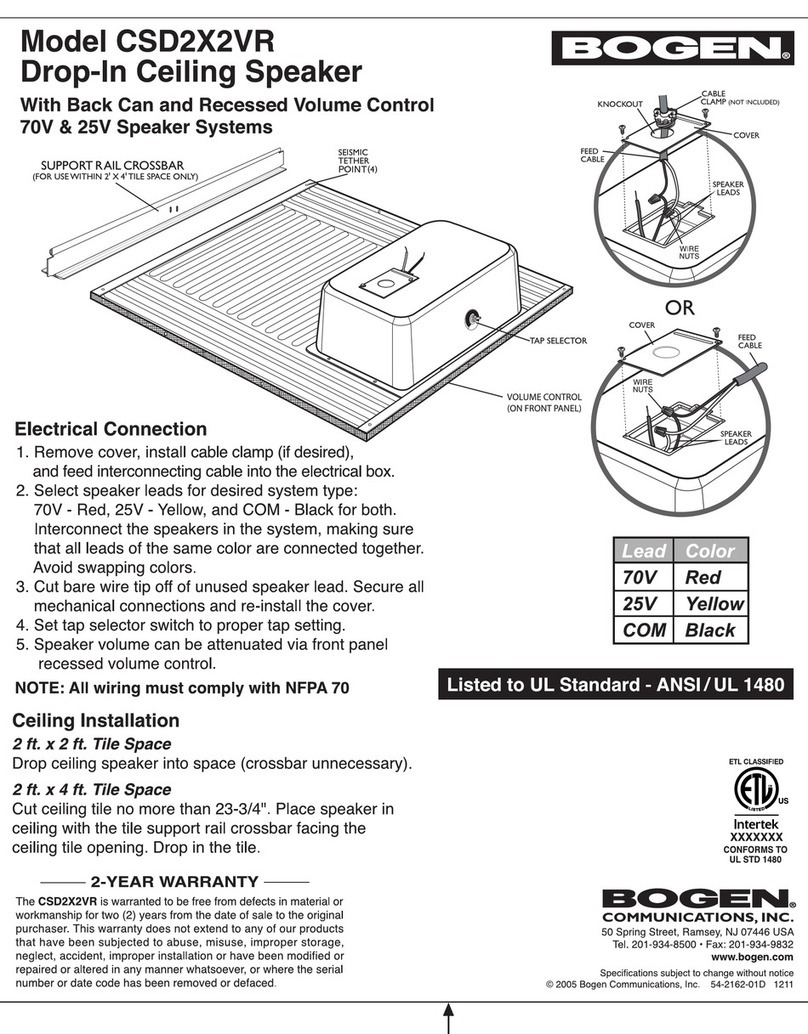

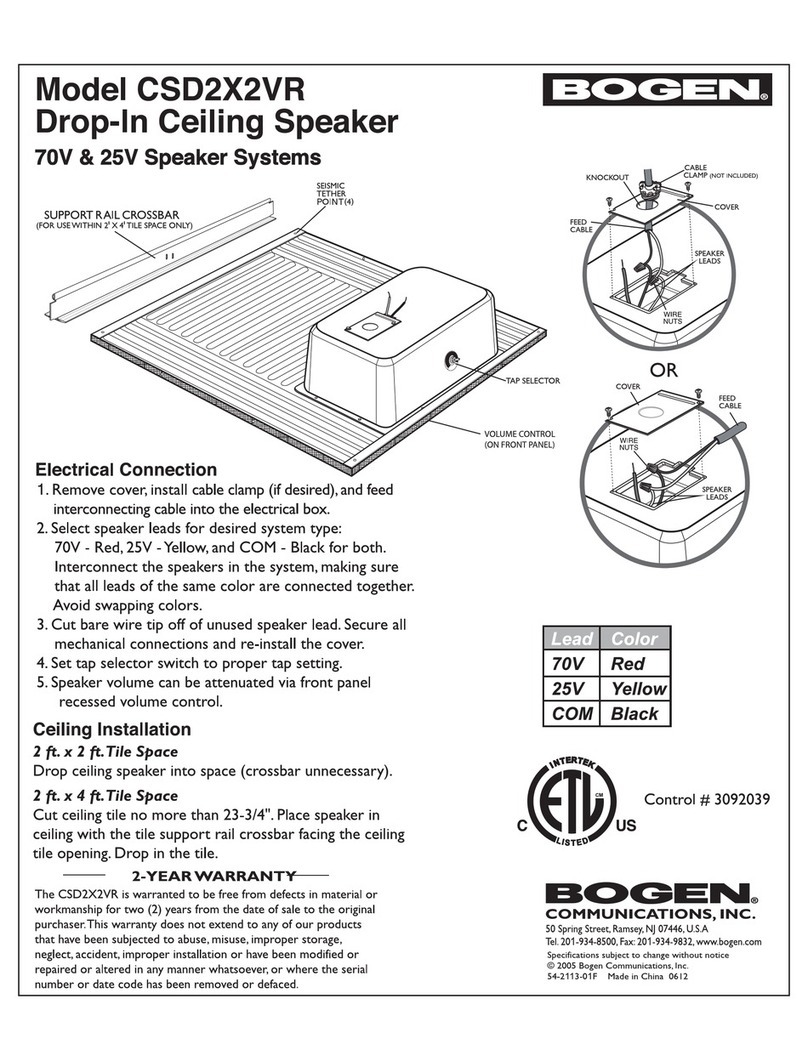

Lead Color
70V Red
25V Yellow
COM Black
SUPPORT RAIL
CROSSBAR INCLUDED
(FOR USE WITHIN 2' X 4' TILE SPACE ONLY)
COVER
COVER
WIRE
NUTS
WIRE
NUTS
SEISMIC
ATTACHMENT
POINTS (4X)
FINELY PERFORATED
METAL FINISH GRILLE
FRONT-MOUNTED
VOLUME CONTROL
(''VR'' VERSION)
Drop-In Ceiling Speaker CSD2X2 & Variations
CSD2X2
CSD2X2U
CSD2X2VR
CSD2X2VRU
Model
Off-white Finish Bright White Finish (U) Back Can Recessed Volume Control (VR)
●
●
●
●
●
●
●
●
●
●
