TECHWOOD 16911 User manual

OPERATING INSTRUCTIONS
16911 HD LED DVD
C O L O U R T E L E V I S I O N W I T H R E M O T E C O N T R O L
If you need any assistance or a customer reference number please contact the TECHWOOD help line n 0845 543 0485o

English - 1 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Contents
Package Contents .................................................. 2
Features ................................................................. 2
Introduction............................................................. 2
Preparation............................................................. 2
Safety Precautions ................................................. 3
Power.................................................................. 3
Information for users in EU Countries .................... 4
Connection to a Television Distribution System
(Cable TV etc.) from Tuner ................................. 4
Remote Control Handset........................................ 5

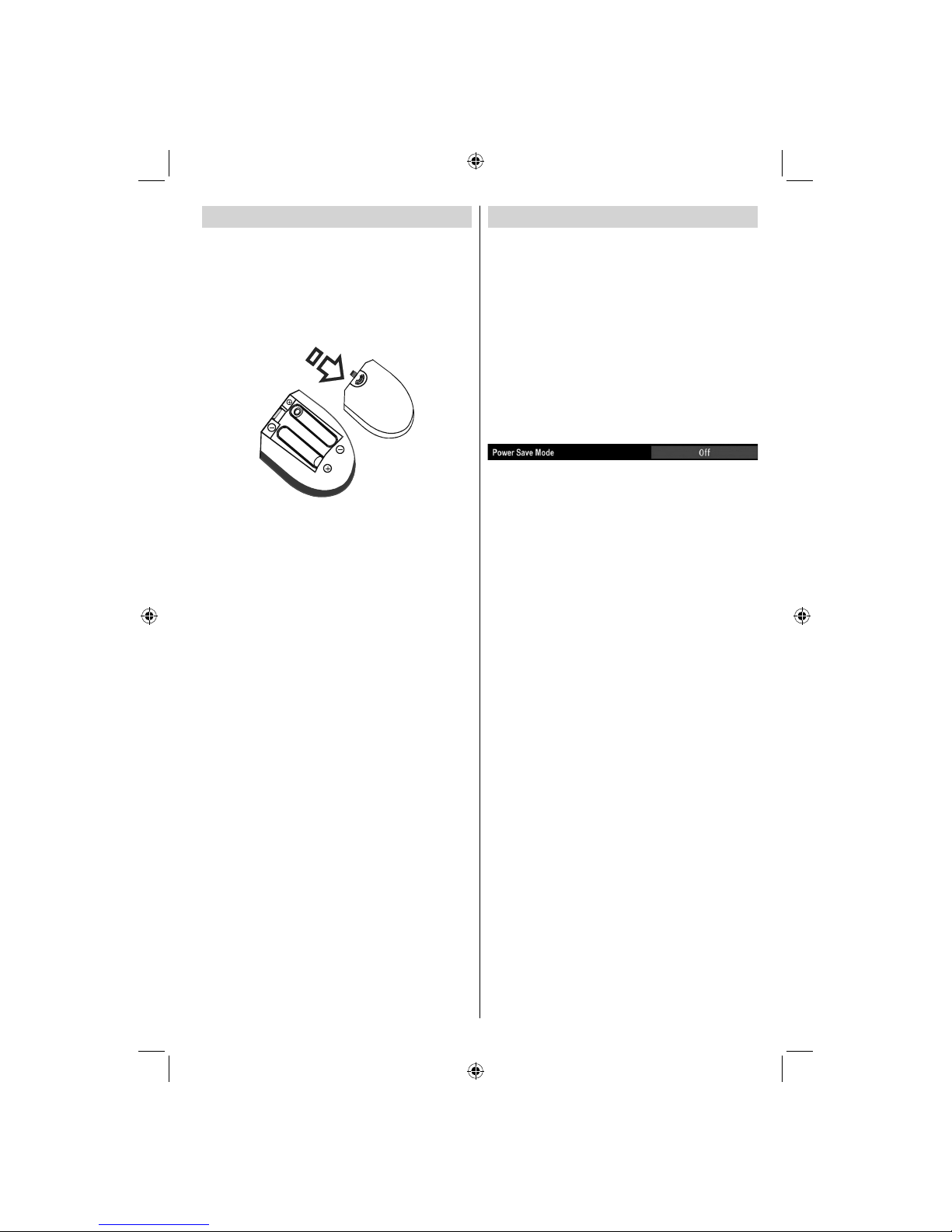

Inserting Batteries............................................... 5
Environmental Information ..................................... 5
Repair Information .............................................. 5

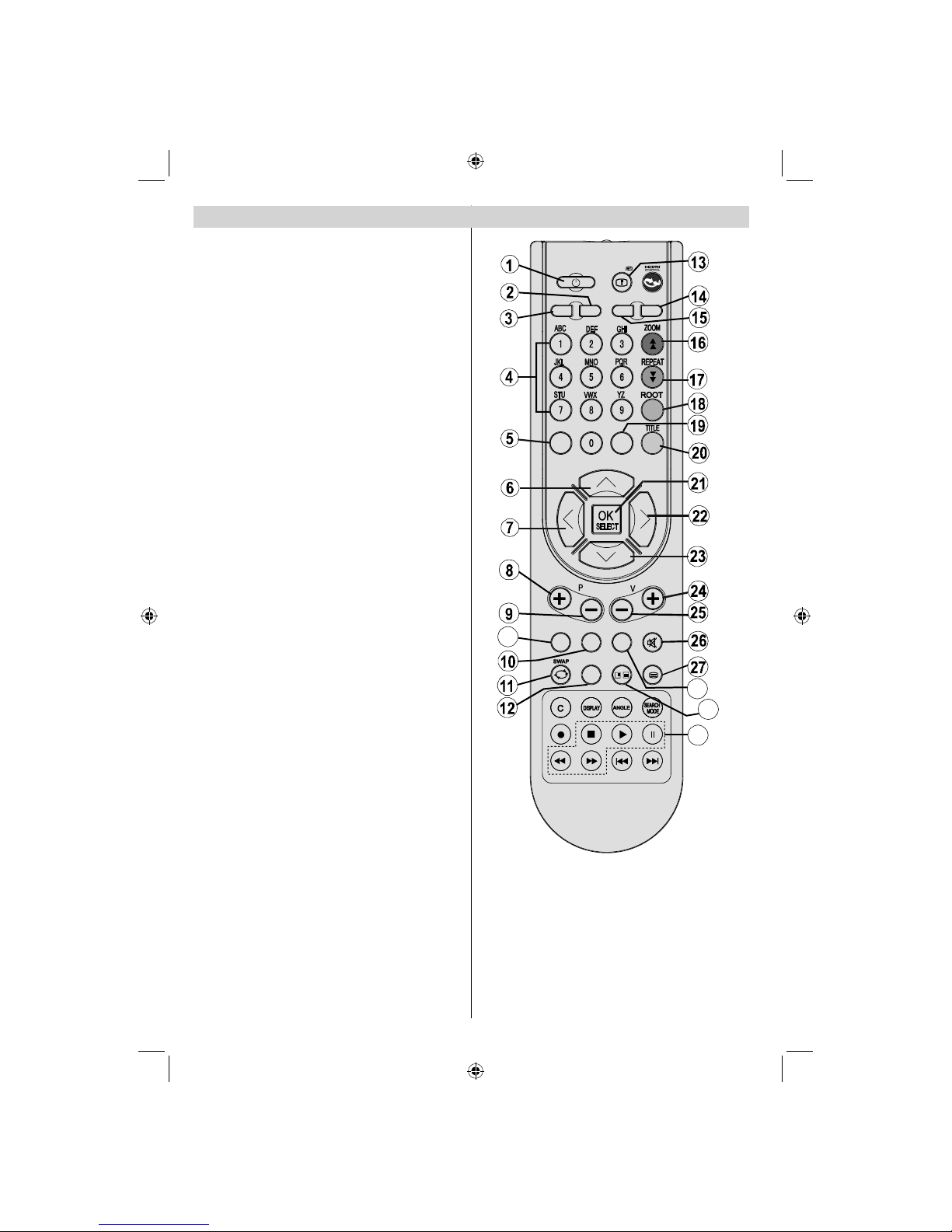

Remote Control Buttons ......................................... 6

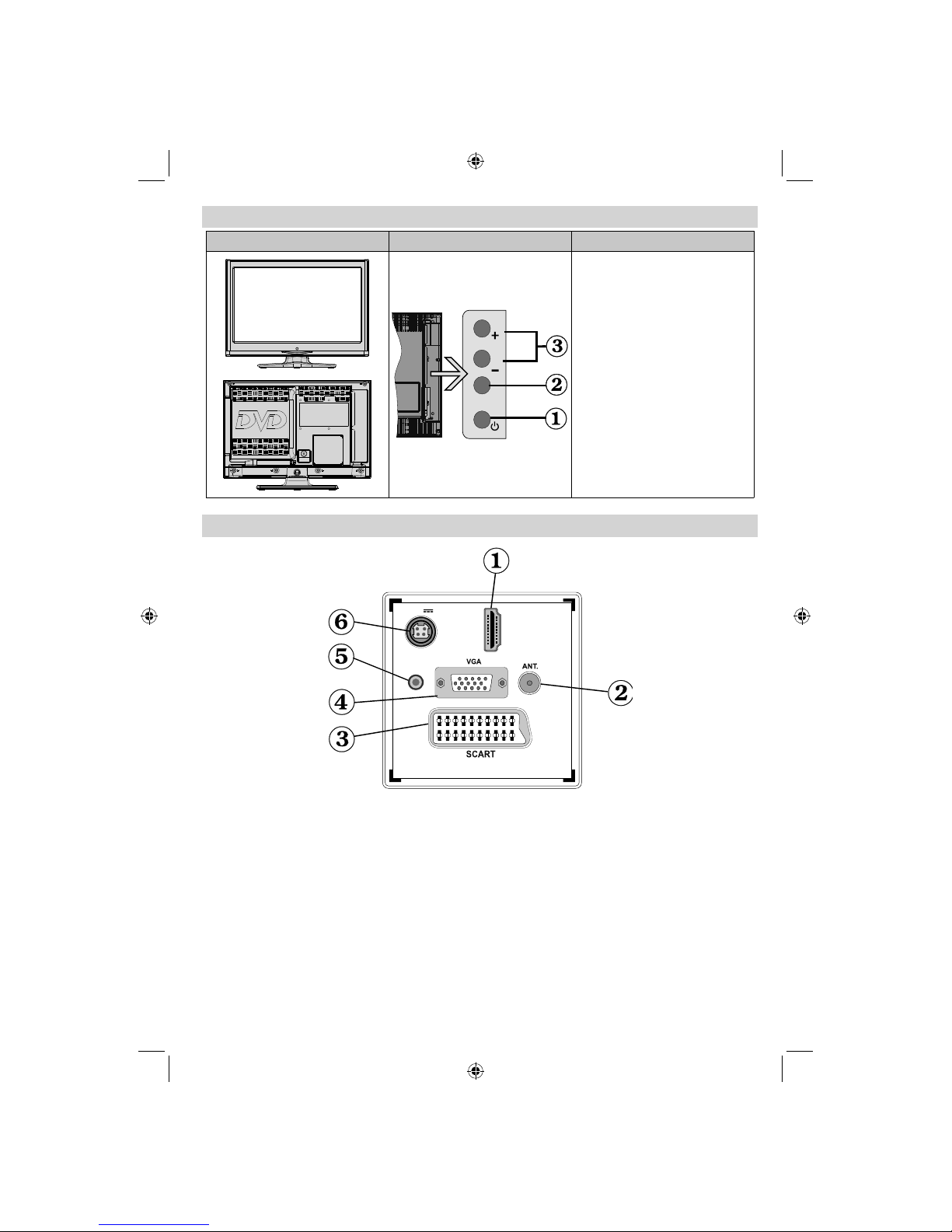

LED TV and Operating Buttons.............................. 7
Viewing the Connections - Back Connectors ......... 7

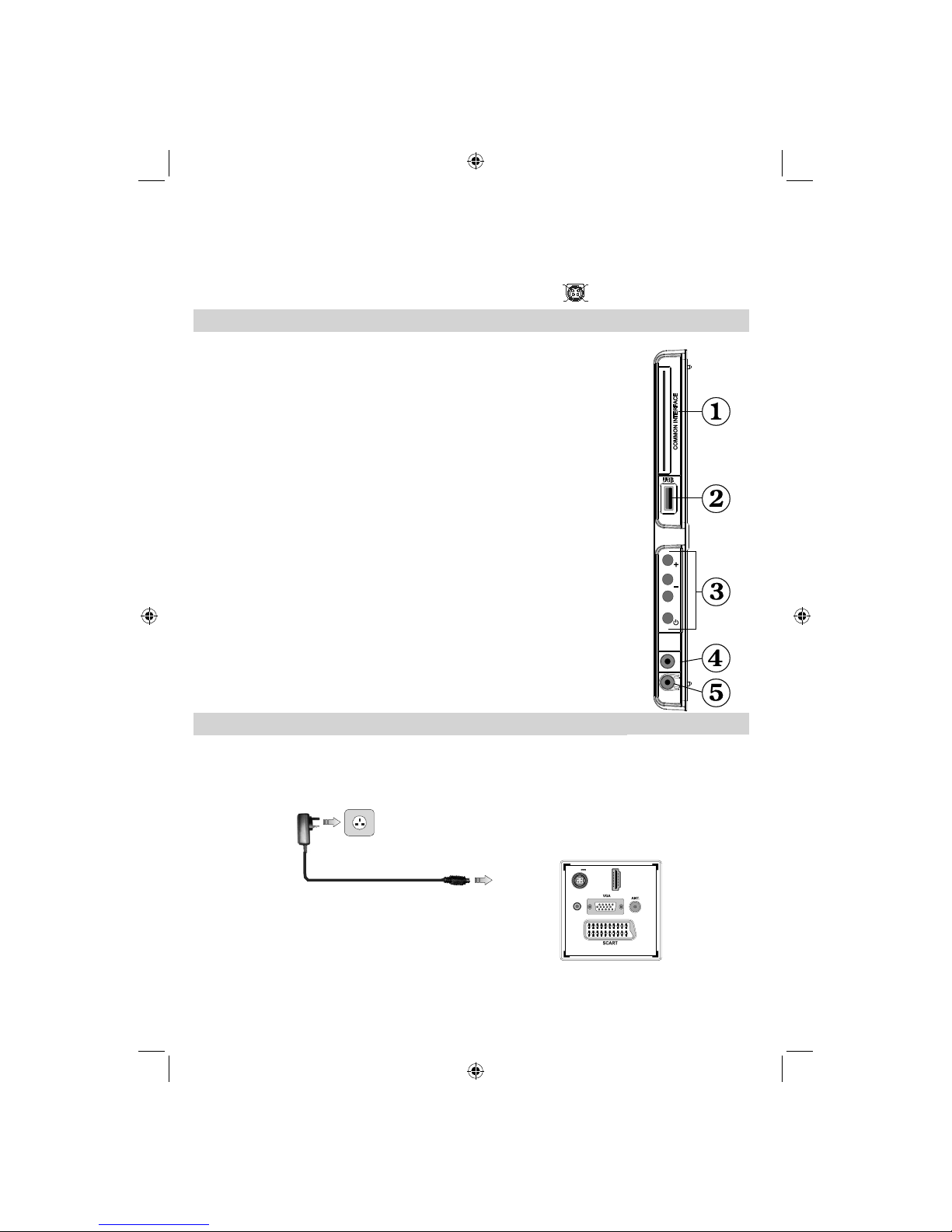

Viewing the Connections - Side Connectors .......... 8
Power Connection .................................................. 8
Aerial Connection ................................................... 9
Switching On/Off..................................................... 9

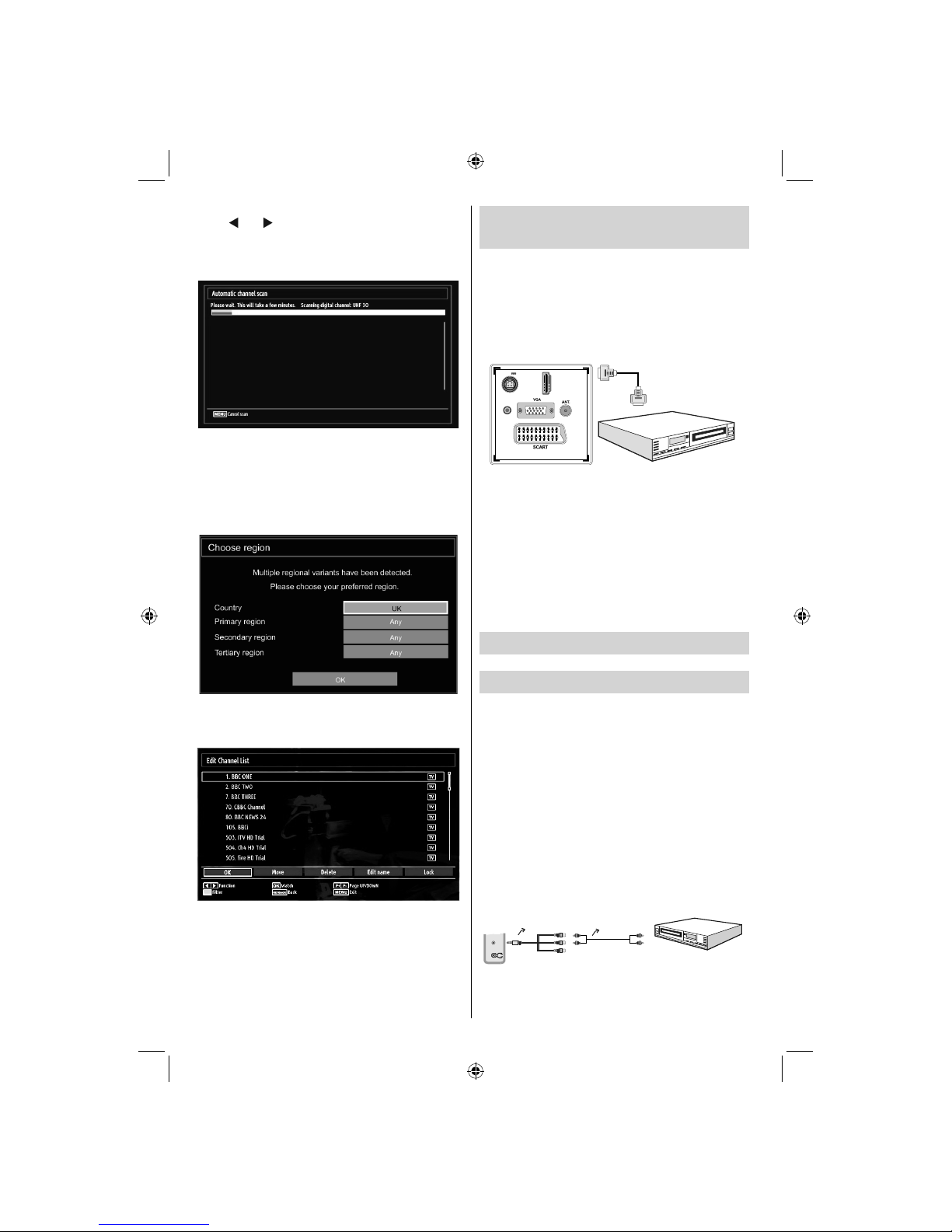

First Time Installation.............................................. 9
Connecting to a DVD player via HDMI ................. 10
Connecting to a DVD Player via Component
Sockets (YPbPr) or Scart Cable........................... 10
Connecting the LED TV to a PC............................11
Using Side AV Connectors ....................................11
USB Memory Connection......................................11
USB Memory Connection ..................................11

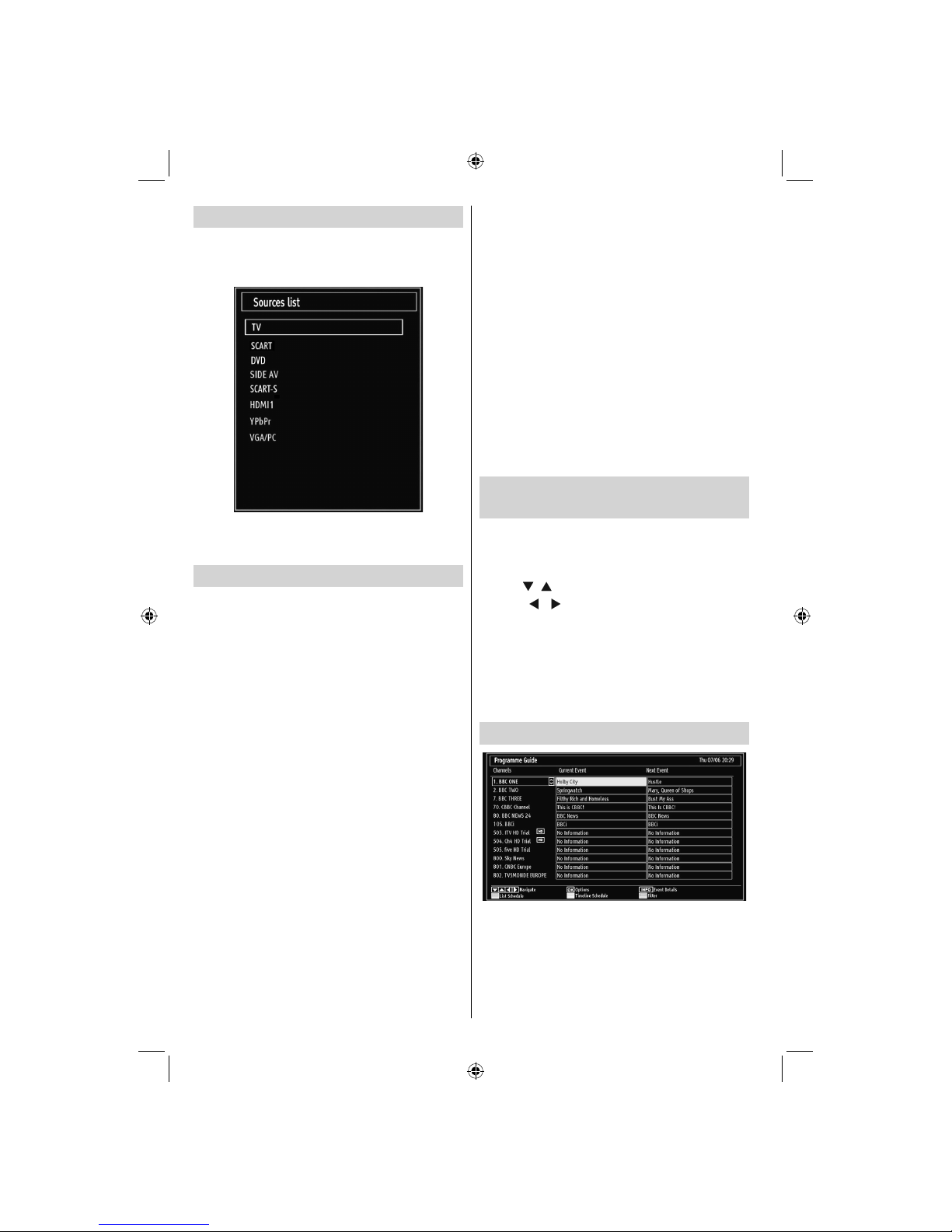

Input Selection...................................................... 12
Basic Operations .................................................. 12
Operation with the Buttons on the TV............... 12
Operation with the Remote Control .................. 12

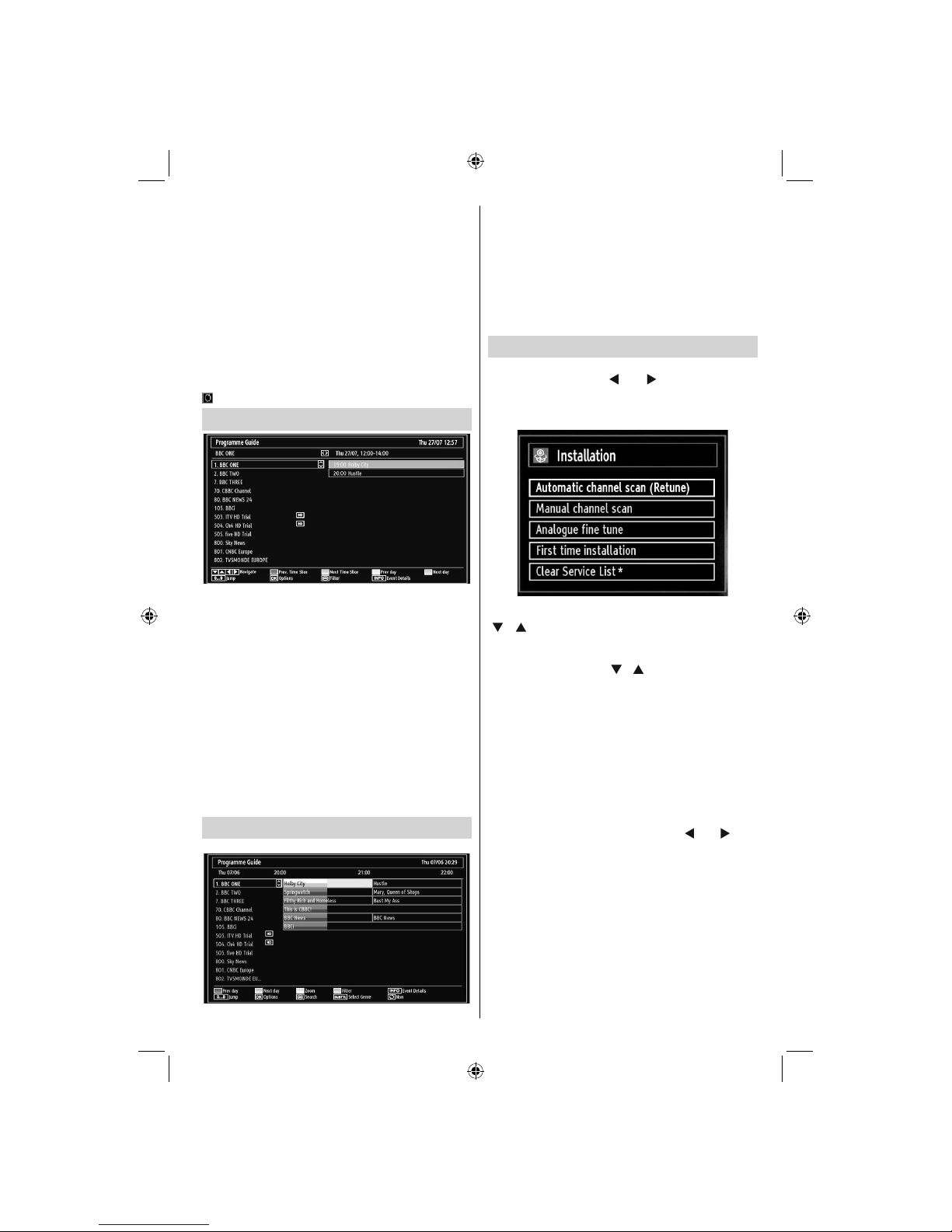

Viewing Electronic Programme Guide (EPG)....... 12
Installation ............................................................ 13
Auto Channel Scan (Retune) Menu Operation.... 13

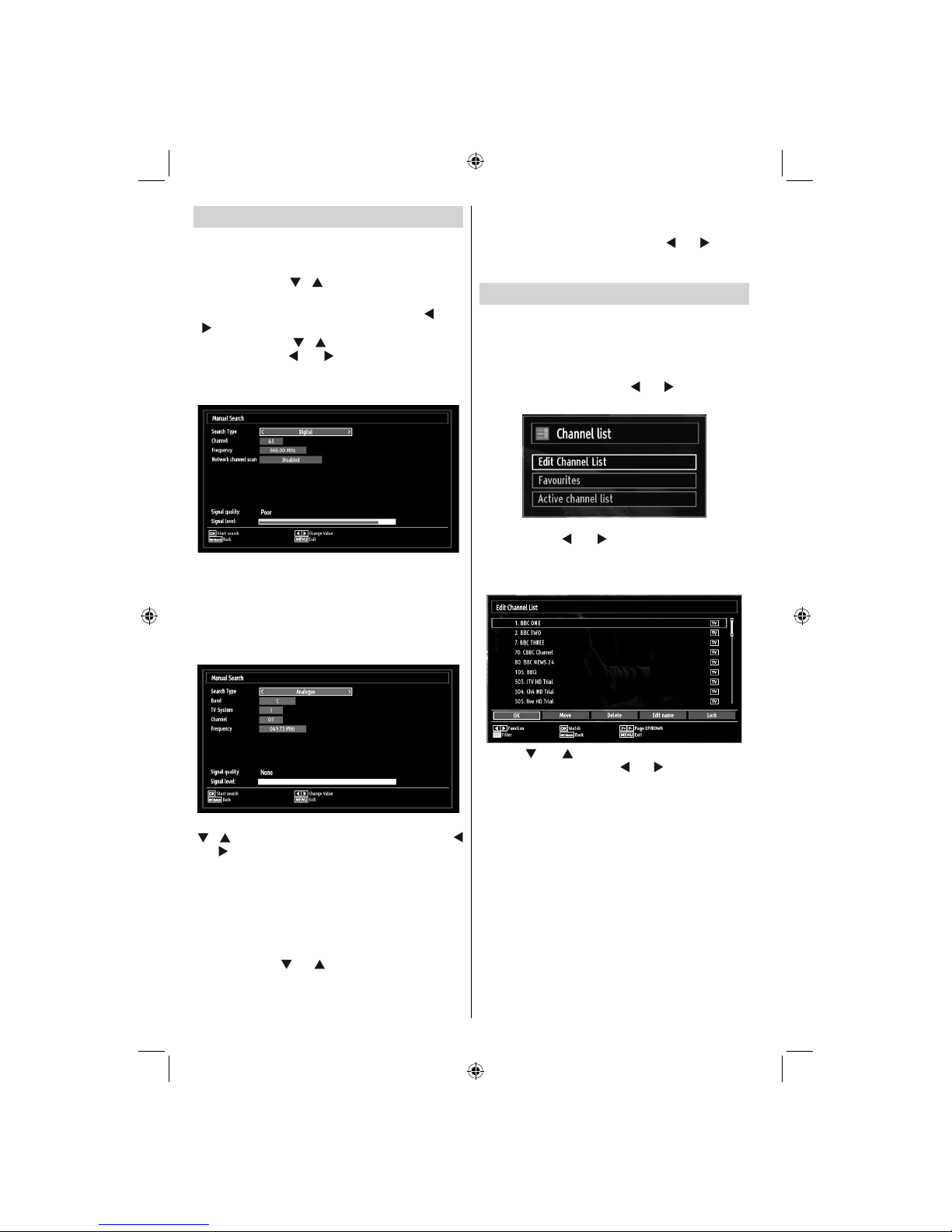

Manual Tuning ..................................................... 14
Digital Manual Search....................................... 14
Analogue Manual Search ................................. 14
Analogue Fine Tune.......................................... 14
Managing Stations: Channel List.......................... 14
Operating the Channel List............................... 14
Moving a Channel............................................. 14
Deleting a Channel ........................................... 15
Renaming a Channel........................................ 15

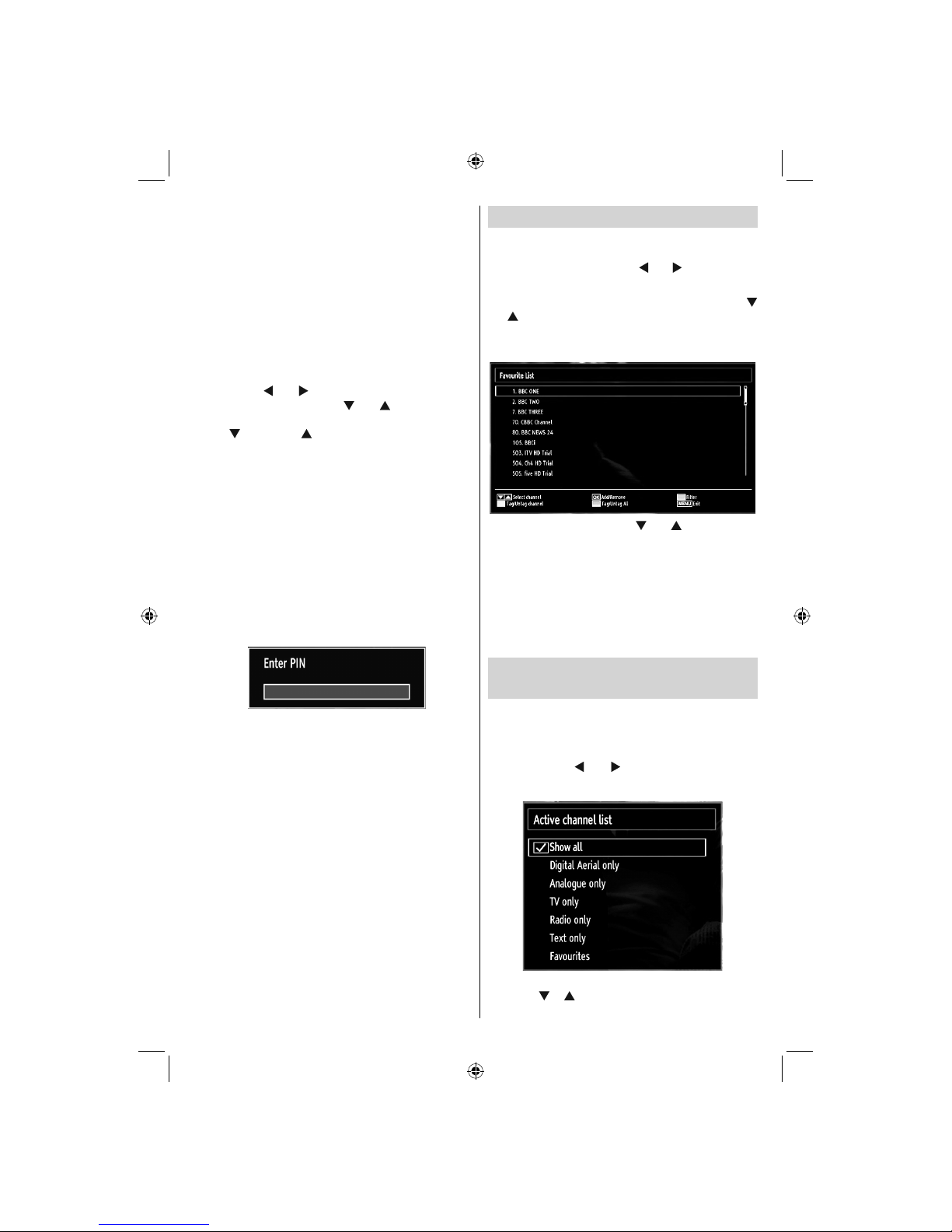

Locking a Channel............................................ 15
Managing Stations: Favourites............................. 15
Button Functions............................................... 15
Managing Stations: Sorting Channel List ............. 15
On-Screen Information ......................................... 16
Media Playback Using Media Browser................. 16
Viewing Videos via USB .................................. 16
Viewing Photos via USB................................... 16
Playing Music via USB ..................................... 17
Media Browser Settings.................................... 17

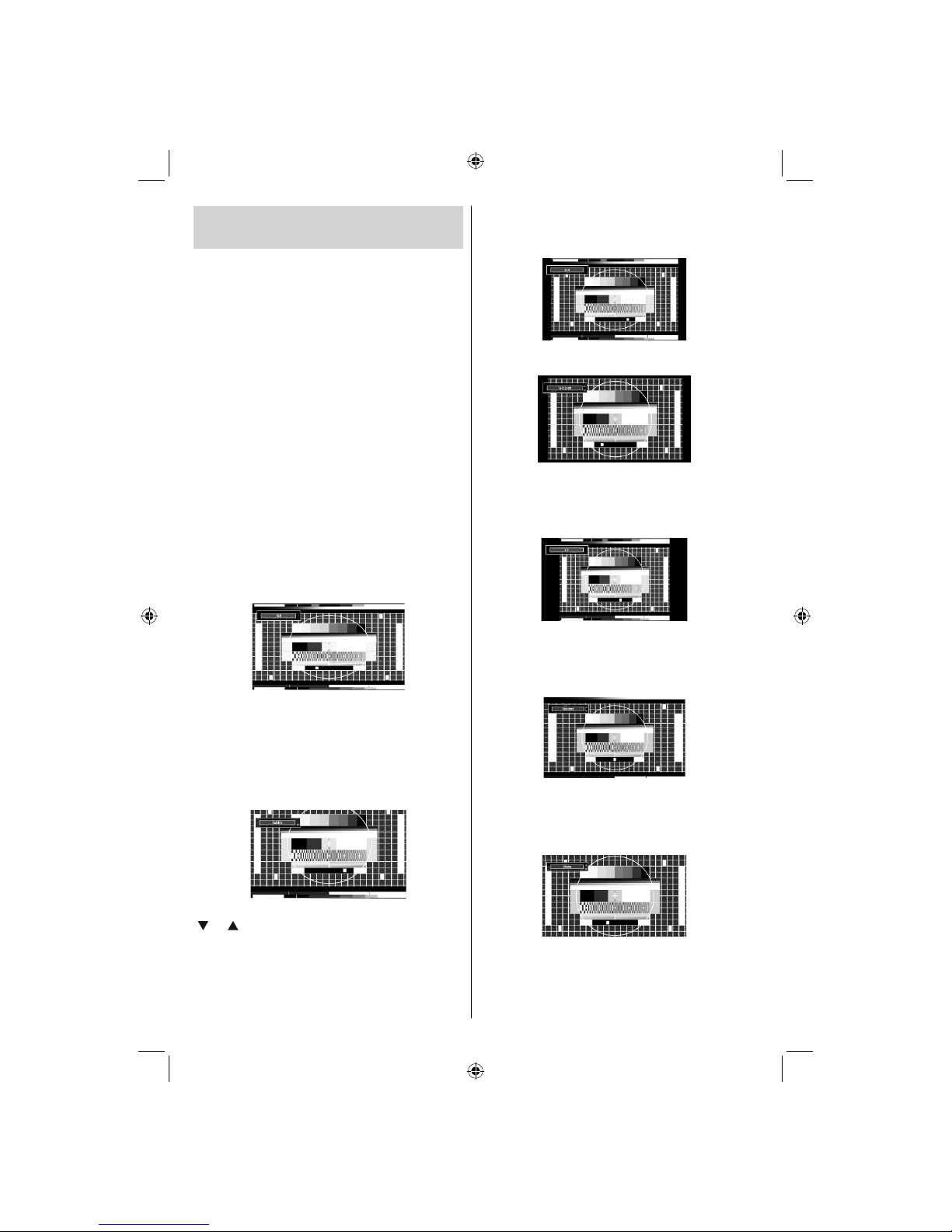

Changing Image Size: Picture Formats................ 18

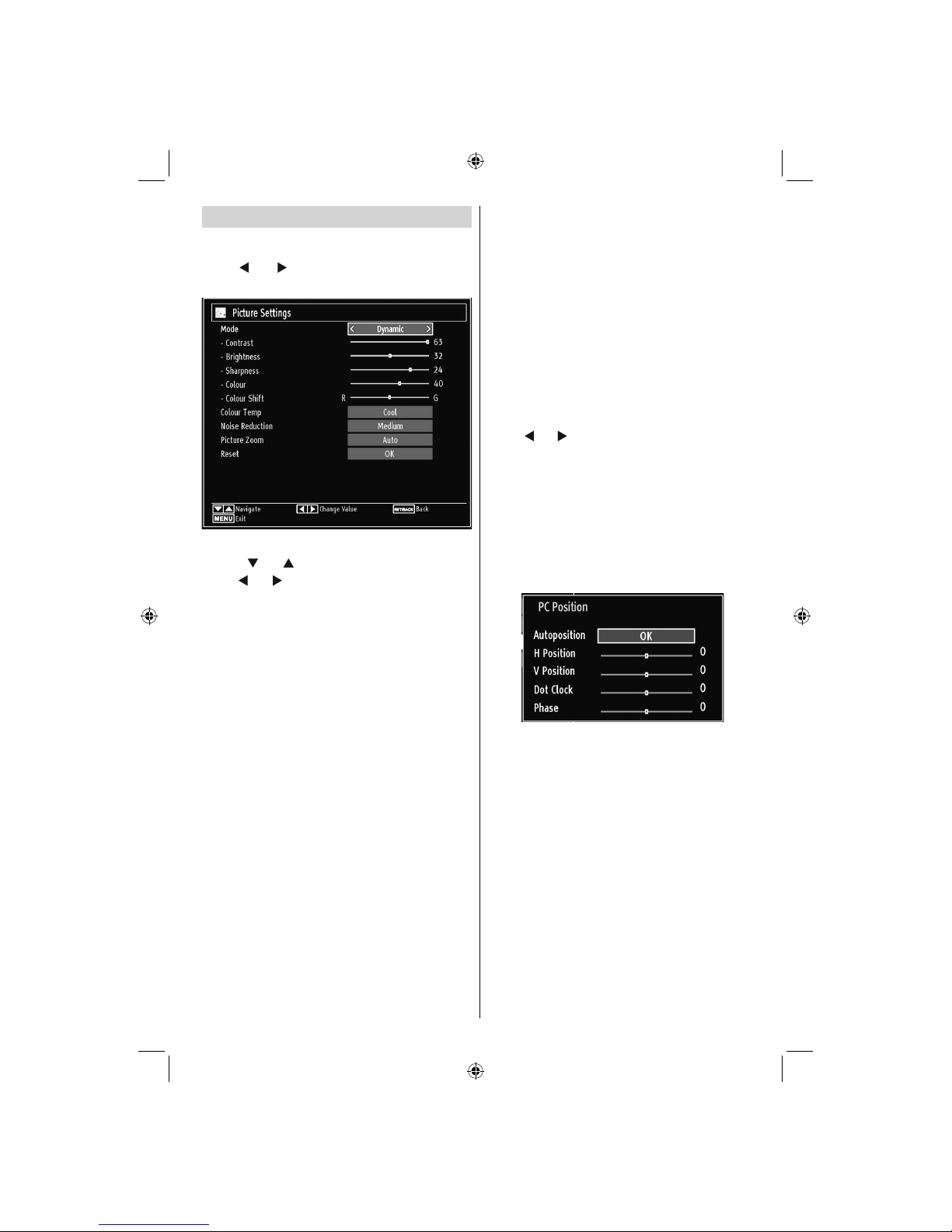

Configuring Picture Settings................................. 19
Operating Picture Settings Menu Items............ 19
Picture Settings Menu Items............................. 19
PC Picture Settings........................................... 19
Configuring Sound Settings.................................. 20
Operating Sound Settings Menu Items............. 20
Sound Settings Menu Items.............................. 20
Configuring Your TV’s Settings............................. 20
Operating Settings Menu Items ........................ 20
Using a Conditional Access Module ..................... 21
Viewing Conditional Access Menu (*)............... 21
Configuring Language Preferences...................... 21
Language Settings............................................ 22
Parental Control.................................................... 22
Parental Settings Menu Operation ................... 22
Timers................................................................... 22
Setting Sleep Timer .......................................... 22
Setting Programme Timers............................... 23
Configuring Date/Time Settings............................ 23
Configuring Source Settings................................. 23
Configuring Other Settings ................................... 24
Operation.......................................................... 24
Other Features ..................................................... 25
Teletext ................................................................. 25
Digital Teletext (** for UK only) ......................... 25
Analogue Teletext ............................................. 25
Tips....................................................................... 26
Appendix A: PC Input Typical Display Modes....... 27
Appendix B: AV and HDMI Signal Compatibility
(Input Signal Types).............................................. 27
Appendix C: Supported DVI Resolutions.............. 28
Appendix D: Supported File Formats for USB
Mode..................................................................... 28
Appendix E: Software Upgrade ............................ 29
Specifications ....................................................... 30
MOBIL TV INSTRUCTION MANUAL ................... 31
Important Instruction............................................. 32
Please note that none of the cables and aerials referred to in this manual are included
with your purchase. Should you need to connect external equipment to this product
please enquire at your local stockist.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 100_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 1 27.12.2010 17:21:4727.12.2010 17:21:47

English - 2 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Package Contents
MENU
/
INFO
EPG
FAV
PRESETS
SUBTITLE
RETURN
SOURCE
SLEEP SCREEN
LANG.
Remote Control
LED TV
Batteries: 2 X AAA
Instruction Book
1 X Video & Audio
Connection Cable Power Adapter
Note: You should check the accessories after
purchasing. Make sure that each accessory is
included.
Features
Remote controlled colour LED TV.•
Fully integrated Terrestrial digital TV (DVB-T - MPEG2)•
HDMI connectors for digital video and audio. This•
connection is also designed to accept high definition
signals.
USB input.•
1000 programmes (analogue+digital).•
OSD menu system.•
Integrated tuner MPEG 2 compatible.•
Scart socket for external devices (such as video,•
video games, audio set, etc.).
Stereo sound system. (Nicam)•
Teletext, fastext, TOP text.•
Headphone connection.•
Automatic programming system.•
Forward or backward manual tuning.•
Sleep timer / Child lock.•
Automatic sound mute when no transmission.•
NTSC playback.•
AVL (Automatic Volu me Limiting).•
Auto power down.•
PLL (Frequency Search).•
PC input.•
Plug&Play for Windows 98, ME, 2000, XP, Vista,•
Windows 7.
Game Mode•
Introduction
Thank you for choosing this product. This manual will
guide you for the proper operation of your TV.
Before operating the TV, please read this
manual thoroughly. Please do keep this
manual in a safe place for future references.
This device is intended to receive and display TV
programs. The different connection options make
an additional expansion of the reception and display
sources possible (receiver, DVD player, DVD recorder,
VCR, PC etc.).
This device is only suitable for dry, indoor use. This
appliance is intended solely for private domestic use
and may not be used for industrial and commercial
purposes. We exclude liability in principle, if the device
is not used as intended, or unauthorized modifications
have been made. To operate your LED TV in extreme
ambient conditions may cause the damage of the
device.
Preparation
For ventilation, leave a free space of at least 10 cm
all around the set. To prevent any fault and unsafe
situations, please do not place any objects on top of
the set. Use this device in moderate climates.
10 cm
10 cm
10 cm
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 200_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 2 27.12.2010 17:21:4827.12.2010 17:21:48

English - 3 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Safety Precautions
Read the following recommended safety
precautions carefully for your safety.
Power
• Always use the provided AC adaptor.
Operate only from the power source specified on•
the AC adaptor.
The power adaptor may become hot during normal•
operation. This is not a malfunction.
Please make sure that the adaptor is not covered•
while in operation. Leave a space of 15 cm
(minimum) around the AC adaptor.
The rating information and safety caution of the AC•
adaptor are provided on the adaptor.
WARNING: When the set is not in use for a long time,
disconnect from the power.
Power Cord
Do not place the set, a piece of furniture, etc. on the
power cord (mains lead) or pinch the cord. Handle the
power cord by the plug. Do not unplug the appliance by
pulling from the power cord and never touch the power
cord with wet hands as this could cause a short circuit or
electric shock. Never make a knot in the cord or tie it with
other cords. The power cords should be placed in such a
way that they are not likely to be stepped on. A damaged
power cord can cause fire or give you an electric shock.
When it is damaged and needs to be replaced, it should
be done by qualified personnel.
Moisture and Water
Do not use this device in a humid and
damp place (avoid the bathroom, the
sink in the kitchen, and near the washing
machine). Do not expose this device to
rain or water, as this may be dangerous
and do not place objects filled with
liquids, such as flower vases, on top.
Avoid from dripping or splashing.
If any solid object or liquid falls into the cabinet, unplug
the TV and have it checked by qualified personnel
before operating it any further.
Cleaning
Before cleaning, unplug the TV set
from the wall outlet. Do not use liquid
or aerosol cleaners. Use soft and dry
cloth.
Ventilation
The slots and openings on the TV set are intended for
ventilation and to ensure reliable operation. To prevent
overheating, these openings must not be blocked or
covered in anyway.
Heat and Flames
The set should not be placed near to
open flames and sources of intense heat
such as an electric heater. Ensure that
no open flame sources, such as lighted
candles, are placed on top of the TV. Batteries should
not be exposed to excessive heat such as sunshine,
fire or the like.
Lightning
In case of storm and lightning or when
going on holiday, disconnect the power
cord from the wall outlet.
Replacement Parts
When replacement parts are required, make sure that
the service technician has used replacement parts
which are specified by the manufacturer or have the
same specifications as the original one. Unauthorized
substitutions may result in fire, electrical shock or
other hazards.
Servicing
Please refer all servicing to qualified
personnel. Do not remove the cover
yourself as this may result in an electric
shock.
Waste Disposal
Instructions for waste disposal:•
• Packaging and packaging aids are recyclable
and should principally be recycled. Packaging
materials, such as a foil bag, must be kept away
from children.
• Batteries, including those which are heavy metal-
free, should not be disposed of with household
waste. Please dispose of used batteries in an
environmentally friendly manner. Find out about
the legal regulations which apply in your area.
Do not try to recharge batteries, there is a danger•
of explosion. Replace batteries only with the same
or equivalent type.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 300_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 3 27.12.2010 17:21:5127.12.2010 17:21:51

English - 4 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Information for users in EU
Countries
This symbol on the product or on its packaging means
that your electrical and electronic device
should be disposed at the end of its
service life separately from your household
wastes. There are separate collection
systems for recycling in the EU. For more
information, please contact the local
authority or the dealer where you
purchased the product.
Disconnecting the Device
The mains plug is used to disconnect the TV set
from the mains and therefore it must remain readily
operable.
Headphone Volume
Excessive sound pressure from earphones
and headphones can cause hearing loss.
Installation
To prevent injury, this device must be securely
attached to the wall in accordance with the installation
instructions when mounted to the wall (if the option
is available).
LED Screen
The LED panel is a very high technology product with
about a million thin film transistors, giving you fine
picture details. Occasionally, a few non-active pixels
may appear on the screen as a fixed blue, green or
red point. Please note that this does not affect the
performance of your product.
Warning! Do not leave your TV in standby or operating
mode when you leave your house.
Connection to a Television Distribution
System (Cable TV etc.) from Tuner
Devices connected to the protective earthing of the
building through the mains connection or through
other apparatus with a connection to protective
earthing-and to a television distribution system using
coaxial cable, may in some circumstances create a
fire hazard.
Connection to a cable distribution system has
therefore to be provided through a device providing
electrical isolation below a certain frequency range
(galvanic isolator, see EN 60728-11).
Licence Notification (Optional)
Manufactured under license from Dolby
Laboratories.
TRADEMARK ACKNOWLEDGMENT
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
The Standby On/Off button does not completely switch
off this device, it will still consume power. In order
to fully switch off this device, the power should be
switched off at the mains socket. Because of this the
device should be set up in a way, that unobstructed
access to the mains socket is guaranteed, so that
in case of an emergency the mains plug can be
pulled out immediately. To exclude the danger of fire,
the power cord should be removed from the mains
socket prior to a long period of non-use, i.e. during
vacations.
Electrical device not in the hands of
children
Never let children use any electrical device
unsupervised. Children cannot always recognize
possible dangers. Batteries / accumulators can be
life threatening when swallowed. Store batteries out
of the reach of small children. In case of swallowing
a battery medical aid has to be sought immediately.
Also keep the packaging foils away from children, as
there is danger of suffocation.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 400_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 4 27.12.2010 17:21:5227.12.2010 17:21:52

English - 5 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Remote Control Handset
Inserting Batteries
Remove the battery cover located on the back of•
the handset by gently pulling backwards from the
indicated part.
Insert two• AAA/R3 or equivalent type batteries
inside. Observe the correct polarity (+/-) when
inserting batteries and replace the battery cover.
Note: Remove the batteries from the remote control
handset when it is not to be used for a long period.
Otherwise it can be damaged due to any leakage of
batteries. Remote range is approximately 7m/23ft.
Environmental Information
This television is designed to consume less energy•
to save environment.
You not only help to save the environment but also
you can save money by reducing electricity bills
thanks to the energy efficiency feauture of this TV.
To reduce energy consumption, you should take the
following steps:
You can use Power Save Mode setting, located in•
the Feature menu. If you set Power Save Mode
as On, the TV will switch to energy-saving mode
and luminance level of TV set will be decreased to
optimum level. Note that some picture settings will
be unavailable to be changed when the TV is in
Power Save Mode.
When the TV is not in use, please switch off or•
disconnect the TV from the mains plug. This will
also reduce energy consumption.
Disconnect power when going away for longer•
time.
Note that annually, using the TV set in Power Save•
Mode has more power efficiency than disconnecting
the TV from the mains plug instead of keeping
stand-by mode. Therefore it is highly recommended
to activate Power Save Mode setting to reduce
your annual power consumption.And also it is
recommended to disconnect the TV from the mains
plug to save energy more when you do not use.
• Please helps us to save environment by following
these steps.
Repair Information
Please refer all servicing to qualified personnel. Only
qualified personnel must repair the TV. Please contact
your local dealer, where you have purchased this TV
for further information.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 500_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 5 27.12.2010 17:21:5227.12.2010 17:21:52

English - 6 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Remote Control Buttons
MENU
/
INFO
EPG
FAV
PRESETS
SUBTITLE
RETURN
28
29
SOURCE
SLEEP SCREEN
LANG.
30
31
Standby1.
Image size/ Expand (in TXT mode)2.
Sleep timer3.
Numeric buttons4.
Return / Exit (in DTV mode) / Index page (in5.
TXT mode)
Cursor up / Page up (in TXT mode)6.
Cursor left7.
Programme up (Page down in DTV mode)8.
Programme down (Page up in DTV mode)9.
Mono-Stereo / Dual I-II / Current language10.
Previous Programme / Swap11.
Electronic programme guide12.
Info / Reveal (in TXT mode)13.
Picture mode selection14.
Source selection15.
Red button / Zooms videos (in Media Browser16.
video mode)
Green button17.
Yellow button18.
Menu on-off19.
Blue button20.
OK / Edit Channel list / Hold (in TXT mode)21.
Cursor right / Subpage (in TXT mode)22.
Cursor down / Page down (in TXT mode)23.
Volume up24.
Volume down25.
Mute26.
Teletext / Mix27.
Subtitle on-off (in DTV mode) / TXT Subtitle28.
FAV (*) (Favourite Selection) (in DTV mode)29.
No Function30.
Media Browser playback buttons. (in DTV31.
mode)
(*) Only for EU country options.
Note: Buttons that are not indicated with a
number on the remote control illustration are
not functional in TV mode.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 600_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 6 27.12.2010 17:21:5227.12.2010 17:21:52

English - 7 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
LED TV and Operating Buttons
FRONT and REAR VIEW Control buttons VIEW Control Buttons
P\V-AV
1. Standby On/Off button
2. TV/AV button
3. Programme Up/Down buttons-
Volume Up/Down buttons
Note:You can use +/- buttons
to change volume. If you want
to change channels, press P/V/
AV button once and then use
+/- buttons. If you hold the P/V/
AV button about a few seconds,
source OSD will be displayed.
Main menu OSD cannot be
displayed via control buttons.
Viewing the Connections - Back Connectors
HDMI 1
SPDIF
Coax.OUT
12V
DC IN
HDMI 1: HDMI Input1.
HDMI Input are for connecting a device that has an HDMI socket. Your LED TV is capable of displaying
High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These
devices must be connected via the HDMI sockets or Component Socket. These sockets can accept
either 720p or 1080p signals. No sound connection is needed for an HDMI to HDMI connection.
RF Input2. connects to an aerial antenna system.
Note that if you use a decoder or a media recorder, you should connect the aerial cable through the device
to the television with an appropriate antenna cable, as shown in the illustration in the following pages.
SCART3. input or output for external devices. Connect the SCART cable between SCART socket on TV and
SCART socket on your external device (such as a decoder, a VCR or a DVD player).
Note: If an external device is connected via the SCART socket, the TV will automatically switch to AV mode.
Note: S-VHS signal is supported via the scart socket.
PC Input4. is for connecting a personal computer to the TV set.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 700_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 7 27.12.2010 17:21:5327.12.2010 17:21:53

English - 8 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC.
Note: You can use YPbPr to VGA cable (not supplied) to enable YPbPr signal via PC input.
WARNING: You cannot use PC and YPbPr at the same time.
S/PDIF Coaxial Out5. outputs digital audio signals of the currently watched source.
Use an SPDIF coaxial cable to transfer audio signals to a device that has S/PDIF input
DC 12 V Input6. is used for connecting the supplied power adaptor.
V+ V+
V- V-
.
Viewing the Connections - Side Connectors
CI Slot is used for inserting a CI card. A CI card allows you to view all the1.
channels that you subscribe to. For more information, see “Conditional Access”
section.
USB input.2.
TV control buttons.3.
Side audio-video connection4. input is used for connecting video and audio
signals of external devices. To make a video connection, you must use the
supplied AV connection cable for enabling connection. First, plug singular jack
of the cable to the TV’s Side AV socket. Afterwards, insert your video cable’s
(not supplied) connector into the YELLOW input of the supplied AV connection
cable. Colours of the connected jacks should match.
To enable audio connection, you must use RED and WHITE inputs of the side
AV connection cable supplied. Afterwards, insert your device’s audio cable’s
connectors into the RED and WHITE jack of the supplied side AV connection
cable. Colours of the connected jacks should match.
Note: You should use audio inputs of side AV connection cable (RED & WHITE)
to enable sound connection when connecting a device to your TV by using PC
or COMPONENT VIDEO input.
Headphone jack is used for connecting an external headphone to the system.5.
Connect to the HEADPHONE jack to listen to the TV from headphones
(optional).
Power Connection
IMPORTANT: The TV set is designed to operate on 12 V DC. For this, an adaptor is used which gives
12 V voltage. Connect this adaptor to a system that supplies 110-240V AC,50/60Hz.
After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the•
mains.
AC adapter
To POWER
INPUT DC 12 V
terminal
HDMI 1
SPDIF
Coax.OUT
12V
DC IN
USB
5Vdc
Max:500mA
P\V-AV
SIDE AV
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 800_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 8 27.12.2010 17:21:5427.12.2010 17:21:54

English - 9 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Aerial Connection
Connect the aerial ,cable TV plug to the AERIAL•
INPUT socket located at the rear of the TV.
HDMI 1
SPDIF
Coax.OUT
12V
DC IN
Switching On/Off
To Switch the TV On
Connect the power cord to the 110-240V AC 50/60•
Hz. Then the standby LED lights up. (The led will
blink during the standby On/Off)
To switch on the TV from standby mode either:•
Press the “• ” button, P+ / P- or a numeric button
on the remote control.
Press the “• ” button, -or +button on the TV. The
TV will then switch on.
• When the mains power is first connected to the device
the light on the front of the unit will start flashing
for few seconds, when it stops flashing (remains
constant) the TV will be in standby mode.
Note: If you switch on your TV via PROGRAMME
UP/DOWN buttons on the remote control or on the
TV set, the programme that you were watching last
will be reselected.
By either method the TV will switch on.
Note: When the device is coming out of standby the
light on the front of the unit will flash until the picture
appears. If you activate the power operation again
(before the light has had time to stop flashing) the
device will turn off into stndaby mode again. This is
normal operation and not a fault
Note: The standby light will blink while the TV is
powering up from Standby mode.
To Switch the TV Off
Press the “• ” button on the remote control or
press the “ ” switch on the TV, the TV will switch
to standby mode.
To power down the TV completely, unplug the•
power cord from the mains socket.
Note: When the TV is switched to standby mode,
standby LED can blink to indicate that features such
as Standby Search, Over Air Download or Timer is
active.
First Time Installation
IMPORTANT: Ensure that the aerial is connected
before switching on the TV for the first time
installation.
When the TV is operated for the first time, the•
installation wizard will guide you through the
process. First, language selection screen will be
displayed:
Use “• ” or “ ” buttons to select your language
and press OK button to set the selected language
and continue.
After selecting the language, “• Welcome!” screen will
be displayed, requiring you to set Country, Teletext
Language and Scan Encrypted options.
By pressing “• ” or “ ” button, select the country
you want to set and press “ ” button to highlight
Teletext Language option. Use “ ” or “ ” button
to select desired Teletext Language.
Press “• ” button after setting Teletext Language
option. Scan Encrypted will be then highlighted.
You can set Scan Encrypted as Yes if you want to
scan coded stations.Afterwards select the desired
Teletext Language.
Press• OK button on the remote control to continue
and the following message will be displayed on the
screen:
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 900_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 9 27.12.2010 17:21:5427.12.2010 17:21:54

English - 10 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Connecting to a DVD player
via HDMI
Please refer to your DVD player’s instruction book
for additional information. Power off both the TV and
the device before making any connections.
Note: Not all cables shown in the illustration are
supplied.
If your DVD player has an• HDMI socket, you can
connect via HDMI for better video and audio quality.
HDMI 1
SPDIF
Coax.OUT
12V
DC IN
External device
(not supplied)
HDMI Cable
When you connect to DVD player as illustrated above,•
switch to the connected HDMI source. See, Input
Selection section for more information on changing
sources.
Note: If the device is connected via HDMI and the
TV is turned off into standby mode, when the unit
comes back on there may be an error message
on screen ‘No video available’. You may need to
turn the device off at the wall socket to reset the
HDMI connection.
Connecting to a DVD Player via
Component Sockets (YPbPr) or
Scart Cable
Some DVD players are connected through•
COMPONENT SOCKETS (YPbPr). YPbPr can be
used only when you connect a device that has a
YPbPr output through the PC input with YPbPr to
PC cable (YPbPr cable is not supplied).
When the connection is made, switch to YPbPr•
source. See, “Input selection” section.
To enable audio connection, use the• VGA/
Component Audio cable. First, plug the single jack
of the cable to the TV. Afterwards, insert your DVD
player’s audio cable’s connectors into the plural part
of the VGA/Component audio connection cable
(see illustration below). Colours of the connected
jacks should match ( RED & WHITE).
AV Connection
Cable (supplied)
Audio Cable
(not supplied)
To DVD Player's
Audio Outputs.
SIDE AV
When the connection is made, switch to• YPbPr source.
See, Input selection section.
To select the “Yes” or “No” option, highlight the item by
using “ ” or “ ” buttons and press OK button.
Afterwards, the following OSD will be displayed on
the screen and the television will search for digital
terrestrial TV broadcasts
Note: You can press MENU button to cancel.
It is possible that the TV could find channels from
more than one transmitter. In this case the available
transmitters will be shown on screen. Use the
navigation buttons to select the correct transmitter
for your local region.
After all the available stations are stored, the•
Channel List will be displayed on the screen.
Press• OK button to quit channel list and watch TV.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 1000_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 10 27.12.2010 17:21:5527.12.2010 17:21:55

English - 11 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
You may also connect through the• SCART input.
HDMI 1
SPDIF
Coax.OUT
12V
DC IN
Scart Cable
(not supplied)
External device
Note: These three methods of connection perform the
same function but in different levels of quality. It is not
necessary to connect by all three methods.
Connecting the LED TV to a PC
For displaying your computer’s screen image on your
LED TV, you can connect your computer to the TV set.
Power off both computer and display before making
any connections. Use a 15-pin D-sub display cable
to connect a PC to the LED TV. When the connection
is made, switch to PC source. See “Input selection”
section. Set the resolution that suits your viewing
requirements. Resolution information can be found
in the appendix parts
.
PC Input
(back)
Side AV Input
PC VGA Cable
(Not supplied)
PC Audio Cable
(Not supplied)
Side Audio/Video
Connection Cable
(Supplied)
Or
SIDE AV
Using Side AV Connectors
You can connect a range of optional equipment to your
LED TV using side connectors of the TV.
For connecting a camcorder or camera , you should•
use AV socket (side). To do this, you must use the
supplied video/audio connection cable. First, plug
single jack of the cable to the TV’s AV IN socket
(side). Afterwards, insert your camera cable’s (not
supplied) connectors into the plural part of the video/
audio connection cable. Colours of the connected
jacks should match. See illustration below.
Afterwards, you should switch to• Side AV source. See
the section Input selection in the following sections
for more information.
Camera
AV Connection
Cable (supplied)
AV Cable
(not supplied)
Headphone
SIDE AV
To listen the TV sound from headphones, you•
should connect headphones to your TV by using the
HEADPHONE jack as illustrated above.
USB Memory Connection
You can connect USB devices to your TV by using•
the USB input of the TV. This feature allows you to
display/play JPG, MP3 and video files stored on a
USB stick.
It is possible that certain types of USB devices (e.g.•
MP3 Players) may not be compatible with this TV.
You may back up your files before making any•
connections to the TV set in order to avoid any
possible data loss. Note that manufacturer will not
be responsible for any file damage or data loss.
Do not pull out USB module while playing a file.•
CAUTION: Quickly plugging and unplugging USB
devices, is a very hazardous operation. Do not
repeatedly quickly plug and unplug the drive. This
may cause physical damage to the USB player and
the USB device itself.
SIDE VIEW USB MEMORY
5Vdc
Max:500mA
USB
USB Memory Connection
IMPORTANT: The TV should be switched off while
plugging or unplugging a USB device. Plug your
USB devices to the USB input of the TV.
Note: It is possible certain types of hard disk drives
are not supported.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 1100_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 11 27.12.2010 17:21:5627.12.2010 17:21:56

English - 12 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Input Selection
Once you have connected external systems to
your TV, you can switch to different input sources.
Press “SOURCE” button on your remote control
consecutively for directly changing sources.
Note: YPbPr mode can be used only when you
connect a device that has a YPbPr output through the
PC input with YPbPr to PC cable (not supplied).
Basic Operations
You can operate your TV using both the remote
control and onset buttons.
Operation with the Buttons on the TV
Main menu OSD cannot be displayed via control
buttons. “+/-” buttons will function as volume up/down
as default. Even if you set other functions for these
buttons, “+/-” buttons will perform as default after a
short while.
Volume Setting
Press “• P/V/AV” button once and then use “+/-”
buttons to increase or decrease volume, so a volume
level scale (slider) will be displayed on the screen.
While Tv is on, +/- button can use as volume + or
volume - as default.
Programme Selection
Press “• P/V/AV” button once and then use “+/-” buttons
to change channel. By pressing “+/-” button,you can
select the next or previous programme.
AV Mode
Hold the “• P/V/AV” button, source OSD will be
displayed in a few second.
Operation with the Remote Control
The remote control of your TV is designed to control•
all the functions of the model you selected. The
functions will be described in accordance with the
menu system of your TV.
Volume Setting
Press “• V+” button to increase the volume. Press “V-”
button to decrease the volume. A volume level scale
(slider) will be displayed on the screen.
Programme Selection (Previous or Next
Programme)
Press “• P -” button to select the previous
programme.
Press “• P +” button to select the next programme.
Programme Selection (Direct Access)
Press numeric buttons on the remote control to select•
programmes between 0 and 9. The TV will switch to
the selected programme. To select programmesin
channels 10 and above press the numeric buttons
of the channel you require consecutively. If you
press only one button, that respective channel will
be displayed.
Viewing Electronic Programme
Guide (EPG)
You can view the electronic programme guide (EPG)
to view information about available programmes.To
view the EPG menu please press EPG button on the
remote control.
Press “• ”/“ ” buttons to navigate through channels.
Press “• ”/“ ” buttons to navigate through the
programme list.
EPG menu displays available information on all•
channels.
Please note that event information is updated•
automatically. If there are no event information
data available for channels, EPG will be displayed
with blanks.
EPG Screen One
Red button (Prev Day): Displays the programmes
of previous day.
Green button (Next day): Displays the programmes
of the next day.
Yellow button (Zoom): Expands programme
information.
Blue button (Filter): Views filtering options.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 1200_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 12 27.12.2010 17:21:5727.12.2010 17:21:57

English - 13 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
INFO (Details): Displays the programmes in detail.
Numeric buttons (Jump): Jumps to the preferred
channel directly via numeric buttons.
OK (Options): Displays programme options including
“Select Channel” option.
Text (Search): Displays “Guide Search” menu.
SUBTTL: Press SUBTITLE button to view Select
Genre menu. Using this feature, you can search the
programme guide database in accordance with the
genre. Info available in the programme guide will
be searched and results matching your criteria will
be listed.
(Now) : Shows the current programme.
EPG Screen Two
Red button (Prev Time Frame): Displays the
programmes of previous time frame.
Green button (Next Time Frame): Displays the
programmes of the next time frame.
Yellow button (Prev Day): Displays the programmes
of previous day.
Blue button (Next day): Displays the programmes
of the next day.
Numeric buttons (Jump): Jumps to the preferred
channel directly via numeric buttons.
OK (Options): Displays programme options including
“Select Channel” option.
Text button (Filter): Views filtering options.
INFO (Details): Displays the programmes in detail.
EPG Screen Three
OK (Options): Displays programme options including
“Select Channel” option.
INFO (Event Details): Displays the programmes in
detail.
Green button: Programme schedule will be listed
Yellow button: Display EPG data in accordane with
timeline schedule
Blue button (Filter): Views filtering options.
Installation
Press MENU button on the remote control and select
Installation by using “ ” or “ ” button. Press the
OK button and the following menu screen will be
displayed.
Select Automatic Channel Scan (Retune) by using
“”/“ ”button and press OK button. Automatic
Channel Scan (Retune) options will be displayed. You
can select Digital Aerial, Analogue or Digital Aerial-
Analogue tuning using “ ”/“ ” and OK buttons.
Auto Channel Scan (Retune) Menu
Operation
Digital: Searches and stores aerial DVB stations.
Analogue: Searches and stores analogue stations.
Full: Searches and stores both analogue and aerial
DVB stations.
Whenever you select an automatic search type and•
press OK button, a confirmation screen will appear
on the screen. To start installation process, select
Yes, to cancel select No by using .“ ” or “ ” and
OK button.
After auto channel scan type is set, selected and•
confirmed, the installation process will start and
progress bar will move along. Press MENU button
to cancel process. In such a case, located channels
are not stored.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 1300_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 13 27.12.2010 17:21:5727.12.2010 17:21:57

English - 14 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Manual Tuning
HINT: This feature can be used for direct broadcast
entry.
Select• Manual Channel Scan from the Installation
menu by using “ ”/“ ” and OK buttons. Manual
Scan options screen will be displayed.
Select the desired• Search Type using “ ” or “
” button. Manual search options will change
accordingly. Use “ ”/“ ” button to highlight an item
and then press “ ” or “ ” button to set an option.
You can press MENU button to cancel.
Digital Manual Search
In manual channel scan, the number of the multiplex
or frequency are entered manually and only that
multiplex or frequency are searched for the channels.
After selecting search type as Digital, you can enter
the multiplex or frequency number using the numeric
buttons and press OK button to search.
Analogue Manual Search
After selecting search type as analogue, you can use
“ ”/“ ” button to highlight an item and then press “
” or “ ” button to set an option.
Enter the channel number or frequency using the
numeric buttons. You can then press OK button
to search. When the channel is located, any new
channels that are not on the list will be stored.
Analogue Fine Tune
Select• Analogue Fine Tune from the Installation
menu by using “ ” or “ ” and OK buttons. Analogue
fine tune screen will be displayed. Analogue Fine
Tune feature will not be available if there are no
analog channels, digital channels and external
sources stored.
Press• OK button to proceed. Use “ ” or “ ” button
to set Fine Tune. When finished, press OK button
again.
Managing Stations: Channel List
The TV sorts all stored stations in the Channel List.
You can edit this channel list, set favourites or set
active stations to be listed by using the Channel List
options.
Press• MENU button to view main menu. Select
Channel List item by using “ ” or “ ” button. Press
OK to view menu contents.
Select Edit Channel List to manage all stored
channels. Use “ ” or “ ” and OK buttons to select
Edit Channel List.
Operating the Channel List
Press “• ” or “ ” button to select the channel that
will be processed. Press “ ” or “ ” button to select
a function on Channel List menu.
Use• P+/P- buttons to move page up or down.
Press• BLUE button to view filtering options.
Press• MENU button to exit.
Moving a Channel
First select the desired channel. Select Move option•
in the channel list and press OK button.
Edit Number screen will be displayed. Enter the•
desired channel number by using the numeric
buttons on the remote control. If there is a previously
stored channel on that number, a warning screen
will be displayed. Select Yes if you want to move the
channel and press OK.
Press• OK button to process. Selected channel is
now moved.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 1400_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 14 27.12.2010 17:21:5727.12.2010 17:21:57

English - 15 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Deleting a Channel
You can press GREEN button to tag/untag all
channels; YELLOW button to tag/untag channel.
Select the channel that you want to delete and select•
Delete option. Press OK button to continue.
A warning screen will appear. Select• YES to delete,
select No to cancel. Press OK button to continue.
Renaming a Channel
Select the channel that you want to rename and•
select Edit Name option. Press OK button to
continue.
Pressing “• ” or “ ” button moves to the previous/
next character. Pressing “ ” or “ ” button toggles
the current character, i.e., ‘b’ character becomes ‘a’
by “ ” and ‘c’ by “ ”. Pressing the numeric buttons
‘0...9’ replaces the highlighted character with the
characters printed above the button one by one as
the button is pressed.
When finished, press• OK button to save. Press
MENU to cancel.
Locking a Channel
You can press GREEN button to tag/untag all
channels; YELLOW button to tag/untag a single
channel.
Select the channel that you want to lock and select•
Lock option. Press OK button to continue.
You will be asked to enter parental control PIN.•
Default PIN is set as 0000. Enter the PIN number.
Press• OK button when the desired channel is
highlighted to lock/unlock the channel. Lock symbol
will be displayed next to the selected channel.
Managing Stations: Favourites
You can create a list of favourite programmes.
Press• MENU button to view main menu. Select
Channel List item by using “ ” or “ ” button. Press
OK to view menu contents.
Select• Favourites to manage favourite list. Use “
”/“ ” and OK buttons to select Favourites.
You can set various channels as favourites so that•
only the favourite channels are navigated.
Select a channel by using “• ” or “ ” button. Press
OK button to add selected channel to favourites list.
Press OK button again to remove.
Button Functions
OK• : Add/remove a station.
YELLOW• : Tag/untag a channel.
GREEN• : Tag/untag all channels.
BLUE• : Displays filtering options.
Managing Stations: Sorting
Channel List
You can select broadcasts to be listed in the channel
list. To display specific types of broadcast, you should
use Active channel list setting.
Select Active channel list from the Channel list
menu by using “ ” or “ ” button. Press OK button
to continue.
You can select a broadcast type option from the list
by using “ ” /“ ” and OK buttons.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 1500_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 15 27.12.2010 17:21:5827.12.2010 17:21:58

English - 16 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
On-Screen Information
You can press INFO button to display on-screen
information. Details of the station and current
programme will be displayed on the information
banner.
The information banner gives information on the
channel selected and the programmes on it. The
name of the channel is displayed, along with its
channel list number. Hint: Not all channels broadcast
the programme data. If the name and time of the
programme are not available, then information banner
will be displayed with blanks.
If the selected channel is locked, you must enter the
correct four-digit numeric code to view the channel
(default code is 0000). “Enter PIN” will be displayed
on the screen in such a case:
Media Playback Using Media
Browser
If the USB stick is not recognized after power off/on
or First Time Installation, first, plug the USB device
out and power off/on the TV set. Plug the USB device
in again.
To display Media Browser window, press either
“MENU” button on the remote control and then select
Media Browser by pressing “ ” or “ ” button. Press
OK button to continue. Media Browser menu options
will be displayed.
Also, when you plug USB devices, the media
browser screen will be displayed automatically:
You can play music, picture and video files from the
connected USB memory stick. Use “ ” or “ ” button
to select Videos, Photos, Music or Settings.
Viewing Videos via USB
When you select Videos from the main options, the
available video files will be filtered and listed on this
screen. You can use “ ” or “ ” button to select a video
file and press OK button to play a video. If you select
a subtitle file and press OK button, you can select or
deselect that subtitle file. The following menu will be
displayed while playing a video file:
Play ( button): Starts the video playback.
Stop ( button): Stops the video playback.
Pause ( button): Pause the video playback.
Rewind ( button): Goes backward.
Forward ( button): Goes forward.
Subtitle/Audio (LANG. button): Sets subtitle/Audio.
Yellow: Opens subtitle time correction menu
Press RETURN (Exit) button to switch back to
previous menu.
Viewing Photos via USB
When you select Photos from the main options,
available image files will be filtered and listed on this
screen.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 1600_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 16 27.12.2010 17:21:5927.12.2010 17:21:59

English - 17 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Jump (Numeric buttons):Jump to selected file using
the numeric buttons.
OK: Views the selected picture in full screen.
Slideshow (GREEN button): Starts the slideshow
using all images.
Loop/Shuffle (BLUE button): Press once to enable
Loop. Press again to enable both Loop and Shuffle.
Press once more to enable only Shuffle. Press again
to disable all. You can follow the disabled functions
with the change of the icons.
FAV: Sorts files by date.
TEXT: Views images in thumbnails.
INFO: Changes filter options.
Slideshow Options
Pause ( button): Pauses the slideshow.
Continue ( button): Continues the slideshow.
Previous/Next (Left/Right buttons): Jumps to
previous or next file on slideshow.
Rotate (Up/Down buttons): Rotates the image using
up/down buttons.
Loop/Shuffle (GREEN button): Press once to disable
Loop. Press again to disable both Loop and Shuffle.
Press once more to enable only Shuffle. Press again
to enable all. You can follow the disabled functions
with the change of the icons.
RETURN (Exit): Back to file list.
INFO: Displays help screen.
Playing Music via USB
When you select Music from the main options,
available audio files will be filtered and listed on this
screen.
0...9 (Jump) (Numeric buttons): Jump to selected
file using the numeric buttons.
OK: Views the selected picture in full screen.
Slideshow ( button): Starts the slideshow using
all images.
GREEN button: Views images in thumbnails.
RED button: Sorts files by date.
YELLOW button: Toggles viewing style.
BLUE button: Changes media type.nge of the
icons.
Media Browser Settings
You can set your Media Browser preferences by
using the Settings dialog. Press “ ” or “ ” button to
highlight an item and use “ ” or “ ” button to set.
View Style: Sets default browsing mode.
Slide Show Interval: Sets slide show interval time.
Show Subtitle: Sets subtitle enabling preference.
Subtitle Language: Sets supported subtitle
language.
Subtitle Position: Sets subtitle position as up or
down.
Subtitle Font Size: Sets subtitle font size (max.
54pt).
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 1700_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 17 27.12.2010 17:21:5927.12.2010 17:21:59

English - 18 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Changing Image Size: Picture
Formats
Programmes can be watched in different picture•
formats, depending on the transmission received.
You can change the aspect ratio (image size) of•
the TV for viewing the picture in different zoom
modes.
Press• SCREEN button repeatedly to change
the image size. Available zoom modes are listed
below.
Auto
When a WSS (Wide Screen Signalling) signal, which
shows the aspect ratio of the picture, is included in
the broadcast signal or the signal from an external
device, the TV automatically changes the ZOOM
mode according to the WSS signal.
When the• AUTO mode does not function correctly
due to poor WSS signal quality or when you want to
change the ZOOM mode, change to another ZOOM
mode manually.
16:9
This uniformly stretches the left and right sides of a
normal picture (4:3 aspect ratio) to fill the wide TV
screen.
For 16:9 aspect ratio pictures that have been•
squeezed into a normal picture (4:3 aspect ratio),
use the 16:9 mode to restore the picture to its
original shape.
Subtitle
This zooms up the wide picture (16:9 aspect ratio)
with subtitles to the full screen.
Note: You can shift to screen up or down by pressing
“” / “ ” buttons while picture zoom is selected as
panaromic, 14:9 Zoom, Cinema or Subtitle.
14:9
This zooms up the wide picture (14:9 aspect ratio) to
the upper and lower limits of the screen.
14:9 Zoom
This option zooms to the 14:9 picture.
4:3
Use to view a normal picture (4:3 aspect ratio) as this
is its original size.
Panoramic
This stretches the left and right sides of a normal
picture (4:3 aspect ratio) to fill the screen, without
making the picture appear unnatural.
The top and bottom of the picture are slightly cut off.
Cinema
This zooms up the wide picture (16:9 aspect ratio) to
the full screen.
Note: When the unitis in ‘Auto’ mode and a 4:3
transmission is being received the picture may not
fill the screen (i.e. there is a border on the top/bottom
and left/right). To fill the screen select either 4:3 or
16:9 manually as required.
00_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 1800_[GB]_(01-TV)_[VESTEL_UK]_MB60_woypbpr_1900UK_IDTV_BRONZE17_16911LED_10071402_50181340.indd 18 27.12.2010 17:22:0027.12.2010 17:22:00

English - 19 -
If you need any assistance or a customer reference number please contact the TECHWOOD help line on 0845 543 0485
Configuring Picture Settings
You can use different picture settings in detail.
Press MENU button and select the Picture icon by
using “ ” or “ ” button. Press OK button to view
Picture Settings menu.
Operating Picture Settings Menu Items
Press “• ” or “ ” button to highlight a menu item.
Use “• ” or “ ” button to set an item.
Press• MENU button to exit.
Picture Settings Menu Items
Mode: For your viewing requirements, you can set
the related mode option. Picture mode can be set
to one of these options: Cinema,Game,Dynamic
and Natural.
Contrast: Sets the lightness and darkness values
of the screen.
Brightness: Sets the brightness value for the
screen.
Sharpness: Sets the sharpness value for the objects
displayed on the screen.
Colour: Sets the colour value, adjusting the
colours.
Colour Shift: Adjust the desired colour tone.
Colour Temp: Sets the desired colour tone.
Setting Cool option gives white colours a slight blue
stress.
For normal colours, select Normal option.
Setting Warm option gives white colours a slight red
stress.
Noise Reduction: If the broadcast signal is weak and
the picture is noisy, use Noise Reduction setting to
reduce the noise amount. Noise Reduction can be set
to one of these options: Low, Medium, High or Off.
Game Mode: When Game Mode is set to On, specific
game mode settings, which are optimized for better
video quality, will be loaded.
Note: When Game Mode is on, some items in the
Picture Settings menu will be unavailable.
Picture Zoom:Sets the picture size to Auto,16:9,
Subtitle,14:9, 14:9 Zoom, 4:3, Panoramic or Cinema.
Reset: Resets the picture settings to factory default
settings.
While in VGA (PC) mode, some items in Picture menu
will be unavailable. Instead, VGA mode settings will be
added to the Picture Settings while in PC mode.
PC Picture Settings
For adjusting PC picture items, do the following:
Press “ ” or “ ” button to select Picture icon. Picture
menu appears on the screen.
Contrast, Brightness, Colour, Colour Temp and
Picture Zoom settings in this menu are identical
to settings defined in TV picture menu under “Main
Menu System”.
Sound, Settings and Source settings are identical to
the settings explained in main menu system.
PC Position: Select this to display PC position menu
items.
Autoposition: Automatically optimizes the display.
Press OK to optimize.
H Position: This item shifts the image horizontally to
right hand side or left hand side of the screen.
V Position: This item shifts the image vertically
towards the top or bottom of the screen.
Dot Clock: Dot Clock adjustments correct the
interference that appear as vertical banding in
dot intensive presentations like spreadsheets or
paragraphs or text in smaller fonts.
Phase: Depending on the resolution and scan
frequency that you input to the TV set, you may see
a hazy or noisy picture on the screen. In such a case
you can use this item to get a clear picture by trial
and error method.
