Tecmen Freflow V1 User manual

Powered Air Purifying Respirator
Owner’s Manual
Freflow V1
Read all instructions and warnings before use. Users must understand this booklet prior
to use. Keep these User Instructions for future reference. If you have questions regarding
these products, just feel free to let Tecmen know.

1
WARNING
Oxygen deficient atmospheres.
Contaminant generated in workplace and concentrations that are unknown or
immediately dangerous to life or health (IDLH).
Oxygen concentration of the air in workplace is 19.5% or lower.
Without complete assembling of the whole product, never use, which may cause danger
for human life.
Do not use in sealed place, in place with danger as fire, explosion.
Do not use the product with its power turned off since carbon dioxide concentration
may increase and oxygen level inside the face guard may decrease.
Do not use if the product does not supply enough air. (MIN - 165 lpm)
Do not use at workplace with strong wind. (as negative pressure generated inside the
headtop, outside-air comes into the headtop)
In the power-off state little or no respiratory protection is to be expected, and that this
is considered to be an abnormal situation.
NOTICE
If bleeping alarmed, immediately get away from the contaminated area and check the
device. The hose may get blocked; Battery low power; Filter is dirty and need get changed
with new one.
Please EXIT that contaminated place in any cases below:
IF some problem is shown in any part of the product, for example, the air supply is
stopped or its amount is decreased.
IF it gets hard to breathe, feeling dizzy or headache, feeling the smell or taste of the
contaminants and its stimulus occurred.
Never use in place with too high level of contamination.
Make sure the connecting hosepipe smooth and is not entangled or is in the way of
other items in the area.
Don’t remove the respirator until you are in a safe area.
Operating temperature range between -20°C and +60°C.
The TECMEN PAPR system is not intrinsically safe. Keep away from flammable, or
explosive atmosphere.
At very high work rates the pressure in the device may become negative at peak
inhalation flow.
Do not confuse the European standard EN12941 with other standards.
USE FOR
This product is part of system that helps purify certain airborne contaminants, including
dust, pollutants, fine particles as well as other contaminants, welding dust and metal
dust. Gas filter option suits welders with specific working conditions. Supplying clean air
to the user's facial.
MARKINGS ON THE EQUIPMENT
Read the instruction before use.
Shall be disposed of as electronic waste.
Recycle
Expiry date year / month
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
DO NOT USE FOR

A complete Tecmen PAPR includes a blower, filtration unit, breathing tube assembly,
battery, shoulder strap and belt.
The blower assembly draws surrounding air through its filter and supplies purified air to
the facial via a breathing tube. There are two levels airflow rate choice: Low
speed—170+lpm; High speed—210+lpm. Switch the airflow by short press Button.
Warning lights allow you to check the filter status. More warning lights turn on, more dirty
it means. When warning lights flash, please replace the filter.
DESCRIPTION & SPECIFICATION
BUTTON
FILTER
WARNING
BATTERY
INDICATOR
AIRFLOW
Indicator light refers to the airflow state.
Two different levels: Low Speed—170+lpm,
High Speed—210+lpm
Warning lights help to check the filter status.
More light spots turn on,more dirty it means.
When warning lights flash, pls. replace the
filter.
Display screen indicates the battery capacity.
Only Button controlling both Power
On / Off and Airflow switch
1.Power On/Off
On—Press and hold for 3 seconds.
Off—Press and hold for few seconds until
bleeping sounds finish.
2.Airflow switch
Press the Button to switch between
170+lpm and 210+lpm
2

RESPIRATOR SPECIFICATIONS
The power must be turned off when replacing the filters. Install the spark screen, pre-filter,
and particulate filter (gas filter if any) in filter cover.
Before installed, always make sure filter material is intact and dry with no tears or other
damages. Install the filter cover assembly to the blower unit by engaging tabs on filter
cover into bracket on blower unit and rotate assembly to close. Push filter cover assembly
down until latch clicks into position securing filter cover assembly. Inspect both sides of
cover to see that the filter cover is properly installed. To replace filter, push latch into
release filter cover and replace filter as fig.1 shown.
When to replace the filter: If the filter gets
blocked by contaminants, all the three points
of warning lights will flash, accompanied
with vibrate and bleeping sound. Please
immediately exit contaminated environment
and check the status.
ASSEMBLING & SPARE PARTS
fig.1
3
Manufacturer’s minimum design flow rate: 165+lpm (5.8+cfm)
Low speed: 170+lpm (6+cfm)
High speed: 210+lpm (7.4+cfm)
Battery type: rechargeable Li-ion battery
Battery duration: 9 h - low speed (170+lpm); 5-6 h - high speed (210+lpm)
Battery charge time: 1 hour
Battery life: ≥ 500 charges
Filter efficiency: 99.97%
Alarms: Visible, audible and vibrate
Operating temperature: -4°F to 140°F (-20°C to 60°C)
Storage temperature: -4°F to 113°F (-20°C to 45°C)
Operating R.H.: < 90%
Storage R.H.: < 85%
1020g (Blower unit + fast-charging standard battery)
EN12941 (Classifications please refer to the label on headtop)
AS/NZS1716: 2012 - Freflow V1, Particle filter with class P3 inside
Airflow Rate
Fast-charging
Standard Battery
Filter
Temperature
Relative Humidity
(R.H.)
Weight
Respirator Approval
Limited
storage
life
Unopened filter: 5 years after production, details pls refer
to the 'Do not use after ***' on the label of filter.
Installed filter: should be well-kept under instruction
given condition.
For an installed filter which not use yet, it’s suggest to
store no more than one year.

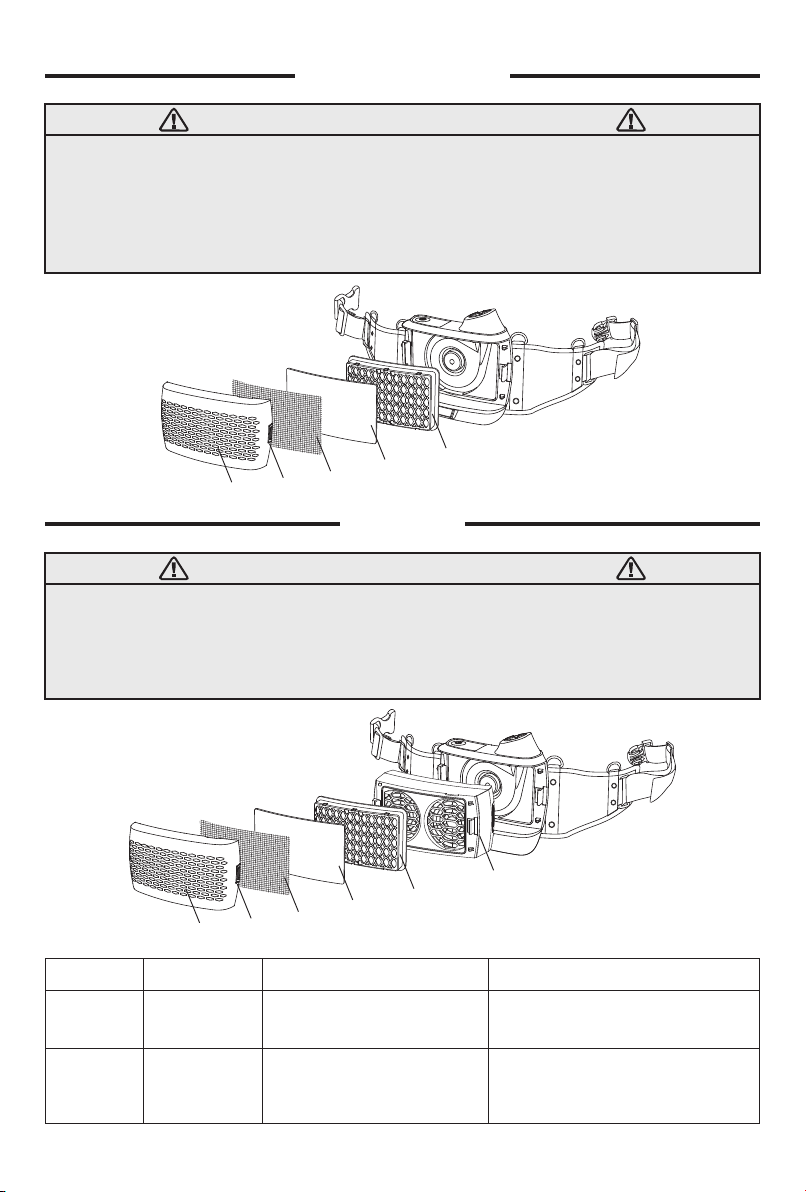

PARTICULATE FILTER
GAS FILTER
fig.2a
fig.2b
WARNING
This gas filter must be always used together with FreFlow particle filter. The gas filter give additional
protection against certain gaseous environment (See the table below).
The particle filter and gas filter cannot be cleaned. Stop using it immediately when smelling peculiar smell
and replace it until you are in a safe area.
Stored at a temperature between -4°F to 131°F (-20°C to 55°C), in a clean environment without direct light.
Please install the particle filter and gas filter according to fig.2b.
Filter
Cover
Spark
Screen
Pre-Filter Particulate
Filter
Latch
Filter
Cover
Spark
Screen
Pre-Filter Particulate
Filter
Gas Filter
Latch
Marking Part No. Color Code Protection Against
P (R SL)
A1B1E1K1
V1P3 TM3 00
V1GF TM3 00
White
Brown / Grey / Yellow / Green
Particulates (R=replaceable,
SL=test against sodium chloride
and paraffin oil)
Organic gases / Inorganic gases /
Sulfur dioxide, acidic gases /
Ammonia and organic ammonia
derivatives
4
WARNING
Never use the respirator without the spark screen, pre-filter, and the HE particulate filter (HEPA) installed.
Always replace filter when damaged or blocked. Do not try to wash, clean or reuse dirty ones.
Stored at a temperature between -4°F to 131°F (-20°C to 55°C), in a clean environment without direct light.
Remember not confuse the markings on a filter relating to any standard other than EN 12941 with the
classification of this device when used with this filter.
Please install the particle filter according to fig.2a.
The time limit for the storage of new filters kept in their original packaging is 5 years.
•
•
•
•
•
•
•
•
•
•

BATTERY
WARNING
The battery should be charged in a place that is electrically safe.
The charging time of different types of battery is different. Actual charging time depends on the remaining
battery capacity.
Please check out the voltage of the charger (AC 110V~220V).
Please separate the battery from the body before charging.
Upon using-condition, the battery’s life may be slightly different.
Battery is divided into fast-charging standard battery and fast-charging extended battery.
When these two types of battery are used with different filter components, the battery
duration is different. Please choose the appropriate battery according to actual situation.
It is recommended to choose fast-charging extended battery to match the gas filter.
Fast-charging
extended battery
Fast-charging
standard battery
Fast-charging
battery charger
V1FBA TM3 00
V1FEB TM3 00
V1FBC TM3 00
Description Part No. Picture PictureDescription Part No.
5
Battery performance for different combinations of filter assembly
Fast-charging
extended battery
Fast-charging
standard battery
Battery type Filter type Airflow rate Battery duration
Particle filter
Particle filter + Gas filter
Particle filter
Particle filter + Gas filter
9 h
5 - 6 h
15 h
9 h
11 h
7.5 h
Battery charge time
170+lpm
210+lpm
170+lpm
210+lpm
170+lpm
210+lpm
170+lpm
210+lpm
Not recommended
1 h
2 h
•
•
•
•
•

Indicator Light
Disassembling the battery
Push the button, take the battery out as fig.3a / 3b / 3c shown direction. Separate it from
the body.
fig.5a
Push Pull
fig.3a fig.3b fig.3c
Push Push
fig.4a fig.4b
Battery-charging
This indicator shows the battery capacity.
When four sections show up, the battery is fully charged.
When just one section left (See fig.5a), bleeping sounds on, accompanied by vibration to
remind users to stop work and get battery charged. The frequency is bleeping sounds
occur every 30 seconds and vibration occurs every 2 minutes. After the warnings occur
around 15 minutes, the battery indicator gets flashing, which shows there should be at
most 15 minutes left before the blower off (Airflow low speed 170+lpm).
Remove battery pack from blower assembly. Connect charger cord to battery terminal
(See fig.5b).
When the indicator light on charger turns from red to green (See fig.5c) , never stop it
immediately and please keep charging for another 0.5h.
Battery
Charging
Terminal
Charger
Cord
Battery
fig.5b fig.5c
Assembling the battery
Fitting the battery to the blower body, push until hearing ‘Click’ sound (See fig.4a / 4b).
6

BREATHING TUBE
WARNING
Always inspect the PAPR end of the breathing tube to confirm the rubber O-ring is in place, see fig.7a.
Replace if missing or damaged.
Be sure tube is properly installed and non-filtered air cannot enter the facial.
Assembling
Insert the two prongs on the breathing tube into blower unit and headtop receptacle (See
fig.6), twist 1/4 turn to the anti -“OPEN” direction to lock into place (See fig.7a).
Disassembling
Twist 1/4 to the “OPEN” direction and then take the prongs out from the end (See fig.7b) .
fig.6
Breathing tube
O-ring
fig.7a
Assembling from blower
fig.7b
Disassembling from blower
7
Do not put PAPR unit with power-on in the package. It’s better to remove the battery
from the body when put in the package.
Do not keep PAPR unit inside the car in hot summer season.
Do not throw or give the high impact to PAPR unit.
Do not put PAPR unit on the electric heat generating equipment.
Do not use any other battery charger.
Battery storage temperature: 14°F to 115°F (-10°C to 45°C), R.H.< 85%.
Notice of battery use
•
•
•
•
•
•
•
•

Blower Assembly
Make sure the spark screen, pre-filter and particulate filter (gas filter if any) are properly
installed and securely latched.
Breathing Tube
Make sure tube is not damaged and connected locked to the blower unit and headtop.
Battery
Check connection to blower unit is secure and battery is fully charged.

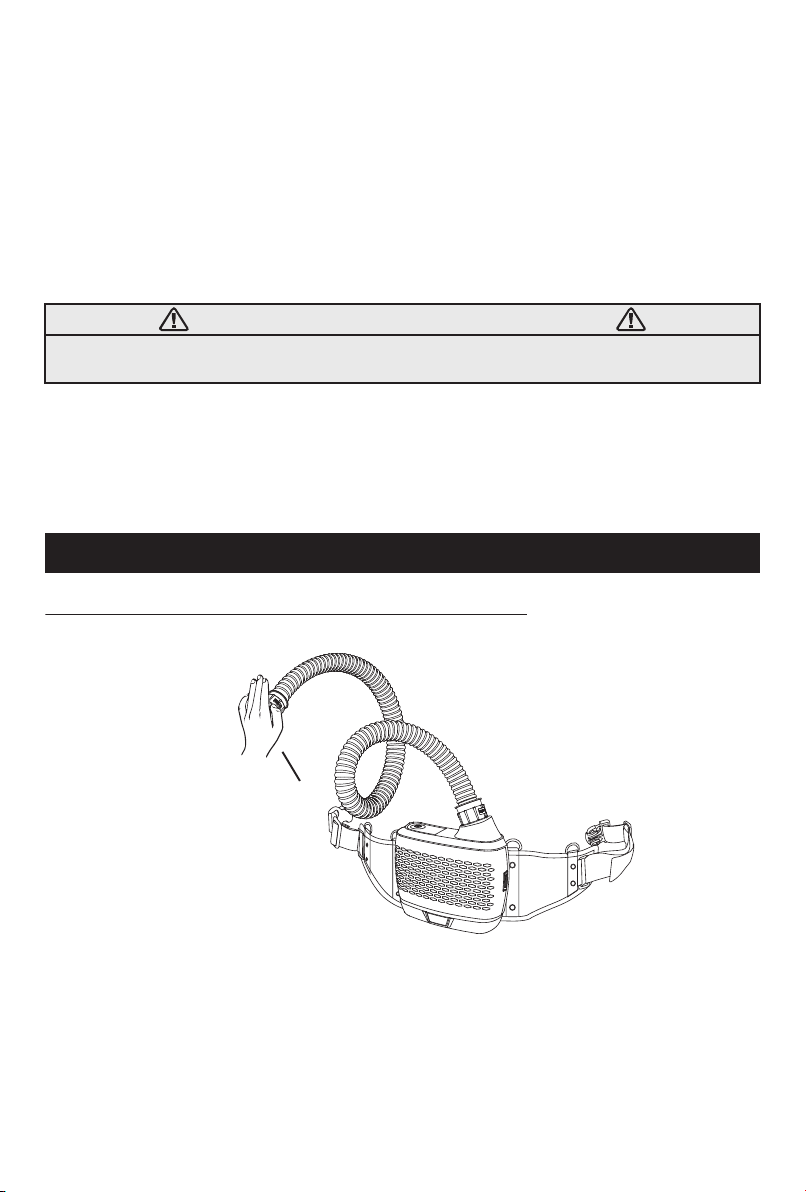

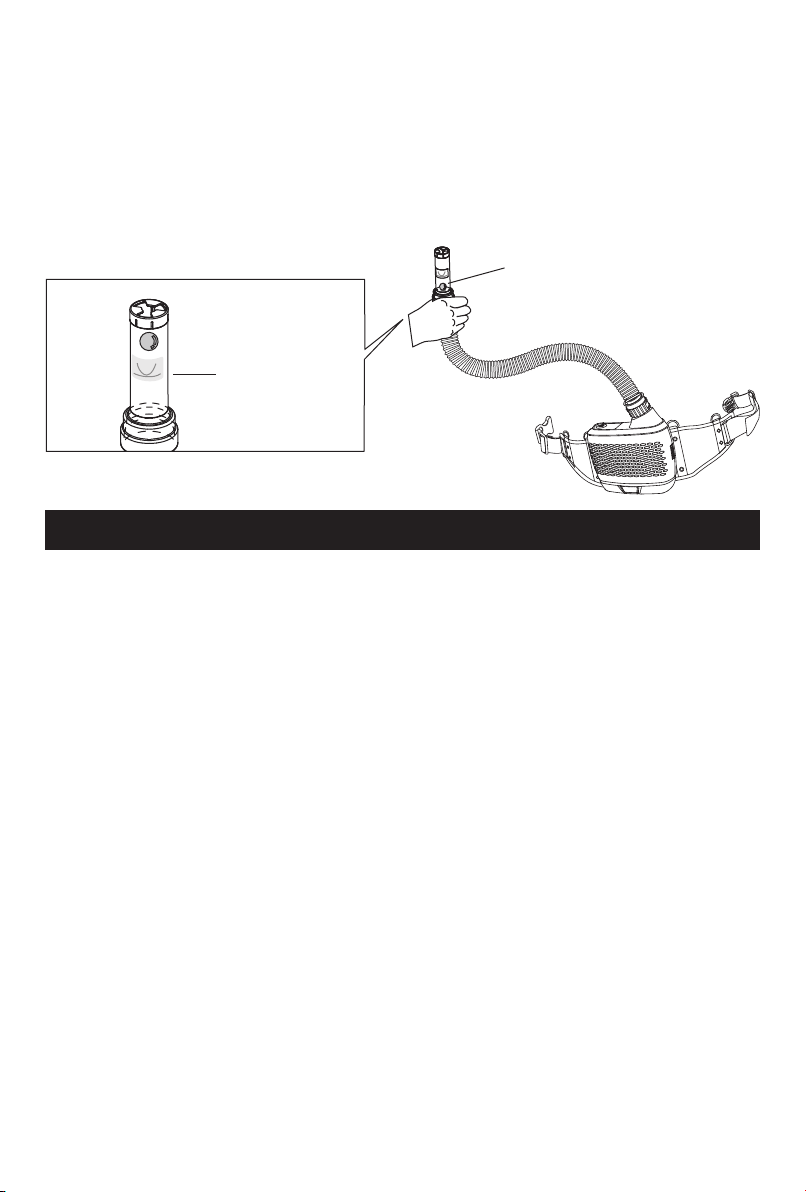

Airflow rate test / Alarm sound check
It’s necessary to do both airflow rate test and alarm sound check before use. Testing
method refers to page 9.
ENTER AND EXIT CONTAMINATED AREA
Before using respirator - Check the following items.
AIR FLOW CONTROL
SHOULDER STRAP & BELT CUSHION
Two indicator lights on display (See fig.9a). Low Speed-170+lpm; High Speed-210+lpm.
When turn on the PAPR, default setting is low speed airflow; Switch the airflow by short
press the button (See fig.9b).
Hook
fig.8a fig.8b
Low Speed — 170+lpm
High Speed — 210+lpm
fig.9a fig.9b
Connect hooks to belt (See fig.8a).
Connect with the blower by screw locking (See fig.8b).
8
1.
2.
3.
4.

After turning on the product, check the alarm sound warning function by blocking the air
outlet as fig.10 shown in the picture above. The warning signal on the panel should flash
with a sound and blower vibrate (approximately 15 to 30 seconds after the outlet is
blocked). The product is working correctly if the warning functions follow the process
above.
(Please make sure the filter is equipped and the battery is fully charged before doing this
test.)
SELF CHECK BEFORE EACH TIME USE
ALL THE TESTS MUST ALWAYS BE DONE IN A SAFE ENVIRONMENT.
Alarm sound check
fig.10
BLOCK AIR FLOW
WITH HAND
Take off headtop and disconnect tube from headtop.
Turn off the blower by long press button.
Release belt. Remove straps from shoulders and remove blower off of your lower back.
IF some problem is shown in any part of the product, for example, the air supply is
stopped or its amount is decreased;
IF it gets hard to breathe, feeling dizzy or headache, feeling the smell or taste of the
contaminants and its stimulus occurred;
NEVER use in place with too high level of contamination. If you suspect the levels reach
a level which this respirator may no longer provide enough protection.
WARNING
Never remove the respirator in areas where the air is contaminated.
Always take off the PAPR after you step out of the workplace.
Respirator removal
Always exit the contaminated area immediately if any of the following
conditions occur:
9
•
•
•
•
•
•
Steps
•
•

Airflow rate test
Take airflow test always before using this product.
Make sure all the components are fully assembled before testing.
Connect the end of hose to the bottom of airflow indicator and then start the Button. Keep
the Flow Indicator vertical (See fig.11).
If the ball inside the pipe floating above the limited line in low speed mode, it proves
normal function.
If the ball cannot float up to limited line, please refer to Trouble-shooting Guide on
page11.
MAINTENANCE
The respirator components must be cleaned, inspected and prepared for next use after
each use. Use soft cloth dipped in mild soap water for wiping. Be careful for the water NOT
to get inside the body.
CLEANING
Blower unit and battery pack: Clean the outer surfaces of the PAPR and battery pack
with a soft cloth dampened in a solution of water and mild, pH neutral detergent. Be
careful for the water NOT to get inside the body. Do not use solvents or abrasive
cleaners. Ensure the electrical contacts of the motor/blower and battery pack are dry
before assembling well.
Breathing tube: Wiping the exterior is insufficient. Clean the outer hose and connection
on the breathing tube with the soft cloth dipped in water and detergent solution.
Optional breathing tube covers can also be used to facilitate cleaning. Ensure the
breathing tube is completely dry before using or storing. They cannot be immersed in
liquids for cleaning and must be replaced if wet.
Filter: Open the filter cover and inspect all the filters and spark screens. The Particle, gas
and pre-filters cannot be cleaned. The spark screen can be cleaned using a clean, soft
cloth dipped in a solution of water and a mild pH neutral detergent. Completely dry the
spark screen with a clean cloth. Replace the pre-filter and Particle filter if excessively
dirty, wet or damaged. Do not attempt to remove contamination using a compressed air
line as this will automatically invalidate the warranty. If the spark screen cannot be
cleaned or is damaged, replace with a new spark screen.
1.
2.
3.
Limited Line
Keep Vertical
fig.11
10

TROUBLE-SHOOTING GUIDE
Blower not ON
No airflow from blower
Problems Trouble-shootingCauses
Airflow test failed
Battery time is too short
even fully charged
Increased sound level
Warning indicator ON,
blower vibrate and alarm
sound bleeping
Feeling smell of incoming air
Long press ON button.
Charge the battery.
Check and reassemble the
battery.
Check and clear the
obstruction.
Check the tube status.
Replace new filter.
Replace new battery.
Fully charge battery.
Replace filter.
Replace a new charger.
Replace filter and pre-filter
as required.
Check if tube/anywhere gets
blocked before use.
Check if the package is
removed.
Check the filter status and
replace new one if needed.
Check how the tube
assemble as well as status.
Check and equip both filters.
Battery no power
Battery not installed properly
Tube blocked/air leakage
Dirty filter needs replacement
Battery faulty
Incorrect charging
Blocked filter
Damaged charger
Filter is getting clogged
Damaged Filter
Hose with leakage problem
Filter component not
complete
Tube gets blocked/air
leakage
Filter assembled without
removing the package
The hose may get blocked/
air leakage
STORAGE
The TECMEN PAPR system is not intrinsically safe. Keep away from flammable, or
explosive atmosphere. Storage should be in a clean, dry, cool place with filter.
Blower storage
Stored at a temperature between -4°F to 113°F (-20°C to 45°C), in a clean environment
without direct light.
Battery storage
To help maximize battery service life:
11
Disconnect the charger after a full charge has been received.
Battery should be removed from blower if long time storage.
Store the battery at 14°F to 115°F (-10°C to 45°C), R.H. <85%, to get maximize battery
service life.
•
•
•

12
PART LIST
1
1
2
2
2
3
1
2
3
4
5
6
7
8
The part with * means it is not included in the product, which need to be purchased
seperately.

13
PART LIST
ITEM PART NO. DESCRIPTION
The part with * means it is not included in the product, which need to be purchased
seperately.
Body
Fast-charging standard battery
Particle filter (P3 filter)
Pre-filter
Spark screen
Filter cover
Gas filter
Fast-charging extended battery
Shoulder strap
Belt cushion (Including screws & washers)
Hose cover
O-ring
Hose (Including O-ring)
Fast-charging battery charger
Airflow indicator
V1BM TM3 00
V1FBA TM3 00
V1P3 TM3 00
V1PF TM3 00
V1SS TM3 00
V1FC TM3 03
V1GF TM3 00
V1FEB TM3 00
V1SH TM3 00
V1BE TM3 00
V1HC TM3 00
V1OR TM3 00
V1HO TM3 00
V1FBC TM3 00
V1AI TM3 00
B. Blower Unit
B-1
B-2
B-3
B-4
B-5
B-6
B-7*
B-8*
C. Wears
C-1
C-2
D. Hose
D-1
D-2
D-3
E. Battery Charger
E
F. Airflow Indicator
F

14
Tecmen’s only obligation shall be repair, replace or refund the purchase price of such
parts or products material and fabrication defects free of charge within the warranty
period.
This warranty does not cover to cause by improper handling abuse or application other
than recommended in the user instruction.
If you come across any problem during warranty period, contact your distributor, send the
defective parts together with the completed defect problem if necessary.
Thank you very much for choosing a TECMEN product!
For future reference, please complete the owner’s record below:
Serial Number:
Purchase Date:
WARRANTY
R
