Winix ZERO-N User manual

ˍPlease read and follow all safety rules and instructions
in this manual before operating.
ˍThe product warranty is printed on the back of this
guide, so please keep it in a safe place for future use.

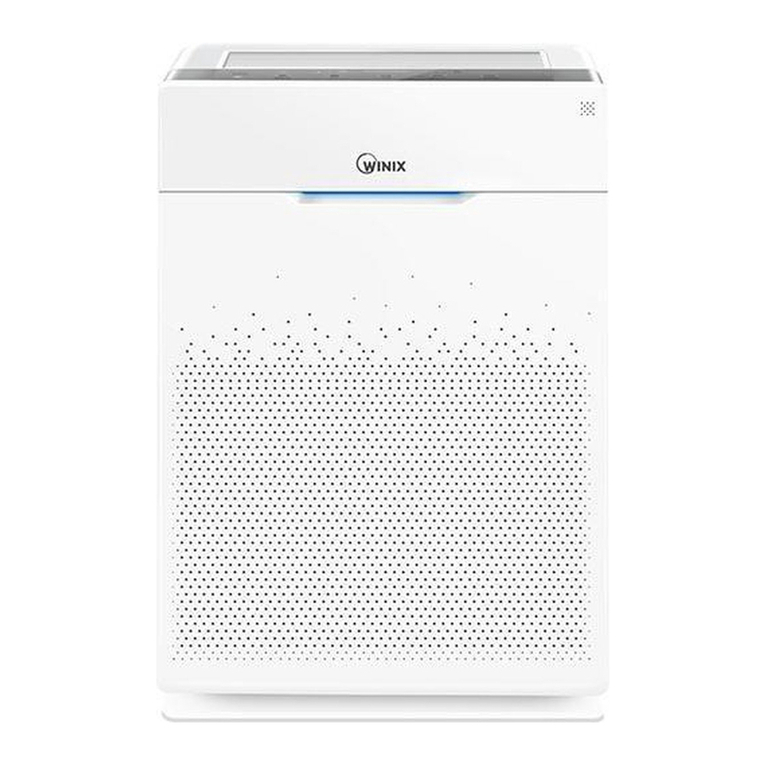

WINIX AIR PURIFIER
ZERO-N (AZNU230-HWE)
User Manual
Model
Use & Care
Guide
ZERO-N.indb 1 2018-04-26 오후 5:38:44


ZERO-NEnglish
CONTENTS
▶This product is suitable for 220 - 240V~, 50/60Hz only.
3-STAGE AIR PURIFICATION3
CONTROLS4
WHERE TO USE5
INSTALLING FILTERS6
SAFETY AND CAUTIONS10
INITIAL OPERATION11
AUTO & SLEEP12
MANUAL & AIR QUALITY INDICATOR13
FILTER CARE14
PARTICLE SENSOR CARE16
CLEANING CARE17
FREQUENTLY ASKED QUESTIONS18
UNIT SPECIFICATIONS20
PRODUCT WARRANTY 21
French 23
Spanish 45
German 67
Italian  89
Dutch111
Polish133
ZERO-N.indb 2 2018-04-26 오후 5:38:44


English ZERO-N
3-STAGE AIR PURIFICATION
Power cord with plug
(This product is suitable
for 220V ~ 240V only.)
Light sensor
Control Panel
/ Display Panel
Particle sensor
True HEPA lter
3
Carbon lter
2
1Fabric Pre-lter
User Manual
ㆍPleaseread and follow all safety rules and instructions
inthis manual before operating.
ㆍTheproduct warranty is printed on the back of this
guide,so please keep it in a safe place for future use.
WINIX AIR PURIFIER
ZERO-N (AZNU230-HWE)
UserManual
Model
Use&Care
Guide
Unit (2) Fabric Pre-lter
(4) Carbon Filter
(1) True HEPA Filter
ZERO-N.indb 3 2018-04-26 오후 5:38:46


English ZERO-N
CONTROLS
Air
Outlet
Vent
4 5 6
1 2
7
3
① Fan Speed Indicator
Indicates the current fan speed.
② Change Filter Indicator
LED light indicates when it is time to change the filter.
③ Reset Button
After replacing a filter, press the RESET button for at least 5 seconds.
④ Air Quality Indicator
Color-coded LED indicates one of three levels of air quality.
⑤ Power Button
Turns the unit on or off .
⑥ Fan Speed Button (UP/DOWN)
Enables Manual operation of the unit. Press to cycle through and set the desired
fan speed (Low, Medium, High).
⑦ Light Sensor
Detects the amount of ambient light within the environment, to adjust the
brightness of the LED indicators.
ZERO-N.indb 4 2018-04-26 오후 5:38:47


English ZERO-N
WHERE TO USE
Allow 30 - 45cm. of space between TVs, radios, and other electronic products
electromagnetic interference from certain electronics may cause product malfunction.
Place indoors away from direct sun light
direct exposure may cause product malfunction or failure.
Only place on hard, flat surfaces
flimsy or slanted surfaces may result in abnormal noise and vibrations.
30~45 cm 10 cm
WARNING Follow these instructions to reduce the risk of serious injury
or death and to reduce risk of damaging the unit.
Do not use around mist or fumes from
industrial oil or around large quantities of
metallic dust.
Do not place around heating elements.
Do not install in any sort of motor or
transport vehicle (trucks, boats, ships, etc).
Do not place in an area with excessive
amounts of noxious gases.
Do not place near any flammable
materials (aerosols, fuel, gases etc).
Do not have unit facing into wind or draft.
Do not place below any electrical outlet. Do not place in excessively humid areas
where unit may become wet.
※This unit is not intended to be used to preserve documents or in art conservation.
ZERO-N.indb 5 2018-04-26 오후 5:38:47


English ZERO-N
This product comes with all required filters. The protective plastic wrap must be
removed from the filter before use.
※Operating the unit without removing the plastic wrap may result in product
failure.
※Unplug and make sure the unit is turned off before installing filter.
① Remove the front panel by pressing down
on both edges of the front and gently
pulling it toward the front.
② Press on the Pre-filter tabs near the top of
the filter, release and remove.
③ Remove the carbon filter from the filter case.
INSTALLING FILTERS
ZERO-N.indb 6 2018-04-26 오후 5:38:50


English ZERO-N
INSTALLING FILTERS
④ Remove filters from protective plastic wrap.
ˍOperating the unit without removing
filters from plastic wrap may cause
abnormal noise, deformation, or fire as a
result of overheating.
⑤ After removing the packing vinyl of the
filter, insert the carbon filter into the filter
case.
⑥ Pull out the True HEPA filter.
⑦ Remove the filter case, then remove the
True HEPA filter.
ZERO-N.indb 7 2018-04-26 오후 5:38:51


English ZERO-N
INSTALLING FILTERS
⑧ Ture HEPA filter →Filter case in order,
pushing it in close to the back of the
product.
⑨ After inserting both ends of the fabric pre
filter, press both sides of the top to close it.
⑩ Remove the fabric pre filter that is fastened
to the front panel.
ˍThe fabric pre filter is secured by the
12 hooks on the back of the front panel.
ZERO-N.indb 8 2018-04-26 오후 5:38:54


English ZERO-N
INSTALLING FILTERS
When to service and replace filter:
Filter Indicator Light When to
service When to replace
1 Fabric filter none Clean once every
14days Permanent
2 Carbon filter none
Can NOT be
WASHED
Replace every
3 months
3 True HEPA filter Lasts up to
6~12 months
※Intervals between filter replacement may vary depending on environment.
※For optimal use, Fabric filter can be cleaned once every 14days which can
extend the life of other filters.
To purchase replacement
Winix filters:
contact your local dealer
Filter R:
Carbon filter and Ture HEPA filter
this unit
is compatible
with this
filter
FILTER
R
item : 1712-0088-00
ZERO-N.indb 9 2018-04-26 오후 5:38:54


English ZERO-N
SAFETY AND CAUTIONS
Before operating this equipment, carefully read and follow these safety cautions
Ensure filters are inserted before running unit
running unit without filters can shorten the units life and cause electric shock or injury.
Be sure foreign objects are NOT inserted into the vents on the unit
objects can include pins, rods, and coins.
Do not touch any part of the interior of the unit with wet hands
the high voltage may cause electric shock.
Ensure unit intake and outlet vents do not become blocked
blockage may lead to increased internal termperatures causing product failure and
derformation.
Do not use the unit as a step stool or place heavy objects on it
personal injury may occur or product failure and deformation.
WARNING Follow these instructions to reduce the risk of serious
injury or death and to reduce risk of damaging the unit.
Do not pull on the power cord when
unplugging the unit
Do not tie or knot power cord when unit
is in operation
If the unit becomes submerged in water,
unplug it and contact customer service
Do not unplug or move the unit while in
operation
Do not plug additional appliances into
the same outlet or power supply
Do not touch the plug with wet hands
Unplug unit when not in operation for
extended periods of time
Cord can become damaged by forcefully
bending, pulling, twisting, bundling,
pinching or placing heavy objects on it
Do not allow foreign objects such as
pins, rods and coins to be inserted into
the vents on the unit.
※If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
※This appliance is not intended for use by a person (including children) with reduced
physical sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by
a person responsible for their safety.
※Children should be supervised to ensure that they do not play with the appliance.
ZERO-N.indb 10 2018-04-26 오후 5:38:54


English ZERO-N
INITIAL OPERATION
① Insert the power cord into an electrical
outlet.
② Press the ‘Power’ button.
NOTE
ˍDuring the first 30seconds of power up, the Air Quality
Indicator will cycle through Blue, Amber and Red colors. The
Particle Sensors take approximately 30seconds to gauge the
air quality in the environment, after which normal operation
will begin.
③ By default, when the unit first powers on,
the mode will be set to Auto enabled.
ˍWhen in Auto mode, the fan speed will
be automatically adjusted according to
the environments air quality.
NOTE
ˍIn Auto mode, as the indoor air quality improves, the fan
speed will automatically be reduced to Low.
ˍWhen the unit is running, you may hear a chirping or buzzing
sound.
ZERO-N.indb 11 2018-04-26 오후 5:38:54


English ZERO-N
AUTO & SLEEP
1. Auto Mode
Enables auto operation based on the unit's air quality Particle Sensor.
① Press the Fan speed (UP/DOWN) button to
select Auto mode.
ˍThe LED ‘Auto’ light will indicate when
Auto mode is activated, and operation
will begin.
NOTE
ˍWhen in Auto mode the fan speed is automatically adjusted
according to the indoor air quality. As the indoor air quality
improves, the fan speed will automatically be reduced.
If the indoor air quality decreases, the fan speed will
automatically increase.
2. Sleep Mode
① Press the Fan speed (UP/DOWN) button to
select Sleep mode.
ˍThe LED ‘Sleep‘ light will indicate when
Sleep mode is activated, and operation
will begin.
NOTE
ˍWhen Sleep mode is selected, the fan speed is automatically
set to Low. The fan speed can be manually changed by
pressing the Fan Speed button, changing the unit into
manual mode.
ˍWhen Sleep Mode is activated, the Air Quality Indicator LED
light is disabled.
ZERO-N.indb 12 2018-04-26 오후 5:38:55


English ZERO-N
MANUAL & AIR QUALITY INDICATOR
3. Manual Mode (setting fan speed)
Users can optative to manually set the fan speed to Low, Medium, High.
① Press the Fan Speed button to set the
desired fan speed.
NOTE
ˍWhen Manual Mode is selected, Auto Mode is automatically
disabled.
4. Air Quality Indicator
When on, the LED light will indicate the current indoor air quality according to three
levels : BLUE (good), AMBER (fair), RED (poor).
Air Quality Indicator
NOTE
ˍAir quality level is displayed on the indicator, based on the
Particle Sensors. Depending on the immediate environment,
the indicator may change frequently in color or stay the
same for lengthy periods of time.
ZERO-N.indb 13 2018-04-26 오후 5:38:55


English ZERO-N
FILTER CARE
1. About The Filters
When the Check Filter indicator LED is on, it is time to replace the True HEPA filter.
Filter Indicator Light When to
service When to replace
1 Fabric filter none Clean once every
14days Permanent
2 Carbon filter none
Can NOT be
WASHED
Replace every
3 months
3 True HEPA filter Lasts up to
6~12 months
※Intervals between filter replacement may vary depending on environment.
※For optimal use, Fabric filter can be cleaned once every 14days which can
extend the life of other filters.
To purchase replacement
Winix filters:
contact your local dealer
Filter R:
Carbon filter and Ture HEPA filter
this unit
is compatible
with this
filter
FILTER
R
item : 1712-0088-00
Carbon lter/
True HEPA lter
NOTE
ˍThe lifetime of a Filter is depending on the level of pollutants
in the air. The more dust present in the environment, the
more dust accumulates in the filters, shortening the life.
ˍIf the filters are heavily soiled or have a bad odour, or if the
fan strength is significantly weakened, replace filters even if
the Change Filter indicator has not yet turned on.
ZERO-N.indb 14 2018-04-26 오후 5:38:55


English ZERO-N
FILTER CARE
2. Resetting The Unit
① After replacing the filters, turn the power
back on and then use a thin object, such as
a paper clip, to press the RESET switch for
5seconds.
3. Cleaning the Fabric Pre-filter
Intervals between filter cleaning may vary depending on the air quality.
① Use a vacuum cleaner or soft brush to clean
the Fabric filter. If it is excessively soiled,
rinse in room temperature water.
ˍDo not use detergent or soap.
ˍAllow the filter to dry for 24hours or
more before using
※If the Fabric Pre-filter becomes damaged
or in any way needs replacement:
Please contact your local
dealer
NOTICE
ˍDo not use benzene, alcohol, or other volatile fluids, which
may cause damage or discoloration.
ˍThe Fabric Pre-filter is reusable after cleaning, ensuring it is
completely dry.
ˍDo not use hot water over 40
o
C or volatile fluids such as
paint thinner.
ˍAfter washing the filter, allow it to dry completely in a well
ventilated area. Otherwise, it may develop a bad odour.
ZERO-N.indb 15 2018-04-26 오후 5:38:55


English ZERO-N
PARTICLE SENSOR CARE
Particle Sensors Care
For optimal performance of the Particle Sensor, which detects airborne dust and
ultrafine particles, clean it every two months. Clean it more frequently when the unit is
running in a place with high dust levels.
① Open the Particle Sensor cover.
② Use a damp cotton swab to wipe the lens
and intake area of the Particle Sensor.
ˍTo clean the sensor area, use only water.
Do not use volatile substances such as
alcohol or acetone
Lens
Cotton swab
③ Wipe away any remaining moisture with a
dry cotton swab.
④ Close the Particle Sensor cover.
ˍThe Particle Sensors cover may be
cleaned using a vacuum cleaner
ZERO-N.indb 16 2018-04-26 오후 5:38:56


English ZERO-N
CLEANING CARE
1. Cleaning the Exterior & Interior
① Wipe with a soft damp cloth using room
temperature water. Afterwards, wipe it
down with a clean dry cloth.
ˍTo keep unit in peak condition, clean
every 1-2months.
② Open the front panel and clean the interior
with a vacuum cleaner.
ˍFor optimal performance, clean every
1-2months.
NOTICE
ˍWhen cleaning the unit, always unplug the power cord first
and then wait until the unit has cooled down.
ˍNever disassemble, repair, or modify this unit yourself.
ˍDo not use flammable sprays or liquid detergents.
ˍDo not allow children to clean or maintain the unit.
ˍBefore cleaning or maintaining, ensure unit is unplugged.
ZERO-N.indb 17 2018-04-26 오후 5:38:56


English ZERO-N
FREQUENTLY ASKED QUESTIONS
Problem Check / Actions to take
It does not
turn on at all.
ˍIs the plug securely attached to the outlet?
Make sure the outlet has power going to it, and
ensure the plug is secured.
ˍIs there a power outage?
Check to see if other lights and electrical
equipment are working and try again.
It doesn’t work
in Auto Mode.
ˍHas Auto Mode been selected?
Press the Mode button until Auto Mode is
selected.
ˍIs the sensor blocked or clogged?
Wipe Odour Sensor with wet cloth, then dry.
It vibrates and
makes a lot of
noise.
ˍIs it running on a slanted or uneven surface?
Move the unit to a hard, flat, even area of the
floor.
The power plug
and outlet feel
hot.
ˍIs the plug securely plugged in?
Make sure the plug is properly plugged into the
outlet.
ZERO-N.indb 18 2018-04-26 오후 5:38:56


English ZERO-N
FREQUENTLY ASKED QUESTIONS
Problem Check / Actions to take
There is a strange
smell.
ˍIs it being used in a place with a lot of smoke, dust,
or odours?
Clean the air intakes on either side and clean
the Fabric filter.
Clean or change the filter.
The fan strength is
weak.
The unit is not
purifying the air.
ˍIs the Check Filter indicator light on?
Change the filters as required.
The display panel
is dim.
ˍIs the Light Sensor blocked by debris?
When Auto Mode is on, Sleep Mode is
automatically activated when the Light Sensor
detects that the room is dark.
ZERO-N.indb 19 2018-04-26 오후 5:38:56


English ZERO-N
UNIT SPECIFICATIONS
Model Name ZERO-N (AZNU230-HWE)
Power Voltage AC220-240V, 50 / 60Hz
Power Rate 30W
Max Room Capacity 45 m
2
Dimensions 350 mm(W) x 207 mm(D) x 470 mm(H)
Weight 6.2kg
Replacement Filter Filter R / item : 1712-0088-00
※The exterior, design and product specifications may be changed without
prior notice to improve product performance.
ZERO-N.indb 20 2018-04-26 오후 5:38:56
