tecnodent EGG Series User manual

— 1 —
SEGGIOLINI TIPO
STOOLS TYPE
TABOURETS TYPE
TABURETE MODELO
EGG & Gel Line
ISTRUZIONI PER L'USO
OPERATING INSTRUCTIONS
MODE D'EMPLOI
MANUAL DE INSTRUCCIONES
S.r.l.

— 1 —
INDICE GENERALE
MAIN INDEX
INDEX GÉNÉRAL
ÍNDICE GENERAL
EGG Line
ITALIANO pag. 2
ENGLISH pag. 10
FRANCAIS pag. 18
ESPAÑOL pag. 26
Gel Line
ITALIANO pag. 34
ENGLISH pag. 42
FRANCAIS pag. 50
ESPAÑOL pag. 58

— 42 —
INDEX
1.0 Introduction pag. 44
1.1 General features pag. 44
1.2 Warranty pag. 44
1.3 Identification pag. 45
1.4 Technical data pag. 46
2.0 Unpacking pag. 46
3.0 Controls & Functioning pag. 46
3.1 Stools model Pluto pag. 46
3.2 Stools model Venus pag. 47
3.3 Stools model Venus IRON pag. 48
4.0 Servicing pag. 49
4.1 Cleaning pag. 49
5.0 Accessories pag. 49
5.1 Self-frictioned and non-frictioned castors pag. 49
5.2 Aluminium footrest ring pag. 49
5.3 Mechanism hardness adjustment pag. 49

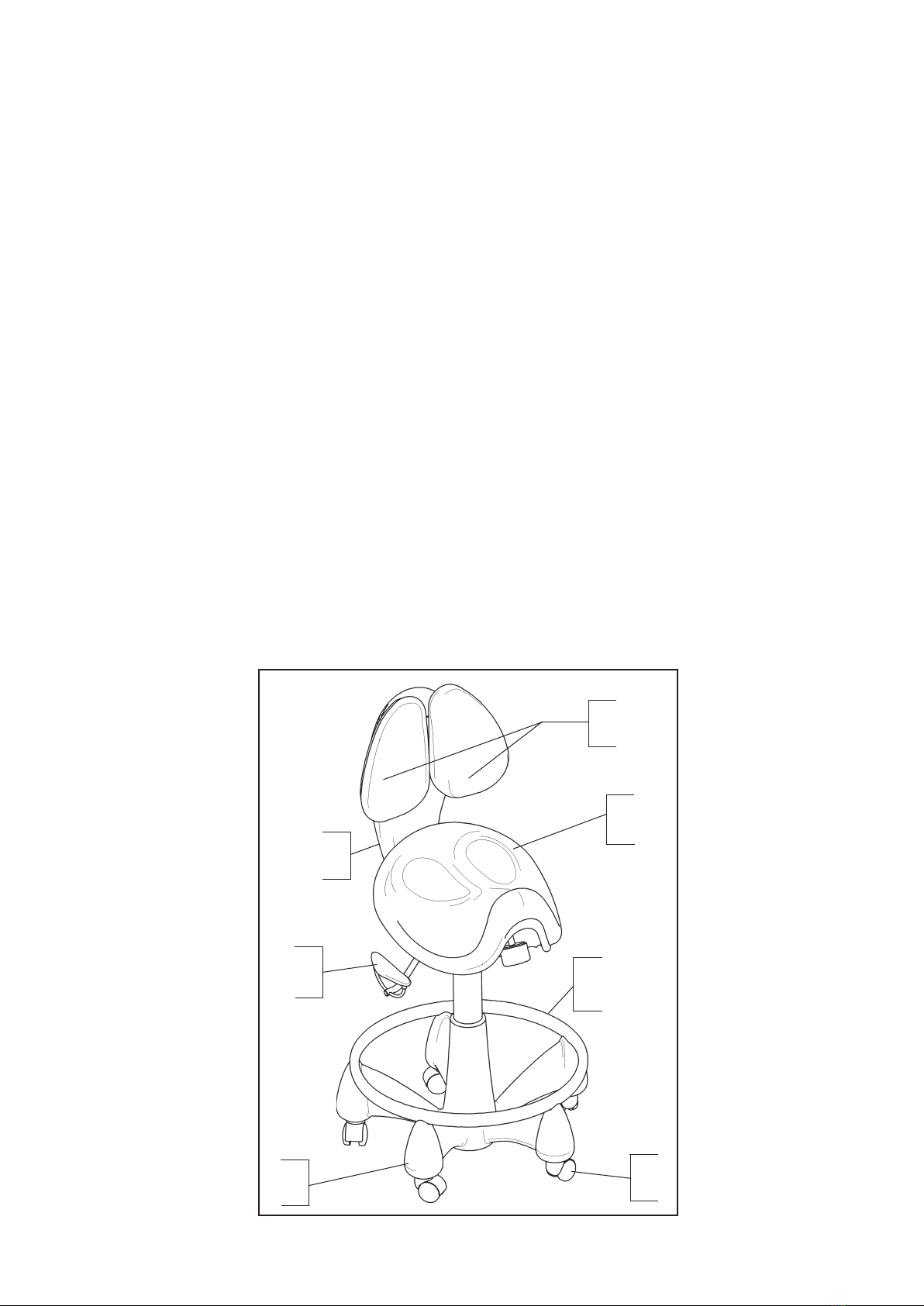

CONTROSCHIENALE
COUNTER-BACKREST
ARRÌERE DOSSIER
CONTRA-RESPALDO
COMANDO
CONTROLS
COMMANDES
MANDOS
SCHIENALE
BACKREST
DOSSIER
RESPALDO
SEDILE
SEAT
SIÈGE
ASIENTO
ANELLO APPOGGIAPIEDI
FOOTREST RING
ANNEAU APPUI-PÌED
ANILLO REPOSAPIÉS
RUOTA
CASTOR
ROULETTE
RUEDA
BASE
BASE
BASE-
BASE

— 43 —
OBJECT OF THIS MANUAL
This manual regards the stools type Gel and encloses information about their functions, performances and servicing.
DEFINITIONS
The following graphic and language definitions have been used in this manual:
NOTE
Important information, which has to be underlined in relation to the text.
CAUTION
This message can appear before some procedures description. Its non-compliance may
cause damage to the stool.
WARNING
This message can appear before some procedures description. Its non-compliance may
cause damage to the stool and to the operator.
WARNING
The manufacturer will accept responsibility for the security, reliability and performance of the
equipment on the following conditions:
• Installation and any repairs or modifications are carried out by authorized personnel only.
•The equipment is used in accordance with the operating instructions.
NOTE
Please note that in accordance with Art. 14 of EEC Directive 85/374 "Liability for damages arising from
defective products" implemeted in Italy by Decreto del Presidente della Repubblica 24 maggio 1988
n. 224; "Right to compensation ceases ten years after the day the manufacturer or the importer within
the EU Nations first marketed the product, which is object of the claim".
GENERAL WARNING
TECNODENT S.r.l. will make available on request components part list, descriptions, calibration instructions or other
information which will assist the user's technical personnel to carry out reparation of those parts of the stool which are
designed by the manufacturer as repairable.
TRANSPORT AND STORAGE
The stool is capable, while packed for transport or storage, of being exposed for a period not exceeding 10 weeks to
environmental conditions not outside the following ranges:
a) an ambient temperature range of -5 °C to +40 °C;
b) a relative humidity range of 10% to 100%, including condensation;
c) an atmospheric pressure range of 500 hPa to 1060 hPa (of 500 mbar to 1060 mbar).
ENVIRONMENTAL SAFEGUARD
PACKING CLEARANCE
The following materials, used for packing, respect the environment and are 100% recyclable:
_cardboard,
_polythene with air bubbles,
Collection and recycle of materials used for packing favour saving of raw material and drop in quantity of waste material.
Please deliver the packing to an authorized dump collecting recyclable material.
STOOL CLEARANCE
Stool clearance doesn't present risk of any type.
For a proper environmental safeguard, please deliver the stool, nearly out of order, to an authorized dump collecting
recyclable and not recyclable materials.

— 44 —
Operating instructions
1.0 INTRODUCTION
This chapter offers a full view of the main features of the Gel stools.
1.1 GENERAL FEATURES
The stools of the Gel range are avaiable in the models listed below, and offer the performances described in table I.
Table I
Description
Base running on 5 non-frictioned castors
Perfectly symmetrical stool for use both on the
right and on the left side of the patient chair
Left-right convertible backrest
Backrest upholsteries adjustable in height
Indipendent backrest movement
Indipendent seat movement
The stools can also be equipped with different accessories, which facilitate the work of the professional as well as his/her
comfort. The items listed in table II show the possible combinations.
Table II
Description
Base running on 5 self-frictioned castors
Footrest ring
Mechanism hardness adjustment
1.2 WARRANTY
The stool is accompanied by the Warranty Certificate. If there is not such certificate, it must be requested from the dealer
immediately, completely filled in and sent back to the manufacturer (TECNODENT S.r.l.) within 8 days from the date of
delivery of the apparatus. If this procedure is not observed, the warranty conditions are not valid and the service technicians
will be compelled to charge entirely all technical interventions possibly needed.
Adjustable
in height
Pluto Pluto LE Venus
Venus IRON
Pluto Pluto LE Venus
Venus IRON

— 45 —
Istruzioni per l'uso
1.3 IDENTIFICATION

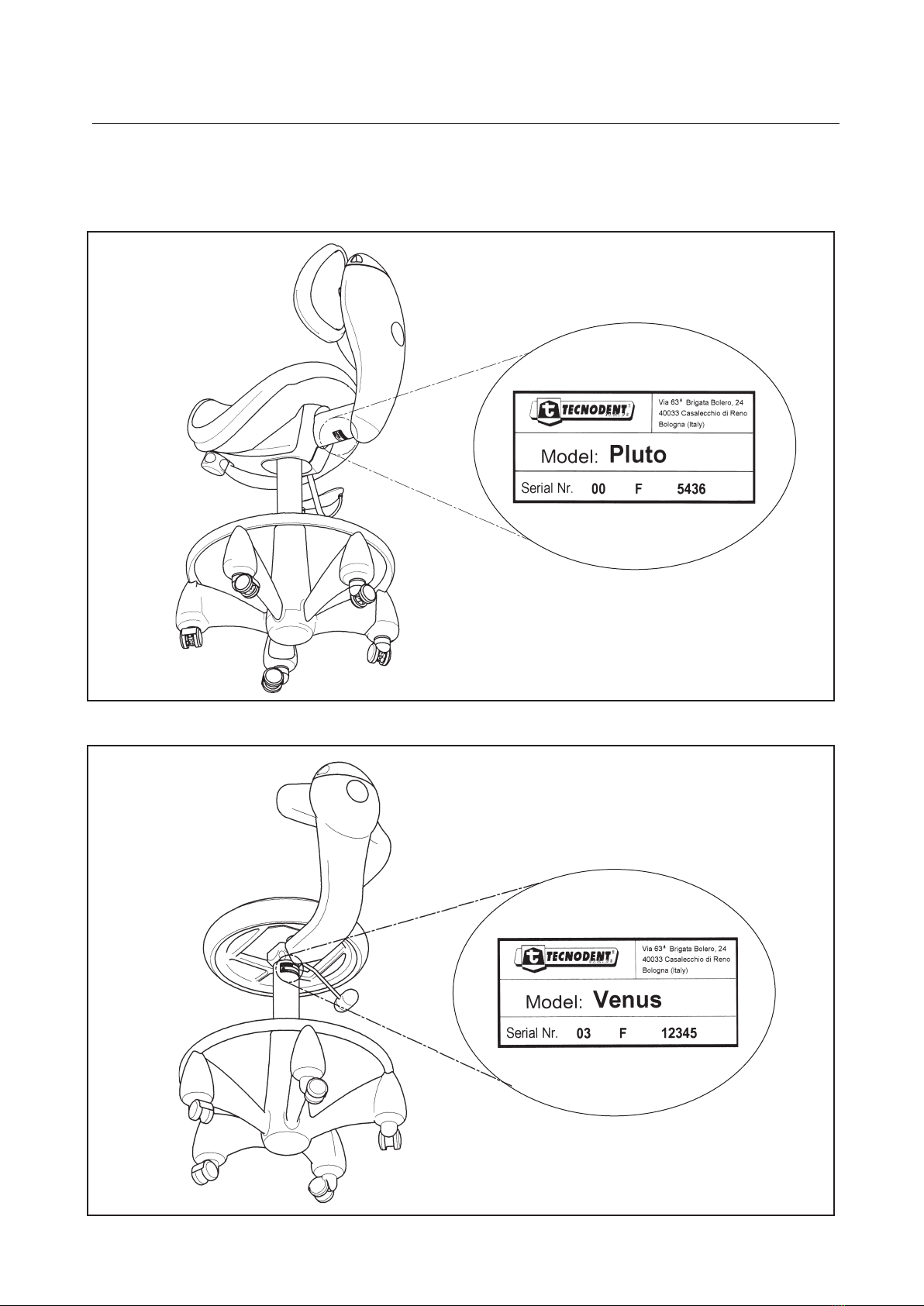

Outside the stool, under the connecting cover between seat and backrest in the Pluto and on the cover of the lifting
movement in the Venus, there is the stool identification label, where You can find the stool model, the serial number and
other information. Figure 1 and 2 show the label position and art-work.
FIG. 1
FIG. 2

— 46 —
1.4 TECHNICAL DATA
The stools model Gel comply with the technical standard in force for dental operator stools. Table III shows the features
of the Gel stools.
Operating instructions
Castors base, external diameter
Seat height from the floor (min.)
Seat height adjustment
Seat width
Backrest movement angle
Seat movement angle
Gross Weight
Net Weight
Packing Dimensions
Description
2.0 UNPACKING
To remove the packing, it is necessary to remove the staples, which close the upper portion of the cardboard box. It
is recommended to take the stool out of the cardboard-box by lifting it from the carton top, after having removed the
polystyrene block, which keeps the stool in its correct packing position. Once the plastic bag has been removed, the stool is
ready to be used with no need of any preliminary adjustment. Inside the cardboard box You will find the following items:
I A stool type Gel.
II An operating instruction manual.
III A warranty certificate.
IV A spray bottle for fabric cleaning.
3.0 CONTROLS & FUNCTIONS
Before reading this chapter identify Your own stool model, as described in paragraph 1.3, and read only the paragraph
regarding Your own stool to avoid any confusion.
3.1 STOOL MODEL PLUTO
The handle L, placed on the right side under the seat, controls all the movements of the stool (see fig. 3 ).
HEIGHT ADJUSTMENT
In order to adjust the stool seat height it is recommended to sit on the stool and use your own body weight:
 by lifting the handle L upwards the stool moves downwards under the weight of the body
 by lifting the handle L upwards while standing up to eliminate the body weight pressure on the stool, the stool
moves upwards
SEAT ADJUSTMENT
Turning clock-wise the handle L it is possible to control the seat angle (see fig. 4).
Using the weight of our own body, while the handle is turned. The seat will move as horizontal as possible (close);
eliminating the body weight pressure on the stool, the seat will move forward open).
BACKREST ADJUSTMENT
Turning anti clock-wise the handle L it is possible to control the backrest angle (see fig. 4).
Using the weight of our own body, while the handle is turned, the backrest will move backwards as much as possible
(open); eliminating the body weight pressure on the body weight pressure on the backrest, it will move forward (close).
Another movement regards the two backrest pillows which can be adjusted in height.
Thanks to a special mechanism it is possible to move the two pillows up just pulling them; when You need to place the
two pillows down it is necessary to reach the upper and of the mechanism, in order to free everything from the mechanism
hang up, and then push them downwards.
[mm]
[mm]
[mm]
[mm]
[deg]
[deg]
[kg]
[kg]
[mm]
Table III
Pluto
585
480
200
360x440
24°
12°
6
2
620x620x940
(h)
Pluto LE Venus
585
480
200
360x440
-
12°
27
23
620x620x650
(h)
585
480
200
Ø410
-
-
30
27
620x620x940
(h)
Venus IRON
Ø410
-
-
30
16
620x620x940
(h)
520 600
640
200 370

— 47 —
Operating instructions
FIG. 3 FIG. 4
L
L
HEIGHT ADJUSTMENT
by lifting the handle L upwards, the stool moves downwards under the weight of the body
 by lifting the handle L upwards, while standing up to eliminate the body weight pressure on the stool, the stool
moves upwards
BACKREST AND SEAT POSITION ADJUSTMENT
lift the handle S and press back against the stool backrest: the backrest reclines; simultaneously, keep one hand
in the knee groove and pull upwards: thus it is possible to adjust the seat position as well
lift the handle S and move your back away from the stool backrest: the backrest will return towards the vertical
position; simultaneously, by keeping one hand in the knee groove and pushing downwards, it is possible to
adjust the seat position as well
3.2 STOOL MODEL VENUS
The handle L, placed on the right side under the seat, controls all the movements of the stool (see fig. 5 ).
FIG. 5
L

— 48 —
HEIGHT ADJUSTMENT
by lifting the handle L upwards, the stool moves downwards under the weight of the body
 by lifting the handle L upwards, while standing up to eliminate the body weight pressure on the stool, the stool
moves upwards
BACKREST ADJUSTMENT
It is recommended to adjust the backrest position from the rear of the stool:
 to swing the backrest around its vertical axis hold it with one hand and swivel it around its vertical axis.
to set backrest position to the left and/or to the right, it is necessary to hold it close to the backrest support with
both hands and to pull it forward until the locking mechanism is released. Only at this point is it possible to rotate
the backrest, i.e. from left to right, until it locks automatically in its new position
FOOTREST RING HEIGHT ADJUSTMENT
rotate the knob A anti clock-wise to adjust the height ot the footrest ring
rotate the knob A clock-wise until it is blocked, to fix the footrest ring

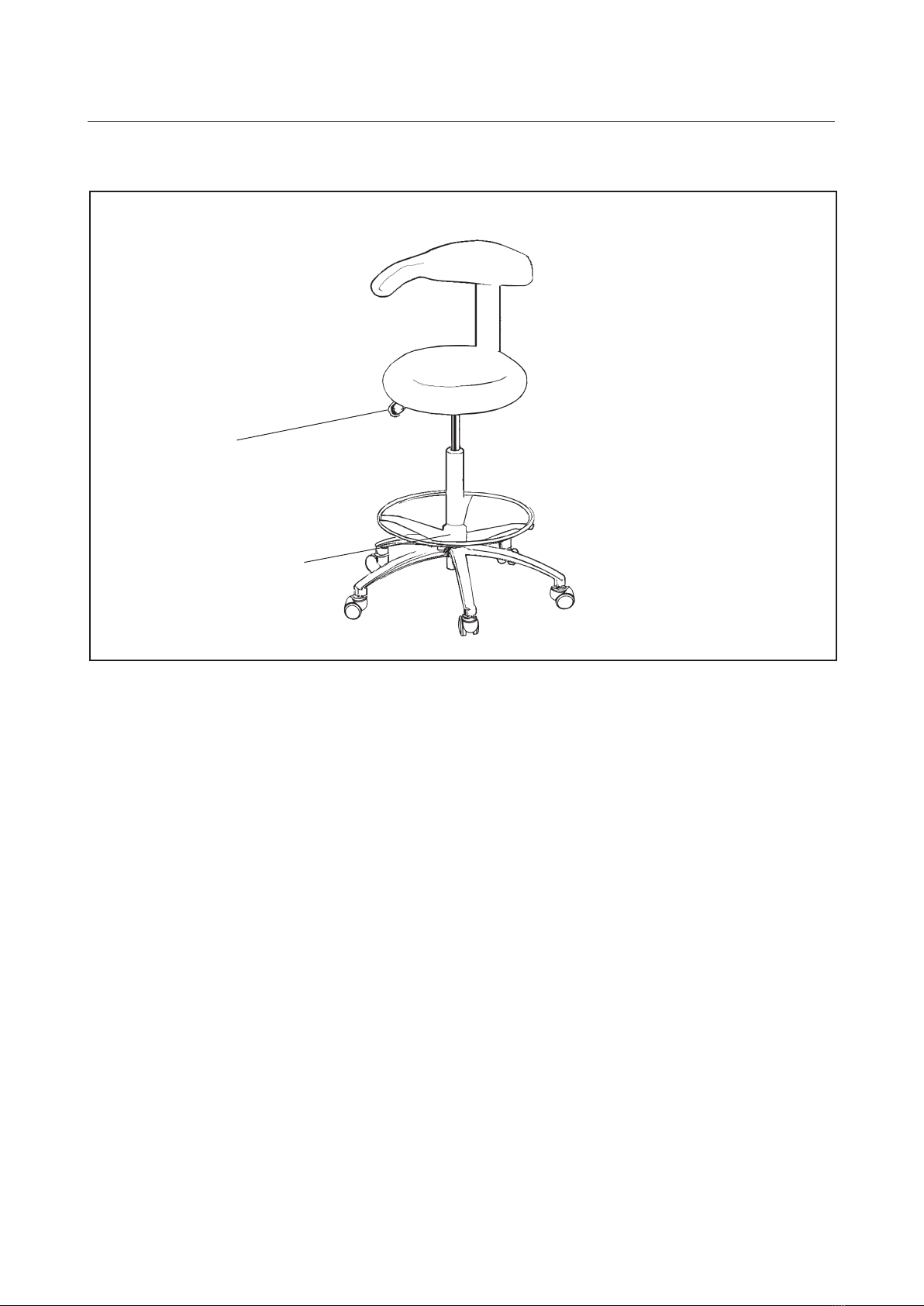

3.3 STOOL MODEL VENUS IRON
The handle L, placed on the right side under the seat, controls all the movements of the stool (see fig. 6 ).
Operating instructions
FIG. 6
L
A

— 49 —
4.0 SERVICING
The Gel stools are made to require no servicing during their life. There are thus no specific readjustments of the apparatus
to be carried out at any time. If the stool is not used for some time, it is recommended to cover it in order to protect it
against dust.
WARNING
It is recommended to have any technical adjustment as well as any repair of the stool carried out by
specialized service technicians.
4.1 CLEANING
For a better and longer life of the stool it is necessary to execute methodically and periodically a general cleaning of the
stool. It is recommended to proceed as follows:
UPHOLSTERIES
The fabric covering the stool upholstery has to be wiped with the liquid in the bottle sold by the dealer, using a soft cloth
to avoid any surface-chap and to guarantee better elasticity and smoothness of the surface.
NOTE
As soon as the bottle liquid runs out, it is recommeded to order some more from the closest sales and
servicing center.
POLYURETHANE (PU) PARTS
The polyurethane parts have to be wiped with a cloth dipped in soap and water.
CAUTION
It is recommeded to avoid the use of any diluent, detergent or strong abrasive agent for eliminating
"difficult stains".
ALUMINUM PARTS
The aluminum parts have to be wiped with products especially sold for this kind of metal.
5.0 ACCESSORIES
Your dealer is at Your complete disposal for any information about functions and accessories which can be installed on
the stool, and which might not be described in this manual.
5.1 SELF-FRICTIONED AND NON-FRICTIONED CASTORS
The stools type Gel are supplied from the factory with non-frictioned castors, which guarantee the maximum freedom of
movement of the stool at any time.
On request, it is possible to mount self-frictioned castors on the stool. These castors allow the stool to run only when the
operator is correctly seated on the stool, in order to guarantee the maximum security and avoid the stool running away
from the operator during the sitting-action.
5.2 FOOTREST RING
At the moment of order all stools can be supplied with a footrest ring. The footrest ring favours the operator comfort,
allowing a more restful leg position.
5.3 MECHANISM HARDNESS ADJUSTMENT
On the front of the stool there is a knob which allows to adjust the hardness of the mechanism. Following the weight of the
operator, the heavier he is, the harder the mechanism shall be, to avoid its sudden movement.
To increase the rigidity, the knob shall be rotated conterclockwise (while sitting). To decrease it, the knob shall be rotated
clockwise.
