TECO TWM80TBM User manual

IMPORTANT NOTE:
Thank you for selecting a TECO quality Washing Machine. Read
this manual carefully before installing or operating your new unit.
Make sure to save this manual for future reference.
The design and specifications are subject to change without prior
notice for product improvement. Consult with the sales agency
or manufacturer for details.
WASHING MACHINE
User's Manual
Model:
TWM80TBM
Engineered To Perform

1
CONTENTS
SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ...............................................
Installation Area .....................................................
Unpacking the Washing Machine ..........................
Installing the Drain Hose .......................................
Levelling the Washing Machine ..............................
Installing the Water Inlet Hose ................................
OPERATIONS
Preparation Before Washing ..................................
Washing .................................................................
After Washing .........................................................
Loading ..................................................................
Detergent ................................................................
Control Panel ..........................................................
Options ....................................................................
Personalized Setting of Washing Program..............
Operations of Washing Process .............................
Washing Programmes Table ..................................
Energy Efficiency Test Program .............................
Maintenances
Cleaning the Cabinet .............................................
Cleaning the Inlet Filter ..........................................
Cleaning Drain Pump Filter .....................................
Trouble Shooting ....................................................
Technical Specifications .........................................
2
7
8
8
9
9
10
11
11
11
12
12
13
14
15
15
16
16
17
17
18
19
20
Repairs, Service & Warranty .................................. 21
8
Installing the Base Cover (Option) .........................
Cleaning And Care ................................................. 17

SAFETY INSTRUCTIONS
！Warning!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
For your safety, the information in this manual must be followed
to minimize the risk of fire or explosion, electric shock, or to
prevent property damage, personal injury or loss of life.
Explanation of the symbols:
Caution!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
Note!
This combination of symbol and signal word indicates
a potentially dangerous situation which may result in
slight or minor injuries.
•
•
•
•
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
The openings must not be obstructed by a carpet.
This appliance is for indoor use only.
Do not put washing machine at humid place.
The electric shock!
Warning!
！
2
Safety Instructions

• Hands shall not be inserted into running spin-dry tub .
• If the spin-dry tub does not stop within 15 seconds after
opening the cover , please stop using the machine and
have it repaired.
• The new hose-sets supplied with the appliance are to be
used and that old hose-sets should not be reused.
• Before any maintenance the device, unplug the appliance
from the mains.
• Always unplug the machine and turn off the water supply
after use. The max. inlet water pressure, in pascals. The
min. inlet water pressure, in pascals.
• To ensure your safety, power plug must be inserted into
an earthed three-pole socket. Check carefully and make sure
that your socket is properly and reliably earthed.
• Make sure that the water and electrical devices must be
connected by a qualified technician in accordance with the
manufacturer's instructions and local safety regulations.
Risk to children!
from 8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
IEC countries: This appliance is not intended for use by
persons(including children) with reduced
•
•
physical,
sensory or mental capabilities or lack of experience and
knowledge unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
EN countries: the appliance can be used by children aged
3
SAFETY INSTRUCTIONS

• Children should be supervised to ensure that they do not
play with appliance.
• Animals and children may climb into the machine. Check
the machine before every operation.
• Young children should be supervised that they do not play
with the appliance.
•
be
with double
to the hot water
• Plug must be accessible after installation.
•
• The washing machine with single inlet valve only can
connected to the cold water supply. The product
inlet valves should be correctly connected
and cold water supply.
Machine may be very hot during the operation. Keep kids
and pets far away from the machine during the operation
very wet rooms as well as in the rooms with explosive or
caustic gas.
Remove all packages before using the appliance. Otherwise,
serious damage may result.
Risk of explosion!
•
•
Do not wash or dry articles that have been cleaned in, washed
in, soaked in, or dabbed with combustible or explosive
substances( such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) This may result in
fire or explosion.
Before hand thoroughly rinse items of washing by hand.
Caution
• This washing machine is for indoor use only.
Installing the product!
4
SAFETY INSTRUCTIONS

• It isn't intended to be built-in using.
• The openings must not be obstructed by a carpet.
• Washing machine shall not be installed in bath room or
very wet rooms as well as in the rooms with explosive
or caustic gases.
• Remove all packages and transport bolts before using
the appliance. Otherwise, serious damage may result.
• The washing machine with single inlet valve only can be
connected to the cold water supply. The product with
double inlet valves should be correctly connected to the
hot water and cold water supply.
• Plug must be accessible after installation.
Risk of damaging appliance!
• Your product is only for home use and is only designed
for the textiles suitable for machine washing.
• Do not climb up and sit on top cover of the machine.
• Do not lean against machine door.
• Cautions during Handling Machine:
1.Transport bolts shall be reinstalled to the machine by
a specialized person.
2.The accumulated water shall be drained out of the
machine.
3.Handle the machine carefully. Never hold each protruded
part on the machine while lifting. Machine door can
not be used as the handle during the conveyance.
4.This appliance is heavy. Transport with care.
• Please do not close the door with excessive forces.
• It is forbidden to wash carpets.
5
SAFETY INSTRUCTIONS

Operating the appliance!
• Before washing the clothes at first time, the product
shall be operated in one round of the whole procedures
without the clothes inside.
• Flammable and explosive or toxic solvents are forbidden.
Gasoline and alcohol etc.Shall not be used as detergents.
Please only select the detergents suitable for machine
washing, especially for drum.
• Make sure that all pockets are emptied. Sharp and rigid
items such as coin, brooch, nail, screw or stone etc. may
cause serious damages to this machine.
• Please check whether the water inside the drum has
been drained before opening its door.Please do not open
the door if there is any water visible.
• Be careful of burning when the product drains hot
washing water.
• Never refill the water by hand during washing.
• After the program is completed, Please wait for two
minutes to open the door.
Packaging/Old appliance
6
SAFETY INSTRUCTIONS
• Contact your local authorities for correct method of
disposal. Dispose of all packaging in a responsible
manner in accordance with local regulations.
• Dispose of old appliances in accordance with local
regulations. Remove the doors, cut off the main
cable, break or remove spring or bolt catches if
fixed to prevent children getting trapped or involve
themselves in other dangers.

INSTALLATION
Product Description
•Illustrations in this manual are for explanatory purposes, please
refer to real product as standard.
Note!
7
Frame
Top lid
Drain hose
Handle
Power cord & plug
Control panel
Cabinet
Adjustable foot knob
Water inlet valve
Accessories
Spring clamper Drain hose
Manual
Screw
Inlet hoses Cabinet base cover
• Note: if the drain hose is already installed on the machine, then there is no
spring clamper and drain hose in the accessories.
Note!
Drain pump filter
Detergent dispenser
Softener dispenser

Installation Area
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0 C
5.Keep far away from the heat resources such as coal or gas.
as
Unpacking the Washing Machine
•Stability is important to prevent the product
from wandering!
•Make sure that the product is not sitting on
the power cord.
Warning!
！
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
8

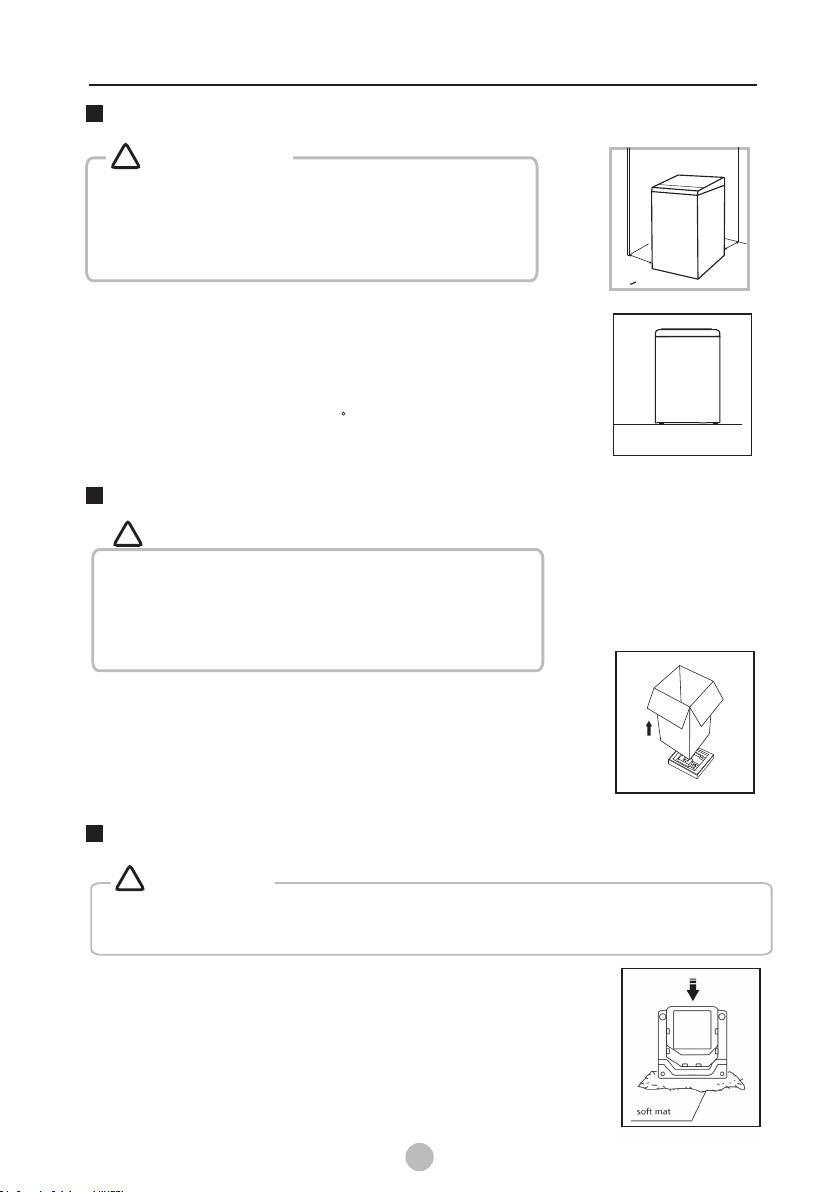

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base
packing.
3. Remove the tape securing the power supply cord and
drain hose.
4. Remove the inlet hose from the drum.
1. Tilt or gently lay the washing machine on some soft
padding (such as a soft mat, blanket or thick towel)
on its back.
2. Insert the base cover into the grooves on the
underside of the washing machine.
(As shown in the figure).
3. Secure the base cover accordingly with screws
supplied.
•Make sure the power cord is unplugged from the mains supply.
•Assistant required for lifting.
INSTALLATION
w
w
W> 20mm
Installing the Base Cover (Option)
！Warning!

9
9

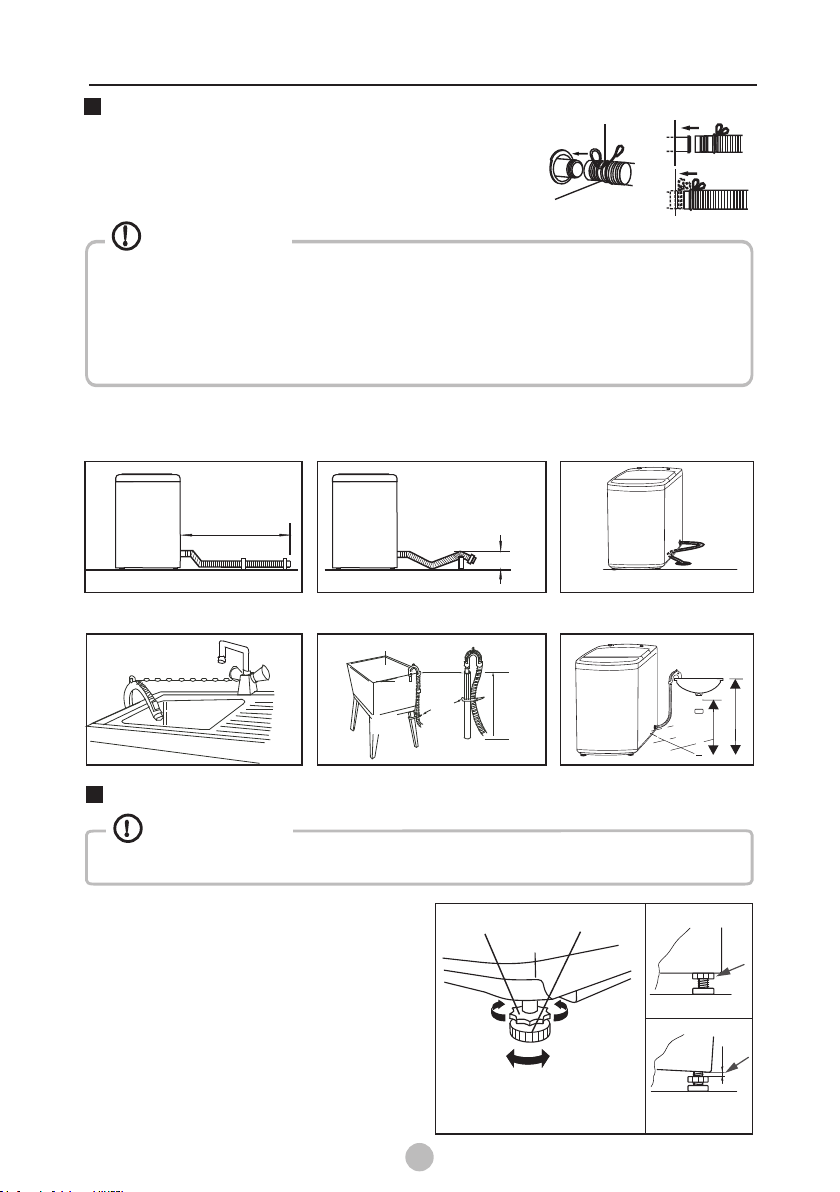

There are two ways to place the end of drain hose:
•
• Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
Trough
Hose
Retainer
Bind
Min.86cm
Max.100cm
water trough
Under3m
Under 15cm
Min.86cm
100cm
Max.
1.For lower drain system
2.For upper drain system
1.Check if the legs are closely attached
the cabinet. If not, please turn them to
their original positions tighten the nuts.
2.Check alignment of the product with a
spirit level and if required, correct.
3.Loosen the lock nut and turn the feet
until it closely contacts with
to
the floor.
4.After being locked properly, press four
corners again to make sure that they has
been adjusted properly.
• The lock nuts on all four feet must be screwed tightly against the housing.
Levelling the Washing Machine
Lock nut foot
Raise Lower
lockloosen
right
wrong
INSTALLATION
Caution!
Caution!
Installing the Drain Hose
1. Completely slide the drain hose over the drainage
spout.
2. Fix and tighten it with a hoop. (As shown in the figure).
The drain hose may already installed on the machine.
•

10
10
• To prevent leakage or water damage, follow the instructions in this chapter
Do not kink, crush, modify or sever .
!
• water inlet hose

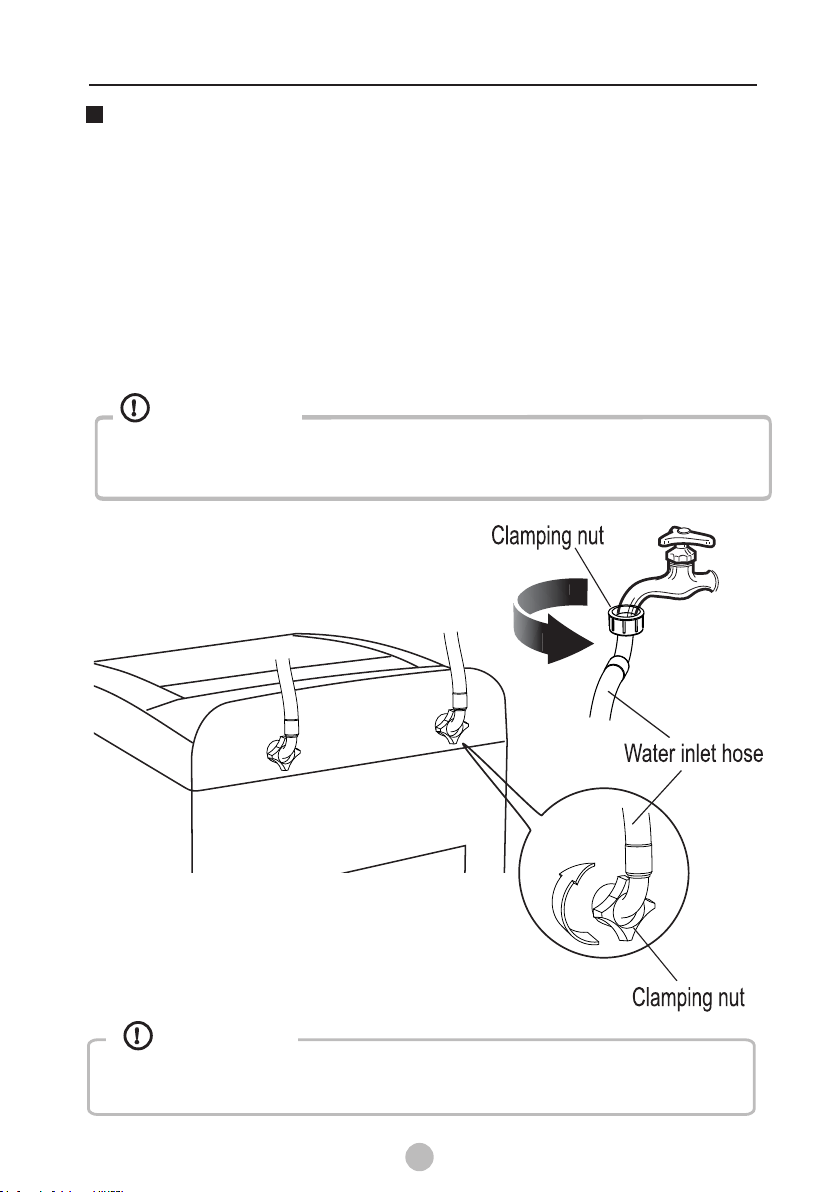

Installing the Water Inlet Hose
INSTALLATION
1. Fasten one end of the inlet hose to the tap. Ensure there is a rubber
washer inside the hose before fastening. The washer prevents
water leakage.
2. Securely tighten the other end of the inlet hose to the clothes
washer inlet valve. Ensure the rubber washer is inside the hose
before tightening.
3. When tightening the clamping nut, apply even pressure. Do not
apply too much force or twist the valve as this may damage or
break the valve joint.
•Be sure to install the correct HOT and COLD water inlet hoses. Incorrect
installation can reduce performance or damage the clothes washer.
Caution!
Caution!

Caution!
Before washing, please make sure it’s installed properly.
Before washing it at first time, the washing machine shall be operated in one
of the whole procedures without clothes in as follows.
•
•
round
Open tap
Plug in
Add detergent
& close door lid
1 2 3 4
Washing
Power On Start up
1 2
• If default is selected, step 2, 3 can be skipped.
After Washing
Note!
10
11
Load clothes
Buzzer will beep after washing finished and the power supply will be cut off automatically
Then unload the laundry.
.
3 4
Select Programme Select Level
Preparation Before Washing
OPERATIONS

Knot ribbons, cords to protect
from possible damage
• The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet
valve and draining system may be damaged. If the machine is placed under condition
of 0℃or less, then it should be transferred to normal ambient temperature to ensure
the water supply hose and drain hose are not frozen before use.

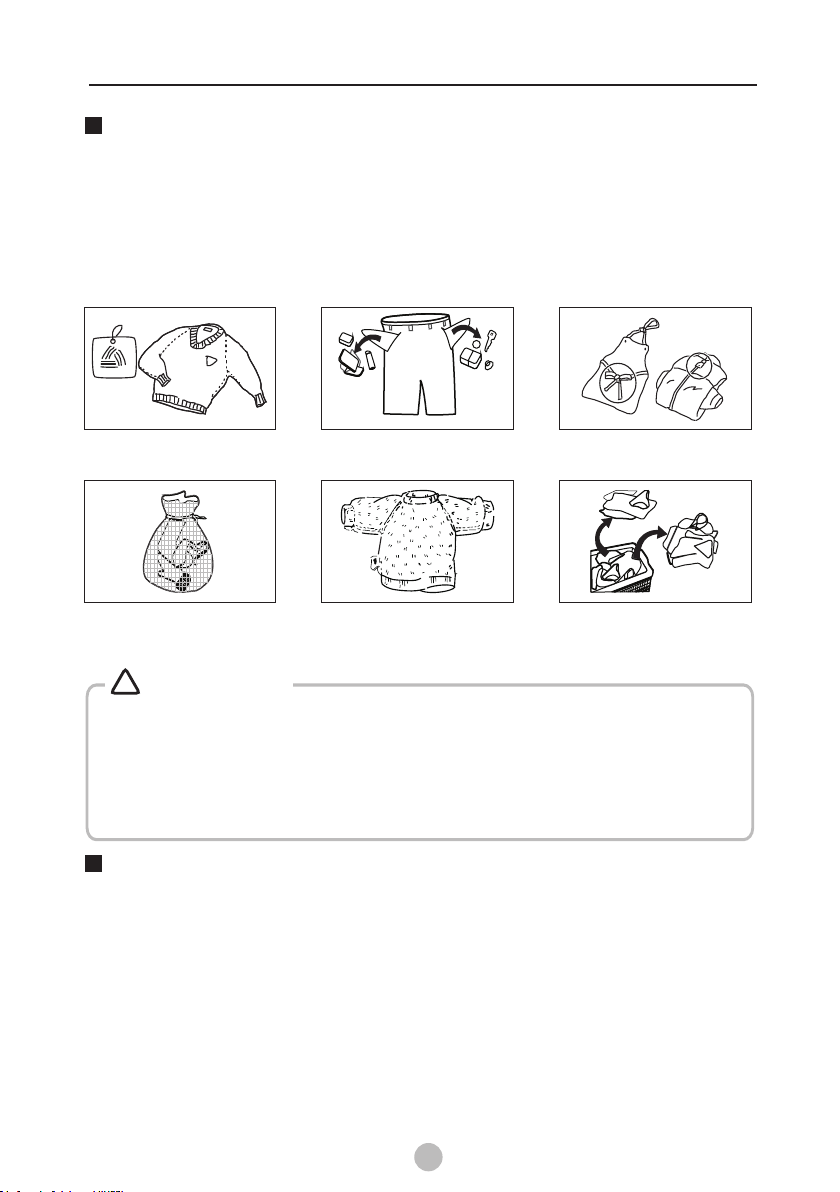

• Please check the labels and the explanation of using detergent before wash. Use
non-foaming or less-foaming detergent suitable for machine washing properly.
Take out any items left in the
pockets
Put small clothes into the
pillow slip
Check the label for
recommended wash options
Loading
Turn clothes inside out to
prevent pilling
Separate clothes with
different textures
Warning!
！
10
12
•
•
Using liquid or powdered detergent.
Follow the instructions on the detergent package.
For detergents are not dissolving well, it is suggested to use warm
water for dilution to prevent the inlet of detergent box from being
blocked and
overflowing while filling water.
Please choose suitable type of detergent for the various washing
temperature to get the best washing performance with less water and
energy consumption.
•When washing single clothing, it may cause alarm to be sounded due to
causing an unbalanced situation when in spin cycle. Therefore it is suggested
to add one or two more clothes to be washed together so that the spin cycle
is well balanced.
•Don’t wash clothing soaked with kerosene, gasoline, alcohol and other
flammable materials.
OPERATIONS
•
Detergent
•

Control Panel
Note!
The chart is for reference only. Please refer to real product as standard.
•
10
13
5312 4
OPERATIONS
Remain Time(mins)
Water Level
Function
(Power)
On/Off
Product is switched on or off.
Start/Pause
Press the button to start or pause the
washing cycle.
Programmes
This allows you to select desired
wash program.
LED display:
Standard (light) Spin Only (flash)
Jeans (light) Anti-crease (flash)
Heavy (light) Quick (flash)
Options
These allows you to select additional
functions as desired.
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status
messages for your washer. The display will remain on through the cycle.
5

Delay
Set the Delay function:
1. Select a programme
2. Press the Delay button to choose the time(the delaying time is 0-48H.)
3. Press [Start/Pause] to commence the delay operation
Choose the Programme Start
On Setting time
Delay
Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be pressed before
starting the programme. If the programme already started, should press the
[On/Off] button to reset the programme.
14
Child Lock
To avoid mis operation by children.
Start Press Child Lock
Power on
•Press the both buttons for 3sec. to activate/deactivate the "Child
Lock" function.
•The “Child Lock” will lock all buttons except [ On/Off ].
•Cut off the power supply, the "Child Lock" protection will be released.
Caution!
Temp.
Press the button to regulate the Hot, Warm or Cold water for wash.
Function
Select single or combination of washing, rinsing and spinning desired.
OPERATIONS
(Power)
Water Level
Select water level according to clothing categories, degree of soiling and washing
habits from lowest 1(light), 2(flash), 3(light),.. to 6(flash) max.
Options

10
15
Wash Spin+Rinse+
Spin
Start
Start
Function
Start
Water Level
Program Temp.
Delay
keep pressing Function key until
spinning light is on only
keep pressing Function key until
washing、
rinsing、
spinning lights are on
Note: other process combinations are just like above.

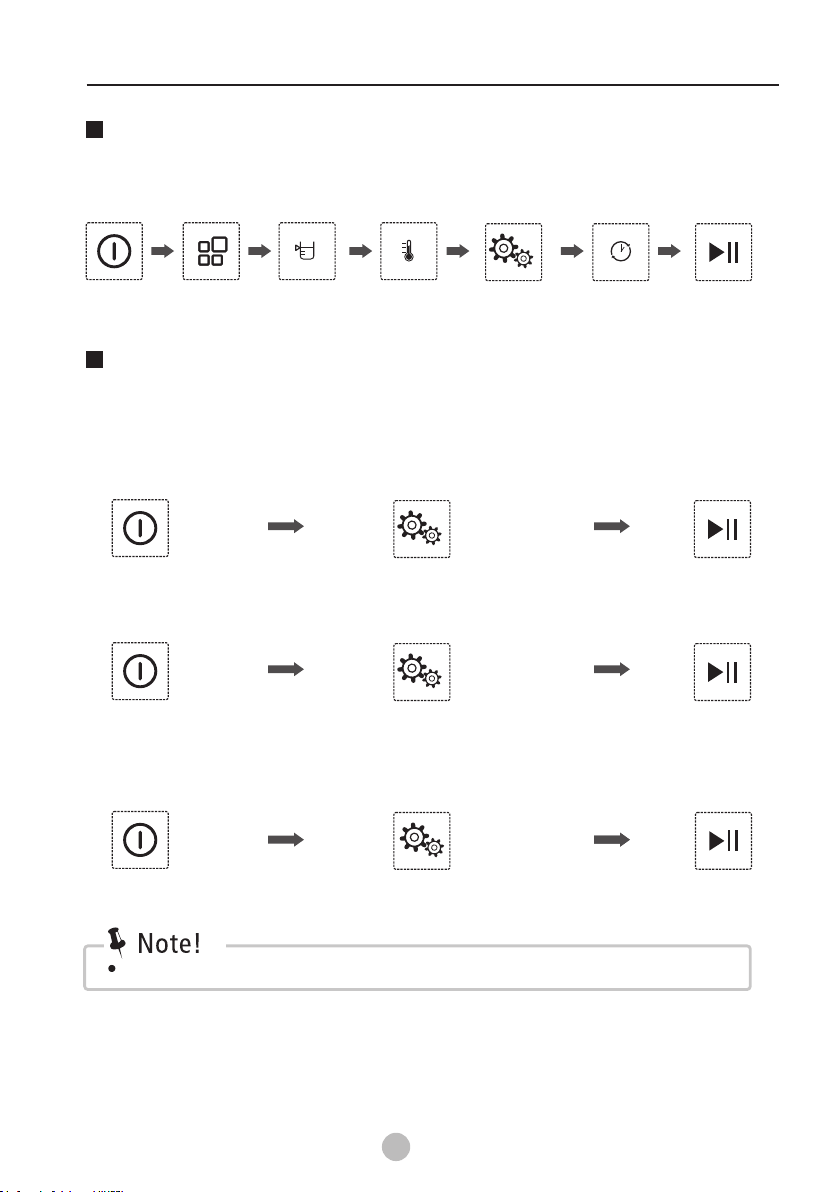

Operations of Washing Process
Customers can set a single process or a combination for washing, rinsing and
spinning easily according to demand. Detailed operations as follows for
different models:
Wash
Start
keep pressing Function key
until wash light is on only
OPERATIONS
Personalized Setting of Washing Program
Customers can select washing program according to your personal setting, and set
washing function, rinsing function, spinning function, water volume and start time.
On
On
On
On
(Power)
(Power)
(Power)
(Power)

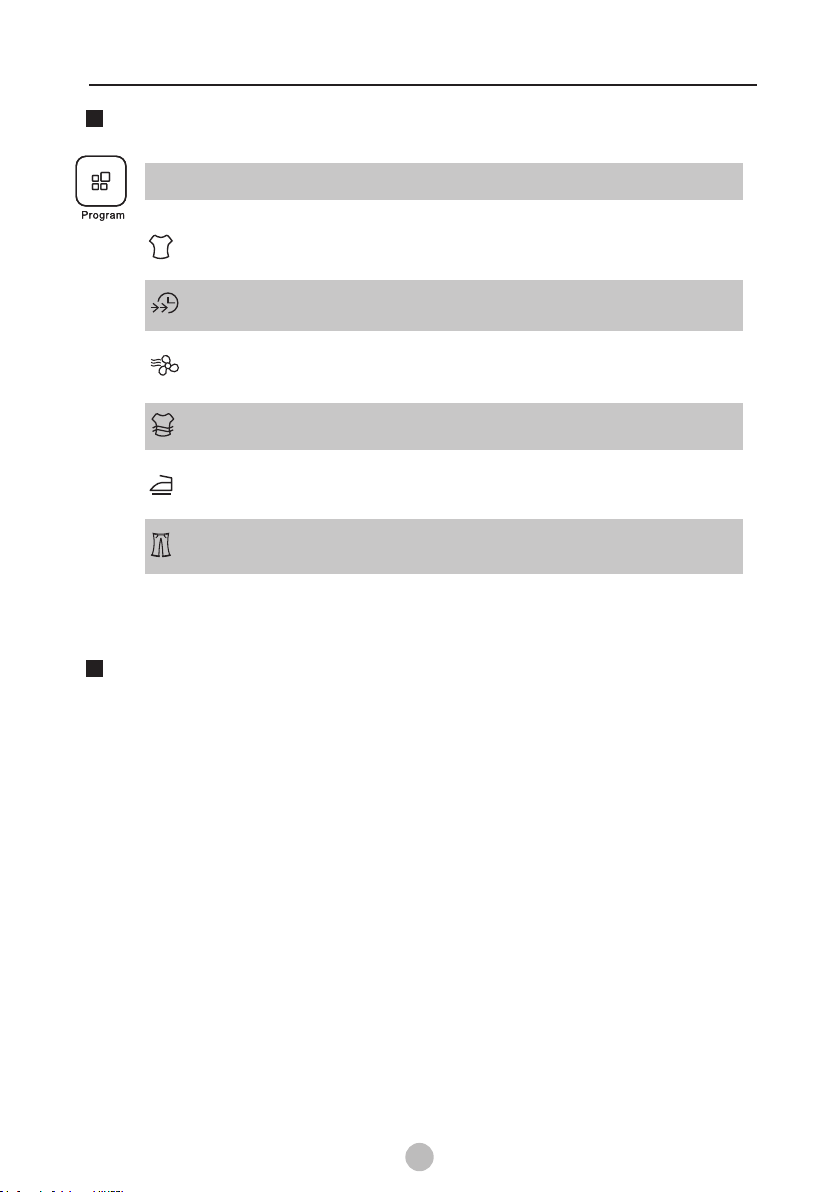

Washing Programmes Table
Programmes
10
16
OPERATIONS
Standard
(Normal) Standard fabric washing program, suitable to wash cotton fabric.
Quick
Jeans
Heavy
Suitable to wash big size load such as curtain/bed sheet etc.
High wash ability, suitable to wash heavy or serious stained clothes.
Wash time is short. Suitable to wash light stained clothes and
clothes in summer. (Recommended wash load: Max 6kg)
Spin
Only
Recommended for small and light fabrics.
This program does not use heat to spin dry items. It is designed
with longer spin time to remove additional water from items.
Anti-
crease
Longer rinse cycles and high water level to thoroughly wash
items. This program does not spin dry to prevent wrinkles.
Energy Efficiency Test Program:
During Standard (Normal) washing program, it is identified as Efficiency Program.
This product was tested in accordance with AS/NZS 2040.2 and AS/NZS 6400 at
washing program: Standard (Normal), Warm, Water Level 5, which is
suitable for a normally soiled load.

• Before your maintenance starts, please unplug the machine and close the tap.
Cleaning the Cabinet
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the wet cloth to wipe it off immediately.
No sharp items are allowed.
•
Warning!
！
Note!
10
17
Cleaning And Care
Formic acid and its diluted solvents or equivalent are
forbidden, such as alcohol, solvents or chemical products,etc.
Cleaning the Inlet Filter
•Inlet filter must be cleaned if there is low water pressure water.
Washing the filter in washing machine:
1.Screw off the inlet pipe from the backside
of the machine.
2.Pull out the filter with long nose pliers
and reinstall it back after being washed.
3.Use to clean the filter.
4.Reconnect the inlet pipe.
the brush
Note!
1.There is a built-in lint filter in your washer. It
can help to collect lint during washing cycle.
2.It is suggested to clean the lint filter every
10 cycles.
3.Take it out and clean the filter with water.
Then place it back into the washer.
Lint filter clean
MAINTENANCES

• Make sure that valve cap and emergency drain hose are reinstalled properly, cap
plates should be inserted aligning to hole plates otherwise water may leak;
• Some machines don’t have emergency drain hose, so step 2 and step 3 can be skipped.
Rotate lower cover cap directly to make water run into basin.
• When the appliance is in use and depending on the programme selected there can
be hot water in the pump. Never remove the pump cover during a wash cycle, always
wait until the appliance has finished the cycle, and is empty. When replacing the
cover, ensure it is securely re-tightened.
Cleaning Drain Pump Filter
Be careful of the hot water!
Allow detergent solution to cool down.
•
•
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the
washing.
• Clean the filter periodically to ensure the normal operation of washing
machine.
123
5
4
Warning!
！
10
18
Caution!
Open the filter by turning
to the counter clockwise
Remove any foreign matter
Drain the water out of the
pump, under which use a
container to collect.
Restore it and adjust the convex
place to align at the pump hole.
Clean the filter. Tighten the pump
cover clockwise.
6
MAINTENANCES

Trouble Shooting
Should your appliance fail to work or it stops during operation. First
try to find a solution to the problem, If not, contact the service centre.
Description
10
19
No washing
Inspection Items
If the power is off or the fuse is burned out.
If the power supply voltage is too low.
If the water amount reaches to the required water level. (The washer
will not work if the water amount does not reach the required water
level) If it is set to "Delay" washing mode. (It will only start to work
until the reservation time reached).
No water flows in
If the power is off or the fuse is burned out.
If the water supply is cut off or the water pressure is too low.
If the inlet hose is properly connected and the water tap is opened.
If the filtering screen of inlet valve is blocked by dirt.
If the coil of inlet valve is damaged. (The slight electromagnetic sound
is normal phenomenon when the inlet valve is switched on)
If the "Start / Pause" button is pressed after the power switch is
pressed.
Abnormal draining If the water drain hose is placed very high.
If the end of water drain hose is submerged in laundry tub due to
blocked drain.
If the internal rubber ring of drain valve is blocked by dirt.
Abnormal spin
If the door lid is open.
If all clothing piled largely at one side of barrel or the clothing is
excessively placed.
If the washer is not placed in stable condition or it is placed on uneven
ground. (The ground is not flat).
If the motor belt is loosened.
MAINTENANCES
• or the display
shows other alarm codes
After the check, activate the appliance. If the problem occurs
again, contact the service.
Note!
Description Reason Solution
Please try again first, call up service
line if there are still troubles
Others
E1
EXX
E2
Check the water tap is opened or not
and the inlet filter is clean.
Check the water level sensor
and drain pump filter.
Alarm for abnormal
water intaking.
Alarm for water drain
has not finished.
Alarm for lid not closed
before wash and spin.
E3
Closed the lid.
E4
Manually balance clothes in the
barrel by hands.
Alarm for unbalanced
wash load
