Tecway Sweet Digger User manual

OPERATION MANUAL

Sweet Digger Operation Manual
CONTENT
1、SPECIFICATION & TECHNICIAL PARAMETER...........1
2、SPARE PART LIST ..............................................................................................2
3、TROUBLE SHOOTING.......................................................................................3
4、GAME INSTRUCTION.......................................................................................4
4-1 GAME INSTRUCTION................................................................................4
4-2 OPERATION MENU ....................................................................................4
4-3 CONTROL SIGNAL & INSTRUCTION ......................................................5
5、 PART LIST.........................................................................................................6
5-1 MECHNICAL PART................................................................................. 6-9
5-2 COIN ASSY. PART .....................................................................................10
5-3 SPEAKER ASSY. PART .............................................................................11
5-4 FUSE & POWER PART..............................................................................11
5-5 ELECTRIC INSTALLATION PART ..................................................... 12-13
5-6 ART PART ............................................................................................ 14-16
5-7 ELECTRIC PART ................................................................................. 17-18
6、IO SHEET .................................................................................................... 19-22

Sweet Digger Operation Manual
1

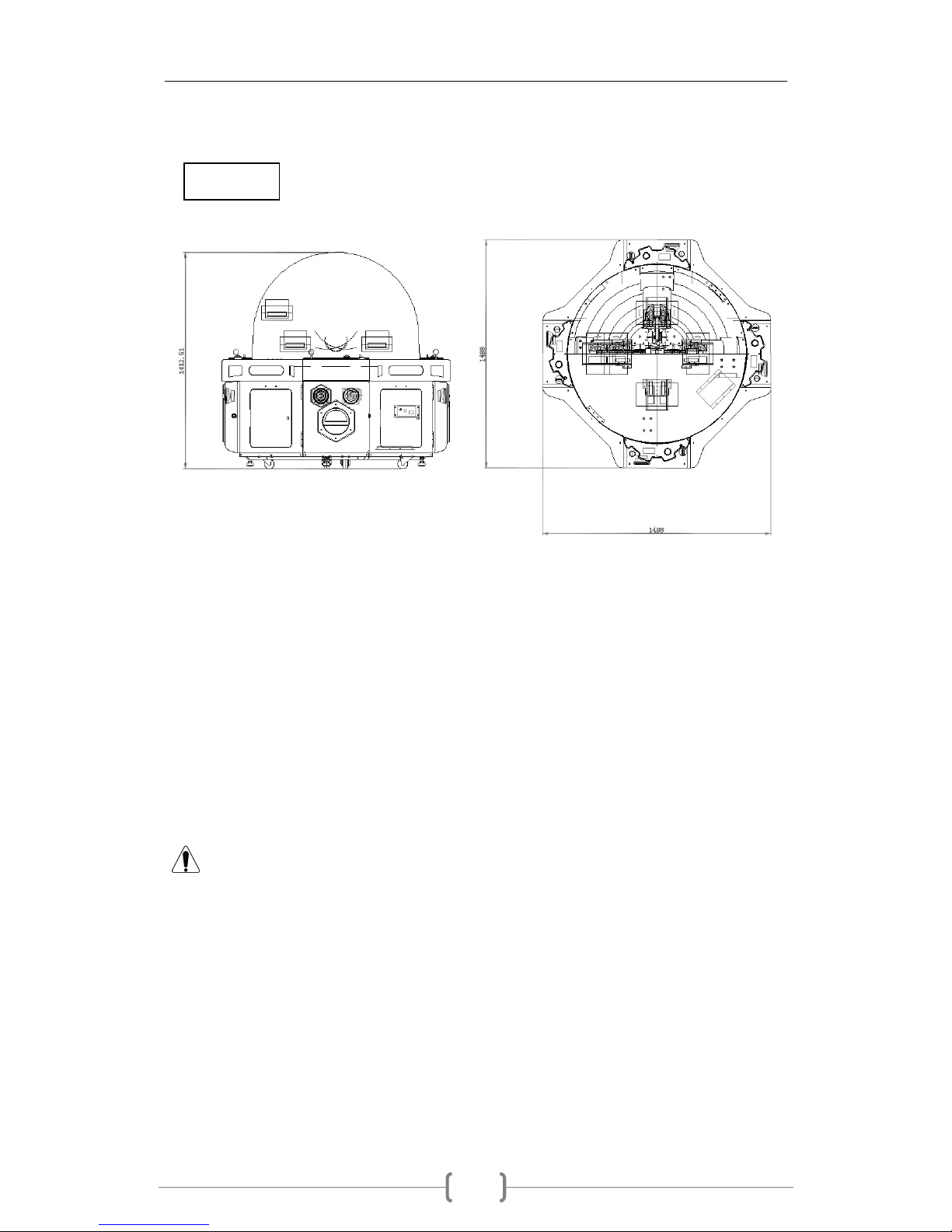

1、SPECIFICATION & TECHNICIAL PARAMETER
1) Voltage： AC 220V±10% 50Hz
2) Consumption Power：mix 190W ～ max230 W
3) Dimension：1488L×1488W×1413H（mm）
4) Weight ：About 250 kg
5) Environment condition：Temperature (Indoor): -10℃～+40℃；
Humidity：≤90%；
Atmospheric pressure：86Pa～106Pa。
Warning： When power off the machine please wait for 1 minute to power on.
Remark： If the pictures have change in this manual, please according to the
machine you received.
Unit：mm

Sweet Digger Operation Manual
2

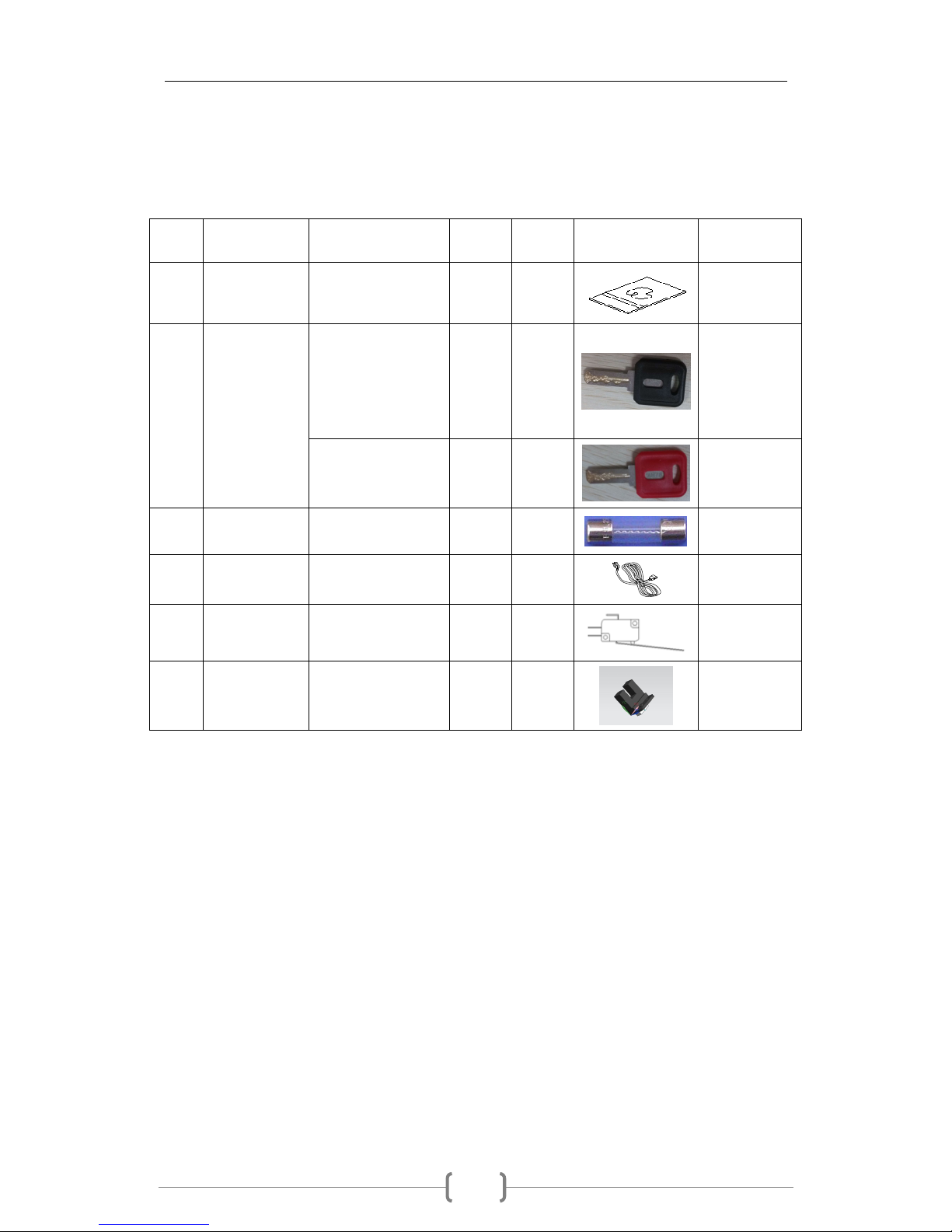

2、SPARE PART LIST
Spare Part List：
NO. NAME Spec./ Material QTY UNIT
DRAWING REMARK
1 Manual A4 1
AH57 1 Pc
Ticket
dispenser
door、coin
door、repair
door
2 Key
AH78 1 Pc
Coin door
3 Fuse 6.3A 1 Pc
4 Power cord 1.5M 1 Pc
5 Micro switch
1 Pc
6 Concave
Optocoupler 1 pc

Sweet Digger Operation Manual
3
3、Trouble Shooting
Fault Failure cause Trouble shooting
Do not insert
coin
Do not adjust for coin acceptor
Has fake coin。
Adjust coin acceptor, token, tolerance,
trimming resistance.
Take out the fake coin。
No music
Volume is low。
Sound output signal short-circuit。
Speaker damage。
Sound amplifier damage。
PC board damage。
Audio connection mouth loosen or damage
Speaker connect or not。
Adjust volume。
Connect wire。
Change speaker。
Change main board。
Change circuit。
Re-connect audio connection。
Open the speaker wire。
No movement
No power input。
Do not turn on the power。
Fuse burned。
No output for power supply。
No power for main board。
Main board damage。
Turn on power and plug on power。
Turn on power。
Change the new fuse。
Change power supply。
Connect the main board wire。
Change new main baord。

Sweet Digger Operation Manual
4
4、Game Instruction
4-1 Game Instruction
1. Insert coin and start game.
2. Press “Claw” button and will move to relevant place.
3. Player to see the plate and press “Confirm” button.
4. Tube will pick up the gift and send back to table.
5. Table will push the gift to prize mouth.
4-2 Operation Menu
Claw button
Prize mouth
Fake coin button
Crab button
Fake coin mouth
Control table

Sweet Digger Operation Manual
5
4-3 Control Signal & Instruction
1. Check the IO sheet and diagram, main board schematic drawing can see the input,
output wiring connection place.
2. DIP setting can refer to the IO sheet, capital letter for factory setting, customer can
set according to the exact conditions.

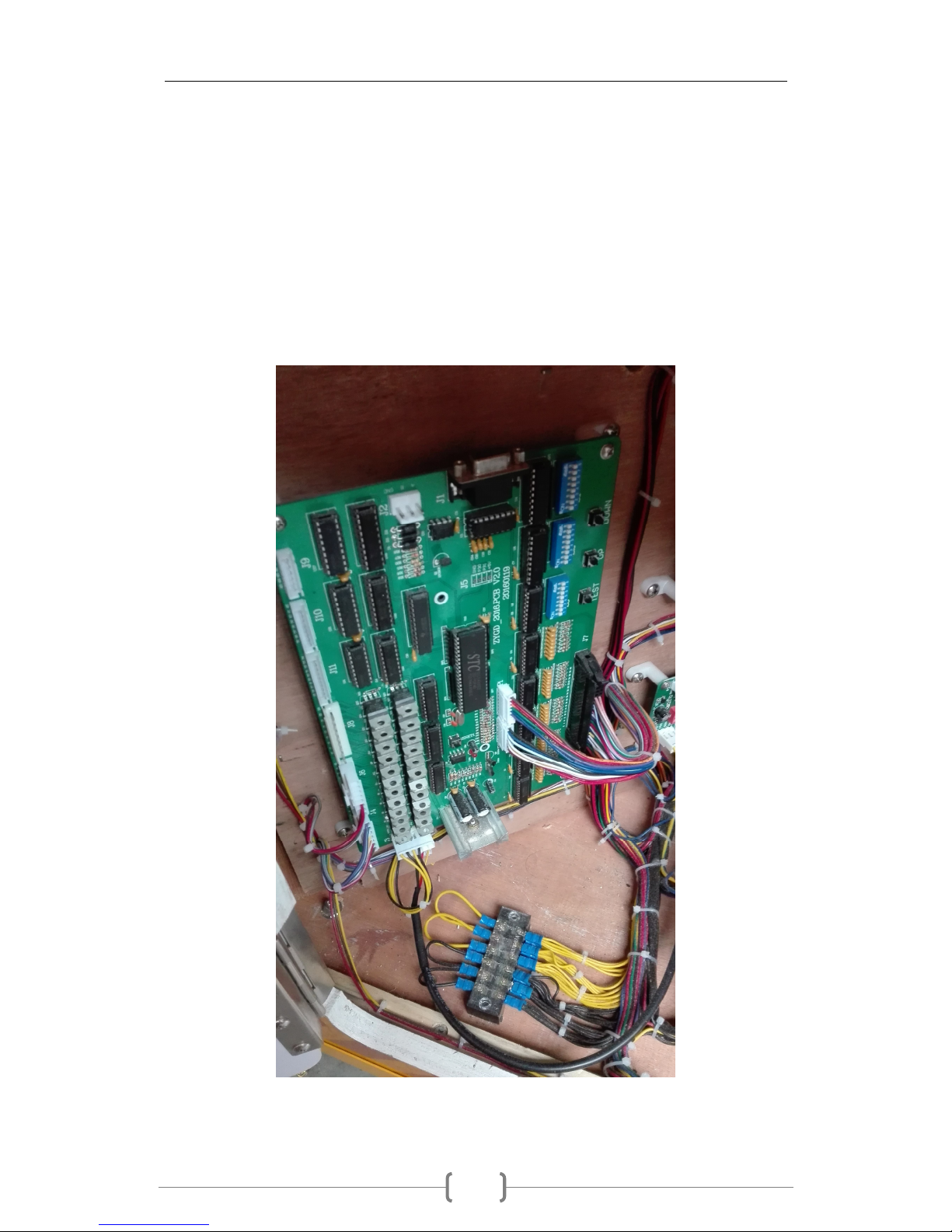

3. Main board schematic drawing:

Sweet Digger Operation Manual
6
5、Spare Part List
5-1 Mechanical Part
Overall
Cabinet
Prize mechanism
Sugar digging mechanism

Sweet Digger Operation Manual
7
Sugar digging mechanism
3
1
17
9
8
5
2
12
15
1
6
10
18
7
13
14
4
11
16

Sweet Digger Operation Manual
8
NO. Standard No. Item Spec./Material QTY
1
WJGS-WG-04
Motor D-36P3540-721 1
2 WJGS-02-20 Motor fixed metal 201 stainless steel 1
3 WJGS-03-12 Supporting pole Car workpiece 5
4 WJGS-02-07 mechanism base fixed
metal 201 stainless steel 1
5 Coupling Car workpiece 1
6 WJGS-00-02 Spring 2
7 WJGS-DQ-01 Infra-red 2
8 WJGS-02-17 Mechanical arm
mechanism
201 stainless steel +PC
material 1
9 WJGS-02-23 Claw PC 2
10 WJGS-WG-08 Electromagnet 1
11 WJGS-02-15 Electromagnet fixing
sheet metal 201 stainless steel 1
12 Long micro switch 2
13 WJGS-WG-03 Motor 1
14 WJGS-02-08 Mechanical base 201 stainless steel 1
15 WJGS-WG-32 Bearing 14
16 WJGS-WG-19 Connecting rod Car workpiece 1
17 WJGS-05-05 Mechanical arm
suction A Blister organic 2
18 WJGS-05-08 Mechanical arm
suction B Blister organic 1

Sweet Digger Operation Manual
9

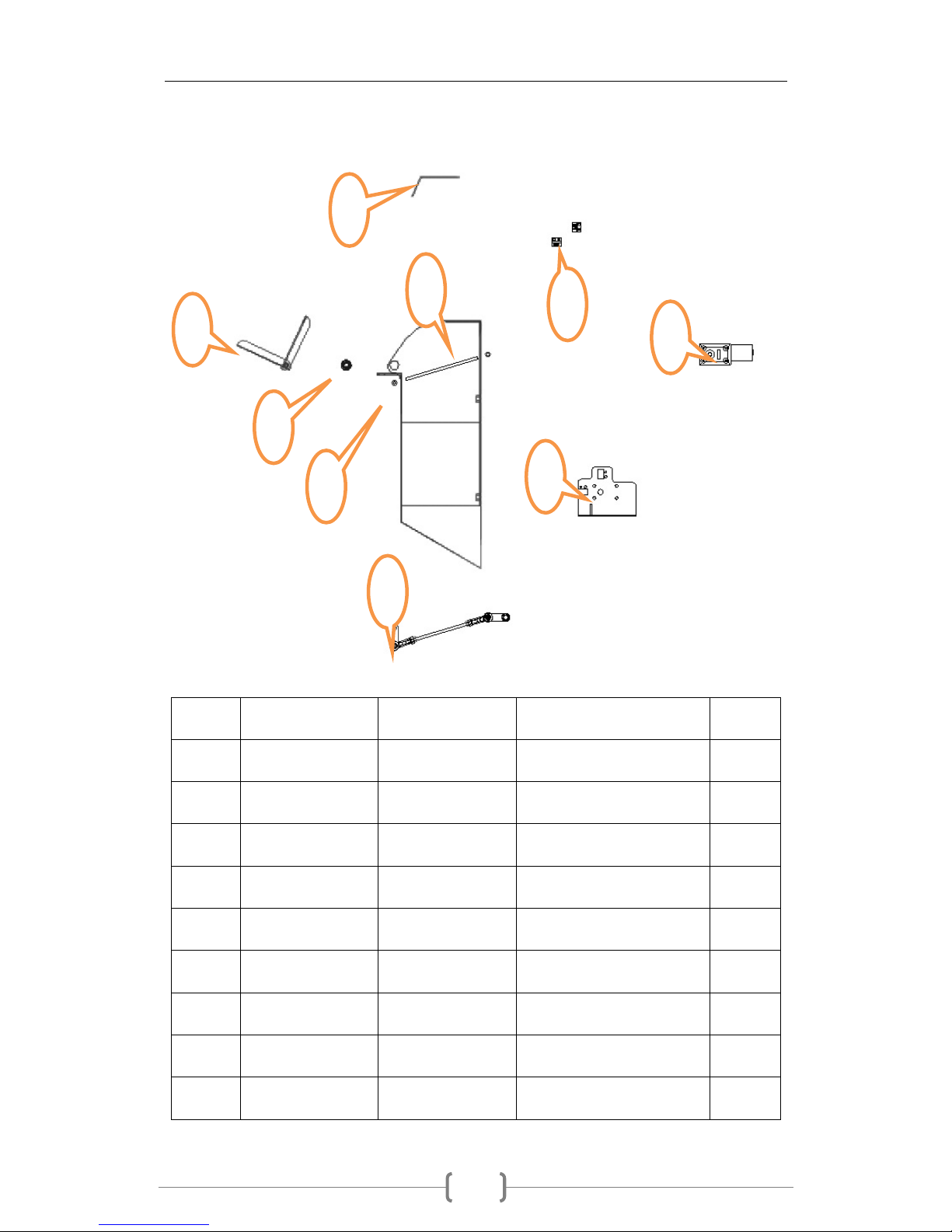

Prize out mechanism
NO. Standard No. Item Spec./Material QTY
1 WJGS-02-44 Gift Guard A 201 stainless steel 1
2 WJGS-02-43 Gift Guard B 201 stainless steel 1
3 WJGS-02-42 Down gift mouth 201 stainless steel 1
4 WJGS-DQ-01 Infra-red 2
5 WJGS-WG-05 Motor 1
6 WJGS-02-45 Motor fixed metal 201 stainless steel 1
7 WJGS-03-09 Connecting rod Q235 1
8 WJGS-WG-31 Bearing 2
9 WJGS-03-22 Round pole Car workpiece 1
2
1
5
4
3
6
9
7
8

Sweet Digger Operation Manual
10
5-2 Coin Assy. Part
NO. Standard No. Item Spec./Material QTY
1 Coin acceptor Direct electronic 4
2 Fake coin button 4
3 Coin box Steel 4
4 Lock AH78 Short Lock 78 4
5 Six bit counter C-012 2
6 Six bit counter fixed
metal 201 stainless steel 1
5
2
3
6
1
4

Sweet Digger Operation Manual
11

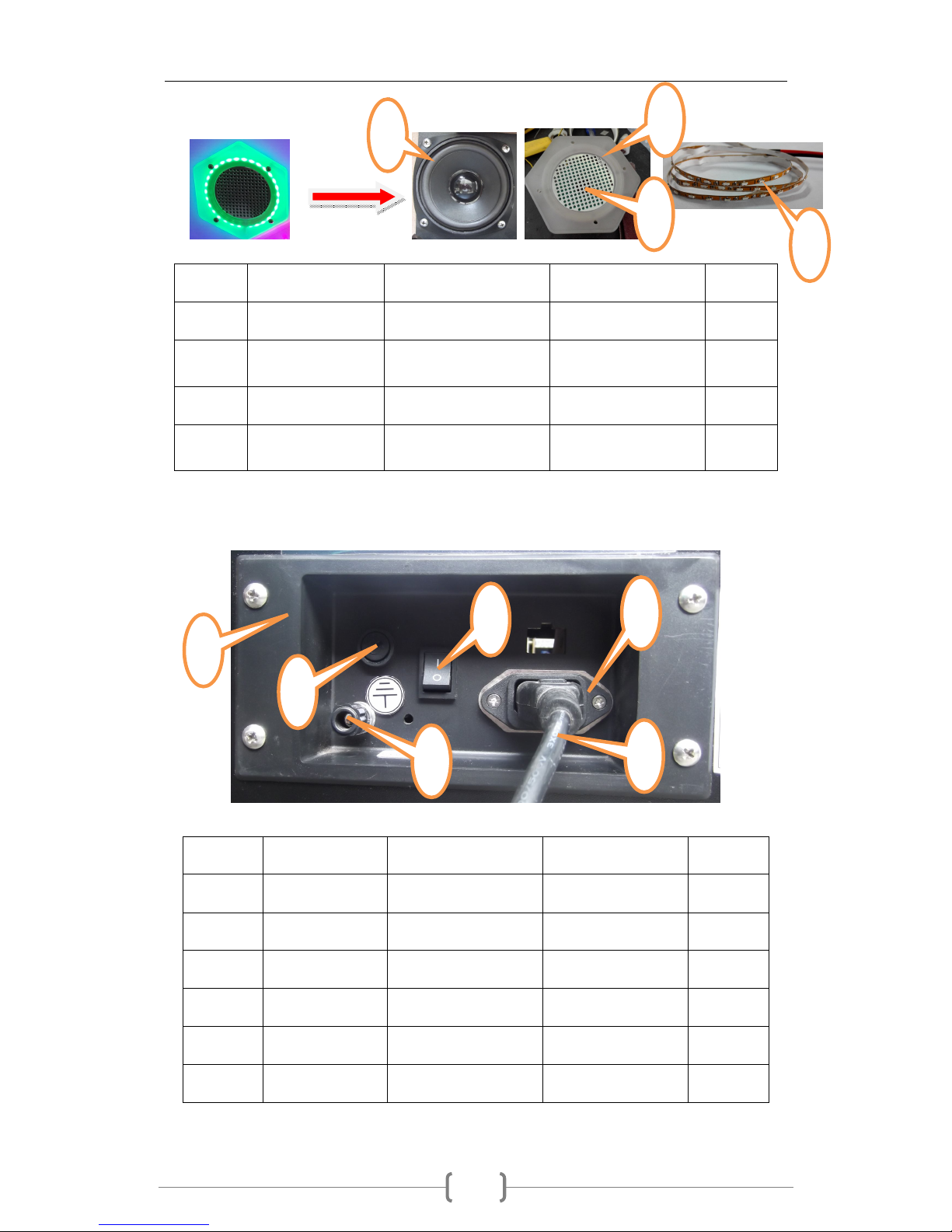

5-3 Speaker Assy. Part
NO. Standard No. Item Spec./Material QTY
1 Round speaker 4”8Ω15W 4
2 Hexagon frosted organic
sheet Frosted organic sheet
4
3 Round speaker cover Silvery white 4
4 Light bar 0805 12V Green L 20cm
W6mm 4
5-4 Fuse & Power Assy.Part
NO. Standard No. Item Spec./Material QTY
1 Wire box 1
2 Fuse base HJMF-527 1
3 GND wire pole 1
4 Rocker switch 1
5 Power supply socket 1
6 Power cord 6.3A 1
1
1
3
4
5
6
2
2
3
4

Sweet Digger Operation Manual
12
5-5 Electronic Assy. Part
1
2
3
4
8
9
5
11
6
7
10
13
12
14
16
15

Sweet Digger Operation Manual
13
NO. Item Spec./Material QTY Unit
12v 150W 2
1 Power
24v 150W 1
pc
2 Main board 2 Pc
3 RGB Control board XXH-150703A 1 pc
4 Collector ring 1 Pc
5 Motor 1 Pc
6 Motor control board 4 Pc
7 Exhaust fan 1804U3A 001 12V 2 Pc
8 Exhaust fan net 4 Pc
9 counter C-012 2 Pc
10 Digital tube 4 Pc
11 Fuse Y101124/A1 5*20 6.3A 1 Pc
12 Fuse base HJMF-527 1 Pc
13 Filter YB10A1 1 Pc
14 Solid relay 2 Pc
15 Lift switch 1 Pc
16 Handle 4 Pc

Sweet Digger Operation Manual
14
5-6 Art Part
7
6
5
4
3
2
1

Sweet Digger Operation Manual
15
NO. Standard No. Item Spec./Material QTY
1 WJGS-HM-01 Side board Gum 4
2 WJGS-HM-02 Cabinet menu Tread 4
3 WJGS-HM-03 Crane arm menu Gum 4
4 WJGS-HM-04 Platform menu Tread 4
5 WJGS-HM-05 Nixie tube menu Tread 4
6 WJGS-HM-06 Table menu Gum 4
7 WJGS-HM-07 Switch menu Tread 1
1
1
5
9
6
8
7
4
3
2

Sweet Digger Operation Manual
16
NO. Standard No. Item Spec./Material QTY
1 WJGS-HM-08 Counter label White adhesive 1
2 WJGS-HM-09 Fork label White adhesive 8
3 WJGS-HM-10 Don’t touch label White adhesive 4
4 WJGS-HM-11 Repair label White adhesive 1
5 WJGS-HM-12 HT/HP label White adhesive 1
6 WJGS-HM-13 HP label White adhesive 1
7 WJGS-HM-14 GND label White adhesive
8 WJGS-HM-15 Fuse current label White adhesive 1
9 WJGS-HM-16 Indoor label White adhesive 1
10 nameplate 1
11 IO sheet 1

Sweet Digger Operation Manual
17
5-7 Electric Part
9
10
6
5
1
2
4
8
7
3

Sweet Digger Operation Manual
18
NO. Standard No. Item Spec./Material QTY
1 Door light 12V/5050RGB Soft light
strip/0.6M 4
2 Prize light 12V/5050RGB Soft light
strip/0.4M 4
3 Cabinet light 0805 12V Green L25cm W6mm
4
4 Side cabinet light 12V/5050RGB Soft light
strip/0.6M 4
5 Sugar shovel light
0805 12V Green L10cm W6mm
4
6 WJGS-DQ-05 Lifting arm
decoration light A
12V/5050RGB Soft light
strip/0.6M 1
7 Lifting arm
decoration light B
Blue light set 2
8 Lifting arm spot light
1
9 Lifting arm light A
12V/MX-S5050W/15CM 1
10 Lifting arm light B
12V/MX-S5050W/10CM 1
