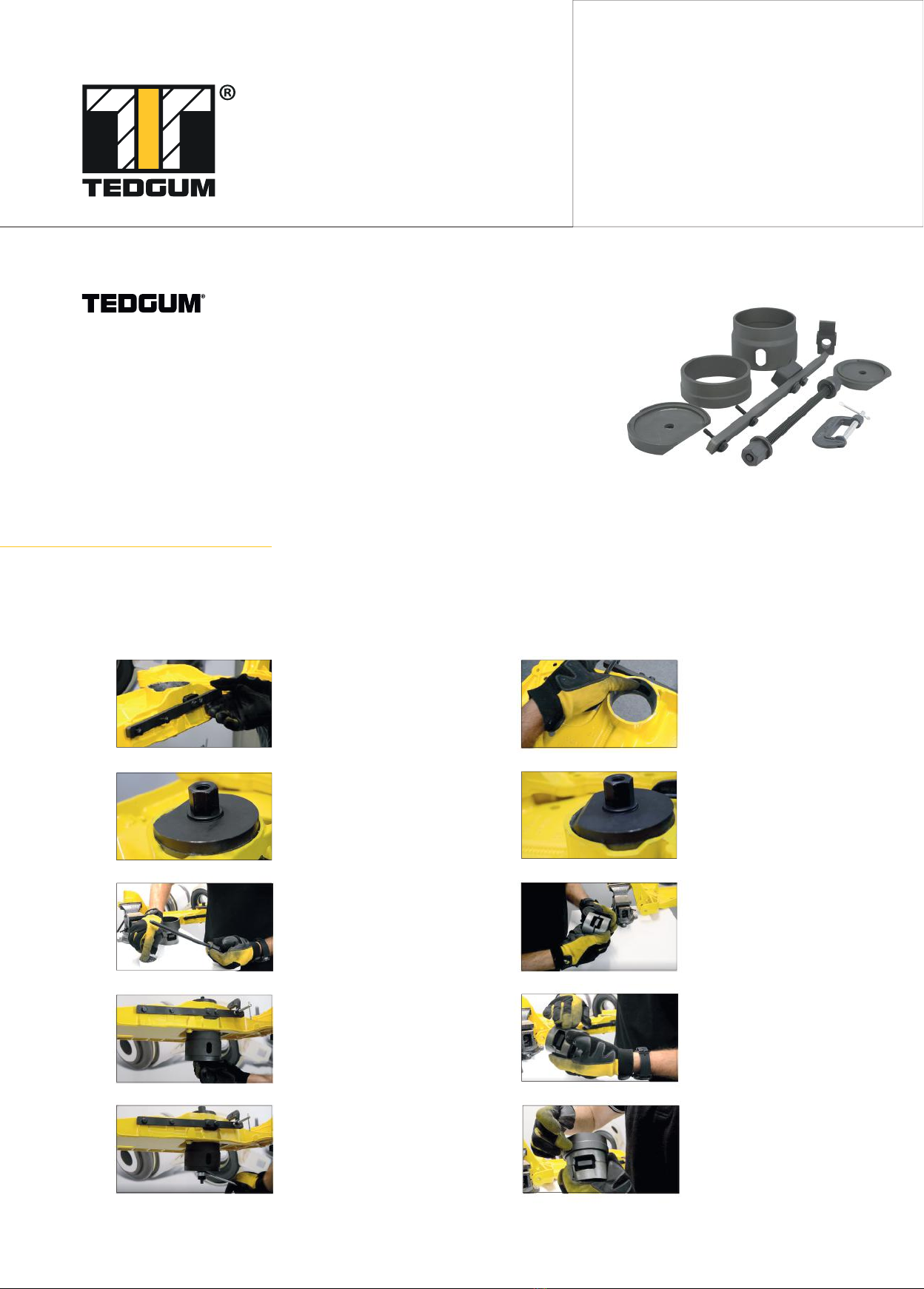

TEDGUM TED31041 User manual

1
2
4
3
6
7
8
9
Put the plug on the engine beam.
Align the position of the plug in the
hole and secure it additionally with
clamp - it is very important not to
damage the newly mounted bushing.
Put a larger tting on the upper part
of the beam. The notch should be
towards the rear of the vehicle.
Place a tting between the new
bushings, which holds both
elements in axis.
Lubricate with a neutral lubricant
new bushings and an engine beam
socket. Place the new bushings
in the smaller drive sleeve.
Put a smaller tting to press out
worn bushing. The indentation
should be in the position facing
the rear of the vehicle.
Mount a larger drive sleeve and
a larger tting together with a bolt
from the bottom of the engine beam.
Mount the lead bolt. To prevent
friction during operation, lubricate
the bolt thread with the supplied
lubricant.
5
Press out the worn bushings.
After removing it, clean the socket.
10
The hole in the bushes must be
in line with the mark on the drive sleeve.
Engine beam bushing replacement with
TED31041 puller
Below is the replacement process for the
00728427 VW bushing:
MANUAL
TEDGUM
The puller enables correct dismounting and mounting of the
bushing directly on the car, without having to dismantle the engine
beam. Thanks to the trapezoidal thread, the puller is characterized by
high durability. To facilitate operation and ensure proper operation,
lubricate the bolt and bearings before each use.
Before starting work, disassemble the lower engine cover, rear
engine mount and unscrew the anti-roll bar mounting.

11 The drive sleeve should be also
placed in the axis with the hole
in the engine beam.
Start pressing in new bushings.
After pressing the bushings,
remove the puller.
12
13
Remove the tting that hold both
bushings in axis.
This and other manuals can be found in our web-site:
https://tedgum.pl/en/technical-support.html
Manual shown above is just a presentation showing how the repair procedure can be made. company does not bear responsibility
for any errors in the manual and incorrect interpretation of the manual. Repair should be proceded by skilled personel with the use of appriopriate
tools and with keeping all the safety means. All rights reserved.
PULLER APPLICATIONS:
AUDI A3, Q3, TT SEAT Alhambra, Altea, Leon, Toledo,
SKODA Octavia, Superb, YETI VW Caddy, Eos, Golf, Jetta,
Passat, Passat CC, Scirocco, Sharan, Tiguan, Touran
