Teguar TMT-4391-08 Series Installation and operation manual

Medical Computer
TMT-4391-08 Series
Startup Manual
TMT-4391-08 Appearance
Left: Front View Right: Rear View
For more information on this and other Teguar
products, please visit our website at:
http://www.teguar.com
For technical support and service, please visit
our support website at:
http://www.teguar.com/support
This manual is for TMT-4391-08 Series
3rd Edition
Print in China August 2018
Description of Parts
A: Front Camera
B: Power LED
C: Light Sensor
D: Speaker
E: micro-SIM & micro-SD Card Door
F: Programmable Key (Default
Barcode scanner)
G: Pogo Pin (USB3.0)
H: Micro USB Door
I: Micro HDMI Door
J: Power Button
K: Volume Key (Up/Down)
L: Audio Jack (Headset Combo)
M: Extension Module
N: NFC
O: Rear Camera with LED Flash
P: Battery Cover

Easy Setup
Power On Computer
1. Model: TMT-4391-08 Rating 5 Vdc / 3.0A
2. This product is intended to be supplied by a UL
Listed Power Adapter (Phihong / MM18M-59A) or
DC power source, rated 5 Vdc, 3A min. for model
TMT-4391-08, and Tma 45 degree C. Please
contact Teguar for further information and
assistance.
3. The product is equipped with shipping mode for
battery protected and power saving, please charge
the embedded battery of the computer: Connect
the Micro USB adaptor on the TMT-4391-08
computer. (“H” on the description of parts.) Please
charge for at least one hour when you use this
computer for the first time.
4. Push the Power button (“J” on description of parts.)
for 2~3 seconds to start the computer.
5. The product is equipped with a 8” Capacitive
Touch Panel. Use finger, capacitive stylus, or nitrile
gloves to touch the following Active Area to
operate the computer.
6. The product is equipped with one LED indicator for
battery status. The following shows LED status for
different power states:
a) The orange LED blinks when internal battery
capacity is below 10% to warn the user to
charge.
b) The Blue LED lights up when internal battery is
being charged.
c) The Green LED lights up when internal battery
has been fully charged.
7. While the computer is running, push the power
button for 1 second will disable LCD backlight for
power saving. Push the power button again will
enable the backlight again; press the power button
for 10 seconds while computer is running, the
system will shut down.
8. Environment:
Operating Temperature: -10°C ~ +50 °C
Operating Humidity : 10% ~ 90%@30°C
non-condensed
Storage/Transportation Temperature:
-40°C ~ +80°C (Internal lab test)
Storage/Transportation Humidity :
5% ~ 95%@30°C non-condensed
Humidity consider to 25°C, 48 hrs
Number and type of Means of Protection :
MOPPAltitude 3000m
Atmospheric pressure：700-1013 hPa (for
operating); 500-1013 hPa (for
Storage/Transportation)
IP level : IPX0
9. There will be “TEGUAR” logo upside down while
first boot up. This scenario will be disappear after
2nd boot up and won’t influence functions and
usage.
Intended Use
The TMT-4391-08 is intended for integration with
hospital system. It is designed for general purpose for
hospital environment.
For data collection and display for reference.
It should not be used for life-supporting system.
EMC Table
Guidance and Manufacturer’s Declaration –
Electromagnetic Emissions
The model TMT-4391-08 is intended for use in an
electromagnetic environment as specified below. The
customer or the user of the TMT-4391-08 should assure
that it is used in such an environment.
Emissions Test
Compliance
Electromagnetic
Environmental
Guidance
The model
TMT
-4391-08 uses
RF
RF emissions
energy only for its
internal func-
Group 1
tion. Therefore, its RF
emissions
CISPR 11
are very low and are
not likely to
cause any
interference in nearby
electronic equipment.
RF emissions
Class B
The model
TMT
-4391-08 is
suitable
CISPR 11
for use in all
establishments,
Harmonic
emissions
Class A
including domestic
establishments
IEC 61000-3-2
and those directly
connected to
the public low-voltage
power sup-
Voltage
fluctuations/
ply network that
supplies buildings
flicker emissions
Not applicable
used for domestic
purposes.
IEC 61000-3-3

Recommended Separation Distances Between
Portable and Mobile RF Communications Equipment
and the TMT-4391-08
TMT-4391-08 is intended for use in an electromagnetic
environment in which radiated RF disturbances are
controlled. The customer or the user of the model
TMT-4391-08 can help prevent electromagnetic
interference by maintaining a minimum distance between
portable and mobile RF communications equipment
(transmitters) and the model TMT-4391-08 as
recommended below, according to the maximum output
power of the communications equipment.
Rated
Maximum
Output
Power of
Separation Distance According to
Frequency of Transmitter
Transmitter
m
W
150 kHz to
80 MHz
80 MHz to
800 MHz
800 MHz to
2,5 GHz
d = 1,2 P
d = 1,2 P
d = 2,3 P
0,01
0,12
0,12
0,23
0,1
0,38
0,38
0,73
1
1,2
1,2
2,3
10
3,8
3,8
7,3
100
12
12
23
For transmitters rated at a maximum output power not
listed above, the recommended separation distance din
meters (m) can be estimated using the equation in the
table above applicable to the frequency of the transmitter,
where Pis the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation
distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations.
Electromagnetic propagation is affected by absorption
and reflection from structures, objects and people.
Guidance and Manufacturer’s Declaration –
Electromagnetic Immunity
TMT-4391-08 is intended for use in the electromagnetic
environment specified below. The customer or the user
of the model TMT-4391-08 should assure that it is used
in such an environment.
Immunity
Test
IEC 60601
Test
Compliance
Electromagnet
ic
Environmental
Level
Level
Guidance
Electrostatic
dis-
Floors should
be wood, con-
±8 kV
contact

±8 kV
contact
crete or ceramic
tile. If floors
charge (ESD)
are covered
with synthetic
±
15 kV
air
±15 kV air
IEC
61000-4-2
material, the
relative
humidity
should be at
least 30%.
Electrical fast
±
2 kV for
power
±
2 kV for
power
supply lines
supply lines
Main power
quality should
be
transient/bur
st
that of a typical
commercial or

±1 kV for
input/out-

±1 kV for
input/
IEC
61000-4-4
hospital
environment.
put lines
output lines
±
1 kV
line(s) to
±
1 kV
line(s) to
Main power
quality should
be
Surge
line(s)
line(s)
that of a typical
commercial or
IEC
61000-4-5
±
2 kV
line(s) to
±
2 kV
line(s) to
hospital
environment.
earth
earth
<5%
UT
(>95% dip
<5% UT
(>95% dip in
in UT) for
0,5 cycle
UT) for 0,5
Main power
quality should
be
cycle
40% UT
that of a typical
commercial or
Interruptions
and
(60% dip in
UT)
40%
UT
(60%
hospital
environment. If
the
voltage varia-
for 5 cycles
dip in
U
T) for
5
user of the
model
TMT-4391-08
tions on
power
cycles
requires
continued
operation
supply input
lines
70% UT
during main
power interrup-
(30% dip in
UT)
70%
UT
(30%
tion, it is
recommended
that
IEC
61000-4-11
for 25
cycles
dip in UT) for
the model
TMT
-4391-08
be
25 cycles
powered from
an uninterrupt-

<5% UT
<5% UT
ible power
supply or a
battery.
(>95% dip
in UT)
for 5 sec
(>95% dip in
UT) for 5 sec
Power
frequency
Power
frequency
magnetic
fields should be
at levels
(50/60 Hz)
3 A/m
3 A/m
characteristic of
a typical
magnetic
field
location in a
typical commer-
IEC
61000-4-8
cial or hospital
environment.
NOTE UT is the A.C. main voltage prior to application of
the test level.
Guidance and Manufacturer’s Declaration –
Electromagnetic Immunity
The model TMT-4391-08 is intended for use in the
electromagnetic environment specified below. The
customer or the user of the model TMT-4391-08 should
assure that it is used in such an environment.
Immunity
IEC 60601
Test
Compliance
Electromagnet
ic
Environmental
test
Level
Level
Guidance
Portable and
mobile RF
communi-
cations
equipment
should be used
no closer to any
part of the
model
TMT-4391-08,
including
cables, than
the
recommended
separation dis-
tance
calculated from
the equation
applicable to
the frequency
of the
transmitter.
Recommende
d Separation
Dis-
tance
d = 1,2 P
d =
1,2 P
80 MHz to 800
MHz
Conducted
3 Vrms
RF
d = 2,3 P
800 MHz to 2,5
GHz
150 kHz
to
80
IEC
61000-4-6
MHz
Vrms
where Pis the
maximum
output
Radiated
RF
3 V/m
V/m
power rating of
the transmitter
in
watts (W)
according to the
transmit-
80 MHz to
2,5
IEC
61000-4-3
ter
manufacturer
and dis the rec-
GHz
ommended
separation
distance in
meters (m).
Field strengths
from fixed RF
trans-
mitters, as
determined by
an elec-
tromagnetic site
survey,
a
should
be
less than the
compliance
level in
each
frequency
range.
b
Interference
may occur in the
vicin-
ity of equipment
marked with the
fol-
lowing symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency
range applies.
NOTE 2 These guidelines may not apply in all situations.
Electromagnetic propagation is affected by absorption
and reflection from structures, objects and people.

aField strengths from fixed transmitters, such as base
stations for radio (cellular/cordless)
telephones and land mobile radios, amateur radio, AM
and FM radio broadcast and TV broadcast cannot be
predicted theoretically with accuracy. To assess the
electromagnetic environment due to fixed RF
transmitters, an electromagnetic site survey should be
considered. If the measured field strength in the location
in which the TMT-4391-08 is used exceeds the
applicable RF compliance level above, the TMT-4391-08
should be observed to verify normal operation. If
abnormal performance is observed, additional measures
may be necessary, such as reorienting or relocating the
unit.
bOver the frequency range 150 kHz to 80 MHz, field
strengths should be less than 3 V/m.
Battery Caution
CAUTION!
Danger of explosion if battery is incorrectly replaced.
Replace only with the same type recommended by the
manufacturer, discard used batteries according to the
manufacturer's instructions.
Attention: Danger d'explosion si la batterie est
inexactement remplacée. Remplacez seulement avec la
même chose ou le type recommandé par le fabricant,
jettent les batteries utilisées instructions de s selon
fabricant des'.
Mistreat the battery used in this device may present a
risk of fire or chemical burn.
Do not attempt to disassemble the computer or its
accessories.
Only qualified personal is allowed to replace the battery.
Do not dispose batteries in a fire and check with local
authorities for disposal instructions.
TMT-4391-08 can only be equipped with standard
battery pack with Getac, AIM-BAT-8, 4900mAH Polymer
Lithium Ion Battery. Use of another battery may present
a risk of fire or explosion.
Battery Charge Notice
It is important to consider the environment temperature
whenever you are charging the Lithium-Ion battery pack.
The process is more efficient at normal room
temperature or slightly cooler. It is essential that you
charge batteries within the stated range of 0°C to 40°C.
Charging batteries outside of the specified range could
damage the batteries and shorten their charging life
cycle.
Storage and Safety Notice
Although charge Lithium-Ion batteries may be left
unused for several months, their capacity may be
depleted due to the buildup of internal resistance. If this
happens they will require recharging prior to use. Lithium
Ion batteries may be stored at temperatures between
-20°C to 60°C, however they may be depleted more
rapidly at the high end of this range. It is recommended
to store TMT-4391-08 within normal room temperature
ranges.
Warnings, Cautions and Notes
A WARNING statement provides important information
about a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Une déclaration d'AVERTISSEMENT fournit des
informations importantes sur une situation
potentiellement dangereuse qui, si elle n'est pas évitée,
pourrait entraîner la mort ou des blessures graves.
A CAUTION statement provides important information
about a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury to the
user or patient or in damage to the equipment or other
property.
Une déclaration de MISE EN GARDE fournit des
informations importantes sur une situation
potentiellement dangereuse qui, si elle n'est pas évitée,
peut entraîner des blessures mineures ou modérées
pour l'utilisateur ou le patient ou endommager
l'équipement ou d'autres biens.
A NOTE provides additional information intended to
avoid inconveniences.
Caution!
Warning!
Avertissement!
Attention!

Safety Instructions
1. Strictly follow these instructions for use; please read
these safety instructions carefully.
2. Keep this user manual for later reference; any use of
the product requires full understanding and strict
observation of all portions of these instructions.
Observe all.
3. Repair of the device may also only be carried out by
trained service personnel.
4. Teguar recommends that a service contract be
obtained with Teguar Service and that all repairs also
be carried out by them. Otherwise the correct
functioning of the device may be compromised.
Because of the danger of electric shock,
never remove the box of a device while
it is in operation or connected to a
power outlet.
En raison du risque d'électrocution, ne
retirez jamais la boîte d'un appareil
lorsqu'il est en fonctionnement ou
branché à une prise de courant.
5. If one of the following situations arises, get the
equipment checked by service personnel:
The power cord or plug is damaged.
Liquid has penetrated into the equipment.
The equipment has been exposed to moisture.
The equipment does not work well, or you cannot get it
to work according to the user manual.
The equipment has been dropped and damaged.
The equipment has obvious signs of breakage.
6. Disconnect this equipment from any AC outlet before
cleaning. Use a damp cloth. Do not use liquid or spray
detergents for cleaning and keep this equipment
away from humidity.
To avoid short-circuits and otherwise
damaging the device, do not allow
fluids to come in contact with the device.
If fluids are accidentally spilled on the
equipment, remove the affected unit
from service as soon as possible and
contact service personnel to verify that
patient safety is not compromised.
Pour éviter les courts-circuits et
endommager l'appareil, ne laissez pas
les liquides entrer en contact avec
l'appareil. Si des liquides sont
accidentellement répandus sur
l'équipement, retirez l'unité concernée
du service dès que possible et
contactez le personnel de service pour
vérifier que la sécurité du patient n'est
pas compromise.
7. Put this equipment on a reliable surface during
installation. Dropping it or letting it fall may cause
damage. For plug-in equipment, the power outlet
socket must be located near the equipment and must
be easily accessible.
Do not leave this equipment in an
uncontrolled environment where the
Storage temperature is below 0° C or
above 45° C. This may damage the
equipment.
Ne laissez pas cet équipement dans un
environnement non contrôlé où la
température de stockage est inférieure
à 0 ° C ou supérieure à 45 ° C. Ceci
pourrait endommager l'équipement.
8. Grounding reliability can only be achieved when the
equipment is connected to an equivalent receptacle
marked “Hospital Only” or “Hospital Grade”.
9. Use a power cord that matches the voltage of the
power outlet, which has been approved and complies
with the safety standard of your particular country.
10. If the integrity of the protective earth conductor is in
doubt. Please turn off the power switch.
11. To disconnect this product from the mains supply
disconnects the mains plug from the socket outlet. The
power supply is regarded as part of this equipment.
12. Make sure user not to contact SIP/SOPs and the
patient at the same time.
13. Do not switch on/off the power switch of the battery
system during operation.
To avoid risk of electric shock, this
equipment must only be connected to a
supply mains with protective earth.
Pour éviter tout risque d'électrocution,
cet équipement doit uniquement être
raccordé à une alimentation secteur
avec terre de protection.
No modification of this equipment is
allowed.
Aucune modification de cet équipement
n'est autorisée.
14. The power cord for use on the device shall be no less
robust than ordinary tough rubber sheathed flexible
cord (IEC 60245-1:2003, Annex A, designation 53) or
ordinary polyvinyl chloride sheathed flexible cord
(IEC 60227-1:1993, Annex A, design. 53. For the
US/CA the requirements of the NEC and Canadian
code shall be followed (US and CA national
differences).
Warning!
Warning!
Warning!
Caution!
Caution!
Avertissement!
Attention!
Attention!
Avertissement!
Avertissement!

Battery system, equipotential pin, metal
wiring on equipotential pin, wheels and
brake shall be replaced/send back to
maintain by the manufacturer every two
years, risks of function failure, electrical
shock, equipment damage,
environment pollution and etc. may
occur if not doing so.
Le système de batterie, la broche
équipotentielle, le câblage métallique
sur la broche équipotentielle, les roues
et le frein doivent être remplacés /
renvoyés par le fabricant tous les deux
ans, les risques de défaillance de
fonctionnement, les chocs électriques,
les dommages matériels, etc. Ce
faisant.
15. If your computer clock is unable to keep accurate
time or the BIOS configuration resets to default,
please check the battery.
When the battery has problem of
charging. Please contact a qualified
technician or your retailer.
The computer is provided with a
battery-powered real-time clock circuit.
There is a danger of explosion if battery
is incorrectly replaced. Replace only
with same or equivalent type
recommended by the manufacturer.
Discard used batteries according to the
manufacturer's instructions.
Lorsque la batterie a un problème de
charge. Veuillez contacter un
technicien qualifié ou votre revendeur.
L'ordinateur est équipé d'un circuit
d'horloge en temps réel alimenté par
batterie.
Il y a un risque d'explosion si la batterie
est incorrectement remplacée.
Remplacez uniquement par le même
type ou un type équivalent
recommandé par le fabricant.
Jetez les piles usagées conformément
aux instructions du fabricant.
When servicing the device, always use
replacement parts that meet Teguar
standards. Teguar Medical cannot
warrant or endorse the safe
performance of third-party replacement
parts for use with our medical device.
Lors de la maintenance de l'appareil,
utilisez toujours des pièces de
rechange conformes aux normes
Teguar. Teguar Medical ne peut pas
garantir ou endosser les performances
sécuritaires des pièces de rechange
tierces à utiliser avec notre dispositif
médical.
16. Make sure the user does not allow contact between
SIP/SOPs and the patient at the same time.
17. When networking with electrical devices, the operator
is responsible for ensuring that the resulting system
meets the requirements set forth by the following
standards:
– EN 60601-1 (IEC 60601-1)
Medical electrical equipment
Part 1: General requirements for safety
– EN 60601-1-2 (IEC 60601-1-2)
Medical electrical equipment
Part 1-2: General requirements for safety
Collateral standard: Electromagnetic compatibility;
Requirements and tests
18. Accessory equipment connected to analog and
digital interfaces must be in compliance with the
respective nationally harmonized IEC standards (i.e.
IEC 60950 for data processing equipment, IEC 60065
for video equipment, IEC 61010-1 for laboratory
equipment, and IEC 60601-1 for medical equipment.)
Furthermore all configurations shall comply with the
system standard IEC 60601-1- 1. Anyone who
connects additional equipment to the signal input part
or signal output part is configuring a medical system,
and is therefore, responsible that the system
complies with the requirements of the system
standard IEC 60601-1-1. The unit is for exclusive
interconnection with IEC 60601-1 certified equipment
in the patient environment and IEC 60XXX certified
equipment out-side of the patient environment. If in
doubt, consult the technical services department or
your local representative.
19. Grounding reliability can only be achieved when the
equipment is connected to an equivalent receptacle
marked "Hospital Only" or "Hospital Grade".
20. Use a power cord that matches the voltage of the
power outlet, which has been approved and complies
with the safety standard of your particular country.
Environmental protection.
Follow national requirements to
dispose of unit.
21. “WARNING - Do not modify this equipment without
authorization of the manufacturer.”
22. “WARNING – To avoid risk of electric shock, this
equipment must only be connected to a supply mains
with protective earth.
23. “CAUTION: This adapter PHIHONG / MM18M-59A is
a forming part of the medical device.”
24. Remove the power cord to fully turn off the device
when the battery pack is empty.
25. Classification:
1). Class I
2). No applied part
3). Continuous Operation
Warning!
Caution!
Caution!
Avertissement!
Attention!
Attention!

Explanation of Graphical
Symbols
IEC 60878 and ISO 3864-B.3.6 :
Warning dangerous voltage.
ISO 7000-0434 : Caution, consult
ACCOMPANYING DOCUMENTS.
ISO 7000-1641 : Follow operating
instructions or consult instructions for
use.
IEC 60417-5009 : STAND-BY.
IEC 60417-5032 : Alternating Current.
IEC 60417-5031 : Direct Current.
ISO 7010-M002 : Follow instructions for
us.
Specifications
Cleaning and Disinfecting
During normal use of the TMT-4391-08 tablet the device
may become dirty and should be regularly cleaned.
Steps:
1. Prepare cleaning water.
2. Wipe the TMT-4391-08 tablet with a clean cloth that
has been moistened in the pure water
3. Wipe thoroughly with a clean cloth.
Do not immerse or rinse the TMT-4391-08 tablet or its
peripherals. If you accidentally spill liquid on the device,
disconnect the unit from the power source. Contact your
IT support department regarding the continued safety of
the unit before placing it back in operation-Do not spray
cleaning agent on the chassis.
Do not use disinfectants that contain phenol.
Do not autoclave or clean the POC or its peripherals with
strong aromatic, chlorinated, ketone, ether, or ether
solvents, sharp tools or abrasives. Never immerse
electrical connectors in water or other liquids.
Operating Principle
The device provides input through touch panel, hard
keys located at the bottom of it, accessories through
USB ports or its LAN/WLAN connections. The device
computes the input data with its processing unit and then
output the generated data to LCD panel, accessories or
other devices through its I/O ports or through its
LAN/WLAN connections. The device is able to store data
in its storage, and when the device is turned off, still
maintain the data in the memory units of the storage.
Caution!
Attention!

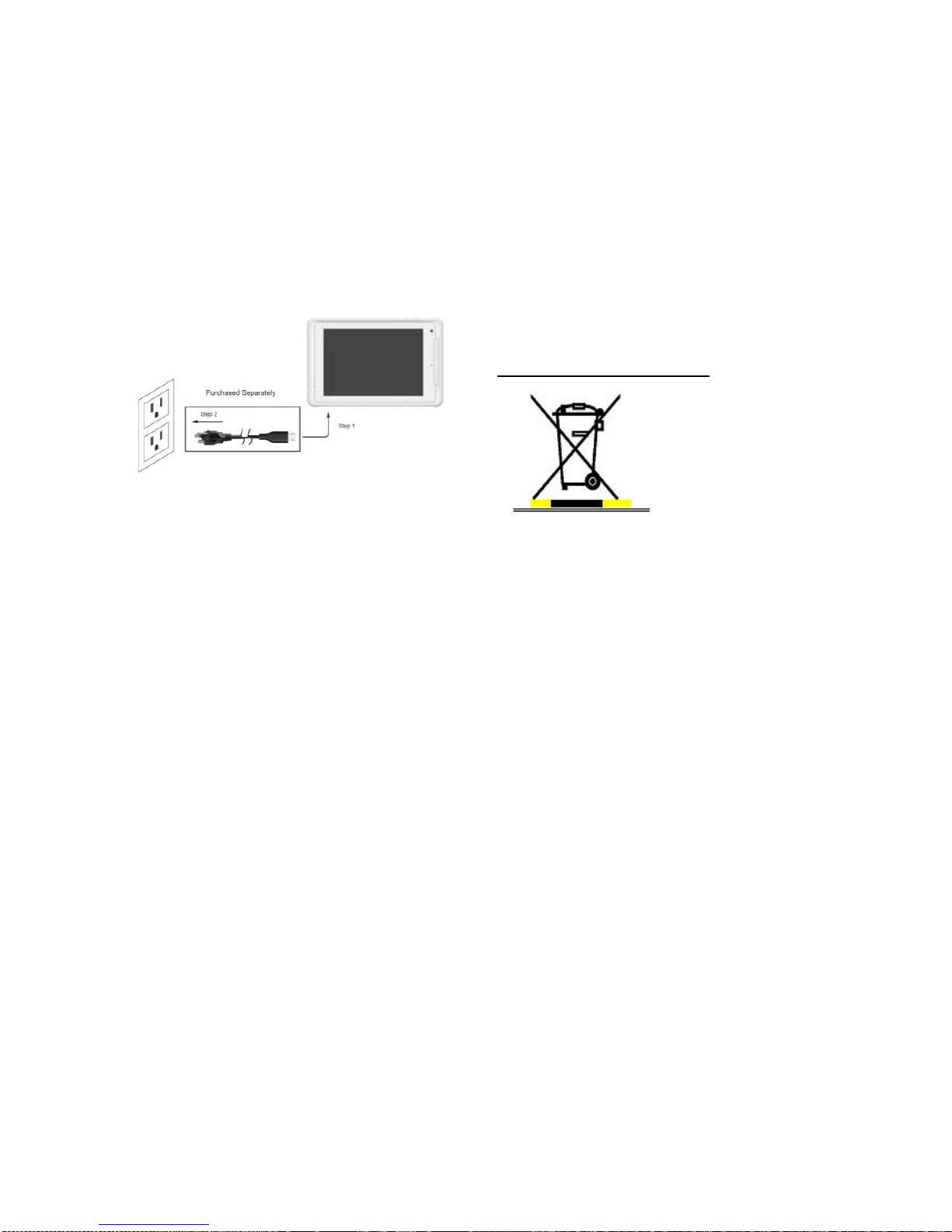

Connecting the Power Cord
The TMT-4391-08 tablet can be powered by AC in. Be
sure to always handle the power cords by holding the
plug ends only.
Follow these procedures in order:
1. Connect the female end (Micro USB side) of the power
adapter to TMT-4391-08 tablet product micro USB
connector. (Step 1)
2. Connect the 3 pin male plug of the power cord to an
electrical outlet. (Step 2)
Intended User Profile
Age: 18 to 65
Weight: not relevant
Health: not relevant
Nationality: Global
Patient state: patient will not be the operator.
Part of the body or type of tissue applied to or interacted
with: hands and fingers, expected contact time shall be
less than 1 min.
Education level: at least 8 years intensive reading
experience (school)
Knowledge:
Minimum – read and understand “westernized Arabic”
numerals when written in Arial font
–can distinguish: every parts of body as described in
user manual
–trained and authorized by manufacturer only.
To be considered as trained and authorized, they must
complete the training course of the manufacturer; see
document number TMT-4391-08_User Manual_Rev
3.0 for qualification method, when considered
necessary by the manufacturer, technician shall be
called back for retraining and annual training is also
considered necessary.
Language understanding: English, whenever other
languages are required, professional translation
company shall translate and review by the
manufacturer, see SOP document number:
SOP_Writing_Guidelines-ed.3
Experience: Mentally and physical competent, specific
medical training to understand basic knowledge for
symbols.
Permissible impairments:
–Mild reading vision impairment or vision corrected to
log MAR 0,2 (6/10 or
20/32)
–One arm / hand system capable of guiding and
holding device
–Average degree of aging-related short term memory
impairment
–impaired by 40 % resulting in 60 % of normal hearing
at 500 Hz to 2 kHz
Disposing of Old Products
Within the European Union
EU-wide legislation, as
implemented in each
member state, requires that
waste electrical and
electronic products carrying
the mark shown at left must
be disposed of separately
from normal household
waste. This includes
monitors and electrical accessories, such as signal
cables or power cords. When you need to dis-pose
of your display products, please follow the guidance
of your local authority, or ask the shop where you
purchased the product, or if applicable, follow any
agreements made between you and the provider.
The mark on electrical and electronic products only
applies to the current European Union Member States.

Declaration of Conformity
CE Conformity Statement
Radio products with the CE alert marking comply with the
R&TTE Directive (1999/5/EC) issued by the Commission
of the European Community. Compliance with this
directive implies conformity to the following European
Norms (in brackets are the equivalent international
standards).
• EN 60950-1 (IEC60950-1) - Product Safety
• EN 300 328 Technical requirement for radio equipment
• ET S301 489 General EMC requirements for radio
equipment
Products that contain the radio transmitter are labeled
with CE alert marking and may also carry the CE logo.
FCC Compliance Statement
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
To assure continued compliance, any changes or
modifications not expressly approved by the party
responsible for compliance could void the user's
authority to operate this equipment. (Example: use only
shielded interface cables when connecting to computer
or peripheral devices).
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1) This device may not cause harmful interference,
and
2) This device must accept any interference received,
including interference that may cause undesired
operation.
15.21
Any changes or modifications not expressly approved by
the party responsible for compliance could void the
authority to operate equipment.
This device and its antenna must not be co-located or
operating in conjunction with any other antenna or
transmitter.
End-users and installers must be provided with antenna
installation instructions and transmitter operating
conditions for satisfying RF exposure compliance.
For product available in the USA/Canada market, only
channel 1~11 can be operated. Selection of other
channels is not possible.
FCC Radiation Exposure Statement
This equipment complies with FCC RF radiation
exposure limits set forth for an uncontrolled environment
for body-worn configuration in direct contact to the
phantom.
This device complies with FCC radiation exposure limits
set forth for an uncontrolled environment.
This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment. End user
must follow the specific operating instructions for
satisfying RF exposure compliance. This transmitter
must not be co-located or operating in conjunction with
any other antenna or transmitter.
The portable device is designed to meet the
requirements for
exposure to radio waves established by the Federal
Communications
Commission (USA). These requirements set a SAR limit
of 1.6 W/kg
averaged over one gram of tissue. The highest SAR
value reported under
this standard during product certification for use when
properly worn on the body
IC warning statement
This device complies with Industry Canada’s
license-exempt RSSs. Operation is subject to the
following two conditions: (1) This device may not cause
interference; and (2) This device must accept any
interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie
Canada applicables aux appareils radio exempts de
licence. L'exploitation est autorisée aux deux conditions
suivantes : (1) l'appareil ne doit pas produire de
brouillage, et (2) l'utilisateur de l'appareil doit accepter
tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
This radio transmitter has been approved by Industry
Canada to operate with the
antenna types listed below with the maximum
permissible gain and required
antenna impedance are strictly prohibited for use with
this device.
Le present emetteur radio a ete approuve par Industrie
Canada pour fonctionner
avec les types d'antenne enumeres ci-dessous et ayant
un gain admissible maximal
et l'impedance requise pour chaque type d'antenne. Les
types d'antenne non inclus
dans cette liste, ou dont le gain est superieur au gain
maximal indique, sont
strictement interdits pour l'exploitation de l'emetteur.
(i)the device for operation in the band 5150–5250 MHz is
only for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems; (For
devices installed in vehicles point i. is not required.)
Users should also be advised that high-power radars are
allocated as primary users (i.e. priority users) of the
bands 5250-5350 MHz and 5650-5850 MHz and that
these radars could cause interference and/or damage to

LE-LAN devices.
(i) l'appareil pour fonctionner dans la bande 5150-5250
MHz est réservé à une utilisation en intérieur afin de
réduire les risques d'interférences nuisibles à la co-canal
systèmes mobiles par satellite;
Devraient également être informés les utilisateurs que
les radars à haute puissance sont désignés comme
utilisateurs principaux (c.-à-utilisateurs prioritaires) des
bandes 5250-5350 MHz et 5650-5850 MHz et que ces
radars pourraient provoquer des interférences et / ou
endommager les appareils LE-LAN.
IC Radiation Exposure Statement
This EUT is compliance with SAR for general
population/uncontrolled exposure limits in IC RSS-102.
This equipment should be installed and operated with
minimum distance 0 cm between the radiator & your
body.
Cet EUT est la conformite avec SAR pour la population
generale / les limites d'exposition incontrolees dans IC
RSS-102. Cet equipement doit etre installe et utilise a
une distance minimale de 0 cm entre le radiateur et votre
corps.
This equipment complies with ISED radiation exposure
limits set forth for an uncontrolled environment. End user
must follow the specific operating instructions for
satisfying RF exposure compliance. This transmitter
must not be co-located or operating in conjunction with
any other antenna or transmitter.
The portable device is designed to meet the
requirements for exposure to radio waves established by
the ISED. These requirements set a SAR limit of 1.6
W/kg averaged over one gram of tissue. The highest
SAR value reported under this standard during product
certification for use when properly worn on the body.
Cet équipement est conforme aux limites d’exposition
aux rayonnements ISED établies pour un environnement
non contrôlé. L’utilisateur final doit suivre les instructions
spécifiques pour satisfaire les normes. Cet émetteur ne
doit pas être co-implanté ou fonctionner en conjonction
avec toute autre antenne ou transmetteur.
5.4 ENERGY STAR
An ENERGY STAR qualified computer delivers
substantial savings over a conventional computer.
Desktop, integrated desktop, and notebook (laptop)
computers, workstations, small-scale servers, and thin
clients are all eligible to earn the ENERGY STAR, and
those that do are now more efficient than ever.
It is an honor for Teguar to provide you such products.
What is ENERGY STAR?
ENERGY STAR is a U.S. Environmental Protection
Agency (EPA) voluntary program that helps businesses
and individuals save money and protect our climate
through superior energy efficiency.
The ENERGY STAR program was established by EPA in
1992, under the authority of the Clean Air Act Section
103(g). Section103(g) of the Clean Air Act directs the
Administrator to "conduct a basic engineering research
and technology program to develop, evaluate, and
demonstrate non–regulatory strategies and technologies
for reducing air pollution."
In 2005, Congress enacted the Energy Policy Act.
Section 131 of the Act amends Section 324 (42 USC
6294) of the Energy Policy and Conservation Act, and
"established at the Department of Energy and the
Environmental Protection Agency a voluntary program to
identify and promote energy–efficient products and
buildings in order to reduce energy consumption,
improve energy security, and reduce pollution through
voluntary labeling of or other forms of communication
about products and buildings that meet the highest
energy efficiency standards."
For more information, please visit www.energystar.gov
TMT-4391-08 is to enter display sleep mode after 4
minutes and computer sleep mode after 10 minutes in
default. To wake it from sleep mode, simply press the
power button on the back cover, while under sleep mode
it allows the device to save 80% or more energy.
Power Management System:
Lists of default power management systems
Balanced
(Default)
TMT-4391-08: Idle 4 mins. closes
screen, 10 min. enters sleep mode.
High
performance
Never idle and never enters sleep
mode.

Additional Information and
Assistance
Contact your distributor, sales representative, or Teguar's
customer service center for technical support if you need
additional assistance. Please have the following
information ready before you call:
■Product name and serial number
■Description of your peripheral attachments
■Description of your software (operating system,
version, application software, etc.)
■A complete description of the problem
■The exact wording of any error messages
■This equipment is a source of electromagnetic waves.
Before use please, make sure that there are not EMI
sensitive devices in its surrounding which may
mal-function therefore.
■Items highlighted in RED can be referenced in
separate report.
Environmental protection
■Follow national requirements to dispose of unit.
Manufacturer:
Teguar Corporation
4235 S. Stream Blvd. L-130, Charlotte, NC 28217
TEL: [phone]
Visit the Teguar website at www.Teguar.com if you need
more information.
