Teka TKS 850 C User manual

TKS 850 C
SECADORA
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUAL DE INSTRUÇÕES
ES
PT
EN

C
Contents
Safety information.....................................................................1
Installation...............................................................................5
Part description........................................................................6
Attention and advice..................................................................8
Description of controls...............................................................9
Operation instruction...............................................................10
Programme table.....................................................................11
Specialty drying function..........................................................12
Cleaning and routine maintenance............................................14
Alarm function.........................................................................15
Precautions............................................................................16
Technical specifications & Product fiche....................................17

Dry
Dry clean Do not dry clean Dry clean normal cycle
with any solvent
Normal Not tumble dry normal
Do not dry
Dry flat
Drip dry
Line dry / hang to dry In the shade
Dry care symbols
Please pay attention to use the drying machine if the materials of your clothes can not be dried by it
or contain the symbols as follows:
Safety information
To prevent any damages to your and others' life or property, you
Safety notes
!
have to follow the safety notes.
1
A
F
Dry clean normal cycle
petroleum solvent only
1.
only for drying textiles which have been washed with water in
the household. Please pay attention to the safety of power use
during the operation!
2.The power source with reliable earthing must be used. Its
earth wire must be buried under the ground and shall not be
connected with the public utilities such as city water pipe or
gas pipe etc. The earth wire and null wire shall be
distinguished and shall not be connected together.
3.The power wire shall be met national standard and must be
able to withstand the current above 16A. To ensure your and
your family’s safety, please make improvement immediately if
any power use at your home does not comply with the above-
mentioned requirements.
4.The maximum mass of dry textile material is 8 kilograms to
be used in the appliance.
This product belongs to Category I electrical appliances, and

S
Safety information
2
been used for cleaning.
6.The lint trap has to be cleaned frequently.
7.Lint must not to be allowed to accumulate around the tumble
dryer.
8.Adequate ventilation has to be provided to avoid the back
flow of gases into the room from appliance burning other
fuels, including open fires.
9.Do not dry unwashed items in the tumble dryer.
10.Items that have been soiled with substance such as cooking
oil, acetone, alcohol, petrol, kerosene, spot removers,
turpentine, waxes and wax removers should be washed in hot
water with a extra amount of detergent before being dried in
the tumble dryer.
11.Items such as foam rubber (latex form), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fitted with foam rubber pads should not be dried in
the tumble dryer.
12.Fabric softeners, or similar products, should be used as
specified by the fabric softener instructions.
13.The final part of a tumble dryer cycle occurs without heat
(cool down cycle) to ensure that the items are left at a
temperature the ensures that the items will not be damaged.
14.WARNING: never stop a tumble dryer before the end of the
drying cycle unless all items are quickly removed and
spread out so that the heat is dissipated.
15.The exhaust air must not be discharged into a flue which is
used for exhausting fumes from appliance burning gas or
other fuels.
5.The tumble dryer is not to be used if industrial chemicals have

S
Safety information
16.The appliance must not be install behind a lockable door, a
sliding door or a door with a hinge on the opposite side to
that of the tumble dryer. In such a way that a full opening of
the tumble dryer door is restricted.
17.Oil-affected items can ignite spontaneously, especially
when exposed to heat sources such as in a tumble dryer.
The items become warm, causing an oxidation reaction in
the oil. Oxidation creates heat. If the heat cannot escape,
the items can become hot enough to catch fire. Piling,
stacking or storing oil-affected items can prevent heat from
escaping and so create a fire hazard.
18.If it is unavoidable that fabrics that contain vegetable or
cooking oil or have been contaminated by hair care
products be placed in a tumble dryer they should first be
washed in hot water with extra detergent-this will reduce,
but not eliminate, the hazard.
19.The appliance should not be overturned during normal use
or maintenance.
20.Remove all objects from pockets such as lighters and
matches.
21.This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
3

S
Safety information
Correct Disposal of this product:
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collection systems
or contact the retailer where the product was
purchased. They can take this product for
environmental safe recycling.
4
22.If the power cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard.
23.This appliance is for indoor use only.
24.The openings must not be obstructed by a carpet.
25.Children of less than 3 years should be kept away unless
continuously supervised.
26.Keep pets away from this appliance.
27.If the appliance appear high temperature abnormally ,
please draw the mail plug immediately.

5
5
Safety information
Please do not dry the clothes with some flammable substances such
Explosion danger
Injury danger
Damage danger
Electric shock hazard
1.
2.Please do not plug/draw the mains plug with wet hands.
3.Do not damage the power cord and the power plug.
Do not draw the power cord forcefully to pull out the mains plug.
1.
supervision.
2.Do not stack this dryer on washing machine without stacking
kits.(if want stacking on washing machine ,please purchase the
Independent parts and it must be installed by the manufacturer,
its service agent or similarly qualified persons in order to avoid
a hazard.)
3.Do not lean on the opened door of the dryer.
4.Do not put any pyrotoxin on the dryer, such as the candle,
electric cooker.
Do not disassemble and install the dryer under no instruction or
1.
2.Do not operate the dryer without the lint filter.
3.Do not dry the clothes before being spun.
4.Do not expose the dryer directly under the sun, and indoor use
only.
5.Do not install the dryer in the humid and drenching environment.
6.At the cleaning and maintenance, please do remember to pull
out the power plug and do not directly wash the dryer with water.
Do not dry over the rated capacity.
as the coal oil, alcohol or there will be the explosion.

6
6
Installation position
1.Please install the dryer on solid and flat ground.
2.Please do not place the dryer on the slope, soft carpet or wooden floor.
3.Please do not install the dryer outdoors, to prevent the dryer from being frozen to damage of
machine parts.
Installation
Level adjusting
If the floor is obviously uneven, it needs to be adjusted.
It vibrates the machine, causing machine to move from its position.
Using tools to adjust the height of four machine legs to
adjust the levelness of this dryer.
Power supply connection
1.Make sure that the voltage of the power supply is the same as the electric specification of the dryer.
2.Please do not connect it with the power connection board, the universal plug or socket.
Transport
M
as the handle for delivery.
ove cautiously. Do not grasp any salient parts of machine. The machine door can not be used

7
7

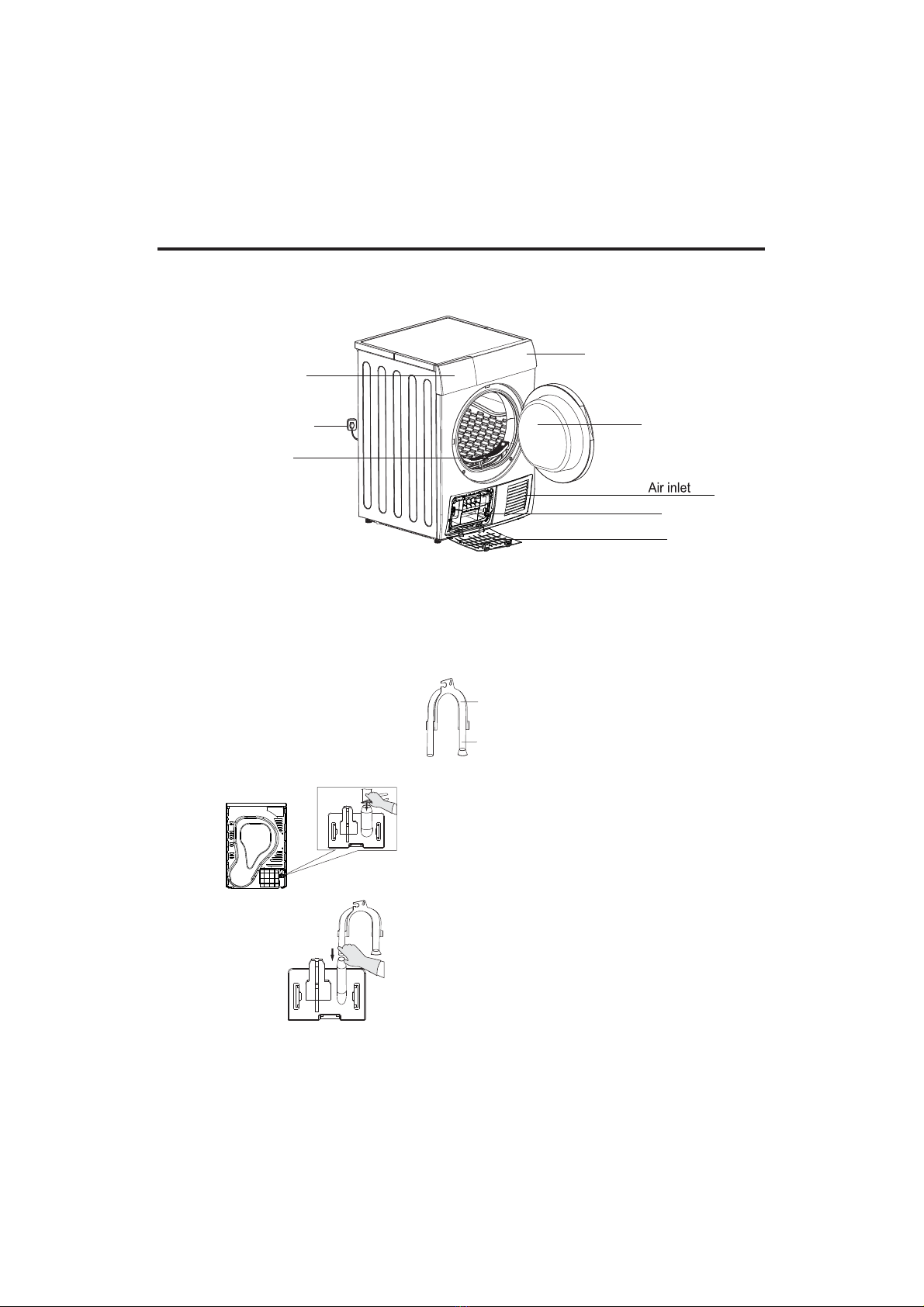

Part description
Part description
Container
Control Panel
Door
Lint filter
Power Cord
Accessories
The following parts are optional for specific models.
If your dryer has following parts, please wear gloves and them
instruction below .
install following the
Hose holder(optional)
Condensing drain
hose(optional)
Step 1: removing the drain hose from the
hose connector using plier.
Step 2: insert the external drainage hose.
Installation step:
Handle
Maintenance flap

Quick start
8
8
Part description
Max.120cm
200cm
2 Close the machine door
7. Take out the laundry when finished
6. Press the 【Start/Pause】button
8. Clean the lint filter
3 Plug the power cord
10.Unplug the power cord
9.Press the 【On/Off】button
1. Open the door and
load the laundry
4.Press the 【On/Off】button
and empty container
5.Select the desired programme
Step 3: put the hose holder on the washing basin or any other sink.

9
9
Before the first cycle, the dust and grease may remain in this dryer during the
transportation, to avoid contaminating your clothes,period of manufacture and
a)Put some clean rags into the drum.
b)Plug the power.
c)Press “On/Off” button, select the “Quick”programme, and press “Start/Pause” button.
d)After finishing this programme, please follow the “cleaning and routine
maintenance” to clean the lint filter and air condenser on page 15.
1．Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce the
drying time and save energy consumption.
2．For uniform drying result, sort the laundry according to fabric type and drying programme.
3．Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
4．Do not over dry the clothes, because over dried clothes can easily get creases or shrinkage.
5．Do not dry the articles containing rubber or similar elastic materials such as raincoats, bicycle
covers and feather products.
6．The door can be opened only after the programme of the drying machine is completed. Do not
open the door before the programme finished, as the skin may be scalded by steam or hot
surface.
7．Clean the lint filter and empty container after each use to avoid extension of drying time and
Attention & Advice
9. The weight references as follows:
Blended Coats
(about 800g)
Jackets (about
800g in cotton)
Towel Quilts
(about 900g
in cotton)
Shirts (about
300g in cotton)
Work Clothes
(upper and lower)
(about 1120g in
cotton)
Underpants
(about 70g in
cotton)
Undershirts
(about 180g in
cotton)
Single Sheets
(about 600g in
cotton)
Jeans Trousers
(about 800g)
Pajamas
(about 200g)
Socks (about 30g in
blended material)
energy consumption.
Attention
8．Do not dry these clothes after dry-clean process.
please follow these steps:
Advice
!

12345

1
11
Operation instruction
Programme end
Select the programme
1.The drum will stop running after the programme ends, the display will show " ", the
last cycle phase status light will flash. The dryer will start Anti-crease
if user doesn’t remove the load in 1 minute (refer to page 14). Please press
key to cut off power and pull the plug out.
2.Deal with the problem accroding to “Malfunction display and solutions , if there is a
unexpected stop during the drying procedure and the dryer show information(refer to
page 16 ).
【】 function
【On/Off】
”
The drum will keep rotating after the programme start, the state light in the display area will flash in
sequence, the remaining time displayed will change automatically.
Programme start
1.Press the【On/Off 】 button ,when the LED display screen brighten up, rotate the programme
knob to select the desired programme.
2.Select the【Delay】,【Time】,【Intensity】,【Speed Dry】,【Signal】or【Anti-Crease】
functions for additional option.
3.Press the【Start/Pause】button.

P
Programme table
12
Note:1. This symbol means the energy efficiency test programme “standard cotton programme”, which is most suitable to dry normal cotton load at rated load capacity
2.The programmes above are only recommended for using, users can choose the appropriate programme according to the personal habits. Thick and multi-layered
fabrics,e.g. bedlinen, jeans, jackets etc, are not easy to dry, you'd better choose Jeans programme and maximum drying intensity level..
YN
YN
YN YN
YN YY
Iron
For non-iron washing made of synthetic and blended fabrics,cotton.
For cottons and coloureds made of cotton or linen.
Standard Standard
Synthetics
Shirts
Jean Mix
Extra Sports Iron
My Cycle
3.5kg 8.0kg
Cotton
Extra
(max)
Weight
Special
Programme
3.0kg 8.0kg 3.5kg
Define and save your favorite programme.
Warm
Time To warm clothes from minimum 10 min. to maximum 120 min.(in 10 min. steps).
To dry thin synthetic fabrics which are not ironed, such as easy care shirts, table linen, baby clothes, socks. To dry thick or multi-layered synthetic fabrics. Drying level: extra dry. To dry cotton pieces of clothing. Drying level: applicable to iron. To dry cotton pieces of clothing. Drying level: cupboard dry. To dry cotton pieces of clothing. Drying level: extra dry.
Application/Properties
To dry thin synthetic fabrics which are also to be ironed, such as knitwear, shirts.
3.0kg
Quick For washing which is to be dried quickly,eg,made of acrylic fibres or for individual small items. Also for
subsequent drying.
Baby Care To dry the clothes of the baby.
Cool Refresh 1.0kg
To air clothes without blowing hot air from minimum 10 min. to maximum 30 min.(in 10 min. steps). To dry jeans or leisure clothes that are spun at high speeds in the washing machine. If you can not determine what the clothing's material is, please choose Mix. To dry sportswear, thin fabrics, polyester,which are not ironed. For easy care clothes such shirts and blouses with anti-crease mechanism for minimum ironing effort.
Place clothes loosely in the dryer. Once dried, hang it on a clothes hange
maximum 150 min.(in 10 min. steps). To refresh the clothes that have been kept at closed environments for a long time from minimum 20 min. to
Delay Time
1.0kg
Quick YN
Baby Care
My Cycle Y
1.0kg

Specialty drying function
Specialty drying function
1
13
When the warm or cool or refresh programme is selected, the 【Time】 button can be used to adjust the
Used to adjust the dryness level of the laundry. The level has four grades .
The drying time increases 3 minutes in every grade.
2. Instruction of the Time function【】
drying time in 10 min. steps.
4. Instruction of the function【My Cycle】
Used to define and save your favorite proragmmes that are used frequently.
(1).Use the programme selector to select the required programme and other drying functions.
(2).Press and hold the 【Intensity】 button for 3 seconds until the display flashing and the required
(3).Except the 【Cotton Iron】【Qucik】【Synthetic Iron】 【Baby Care】【Warm】【Cool】【Refresh】,
(2).Press the 【Intensity】 button repeatedly to select the drying time.
(1).The intensity function can be activated only before the programme start.
(3).Turn the programme selector to the 【My Cycle】 position, you can start your favorite proragmmes.
1. Instruction to the drying procedure【Delay】
Steps in details
(1).Load your laundry and make sure the machine door is closed.
(2).Press the 【On/Off】button,then to turn the programme selector knob and select a desired
(3).You can select the 【Anti-Crease or 【Signal】functions according to your 】need.
(4).To press the 【Delay】 key.
(5).Continue to press the 【Delay】to select the delay time.
(6).After the 【Start/Pause】 is pushed, the dryer is at the run condition. button The drying procedure
will be automatically performed when the delay time is over.
(7).If you push the【Start/Pause】button again, the delay function will be paused.
(8).If you want to cancel the “Delay” function, please press the 【On/Off】button.
programme.
3. Instruction of the Intensity function【】
all the other programmes can be setted the 【Intensity】 function.
programme has been saved.
If you want to change the 【My Cycle】 settings, repeat the steps (1) and (2).
To delay the drying programme from 0 hour to 24 hours. The delay time means the programme
will start after x hours. When the delay programme starts, the time starts to decrease on the
display and the icon blinks.

1
14
Special drying function
(1).This machine incorporates a special child safety lock, which can prevent children from carelessly
(2).When the dryer is at the operation state, press the【】and Anti-Crease 【Signal】buttons at the
same time for over 3 seconds to start child lock function. When child lock function is set, the display
8. Instruction of the Child Lock feature【】
pressing keys or making the faulty operation.
time for over 3 seconds to release the child lock function.
start state of the child lock, the【Anti-Crease】and 【Signal】buttons shall be pressed at the same
will show “ ” icon and no key can effect to the dryer except 【On/Off】button. Under the
7. Instruction of the Anti-Crease function【】
At the end of the drying cycle,the anti-crease operation time is 30 minutes (default ) or 120 minutes (selected).
The 【Anti-Crease】 light shall illuminate when the anti-crease function is selected. This function
prevents the laundry from creases. The laundry can be removed during the anti-crease phase. Except
【Cool】,【Refresh】and 【Baby Care】, all the other programmes have this function.
5. Instruction of the 【Speed dry】
Used to curtail the time of drying.
6. Signal【】
Set up the buzzer on or off. In the general condition, the buzzer is on. Please press it if needed.
When the buzzer on:
(1) The dryer will give the leading sound if press the extra function buttons.
(2) If the dryer is running, rotate the function choosing knob, the dryer will remind the operator
it is an invalid choose.
(3) When the drying programme is end, the buzzer will also remind the user.

Cleaning and routine maintenance
1
15
-Leave the dryer to cool down.
-Residual water may escape, place an absorbent
cloth under the maintenance flap.
1.Clean with water only; do not use hard/sharp-edged objects!
Do not operate the dryer without the air condenser!
Clean the lint filter
of drying time and consumption; therefore, the scrap thread filter shall be cleaned after each use.
1.The lint filter accumulated on the filter will block the air circulation, which will cause the extension
2.Do disconnect the power cord before cleaning!
3.Do not operate the dryer without the lint filter !
4.Clean the lint filter after each use to prevent lint accumulation inside the dryer.
NOTE!
Wash air condenser
2.During drying, water may and the seal, collect between the window
but this does not affect the function of your dryer!
!
1.Unlock the maintenance flap.
2.Completely open maintenace flap.
3.Screw both locking levers towardas each other.
4.Pool out the air condenser.
Do not damage the air condenser!
5.Clean the air condenser completely, drain thoroughly.
6.Clean the seals.
7.Re-insert the air condenser, handle at the button!
8.Unscrew both locking levers.
9.Cloth the maintenance flap until it locks into position.
Please clean the air condenser approx, once every 3
Leave the dryer to cool down
1.Open the machine door.
2.Take out the lint filter, pull upward to take it out.
3.Clean the lint filter; wipe off the scrap threads
accumulated on the lint filter, with your hand or
rinse with water and dry thoroughly.
4.Reinstall the lint filter.
months if frequently used.

Cleaning and routine maintenance & Alarm function
Alarm function
1
16
Empty the water container
WARNING:
!
1.Hold and pull out the water container with two hands.
2.Tilt the water container, pour out the condensed water.
3.Insert the water container.
1.Empty the water container after each use, the programme will be paused and the “ ” icon
will flash if the water container is full during the drying process. After the container emptyed,
the dryer can be restarted by pressing 【Start/Pause】 button.
2.Do not drink the condensed water.
3.Do not use the dryer without the water container.
“”E32
“”E33
Empty container
Dispiay Reason Solutions
Container is full
Water pump failure or water
level sensor failure P lease contact your
local service center
if the problem
persists
Humidity sensor failure
Temperature sensor failure
Filter is plug up or
environment temperature
is too high P lease contact your
local service center
if the problem
persists
C lean filter and
confirm the
ambient temperature
“ ”is flashing
“ ”is flashing
“”E30 Heater failure

Precautions
Precautions
1
17
Only authorised technicans can carry out repairs.
Before you call customer service,
you have follow the user instructions.
A technician will charge you for advice, even during the warranty period.
please check if you have deal with the faulty by yourself or if
•Clean lint filter and wash condenser.
•Empty container.
•Check water outlet.
•Dryer installation too restricted.
•Clean the moisture sensors.
•Use next higher drying programme or using Timer
programme.
• “ ”is flashing
•“ ”is flashing
•Check the clothes is over load .
Problem Solution
•Display does not come on
•The mains plug is inserted.
•Check the programme selected.
•Check fuse in the house.
•Empty condensation container.
•If failure, check hose for condensation outlet.
•Clean air cooler.
•Clear lint filter.
•Dryer does not start
•Check the has selected
•Check the the door has closed.
•Check the programme has set.
start button .
•Water is running out •Align dryer horizontally.
•Clear air condenser and door seals.
•Door is open by itself •Press door until it “clicks”into position.
•Degree of dryness was
reached or drying time too
long
not
•Humidity in the room is
increase significantly
•Ventilate room adequately.
•Clean the cool grille.
•Ensure that the air condenser has been inserted.
If you cannot deal with the fault by yourself and need help:
1.Press the 【On/Off】button.
2.Pull out the mains plug and call the service.
!
!

Technical specification & Product fiche
1
18
Specification
Overall Size
Net Weight
Rated Drying Capacity
Ambient temperature
595×615×845(mm)
42kg
8.0kg
Power supply 220-240V~ 50Hz
Rated input Power 2700W
Brand:
Model:
Rated capacity: 8kg
Dryer Type: Condenser
Energy efficiency class: B
Energy consumption 561.0kWh per year, based on 160 drying cycles of the standard cotton
programme at full and partial load, and the consumption of the low-power modes. Actual energy
consumption per cycle will depend on how the appliance is used.
Automatic or non-automatic:Automatic
EU Ecolabel: N/A
Energy consumption of the standard cotton programme at full load: 4.74 kWh
Energy consumption of the standard cotton programme at partial load: 2.56 kWh
Power consumption of the off-mode (Po): 0.28 W
Power consumption of the left-on mode (Pl): 0.8 W
Duration of the left-on mode: 10 min
The
' standard cotton programme' used at full and partial load is the standard drying
programme to which the information in the label and the fiche relates, that this programme
is suitable for drying normal wet cotton laundry and that it is the most efficient programme
in terms of energy consumption for cotton.
Weighted programme time of the standard cotton programme at full and partial load: 112 min
Programme time of the standard cotton programme at full load: 140 min
Programme time of the standard cotton programme at partial load: 90 min
Condensation efficiency class B on a scale from G (least efficient) to A (most efficient).
Average condensation efficiency of the standard cotton programme at full load: 80.1%
Average condensation efficiency of the standard cotton programme at partial load: 80.1%
Weighted condensation efficiency for the standard cotton programme at full and partial load: 80.1%
Sound power level for the standard cotton programme at full load: 69dB
Teka
TKS 850 C
Product fiche
Note:
1.The rated capacity is the maximum capacity, make sure that
the dry clothes which are loaded to the appliance do not
exceed the rated capacity each time.
2.Do not install the tumble dryer in a room when there is a risk of frost
occurring. At temperatures around freezing point the tumble dryer may
not be able to operate properly.
3.There is a risk of damage if the condensed water is allowed to freeze in
the pump, hoses and / or condensed water container.
+5c +35c
。~。
