TEKCELEO P&S-T45-MXX User manual
1
Electronic sprayer kit P&S-T45-MXX NEBx01 IHM
P&S-T45 Thank you for trusting Tekceleo and buying this Electronic sprayer system.
Please follow the instructions below before using the Kit Plug&Spray-T45-MXX NEBx01 IHM
MICRONICE TECHNOLOGY
P&S-T45
Plug&Spray Integrated tank
Nebulization kit
P&S-T45
Plug&Spray Integrated tank
www.tekceleo.fr
1047, route des Dolines –Business Pole –06560 Sophia Antipolis
Electronic sprayer Values
Spray head 04 Microns
H-T45-M04
Flow rate : 1,2 ml/min +/
- 0,2 ml/min
Drop diameter : 4
μm +/-1 μm
Spray head 08 Microns
H-T45-M08
Flow rate : 2 ml/min +/
- 0,3 ml/min
Drop diameter : 8
μm +/-2 μm
Spray head 12 Microns
H
-T45-M12 and HG-T45-M12
Flow rate : 3,5 ml/min +/
- 0,5 ml/min
Drop diameter : 12
μm +/-3 μm
Spray head 40 Microns
HG-T45-M40
Flow rate : 40 ml/min +/
- 2 ml/min
Drop diameter : 40
μm +/-3 μm
3
Electronic sprayer Characteristics
Electronic Control Unit Characteristics
Characteristics Values
Supply voltage
Current
consumption/sprayer
12VDC
90 mA < I < 160 mA
Nebulization On
Blue Led On
Nebulization Off
Blue Led Off
Time response
Time response < 1.5
ms
Cable length
Any cable length change made by the
client will impact the ECU operation
60 cm
If you need a
different
cable length,
please
contact us
Dimensions in mm (
LxWxH)
120x66,5x32,5 mm
Reference liquid :
Functioning validated with Saline solution NaCl 0,9%
For any other liquid performances may vary.
Ambient conditions:
Functioning: -20°C to 80°C
Storage and transportation: -20°C to +80°C
Water nebulization tips :
If you need to nebulize water , please use Saline solution NaCl 0,9%
to guarantee performance and avoid clogging the electronic sprayer.
Avoid the use of tap water ,distilled water, demineralized water or
deionized water.
P&S-T45
Plug&Spray Integrated tank
www.tekceleo.fr
1047, route des Dolines –Business Pole –06560 Sophia Antipolis
Instructions
:
1.
Unscrew the cap located on the nebulizer's integrated tank
2.
Fill in the integrated tank with the liquid you want to nebulize
3.
Screw the cap and make sure it is hermetically sealed
4.
Make sure the maximum tilt for the aerosol head is 45°
➢
For the electronic assembly please make sur to plug the 12V adapter to the 12Vin of the IHM P&S MXX at the very end :
1. Connect the IHM P&S MXX to the ECU NEBx01 ( BNC-BNC-12Vout-12V)
2. Connect the H-T45 electronic sprayer to the ECU NEBx01 via the mini XLR connector
3. Connect the IHM P&S MXX to the power supply (12V adapter-
12Vin) and then follow the instructions on the IHM P&S MXX : Quick Start Guide
Note:
➢
If you need to change HIM interface to adapt to your application, do not hesitate to contact us.
➢
If necessary , see page 5 for instructions on how to control the ECU via the BNC connector without the Control Box.
➢
A drop may appear on the membrane when the nebulization stops and the tank is not completely empty. In that case, you just need to dry it carefully.
4
Instructions to set up the P&S T45
12V Power Supply
to 12Vin
BNC-BNC
Mini XLR
P&S-T45
Plug&Spray Integrated tank
www.tekceleo.fr
1047, route des Dolines –Business Pole –06560 Sophia Antipolis

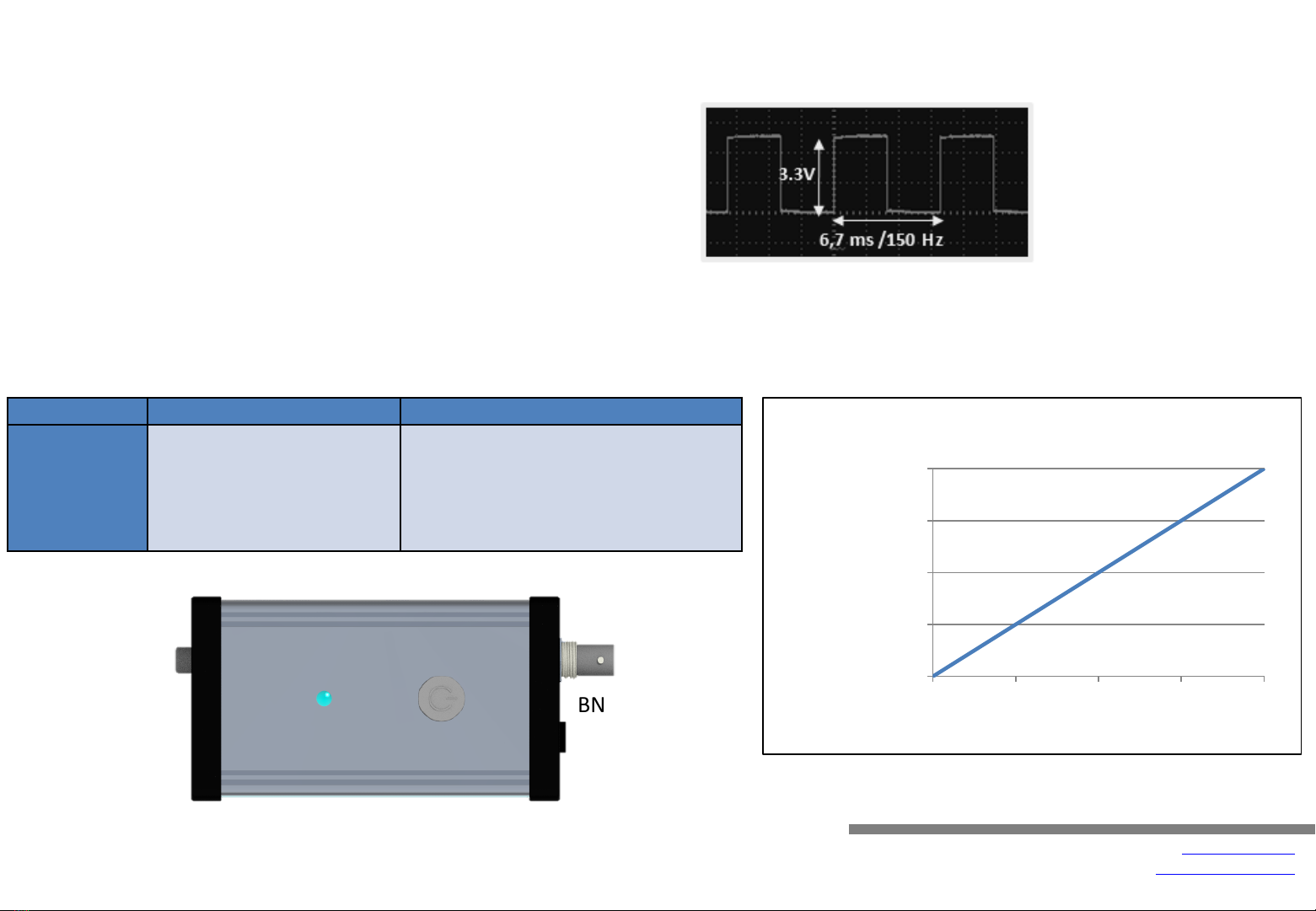

N.B: The default State of BNC connector is always at 3.3V / the functions below are insured when the 12VDC power supply is connected
On/Off + Flow Rate Control (PWM) :
➢The default State of BNC connector is at 3.3V.
➢By Default without input from BNC: electronic sprayer is ON.
➢100% Duty Cycle : electronic sprayer ON ( Frequency: 150 Hz).
➢0% Duty Cycle : electronic sprayer OFF ( Frequency: 150 Hz).
➢From 0% to 100% Duty Cycle: Linear Electronic sprayer Flow Rate Variation.
5
ON/OFF and Flow Rate Control via BNC Connector
150Hz/3.3V PWM signal
Function TTL on BNC Comments
Electronic
sprayer
ON/OFF
Flow Rate
Control
0=OFF
3.3V = ON ( default state)
Any voltage > 3.3V on BNC connector
could damage ECU
Maximum Duty Cycle : 100%
Minimum Flow Rate : 0%
0%
25%
50%
75%
100%
0% 25% 50% 75% 100%
Flow Rate %
Duty Cycle
Neb Flow Rate vs Duty Cycle
BNC Connector
P&S-T45
Plug&Spray Integrated tank
www.tekceleo.fr
1047, route des Dolines –Business Pole –06560 Sophia Antipolis
8
Maintenance and cleaning of the electronic sprayer
➢After each use, purge the electronic sprayer from initially used liquid and nebulize a saline
solution NaCl 0,9% for 1 minute.
➢If the electronic sprayer is completely clogged, nebulize saline solution NaCl 0,9% mixed with
white vinegar during a short period of time (about 1 min).
➢Ratio of saline solution NaCl 0,9% to vinegar= 100:1
Please make sure not to clean the membrane manually.
If there is any problem with the flow rate, please follow the cleaning guide above.
