tekflo Blade Hand Dryer User manual

Blade Hand Dryer
Instructions Manual

2
Table of Contents
Product Dimensions 3
Names of the Various Components 4
Product Features, Technical Specications & Package Contents 5
Installation Instructions 6
Installation & Safety Guidelines 8
Operation Guidelines 9
Cleaning & Maintenance Guidelines 10
Warranty Details 11

3

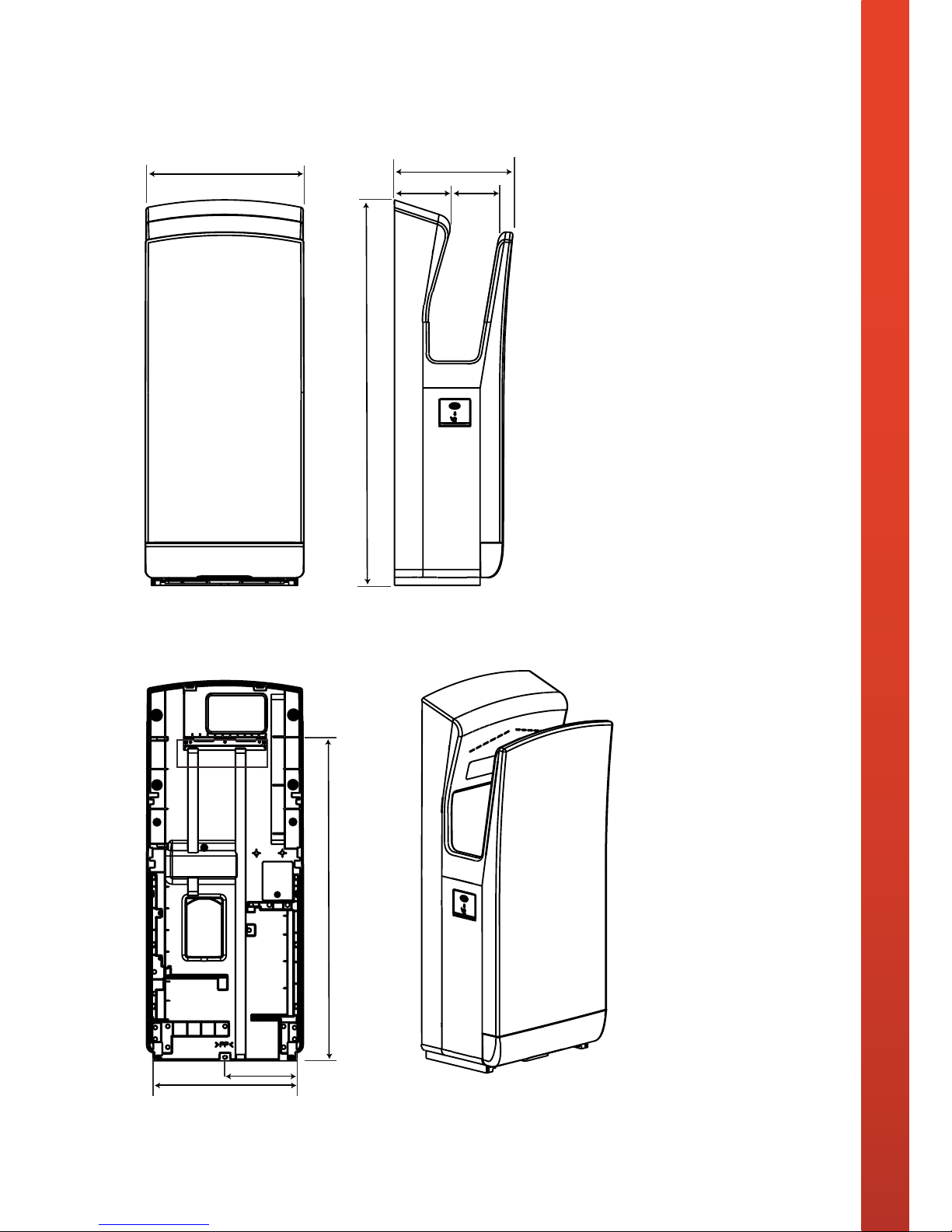

Product Dimensions
300mm 230mm
115mm 95mm
730mm
138mm
620mm
278mm

4

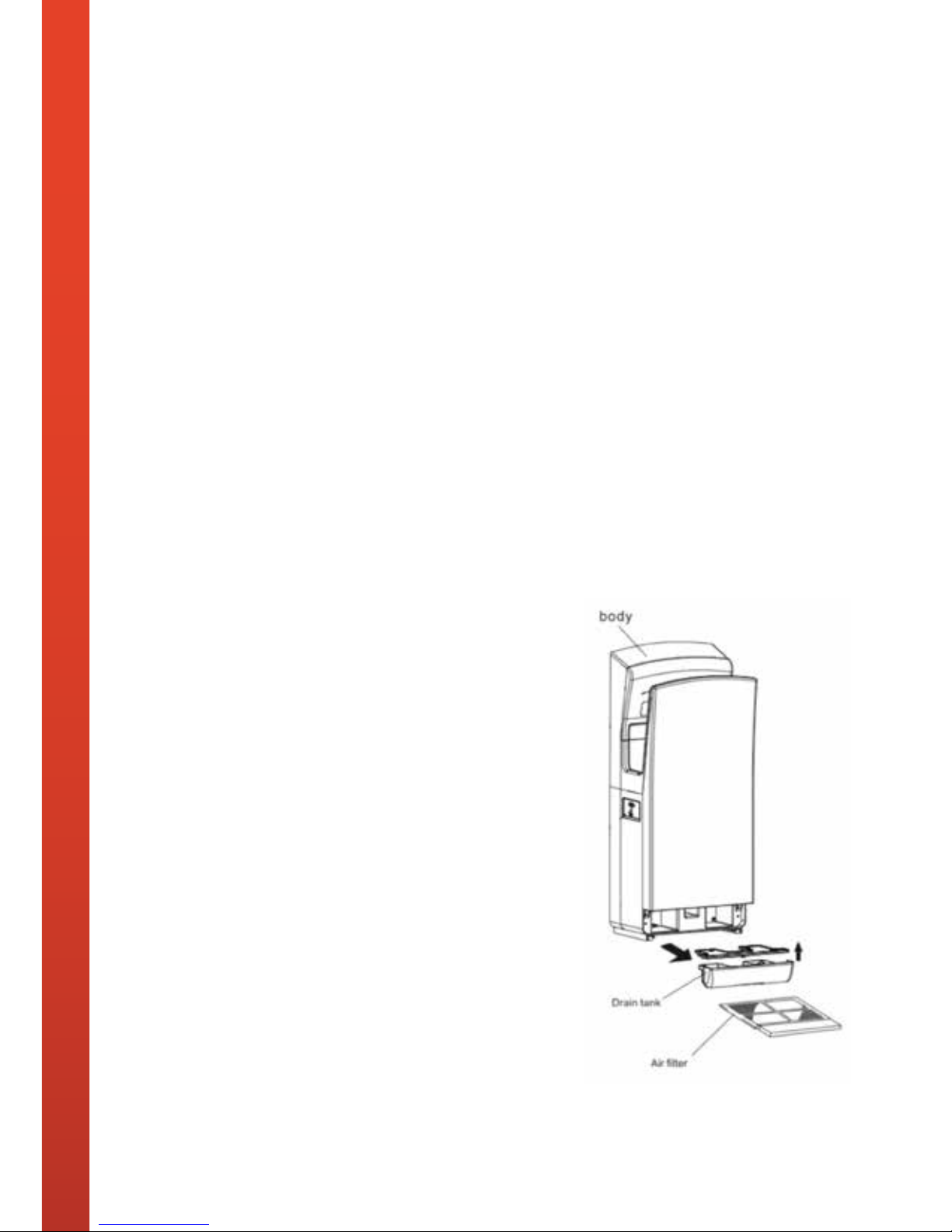

Names of the Various Components

5
Product Features, Technical Specications
& Package Contents
Product Features:
• The contemporary, ergonomic style gives the Blade its streamlined look
• A heavy-duty Stainless Steel casing oers excellent protection from corrosion
and vandalism
• The automatic ‘no touch’ operation makes this a hygienic system
• Air is exerted from its double injection air-ow system which removes moisture
from both sides of your hands – drying time is just eight seconds
• Auto cut-o eliminates energy wastage
• Minimal power consumption, maximum output – the Blade reduces your carbon
footprint
• Reduced noise levels make this a discrete dryer
• Its unique high-brightness blue LED light indicator helps users position their
hands directly in the warm air stream for maximum eciency
• Easy to install and with a removable drip trap and air lter, it is eortless to
maintain
• Finishes available in Brushed Metal, Polished Chrome and Arctic White
Technical Specications:
• Shell material/s: ABS Plastic and
304 Stainless Steel
• Standard nishes: Brushed Metal,
Silver, White
• Rated voltage: AC 220-240V
• Rated frequency: 50 / 60 Hz
• Rated power: 1,650W
• Installation: wall mounted
• Drying time: 8 seconds
• Air speed: 95 M/s
• Noise output: 68dB
• Operation: infrared automatic ‘no
touch’
• Timing protection: 60 seconds auto
cut o
• Thermal protection: cut o above
70C
• Waterproof rating: IPX4
• Unit dimensions: 300mm W x
730mm H x 230mm D
• Net weight: 12.0 kg
• Warranty: 2 Years
• Certication: CE, RoHs
Package Contents:
• Hand dryer
• Wall mounting bracket
• Fixtures and ttings
• User manual and installation guide

6

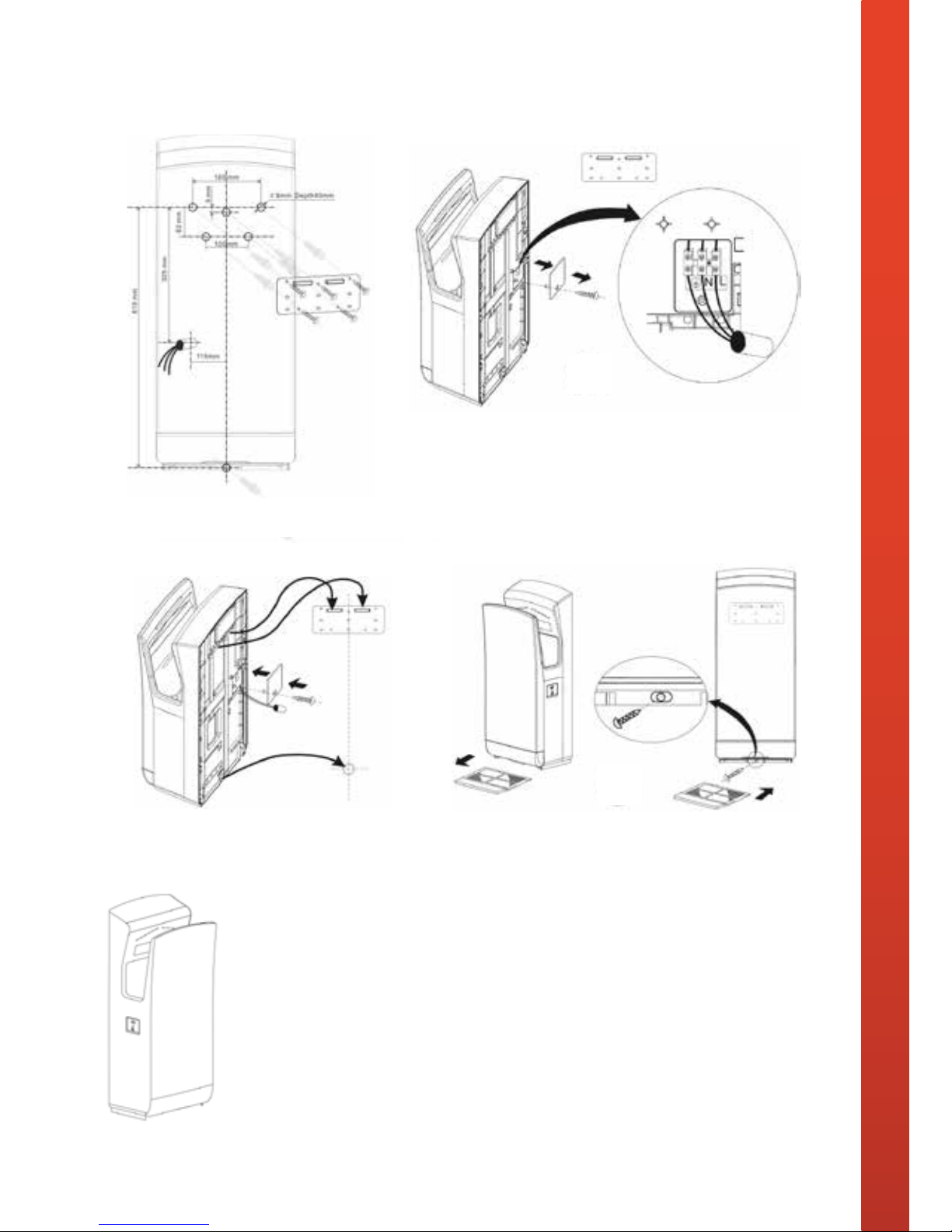

Installation Instructions
Drill the fixing points:
• Offer the installation panel up to the
mounting surface and mark the five
fixing points through the holes in the
backplate. Drill the five marked fixing
holes and insert the supplied wall plugs.
Offer the installation panel up to the
wall, and insert the five fixing screws
through the panel into the wall plugs.
• Drill a further fixing hole 615mm down
from the top centre of the installation
panel and insert the supplied wall plug.

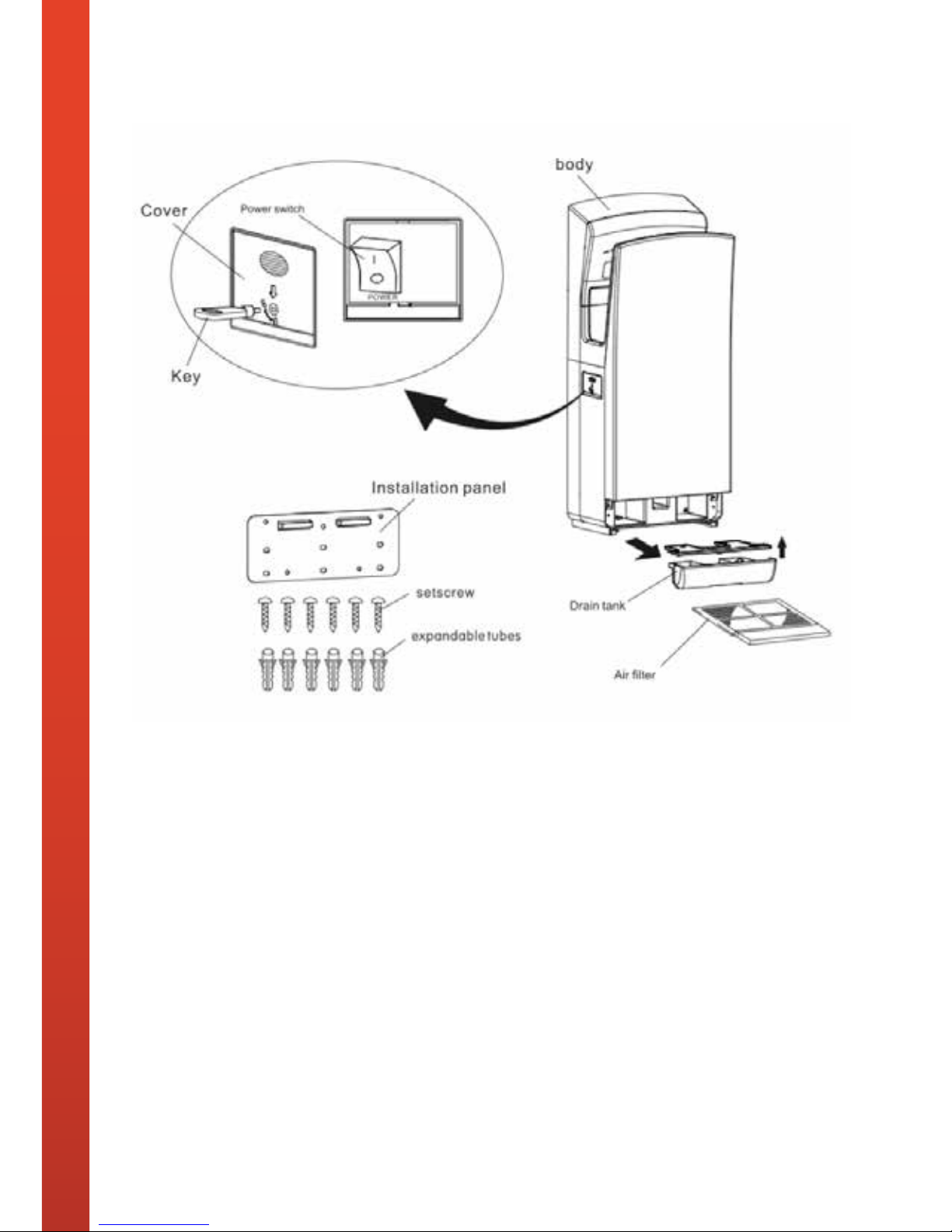

Wire the unit:
• Remove the terminal cover mounting
screw and remove the cover itself.
• Wire the unit accordingly.
• Replace the terminal cover once
complete.
Fix the unit in place:
• Firstly, remove the drain tank and air
filter.
• Engage the panel hooks of the
installation panel on the back of the
unit.
• Check that the power cable is not
trapped behind the unit.
• Gently press the unit onto the wall, and
then fix it in place using the mounting
screw at the bottom.
• Replace the drain tank and air filter.
Recommended Mounting Heights
Measurements are from the bottom of the
installation panel to the floor
• Mens / Ladies: 850mm
• Disabled: 730mm
Visit www.tekflo.com or email enquiries@tekflo.com for more information
Installation Instructions Blade Hand Dryer
1) 2)
4)3) 5)

7
Drill the fixing points:
• Offer the installation panel up to the
mounting surface and mark the five
fixing points through the holes in the
backplate. Drill the five marked fixing
holes and insert the supplied wall plugs.
Offer the installation panel up to the
wall, and insert the five fixing screws
through the panel into the wall plugs.
• Drill a further fixing hole 615mm down
from the top centre of the installation
panel and insert the supplied wall plug.
Wire the unit:
• Remove the terminal cover mounting
screw and remove the cover itself.
• Wire the unit accordingly.
• Replace the terminal cover once
complete.
Fix the unit in place:
• Firstly, remove the drain tank and air
filter.
• Engage the panel hooks of the
installation panel on the back of the
unit.
• Check that the power cable is not
trapped behind the unit.
• Gently press the unit onto the wall, and
then fix it in place using the mounting
screw at the bottom.
• Replace the drain tank and air filter.
Recommended Mounting Heights
Measurements are from the bottom of the
installation panel to the floor
• Mens / Ladies: 850mm
• Disabled: 730mm
Visit www.tekflo.com or email enquiries@tekflo.com for more information
Installation Instructions Blade Hand Dryer
1)
2)
4)3) 5)
Drill the fixing points:
• Offer the installation panel up to the
mounting surface and mark the five
fixing points through the holes in the
backplate. Drill the five marked fixing
holes and insert the supplied wall plugs.
Offer the installation panel up to the
wall, and insert the five fixing screws
through the panel into the wall plugs.
• Drill a further fixing hole 615mm down
from the top centre of the installation
panel and insert the supplied wall plug.
Wire the unit:
• Remove the terminal cover mounting
screw and remove the cover itself.
• Wire the unit accordingly.
• Replace the terminal cover once
complete.
Fix the unit in place:
• Firstly, remove the drain tank and air
filter.
• Engage the panel hooks of the
installation panel on the back of the
unit.
• Check that the power cable is not
trapped behind the unit.
• Gently press the unit onto the wall, and
then fix it in place using the mounting
screw at the bottom.
• Replace the drain tank and air filter.
Recommended Mounting Heights
Measurements are from the bottom of the
installation panel to the floor
• Mens / Ladies: 850mm
• Disabled: 730mm
Visit www.tekflo.com or email enquiries@tekflo.com for more information
Installation Instructions Blade Hand Dryer
1) 2)
4)3) 5)
Drill the fixing points:
• Offer the installation panel up to the
mounting surface and mark the five
fixing points through the holes in the
backplate. Drill the five marked fixing
holes and insert the supplied wall plugs.
Offer the installation panel up to the
wall, and insert the five fixing screws
through the panel into the wall plugs.
• Drill a further fixing hole 615mm down
from the top centre of the installation
panel and insert the supplied wall plug.
Wire the unit:
• Remove the terminal cover mounting
screw and remove the cover itself.
• Wire the unit accordingly.
• Replace the terminal cover once
complete.
Fix the unit in place:
• Firstly, remove the drain tank and air
filter.
• Engage the panel hooks of the
installation panel on the back of the
unit.
• Check that the power cable is not
trapped behind the unit.
• Gently press the unit onto the wall, and
then fix it in place using the mounting
screw at the bottom.
• Replace the drain tank and air filter.
Recommended Mounting Heights
Measurements are from the bottom of the
installation panel to the floor
• Mens / Ladies: 850mm
• Disabled: 730mm
Visit www.tekflo.com or email enquiries@tekflo.com for more information
Installation Instructions Blade Hand Dryer
1) 2)
4)
3)
5)
Drill the fixing points:
• Offer the installation panel up to the
mounting surface and mark the five
fixing points through the holes in the
backplate. Drill the five marked fixing
holes and insert the supplied wall plugs.
Offer the installation panel up to the
wall, and insert the five fixing screws
through the panel into the wall plugs.
• Drill a further fixing hole 615mm down
from the top centre of the installation
panel and insert the supplied wall plug.
Wire the unit:
• Remove the terminal cover mounting
screw and remove the cover itself.
• Wire the unit accordingly.
• Replace the terminal cover once
complete.
Fix the unit in place:
• Firstly, remove the drain tank and air
filter.
• Engage the panel hooks of the
installation panel on the back of the
unit.
• Check that the power cable is not
trapped behind the unit.
• Gently press the unit onto the wall, and
then fix it in place using the mounting
screw at the bottom.
• Replace the drain tank and air filter.
Recommended Mounting Heights
Measurements are from the bottom of the
installation panel to the floor
• Mens / Ladies: 850mm
• Disabled: 730mm
Visit www.tekflo.com or email enquiries@tekflo.com for more information
Installation Instructions Blade Hand Dryer
1) 2)
4)
3) 5)
Drill the fixing points:
• Offer the installation panel up to the
mounting surface and mark the five
fixing points through the holes in the
backplate. Drill the five marked fixing
holes and insert the supplied wall plugs.
Offer the installation panel up to the
wall, and insert the five fixing screws
through the panel into the wall plugs.
• Drill a further fixing hole 615mm down
from the top centre of the installation
panel and insert the supplied wall plug.
Wire the unit:
• Remove the terminal cover mounting
screw and remove the cover itself.
• Wire the unit accordingly.
• Replace the terminal cover once
complete.
Fix the unit in place:
• Firstly, remove the drain tank and air
filter.
• Engage the panel hooks of the
installation panel on the back of the
unit.
• Check that the power cable is not
trapped behind the unit.
• Gently press the unit onto the wall, and
then fix it in place using the mounting
screw at the bottom.
• Replace the drain tank and air filter.
Recommended Mounting Heights
Measurements are from the bottom of the
installation panel to the floor
• Mens / Ladies: 850mm
• Disabled: 730mm
Visit www.tekflo.com or email enquiries@tekflo.com for more information
Installation Instructions Blade Hand Dryer
1) 2)
4)3)
5)

8
Installation & Safety Guidelines
• All electrical installation and repair work should be carried out by a qualied
electrician in accordance with current locals codes or regulations.
• Do not attempt any disassembly or modication of the unit that is not expressly
stated in this manual.
• Do not install when the product (power cable) is electried.
• Install securely in a location strong enough to support the weight of the unit.
• Install the hand dryer on a smooth surface and in an area where people are not
likely to collide with the object once installed.
• Do not scratch, damage, process, excessively bend, pull, twist or bundle the
power cable, and do not place heavy objects onto it or trap it.
• Do not use in a hot location such as a shower room, where condensation may
form on the unit, or where water may splash directly at the unit.
• Do not install this hand dryer above sources of water such as sinks or taps.
• Do not install in locations where salt damage may occur, or where corrosive,
neutral, or reductive gases are present.

9

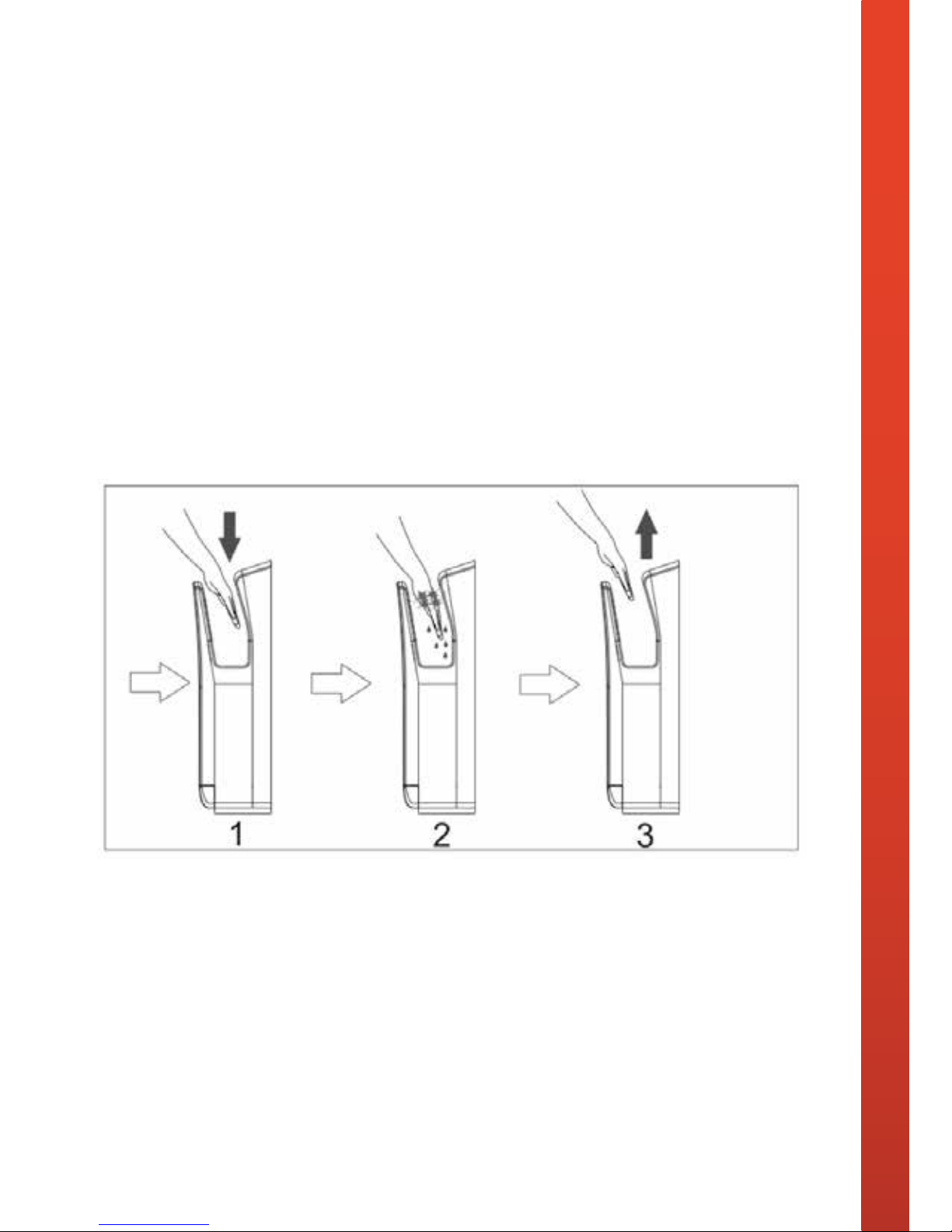

Operation Guidelines
1. Before inserting hands under the dryer, shake o any excess water.
2. This hand dryer incorporates no touch sensor activation for hygienic use. Simply
place your hands within the air outlet compartment and the hand dryer will be
automatically activated.
3. Remove your hands away from the air outlet and the hand dryer will be
deactivated after 2 seconds.
4. The hand dryer will automatically cut o after running for 60 seconds if the
sensor is activated for this period. If need be, remove hands from the sensor and
return your hands and the dryer will re-activate.

10
Cleaning & Maintenance Guidelines
Cleaning and maintenance should be carried out by service personnel only, after
ensuring that the unit is disconnected from the power supply. It is recommended
that cleaning be carried out regularly every week.
A) Cleaning the unit body
1. Simply wipe down the exterior of the dryer with a damp cloth, removing any
build of up dirt, paying particular attention to the sensor.
B) Draining and cleaning the drain tank
1. Remove the drain tank component.
2. Open the cover of the drain tank and empty the water. Wash out the interior of
the drain tank.
3. Close the cover of the drain tank, and replace the drain tank back within the
body.
4. To ensure that the drain hole (within the air outlet compartment) is not blocked,
you can pour a small cup of water through the drain hole and ensure that it
arrives in the drain tank.
C) Cleaning the air lter
1. Remove the air lter component
2. For a light clean – use a vacuum cleaner
to remove any build of dirt. For a more
thorough clean – soak the air lter in
warm water.
3. Replace the air lter back within the body.

11
Warranty Details
• All Teko Hand Dryers are guaranteed to be free from defects in parts and
manufacture for 2 years from the date of purchase, provided that the product is
used under the normal operating conditions stated within the manual.
• The warranty is only available to the original purchaser and is not transferable.
Your consumer rights are not aected.
• If there are any defects with your hand dryer please contact the provider stating
your invoice number, date of purchase, full name and address.
•
Do not attempt to repair or take apart the hand dryer your self. If the hand dryer
has been tampered with before it arrives with us, the warranty will be void.
• We advise that all customers retain original packaging should the unit need to be
returned.
• If your hand dryer occurs a problem outside of the warranty period, we oer a
repair service where we can collect and professionally repair your hand dryer.

12
Visit www.teko.com or email enquiries@teko.com
for more information
