Telefunken TTV-21N02 Assembly instructions

MODEL TTV-21N02
51cm COLOUR TELEVISION
Description:
Job No.
Model:
Rev.4
Engineering Dept:
Artwork By:
Checked By:
Approved By:
Brand Name:
P/No.
Scale:
Date:
Date:
Date:
Manual(3Y11)
21N02
2004-08-18
48005M TELEFUNKEN

-1-
SPECIFICATIONS
Design and specifications are subject to change without prior notice.
Receiving System : BG
Colour System : PAL / NTSC Playback
Picture Tube : 51cm (21") diagonal
Ext. Antenna : 75 Ohm Coaxial Cable
Ext. In/Out :
Speaker : 2 s
Audio Output : Maximum 3W
Power Consumption : AC 240V 50Hz, 80W
Dimension : 604(W) x513(D) x 462(H)mm
Net Weight : 22 kg
REMOTE CONTROL
Transmitting System : Infrared
Power Supply : DC 3V (1.5 x 2)
Dimension : 28(W) x 155(L) x 45(D)mm
Net Weight : 83 g
Audio/video -in/out
peakers

CONTENTS
INTRODUCTION...............................................................................................................................
WARNINGS and CAUTIONS ............................................................................................................
CONTROL LOCATION .......................................................................................................................
INPUT and OUTPUT .........................................................................................................................
OPERATION INSTRUCTIONS ...........................................................................................................
LOCATION OF CONTROL(REMOTE CONTROL UNIT) ....................................................................
BATTERY INSTALLATION............................................. ....................................................................
SERVICE TIPS ..................................................................................................................................
2
3 - 4
5
6
7-8
9-10
11
12
-1-

-2-
INSTALLATION
CAUTION
Locate your television away from direct sunlight. Viewing in total darkness or with sunlight reflection
could cause eyestrain. Soft and indirect light is recommended for comfortable viewing.
Allow enough space between the receiver and the wall to permit ventilation.
Avoid excessively warm locations to prevent possible damage to the cabinet or premature component
failure.
This TV receiver can be connected to AC 240 Volts. 50Hz. Never connect to DC supply or any other
power supply.
Do not install the receiver in a location near heat sources such as radiators, heaters, air ducts, direct
sunlight or in a closed compartment.
Do not cover the ventilation openings when using the set.
Thank you for purchasing this television. To get the most out of this unit please carefully read the
instructions and keep them in a safe place for future reference.
Never tamper with any components inside your set, or any other adjustment controls not mentioned in
this manual. All television receivers are high voltage instruments. Your PICTURE TUBE is highly evacuated.
Scratching, chipping or undue pressure is dangerous and should be avoided. To clean, the power cord
should be pulled out from the plug receptacle, then wipe the receiver with a dry soft cloth. During thunder
and lightning storms, unplug the power cord and antenna cord to prevent your TV set from damage.
INTRODUCTION

WARNINGS and CAUTIONS
Warning
High voltages are used in the operation of this
television receiver. Do not remove the cabinet
back from your set. Refer servicing to
qualified service personnel.
Warning
To prevent fire or electrical shock hazard , do
not expose the television receiver to rain or
moisture.
Warning
Do not drop or push objects into the televi-
sion cabinet slots or openings.
Never spill any kind of liquid on the television
receiver.
Caution
If the television is to be built into a
compartment or similarly enclosed , the
minimum distances must be maintained .
Heat build-up can reduce the service life
of your television , and can also be danger-
ous.
-3-

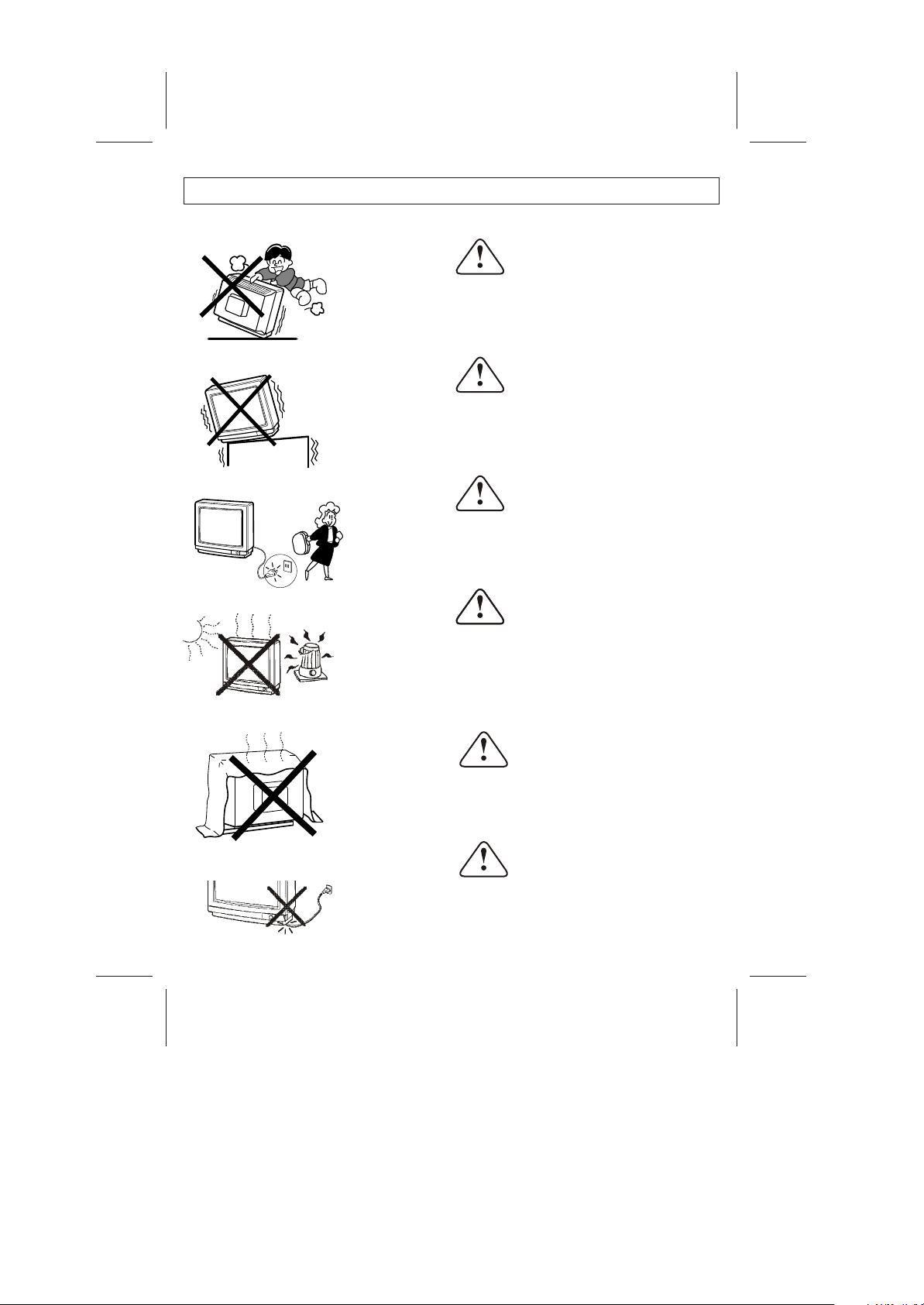

WARNINGS and CAUTIONS
Caution
Never stand on, lean on or push suddenly the
television or its stand .You should pay special
attention to children. Serious injury may result if it
should fall.
Caution
Do not place your television on an unstable cart ,
stand , shelf or table .Serious injury to an individual ,
and damage to the television, may result if it
should fall.
Caution
When the television receiver is not used for an
extended period of time , it is advisable to
disconnect the AC power cord from the AC outlet .
Caution
Do not block the ventilation holes in the back cover.
Adequate ventilation is essential to prevent failure
of electrical component.
Caution
Do not squash power supply cord under the
television receiver.
-4-
Caution
Avoid exposing the television receiver to direct
sunlight or other sources of the heat .
Do not stand the television receiver on other
products which give off heat , eg. video cassette
player, audio amplifier.

-5-
CONTROL LOCATION
DTM2DTM2
DTM5DTM5 DTM15DTM15 DTM1DTM1 DTM18DTM18
3 3 4 4 5 6 12
778
11
10
9
1. Main Switch
2. Remote Sensor £¦Power Indicator
3. Program Down /Up Button
4. Volume Down/Up Button
5. Menu Button
6. AV/TV
7. Speakers
8. Side AV in (Option)
9. AC Power Cord
10. Audio/Video - In/Out
11. Antenna Input Socket (75 ohm)

-6-
INPUT AND OUTPUT TERMINALS
VIDEO AND AUDIO INPUT/OUTPUT TERMINALS
1. Video / Audio input for playback for VCR.
2. Video / Audio output for TV program.
*Please keep AC cord unplugged when connecting TV system.
AV OUT AV IN 2
VIDEO
RIGHT
RIGHT
LEFT/MONO
LEFT
AUDIO

-7-
OPERATION INSTRUCTIONS
Preset Menu Picture Menu System Menu Exit Menu
PRESET
CHANNEL 00
SKIP OFF
BAND V-L
ASM.SIF 6.5M
FINE
SEARCH
ASM
1. CHANNEL
In this function, you can store the channel number you are watching , and
change the channel by pressing the VOL+/- buttons (or the number keys).
2. SKIP
To set the SKIP function on, press the VOL+/- buttons to select as desired.
3. BAND
You can select V-L, V-H or UHF.
4. ASM.SIF
You can select 6.0M, 4.5M, 6.5M or 5.5M ,Australia is 5.5M.
5. FINE
Use to fine tune weak stations by pressing VOL.+/-.
6. SEARCH(Manual Tune)
Press VOL.+/- Buttons to start searching. The VOL- button searches for lower-
numbered channels; the VOL+ button for higher-numbered channels. When a
TV station signal is received ,the searching will stop.
7. ASM(Auto Tune)
Press VOL.+/- Buttons, then the TV set will automatically search from V-L band
to U band.
Turn the TV set on at the main switch, the power indicator will light up. In Standby
ress the program up or down button on the TV set, or press the On/Off button on the Remote Control.
The picture will appear after a few seconds . If tuned in, the program number(channel) is displayed on the
top right hand corner of the screen.
" " Mode to turn the TV
on, p

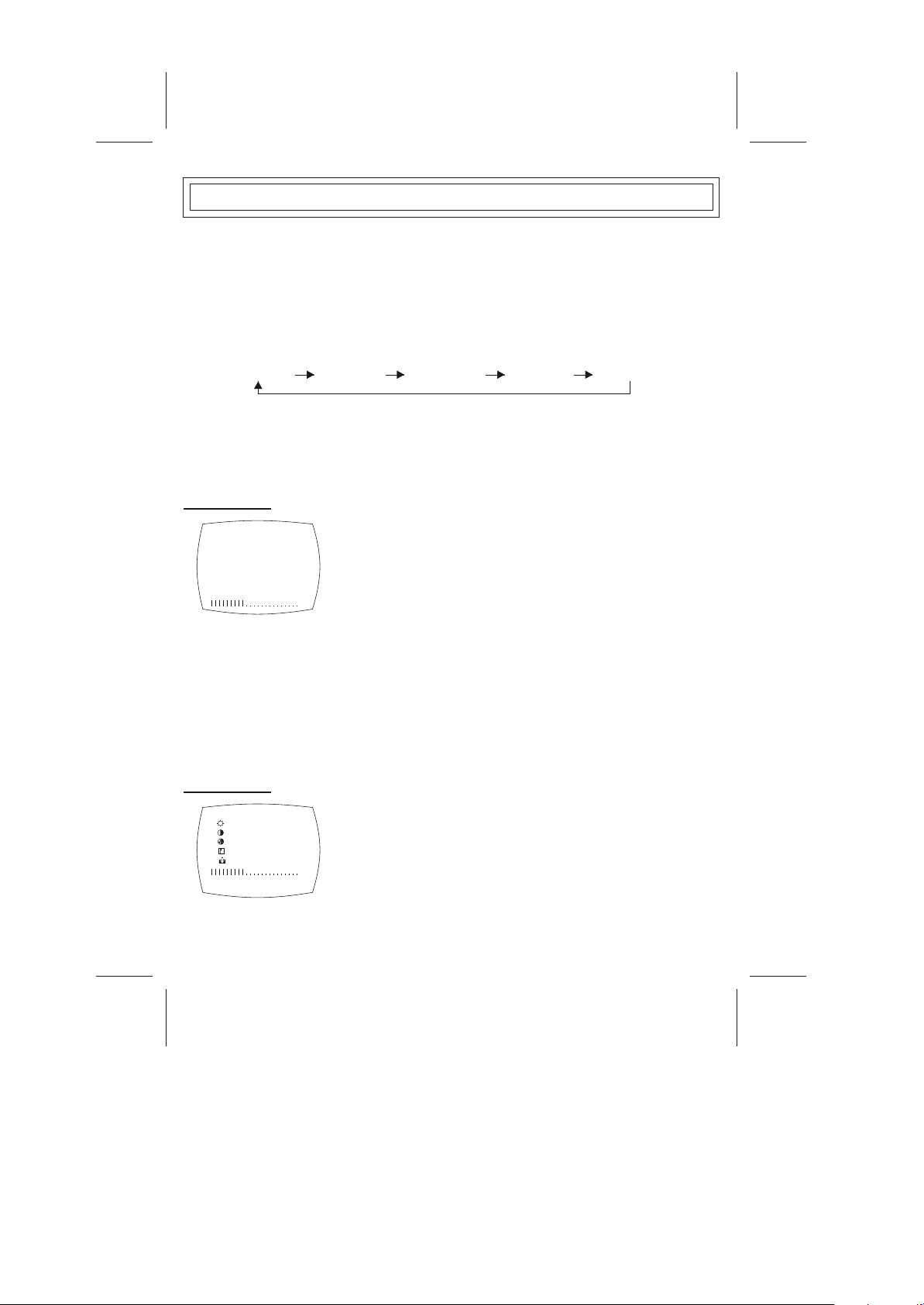

MENU BUTTON
1.Press this button to select menu. PRESET, PICTURE, SYSTEM and TIME menu can be selected
cyclically.
2.After you enter each menu, you can select the item you wish to adjust by pressing PROG.+/- buttons,
and adjust the item by using VOL. +/- buttons.
*The item which you select will change blue.
Preset menu
Time Menu
BRIGHTNESS
CONTRAST
COLOR
SHARPNESS
TINT
You can select BRIGHTNESS, CONTRAST, COLOR, SHARPNESS, and TINT
item by PROG.+/- Buttons , and adjust the item which you select by
VOL.+/- Buttons.
*TINT is displayed only for NTSC and is not available for PAL or SECAM.
Picture menu
35

OPERATION INSTRUCTIONS
SYSTEM
COL.SYS AUTO
SIF.SYS 6.0M
System menu
1. COL.SYS
You can change present color system in this item.
2. SIF.SYS
You can change present sound system in this item.
SELECTING PROGRAM
Use 0-9 digit buttons to call directly on the program number that you want. If you want to select a double digits
program number , firstly press "- / - -" button, then input the two digits.
Program number can also be changed by "PROGRAM DOWN" and "PROGRAM UP" buttons. Press
"PROGRAM UP" button, program number will increase. Press "PROGRAM DOWN" button, program number
will decrease.
CHILD LOCKED
The TV set can provide the locked key for control or prevent your children from watching the program.
SET CHILD LOCKED:
Press the "LOCK" button on remote unit. The key locked ( ) is displayed on the screen. Then the
symbol will disappear after five seconds and enter child locked mode. All buttons on the television (with
the exception of the on off button) are disabled and will not operate..
RELEASE CHILD LOCKED:
You can cancel this mode by pressing the 'LOCK" button again.
TIME
CLOCK
TIMING OFF
TVON
TVOFF
AWOKE OFF
AWTIME
_ _:_ _:_ _
_ _:_ _
_ _:_ _
_ _:_ _
Time menu
1. CLOCK
You can adjust the current time by this item. Press the VOL+button to set
the hour and the VOL-button to set the minutes .
2. TIMING
If you set the item to TIMING ON , you can set the time for the TV to turn on
and off again.
3.TV ON
Set the desired time for when you want the TV set to turn on .
4.TV OFF
Set the desired time for when you want the TV set to turn off .
5.AWOKE
By selecting AWOKE ON, you can set the AWTIME (Awake time) you desire.
6.AWTIME
Set the awake time that you desire. If you set the AWTIME to 12:00,
The CATCH TIME11:58:00¡±will display on the screen for waking you .It
will disappear from the screen until¡°CATCH TIME 12:00:00¡±.
-8-

-9-
LOCATION OF CONTROL (REMOTE HANDSET UNIT)
STAND BY BUTTON ( )
Press this button to turn the TV on/off. Press any Number
Button or Program Up/Down Button, picture and sound will
come on within a few seconds.
PROGRAM SELECTION BUTTONS (0-9, -/--)
Push the number for your desired program and the
program indicator will be displayed on the screen.
Press -/-- key to select one digit or two digit entry, to select
program 0-9, use one digit entry, to select 10-99 use two
digits entry.
Press number key 0-99 for program selection.
MUTE BUTTON( )
Press once to mute the sound, press again to return to
previously set sound level.
SOUND SYSTEM BUTTON (SYS.)
Press this button to select the correct sound system.
5.5M 6.0M 4.5M 6.5M
PROGRAM UP/DOWN BUTTON (PROG. +/-)
Press the Program Up Button to select the program
forwards.
Press the Program Down Button to select the program
backwards.
2
456
8
79
- /- -
MENU
PROG.-
VOL.+VOL.-
SUB.PAGEINDEXCLOCK
STOPSIZE
REVEAL
LOCK
SYS.P.P.
AV/TV
ON/MIXOFF
0
3
PROG.+
Q.VIEW

-10-
LOCATION OF CONTROL (REMOTE HANDSET UNIT)
SLEEP BUTTON( )
This key is used to set the sleep timer from 15 minutes up to 2 hours. When the preset time runs to 0. the
TV will go into Standby mode. To switch off the Sleep function , press the sleep button repeatedly until
" --" is displayed on the screen.
LOCK BUTTON
The key is to prevent a child watching the TV, please refer to page 5 for the details.
AV/TV BUTTON
Press this button to display external video signal such as VCR or CD video player. AV will be displayed on
the screen. Press this button again to switch back to TV signal from AV.
MENU BUTTON (MENU)
Use "MENU" button for tuning procedure, please refer to page 4-5 for the details.
RECALL BUTTON( )
Press this button sequentially to recall the program number, colour system and sound system on the
screen.
QUICK VIEW BUTTON (Q.VIEW)
Press this button to return to the previously viewed program.
VOLUME UP/DOWN BUTTONS (VOL+/-)
Press Volume Up/Down Buttons to adjust sound level.
PERSONAL PRESETS BUTTON (P.P.)
You can select DYNAMIC, MILD, COLORFUL, STANDARD and CUSTOM by pressing this button.

BATTERY INSTALLATION (REMOTE CONTROL UNIT)
THE CAUSES OF INTERFERENCE
Incorporated in your TV receiver are the most up-
to-date devices to eliminate interference. Local
radiation however, can create disturbances which
visibly affect your picture. Proper installation, a
good aerial are your best safe-guards against
these disturbances.
RF INTERFERENCE
Moving ripples across the screen are caused by
nearby transmitting or receiving-short-wave radio
equipment.
DIATHERMY
Herringbone pattern and partial picture loss can
result from the operation of diathermy equipment
from a nearby doctor's surgery or hospital.
SNOW
Weak TV signals from long distant stations result
in an unsteady picture and give the effect of falling
snow. An antenna adjustment or antenna
amplifier may be needed.
GHOST
Multiple image caused by TV signals reflected
back from surrounding buildings, hills, aircraft, etc.
is minimized by correct aerial positioning.
CAR IGNITION
Nearby cars and electrical motors can cause small
streaks across the picture or make the picture roll.
-11-
1. Remove the battery cover.
2. Insert the 2 UM4-AAA 1.5V batteries making sure the polarity (+ or -) of the batteries matches the
polarity marks inside the unit.
3. Replace the battery cover.
Replace with new batteries when the TV set begins to show the following symptoms:
Operation is unsteady or erratic. Sometimes the TV set does not function with Remote Control
Unit.
Remark:
1) Alkaline Batterie Recommended
2) Remove batteries when they are exhausted or if the remote control is not to be used for a long time.

-12-
SERVICE TIPS
BEFORE CALLING FOR SERVICE, HAVE YOU
CHECKED ( ) THE FOLLOWING CHART
ON SYMPTOMS AND SOLUTIONS?
Try differentchannel, if OK,probablystationtrouble
Check aerial connectionsonbackof set
Checkaerial forbroken wires
Re-orientaerial(ifindoor type)
Probablylocal interference, suchasanappliance
Adjustfinetuning control
Adjustbrightnesscontrol
Adjustcontrastcontrol
Checkif stationis broadcastingcolour
Adjustcolour control
Checkifsystemswitchis correct
Checkif on/offswitchis "on"
CheckBatteries in Remote control
Solution
No picture, no sound
Poor sound, picture OK
Poor picture, sound OK
Weak picture
Blurred picture
Double image
Lines in picture
Distorted picture
Weak reception on some channels
Horizontal bars
Picture rolls vertically
Poor colour
No colour
Misoperation of Remote control
No Remote control
On Screen Display Control outside the screen
Symptoms
