Telefunken TTL-700 User manual

Full Automatic Washing Machine
User's manual
Model:TTL-700
Please read this manual carefully before using.
Retain it for future reference.

Contents
Using process
Names of the parts............................1
Safety precautions ............................2
Special function introduction ............ 4
Installation and adjustment ...............4
Install the water inlet hose.................6
Preparation before washing .............8
Put in the laundries ...........................9
Add the detergent ............................10
Close the top lid ...............................10

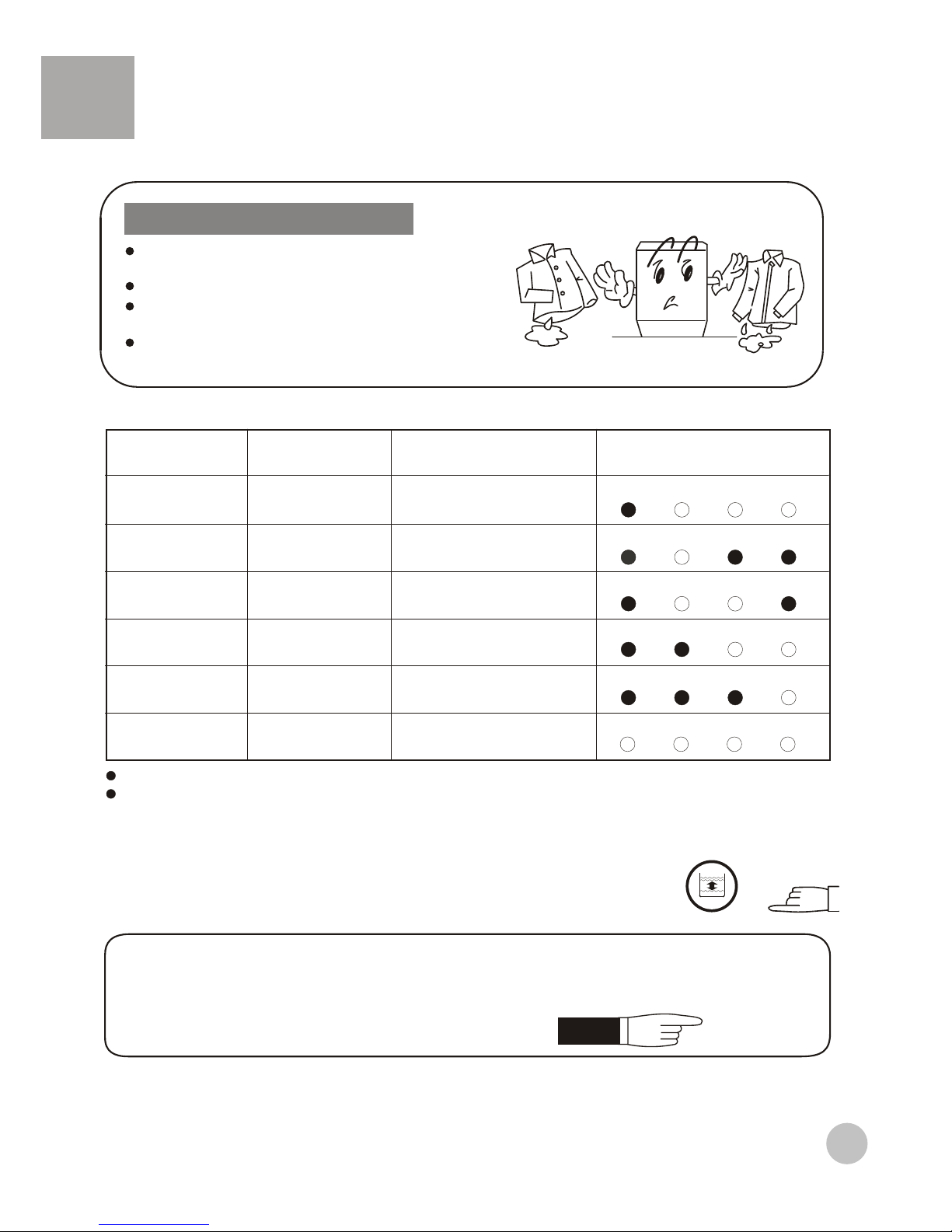

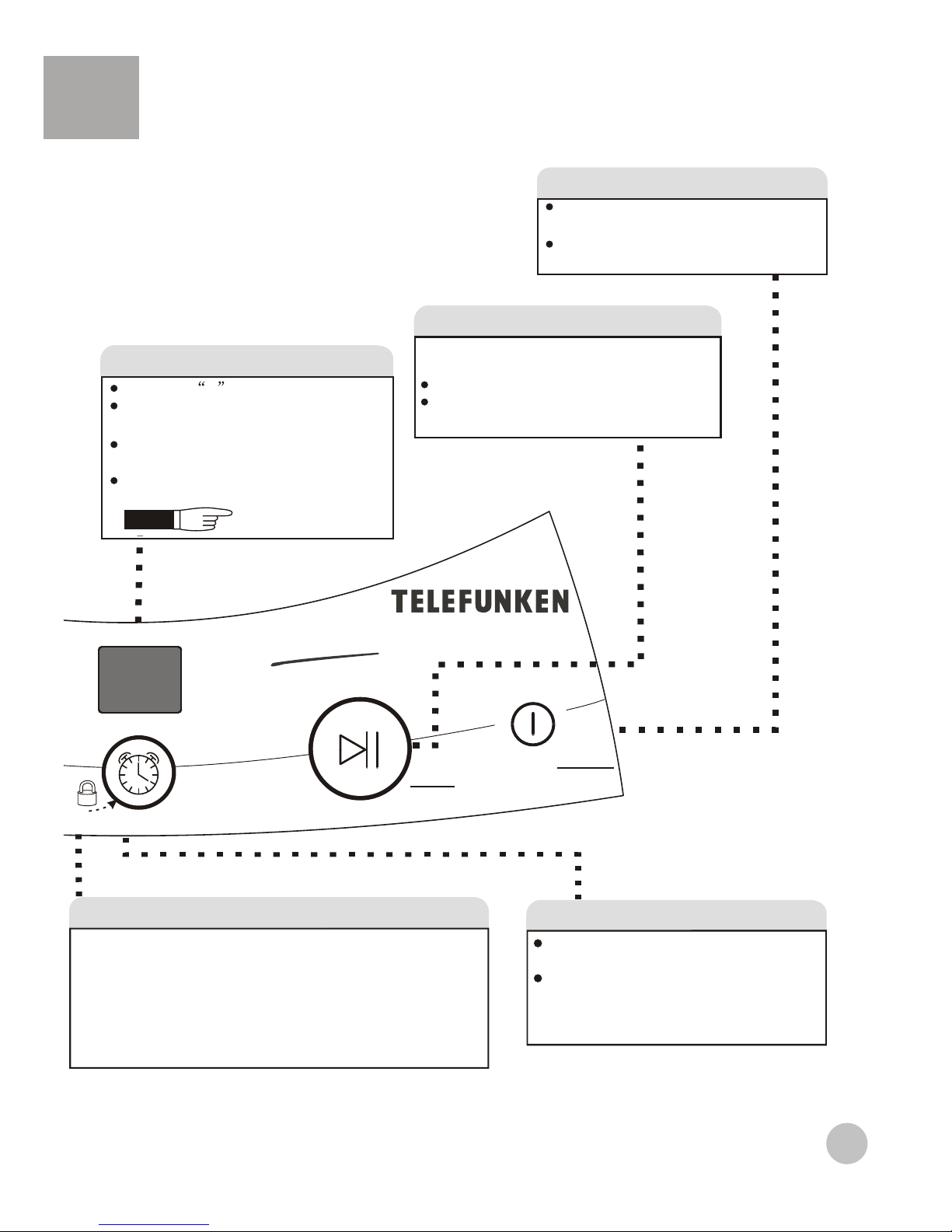

Use the operation buttons ................11
Washing finished ..............................15
Disposal after washing .....................16
Packing list Specification...............18
Trouble shooting Answer to
question......................................... 17
Before using
..

Accessories
Meaning and description of the symbols
Warning sign
Forbidding sign
Contents marked with that symbol
are related to the safety of the
product and the personal safety
of the users. Please operate in
strict conformity to the contents.
Otherwise, it may cause damage
of the machine or injure the
personal safety of the user.
Contents marked with that symbol
are actions forbidden to perform.
Performing of those actions may
result in damage of the machine
or injure the personal safety of
the user.
Lint filter
(one)
Bottom plate
(one)
Water inlet hose
(one)
water inlet
Hose jointer
(one)
ST4X12-A
Tapping screws
(seven)
All the pictures in this manual are sketch-map. And because of the improvement
of product, so the washing machine and accessories which
continual
you received cannot be match
accurately with the sketch map in this manual.
Adjustable foot
Back cover
Cabinet
Control panel film
Control panel
Filter cover
Power line
Pulsator
Inner tub
Detergent box
Top lid B
Water valve
Top lid A
Water absorption cushion
Lint filter(Installed by user)
Names of the parts Before Using
Fixed foot(3)
The end connecting to
the water inlet hose jointer
The end connecting to
the washing machine
Jointer connecting the
water inlet hose and
the water faucet
Adjustable foot lable
1
Drain hose hook
(one)

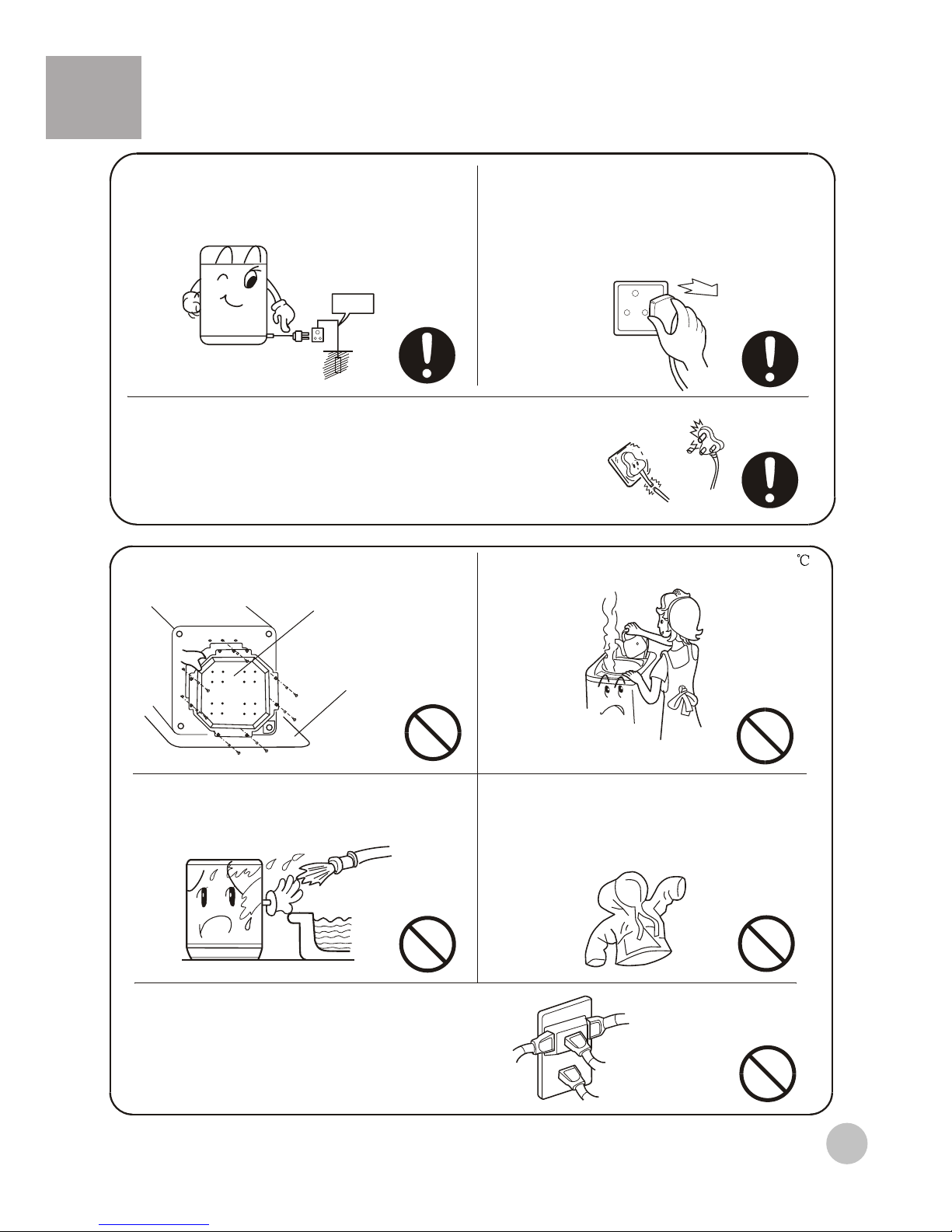

In case the washing machine is installed on ground
with carpet, be careful not to block the ventilation hole
with carpet.
Do not put the machine at damp place like the
bathroom. Never wash it with water. Do not
put wet laundries on the control panel coating.
Do not let the machine share one receptacle with other
electrical appliances. If the plugging into the receptacle
is loose, do not use the plug any more.
Do not wash waterproof laundry like the raincoat,
bikecovers, etc. To avoid abnormal
vibrations in spinning.
In normal usage of the washing machine, the power
plug shall be ready to be pulled or plugged with hang.
Be sure to pull the plug off and close the water faucet
when occurring power failure, delivering the machine,
setting the machine idle or cleaning the machine, Do
not plug or pull the power plug with wet hand.
Do not use water with temperature higher than 50
Please plug the plug on special 220V AC receptacle.
Be sure to use threephase power receptacle. Ensure
the earthing prong of the power receptacle is earth-
ed reliably.Use a leakage protector if possible.
50 C
Earth
Do not bend, stretch, twist, bind the power cord by force, or reform it.
Do not press or clamp it with heavy items. If the power cord and power
plug are bad, or the receptacle is loose, be sure to have it replaced by
the technicians of our special shop or our agent,or the customer care
department to avoid any risk.Keep the prong of the power plug clean.If
dust is found on the power plug, please wipe it off with dry cloth.
soft items
The ventilation holes
at the bottom
Before Using
Before Using
Before Using
Before Using
Safety precautions
12

Before Using
Before Using
Safety precautions
Do not decompose, repair or alter the machine
by yourself.
Do not put any hot or heavy items (such as the kettle
with hot water ) on the washing machine.
Do not wash laundries with volatile materials
(such as thinner, petrol etc.)
The handicapped or children without care shall not
use the machine.
Keep the machine away from direct sunlight and
heat source like the heater.
Please keep the lint filter in good condition, and
install it to proper position. If the lint filter is lost
or damaged, please contact the local customer
care department of our company.
Petrol
Thinner
Do not put hand into the rotating tub. It is dangerous
even if the rotation speed is slow. Take special care of
the children. Keep children away from the washing
machine to avoid them climbing on.
To protect your laundries and washing machine,
please take out all of the coins, buttons, sand, hairpin
and other foreign materials before washing.
Please check if the water faucet is open, and if the
connection of the water inlet pipe is proper. Hang
up the drain pipe.
It is suggested to use foamless washing powder.
Dismantle
Install
3

Before Using
Before Using
Special function introduction
Please install and adjust the machine according to the requirement of the manual. It is
very important to your security and correct operating the machine.
Installation and adjustment
Alarming function when open the cover:
During working except for water and drain, the machine will stop running and
alarm if opens the cover.
Child safety lock program
1. Purpose
Child safety lock program is an added function of the washing machine. The purpose is protecting children
from potential dangerous, which due to children climb onto washing machine and open the top lid, results in
falling into washing tub and drowned. The process of this program as follows: when the child safety lock
program has been started up; then if the top lid is opened, the machine will alarm immediately. If it cannot be
dealt with duly (the way of solving: release child safety lock program), the machine will drain if there has
water in washing tub after 15 seconds. After 10 minutes, the power is off automatically. So this can reach the
purpose of protect children without care from potential dangerous.
2. Start up child safety lock program
The program is optional anytime after the machine has been started. Push and hold PROCEDURE SELECTION
and RESERVATION buttons for more than 2 seconds at the same time. After 2 beep sounds, the child safety
lock program works; all buttons are locked and cannot be selected.
3. Release child safety lock program
Similarly, push and hold PROCEDURE SELECTION and RESERVATION buttons for more than 2 seconds at
the same time. After a beep sound, the child safety lock program is released; all buttons are unlocked.
4. Notice items
# Child safety lock program is an added function. Only when it has been started up, it can work.
# It is necessary for selecting child safety lock program, which the top lid must be closed.
# The top lid cannot be opened after this program has been selected. Once the top lid is opened, the machine
will enter into alarming status. It is necessary to release child safety lock program.
# The child safety lock program can be optional only when the machine has been started.
# After the child safety lock program takes effect, all buttons are locked and cannot be selected. Only when
the program has been released, the buttons can resume its function.
# During start or release this program, the current wash program of washing machine shall not be affected
except for the beep sound.
# The power is off or pull power plug off, the child safety lock program is released automatically. The program
cannot be remembered after the power fails.

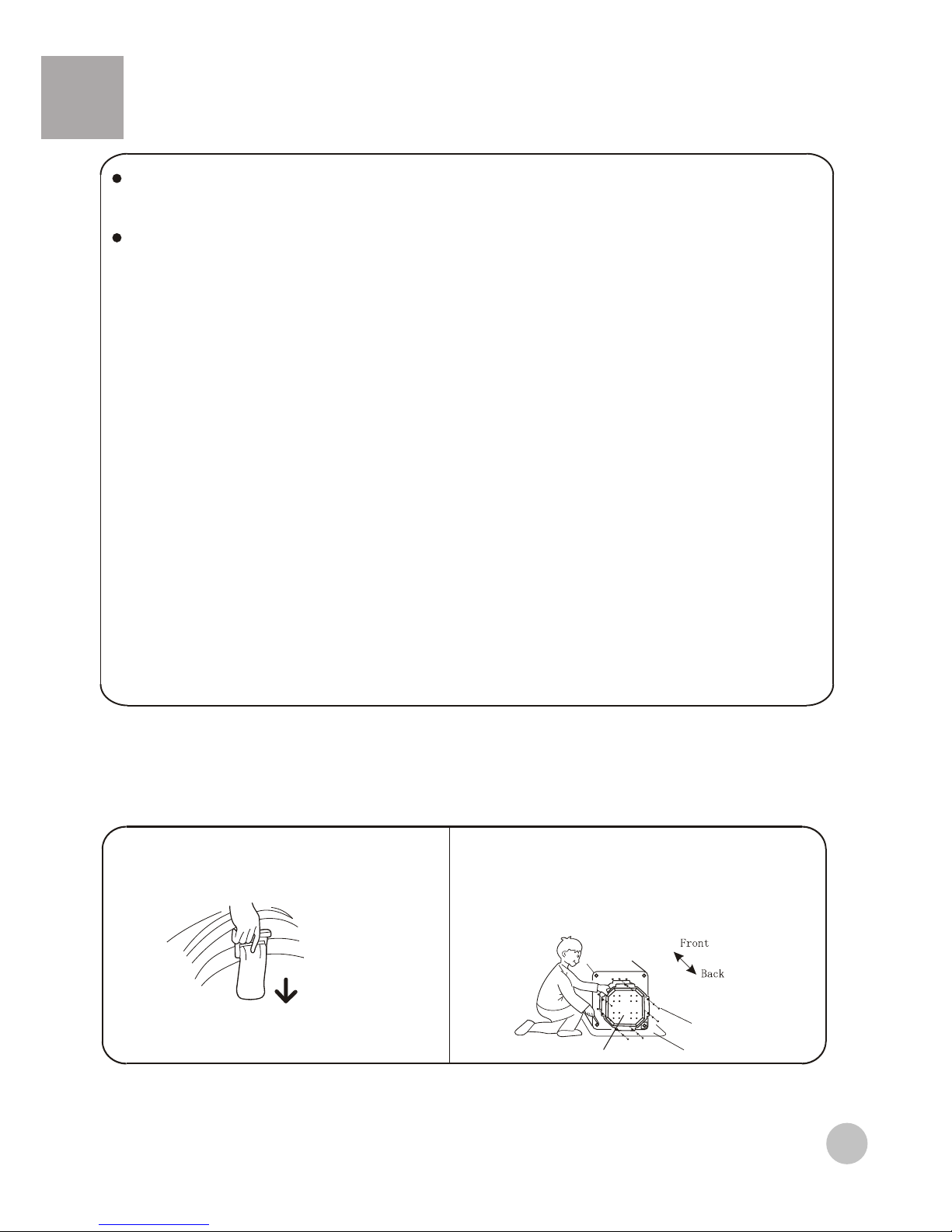

Install bottom plateInstall lint filter
After you open the package, please lean the washing
machine gently down on soft items ( like the towel cloth,
blanket, etc. ). Install the bottom plate to the bottom of
the machine with the seven screws by a cross screwdriver,
then lift the machine up gently. See to the figure:
Install
Push lint filter downward to l .ocation for lint filter
14

Before Using
Before Using
Usage of the drain hose
The drainage shall be smooth with the drain hose.
1.put the drain hose up to suitable position. Do not put it
on ground
2.Do not step on or press the drain hose.
Notes: the highest point of drain pipe should be higher than
the water level of washing tub for avoiding to siphon
phenomenon during drain.
The distance that washing machine away from wall should be above 20mm. The largest allowed slope of the
shank base of the machine is 2 . The slanting or rough ground will result in unstable running or stoppage
of the machine. Please adjust it with following methods:
Adjust the adjustable foot:
Adjust the installation position
1.To twist the adjustable foot, please first lift up
the side of the foot slightly, loosen the adjustable
nut, and twist the foot.
2.Fasten the nut after adjustment.
<2
Loosen
High
Fasten
Adjustable feet
Low
Adjustable nut
Confirm it's horizontal:
Hang the lead line to confirm if it is horizontal.
The highest point
5
<1.2m

Water faucet, suitable Water faucet, not suitable
It is required that the front end shall be longer than 10cm.
The outlet end surface of the faucet shall be flat and smooth. If not please file it
to avoid leakage.
2.Loosen the screw till the water faucet can be accessed. Put the jointer of the water
inlet hose on the faucet. See to Figure 2. (If the faucet is too large and the jointer can
not be set on the water faucet, please loosen the four screws and take out the
bushing in the jointer. See to the figure.)
1.Press the lower end of the lock lever and push down the slider. Take off the water inlet
hose jointer from the water inlet hose component. See to Figure 1.
Remarks: Before installation, the threading is 4mm above the upper surface of
the nut. After installation, the threading is 2mm above the upper surface of the
nut. See to Figure 6.
4.Take off the nameplate. Twist the fastening nut as per the indication of the figure to
seal up the outlet end surface of the faucet. See to Figure 5.
3.Fasten the four screws evenly. See to Figure 4.
>10mm
Outlet end surface
Nut
About 4mm before twisting
About below 2mm after twisting
Screw
Screwdriver Mark label
Liner
Figure 2
Figure 5
Figure 1
Figure 4
Figure 3
Figure 6
Slider
Water inlet pipe jointer
Water inlet pipe
Locking lever
Before Using
Before Using
Install the water inlet hose
Confirm the water faucet
Connection between the water inlet hose jointer and
the water faucet
16

1.Do not take off the water absorption
cushion. Please check if the cushion
is dropped or damaged before each
usage. If it happens please contact
our after-sale department immediately.
2.Put the nut of the water inlet hose on
the valve jointer.
3.Fasten the nut. Swing it gently to
confirm if it's suitable.
1.Close the water faucet.
2.Press the locking lever. Push down the slider. Then
pull of the water inlet hose. If the machine is used
more than once every week, the jointer of the water
inlet hose can be kept on the faucet to prevent
damaging the fixing screw.
1.Swing the hose gently to confirm if it is fastened stable.
2.After installation, open the faucet to check if it leaks.
3.Do not bend the hose with overstrain.
4.Before each usage please check if
the connection between the jointer
of the water inlet hose and the water
faucet, and the installation of the
water inlet hose are firm, so as to
prevent dropping from improper
Installation position.
1.Push down the slider. Insert the
water inlet hose into the jointer.
2.Hang the lock lever to the jointer.
Release the slider till a click
sound is heard.
Locking lever
Slider
Water absorption cushion
Nut of the water inlet hose
Jointer of the water inlet valve
Slider
Jointer of the water
inlet hose
Locking lever
Before Using
Before Using
Connection between the water inlet hose and the
washing machine
Connection between the jointer of the water inlet
hose and the water inlet hose
Check the connection between the jointer of the
water inlet hose and the water faucet
Dismantle the water inlet hose
7

Preparation before washing
1. Connect the water inlet hose.
2. Confirm that the washing machine is earthed
reliably. Then insert the power plug into the
receptacle. Do not connect the earth terminal
to the gas pipe and tap water pipe.
3. Hang up the drain hose.
Using process
Using process

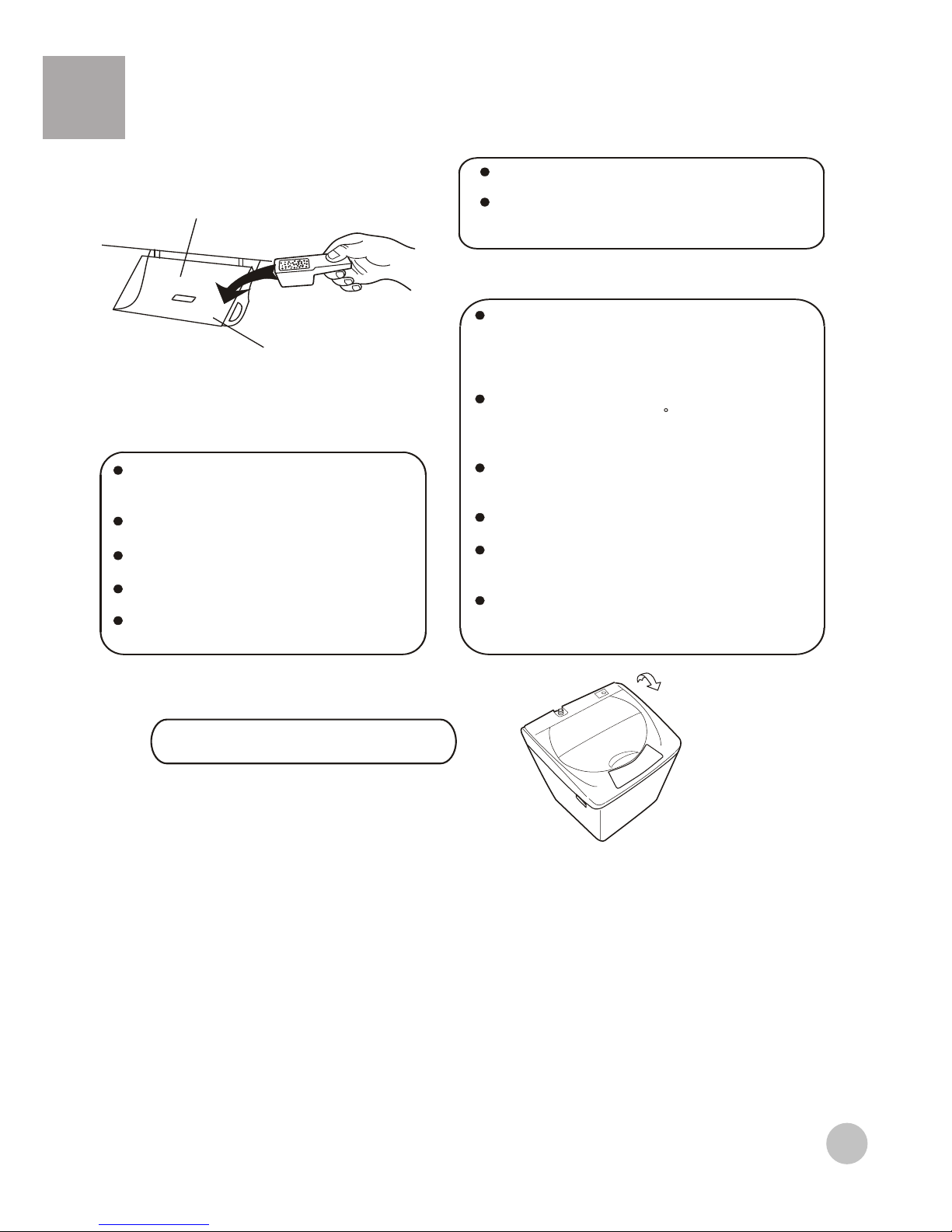

1 Preparation before washing
Pay attention to followings before washing the laundries
A. Check if the laundries are applicable for washing with the machine.
B. For those desrepaired laundries,wash after mending.
C. Seperate the laundries with unfast color from other laundries.
D. Put those laundries difficult to absorb water into water with hand.
E. For those laundries with heavy soil, please first remove the dirt like mud or dust. For the parts with heavy soil,
Please apply detergent in advance, which can make it easier to remove the soil.
F. For those laundries that may get lint ball and those with long fur, turn it over before putting in.
G. Do not put those laundries polluted by chemicals directly into the washing machine.
H. For those small laundries and those may get twisting or worn, and woolen/fur laundries, please put them into
Mesh bag for washing.
Confirm if there's
special requirement
for the laundries.
Clear the pocket.
Take out the coins,
sand, hairpins etc.
Fasten the buttons
and zippers.
The quantity of the
laundries shall not
exceed the rated value.
The big laundries like
the jeans shall be put
in loosely.
When the pulsator is
running, the buttons of
the laundries may cause
noise. For the sake of
discretion, please put
the laundries with
buttons into other
laundries.
18
