Telemetro TLF600 User manual

Laser Rangefinder
Operation Manual
0171012

- 1 -
Model Guide
X X X X - X
Measuring range
For example 600 means 5-600m,
900 means 5-900m,
1200 means 5-1200m,
1500 means 5-1500m
Function indication
P : Distance measuring
(single measuring and
continuously measuring
mode) 、Fog mode、
Pinseeker mode、speed
finder mode
H: Distance measuring
(single measuring mode) 、
Angle finder mode、Height
finde mode、Fog mode、
speed finder mode

- 2 -
FEATURE:
Laser type 905nm
Measuring range of distance Reference model
Measuring range of speed
0-300KM/h
Measuring range of angle
±60
°
Magnification 6X
Eye piece size 16mm
Exit pupil diameter
3.8mm
Range measurement precision
Average ±1m
Speed measurement precision
±5KM/h
Angle measurement precision ±1°
Net weight 172g
Dimensions
105x82x43mm
Operating temperatures
-10℃-40℃
Battery
AAA battery
INTRODUCTION:
The laser rangefinder is a portable optoelectronic device
that can be used to measure distance, angle, height and
speed. It has advantages such as high accuracy，quickly
measuring，low power consumption，especially It can
identifying small objects (such as flagsticks) from
background targets, like trees or bushes.

- 3 -
Measurement target：
Road signs Building Golf Flagpole Trees
★The rangefinder suitable for measuring high
Reflectivity of an object (such as street signs), moderate
reflectance(such as a building wall), and low reflectivity
objects (such as trees and golf flagpole, etc.).
LCD DISPLAY:

- 4 -

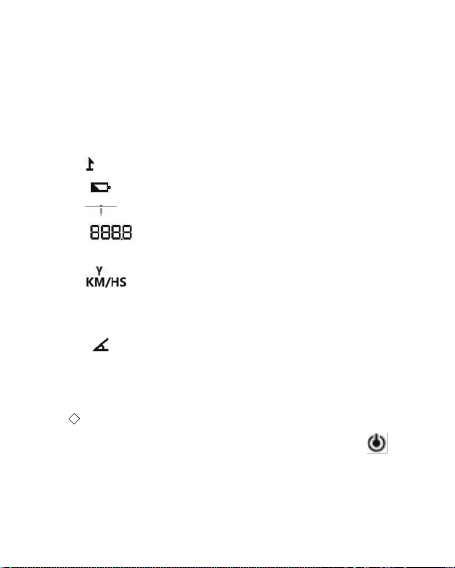

Screen Indication：
1.“Hgt” Height finder mode
2.“Scan” Continuousely measuring mode
3.“Fog” Fog mode
4“speed” Speed finder mode
5“ + Scan” Pin seeker mode
6.“ ” low battery indication
7.“ ” Target centre
8.“ ” Display numerical value, four dashes
“----” will appear without numercial value.
9.“ ” It shows “M” or “Y” in the distance
measuring mode and height finder mode, it shows
“KM/h” or “M/S” in the speed finder mode
10.“ ” Angle mark is displayed in the Angle
finder mode.
OPERATION INSTRUCTIONS:
◆Start
The rangefinder has two button: the power button
and the mode button “M”. Press power button shortly
and turn the power on. The LCD will display as shown
in the below figure.(distance measuring mde)

- 5 -
◆Adjust the focus
The range finder is designed with an adjustable eyepiece
(dioptre). By adjusting the focusing dioptre within a -5
to +5 range, people with far sighted vision can use laser
range finder without glasses. Looking through the
eyepiece,turn the dioptre left or right until the view is
focused with clarity to suit you.
◆Mode Selection
We produces kinds of laser rangefinders, each kind can
change modes by short press the button “M”. change
unit by long press “M” button, “M” or “Y” in the
distance measuring, “KM/h” or “M/S” in the speed.
◆“Distance measuring” mode

- 6 -

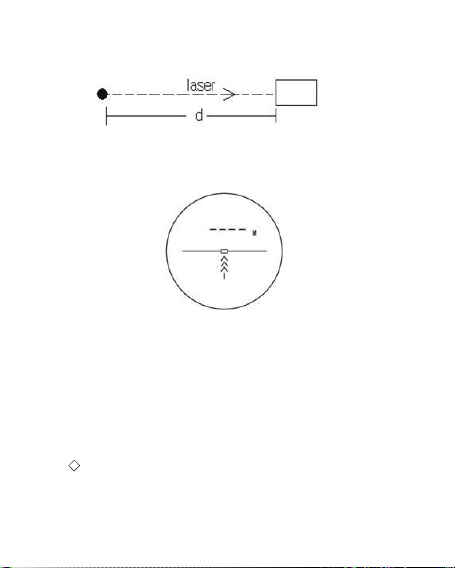

1. Function Principle:
d=ct/2
2. LCD display:
Model P: Press power button shortly, the distance value
will display, Long press power button, the“Scan” will
twinkle and continuously measuring value will display.
Model H: Press power button shortly, the distance value
will display.
◆“Pin seeker” mode
1. Function Principle:

- 7 -
In the pinseeker mode, the point D may be isolated from
a number of points in the background out and keep only
the distance d1 to the point. So as to achieve the
automatic locking flagpole distance. The other goals
were shielded behind the flagpole.
2. LCD display:
Model P: Press power button shortly, the distance value
will display, Long press power button, continuously

- 8 -
measuring around flagpole till the value is stable, this
value is the distance to flagpole.
Model H: it do not have this mode
◆“Fog” mode
1. Function Principle:
Because the fog will reflect the laser generating,so the
fog will not be able to measure distant targets.
Filter out the laser reflector fog errors caused by
distance (d1=30m), thus ensuring the long-distance
measurement range volume.
2. LCD display:

- 9 -
Model P and H: Press power button shortly, the distance
value will display base on fog
◆“Angle finder” mode
1.Function Priciple:
Adopt angle sensor to measure angle.
2. LCD display:

- 10 -
Model P: it do not have this mode
Model H: Press power button shortly, the distance value
and angle value will display rotational
◆“Height finder” mode
1.Function Priciple:
Adopt Pythagorean theorem to caculate the height.
2. LCD display:

- 11 -
Model P: it do not have this mode
Model H: Press power button shortly, the distance value
and height value will display rotational
◆“Speed” mode

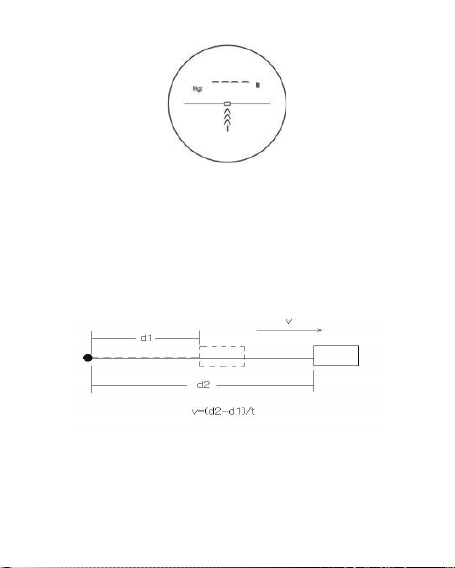

1. Function Principle:
For moving objects, ranging twice. Two distance
difference, divided by the time interval ranging sides,the
speed of moving objects can be obtained.
2.Velocimetry method：

- 12 -
3．LCD display:
Model P and H: Target the moving object and press
power button shortly, and keep on targeting the object
till the speed value display on the screen.
◆Low voltage alarm

- 13 -
When the battery voltage is too low, the low pattern has
been shown to remind replace the battery.
NOTICE:
●the measuring range of the rangefinder could be
influenced by the angle between the laser an
targets.generally speaking.the measuring range is better
when there is a smooth surface.bright color,big surface
of targets,and a bigger angle between the laser and the
target.
●users need to change to a new battery when
“”displays.A low battery can affect accuracy.if you
do not use the rangefinder for a long time,please take
the battery out.
●Do not touch the eyepiece directly,in order to avoid
damage.this device has been accurately aligned and

- 14 -
adjusted with precise equipment.Never disassemble it at
random.
●If the external lens is stained,please clean it with the
lens cloth.Do not use other materials when cleaning so
as to prevent the coating from being damaged.
●If the external lens is stained,please clean it with the
lens cloth.Do not use pther materials when cleaning so
as to prevent the coating from being damaged.
●Collision or high pressure should be avoided when
carrying about or operating.
●Keep the device in a dry,cool and airy place and avoid
dust,direct sunshine and extreme change of temperature.
●If there is a problem with the device,send it to a
professional department,and never disassemble it by
yourselves.
●Never transmit the laser towards sun or strong light,so
as to prevent the photosensitive element from damages.

- 14 -
adjusted with precise equipment.Never disassemble it at
random.
●If the external lens is stained,please clean it with the
lens cloth.Do not use other materials when cleaning so
as to prevent the coating from being damaged.
●If the external lens is stained,please clean it with the
lens cloth.Do not use pther materials when cleaning so
as to prevent the coating from being damaged.
●Collision or high pressure should be avoided when
carrying about or operating.
●Keep the device in a dry,cool and airy place and avoid
dust,direct sunshine and extreme change of temperature.
●If there is a problem with the device,send it to a
professional department,and never disassemble it by
yourselves.
●Never transmit the laser towards sun or strong light,so
as to prevent the photosensitive element from damages.

QC PASS
Warranty Card
(1).Within warranty,we shall deal with complaints based on faulty
equipment by repair,replacement of defective parts or replace an
identical flawless product at our discretion.
(2).Declarations:
Following conditions are NOT included in warranty:
ⅠOpen the equipment by tools without specifically permission
ⅡThe use of the equipment outside the state limits or improper
handing
ⅢThe use of non original accessories
ⅣServiced by unauthorized persons or workshops
ⅤObliterated Serial Number of equipment
(3).Warranty card must be provided and please present your invoice
when desired.
(4).Repairing and replacing equipments must comply with ‘
Conditional Of Warranty ’ of manufacture.
1.We guarantee ONE years warranty for laser distance meter.
2.Warranty begins from purchase date and it is subject to the
following conditions:
Model No.
Data of Purchase
Signature
- 15 -
