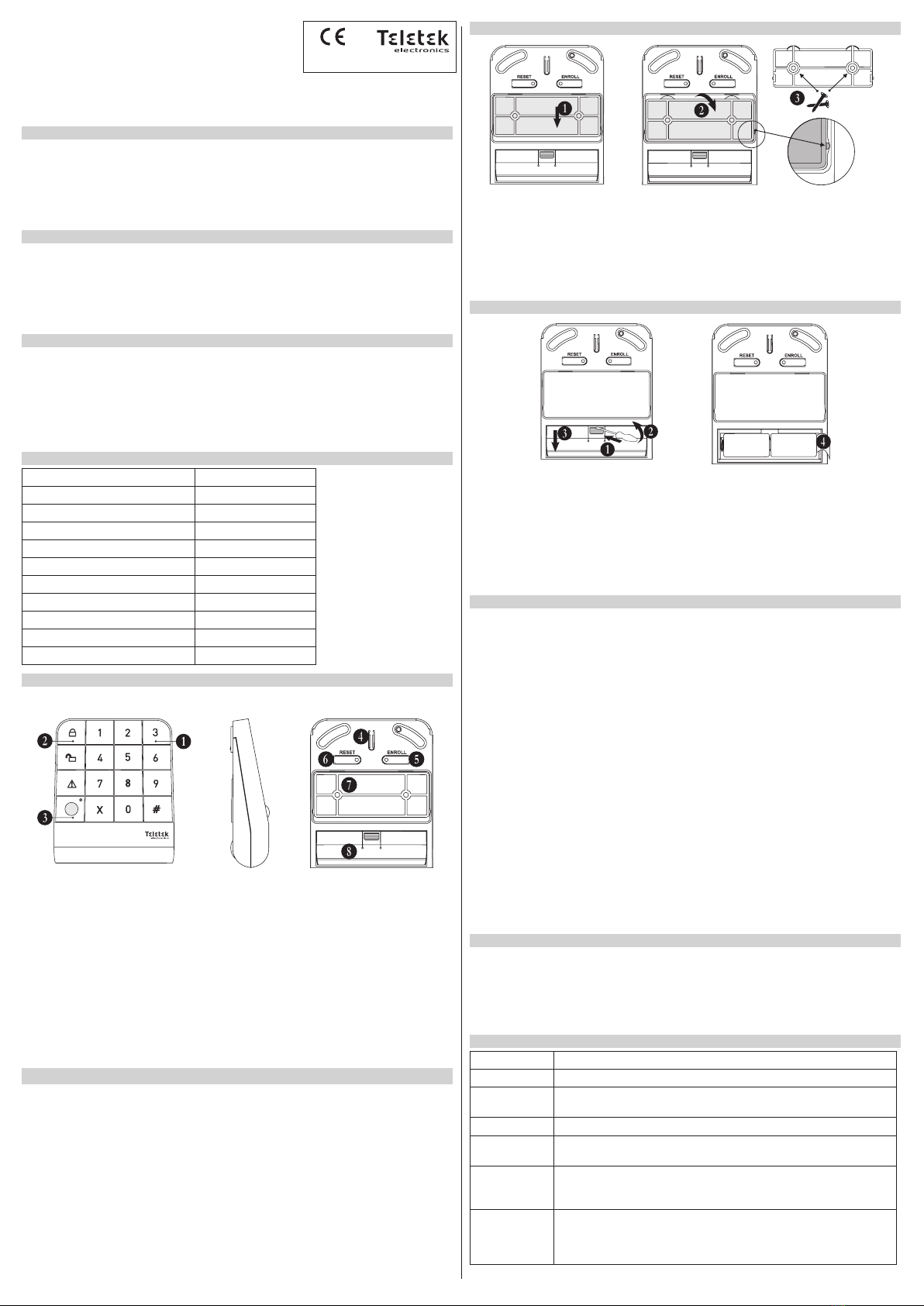

Teletek electronics BRAVO KBD User manual

BRAVO KBD
Wireless Control Keyboard
Installation and Operation User Manual
Attention! This manual contains information on limitations regarding
product use and function and information on the limitations as to liability of the
manufacturer. The entire manual should be carefully read!
General Description
BRAVO KBD is a wireless control LED keyboard for operation with BRAVO
panels. The keyboard is equipped with a wide-angle detection dual sensor for
automatic activation of the buttons backlight in case of movement in front of it.
The built-in light sensor detects the amount of ambient light in the room and
controls the keyboard backlight activation for improving the battery life and
conserve more energy.
Functional Features
• Arming (Full or Stay Arming Mode) and Disarming of the system
• LED indication for system status – armed, disarmed, technical trouble,
memory events
• Supports operation with up to 6 User codes and 1 Manager
• Built-in sensors for buttons backlight activation and ambient light
• Wall mounting bracket
Package contents
In the packing box of BRAVO KBD are included the following additional parts:
• 2 pcs anchors (ø6x30) and 2 pcs screws (3.5x30) suitable for mounting on
brick wall. Note: In case the device needs to be mounted on other type of
surface, it is required to use supporting elements that hold 900N downwards
force.
•2 pcs battery, type CR123A, placed into keyboard battery holder
• 1 pc mounting bracket (on the back of keyboard)
Technical Characteristics
Certied RED directive
Battery (type CR123A)* 2 х 3 V/ 1500mAh
Battery life ~1.5 years
Operation frequency ~868 MHz
Communication type Two-way
Radio distance (open space) Up to 400m
Indication type LED
Working temperature -20°C - +55°C
Mounting height 1.5 - 3.6 m (2.1 m)
Dimensions 102 x 84 x 25 mm
Weight (including batteries) ~140g
BRAVO KBD Elements
Front view Side view Rear view
1 - Operation buttons:
0-9 - Digit buttons for entering of user codes, address numbers, values
#- Enter into keyboard programming menus; conrmation of entered
codes or values
X- Cancel the operation; step back in programming menus; exit from
programming menus
2 - System status buttons and indication - see on the next page
3- Built-in sensors for buttons backlight activation and ambient light
4 - Tamper switch
5- ENROLL Button
6 - RESET Button
7- Mounting bracket
8- Battery compartment
Installation Instruction
IMPORTANT NOTES: The BRAVO KBD wireless keyboard should be
installed in a minimum distance of at least 2 meters far from other sources
of radio signals (power lines, Wi-Fi or Bluetooth routers, wireless telephone
stations, etc.)
The minimum distance between the BRAVO panel and enrolled BRAVO KBD
keyboard must be 1 meter to guarantee the proper operation of the system.
You should consider also that the presence of electromagnetic
disturbances may trigger the near eld sensor of BRAVO KBD and to
turn on the background lights of the device!
SAFETY PRECAUTIONS: Keep new and used batteries away from children!
If the battery compartment does not close securely, stop using the product and
keep it away from children’s reach. If swallowed, the coin-sized and other type
batteries can cause serious injuries and burns in just 2 hours. In case of any
doubt for swallowing of a battery, seek for medical help immediately!
Mounting Bracket
1- Slide down the mounting bracket to unlock the side pins.
2 - Pull up the bracket outside the rear back cover.
3 - Use the screws from the kit to mount the bracket on the place of
installation.
4 - When the enrollment of the keyboard is nished, place it to the bracket as
rst match the side pins into the holes and then pull down to lock.
Batteries Compartment
3V
(CR123A)
+-+-
3V
(CR123A)
1 - Use a at screw-driveр to press slightly the clip of the batteries
compartment.
2 - Pull up the screw-driver to open.
3 - Press the cover of the compartment downwards.
4 - Pull up the protective folio of the batteries to power up the keyboard and to
start enrollment to the system conguration.
5 - Close the batteries compartment.
Enrollment to the BRAVO System Conguration
The BRAVO panel supports operation with only one BRAVO KBD!
• Prepare the BRAVO KBD keyboard for enrollment to the system – remove
the cover of the batteries compartment and pull out the protection folio. Close
the cover. The system status indicators are blinking one-by-one in series – the
keyboard is ready to be enrolled.
• Enter in “Device enrollment” mode of the panel.
• The system enters in the menu for detectors enrollment. Press the
“Programming” button of the panel to move to the menu for key fobs
enrollment – this is the menu for enrolling the keyboard. The LED indicator
under the key-fob icon is lighting on and the position 1 is blinking. The
numbers of the free positions (with no key fobs enrolled) are lighting in green,
and those with already enrolled key fobs – in red. The currently selected
position number is blinking.
• Use the buttons with arrows to select a number of a free position – the
number is blinking in green.
• Press a random digit button or the ENROLL button on the rear cover of the
keyboard. The icon for arming starts blinking in red.
• The panel conrms the successful enrollment with a sound signal, and the
selected position number is blinking in red. The keyboard will also conrm
the enrollment with three short beeps and blinking of the icon for disarming in
green.
• After exit from “Device enrollment” mode, the keyboard is ready to use.
Resetting of BRAVO KBD
The resetting of a device is restoring of its default factory settings.
To reset the BRAVO KBD: With batteries on, press the “RESET” button on
rear cover for 3-5 seconds until you see 3 green blinks from the icon for
disarming. The system status indicators are blinking one-by-one in series –
the keyboard in not enrolled to the system.
Sound Signalization of BRAVO KBD
Sound Description
Button Single short beep indicating the pressing of a key.
Conrmation Three sound signals, indicating the system conrmation for
executed operation; entry/exit the programming menus.
Cancellation A single long beep, incorrect operation or rejection.
Entry time Continuous beep, indicating intrusion into an entrance zone
when the system is armed.
Exit time
Short beeps, indicating the system is armed and the user is
required to leave the entrance zone. Ten seconds before the
exit time is over beep frequency increases.
Technical
trouble
Two short beeps at every 20 sec, indicating a technical
trouble. To stop the signalization - press the ATTENTION
button on the BRAVO panel. You can disable the Trouble
Signalization of the keyboard at address 20.
* ATTENTION:
Use only Panasonic
batteries approved
by the manufacturer,
type CR123A 3V/
1500mAh! Use only
IEC 60086-4 tested
batteries!
EN50131-1
EN50131-3 Grade 2 Class II

Memory
event
“Alarm” melody in case of memory event presence, after
disarming the system.
Chime
Short beeps with subsequently increasing period, indicating
intrusion into an entry-exit type zone with an activated chime
option, when the system is disarmed.
Arming Two short sound signals indicating system ARMING followed
by the signalization for exit time.
Disarming Three short sound signals indicating system DISARMING.
Access Codes for Programming and Management
Type Code Functions
Engineer 7777
(default)
- Direct entry into “Device enrollment” mode.
- Changing own code.
- Keyboard settings.
Manager 0000
(default)
- Arming/Disarming the system.
- Setting, changing and deleting user access codes.
- Changing own code.
- Keyboard settings.
- Clearing the memory event indication.
User
(1-6)
-- Arming/Disarming the system.
- Changing own code.
- Keyboard settings.
- Clearing the memory event indication.
LED Indication for System Status
Icon Description Color State Description
Arming
button Red
Lights on System is Armed
Blinking - Enrolling to panel
- Entry in programming mode
Disarming
button Green
Lights on System is Disarmed
Blinking
- Conrmation for enrollment
- Entry at address in
programming mode
Warning
indicator
for troubles
and memory
events*
Yellow Lights on System is disarmed, trouble
event presence
Blinking Selected device (from the panel)
Red
Lights on System is armed/disarmed,
memory event presence
Blinking Disabled value in programming
mode; set user code at address
*Note: In case of presence of a technical trouble and a memory event at the
same time, the indication for memory event is with higher priority.
User Operation
Arming with a code
The user can perform Full or Stay Arming of BRAVO panel.
To perform Full arm, enter in sequence:
Manager or User code - - 1 - Exit time starts running
To perform Stay arm, enter in sequence:
Manager or User code - - 2 - Exit time starts running
Quick Arming without a code
The quick arming without a code is available when the option “Keyboard quick
Arm Buttons” is Enabled (via ProsTE software) for the BRAVO panel to which
the BRAVO KBD is enrolled.
To perform Quick Full arm, enter in sequence:
- 1 - Exit time starts running
To perform Stay arm, enter in sequence:
- 2 - Exit time starts running
Disarming
The disarming is performed with entering of valid Manager or User code.
Blocking the keyboard
In case of entering of three wrong (not valid) user codes in sequence,
conrmed with #, the keyboard will be blocked for operation for 90 seconds.
Sending of a panic alarm
In case of emergency situation, the User can activate a panic alarm, pressing
and holding for 3-5 sec the buttons combination (the panics type - silent or
audible - are set via ProsTE software):
1+3 – Police panic alarm (silent by default)
4+6 – Medical panic alarm (silent by default)
7+9 – Fire alarm panic alarm (audible)
The keyboard will conrm with three short sound signals.
Clear the indication for event memory
The presence of a memory for an alarm event is indicated with lighting on
red icon . The indication will stay active until the next arming, but can be
cleared manually after entry in memory events review menu on the BRAVO
panel and introducing a manager or user code:
Button on BRAVO panel - Manager or User code -
User Programming
Attention: The programming is accessible when the system is disarmed!
Address Description Default Rights
00 Changing own code. -
Engineer,
Manager,
Users
01 Set, change, delete User code 1. -
Manager
02 Set, change, delete User code 2. -
03 Set, change, delete User code 3. -
04 Set, change, delete User code 4. -
05 Set, change, delete User code 5. -
06 Set, change, delete User code 6. -
20 Enable/Disable Trouble Sounds
signalization of the keyboard. Enabled
Engineer,
Manager,
Users
21 Keyboard buzzer sound volume (1-9).
Set “0” to disable the sound volume. 5
22 Keyboard backlight intensity (1-9).
Set “0” to disable the backlight activation. 5
How to change own code
This setting is accessible for all type access codes: Engineer, Manager, User.
To change your own code, enter in sequence:
Code - # - 00 - + + are blinking – enter new code – #
For exit press “X” button.
How to set a new User code
This setting is accessible with Manager access code only. The presence of a
set code for a User is indicated with a blinking icon – see “How to change
a user code”.
To set a new code for User 1 (in the example), enter in sequence:
Manager code - # - 01 - + are blinking - enter code – #
For exit press “X” button.
How to change a user code
This setting is accessible with Manager access code only.
To change the code for User 1 (in the example), enter in sequence:
Manager code - # - 01 - + + are blinking – enter new code – #
For exit press “X” button.
How to delete a user code
This setting is accessible with Manager access code only.
To delete the code for User 1 (in the example), enter in sequence:
Manager code - # - 01 - + + are blinking – press and hold “0”
button to delete the code - 3 short beeps will conrm the operation
At next entry at address 01, only icons + are blinking, which means no
code combination for User 1 is set. For exit press “X” button.
How to disable Trouble Sounds signalization of BRAVO KBD
This setting is accessible for all type access codes: Engineer, Manager, User.
The Trouble sounds signalization from BRAVO KBD keyboard is Enabled by
default. The option is disabled when is indicated with a blinking icon at
address 20. To disable the Trouble sound signalization, enter in sequence:
Code - # - 20 - + are blinking - press any key -
+ + are blinking - #
For exit press “X” button.
How to change the buzzer sound level of BRAVO KBD
This setting is accessible for all type access codes: Engineer, Manager, User.
The buzzer sound level can be set in range from 1 (lowest) to 9 (the highest).
The buzzer sound can be entirely muted with setting 0 (no sound).
To change the buzzer sound level, enter in sequence:
Code - # - 21 - + are blinking – set sound level 1-9 - #
For exit press “X” button.
How to change the intensity backlight of buttons of BRAVO KBD
This setting is accessible for all type access codes: Engineer, Manager, User.
The backlight intensity of the digit buttons can be set in range from 1 (lowest)
to 9 (the highest). The backlight can be entirely turned o󰀨 with setting 0.
To change the intensity of the backlight of the buttons, enter in sequence:
Code - # - 22 - + are blinking - set intensity 1-9 - #
For exit press “X” button.
Direct entry into “Device enrollment” mode with BRAVO KBD
For direct entry into the “Device enrollment” mode of BRAVO panel, enter in
sequence:
Engineer code - # - the panel is in “Device enrollment” mode
For exit press “X” button of the keyboard.
Changing Batteries
It is recommended rst to bypass the keyboard from the panel. Then remove
the cover of the battery compartment and change the batteries with new ones.
After that de-bypass the keyboard from the panel. 18021103, RevA, 06/2021
