Tellur Dash Patrol DC3 User manual

Dash Patrol DC3 4K GPS
Dash Cam
User manual
TLL711003
This manual is available in more languages on www.tellur.com/manuals

Thank you for choosing Tellur!
Please read this user manual carefully before using the
product and keep it safe for future references.
Please note! Any damage caused by misuse of the product
will void the product’s warranty.

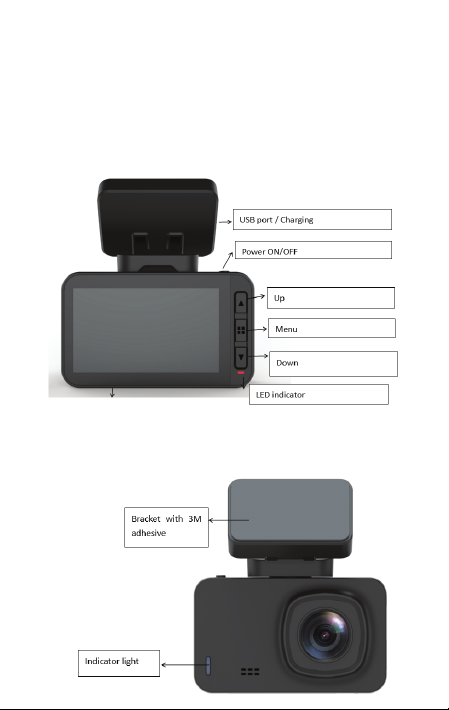

Product diagram

Power button/ OK Key
1. Long press (3 seconds) to power on/off or long press
(6 seconds or more) to force shutdown.
2. Press to play/stop playback
Up arrow/ WiFi button
1. Move up in the settings menu.
2. Short press up button(1 second) to turn WiFi on; Long
press up button (3 seconds) to turn WiFi off.
Down arrow/ audio button
1. Move down in the settings menu.
2. In the video interface, short press to turn on/off audio
recording
Menu button
1. While video is paused, short press M key for menu
function, long press video playback function
2. At the beginning of the recording, press M to lock the
current file.
3.In Menu interface, short press M button to go back to
previous page.

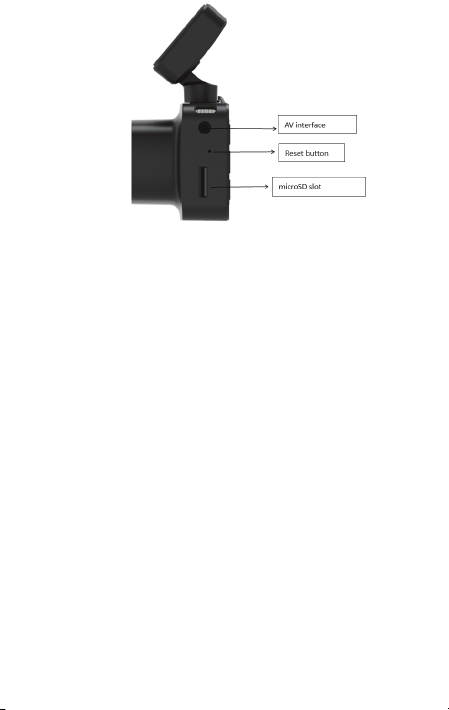

Reset Key
If the camera doesn’t work properly or can’t connect to WiFi,
press the reset key to restart the system.
MicroSD card interface
The camera supports one microSD card, up to 128GB（Class
10 or above)

Installation
1. Turn off the car engine.
2. Find a suitable position in the car. Camera’s position
should not affect driving. Wipe the windscreen where you
want to place the device. Install the bracket and hang the
recorder.
3. Adjust the lens position to ensure that it is level with the
ground.
4. Plug one end of the USB cable into the USB port of the
recorder and the other end connect to the USB port of the
car charger.
5. Start the car’s engine and check that the camera is
installed correctly.
Recording/ taking a photo
1. Recording mode
While the camera is in video mode, the video icon will be
displayed in the upper left corner of the screen and starts
to record. While recording, there is a red dot flashing on the
screen and, at this moment, you cannot operate the menu
or switch working mode. Press OK to stop recording.
2. Photo Mode
When in standby, long press M button to switch to photo
mode. The photo icon will be displayed in the upper left
corner of the screen. Press OK to take a picture. The screen
flashes once when taking a picture, indicating that the
photograph is taken. Press the menu key to set the photo
menu, and press M to switch to playback mode.
3. Video/ Photo playback
Long press M in photo mode to switch to playback mode.
The playback icon will be displayed in the upper left
corner of the screen.
Press Up button to select files above.

Short press Down button to select the files downward.
Short press OK to play the selected video file.
PressthemenukeytoentermenuSettings,whereyoucan
deleteorunlockfiles.
4. Menu Settings
Inany mode (recording, photo or playback), while in standby,
pressthemenubuttontoenterthemenu,andthenpressit
againtoswitchtotheSettingsmenu . By pressing the
up or down key, you can move up and down the Settings.
Select the Settings you want to change and enter the
changes by pressing OK. Press the menu key to exit the
menu interface.
Mobile APP Installation
Open App Store and search for “LuckyCam” or scan the
following QR code to download and install it:
After installation, opening the app which will prompt if you
allow “LuckyCam” to access Photo Files on your phone.
Click OK.
WiFi connection（only devices with WiFi support this feature）
There is a WiFi setting menu in the system Settings.
Select "on". When you connect it for the first time, you need
to enter the WiFi Settings of your phone and enter the
password.
No password is required to reconnect（or short press UP
button 1 second to open WiFi）
Android phones & IOS phones
Click WiFi Settings, enter the connection Settings interface,

and search the local WiFi name: eg: NVT-CARDV******，and
enter the password to connect. The local initial password is:
12345678.
Open the app. After successfully connecting the phone with
the dash cam, you can check the recordings via the app.

Video Preview
Aftertheapphas successfullyconnected totherecorder,
clickthe"folder"menuwhenthedash cam stops recording
and then clickthecorrespondingvideotoplaythecurrent
video（direct preview will have video progress buffer）
Video Download
Click icon，click the desired video from the list to
download, it will be downloaded automatically.
Download video is saved in your smartphone’s download
list.
Photo Preview
Click icon，it displays photos or video screen shots.
Tip
The video file playback on the phone is compressed. If you
want to watch the original HD video, please download it on
your phone and play it or insert the microSD card into the
computer to watch it.
GPS
GPS positioning track operation
When the GPS is connected, the display will show the GPS
icon in green.
Remark: The GPS icon is white before satellite positioning
and turns green after satellite positioning.
When the GPS successfully receives the location, video file
will be marked with corresponding coordinates (longitude or
latitude) and shows the driving speed of the car.
When you use the mobile
app to playback the
recordings, the video
files will played back
corresponding to the
GPS trajectory

BasicSettings
1. Video resolution: the default video resolution is 2560*1440
P30, you can choose from the menu between: 3840*2160 P30,
2560*1440 P30, 1920*1080 P60, 1920*1080 P30, select the
corresponding resolution and click ok to confirm the
resolution.
2.Loop video recording: the default loop recording is 3
minutes. Click the "loop recording" menu and choose
between Off/1 minute/ 3 minutes/ 5 minutes (if you select 3
minutes, video saved on the microSD card will be a 3 minutes
video).
3. G-sensor: The default setting is "medium", which
corresponds to the vibration sensitivity of the lock file.
4. Parking monitoring: The default setting is "off". If "on" is
selected, it will automatically shutdown after starting
recording by vibration for 15 seconds
5. Motion detection: Set "off" by default. If "on" is selected, it
will sense the movement of objects in front of it when the car
is stopped. The camera stops recording automatically after 10
seconds.
6. Audio recording: the default setting is "on". Turn on video
recording, select "off" to turn off audio recording.
7. Date label: the default setting is "on" to record videos with
the time and date displayed.
8. WiFi: The default is "off", select "on" or short press up
button to turn on the WiFi, which will connect to the mobile
app.
9. Date/time setting: The default time is East Second
District.select the menu to pop up the date and time,
manually adjust the current time and date, or connect to the
mobile app. Select time Settings from the Settings menu.
Click "auto sync" to set the current date and time.
10. Automatic shutdown: default setting is "off". You can
choose between 1 min/ 3 min/ 5 min.
If you select “off”, the recorder will not stop automatically
under the stopped state.

Select “1 minute” and the camera will automatically shut
down after 1 minute from the moment the car engine turned
off.
11. Backlight setting: the default is "3 minutes", click the
selection menu and select: off/ 1 minute/ 3 minutes/ 5
minutes.
If you select "off", the screen will be bright for a long period
of time.
Select "1 minute" to turn black the screen after 1 minute.
12. Language settings: the default language is "English".
There are many languages in the Settings menu.
13. Format: To format the memory card, click "OK" and it will
delete all data on the microSD card.
14. Default settings: select "ok" to restore factory settings.
15. WDR: The default setting is "On", if “Off” is selected, the
recording footage won’t be adjusted automatically.
16. Exposure: The default setting is "+0.0", you can choose to
change the exposure in Menu settings.
17. Timezone: The default setting is "GMT +2: 00", you can
choose to change the timezone: GMT ±12: 00.
18. Speed warning: The default setting is "100km/h", you can
choose to change it from Menu settings.
19. Speed Unit: The default setting is "MPH", you can choose
”KM/H”, “MPH” from Menu settings.
20. Gesture Photo: Default setting is "ON". It will take photo
and store the last 10 seconds video when it detects
movement directly under the camera.
Technical specifications
Usage: Automotive
Video resolution: 3840 x 2160 30fps / 2560 x 1440 30fps /
1920 x 1080 30fps or 60fps
Lens type: 7 Glass 1.6
Chipset & sensor: Novatek NTK96670 & Sony IMX 335
Field of view: 140°
Display: 2.45" Color IPS

*Supports automatic video on startup
*Supports loop, automatically overwrite the oldest videos, no loss of frame no
loss of seconds
*Supports vibration video automatic lock, when the collision exceeds the set
threshold automatically lock the current video and it will not be overwritten by
loop videos
*Supports smartphone, iPad and other devices to download, playback, one-click
format and other functions
Frame rate: Max 60fps (1920 x 1080)
Sensor resolution: 5 Mega Pixels
Photo resolution: 12 Mega Pixels
Video compression: 3840 x 2160 30fps H.265, others H.264
Video file type: MP4
Built in WiFi: Yes
GPS module: Included
Speed Display: Yes
Automatic recording: Yes
G-Sensor: Yes
Motion detection: Yes
Parking monitor: Yes
Loop Recording: Yes, 1 / 3 / 5 minutes
Storage support: Micro SD card, max 128GB, Class 10 (not
included)
Battery: 150 mAh
Battery authonomy: Up to 9 minutes
Power supply: Micro USB - 5V 2.1A
Mounting:Magnetic bracket
Bracket mounting: 3M adhesive
Working conditions: -10° - 60° C
Color: Black
Package includes:
-Dash Patrol Dashcam DC3
-Magnetic bracket
-MicroUSB cable
-Dual USB car charger
-User manual
Product dimensions: 72mm*36.3mm*43.8mm
Product weight: 94g
Disclaimer
Automobile data recorder is a recording instrument for
information related to images and sounds of vehicles on the
road.
Note: the dash cam should be at recording mode that video
can be recording.
Under the following situations, the image will be damaged or
lost:
1. While recording, if the memory card is pulled out, the last
video file will be damaged or lost.
2. Power outages while video recording will cause the last
video file to be damaged or lost.
3. During the video recording, the video file is damaged or lost
due to the destructive collision of the dash cam.
4. Heavy collisions during video recording may cause the
memory card loosen, which may damage the file or cause the
file lost.

*Supports automatic video on startup
*Supports loop, automatically overwrite the oldest videos, no loss of frame no
loss of seconds
*Supports vibration video automatic lock, when the collision exceeds the set
threshold automatically lock the current video and it will not be overwritten by
loop videos
*Supports smartphone, iPad and other devices to download, playback, one-click
format and other functions
Disposal and recycling information
The crossed-out wheeled-bin symbol on your product, battery,
literature or packaging reminds
you that all electronic products and batteries must be taken
to separate waste collection points at the end of their working
lives; they must not be disposed of in the normal waste
stream with household garbage.
It is the responsibility of the user to dispose of the equipment
using a designated collection point or service for separate
recycling of waste electrical and electronic equipment (WEEE)
and batteries according to local laws.
Proper collection and recycling of your equipment helps
ensure EEE waste is recycled in a manner that conserves
valuable materials and protects human health and the
environment, improper handling, accidental breakage,
damage, and/or improper recycling at the end of its life may
be harmful for health and environment.
Disclaimer
Automobile data recorder is a recording instrument for
information related to images and sounds of vehicles on the
road.
Note: the dash cam should be at recording mode that video
can be recording.
Under the following situations, the image will be damaged or
lost:
1. While recording, if the memory card is pulled out, the last
video file will be damaged or lost.
2. Power outages while video recording will cause the last
video file to be damaged or lost.
3. During the video recording, the video file is damaged or lost
due to the destructive collision of the dash cam.
4. Heavy collisions during video recording may cause the
memory card loosen, which may damage the file or cause the
file lost.
