Tellur TLL331071 User manual

Smart Indoor Camera
User Manual

Adhesive tape
USB cable Bracket
Power adapter
Smart
Indoor Camera
User manual
Screws
Pin
1
What's in the box
Consult the checklist below for all components.

Status light
Microphone
Speaker
Power
Reset
SD card slot RESET
SD
Description
Power
Status light
DC5V±10%
Red light solid on: the camera network is abnormal
Blinking red light: awaiting WiFi connecting
Blue light solid on: camera running correctly
Blinking blue light: currently connecting
Captures sounds for your video
Supports local SD Card storage (Max.128G)
Press and hold for 5 seconds with pin to reset the
device(if you have modified settings, they will return
to factory defaults)
Microphone
SD card slot
Reset
2

apply to the circle
Peel off the sticker
Install
1. Use the included mounting bracket to fix the camera
to a clean surface.
2. Or, stick the camera to an inclined surface with the
adhesive tape we provided.
3

Set up router
This device only supports 2.4GHz frequency band router, does not
support 5GHz frequency band router, please set the relevant
parameters of the router before WiFi configuration, WiFi passwords
do not include special characters such as ~!@#$%^&*(). When the
device is configured in WiFi, the mobile phone and device are as
close as to the router, which can speed up the configuration
of the device.
Connect
Download the Tellur Smart App for both iOS and Android OS.
Scan the QR code to download Tellur Smart App
Android
IOS
·Support
Download App(IOS&android)
4

5
• Once App is installed on your device and you have added your smart
device to your app you will be able to control it.

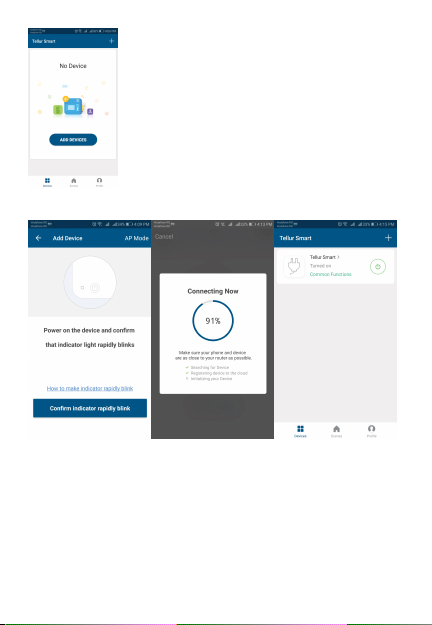

Adding a New Device
• Turn on power of device being paired and make
sure light is flashing quickly.

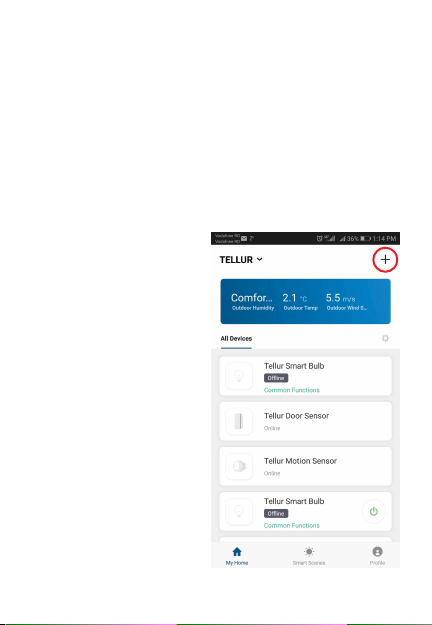

• Open App and Click “+” to add appropriatedevice.
• Select WiFi network and input password of WiFi
then.
• Once connected the App will prompt the
connection, then you can rename the device or
just click “done”.

6
QR Code Configuration
Getting started
1. Please follow the instructions and make sure the passwords
are inputed correctly.
2. One device can only be added with one App account, if the device
has been added with another account already, then it can
' t be
added to any another account again.
3.The device will be unbind from previous account after been deleted
from App. Further ,the device will be resetted automattically once
from blue light to red light.
Process

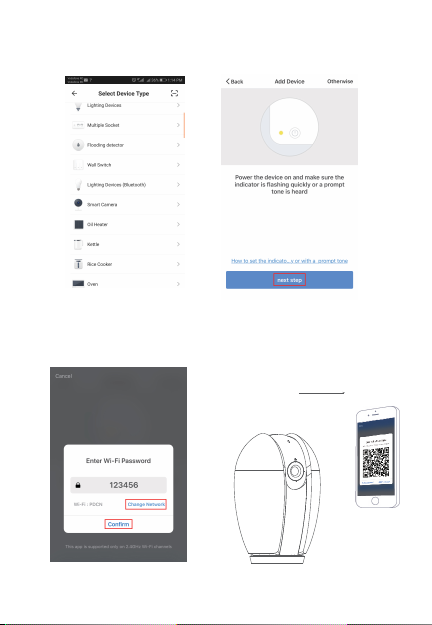

Step 1.
Open the Tellur Smart App,
click "+" or "Add Device".
Step 2.
Select "Smart Camera".
Power the device on and make
sure the indicator is flashing
quickly or a prompt tone is heard.

Step 3. Input WiFi passwords and click "Confirm", scan the QR Code
with a device. (You can change the network connection)
About 20cm
7

Step 4. Click "I heard the beep" when the device comes out "dong dong
dong". And you can complete the configuration about 30s.
Step 5. The device is added, and the device nickname can also be
changed in this interface.
8

Q: The device cannot be previewed properly?
A: Check whether the network is normal, you can place the camera
close to the router, and if not, it is recommended to reset the device
and add it again.
Q: Why is it still in the list of devices after reseting?
A: The reset device only resets the network configuration of the
camera, but cannot change the configuration on the App, remove
the camera, and must be deleted by the App.
Q: How to cut the camera network to another router?
A: First remove and reset the device on the App and then configure
the device again by the App.
Q: Why doesn't the device identify the SD card?
A: It is recommended to plug in SD card after power cut. Confirm
whether the SD card is normally available and the format is FAT32.
And the TF card can’t be identified when the internet environment
is not good.
Q: Why I can’t get the notifications with my cell phone App?
A: Please confirm that the App has been running on the phone, and
the relevant reminder function has been opened;Message
notification and authority confirmation in the mobile phone system
have been opened.
FAQ
9
