Tema Telecomunicazioni AA-02 Technical document

Revision Date Revision Reason Prepared Checked/Approved
2 30/10/2012 Update DP FL
MAS-AA-02-rev02EN Page 1 di 4
AA-02
Active audio adapter-mixer to interface
monitored units to audio recorder
TECHNICAL – INSTALLATION MANUAL
Made in Italy by TEMA TELECOMUNICAZIONI S.r.l.
Avvertenze
1. Use only original spare parts and consumables supplied by Tema Telecomunicazioni Srl for this equipment. The company shall
not be held responsible for any damage caused by the use of materials that they have not supplied.
2. The device has been carefully manufactured and tested. In any case, the product is not recommended for use in situations in
which incorrect operating may result in damage to persons and/or property.
3. We recommend that you carefully read all this manual before starting to use the device.
4. Do not expose the device to sunlight and protect it from sources of heat, dust, humidity and chemical agents.
5. This manual is the property of Tema Telecomunicazioni Srl and any duplication and reproduction, even partial, as well as
storage on any type of media is forbidden without written permission from Tema Telecomunicazioni Srl.
TEMA TELECOMUNICAZIONI S.r.l.
Telecommunications - Electronics

TEMA TELECOMUNICAZIONI SRL AA-02
MAS-AA-02-rev02EN Page 2 of 4
La sottoscritta società : TEMA TELECOMUNICAZIONI SRL
con sede in : Via C. Girardengo, 1/4 - 20161 MILANO
dichiara che il prodotto: Registratore Multicanale per Telecomunicazioni
Codici: TDR40/1, TDR40/2, TDR40/4,
TDR40/1B, TDR40/2B, TDR40/4B, TDR40/22B,
TDR40H/1, TDR40H/2, TDR40H/4,
TDR40H/1B, TDR40H/2B, TDR40H/4B, TDR40H/22B,
AA-01, AA-02
è stato costruito in conformità alle seguenti normative:
SICUREZZA EN 60950-1 + A11 + A1 + A12
EMC EN 55022
EN 55024
EN 61000-3-2 + A1 + A2
EN 61000-3-3
TERMINALE DI ES 203 021 – Access and Terminals (AT); Harmonized basic
TELECOMUNICAZIONE attachement requirements for Terminals for connection to analogue
interfaces of the Telephone Networks; Update of the technical
contents of TBR 021, EN 301 437, TBR 015, TBR 017
TERMINALE DI TBR 3 - Integrated Services Digital Network (ISDN); Attachment
TELECOMUNICAZIONE requirements for terminal equipment to connect to an ISDN using
ISDN basic access.
Inoltre il prodotto sopra menzionato soddisfa i requisiti essenziali delle seguenti direttive:
• Direttiva LVD 73/23/EEC (Low Voltage Directive)
• Direttiva EMC 89/336/EEC – 92/31/ECC
• Direttiva 99/05/EC per apparati di Radio e Telecomunicazioni
MILANO, 30 Ottobre 2012 TEMA TELECOMUNICAZIONI SRL
Duilio Pontillo
DICHIARAZIONE DI CONFORMITÀ CE
DECLARATION OF CONFORMITY CE

TEMA TELECOMUNICAZIONI SRL AA-02
MAS-AA-02-rev02EN Page 3 of 4
I. IMPORTANT INFORMATIONS REGARDING THE RECOVERY AND RECYCLING OF THIS
ELECTRONIC DEVICE
The crossed-out wheeled bin symbol below indicates that this electronic equipment is intended to be
disposed in a separate collection and not in an unsorted municipal waste, in order to provide for the
treatment of WEEE (Waste Electrical and Electronic Equipment) using best available recovery and recycling
techniques.
Specific treatment for WEEE is indispensable in order to avoid the dispersion of pollutants and other
hazardous substances into the waste stream, while recycling leads to reduction of disposal of waste and the
negative impacts on environment and human health. That is, priority is given to reuse of WEEE in its
components, subassemblies and consumables.
As the final holder, the user has an important role in contributing to reuse, recycling and other forms of
recovery of WEEE and is responsible to return this waste in the collection facilities set up by EC Member
States and to fulfill other duties in compliance with Directive 2002/96/EC and local laws.

TEMA TELECOMUNICAZIONI SRL AA-02
MAS-AA-02-rev02EN Page 4 of 4
AA-02 ADAPTOR ACCESORY
The AA-02 adapter is thought to be interposed between the
telephone and the original handset of the phone. Once
connected, it restores the correct connections to allow
operation in a totally transparent way for the user of the
device. It must be powered by a mains adapter supplied with
the device. The voice is available on a screw terminal from
which must be taken and brought to the recording system.
The installation of the device does not affect the ability to
perform routine maintenance of the appliance components
as all the parts in question connected with practical
telephone plugs. AA-02 is used on telephones where there is
no "return" of the voice from the microphone to the receiver
of the handset. In fact, not presenting the “local” effect on
the recorder, would be recorded only the voice of the other
party and not the person who is speaking using the device
under surveillance.

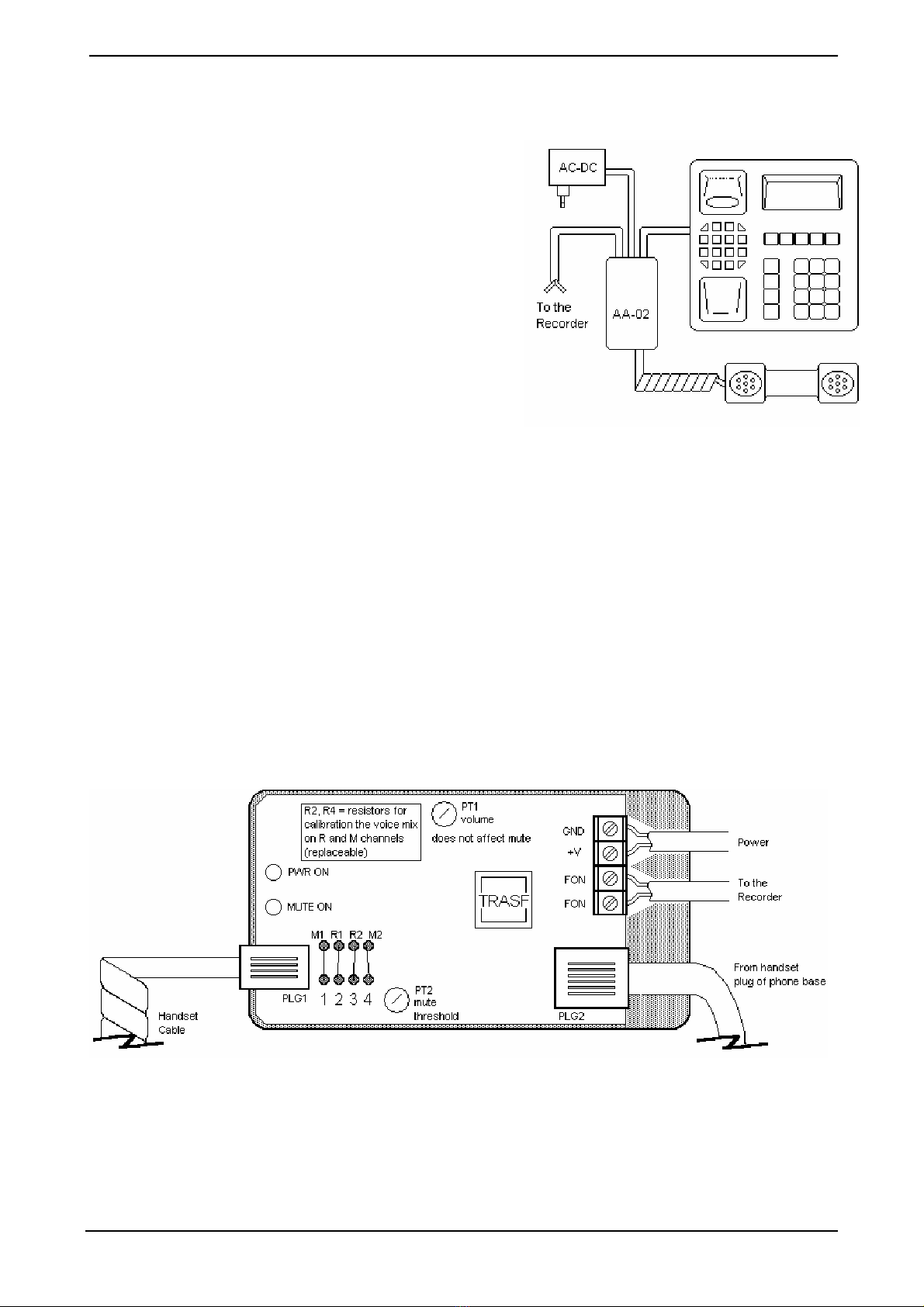

CONNECTION DETAILS
The device has two separate inputs. Two wires marked R1-R2 are the first input, two other wires marked
M1-M2 are the second input. The phone plugs PLG1 and PLG2 are connected directly to each other to
restore the connection of the handset. To collect the signals (one from the microphone, and one from the
headset), it is required that for example M1 and M2 are to be connected to the two wires that connect the
microphone in the handset while R1 and R2 are to be connected on the remaining two wires that connect the
receiving capsule on the handset. If these wires are known, for example, we know that the headset is on the
two external contacts of the handset cord, we will connect the two jumpers R1 and R2 on the points marked
1 and 4. Bearing in mind that each device has a particular connection and may be different from model to
model, the association of the inputs to the correct wires is obtained by inserting the strips of points R1, R2,
M1, M2 in points 1, 2, 3, 4 which are in practice the signals of the cable that connects the telephone handset.
For another phone model, you may need to prepare the strips in a completely different way. After connecting
the device as shown, you must test it. Make a phone call to see if the voice of telephone headset and
microphone of the handset comes and is properly recorded on the recorder channel. Our party will have to
confirm that our speech is of the usual quality after installing the device. If not, it could means that the circuit
is taking the voice from wrong wires.
Note The circuit is also suitable for mixing a microphone source and a monitor loudspeaker source (for
example a half-duplex radio station, always opened radio channels, etc.). In this case, for the connection,
use only one of two plug input indistinctly.
