Tempsens CALsys 37BB User manual

Calsys 37BB
1 | P a g e

CALsys 37BB
2 | P a g e
Legal Disclaimer
The information contained in this document is the property of TEMPSENS.
TEMSPENS reserves the right to make changes to this document and to the product described herein
without notice. Before installing and using the product, review the latest version of the applicable
documentation, which are available from the Tempsens website at:
http://www.tempsens.com/
© 2021 Tempsens Instrument Pvt. Ltd. All Rights Reserved.
Document Information
NAME
CALsys 37BB Portable Black Body Calibrator User Manual
DOCUMENT VERSION
1.0
DOCUMENT CODE
TS.CS.003
PUBLISH DATE
Monday, January 3, 2022

CALsys 37BB
3 | P a g e
Table of Contents
Preface................................................................................................................................................ 5
Safety Information................................................................................................................................................... 5
Electrical Safety ....................................................................................................................................................... 6
Health and Safety Instructions ................................................................................................................................. 7
Cautions and Preventions......................................................................................................................................... 8
Document Conventions ............................................................................................................................................ 8
Chapter 1 ......................................................................................................................................................9
Introduction...................................................................................................................................... 10
About CALsys 37BB .................................................................................................................................................. 9
Basic Working Model of CALsys 37BB......................................................................................................................10
Wiring Diagram ......................................................................................................................................................11
Technical Specifications ..........................................................................................................................................12
Chapter 2 ....................................................................................................................................................13
Setting Up CALsys 37BB .................................................................................................................... 13
Installation .............................................................................................................................................................13
Optimal Environmental Conditions..........................................................................................................................13
Unpacking and Initial Inspection .............................................................................................................................14
Operating Instructions ............................................................................................................................................15
initial testing……………………………………………………………………………………………………………………………………………………………15
Chapter 3…………………………………………………………………………………………………………………………………..17
Optics…………………………………………………………………………………………………………………………………………17
Distance of pyrometer from object…………………………………………………………………………………………………………………………..19
Viewing Angles………………………………………………………………………………………………………………………………………………………...20

CALsys 37BB
4 | P a g e
Chapter 4.................................................................................................................................................... 21
Operating CALsys 37BB......................................................................................................................21
Turning On the Unit ................................................................................................................................................21
Heating Up the Source ............................................................................................................................................21
Operating Instructions ............................................................................................................................................22
Cooling Down the Source .......................................................................................................................................23
Chapter 5.................................................................................................................................................... 24
Operating Unit Controller ..................................................................................................................24
Front Panel layout of controller...............................................................................................................................24
The Temperature Controller....................................................................................................................................24
Altering the Set point..............................................................................................................................................24
Monitoring the Controller Status.............................................................................................................................25
Temperature Units..................................................................................................................................................25
Chapter 6.................................................................................................................................................... 27
Maintenance & Trouble Shooting......................................................................................................27
Maintenance……………………………………………………………………………………………………………………………………………27
Unit fails to operate………………………………………………………………………………………………………………………………….27
Unit Unstable……………………………………………………………………………………………………………………………………………27
if temperature not rising……………………………………………………………………………………………………………………….....28
Appendix A: Calibration Services .......................................................................................................31
In House Calibration Facility.....................................................................................................................................31
On-site Calibration Facility .......................................................................................................................................32
Fixed-point Calibration Facilities ..............................................................................................................................32
Thermography Services............................................................................................................................................33
Appendix A: Warranty .......................................................................................................................35
Limit of Liability .......................................................................................................................................................35
Caution in Using the Product....................................................................................................................................35

Calsys 37BB
5 | P a g e
Preface
Welcome to the Calsys 37BB Portable Black Body Calibrator user guide. This guide provides detailed
information about all the product options and features, and explains how to use the product and
configure basic settings to suit your requirements.
This user manual contains information about the product and its proper use and should be kept in a
place where it will be easy to access. This user manual also provides safety precautions in using this
product.
Safety Information
This chapter contains important information for the safety. If the instructions contained are not
followed properly, particularly the safety guidelines, it could result in serious personal injury or can
cause serious damage to the unit and to the components of system it is connected to. Use the
instrument only as specified in this manual. Otherwise, the protection provided by the instrument
may be impaired. Refer to the safety information below and throughout the manual.
In order to assure the device operates safely, the operator needs to act effectively and be conscious
of safety problems.
The terms “Warning” and “Caution” have the following definition:
• "Warning" indicates conditions or behaviors that could endanger the user.
• "Caution" denotes situations or behaviors that may endanger the instrument in use.
The following safety symbols may appear on CALsys 37BB unit:
SYMBOL
DESCRIPTION
SYMBOL
DESCRIPTION
Risk of Danger. Important information.
See Manual
Hazardous voltage. Risk of electric shock
Caution, Hot Surface
Protective Earth Ground

CALsys 37BB
6 | P a g e
Personnel with relevant qualifications:
Personnel in charge of the device's installation, operation, and maintenance must have applicable
qualifications. This can be based on applicable training or tuition. The workers must be aware of and
have access to the operating handbook at all times.
Electrical Safety
WARNING:
Before using this equipment, make sure it is properly grounded. Make sure the ground conductor
wire (colored green/yellow) in the main power cable is connected to a protective earth/ground. If
the equipment is not properly grounded, the high voltage may flow through the equipment body
(chassis). If safety procedures are not followed, SEVERE INJURY OR DEATH may occur.
Do not remove the panels from the equipment without proper safety measures to avoid
internal main power supply voltage hazard.
Follow these precautions to avoid electric shock or personal injury:
This equipment uses protective earth circuit to ensure that the conductive parts do not store electric
charges or conduct electricity if insulation fails.
Before connecting the equipment to the electricity supply, understand the parts of the calibrator
with the help of operating manual.
Use power cables only with appropriate voltage and power rating, and that are approved for usage
in your country.
Replace the main power cable if the insulation is damaged, or if the insulation shows signs of wear
and tear.
DO NOT put the product at the location where access to the main power is blocked.
DO NOT use an extension cord or adapter plug.
DO NOT use the product if it operates incorrectly.
Make sure the power cord does not touch the hot parts of the product.

CALsys 37BB
7 | P a g e
Health and Safety Instructions
WARNING: BURN HAZARD - DO NOT touch the well access surface of the unit at high
temperature
To avoid possible health and safety concerns, follow these guidelines.
Wear appropriate protective clothing before using the equipment.
Operators of this equipment should be adequately trained in the handling of hot and cold items and
liquids.
Do not use the apparatus for jobs other than those for which it was designed, that is, the calibration
of thermometers.
Do not handle the apparatus when it is hot (or cold), without wearing the appropriate protective
clothing and having the necessary training.
Do not drill, modify or otherwise change the shape of the apparatus.
Do not use the apparatus outside its recommended temperature range.
After use, do not return the apparatus to its carrying case until the unit has cooled down.
There are no user serviceable parts inside. When required, contact Tempsens agent for repair.
Ensure all materials, especially flammable materials are kept away from the hot parts of the
apparatus, to prevent fire risk.
Do not use the product around explosive gas, vapor, or in damp or wet environments.
Make sure that the space around the product meets minimum space requirements.
The top sheet metal of the furnace may exhibit extreme temperatures for areas close to the well
access.
Materials used in this furnace may be irritating to skin, eyes, and respiratory tract. Consult the
material manufacturer’s Material Safety Data Sheet (MSDS) to learn about those materials before
using.

CALsys 37BB
8 | P a g e
Cautions and Preventions
To avoid possible damage to the instrument, follow these guidelines:
Before working inside the equipment, turn the power off and disconnect the power cord.
DO NOT turn the unit upside down with the inserts in place; the inserts will fall out of the unit.
Use of this instrument at HIGH TEMPERATURES for extended periods of time requires caution.
Completely unattended high temperature operation is not recommended for safety reasons.
DO NOT plug the unit into 230 V if the heater switches and fuse holder reads 115 V. This action will
cause the fuses to blow and may damage the instrument.
Components and heater lifetime can be shortened by continuous high temperature operation.
DO NOT use fluids to clean out the well.
Never introduce foreign material into the probe hole of the insert. Fluids and other materials can leak
into the calibrator causing damage.
DO NOT drop or force the probe stems into the well. This type of action can cause a shock to the
sensor and affect the calibration.
Document Conventions
The documentation uses the following conventions.
Note:
Configuration notes
Tip:
Recommendations or suggestions
Important:
Information regarding required or default configuration settings and product limitations
WARNING:
Critical actions and configuration options
WARNING:

CALsys 37BB
9 | P a g e
Chapter 1
Introduction
About CALsys 37BB
The ‘CALsys 37BB’ has been designed to provide stable and accurate temperature source for on-site
and laboratory calibration of radiation thermometers by comparison method up to a temperature
range 50°C.
The ‘CALsys 37BB’ model has been designed in single part. This model provides an isothermal
enclosure in which the non contact pyrometers can be checked against the temperature of the
calibration black body. For traceable calibration a master pyrometer should be used. The unit's
features emissivity of 0.98 thus offering the closest approximation of a target surface that is a perfect
emitter of infrared energy. This model is suitable for onsite and the laboratory use for stable
temperature readings.
The ‘CALsys’ models are part of wide range of portable calibrators designed and made by us. Please
contact us in case you required more information about our other products.

CALsys 37BB
10 | P a g e
Basic Working Model of CALsys 37BB
‘CALsys 37BB is a transportable, self contained unit designed for use on any reasonable flat surface.
The target is a ridged aluminum plate which is painted by a high emissive paint .The target is heated
by Si Rubber heater which allows the source to heat up to 50°C in about 15 minutes and holds it
stable at temperature within ±0.04°C. The heater blockhouses consists a heater & the controller
sensor. The temperature controller to sense the block temperature uses this sensor. To obtain the
maintain a required temperature the controller varies the power to the heaters via a solid-state relay.

CALsys 37BB
11 | P a g e
Wiring Diagram:

CALsys 37BB
12 | P a g e
Technical Specification
PARAMETER
SPECIFICATION
Voltage
230 V AC±10
Power
100 W
Supply Frequency
50/60 Hz
Temperature Range
Ambient +5 oC to 50 oC
Resolution
0.01 °C
Stability
±0.04 oC at 37 oC
Controlling sensor
RTD
Time to reach max. temperature
10 to 15 min
Operating temperature
20 to 40 oC
Controller Specifications
Self tuned PID controller
Stabilization time
20 to 25 min.
Emissivity
0.98(±0.01)
Computer interface
RS-232
Dimensions
110 (H)x 110(W)x137(D) mm
Weight
Approx 3 kg

CALsys 37BB
13 | P a g e
Chapter 2
Setting up CALsys 37BB
Installation
Place the black body on a flat surface with at least 10 inches of free space around the instrument.
Overhead clearance is required.
DO NOT Place this unit under a cabinet or structure. Plug the power cord into a grounded mains
outlet located on the controlling unit rear panel. Observe that the nominal voltage corresponds to
that indicated in the technical specifications in the user’s guide.
Optimal Environmental Conditions
Although the instrument has been designed for optimum durability and trouble-free operation, it
must be handled with care. The instrument should not be operated in an excessively dusty or dirty
environment. Maintenance and cleaning recommendations can be found in the Maintenance Section
of this manual.
The instrument operates safely under the following conditions:
Temperature range: 5 - 50°C (41 - 122°F)
Ambient relative humidity: 15 - 50%
Pressure: 75kPa - 106kPa
Mains voltage within ± 10% of nominal
Vibrations in the calibration environment should be minimized
Altitude less than 2000 meters

CALsys 37BB
14 | P a g e
Unpacking and Initial Inspection:
Our packing department uses custom designed packaging to send out your unit. You are advised,
after unpacking the unit, to inspect it for any sign of damage, and confirm that your delivery is in
accordance with the packing note. Unpack the Furnace carefully and inspect. If you find any damage
or any item is missing notify us or our agent.

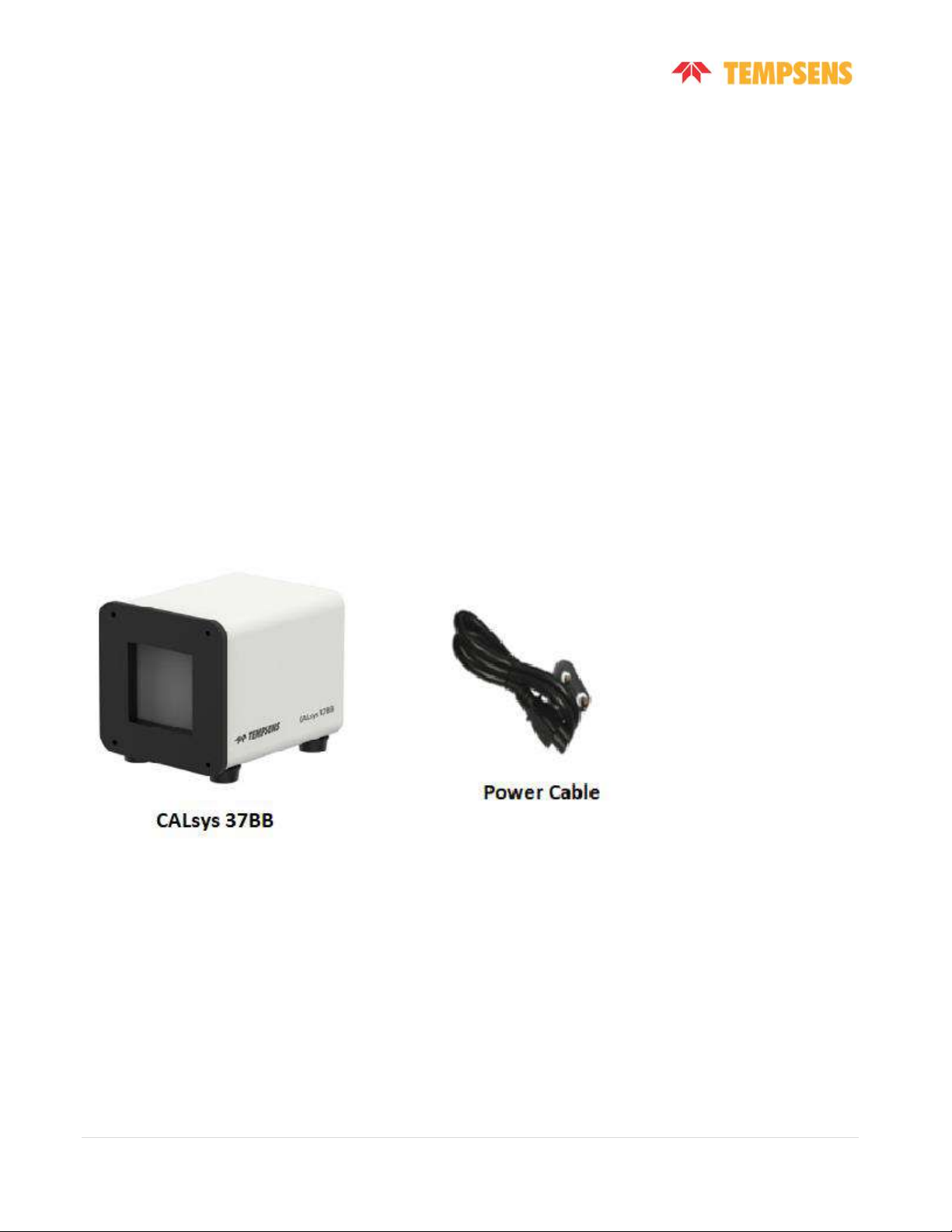

After unpacking you will find the following accessories.
CALsys 37BB…………………..........................1 No
Power cord ……………………………………………1 No
Manual
Certificates

CALsys 37BB
15 | P a g e
Operating Instructions
1. Open the carrying case carefully and takeout the operating manual from the box and read
carefully.
2. Take out the Black Body Temperature Calibrator unit carefully and keep it at suitable place.
3. Connect the power cable to the rear power entry and the power plug to the main power outlet.
4. Turn the switch on, and observe the display on the controller. The display shows that the bath is
ready for use.
5. Keep the switch in the ON position.
Note:
The unit must be correctly connected to the electricity supply.
The unit must be correctly grounded.
The unit’s ON/OFF switch is located on the power inlet. DO NOT switch OFF the unit when it is hot.
Keep the unit running until cooled.
Initial Testing
This unit is fully tested before dispatching. However, verify its operation as follows:
1. After connecting the CALsys 37BB to the electricity supply, the temperature controller display
should show the temperature of the Black Body, and the last set-point value.
2. Change the set-point to 37°C and observe that the block temperature rises and settles to this
value.
3. If the unit performs as expected, the unit can now be used for calibration.
If any problems or faults arise during the test, contact Tempsens immediately for help and advice.

CALsys 37BB
16 | P a g e
This page is intentionally left blank.

CALsys 37BB
17 | P a g e
Chapter 3
Optics
The pyrometer measures the temperature by receiving heat radiation from the object whose
temperature has to be measured. This heat radiation is passed through the lens sensor and then
converted to an electrical signal. The farther the measured object is from the pyrometer, the larger
the area that will be measured by the pyrometer. Depending on customer need, the pyrometer is
designed with fixed optics.
Table 1: Some fixed optics focus is as below
Spot Sizes(mm)
Manufactured
working
distances WD
(mm)
A250
210°C - 1350°C
(50:1)
A250
250°C - 1800°C
(100:1)
A250
300°C - 2500°C
350°C - 3000°C
(200:1)
A450
600°C - 2500°C
(200:1)
350
7
3.5
1.75
1.75
700
10
5
2.5
2.5
500
14
7
3.5
3.5
800
16
8
4
4
1000
20
10
5
5
1500
30
15
7.5
7.5
2000
40
20
10
10
2500
50
25
12.5
12.5
3000
60
30
15
15
5000
100
50
25
25

CALsys 37BB
18 | P a g e
Aperture(A)
11
11
11 (300 - 2500°C)
4 (350 - 3000°C)
12(600 - 2500°C)
Manufactured working distance is mention on pyrometer.
If the pyrometer is not installed at manufactured working distance (WD) then spot size at actual
installed distance should be calculated. For example, if factory made working distance is 500 mm &
pyrometer is AST A250 (250 - 1800°C) then spot size is 5mm (as given in table). If user installed this
pyrometer at 1000mm then spot size is not 10mm (as given in table), user should have to calculate as
given below method.

CALsys 37BB
19 | P a g e
Case-I: If installed working distance is greater than manufactured working distance
Case-II: If installed working distance is smaller than manufactured working distance
Where, S = manufactured spot size of pyrometer(mm), A = It shows the value of lens opening
(aperture in mm)
Distance of pyrometer from object
The desired spot size on the target will determine the maximum measurement distance and the focal
length of the optical module. To avoid wrong readings the spot size of target must contain entire field
view of the pyrometer. The pyrometer must be mounted so the entire field of view is the same or
smaller than the desired target size. This is indicated in the below diagram.

CALsys 37BB
20 | P a g e
Viewing Angles
The pyrometer can be placed at any angle from the target object up to 30°. Indicated in the below
diagram.
